Stabilization of Pd3?xIn1+x Polymorphs with Pd-like Crystal Structure and their Superior Performance as Catalysts for Semi-Hydrogenation of Alkynes

Article abstract of DOI:10.1002/cctc.201900391

Selective hydrogenation (semi-hydrogenation) reactions of alkynes rely on Pd-based catalysts to provide the correct pathway to favour formation of double bonds and avoid full hydrogenation to single bonds. Here, we present the preparation and characterisation of “Pd₃In”/TiO₂ nanocatalysts, which show improved activity and selectivity compared to pure Pd catalysts, towards the liquid phase semi-hydrogenation of 2-methyl-3-butyn-2-ol (MBY) to 2-methyl-3-buten-2-ol (MBE), a fundamental step in the preparation of pharmaceuticals, and other industrially produced substances, as well as a model reaction for the semi-hydrogenation of alkynes. For both the supported and unsupported “Pd₃In” alloys (later re-defined as Pd_3?xIn_1+x), we stabilised two new cubic polymorphs with a Pd-like structure, instead of the tetragonal structure as reported so far in the literature. The stabilisation of these new polymorphs was made possible by using a solution-based synthesis and, thanks to the use of different solvents, the reaction was carried out at different temperatures and the Pd/In ratio could be tuned. The same synthetic approach was adapted to prepare two “Pd₃In”/TiO₂ catalysts by adding the TiO₂ support to the reaction mixture, in a practical one-step, one-pot reaction. HREM and X-Ray maps show that the cubic crystal structure of “Pd₃In” is maintained when prepared in the presence of the support, however, the support seems to influence the Pd/In ratio.

Full text of DOI:10.1002/cctc.201900391

Accepted Article
Title: Stabilization of Pd3−xIn1+x Polymorphs with Pd-like Crystal
Structure and their Superior Performance as Catalysts for Semi-
Hydrogenation of Alkynes
Authors: Shaun Kegan Johnston, Thomas A. Bryant, Jonathan
Strong, Laura Lazzarini, Alex O. Ibhadon, and Maria Grazia
Francesconi
This manuscript has been accepted after peer review and appears as an
Accepted Article online prior to editing, proofing, and formal publication
of the final Version of Record (VoR). This work is currently citable by
using the Digital Object Identifier (DOI) given below. The VoR will be
published online in Early View as soon as possible and may be different
to this Accepted Article as a result of editing. Readers should obtain
the VoR from the journal website shown below when it is published
to ensure accuracy of information. The authors are responsible for the
content of this Accepted Article.
To be cited as: ChemCatChem 10.1002/cctc.201900391
Link to VoR: http://dx.doi.org/10.1002/cctc.201900391
A Journal of
www.chemcatchem.org

ChemCatChem
10.1002/cctc.201900391
Stabilization of Pd3−xIn1+x Polymorphs with Pd-like Crystal Structure and
their Superior Performance as Catalysts for Semi-Hydrogenation of Alkynes
a
b
a
c
d
Shaun K. Johnston, Thomas A. Bryant, Jonathan Strong, Laura Lazzarini, Alex O. Ibhadon *
and M. Grazia Francesconia*
a
Department of Chemistry, University of Hull, Hull, HU6 7RX, UK.
b
European Bioenergy Research Institute, Aston University, B4 7ET, UK.
c
IMEM-CNR Parco Area delle Scienze 37/A, 43124 Parma, Italy.
d
School of Engineering and Computer Science – Chemical Engineering, University of Hull, Hull, HU6 7RX, UK
Abstract
Selective hydrogenation (semi-hydrogenation) reactions of alkynes rely on Pd-based catalysts to
provide the correct pathway to favour formation of double bonds and avoid full hydrogenation
to single bonds. Here, we present the preparation and characterisation of “Pd
3
In”/TiO
2
nanocatalysts, which show improved activity and selectivity compared to pure Pd catalysts,
towards the liquid phase semi-hydrogenation of 2-methyl-3-butyn-2-ol (MBY) to 2-methyl-3-
buten-2-ol (MBE), a fundamental step in the preparation of pharmaceuticals, and other
industrially produced substances, as well as a model reaction for the semi-hydrogenation of
alkynes.
For both the supported and unsupported “Pd In” alloys (later re-defined as Pd3-xIn1+x), we
3
stabilised two new cubic polymorphs with a Pd-like structure, instead of the tetragonal structure
as reported so far in the literature. The stabilisation of these new polymorphs was made possible
by using a solution-based synthesis and, thanks to the use of different solvents, the reaction was
1
This article is protected by copyright. All rights reserved.

ChemCatChem
10.1002/cctc.201900391
carried out at different temperatures and the Pd/In ratio could be tuned. The same synthetic
approach was adapted to prepare two “Pd In”/TiO catalysts by adding the TiO support to the
reaction mixture, in a practical one-step, one-pot reaction. HREM and X-Ray maps show that
the cubic crystal structure of “Pd In” is maintained when prepared in the presence of the support,
however, the support seems to influence the Pd/In ratio.
3
2
2
3
1
. Introduction
Hydrogenation reactions most commonly involve the addition of H to a carbon-carbon multiple
2
bond and constitute crucial steps in the synthesis of many fine chemicals including vitamins,
pharmaceuticals, fragrances, cosmeceuticals and nutritional substances.1,2
The terms “semi-hydrogenation” or “selective hydrogenation” refer specifically to the partial
hydrogenation of a C≡C triple bond (alkyne) to a C=C double bond (alkene), and avoiding full
hydrogenation to a C-C single bond (alkane).
The semi-hydrogenation of 2-methyl-3-butyn-2-ol (MBY) to 2-methyl-3-buten-2-ol (MBE)
(Figure 1) is an important starting reaction in industry and is widely used as a model substrate to
screen for activity and selectivity of catalyst materials in semi-hydrogenation reactions.3

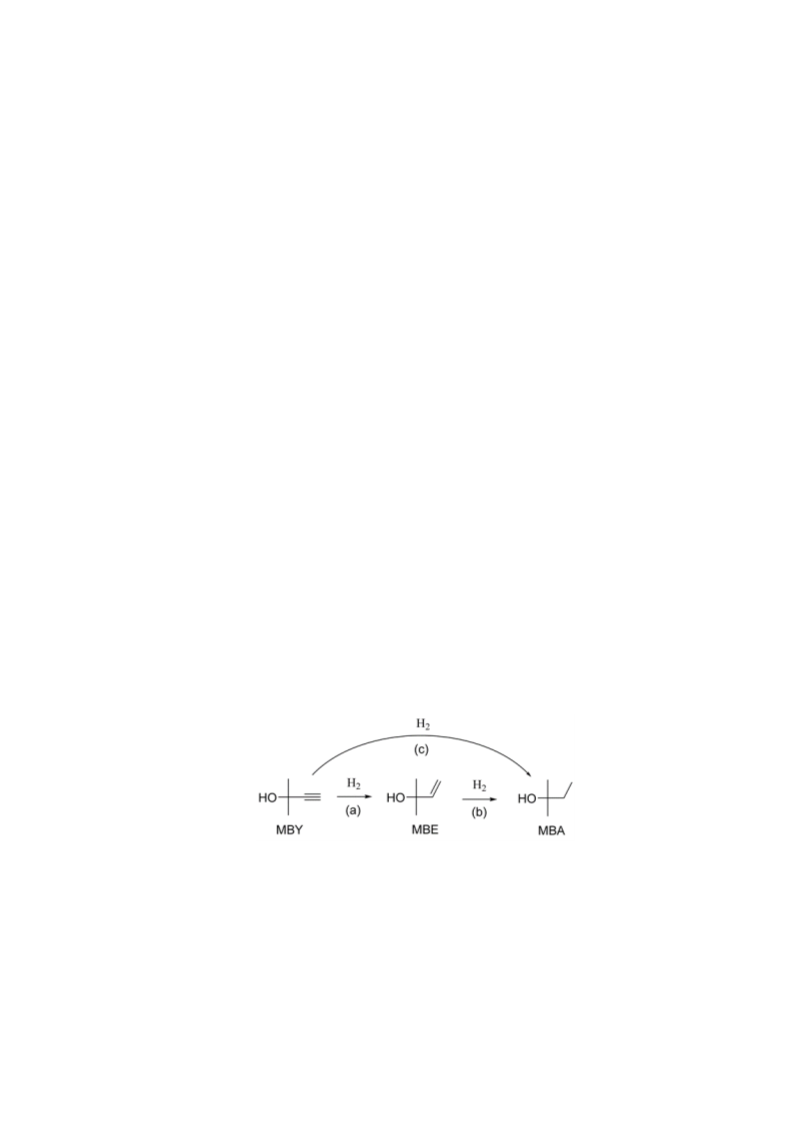

Figure 1. Reaction scheme of the hydrogenation of MBY to MBA. (MBY = 2-methyl-3-butyn-2-ol, MBE = 2-
methyl-3-butene-2-ol and MBA = 2-methylbutan-2-ol.) For a selective semi-hydrogenation, steps (b) and (c) should
be avoided.
2
This article is protected by copyright. All rights reserved.

ChemCatChem
10.1002/cctc.201900391
To date the best heterogeneous catalysts for semi-hydrogenation reactions are Palladium-based
catalysts, as they are very active and more selective than other platinum-group metals. However,
their selectivity towards alkene products is still limited due to over-hydrogenation to alkanes and
other side reactions such as dimerization and oligomerization reactions.4,5 To overcome this
drawback, a second metal (co-metal) is often added to Pd to increase the selectivity. The co-
metal can be added to Pd metal as a surface poison, as is the case in the widely used Lindlar
catalyst, in which Pb nanoparticles are added to Pd metal nanoparticles supported on CaCO
).6 However, the use of lead for catalyst modification is subject to increasing
environmental concern, hence viable alternatives are required.7
3
(Pd/CaCO
3
Another route to add a co-metal to Pd metal is a chemical reaction between Pd metal and the co-
metal to form a Pd-M alloy.
The reason for the enhancement of selectivity in a Pd-M alloy is not completely known, however
two main factors have been identified. Firstly, an increase in selectivity can occur due to changes
in the electronic structure of Pd brought on by the presence of an additional metal. The different
electronic structure leads to a change in the relative adsorption energies of alkyne and alkene
bonds, then resulting in a more favourable adsorption, hence hydrogenation of alkyne, while
8
disfavouring the adsorption/hydrogenation of alkene species. Secondly, alloy formation can
9
reduce the number and size of active site ensembles due to “dilution” of Pd. In fact, the addition
of a second metal changes the coordination environment of Pd metal, which is then surrounded
either by the co-metal atoms or by a mixture of co-metal and Pd atoms. Furthermore, in Pd-M
compounds, the catalytically active Pd centres are, in general, farther apart than they are in Pd
metal. This environment can inhibit secondary reactions that involve different functional groups,
or neighbouring reactants to be adsorbed in close proximity to each other.
3
This article is protected by copyright. All rights reserved.

ChemCatChem
10.1002/cctc.201900391
In 1984, the intermetallic compound Pd
3
Pb was reported as a highly active and selective catalyst
for semi hydrogenation of alkynes. Its selectivity was attributed to geometric effects related to
̅
its ordered crystal structure (cubic unit cell, 푃푚3푚, a = 4.035(1) Å) derived from the Pd crystal
̅
structure (cubic unit cell, 퐹푚3푚, a = 3.867(3) Å), with Pb occupying the (0,0,0) positions and
Pd occupying the (0, 0.5, 0.5) positions. In Pd metal, Pd is coordinated by 12 Pd atoms at a
distance d = 2.744 Å, whereas in Pd Pb, Pd is coordinated by 8 Pd atoms and 4 Pb atoms, at an
3
average distance d = 2.853 Å.10,11
Recently, we reported two catalysts Pd
performance to Pd/TiO and Pd/ZnO, all prepared following the same polyol-based synthesis
method. All four catalysts showed high activity and selectivity for the selective hydrogenation
of MBY to MBE in the liquid phase under identical conditions. However, Pd Sn/TiO and
Sn/ZnO show selectivities significantly higher than that of the Pd catalysts. Unsupported
3
Sn/TiO
2
and Pd
3
Sn/ZnO and compared their catalytic
2
3
2
Pd
Pd
Pd
3
3
3
Sn was prepared using the same method and characterized by powder X-Ray diffraction.
Sn was found to be single-phase and isostructural to Pd metal with a face centred cubic unit
cell and Sn atoms randomly substituting Pd atoms on their (0,0,0) crystal site.12
This paper focuses on the Pd-In system, specifically on compounds in which the ratio between
Pd and In is approximately 3:1 (thereafter referred to as “Pd
3
In”) and 2 new catalysts
“
Pd In”/TiO with “Pd In” compounds prepared at different temperatures. The reason behind the
3
2
3
choice of In as co-metal in a Pd-based catalyst is the investigation and comparison of the catalytic
properties with those of the previously reported Pd-Sn system. In fact, the Pd-In and Pd-Sn
bimetallic systems have been reported and compared together in the literature.13,14 Specifically,
the compounds with stoichiometric ratio Pd:M = 3:1 can be found in both Pd-In and Pd-Sn
systems. Pd
3
Sn was reported to show a face-centred cubic unit cell, whereas “Pd In” has been
3
reported as showing 2 polymorphs, both with a tetragonal unit cell. It has also been reported to
4
This article is protected by copyright. All rights reserved.

ChemCatChem
10.1002/cctc.201900391
have a flexible Pd:In ratio and, in fact, Kohlman and Ritter reported Pd3−xIn1+x as a general
formula.14–18 In all cases, “Pd
In” compounds were prepared via traditional high-temperature
3
melting of Pd and In metals.
More recently, it was reported that the synthesis of metallic and bimetallic nanoparticles can be
achieved by reacting metal salts in polyol solvents. The polyol solvent acts as reducing agent
hence reducing the cations in the reagents to their metallic state. The polyol also act as surfactant,
capping the particles and inhibiting their growth. This synthesis method relies on boiling points
of the polyols hence requires lower temperature than the traditional method based on melting the
metal reagents.19,20
There are a few reports in the literature on Pd–In combinations in various ratios, being used in
catalysis applications.21–23 However, in the current literature on the catalytic properties of Pd–In
materials, little emphasis is placed on the Pd–In alloy or intermetallic phases present within the
catalytically active material. These catalysts are often prepared by adding an indium precursor
to a Pd catalyst as a “modifier”.22–25 This means that indium is often present as a separate phase
in addition to Pd.22,23
In this work, we carried out the preparation of “Pd
3
In” alloys and of the “Pd
3
In”/TiO catalyst
2
via the low-temperature method based on the use of polyols; the same synthetic procedure was
successfully employed in the preparation of Pd
ZnO.12,19,20
3
Sn and the catalysts Pd
3
Sn /TiO
2
and Pd Sn
3
/
We prepared two “Pd In” compounds using Ethylene Glycol (EG, boiling point = 197 °C) and
3
Tetraethylene Glycol (TEG, boiling point = 314 °C) to achieve different synthesis temperatures.
In this way we stabilized two polymorphs with a cubic Pd-like unit cell and disordered
substitution of In atoms on the Pd crystal site and, thanks to the use of different polyol solvents
5
This article is protected by copyright. All rights reserved.

ChemCatChem
10.1002/cctc.201900391
with different boiling points, we obtained “Pd
also obtained two “Pd In”/TiO
3
In” compounds with variable Pd:In ratios. We
3
2
catalysts with higher selectivity than the model catalyst Pd/TiO .
2
2
. Results and discussion
In this work, we aimed at the preparation and characterisation of nanocatalysts that show
improved selectivity towards the semi-hydrogenation of alkyne, compared to the traditional Pd-
based catalysts. We focussed on Pd-based nano alloys as catalytically active compounds,
specifically on the Pd-In system in which the Pd/In ratio is approximately 3 (“Pd In”). This alloy
3
has been reported to show two tetragonal polymorphs and variable Pd/In ratio (Pd3−xIn1+x). The
preparation of intermetallic compounds and alloys usually requires a reaction between two
2
6
metals to occur at high temperature (often > 1000 °C). More recently, it was reported that this
can be achieved by mixing metal salts in polyol solvents with relatively high boiling points. The
polyol solvents act as reducing agents, reducing the metals in the salts to their zero oxidation
state then favouring the alloying process and, also, act as capping agents, favouring the growth
of nanoparticles homogeneous in size and shape.20
The nanoalloys in this work were prepared via the polyol-based method, using ethylene glycol
(EG, boiling point = 197 °C) and tetraethylene glycol (TEG, boiling point = 314 °C) to achieve
different synthesis temperatures. The samples prepared in ethylene glycol and tetraethylene
glycol will be referred to as EG and TEG respectively from here thereafter.
6
This article is protected by copyright. All rights reserved.

ChemCatChem
10.1002/cctc.201900391

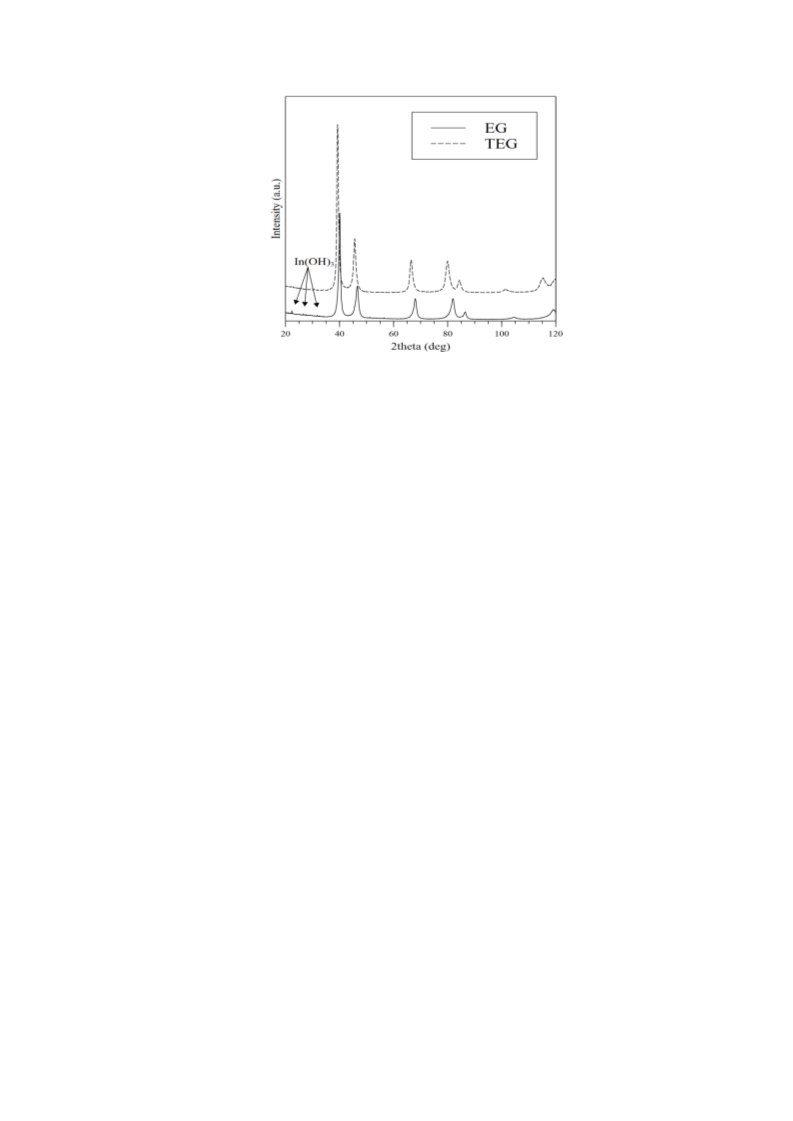

Figure 2. PXRD patterns of EG and TEG.
Powder X-Ray diffraction patterns were collected on the samples to determine their purity and
crystal structures (Figure 2). The diffraction peaks could not be indexed using any of the
tetragonal unit cells reported in the literature for the “Pd
TiAl type mainly. Instead, the peaks could be indexed using the cubic unit cell of Pd metal as a
model. Both “Pd
shows some low intensity narrow peaks between 20 – 30 2 theta deg. and 50 – 60 2 theta deg.
figure 2). The nature of these low-intensity diffraction peaks is not clear, although they could
be attributed to In(OH) , a possible by-product of the synthesis reaction. No peaks corresponding
3
In” system, i.e. the ZrAl
3
type and the
3
1
1
3
In” compounds are single phase, however, the PXRD of the EG compounds
(
3
to either metallic In or indium oxide phases are observed, however the presence of these phases
in amounts too small to be detected by PXRD cannot be ruled out entirely.
Both PXRD patterns of EG and TEG show the same diffraction peaks, however there is a notable
shift towards higher 2theta angles for the “Pd In” compound prepared in EG. Calculations of the
3
lattice parameters, deriving from Rietveld refinement of the PXRD data using the unit cell of Pd
metal as a model (a = 3.859(3) Å) show that the unit cell of EG is smaller than the unit cell of
TEG. (Table 1).
7
This article is protected by copyright. All rights reserved.

ChemCatChem
10.1002/cctc.201900391
Table 1. The lattice parameters of the Pd–In materials calculated via Rietveld refinement of PXRD data.
“Pd
3
In”
a (Å)
EG
3.8976(3)
3.9994(2)
TEG
Hellner and Laves reported the existence of the compound Pd
3
In and classified its unit cell as
2
7
face centred tetragonal. Knight and Rhys prepared Pd
3
In via melting ingots of the 2 metals and,
via thermal analyses and microscopic examination, they found that the compound exists as
1
4
tetragonal single phase for a range of 24.8 and 27 atomic % In content. The Pd
3
In phase was
also reported by Harris et al to have a face centred tetragonal structure with a =4.0647 Å and c
=3.7842 Å and (c/a=0.9310), in agreement with the values of a=4.06 Å and c=3.79 Å obtained
previously by Knight and Rhys.14,28 They also showed a PXRD pattern of a “crushed” or
“deformed” Pd
3
In phase, which shows a face-centred cubic type structure, observed mixed with
1
the tetragonal phase within a narrow temperature range. Equation 푎푐푢푏푖푐 = (푎2
)
ꢀ
ꢁ
was
In and would lead to a ~
In contains between 74.5 and
Ti (I4/mmm). This structure type represents a
푡푒푡푟 푡푒푡푟
reported to calculate the a-spacing of a “hypothetical” FCC form of Pd
3
1
3
4
7
Å. H. Okamoto reports 2 polymorphs,  and  Pd
3
In.  Pd
3
5.5 atomic % Pd and is isostructural to Al
3
superstructure of the cubic closest packing (Cu-type) with identical coordination numbers for all
crystallographic sites. No structural or compositional data were given for the Pd In
3
polymorph.16
Kohlman and Ritter prepared Pd In from the elements in evacuated sealed silica tubes via iodine-
3
catalyzed synthesis at ~ 577 C, a lower temperature than previously reported. Rietveld
refinement was performed on PXRD and high-resolution neutron diffraction data.17,18 X-Ray
1
6
powder diffraction confirmed the TiAl
3
structure type proposed Okamoto for Pd In. However,
3
Rietveld refinement on neutron powder diffraction data reveals an In/Pd distributional disorder.
8
This article is protected by copyright. All rights reserved.

ChemCatChem
10.1002/cctc.201900391
Therefore, the crystal structure of Pd
3
In was described as a AuCu-type model instead (P4/mmm,
a = 2.87224(4), c = 3.80079(7) Å), with mixed occupancy of one crystallographic site by 50%
In and 50% Pd. Compositional variation, due to In/Pd distributional disorder, led to a general
formula Pd3−xIn1+x. Phase diagrams exhibited a homogeneity range from 24.8 to 26, and at
temperatures above 1050 C even up to 27 atomic % In. Unit cell volumes range from
26.132(5) Å for the indium-rich to 125.474(8) Å for the palladium-rich Pd3−xIn1+x phases.17
3
3
1
Kohlman and Ritter, in a later paper reported that all the three tetragonal polymorphs for Pd In,
3
represent closely related superstructures of a cubic closest packing as shown by a Bärnighausen
symmetry tree.18
We have stabilised two cubic polymorphs of the Pd3−xIn1+x system, that have not been reported
in the literature so far. It is impossible, though, at this stage to say whether the cubic unit cell
reported here is primitive, implying an ordering of Pd and In atoms on different crystallographic
sites or face centred cubic (FCC), implying disordered distribution of Pd and In atoms on the
same (0,0,0) site. In fact, the “diagnostic” diffraction peaks that would allow a distinction
between the 2 types of lattice and are seen in other Pd-metal compounds, cannot be seen for Pd-
In compounds, as the 2 atoms show very similar x-ray diffraction factors. However, the unit cell
of this cubic polymorph is more likely to be of the FCC type, as the low temperature of the
synthetic approach tends to favour the creation of disordered structures, as shown by Kohlman
1
8
et al. Furthermore, it was reported that the polyol method can lead to metastable compounds,
otherwise not accessible.29,30
The difference in lattice parameters between EG and TEG indicate different Pd:In ratios,
specifically a higher content of In in TEG, given that the atomic radius of Pd is 1.37 Å and that
3
1
of In is 1.66 Å. The lattice parameter of EG is only slightly larger than that of Pd metal (a =
11
3
.8973(3) Å, compared to a =3.859(3) Å ). EDX data, taken from several different areas,
9
This article is protected by copyright. All rights reserved.

ChemCatChem
10.1002/cctc.201900391
indicate low level of In substitution, less than 13% at. X-Ray maps are shown in figure 3 and
indicate an overall homogeneity in the elemental distribution. The apparent dishomogeneity in
the X-Ray maps is a result of inhomogeneities in the thickness of the sample analysed and does
not derive from real inhomogeneities in the element distribution (Figure 3). Hence EG is
probably a cubic polymorph of “Pd
parameter is not significantly higher than that of Pd metal and that part of the total In content
must belong to the small impurity present, possibly In(OH) , as shown by the PXRD patterns
figure 2).
3
In” with low In content, considering that the lattice
3
(

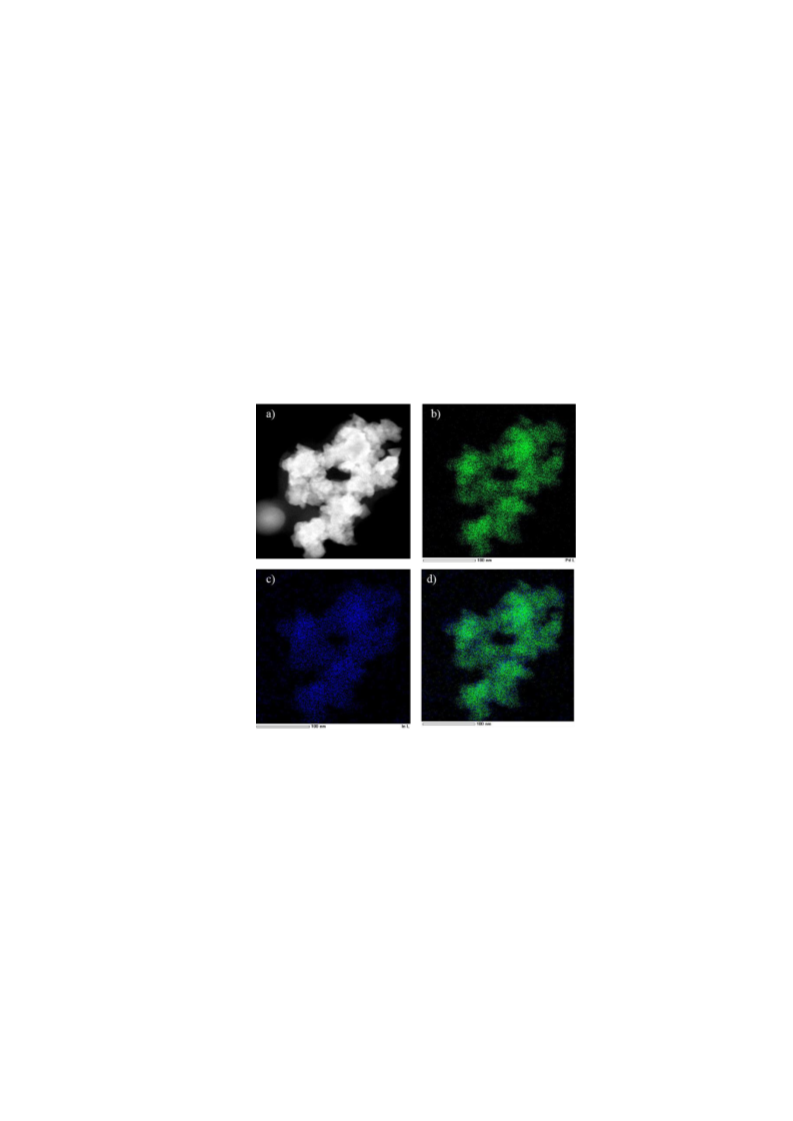

Figure 3. a) HAADF-STEM image of an agglomerate of EG; b) X-Ray map of the agglomerate in a) obtained using
line L for Pd; c) X-Ray map of the agglomerate in a) obtained using line L for In; d) map obtained from the overlap
of the individual maps in b) and c).
The lattice parameter of TEG is 0.1 Å larger than that of Pd metal. EDX data collected on several
spots indicate an average Pd: In  75:25 ratio, in agreement with the ratio of the Pd and In salts
used as reagents in the polyol reaction. The PXRD pattern does not show any diffraction peaks
belonging to phases different from the Pd-like cubic phase (impurities), hence a single-phase
1
0
This article is protected by copyright. All rights reserved.

ChemCatChem
10.1002/cctc.201900391
compound with chemical formula Pd
3
In was obtained. The X-Ray maps show excellent
homogeneity in the element distribution (Figure 4). Consequently, TEG can be considered a
cubic polymorph of the Pd In compound, possibly the same “hypothetical” phase proposed by
Harris et al. HREM and Electron Diffraction confirm the cubic nature of the crystal structure
Figures 5 and 6).
3
1
3
(
In the ED pattern of TEG, four rings can be clearly distinguished (figure 5b). Starting from the
most internal one, these rings correspond to the (111), (200), (220) and (311) lattice spacings of
the cubic lattice of Pd.

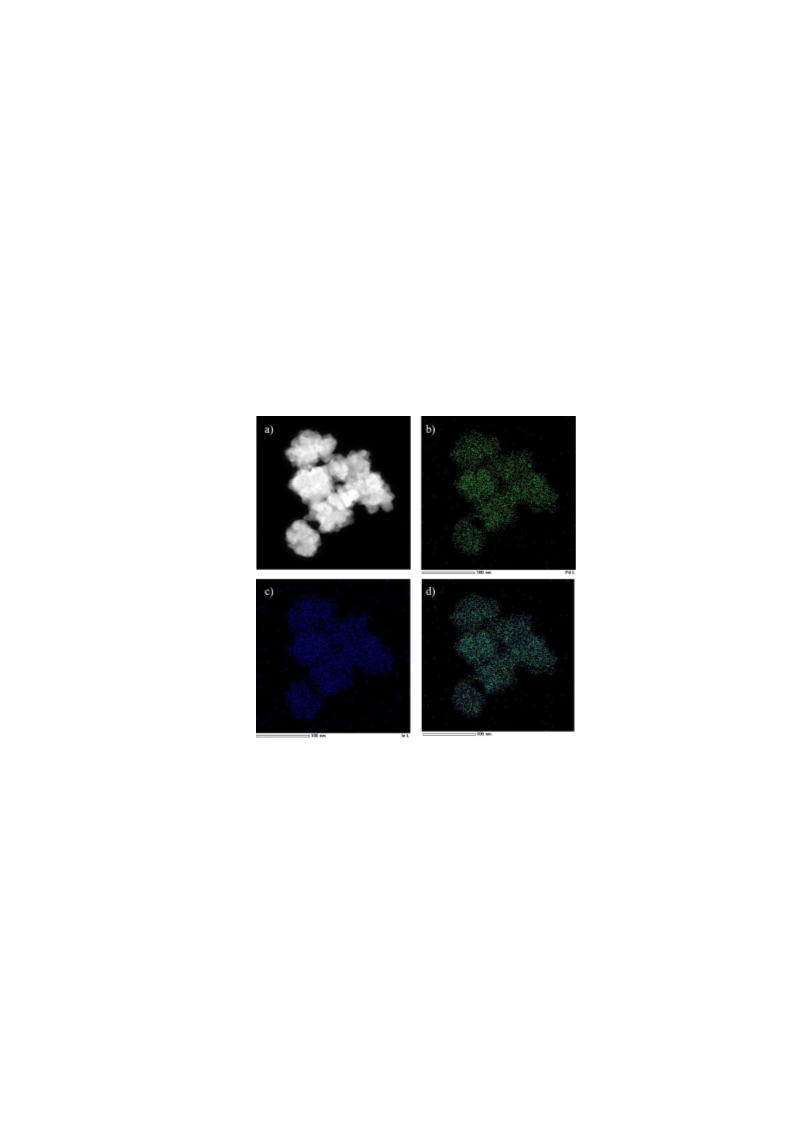

Figure 4. a) HAADF-STEM image of an agglomerate of TEG; b) X-Ray map of the agglomerate in a) obtained
using line L for Pd; c) X-Ray map of the agglomerate in a) obtained using line L for In; d) map obtained from the
overlap of the individual maps in b) and c).
1
1
This article is protected by copyright. All rights reserved.

ChemCatChem
10.1002/cctc.201900391

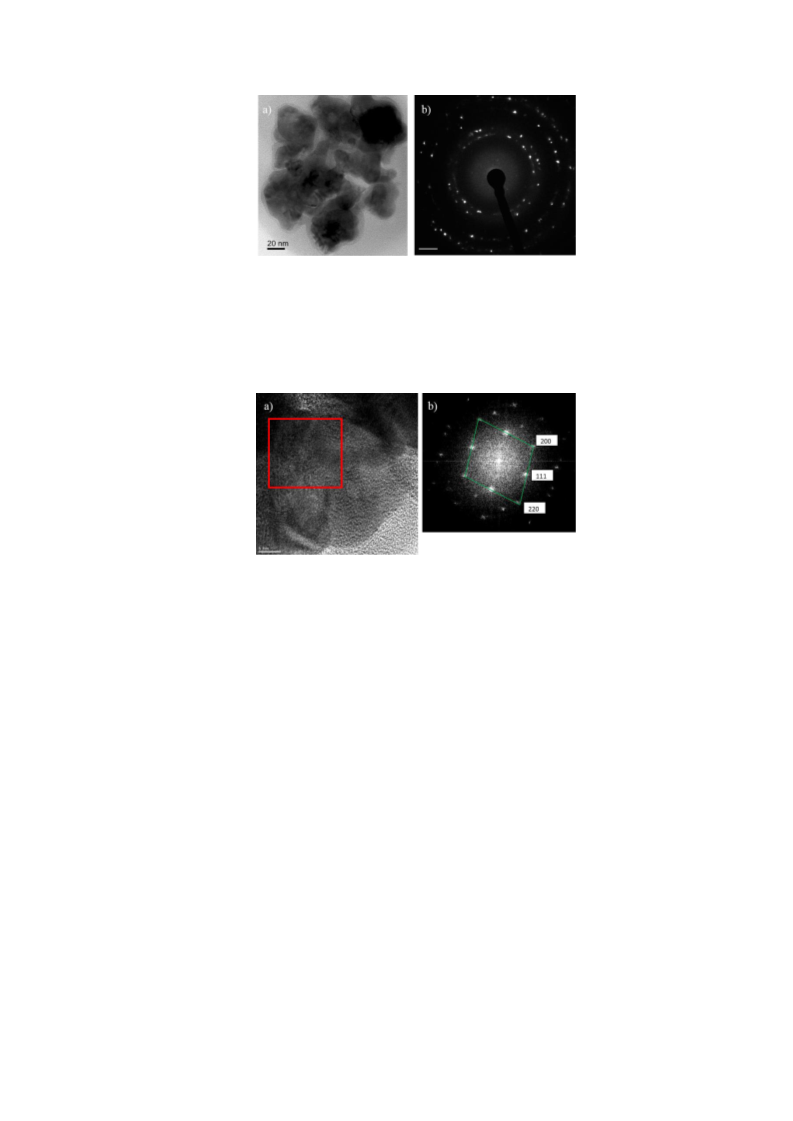

Figure 5. a) TEM image of a typical agglomerate of TEG particles and b) its ED ring pattern. Starting from the
most internal one, these rings correspond to the (111), (200), (220) and (311) lattice spacings of the cubic lattice of
Pd.
Figure 6. a) HREM of some particles and b) Fast Fourier Transform of the red squared region in a). The region
contains a single particle lying in (110) projection. The lowest index reflections are reported.
Figure 6a shows the HREM image of some TEG nanoparticles. Fig 6b displays the Fourier
transform of the red squared region in a), where the contribution of a single particle lying in a
1
10 type projection is highlighted by the green lozenge. The measured lattice spacings are
perfectly coherent with the ones found in the ED pattern.
2
.1 “Pd
3
In”/TiO Catalysts
2
“
Pd
prepare the “Pd
and unsupported “Pd
templating agent PVP were added to the reaction mixture of Pd and In acetates and the synthesis
3
In”/TiO
2
catalysts were prepared by adapting the same method and conditions used to
In” catalytically active compounds so that the crystal structure of the supported
In” compounds could be compared. Polycrystalline support TiO and the
3
3
2
1
2
This article is protected by copyright. All rights reserved.

ChemCatChem
10.1002/cctc.201900391
carried out in the same conditions, using in both ethylene glycol and tetraethylene glycol as
polyol solvents to vary the temperature. This also gave a convenient one-step reaction to prepare
catalysts. The catalytic performance of the two “Pd
liquid phase semi-hydrogenation of MBY. Pd/TiO
condition for comparison. The two catalysts prepared in ethylene glycol and tetraethylene glycol
will be named EG/TiO and TEG/TiO respectively from here thereafter.
3
In”/TiO
2
catalysts was assessed for the batch,
2
was also prepared and tested in the same
2
2
PXRD was carried out on the catalysts, however no strong evidence of the presence of Pd/In
within the catalyst is seen, as the pattern, predictably, is dominated by the TiO support. This is
due to the low percentage (< 2 wt%) of “Pd In” present in the catalysts as well as the very small
particle size of the “Pd In” nanoparticles (< 10 nm) compared to that of the support (micron
scale). The PXRD patterns show that the support is composed of mostly rutile-phase TiO , with
approximately 3% of anatase. HRTEM was then carried out to obtain details of the crystal
structure of the “Pd In” compounds, in order to understand if the same cubic structure is
2
3
3
2
3
maintained when the compound is prepared in the presence of the support (TiO
templating agent (PVP).
2
) and a
1
3
This article is protected by copyright. All rights reserved.

ChemCatChem
10.1002/cctc.201900391
Figure 7. TEM images and the corresponding particle size distribution histograms of Pd/TiO
TEG/TiO
2 2
, EG/TiO and
2
.
The particle size distributions obtained from the TEM micrographs (examples shown in Figure
) show that the materials prepared in TEG have larger particle diameter compared to those
prepared in EG (mean particle size = 5.8(±1.3) nm in EG/TiO compared to 11.8(±2.2) nm in
TEG/TiO ). The mean particle diameter of EG/TiO is also slightly lower than that seen in
Pd/TiO (6.8(±2) nm), which mirrors observations made in our previous work in which Pd Sn
catalysts prepared using EG showed lower particle size than Pd catalysts prepared in the same
7
2
2
2
2
3
1
2
way. The mean particle diameter for TEG/TiO
2
is almost twice larger than that of EG/TiO and
2
Pd/TiO and is well outside of their standard deviations.
2
1
4
This article is protected by copyright. All rights reserved.

ChemCatChem
10.1002/cctc.201900391
2

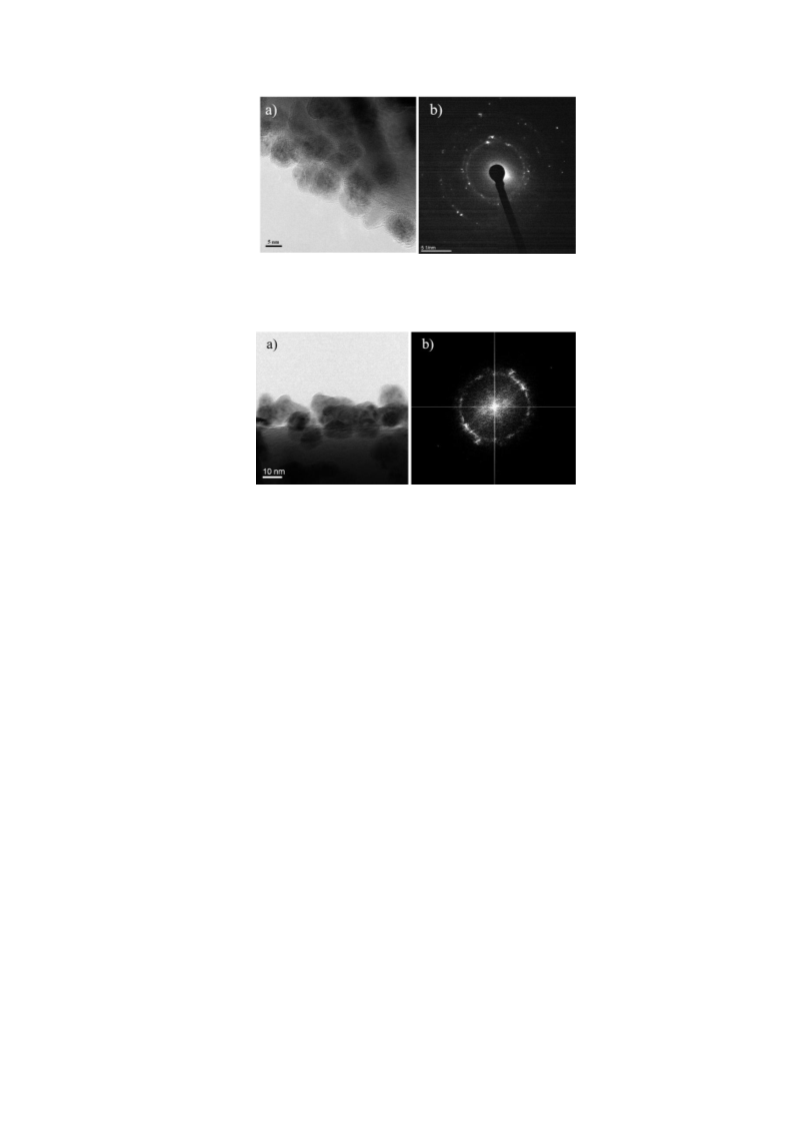

Figure 8. a) HRTEM micrograph and b) ED patterns for EG/TiO .
2 2
Figure 9. a) HREM images of TEG/TiO ; b) Fast Fourier Transform (FFT) for TEG/TiO .
HRTEM images show that the nanoparticles of the catalytically active compound EG are
approximately spherical, with homogeneous size distribution (Figure 8a). The nanoparticles of
the catalytically active compound TEG appear to show more agglomeration and, in general, a
more irregular shape (Figure 9a). Several nanoparticles are observed that are partially fused
○
together. This may be due to the higher temperature at which each TEG reaches reflux (314 C
○
in TEG compared to 197 C in EG), which can cause particle growth and sintering.
Decomposition of the capping agent, PVP, may have also occurred at the higher temperature,
which can affect particle size since the presence of PVP restricts nanoparticle growth.
1
5
This article is protected by copyright. All rights reserved.

ChemCatChem
10.1002/cctc.201900391
2 2
Table 2. d-spacings of EG/TiO , TEG/TiO
calculated from FFT, and Pd from ref. 28
EG/TiO
2
d-
TEG/TiO
2
d-
Pd d-
Reflection
28
spacings (nm)
spacings (nm)
spacings
(nm)
0
0
0
0
.22
.19
.13
.12
0.23
0.20
0.14
-
0.25
0.19
0.13
0.12
111
200
220
311
In both cases, the d-spacings estimated by fast Fourier Transform (FFT) (Table 2) are
comparable with those reported for Pd metal.28 This is similar to observations made for
unsupported EG and TEG, in which PXRD shows a phase similar to Pd metal. Hence, the
available evidence suggests that the unsupported and the supported “Pd In” materials show the
3
same crystal structure.
STEM-HAADF image and X-ray maps were collected from the same areas of the EG/TiO
2
and

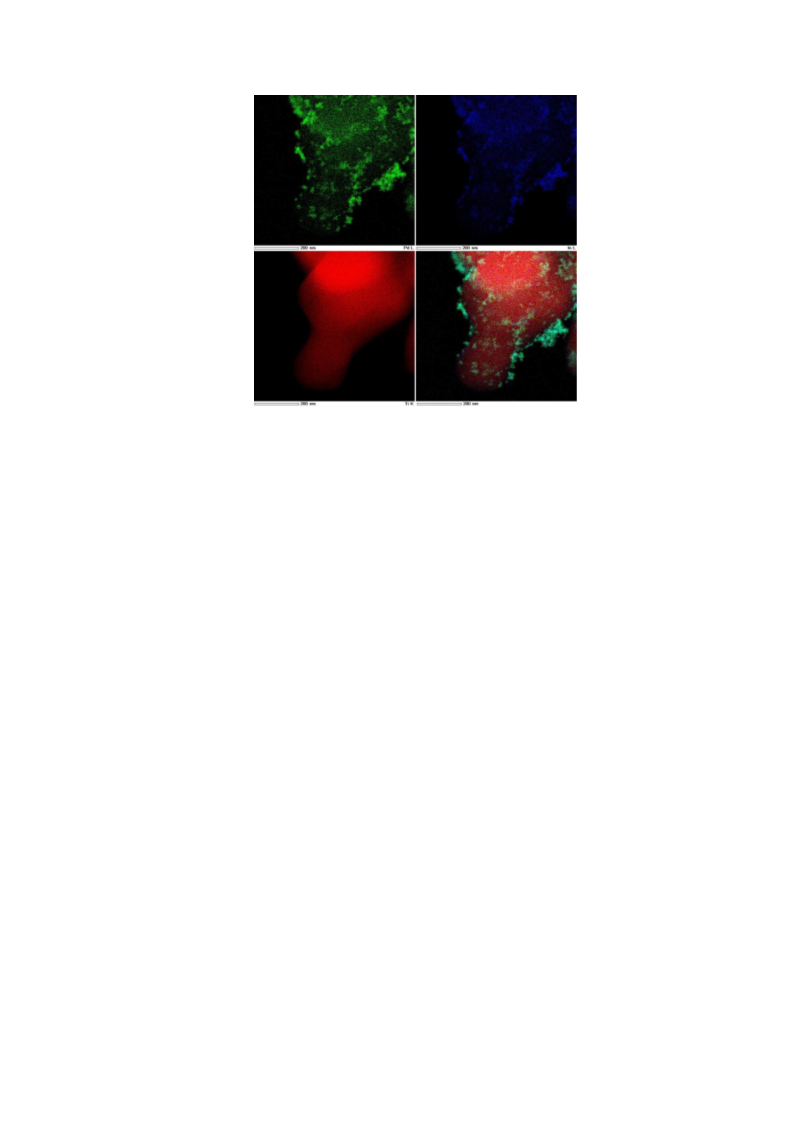

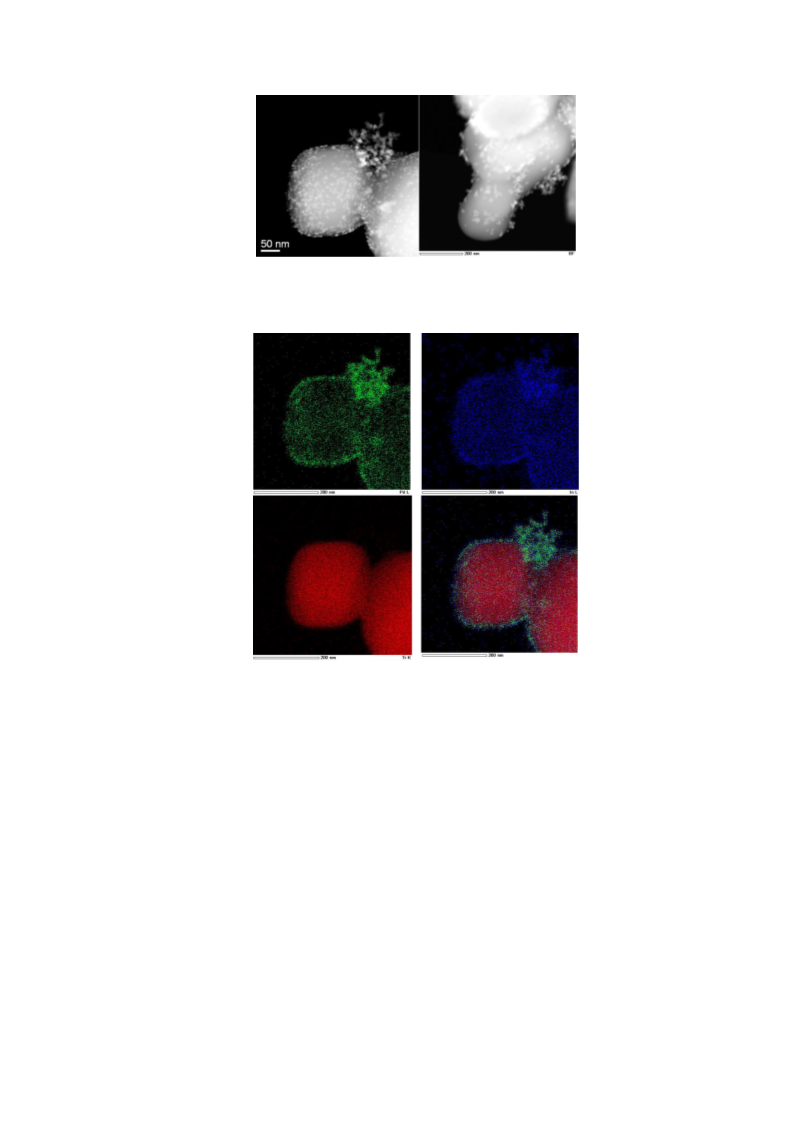

TEG/TiO samples and are shown in Figures 10 to 12. X-ray maps show that the elements Pd
2
and In are distributed homogeneously throughout all nanoparticles in both cases, providing good
evidence that Pd/In form a single, homogeneous alloy in each catalyst. Furthermore, Ti (red) is
shown exclusively in the support, with nanoparticles not in contact with the support showing no
Ti content, hence strengthening the notion that no reaction or strong metal-support interaction
(
SMSI) has occurred between Pd–In nanoparticles and the TiO
find almost everywhere the nominal composition for EG/TiO
content of In in TEG/TiO
2
support. EDX measurements
(Pd:In ~ 75:25) but a higher
2
2
(Pd:In ~ 66:34). These findings are in contrast with the EDX data and
the X-Ray maps obtained from the EG and TEG pure compounds. In fact the In content in EG
was found not to be above 13% at but a nominal Pd:In  75:25 ratio was found for TEG in many
area of the samples. It appears that the presence of the support in the reaction pot does not
influence the crystal phase but does influence the element ratio of the alloy.
1
6
This article is protected by copyright. All rights reserved.

ChemCatChem
10.1002/cctc.201900391
2 2
Figure 10. STEM-HAADF micrographs of EG/TiO (left) and TEG/TiO (right).
2
Figure 11. X-ray maps of EG/TiO referred to agglomerate shown in figure 10 and showing the spatial distribution
of Pd (green), In (blue), Ti (red). and the combination of Pd and In, and Ti.
1
7
This article is protected by copyright. All rights reserved.

ChemCatChem
10.1002/cctc.201900391
Figure 12. X-Ray maps of TEG/TiO
2
referred to agglomerate in figure 10 (right) and showing the spatial
distribution of Pd (green), In (blue), Ti (red), and the combination of Pd, In, and Ti.
2
.2 Catalytic Performance
To screen the catalytic performance of EG/TiO
2
and TEG/TiO , a liquid phase batch
2
hydrogenation of MBY was carried out using each of the catalysts. The reaction scheme is shown
in Figure 1 and the reaction profiles using each catalyst are shown in Figure 13. For each of the
Pd–In catalysts, the hydrogenation reaction proceeds as expected for a Pd-catalysed
hydrogenation of an alkyne. Firstly, MBE is produced via the hydrogenation of MBY. Very little
MBA is formed in comparison to MBE until almost full conversion of MBY into MBE, after
which only MBA is produced via the hydrogenation of MBE. This shows that the reaction
proceeds mostly by successive stepwise hydrogenation; first, MBE is produced by semi-
hydrogenation of MBY (Figure 1, a), then MBA is produced by hydrogenation of MBE in a
separate step (Figure 1, b). The full hydrogenation of MBY into MBA (Figure 1, c) is avoided.
This reaction behaviour is expected for Pd-based catalysts as alkynes (MBY) are known to be
preferentially adsorbed to the surface of Pd compared to alkene bonds (MBE).4,5
1
8
This article is protected by copyright. All rights reserved.

ChemCatChem
10.1002/cctc.201900391
The carbon balance (the total moles of MBY, MBE and MBA) does not decrease over time
during any of the hydrogenation reactions, indicating no other products are formed by
dimerization reactions, etc., as sometimes observed in the semi-hydrogenation of MBY.32–34

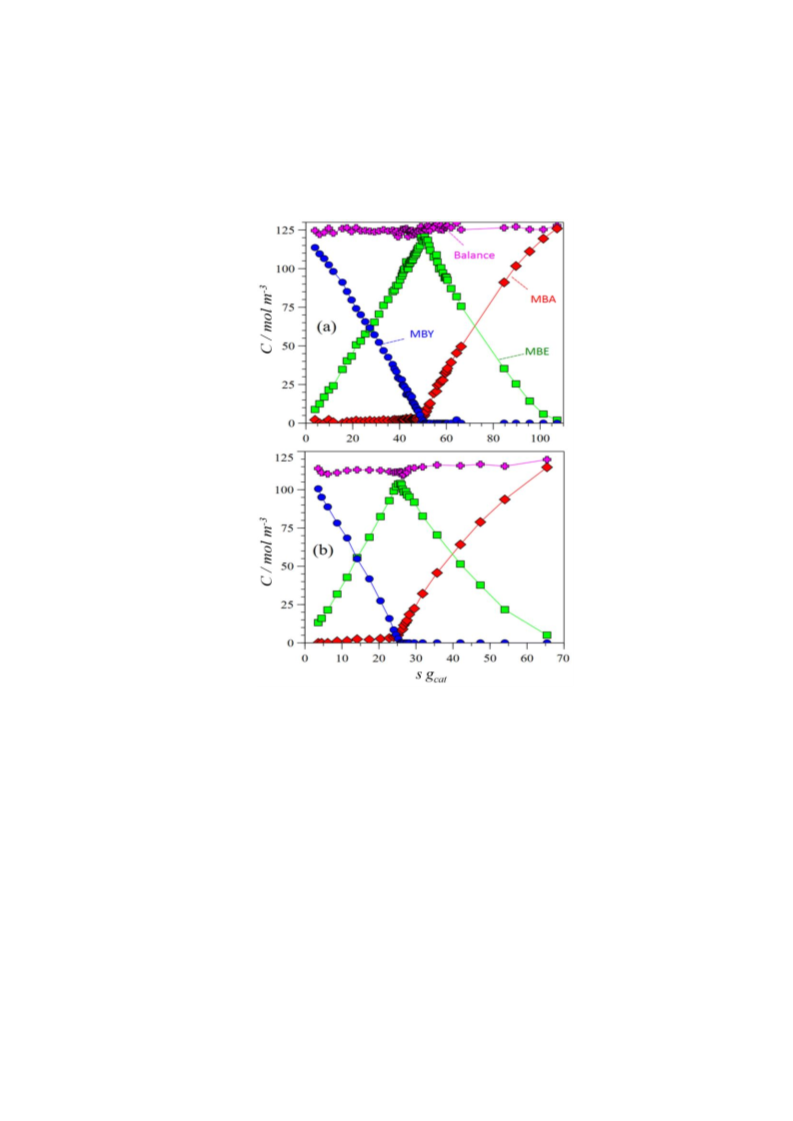

Figure 13. Experimental data showing the concentrations of MBY (blue), MBE (green), MBA (red) and balance
(
purple) over time (seconds per gram of catalyst) during a semi-hydrogenation reaction at 308 K, 1 atm. H
.12 M solution of MBY in hexane. The catalysts are: (a) EG/TiO and (b) TEG/TiO
2
pressure,
0
2
2
.
The differences between the performance of each catalyst can be seen with their activity, (A)
normalised per mole of Pd present in the catalyst (Figure 14), i.e. how quickly the hydrogenation
reaction takes place per catalyst amount, and the selectivity towards MBE, i.e. how much MBE
is produced compared to MBA (and any other reaction products) up to full conversion of MBY.
1
9
This article is protected by copyright. All rights reserved.

ChemCatChem
10.1002/cctc.201900391
TEG shows higher activities than Pd/TiO
2
while EG shows slightly lower activity (0.30 s−1
compared to 0.37 s−1 for Pd/TiO
).12 It is difficult to say why EG/TiO
has lower activity,
2
2
especially considering that according to EDX measurements EG contains more Pd than TEG.
Figure 14. Graph of activities (blue) and selectivities (red) at different MBY conversions (SMBE,90 (%)) in the semi-
hydrogenation of MBY at 308 K, 1 atm. H
.12
2
pressure, 0.12 M solution of MBY in hexane of different Pd-In catalysts,
2 3 2
Pd/TiO and Pd Sn/TiO
It is apparent that both EG/TiO
4 and 15). The catalyst activities and selectivities are also compared to Pd
prepared following the same procedure as EG/TiO except using tin acetate as co-metal precursor
also shows comparable (slightly higher) selectivity than
, however the activity of EG/TiO is increased by around one-third in comparison.
Between the two “Pd In” catalysts, EG/TiO shows higher selectivity than TEG/TiO . The
reason for this is not obvious and may be a combination of several factors such as, higher In
content in TEG/TiO possibly impacting on the selectivity and/or, the fact that the nanoparticles
of EG/TiO may be more “dispersed” than those of TEG/TiO , as shown by HREM images
Figures 7–9).
2
and TEG/TiO
2
show higher selectivity than Pd/TiO
2
(Figures
1
3
Sn/TiO , which was
2
2
1
2
instead of Indium acetate. EG/TiO
2
Pd Sn/TiO
3
2
2
3
2
2
2
2
2
(
2
0
This article is protected by copyright. All rights reserved.

ChemCatChem
10.1002/cctc.201900391
S
MBE for TEG/TiO
2
is slightly lower at all stages of the reaction compared to EG/TiO
2
and
Pd
3
Sn/TiO
2
, however both catalysts maintain higher SMBE compared to Pd/TiO
2
.
The higher selectivity shown by both EG/TiO
2
and TEG/TiO catalysts indicates that the addition
2
of a second metal, In in this case, to form an alloy with Pd does enhance the catalytic properties
of Pd metal towards MBE. However, the metal and co-metal ratio seem to be a factor in
determining the catalytic performance.

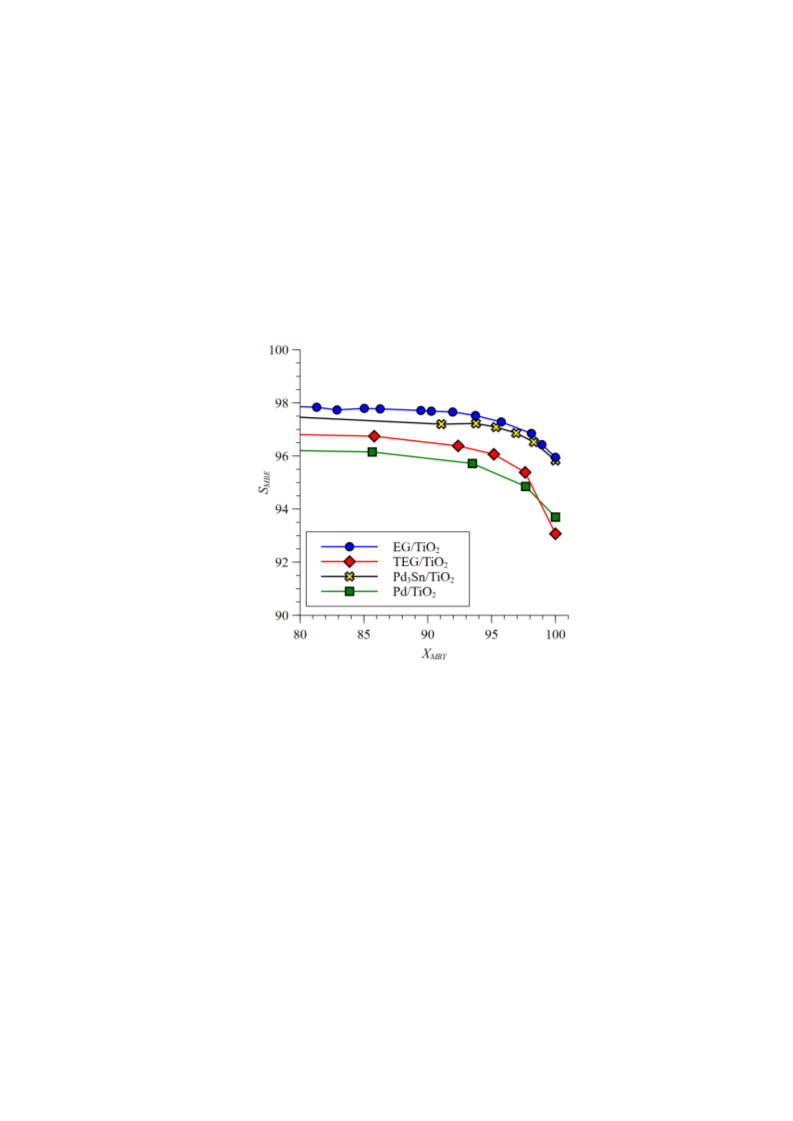

Figure 15. Selectivity towards MBE (SMBE) as a function of MBY conversion (XMBY) during the semi-
hydrogenation of MBY at 308 K, 1 atm. H
catalysts, Pd Sn/TiO and Pd/TiO
2
pressure, 0.12 M solution of MBY in hexane using different Pd-In
3
2
2
.
3
. Experimental
3
.1 Materials
The metal precursors used in the catalyst preparation were palladium(II) acetylacetonate (99%,
Aldrich) and indium(III) acetate (99.99%, Aldrich). Titanium(IV) oxide, rutile (≥99.0%,
Aldrich) was used as support material and polyvinylpirrolidone (average mol. Wt. 40’000 g mol-
2
1
This article is protected by copyright. All rights reserved.

ChemCatChem
10.1002/cctc.201900391
1,
Sigma-Aldrich) was used as a capping agent. Acetone (laboratory reagent grade, Fischer
Chemical), ethanediol (laboratory reagent grade, Fischer Chemical), n-hexane (GPR grade,
VWR Chemicals) and deionised water were used as solvents without any pre-treatment. For the
hydrogenation reactions, butan-1-ol (analytical reagent grade, Fisher Scientific) was used as
internal standard for GC analysis. All chemicals were used as purchased.
3
.2 Preparation of Pd–In Particles and catalysts
The method used for the preparation of the Pd-In particles and catalysts is the same as described
1
2
in previous work for the synthesis of Pd Sn materials , except using indium(III) acetate rather
3
than tin(II) acetate, and either ethylene glycol (EG) or tetraethylene glycol (TEG) as the polyol
solvent. The method is adapted from a polyol method used by Cable and Shaak for the
preparation of Pt
Sn.35
3
For the preparation of Pd-In particles, appropriate stoichiometric amounts of the metal
precursors, palladium(II) acetylacetonoate and indium(III) acetate, each in 100 mL of either
ethylene glycol or tetraethylene glycol were combined and heated at reflux (470 K in EG, 587 K
in TEG) for 1 hour under nitrogen gas flow. No capping agent or support was used for the
synthesis of the Pd-In particles to allow for analysis of the catalytically active compound.
For the synthesis of the catalysts, a “one-pot” synthesis procedure was used in which TiO
2
support and the PVP capping agent (10 mol% of total Pd and In) were added alongside the Pd
and In precursor solutions before heating at reflux. The amount of the support used was
calculated to achieve 2 wt% Pd loading.
Once cool, Pd-In particles and catalysts were obtained by centrifugation at 3000 rpm, washing
with deionised water and acetone (3 × 30 mL each) and dried at 353 K in air for 1 h.
3
.3 Characterisation of the Catalytically Active Compounds
2
2
This article is protected by copyright. All rights reserved.

ChemCatChem
10.1002/cctc.201900391
Powder X-ray diffraction (PXRD) was carried out using a PANalytical Empyrean X-ray
diffractometer using monochromatic Cu Kα1 radiation and line PIXcel detector. Results were
recorded and analysed using the instrument’s built-in software.
The PXRD for unsupported Pd–In materials was carried out by scanning in the 2θ range of 10-
1
40°, step size 0.05° and step time 1.0 seconds. For these measurements, a fixed divergence slit
was used with slit size 0.5°.
PXRD for the Pd-In catalysts was carried out by scanning in the 2θ range of 5-120°, step size
0
.02° and step time 1.0 seconds. The instrument’s built-in automatic divergence slit was used.
However, the PXRD patterns were dominated by the TiO
Pd/In compounds could be observed.
2
support, and no peaks arising from
Rietveld refinement of PXRD data was performed to confirm the cubic crystal structure, via the
software GSAS.36,37 The model used was the cubic unit cell of Pd metal (a = 3.859(3) Å, with
In and Pd occupying the same site (x=0; y=0; z=0) with occupancies fixed at 75% for Pd and 25
11
%
for In and the lattice parameter replaced with the one calculated from indexing of the PXRD
data using the PANalytical HighScore Plus software. The peak profile was modelled with the
software CMPR and the values for U, V, W, Gaussian (GP) and Lorentzian (LX) size broadening
substituted in the input file.38
Analytical and conventional transmission electron microscopy (TEM) studies were performed
in a high-resolution (HR) (0.18 nm) field emission JEOL 2200FS microscope operating at 200
kV, equipped with an in-column Ω energy filter, two High-Angle Annular Dark Field (HAADF)
detectors for the so-called ‘Z-contrast’ imaging and an Energy Dispersive X-ray Spectrometer
(EDX) for collecting X-ray spectra and X-ray mapping. The nanostructures were dispersed on
holey carbon grids for the observation.
2
3
This article is protected by copyright. All rights reserved.

ChemCatChem
10.1002/cctc.201900391
3
.4 Hydrogenation Reaction
For the semi-hydrogenation of MBY catalysed by the Pd and Pd-In catalysts, freshly-prepared
catalysts (between 5 and 50 mg, depending on the activity of the catalyst) and a hexane solution
(100 mL) containing 0.741 g (10 mmol) of butan-1-ol used as an internal standard were
transferred into a 250 mL 3-neck round bottom flask fitted with a silicone rubber septum,
thermometer and reflux condenser. A Schlenk line was connected through the top of the
condenser to enable alternation between nitrogen gas, hydrogen gas, and vacuum. The contents
of the flask were stirred at 1100 rpm and heated to 308 K. Air from the reactor and the solvent
was removed purging the reactor 3 times with nitrogen gas – the pressure was slowly decreased
until the solvent started to boil, and the reactor was filled with nitrogen gas quickly. Nitrogen
gas was then similarly substituted by hydrogen gas, purging the reactor 3 times. The contents
were left stirring under hydrogen atmosphere (ambient pressure) for approximately 30 min to
ensure the solvent and catalyst were saturated with hydrogen, and that no leak was present in the
system (the hydrogen consumption was measured by a 300 mL gas burette). The reaction was
started by quickly injecting 1.00 g MBY using a syringe through the septum. Aliquots of
approximately 150 μL were taken at regular intervals with the increased sampling rate when the
reaction approached 100% conversion (estimated using hydrogen consumption). Analysis of the
products was performed using a Varian 430 gas chromatograph equipped with a 30 m
Stabilwax® capillary column (Restek). A series of experiments with various stirring rates and
catalyst amounts confirmed the absence of external mass transfer limitations. Conversion of
MBY (XMBY) and selectivity to MBE (SMBE,x) at different levels of conversion were calculated
using Eqs. (1)–(2), where CMBY, CMBE, CMBA and C are the concentrations of MBY, MBE, MBA
x
and the concentrations at x% MBY conversion, respectively. These formulae imply that no
components other than MBY, MBE and MBA were obtained, which was confirmed by the
carbon balance (CMBY + CMBE + CMBA) for all reactions of 100 ± 2%.
2
4
This article is protected by copyright. All rights reserved.

ChemCatChem
10.1002/cctc.201900391
퐶ꢂꢃ퐸 + 퐶ꢂꢃ퐴
푋푀퐵푌 = 퐶ꢂꢃꢄ
(1)
(2)
+ 퐶ꢂꢃ퐸 + 퐶ꢂꢃ퐴
ꢆ00 × 퐶ꢇ
ꢂꢃ퐸
푆푀퐵ꢅ,푥 = 퐶 ꢂꢇ ꢃꢄ + 퐶 ꢂꢇ ꢃ퐸
ꢇ
ꢂꢃ퐴
+ 퐶
The activity of the catalysts was characterised per mol. of Pd (A) using the average MBY
8
0
consumption rate in 0-80% MBY conversion interval as in Equation (4), where 푋
is the MBY
푀퐵푌
8
0
80
푀퐵푌
conversion close to 80% occurred during the reaction time of ꢈ
, ꢉ
is the initial MBY
푀퐵푌
concentration, 푉푠표푙 is the solution volume, 푚푐ꢊ푡 is the catalyst mass taken with Pd content of
휔 , and ꢌ is the molar mass of Pd.
ꢋ푑
ꢋ푑
ꢏꢐ
ꢐ
ꢆ − ꢎ
퐶
ꢑꢒꢓꢔ 푀ꢕꢖ
ꢂꢃꢄ ꢂꢃꢄ
ꢍ =
(3)
ꢏꢐ
ꢂꢃꢄ
푡
ꢗꢘꢙꢚ ꢛꢕꢖ
4
. Conclusions
We prepared and characterised “Pd
3
In” (Pd3−xIn1+x)/TiO
2
nanocatalysts, which show both
improved activity and selectivity compared to pure Pd catalysts, towards the liquid phase semi-
hydrogenation of 2-methyl-3-butyn-2-ol (MBY) to 2-methyl-3-buten-2-ol (MBE).
Conventionally, alloys are prepared via melting of the metals at temperature above 1000 C,
however, we used a polyol-based method, which relies on the boiling point of polyol solvents to
reach temperature. Specifically, we prepared two catalytically active alloys, “Pd In” (Pd3−xIn1+x),
3
2
5
This article is protected by copyright. All rights reserved.

ChemCatChem
10.1002/cctc.201900391
and their corresponding catalysts, “Pd
3
In” (Pd3−xIn1+x)/TiO
2
, in the same conditions, using
ethylene glycol (reaction temperature 194 C) and tetraethylene glycol (reaction temperature 345
C) as solvents.

We were able to prepare two single-phase “Pd
3
In” (Pd3−xIn1+x) compounds. “Pd In” (Pd3−xIn1+x)
3
compounds have been reported to show two polymorphs with tetragonal unit cells. However,
PXRD showed that both our compounds showed a Pd-like cubic structure, indicating that the use
of lower synthesis temperature allowed for the stabilisation of new polymorphs. HREM confirms
that the same cubic symmetry is shown by the “Pd
prepared as catalysts, i.e. in the presence of the TiO
3
In” (Pd3−xIn1+x) compounds also when
2
support and the PVP templating agent.
However, the extra components in the reaction mixture seem to have an effect on the Pd:In ratio,
which is different in the supported and unsupported “Pd In” (Pd3−xIn1+x) compounds. In this
3
work, the variation of the element ratio did not influence the crystal structure of the catalytically
active compounds, due to the structural flexibility and the alloy nature of the compound itself.
However, a change in metal ratio caused by the presence of the support in the preparation routine
for the catalyst may become crucial for catalysts based on intermetallic compounds with fixed
elements ratio.
Conflicts of interest
There are no conflicts to declare.
2
6
This article is protected by copyright. All rights reserved.

ChemCatChem
10.1002/cctc.201900391
Acknowledgements
This work was carried out under an EU funded FP 7 project: Microwave, Acoustic and Plasma
Synthesis, Project Number FP70NMP-2012-SMALL-6.
We wish to acknowledge the use of the EPSRC funded National Chemical Database Service
hosted by the Royal Society of Chemistry.
We are grateful to Ann Lowry and Bob Knight for TEM and ICP analyses, respectively.
Graphical abstract
3 2
New “Pd In”/TiO nanocatalysts show improved performance towards
the liquid phase semi-hydrogenation of 2-methyl-3-butyn-2-ol (MBY).
The catalysts are prepared via a one-step one-pot synthetic method and
3
are based on two new cubic polymorphs of “Pd In”, with tunable Pd/In
ratios, thanks to the use of different solvents/temperatures during the
synthesis process. PXRD, HREM and X-Ray maps show that the cubic
polymorphs are formed with or without the support, however, the
support seems to influence the Pd/In ratio.
Keywords: Cubic polymorphs; Pd/In alloys; Pd In catalysts; selective hydrogenation; tunable
3
compositions of alloys.
References
1
W. Bonrath, J. Medlock, J. Schutz, B. Wustenberg and T. Netscher, Hydrogenation in the Vitamins and
Fine Chemicals Industry – An Overview, InTech, 2012.
2
3
W. Bonrath, M. Eggersdorfer and T. Netscher, Catal. Today, 2007, 121, 45–57.
M. Eggersdorfer, D. Laudert, U. Létinois, T. McClymont, J. Medlock, T. Netscher and W. Bonrath, Angew.
Chem. Int. Ed. Engl., 2012, 51, 12960–12990.
4
G. C. Bond, D. A. Dowden and N. Mackenzie, Trans. Faraday Soc., 1958, 54, 1537.
2
7
This article is protected by copyright. All rights reserved.

ChemCatChem
10.1002/cctc.201900391
5
6
7
8
9
Á. Molnár, A. Sárkány and M. Varga, J. Mol. Catal. A Chem., 2001, 173, 185–221.
H. Lindlar, Helv. Chim. Acta, 1952, 35, 446–450.
J. A. Anderson, J. Mellor and R. P. K. Wells, J. Catal., 2009, 261, 208–216.
B. Coq and F. Figueras, J. Mol. Catal. A Chem., 2001, 173, 117–134.
A. Borodziński and G. C. Bond, Catal. Rev., 2008, 50, 379–469.
1
1
1
0
1
2
W. Palczewska, A. Jabłonski, Z. Kaszkur, G. Zuba and J. Wernisch, J. Mol. Catal., 1984, 25, 307–316.
W. P. Davey, Phys. Rev., 1925, 25, 753–761.
S. K. Johnston, N. Cherkasov, E. Pérez-Barrado, A. Aho, D. Y. Murzin, A. O. Ibhadon and M. G.
Francesconi, Appl. Catal. A Gen., 2017, 544, 40–45.
1
1
1
1
1
1
1
2
2
2
3
4
5
6
7
8
9
0
1
2
I. R. Harris, M. Norman and a. W. Bryant, J. Less Common Met., 1968, 16, 427–440.
J. R. Knight and D. W. Rhys, J. Less Common Met., 1959, 1, 292–303.
I. R. Harris and M. Cordey-Hayes, J. Less Common Met., 1968, 6, 223–232.
H. Okamoto, J. Phase Equilibria, 2003, 24, 481–481.
H. Kohlmann and C. Ritter, Z. Naturforsch., 2007, 62, 929–934.
H. Kohlmann and C. Ritter, Z. für Anorg. und Allg. Chemie, 2009, 635, 1573–1579.
F. Fievet, J. P. Lagier and M. Figlarz, MRS Bull., 1989, 14, 29–34.
R. E. Cable and R. E. Schaak, Chem. Mater., 2005, 17, 6835–6841.
I. Witońska, S. Karski, J. Rogowski and N. Krawczyk, J. Mol. Catal. A Chem., 2008, 287, 87–94.
M. G. Davie, K. Shih, F. A. Pacheco, J. O. Leckie and M. Reinhard, Environ. Sci. Technol., 2008, 42, 3040–
3
046.
2
2
3
4
J. Zhao, W. Li and D. Fang, RSC Adv., 2015, 5, 42861–42868.
B. P. Chaplin, J. R. Shapley and C. J. Werth, Catal. Letters, 2009, 130, 56–62.
2
8
This article is protected by copyright. All rights reserved.

ChemCatChem
10.1002/cctc.201900391
2
5
R. Zhang, D. Shuai, K. A. Guy, J. R. Shapley, T. J. Strathmann and C. J. Werth, ChemCatChem, 2013, 5,
3
13–321.
2
2
2
2
3
3
3
6
7
8
9
0
1
2
M. G. Kanatzidis, R. Pottgen and W. Jeitschko, Angew. Chem. Int. Ed. Engl., 2005, 44, 6996–7023.
E. Hellner and F. Laves, Z. Naturforsch., 1947, 2, 177–184.
I. R. Harris and M. Norman, J. Less-Common Met., 1968, 15, 285–298.
B. M. Leonard, N. S. P. Bhuvanesh and R. E. Schaak, J. Am. Chem. Soc., 2005, 127, 7326–7327.
Y. Zhao, Y. Zhang, H. Zhu, G. C. Hadjipanayis and J. Q. Xiao, J. Am. Chem. Soc., 2004, 126, 6874–6875.
L. Pauling, J. Am. Chem. Soc., 1947, 69, 542–553.
M. Crespo-Quesada, M. Grasemann, N. Semagina, A. Renken and L. Kiwi-Minsker, Catal. Today, 2009,
1
47, 247–254.
3
3
3
4
M. Crespo-Quesada, F. Cárdenas-Lizana, A. L. Dessimoz and L. Kiwi-Minsker, ACS Catal., 2012, 2, 1773–
786.
1
E. V. Rebrov, E. A. Klinger, A. Berenguer-Murcia, E. M. Sulman and J. C. Schouten, Org. Process Res.
Dev., 2009, 13, 991–998.
3
3
3
3
5
6
7
8
R. E. Cable and R. E. Schaak, J. Am. Chem. Soc., 2006, 128, 9588–9589.
B. H. Toby, J. Appl. Crystallogr., 2001, 34, 210–213.
R. B. Von Dreele and A. C. Larson, General structure analysis system (GSAS), 2004.
B. H. Toby, J. Appl. Crystallogr., 2005, 38, 1040–1041.
2
9
This article is protected by copyright. All rights reserved.
