A kinetic study of atom transfer radical polymerization of styrene with bis(2-pyridyl)ethylenedimethanimine derivative ligands

Article abstract of DOI:10.3906/kim-1302-64

Atom transfer radical polymerization (ATRP) of styrene was carried out with multidentate nitrogenbased ligands, namely N,N'-bis[phenyl(pyrid-2-yl) methylene] ethane-1,2-diamine (BPDA) and N,N'-bis[methyl(pyrid- 2-yl)methylene] ethane-1,2-diamine (BMDA), a

Full text of DOI:10.3906/kim-1302-64

Turk J Chem
2013) 37: 824 – 831
Turkish Journal of Chemistry
(
http://journals.tubitak.gov.tr/chem/
¨
˙
⃝
c TUBITAK
Research Article
doi:10.3906/kim-1302-64
A kinetic study of atom transfer radical polymerization of styrene with
bis(2-pyridyl)ethylenedimethanimine derivative ligands
1
,∗
1
2
3
¨ ¨
Yasemin KU C¸ UK, Ayfer MENTE S¸ , Metin Hayri ACAR
H u¨ lya ARSLAN,
1
Chemistry Department, B u¨ lent Ecevit University, Zonguldak, Turkey
2
Chemistry Department, Aksaray University, Aksaray, Turkey
3
˙
˙
Chemistry Department, Istanbul Technical University, Maslak, Istanbul, Turkey
Received: 25.02.2013
•
Accepted: 11.05.2012
•
Published Online: 16.09.2013
•
Printed: 21.10.2013
Abstract: Atom transfer radical polymerization (ATRP) of styrene was carried out with multidentate nitrogen-
based ligands, namely N,N’-bis[phenyl(pyrid-2-yl)methylene] ethane-1,2-diamine (BPDA) and N,N’-bis[methyl(pyrid-
2
-yl)methylene] ethane-1,2-diamine (BMDA), and catalyst systems at catalyst/ligand molar ratios of 1/0.33, 1/0.5, 1/1,
and 1/1.5 by using 2 different initiators, (1-bromoethyl)benzene (BEB) and ethyl-2-bromopropionate (EBP). Linear
first-order kinetic plots were observed for ATRP of styrene upon using BPDA as a ligand with both initiators. Even
though the linear slopes indicate that radical concentration remains constant during reactions, high molecular weights
were obtained at low conversion and showed a linear relation thereafter. To investigate the molecular weight effect, re-
actions were also performed in the presence of (1-bromoethyl)benzene initiator in dimethylformamide (DMF) for BPDA
and in toluene for BMDA using a catalyst/ligand ratio of 1/1.
Key words: Polymer synthesis, controlled radical polymerization, ATRP, imine ligand
1
. Introduction
Atom transfer radical polymerization (ATRP) has developed as one of the strongest and most commonly used
synthetic techniques in polymer science. Synthesis of polymers via ATRP employs an alkyl halide as initiator and
a metal complex in the lower oxidation state as catalyst. This process, separately improved by Matyjaszewski,
Sawamoto, and Percec in 1995, allows the synthesis of polymers of various compositions with predetermined
molecular weight and narrow molecular weight distribution.1 A series of metals such as Cu(I), Ru(II), Fe(II),
−3
Pd(II), Rh(III), and Re(II) have been used as catalysts for ATRP.4 For copper-based ATRP nitrogen-donor
compounds have been used as ligand. A wide range of monomers like (meth)acrylates, styrenes, acrylonitrile,
acrylamides, and vinyl pyridines have been polymerized and copolymerized successfully with Cu-based catalysts
−6
using ligands with amine, pyridine, or imine substructures.7
−9
The amine ligands can be classified as aliphatic amine ligands such as 1,1,4,7,7-pentamethyldiethylenetria-
mine (PMDETA) and 1,1,4,7,10,10-hexamethyltriethylenetetramine (HMTETA), cyclic amine ligands such as
1,4,8,11-tetramethyl-1,4,8,11-tetraazacyclotetradecane (Me4 Cyclam) and dimethyl cross-bridged cyclam (DM-
CBCy), and branched amine ligands such as tris[2-(dimethylamino)ethyl]amine (Me6 TREN) and tetramethyl-
guanidino-tris(2-aminoethyl)amine (TMG3 -TREN), N,N’-bis[(2-pyridyl)methyl]-2-aminomethylpyrrolide (BPPY),
∗
Correspondence: hulars@yahoo.com
824

ARSLAN et al./Turk J Chem
tris[2-(diethylamino)ethyl]amine (Et6 TREN), and 2,4-dimethyl-6-bis(2-(dimethyl amino)ethyl)aminomethylp-
henoxy (N -tetramethyltriamine phenoxy) (Me4 TAPH).1
0−18
Commonly used imine ligands can be classified as N-alkyl-(2-pyridyl) methanimine (PyMIm-R) such
as N-(n−hexyl)pyridyl methanimine (NHPyMIm), N−(n−pentyl) pyridyl methanimine (NPPyMIm), N-(n-
propyl)pyridyl methanimine (NPPyMIm), 2,6-bis[1-(2,6-diisopropyl phenylimino)ethyl]pyridine (BPIEP), glyo-
xaldiimine-type (GlIm-R), and bis(2-pyridyl)methanimine.1
9−25
The strong character of ATRP such as its tolerance to the most functional groups present in reagents,
solvents, and impurities makes it attractive. This precludes the extensive use of protecting group chemistry
and laborious reagent and solvent purification. To date, macromolecules with several configurations have been
synthesized using ATRP.1
0,12,13,16,26−44
Recently studies have been conducted to develop new ligands and metal complexes that increase the
activity and selectivity of the catalyst.9,15,21,24,42,45 The choice of ligand is one of the key factors influencing
the reactivity of the catalyst. Due to the continuous search for a new ligand for Cu-based ATRP, in this
presentation derivatives of the ligands bispyridyl methanimine, N,N’-bis-(phenyl(pyrid-2-yl)methylene)-ethane-
1,2-diamine (BPDA), and N,N’-bis-(methyl(pyrid-2-yl)methylene)-ethane-1,2-diamine (BMDA) were used to
investigate ligand effects in Cu-based ATRP.4
6−49
2
2
. Experimental
.1. General
BPDA and BMDA ligands were prepared as in the literature.50 All other chemicals were supplied from Merck,
Sigma-Aldrich, or Carlo Erba and used without purification while only toluene was distilled before use. The
quoted IR spectra were recorded on a Jasco FT-IR 300E spectrophotometer in CHCl3 or KBr pellets in the
−
1
range of 4000–600 cm . GPC measurements were conducted with a Knauer gel permeation chromatograph
equipped with a WellChrom Interface Box, RI Detector K-2301, and WellChrom HPLC pump K-501 and 3
◦
Waters Styragel HR columns (guard, 4, 3) set with CHCl3 as eluent at 35 C and a flow rate of 1 mL/min
using ChromGate software. Monodisperse polystyrenes (Polyscience) were used as standard polymer.
2
.2. ATRP of styrene
The procedure was performed with minor changes to that in the literature.44 ATRP of styrene was carried out
using BPDA and BMDA as ligands and EBP and BEB as initiators in 2 different solvents (toluene and DMF) by
the following experimental procedure. A given amount of CuCl and ligand were placed in a 50-mL round-bottom
flask sealed with a rubber septum. The flask was deoxygenated by 3 cycles of vacuum-nitrogen. Given amounts
of monomer (styrene), solvent, and initiator were added to the flask via a syringe and the flask was placed
◦
in a silicon oil bath at 110 C. All liquid components were bubbled with nitrogen prior to transferring them
into the flask. Polymerizations were performed at various molar ratios of CuCl/ligand (1/0.33, 1/0.5, 1/1, and
1/1.5), while the molar ratio of monomer/initiator/CuCl was 200/1/1. The liquid partition was taken regularly
through a syringe to keep track of the kinetics of the polymerization process. Polymers were precipitated in
◦
methanol, filtered, and dried to constant mass in a vacuum oven at 35 C. The conversion was gravimetrically
determined. Polymers were characterized by gel permeation chromatography (GPC) and FT-IR spectrometry.
8
25

ARSLAN et al./Turk J Chem
3
. Results and discussion
′
′
N,N -Bis[phenyl(pyridine-2-yl)methylene]ethane-1,2-diamine (BPDA) and N,N -bis[methyl(pyridine-2-yl)methylene]
ethane-1,2-diamine (BMDA) ligands were synthesized according to the literature (Scheme 1).50

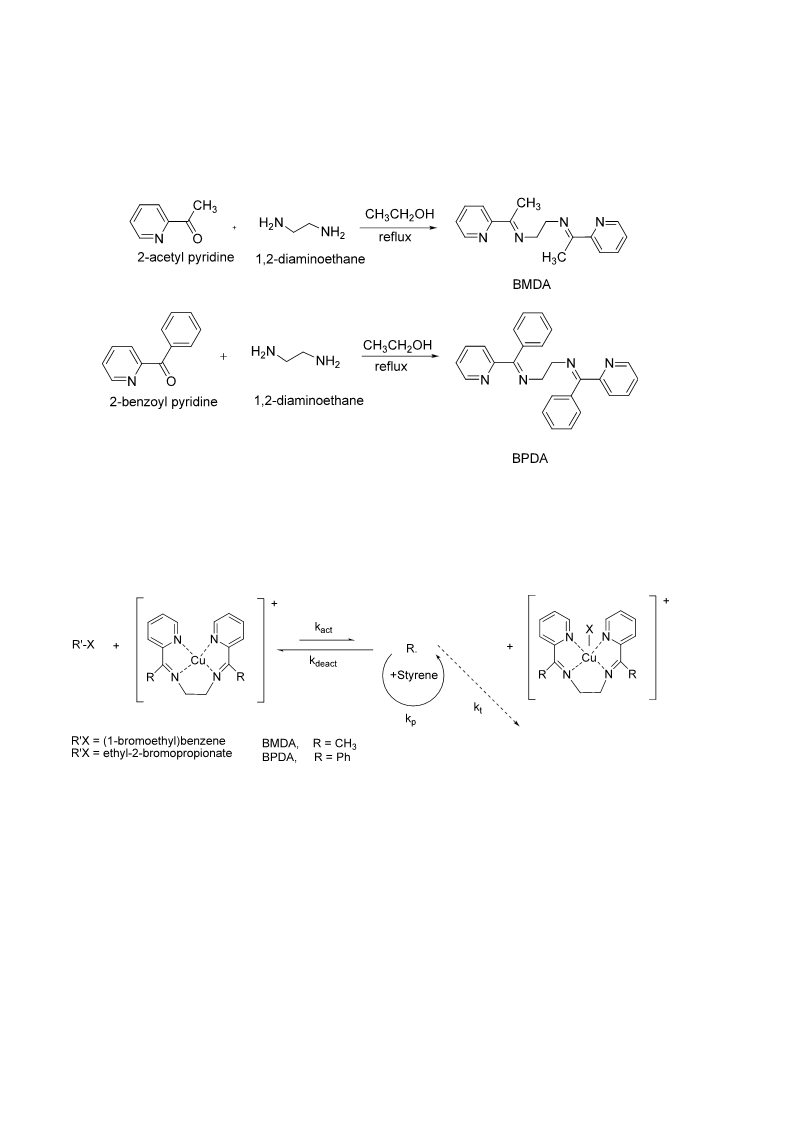

Scheme 1. Scheme for the synthesis of ATRP ligands.
CuCl-BPDA complex (brown color) is not soluble in styrene and toluene at room temperature. The
◦
mixing of CuCl, BPDA, EBP, styrene, and toluene generated a heterogeneous solution at 110 C and thus
polymerizations took place in a heterogeneous medium (Scheme 2). Initial conditions and results of the
polymerizations are listed in Table 1.
Scheme 2. ATRP mechanism using BMDA and BPDA as ligands.
A semilogarithmic kinetic graph of the monomer consumption versus time for ATRP of styrene using
BPDA ligand is presented in Figure 1. First-order kinetic curves were observed for all reaction conditions,
indicating that the number of active species is constant during the polymerization and that termination reactions
are absent or limited.
The apparent rate constant values of the polymerizations (k pa pp) were calculated from the slope of the
ln([M]o /[M])-time graphs for different ligand ratios in Figure 1 and are listed in Table 1. The obtained apparent
rate constant of ATRP of styrene is relatively high compared to those of other ligands such as Bpy (Table 1, run
) used in the literature.4
7−49
It is observed that Mn,GP C values are higher than Mn,th values and thus fini.eff
5
826

ARSLAN et al./Turk J Chem
values (Mn,th /Mn,GP C) are fairly low, between 0.08 and 0.28, and polymers possess a broad molecular weight
distribution (Mw /Mn = 1.32–2.22, Table 1). Similar results were reported in the literature.14,22,45,51,52 These
results can be attributed to the heterogeneity of the polymerization system because CuCl/BPDA complex is
◦
not completely soluble in styrene and toluene at room temperature or even at 110 C.
Table 1. ATRP of styrene using ethyl-2-bromopropionate as initiator.
Conv.b Timeb
M
b
n,th
M
b
n,GP C
Mw/Mb
k
app
b,c
f
ini.eff
a
n
p
Run no. [BPDA]/[CuCl] x
(min) (g mol 1
−
)
(g mol
13100
76000
34200
48100
3200
−1
)
(10 s )
−4 −1
(
%)
1
2
3
4
5
0.33
0.50
1.00
1.50
1
16.5
28.8
45.5
45.7
24
90
89
90
90
300
3440
6000
9480
9520
5000
2.22
1.32
2.02
2.09
1.21
0.35
0.65
1.00
1.03
0.15
0.26
0.08
0.28
0.20
1.00
d
− ◦
1
o o o o o
a) [S] = 7.9 mol L in toluene at 110 C. [S] /[EBP] /[CuCl] /[BPDA] = 200/1/1/x
b) Last point of kinetic data. Molecular weights were measured by GPC using polystyrene standards.
c) fini.eff. = Mn,th/Mn,GP C
− ◦
1
48
o o o o o
d) [S] = 7.9 mol L in toluene at 110 C. [S] /[EBP] /[CuBr] /[Byr] = 200/1/1/1.
All polymerizations were also performed by using BEB as initiator at the same conditions with EBP in
order to investigate the issue of high molecular weights, since CuCl and BPDA were not completely soluble
◦
even at 110 C and the polymerizations also took place in heterogeneous medium. The initial conditions and
results of the polymerizations are listed in Table 2.
The semilogarithmic kinetic plots of ln([M]o /[M]) versus time for ATRP of styrene using BPDA as ligand
◦
and BEB as initiator in toluene at 110 C are presented in Figure 2. First-order kinetic plots were observed for
all reactions, indicating that radical concentration remains constant during polymerization, i.e. polymerizations
were carried out in a controlled manner. Apparent rate constant values of polymerizations (kapp) were calculated
p
from the slope of the graphs in Figure 2 and are listed in Table 2.
Figure 1.
ing EBP in toluene at 110 C. [S]
S] /[EBP] /[CuCl] /[BPDA] = 200/1/1/x.
Kinetic plots for ATRP of styrene us-
Figure 2.
ing BEB in toluene at 110 C. [S]
[S] /[BEB] /[CuCl] /[BPDA] = 200/1/1/x.
Kinetic plots for ATRP of styrene us-
◦
−1
◦
−1
o
= 7.9 mol L
.
o
= 7.9 mol L .
[
o
o
o
o
o
o
o
o
When different amounts of ligand (BPDA) were used in the ATRP of styrene with both initiators
EBP and BEB), apparent rate constant versus ligand ratio showed the same trend and plateau above the
(
8
27

ARSLAN et al./Turk J Chem
[
ligand]/[catalyst] ratio at one for both ligands, i.e. every BPDA and BMDA molecule binding one molecule
of catalyst that can be seen from Figure 3. The molecular weights increased rapidly at the beginning of the
styrene polymerization (at 5%–10% conversion) and after that generally increased linearly with conversion, but
remained higher than the theoretical values. As a representative example, molecular weight versus conversion
plots of ATRP of styrene using BPDA for both initiators are shown in Figure 4. Initiator efficiency (fini.eff )
varied between 0.12 and 0.26 and polymers possessed a broad molecular weight distribution (MWD = 1.31–2.29,
Table 2).
Table 2. ATRP of styrene using 1-bromoethylbenzene as initiator.
Conv.b Timeb
M
b
n,th
M
b
n,GP C
Mw/Mb
k
app
b,c
f
ini.eff
a
n
p
Run no. [BPDA]/[CuCl] x
(
%)
(min) (g mol 1
−
)
(g mol
23400
50100
48000
33800
−1
)
(10 s )
−4 −1
1
2
3
4
0.33
0.50
1.00
1.50
23.1
29.8
33.7
41.6
90
90
91
90
4800
6200
7000
8700
2.29
1.31
2.10
1.68
0.38
0.62
0.97
1.03
0.21
0.12
0.15
0.26
−1
◦
a) [S]
o
= 7.9 mol L in toluene at 110 C. [S]
o
/[BEB]
o
/[CuCl]
o
/[BPDA]
o
= 200/1/1/x
b) Last point of kinetic data. Molecular weights were measured by GPC using polystyrene standards.
c) fini.eff. = Mn,th/Mn,GP C
1
1
0
0
.5
.0
.5
.0
6
4
2
0
0
0
4
3
2
1
BEB
EBP
Mn, BEB Mn, EBP Mw/Mn, BEB Mw/Mn, EBP
0
0
.0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
0
10
20 30
Convers€on (%)
40
50
[L!gand] / [Catalyst]
Figure 3. Apparent rate constant versus ligand/catalyst
Figure 4. Molecular weight versus conversion plots for
ratio for ATRP of styrene using EBP and BEB in toluene
ATRP of styrene using BEB and EBP in toluene at 110
◦
◦
at 110 C. [S]
o
/[I]
o
/[CuCl]
o
/[BPDA]
o
= 200/1/1/x.
C. [S]
o
/[I]
o
/[CuCl]
o
/[BPDA]
o
= 200/1/1/1. [S]
o
=
−
1
−1
[
S]
o
= 7.9 mol L
.
7.9 mol L
.
Unfortunately, the molecular weight could not be controlled by changing the initiator. It is thought that
the insufficient solubility of the copper-ligand complex in the monomer and the solvent, i.e. heterogeneity
of the polymerization system, was responsible for this behavior. Teodorescu and Matyjaszewski reported
similar observations for ATRP of (meth)acrylamides with Me4 Cyclam as a ligand and attributed this to the
slow deactivation rate of the catalytic system.14 Slow deactivation can also explain why high conversions of
(
meth)acrylamides can be achieved when Me4 Cyclam is used as a ligand, but other ligands, such as bipyridine
or linear amines, which are successfully employed in the ATRP of styrene and (meth)acrylates, afford very low
conversions (which may be explained by a slow activation in conjunction with a fast deactivation process).
828

ARSLAN et al./Turk J Chem
It was predicted that the addition of a solvent able to solve the complex would lead to a recovery
in the polymerization behavior and thus the basic necessities for controlled/living polymerization could be
accomplished.
The solubility of the CuCl/ligand complex was tested in the number of solvents and it was observed that
CuCl/ligand complex is partially soluble in dimethylformamide (DMF) and acetonitrile at room temperature.
In order to investigate the issue of high molecular weights, polymerizations were performed in DMF
as polar solvent, using a catalyst/ligand molar ratio of 1/1 because the apparent rate constant (kapp) versus
p
[
ligand]/[catalyst] ratio plot showed a plateau above the [ligand]/[catalyst] ratio of one.
Mixing of CuCl, BPDA, BEB, and styrene in DMF provided a heterogeneous mixture of dark brownish-
◦
red color at 100 C subject to the CuCl/BPDA complex (brown color) partially soluble in DMF at room
temperature. First-order kinetic plots were observed for the polymerization. Apparent rate constant values
of polymerization (k pa pp) were calculated as 6.67 × 10−5
s
−1
from the slope of the graph (Figure 5). The
molecular weight increased rapidly at the beginning of the styrene polymerization and after that increased
linearly with conversion, but remained higher than the theoretical values (fini.eff = 0.29) (Figure 6).
7
5
2
5
0
5
3.0
Mn,BMDA,Toluene
Mn, BPDA, DMF
Mw/Mn, BMDA, Toluene
Mw/Mn, BPDA, DMF
2
2
1
.5
.0
.5
0
1.0
0
5
10
15
20
25
30
35
40
Convers"on (%)
Figure 5. Kinetic plots for ATRP of styrene using BMDA
Figure 6.
Molecular weight versus conversion plot
◦
in toluene and BPDA in DMF at 110 C. [S]
o
= 7.9 mol
for ATRP of styrene using BMDA in toluene and
◦
−
1
BPDA in DMF at 110 C. [S]
o
/[BEB]
o
/[CuCl]
o
/[L]
o
=
L
. [S]
o
/[BEB]
o
/[CuCl]
o
/[L] = 200/1/1/1.
−
1
2
00/1/1/1. [S]
o
= 7.9 mol L
.
The ATRP of styrene was also performed in toluene as a nonpolar solvent using BMDA at a cata-
lyst/ligand molar ratio of 1/1. Although CuCl-BMDA complex (yellow color) is partially soluble in styrene and
in toluene at room temperature, CuCl, BMDA, BEB, styrene, and toluene mixtures were not soluble completely
◦
even at 110 C; therefore, polymerization was also carried out in heterogeneous media. First-order kinetic plots
were also observed. Apparent rate constant values of polymerization (kapp) were calculated as 8.67 × 10−5
s
−1
p
from the slope of the graph (Figure 5). The molecular weight increased rapidly at the beginning and after that
increased linearly with conversion, but remained higher than the theoretical values (fini.eff = 0.15) (Figure 6).
It can be concluded that replacing of the methyl group with a phenyl group in the ligand structure does not
affect the coordination of ligand with CuCl, namely the stability of CuCl/ligand complex, and hence does not
alter the results of the ATRP of styrene.
8
29

ARSLAN et al./Turk J Chem
4
. Conclusions
Two imine ligands (BPDA and BMDA) were synthesized by simple and straightforward reactions according to
the literature.50 Linear first-order kinetic plots were observed for the ATRP of styrene using the BPDA and
BMDA ligands. The polymerization proceeded at a moderate rate and in a controlled manner. The apparent
rate constant versus [ligand]/[catalyst] ratio plots showed a plateau above the [ligand]/[catalyst] ratio of one, i.e.
catalyst complex containing 1 mol of CuCl per mol of ligand molecule. The molecular weights increased rapidly
at the beginning of the styrene polymerization and after that increased linearly with conversion; however, they
were higher than the theoretical values. This was attributed to the slow deactivation rate of the catalytic system,
which causes a rapid increase in the molecular weight at the beginning of polymerization. The introduction of
a methyl group instead of the phenyl group into the ligand structure did not affect the solubility of catalyst and
the polymerization systems remained heterogeneous.
References
1
2
3
4
5
6
7
8
9
.
.
.
.
.
.
.
.
.
Wang, J. S.; Matyjaszewski K. J. Am. Chem. Soc. 1995, 117, 5614–5615.
Kato, M.; Kamigaito, M.; Sawamoto, M.; Higashimura, T. Macromolecules 1995, 28, 1721–1723.
Percec, V.; Barboiu B. Macromolecules 1995, 28, 7970–7972.
Kamigaito, M.; Ando, T.; Sawamoto, M. Chem. Rev. 2001, 101, 3689–3746.
Quchi, M.; Terashima, T.; Sawamoto, M. Chem. Rev. 2009, 109, 4963–5050.
Lena, F.; Matyjaszewski, K. Prog. Polym. Sci. 2010, 35, 959–1021.
Pintauer, T.; Matyjaszewski, K. Coordin. Chem. Rev. 2005, 249, 1155–1184.
Tsarevsky, N. V.; Matyjaszewski, K. Chem. Rev. 2007, 107, 2270–2299.
Tang, W.; Matyjaszewski, K. Macromolecules 2006, 39, 4953–4959.
1
1
1
1
1
1
0. Davis, K. A.; Matyjaszewski, K. Macromolecules 2000, 33, 4039–4047.
1. Gurr, P. A.; Mills, M. F.; Qiao, G. G.; Solomon, D. H. Polymer 2005, 46, 2097–2104.
2. Muhlebach, A.; Gaynor, S. G.; Matyjaszewski, K. Macromolecules 1998, 31, 6046–6052.
3. Shen, Y.; Zhu, S.; Zeng, F.; Pelton, R. Macromolecules 2000, 33, 5427–5431.
4. Teodorescu, M.; Matyjaszewski, K. Macromolecules 1999, 32, 4826–4831.
5. Tsarevsky, N. V.; Braunecker, W. A.; Tang, W.; Brooks, S. J.; Matyjaszewski, K.; Weisman, G. R.; Wong, E. H.
J. Mol. Catal. A-Chem. 2006, 257, 132–140.
1
1
1
1
2
2
6. Wootthikanokkhan, J.; Peesan, M.; Phinyocheep, P. Eur. Polym. J. 2001, 37, 2063–2071.
7. Brar, A. S.; Kaur, S. J. Polym. Sci. Pol. Chem. 2005, 43, 5906–5922.
8. Inoue, Y.; Matyjaszewski, K. Macromolecules 2004, 37, 4014–4021.
9. Zhang, H.; Klumperman, B.; van der Linde, R. Macromolecules 2002, 35, 2261–2267.
0. Zhang, H.; van der Linde, R. J. Polym. Sci. Pol Chem. 2002, 40, 3549–3561.
1. Haddleton, D. M.; Clark, A. J.; Crossman, M. C.; Duncalf, D. J.; Heming, A. M.; Morsley, S. R.; Shooter, A. J.
Chem. Commun. 1997, 1173–1174.
2
2
2
2. Raghunadh, V.; Baskaran, D.; Sivaram, S. Polymer 2004, 45, 3149–3155.
3. Mittal, A.; Sivaram, S. J. Polym. Sci. Pol. Chem. 2005, 43, 4996–5008.
4. Haddleton, D. M.; Crossman, M. C.; Dana, B. H.; Duncalf, D. J.; Heming, A. M.; Kukulj, D.; Shooter, A. J.
Macromolecules 1999, 32, 2110–2119.
2
5. Iovu, M.; Maithufi, N.; Mapolie, S. Macromol. Symp. 2003, 193, 209–226.
830

ARSLAN et al./Turk J Chem
2
2
2
2
3
3
3
3
3
3
6. Haddleton, D. M.; Jackson, S. G.; Bon, S. A. F. J. Am. Chem. Soc. 2000, 122, 1542–1543.
7. Sarbu, T.; Lin, K.; Spanswick, J.; Gil, R. R.; Siegwart, D. J. Macromolecules 2004, 37, 9694–9700.
8. Cai, Y.; Hartenstein, M.; M u¨ ller, A. H. E. Macromolecules 2004, 37, 7484–7490.
9. Chung, I. S.; Matyjaszewski, K. Macromolecules 2003, 36, 2995–2998.
0. Coessens, V.; Pintauer, T.; Matyjaszewski, K. Prog. Polym. Sci. 2001, 26, 337–377.
1. Yuan, X.; Lu, J.; Xu, Q.; Wang, L. Polymer 2005, 46, 9186–9191.
2. Muthukrishnan, S.; Jutz, G.; Andre, X.; Mori, H.; M u¨ ller, A. H. E. Macromolecules 2005, 38, 9–18.
3. Muthukrishnan, S.; Mori, H.; M u¨ ller, A. H. E. Macromolecules 2005, 38, 3108–3119.
4. Senkal, B. F.; Hizal, G.; Bicak, N. J. Polym. Sci. Pol. Chem. 2001, 39, 2691–2695.
5. Ydens, I.; Degee, P.; Dubois, P.; Libiszowski, J.; Duda, A.; Penczek, S. Macromol. Chem. Physic. 2003, 204,
1
71–179.
3
3
3
3
4
4
4
4
4
4
4
4
4
6. Beers, K. L.; Matyjaszewski, K. J. Macromol. Sci. Pure. Appl. Chem. 2001, 3, 731–739.
7. Zhang, Z.; Ying, S.; Zhang, Q.; Xu, X. J. Polym. Sci. Pol. Chem. 2001, 39, 2670–2676.
8. Batt-Coutrot, D.; Haddleton, D. M.; Jarvis, A. P.; Kelly, R. L. Eur Polym J. 2003, 39, 2243–2252.
9. Strissel, C.; Matyjaszewski, K.; Nuyken, O. Macromol. Chem. Physic. 2003, 204, 1169–1177.
0. Lee, S. B.; Russell, A. J.; Matyjaszewski, K. Biomacromolecules 2003, 4, 1386–1393.
1. Cassebras, M.; Pascual, S.; Polton, A.; Tardi, M.; Vairon, J. P. Macromol. Rapid Comm. 1999, 20, 261–264.
2. Zhu, S.; Yan, D. Macromolecules 2000, 33, 8233–8238.
3. Zhang, M.; Breiner, T.; Mori, H.; M u¨ ller, A. H. E. Polymer 2003, 44, 1449–1458.
4. Arslan, H.; Yesilyurt, N.; Hazer, B. J. Appl. Polym Sci. 2007, 106, 1742–1750.
5. Iovu, M. C.; Maithufi, N. G.; Mapolie, S. F. Polym. Int. 2003, 52, 899–907.
6. Acar, M. H.; Bicak, N. J. Polym. Sci. Pol. Chem. 2003, 41, 1677–1680.
7. Acar, M. H.; Becer, C. R.; Ondur, H. A.; Inceoglu, S. Polymer Preprints 2005, 46, 433–434.
8. Acar, M. H.; Becer, C. R.; Ondur, H. A.; Inceoglu, S. Alkylated linear amine ligands for homogeneous atom transfer
radical polymerization; Matyjaszewski, K., Ed. ACS Symp. Series No. 944; Am. Chem. Soc.: Controlled/Living
Radical Polymerization: From Synthesis to Materials, Washington, USA, 2006, pp. 98–110.
4
5
5
5
9. Zorvaryan, A.; Inceoglu, S.; Acar, M. H. Polymer 2011, 52, 617–621.
0. Mentes, A.; Sezek, S.; Hanhan, M. E.; B u¨ y u¨ kg u¨ ng o¨ r O. Turk. J. Chem. 2007, 31, 667–676.
1. Hong, S. C.; Matyjaszewski, K. Macromolecules 2002, 35, 7592–7605.
2. Zhu, C. Y.; Sun, F.; Zhang, M.; Jin, R. Polymer 2004, 45, 1141–1146.
8
31

Copyright of Turkish Journal of Chemistry is the property of Scientific and Technical
Research Council of Turkey and its content may not be copied or emailed to multiple sites or
posted to a listserv without the copyright holder's express written permission. However, users
may print, download, or email articles for individual use.
