A new fluorescence turn-on probe for biothiols based on photoinduced
electron transfer and its application in living cells
Jianxi Wang, Cheng Zhou, Jianjian Zhang, Xinyue Zhu, Xiaoyan Liu,
Qin Wang, Haixia Zhang
PII:
DOI:
Reference:
S1386-1425(16)30233-5
doi: 10.1016/j.saa.2016.05.004
SAA 14417
To appear in:
Received date:
Revised date:
Accepted date:
26 July 2015
25 April 2016
2 May 2016
Please cite this article as: Jianxi Wang, Cheng Zhou, Jianjian Zhang, Xinyue Zhu,
Xiaoyan Liu, Qin Wang, Haixia Zhang, A new fluorescence turn-on probe for biothiols
based on photoinduced electron transfer and its application in living cells, (2016), doi:
10.1016/j.saa.2016.05.004
This is a PDF file of an unedited manuscript that has been accepted for publication.
As a service to our customers we are providing this early version of the manuscript.
The manuscript will undergo copyediting, typesetting, and review of the resulting proof
before it is published in its final form. Please note that during the production process
errors may be discovered which could affect the content, and all legal disclaimers that
apply to the journal pertain.

ACCEPTED MANUSCRIPT
A new fluorescence turn-on probe for biothiols based on photoinduced electron
transfer and its application in living cells
Jianxi Wanga, Cheng Zhoub, Jianjian Zhanga, Xinyue Zhua, Xiaoyan Liua, Qin Wangb,
Haixia Zhanga,*
aKey Laboratory of Nonferrous Metals Chemistry and Resources Utilization of Gansu
Province and State Key Laboratory of Applied Organic Chemistry, College of
Chemistry and Chemical Engineering, Lanzhou University, Lanzhou 730000, P. R.
China.
bDepartment of Cell Biology, School of Life Sciences, Lanzhou University, Lanzhou
730000, P. R. China.
*Corresponding author: Haixia ZHANG
Tel.: +86 931 8912058;
Fax: +86 931 8912582.
E-mail: zhanghx@lzu.edu.cn
1

ACCEPTED MANUSCRIPT
Abstract:
A new biothiol-selective fluorescent probe 1 based on photoinduced electron
transfer (PET) mechanism was designed and synthesized. The UV-Vis absorption and
fluorescent emission properties of probe 1 towards various analytes were studied in
detail. The probe exhibited a large stokes shift (~200 nm) after reacted with biothiols
and could selectively detect cysteine (Cys) in dimethyl sulfoxide (DMSO)/H2O
solution (9:1, v/v, 10 mM phosphate buffer saline, pH 3.5) over glutathione (GSH),
homocysteine (Hcy) and other analytes with a detection limit of 0.117 µM. In addition,
probe 1 responded well to GSH, Hcy and Cys in the same above solution with pH 5.5
and got the detection limits of 0.151 µM, 0.128 µM and 0.037 µM, respectively.
Probe 1 was of very low cytotoxicity and successfully applied for imaging of thiols in
living cells.
Keywords:
Fluorescent probe; Photoinduced electron transfer; Imaging; Biothiols
2

ACCEPTED MANUSCRIPT
1. Introduction
Recently, the selective and sensitive fluorescent probes for thiols have increasingly
received attention on account of their operation simplicity and capability of imaging
intracellular thiols in vivo studies. Intracellular biothiols, such as cysteine (Cys),
homocysteine (Hcy) and glutathione (GSH), play momentous roles in cellular growth
and redox homeostasis in biological systems through the adjustment between the
reduced free thiols and oxidized disulfide forms [1−4]. In general, the abnormal level
of cellular thiols is closely related to many diseases. A deficiency of Cys would cause
many syndromes, like retarded growth, hair depigmentation, lethargy, liver damage,
muscle and fat loss, skin lesions and weakness [5−8]. While an elevated level of Hcy
in human plasma is proved to be involved in cardiovascular and Alzheimer’s disease
[9−11]. And GSH, the most abundant intracellular thiol, serves many cellular
functions including xenobiotic metabolism, intracellular signal transduction, and gene
regulation [12−17]. Therefore, it is of great scientific and technological interest to
recognize and detect special sulfhydryl-containing biomolecules in biochemistry and
biomedicine fields.
Over the past several decades, a lot of effective analytical methods have been
developed for the detection of thiols in biological systems including high performance
liquid
chromatography
(HPLC)
[18],
capillary
electrophoresis
[19],
spectrophotometry [20], electrochemical method [21], mass spectrometry (MS) [22],
and HPLC−MS [23]. Most of these methods need complicated and costly instruments
and troublesome pretreatment procedures such as separation and purification before
3

ACCEPTED MANUSCRIPT
instrumental analyses. Moreover, few of them are convenient to be applied in
intracellular tests due to their limitation in in vivo studies. Compared with these,
fluorometry has its own advantages with high sensitivity, economy, real-time
detection, noninvasiveness and good compatibility with biological samples. As a
consequence, numerous fluorescent probes for biothiols based on various mechanisms
have been developed [24], including cleavage reaction by thiols [25−34], cyclization
reaction with aldehyde [35−43], Michael addition [44−54], metal complexes [55,56],
nanomaterials [57−59] and others [60,61].
Rhodamine dyes are widely used as fluorescent probes owing to their high
absorption coefficient and broad fluorescence in the visible region of electromagnetic
spectrum, high fluorescence quantum yield and photostability [62]. For example, Li
group reported a probe for Hg2+ based on rhodamine derivative bearing phthalimido
Gly [63]. Das and his coworkers reported two rhodamine derivative probes for Hg2+
based on through-bond energy transfer (TBET) process [64,65] and a förster
resonance energy transfer (FRET) based probe for monitoring pH changes in
lipid-dense region of Hct116 cells [66].
Herein, we report a highly selective and sensitive fluorescent probe 1 for
quantitative detection of biothiols in living cells. The probe 1 was designed basing on
the cleavage of sulfonate ester by mercapto compound (RSH). The compound 2
containing rhodamine B structure is selected as the fluorophore, which has a large
stokes shift and long emission wavelength. 2, 4-dinitrophenylsulfonyl moiety is
chosen as the PET acceptor, which serves as not only an electrophile but also a
4

ACCEPTED MANUSCRIPT

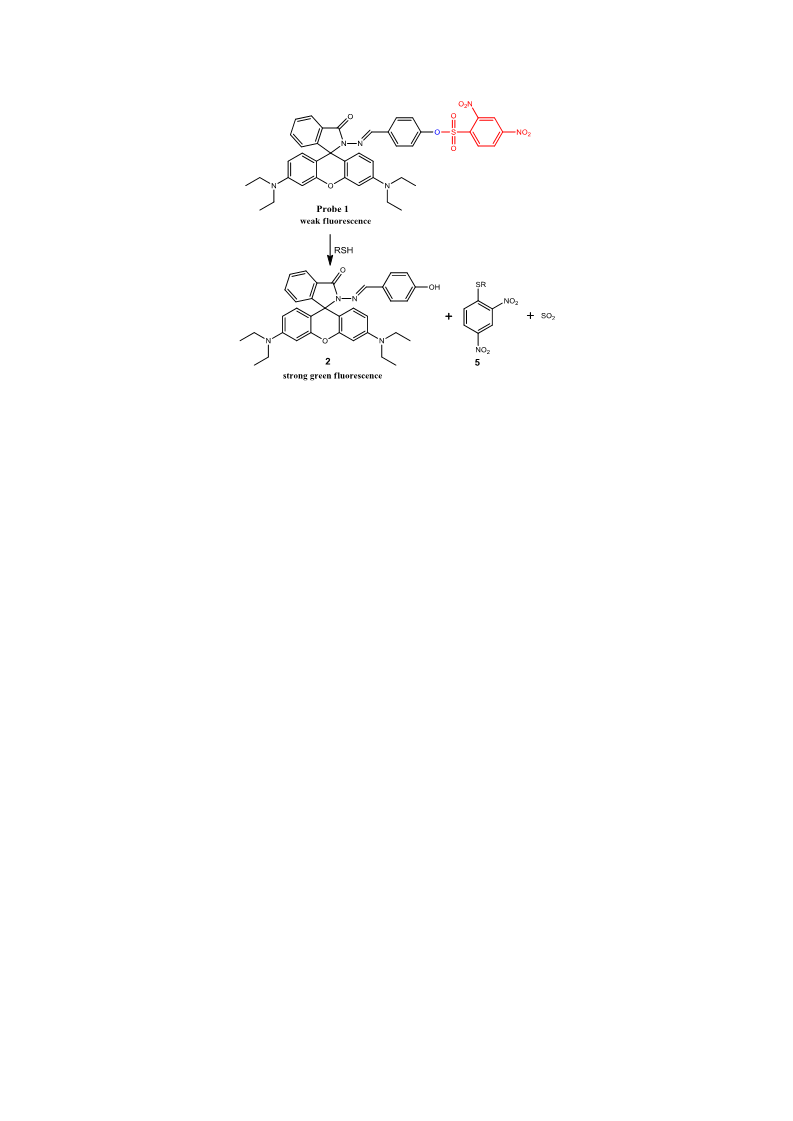

quencher of compound 2 (Scheme 1).
(Scheme 1)
2. EXPERIMENTAL SECTION
2.1. Materials
Cys and GSH were purchased from Sangon Biotech. Co., LTD. (Shanghai, China).
Hcy was obtained from J&K (Beijing, China). 2, 4-Dinitrobenzenesulfonyl chloride
was purchased from Alfa Aesar (Tianjin, China). Ultrapure water, which was used
throughout the experiments, was obtained from an ALH-6000-U (Aquapro
International Company, USA) purification system. HPLC-grade acetonitrile was
purchased from Dima Technology (RichmondHill, USA). HeLa cells were obtained
from Department of Cell Biology, School of Life Sciences, Lanzhou University
(Lanzhou, China). All other chemicals were obtained from qualified reagent suppliers
with analytical grade.
2.2. Instruments
Fluorescence spectra were recorded on a Fluorescence spectrophotometer
RF-5301pc (SHIMADZU, Japan) with a Xenon lamp and 1.0-cm quartz cells at the
slits of 10/10 nm. The fluorescence quantum yields were determined on fluorescence
spectrometer FLSP920 (Edinburgh Instruments Ltd., UK). Absorption spectra were
measured on a UV-Vis spectrophotometer TU-1810 (PUXI, China). Mass spectra
were measured using a mass spectrometer micrOTOF II with ESI mode (Bruker,
America). High resolution mass spectra (HRMS) were measured using a spectrometer
APEX II 47e FT-ICR with ESI or APCI positive ion mode (Bruker Daltonics,
5

ACCEPTED MANUSCRIPT
America). NMR spectra were measured using a 400 MHz instrument (JEOL, Japan).
The pH values were measured using a digital pH-meter PHSJ-3F (Leici, China). The
fluorescence images of cells were taken using a confocal laser scanning microscope
TCS SP8 (Leica, Germany) with an objective lens (×40).
2.3. Synthesis
Scheme S1 depicts the synthesis route of probe 1 and compound 2. Probe 1 was
obtained from compound 3 and 4, both of which were synthesized according to
previous reported methods [67,68].
2.3.1. Synthesis of compound 2
Compound 3 (456.0 mg, 1.0 mmol) was dissolved in 10 mL of ethanol, and then
added 4-hydroxybenzaldehyde (122.0 mg, 1.0 mmol) into the solution. The stirred
mixture was heated to reflux under nitrogen for 6 h and then the solvent was
evaporated. The solid was purified by flash column chromatography (CH2Cl2/CH3OH
= 100/1) on silica gel, affording the desired compound 2 as an offwhite solid (504.0
mg, yield 90%). m.p. 153–155 °C. 1H NMR (400 MHz, DMSO-d6): δ = 9.90 (s, 1H),
8.79 (s, 1H), 7.87 (d, J = 6.6 Hz, 1H), 7.61 – 7.51 (m, 2H), 7.26 (d, J = 8.7 Hz, 2H),
7.07 (d, J = 7.0 Hz, 1H), 6.72 (d, J = 8.6 Hz, 2H), 6.42 (d, J = 2.4 Hz, 2H), 6.40 (d, J
= 8.8 Hz, 2H), 6.32 (dd, J = 8.9, 2.4 Hz, 2H), 3.32 – 3.25 (m, 8H), 1.07 (t, J = 7.0 Hz,
13
12H) ppm. C NMR (100 MHz, DMSO-d6): δ = 163.89, 160.11, 153.19, 151.63,
149.75, 148.87, 134.03, 129.66, 129.15, 128.17, 126.02, 124.24, 123.33, 116.17,
108.42, 106.19, 97.77, 65.87, 55.45, 44.16, 12.93 ppm. HRMS (ESI, m/z) Calcd. for
[C35H36N4O3 + H] : 561.2860, found: 561.2865.
6

ACCEPTED MANUSCRIPT
2.3.2. Synthesis of probe 1
Compound 3 (456.0 mg, 1.0 mmol) was dissolved in 10 mL ethanol, then added
compound 4 (352.0 mg, 1.0 mmol) into the solution. The mixture was stirred and
heated to reflux under nitrogen. After 6 h, the reaction mixture was concentrated
under reduced pressure to give crude solid, which was purified by silica gel column
chromatography using CH2Cl2/0-2% methanol as eluent to afford desired brown
1
products (624.0 mg, yield 79%). m.p. 162–164 °C. H NMR (400 MHz, CDCl3) δ =
8.76 (s, 1H), 8.63 (d, J = 2.1 Hz, 1H), 8.51 – 8.32 (m, 1H), 8.07 (d, J = 8.7 Hz, 1H),
8.00 – 7.88 (m, 1H), 7.50 (t, J = 8.1 Hz, 4H), 7.12 (d, J = 7.1 Hz, 1H), 7.08 (d, J = 8.6
Hz, 2H), 6.47 (d, J = 8.7 Hz, 2H), 6.41 (d, J = 2.4 Hz, 2H), 6.23 (dd, J = 8.9, 2.4 Hz,
13
2H), 3.31 (q, J = 7.1 Hz, 8H), 1.15 (t, J = 7.0 Hz, 12H) ppm. C NMR (100 MHz,
CDCl3) δ = 164.99, 153.20, 151.39, 150.80, 149.21, 148.85, 144.96, 135.58, 134.06,
133.58, 133.32, 129.22, 129.03, 128.42, 128.01, 126.40, 123.97, 123.38, 121.82,
120.27, 107.82, 105.78, 97.67, 66.13, 44.28, 12.56 ppm. HRMS (ESI, m/z) Calcd. for
[C41H38N6O9 + H] : 791.2494, found: 791.2477.
2.4. General procedure for spectra measurement
The stock solution of probe 1 (1.0 mM) was prepared in DMSO. The analytes (Cys,
Hcy, GSH, Phe, Ala, Gly, Glu, Lys, Tyr, Trp, Ser, Asp, Val, Ile, His and CN-) solutions
(8.0 mM) were prepared in deionized water. The test concentration of probe 1 was 10
μM by diluting the stock solution to 4 mL DMSO/H2O solution (9: 1, v/v, 10 mM
phosphate buffer saline (PBS)) at various pH. The resulting solution was shaken well
at 37 °C for 80 min, and then the fluorescence and UV absorption spectra were
7

ACCEPTED MANUSCRIPT
recorded. Fluorescence spectra were measured using a fluorescence spectrometer (λex
= 328 nm, slit: 10/10 nm).
2.5. Cell culture
HeLa cells were grown in Dulbecco’s Modified Eagle Medium (DMEM)
supplemented with heat-inactivated fetal bovine serum (10%), penicillin (100 U/mL),
and streptomycin (100 U/mL) at 37 °C in a 95% humidity atmosphere under 5% CO2
environment.
2.6. Confocal microscope imaging
The cells were seeded in 35 mm diameter glass-bottomed dishes at a density of 3 ×
105 cells per dish in RPMI 1640 medium for 24 h. For living cells imaging experiment
of probe 1, cells were incubated with 20 μM probe 1 for 45 min at 37 °C and washed
three times with the PBS (pH 5.5 at 37 °C containing 1% DMSO), and then imaged.
For N-methylmaleimide (NMM, a thiol blocking agent) treated experiments, HeLa
cells were pretreated with NMM (1 mM) for 30 min at 37 °C, washed three times with
the PBS, and then incubated with 20 μM probe 1 (or incubated with 200 μM of Cys,
GSH or Hcy for 30 min prior to addition of probe 1) for 45 min at 37 °C. Cell imaging
was then carried out after washing cells three times with the PBS.
2.7. Cytotoxicity assay
The cytotoxic effects of probe 1 and compound 2 were determined by MTT
(3-(4,5-dimethyl-2-thiazolyl)-2,5-diphenyl-2-H-tetrazolium bromide) assays. HeLa
cells (1×104 cells/well) were placed in a flat bottom 96-well plate in 100 μL culture
medium and incubated in 5% CO2 at 37 °C for 24 h. The cells were treated with probe
8

ACCEPTED MANUSCRIPT
1 (0–80 μM) and compound 2 respectively for 24 h, then MTT solution (5.0 mg/mL,
PBS) was added into each well (10 μL/well, 0.5 mg/mL) and the residual MTT
solution was removed after 4 h. After shaking for 10 min, the absorbance values of the
wells were recorded using a microplate reader at 490 nm. The cytotoxic effect (VR) of
probe 1 and compound 2 were assessed using the following equation: VR = A/A0 ×
100%, where A and A0 were the absorbance of the experimental group and control
group, respectively. The assays were performed in six sets for each concentration.
3. Results and discussion
3.1. Synthesis of probe 1
Both probe 1 and compound 2 were obtained by the reaction between aldehyde and
amine under the heat and reflux condition in ethanol with a yield of 79% and 90%,
respectively. The chemical structures of probe 1 and compound 2 were confirmed by
1H-NMR, 13C-NMR, and HRMS (ESI), as shown in supporting information (Fig.
S12–S17).
3.2. Effect of pH

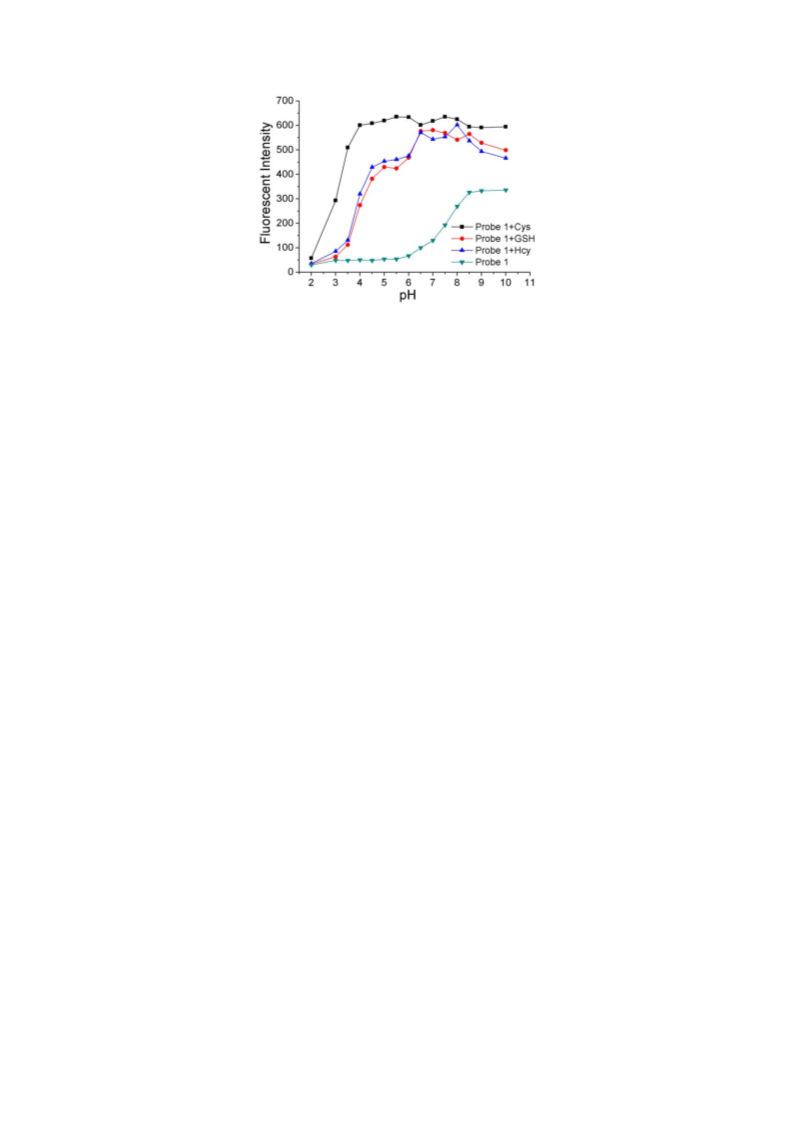

The pH dependence of the thiol-induced increase of fluorescent intensity at 520 nm
was investigated. As shown in Fig. 1, the fluorescence of probe 1 enhanced gradually
when pH ≥ 6. The pH titration spectra were provided in Fig. S2. On the other hand,
upon the addition of Cys, GSH or Hcy, a large emission enhancement was observed
over a wide pH range of 4–10. There was little emission enhancement of probe 1 upon
addition of RSH when pH ≤ 3.5. These findings proved that probe 1 could be used for
selective detection of biothiols within physiological pH range. We studied the
9

ACCEPTED MANUSCRIPT
fluorescent responses at pH 5.5 or 3.5 to further verify these results.
(Fig. 1)
The spectral properties of probe 1 were measured in the DMSO/H2O solution (9:1,
v/v, 10 mM PBS). At pH 3.5 (Fig. S1A and S1B), probe 1 showed two absorption
bands at 277 nm and 315 nm (ε = 3.47 × 104 M-1 cm-1) and weak fluorescence (Φ =
0.010, Table S1). Upon the addition of Cys, the absorption at 277 nm enhanced and a
new absorption maximum 321 nm appeared with a 6 nm red shift compared with
probe 1 itself. The resulting absorption spectrum was similar with that of compound 2
(the expected product, λmax = 321 nm, ε = 4.15 × 104 M−1 cm−1). Meanwhile, a
remarkable enhanced fluorescence emission peak at 518 nm appeared after probe 1
reacted with Cys, which was same as that of compound 2 (Φ = 0.029). The similar
results were obtained at pH 5.5 (Fig. S1C and S1D, Table S1).
3.3. Response time of probe 1 to biothiols
To achieve a better understanding of the reaction rate, we also carried out
o
time-dependent analysis of probe 1 with thiols at 37 C. The fluorescent intensity at
520 nm was plotted vs time. As depicted in Fig. 2, at pH 3.5, probe 1 only observably
responded to Cys and the equilibrium was gotten within 80 min. However, probe 1
responded to the three mercapto compounds at pH 5.5 but showed a much slower
equilibrium for GSH and Hcy than Cys. This suggested that probe 1 could
differentiate Cys from the others according to the reaction rate at pH 3.5. Pitman et al.
reported that the pKa of the sulfhydryl groups on Cys, Hcy and GSH are 8.35, 8.87
and 8.75, respectively [69]. According to these pKa values, Cys should be dissociated
10

ACCEPTED MANUSCRIPT
more easily than Hcy and GSH. In addition, Wang et al. reported that Cys has
stronger reducing ability [70]. Cys should be a stronger nucleophile. Therefore, probe
1 is more reactive towards Cys. The long response equilibrium time to thiols was
perhaps owing to the large structure of probe 1, which would not greatly influence its
application. There are some probes reported which need long response equilibrium
time to analytes, such as a probe for the detection of hydrogen sulfide which needed
80 min [71] and another probe for detecting GSH whose response equilibrium time
was over 90 min [72].
(Fig. 2)
3.4. Specificity of probe 1
To investigate the ability of probe 1 to discriminate thiols from other analytes, the
selectivity experiments were carried out using natural amino acids (Ala, Glu, Asp, Gly,
His, Ile, Tyr, Lys, Phe, Trp, Ser, Val) and CN-. As illustrated in Fig. 3 and Fig. S3,
probe 1 could selectively detect Cys at pH 3.5, and as well as Cys, GSH and Hcy at
pH 5.5.
(Fig. 3)
3.5. Quantitative responses of probe 1 to thiols
In order to measure the fluorescence sensitivity of probe 1 for thiols, fluorescence
and UV titration were carried out (Fig. 4, Fig. S4−S7). As shown in Fig. 4, at pH 3.5,
the fluorescent intensity at 520 nm gradually increased with the increase of the
concentration of Cys. The fluorescent intensity of probe 1-Cys solution was linearly
proportional to the amount of Cys added. The limit of detection (LOD) calculated by
11

ACCEPTED MANUSCRIPT
the formula (3σ/k) was 0.117 µM, where σ is the standard deviation of blank
measurements and k is the slope obtained from the calibration curve. With increasing
concentration of Cys, the UV absorption of probe 1 enhanced with a red shift. Similar
phenomena were observed in the titration experiments of probe 1 to Cys, GSH and
Hcy at pH 5.5. The LODs were 0.037 µM for Cys, 0.151 µM for GSH, 0.128 µM for
Hcy, respectively. The probe 1 was demonstrated to be a sensitive fluorescent sensor
for the quantitative detection of biothiols.
(Fig. 4)
3.6. Study on sensing mechanism
The mechanism of probe 1 responding to biolthiols is based on cleavage of O–S by
hydrosulfuryl, which generates compound 2, SO2 and compound 5 (Scheme 1). In
order to further confirm the sensing mechanism, HPLC analysis was performed (Fig.
S8). The decrease of probe 1 signal was observed after mixing 5.0 equiv Cys, while
the signal ascribed to compound 2 appeared. In addition, the mass spectrometry
analysis of probe 1 (10 μM) treated with Cys (20 equiv) also demonstrated the
generation of expected compound 2 (m/z 561.2373) (Fig. S9). Moreover, the product
of probe 1 with Cys was isolated and checked by thin layer chromatography (TLC).
The results showed that the reaction did produce the compound 2 (Fig. S10).
To further explain the fluorescence “off-on” process, the structures of probe 1 and
compound 2 were optimized and their frontier molecular orbital energies were
calculated by using Gaussian 09 [DFT at the B3LYP/6-311G (d, p) level] [73,74]. As
shown in Fig. 5, the HOMO and LUMO levels support a possible PET process in
12

ACCEPTED MANUSCRIPT
probe 1. The electron transfer from compound 2 fragment (PET donor) to the
2,4-dinitrophenylsulfonyl (PET acceptor) diminishes the fluorescence of the original
fluorophore, resulting in fluorescence being “switched off”. However, the
thiol-promoted specific O–S cleavage of probe 1 releases free compound 2, which
eliminates the PET fluorescence quenching process. As a result, the fluorescence is
“switched on”. Furthermore, the energy gaps (HOMO−LUMO) of probe 1 and
compound 2 were calculated as 1.40 ev and 3.71 ev, respectively. The difference of
the energy gaps also indicates the PET process.
(Fig. 5)
3.7. Fluorescence microscopic images in living cells and cell viability
Confocal microscopy experiments were carried out with living Hela cells to detect
intracellular thiols by probe 1. As shown in Fig. 6, Hela cells show no intracellular
background fluorescence. After Hela cells were incubated with probe 1 (20 μM) for
45 min at 37 oC, green fluorescence could be observed inside the cells. In contrast, in
the control experiment, the cells were treated with NMM and the probe subsequently
and a remarkable fluorescence quenching was observed. The cells treated with NMM
followed by thiols and probe 1 displayed green fluorescence again. These results
reveal that probe 1 can penetrate cell membranes and could be applied for thiol
imaging in living cells.
The cytotoxicity of probe 1 in HeLa cells was determined by the MTT assay (Fig.
S11). Upon exposure to probe 1 (0–80 μM) and compound 2 for 24 h, over 90% of the
HeLa cells remained viable, which indicated that the probe 1 was of very low toxicity
13

ACCEPTED MANUSCRIPT
and suitable for imaging of thiols in living cells.
(Fig. 6)
4. Conclusion
In summary, a new turn-on fluorescent probe was successfully designed and
synthesized basing on PET for selective detection of thiols. Probe 1 exhibited a large
stokes shift (~200 nm) after reacted with thiols and could selectively detect Cys at pH
3.5, and responded well to GSH, Hcy and Cys at pH 5.5, too. Probe 1 is of very low
cytotoxicity and good cell permeability, which could be applied in the fluorescence
imaging of thiols in living cells.
Acknowledgment
This work was supported by National Science Foundation of China (no. 21375052,
21575055).
References
[1] Krauth-Siegel RL, Bauer H, Schirmer RH. Dithiol proteins as guardians of the
intracellular redox milieu in parasites: old and new drug targets in trypanosomes and
malaria-causing plasmodia. Angew Chem Int Ed 2005;44:690−715.
[2] Ball RO, Courtney-Martin G, Pencharz PB. The in vivo sparing of methionine by
cysteine in sulfur amino acid requirements in animal models and adult humans. J Nutr
2006;136:1682s−93s.
[3] Hong R, Han G, Fernandez JM, Kim BJ, Forbes NS, Rotello VM. Glutathione
mediated delivery and release using monolayer protected nanoparticle carriers. J Am
14

ACCEPTED MANUSCRIPT
Chem Soc 2006;128:1078−9.
[4] Wood ZA, Schroder E, Harris JR, Poole LB. Structure, mechanism and regulation
of peroxiredoxins. Trends Biochem Sci 2003;28:32−40.
[5] Shahrokhian S. Lead phthalocyanine as a selective carrier for preparation of a
cysteine-selective electrode. Anal Chem 2001;73:5972−8.
[6] Kannana P, John SA. Ultrasensitive detection of L-Cysteine using gold −
5-amino-2-mercapto-1, 3, 4-thiadiazole core-shell nanoparticles film modified
electrode. Biosens Bioelectron 2011;30:276−81.
[7] Deng L, Wu WT, Guo HM, Zhao JZ, Ji SM, Zhang XY. Colorimetric and
ratiometric fluorescent chemosensor based on diketopyrrolopyrrole for selective
detection of thiols: an experimental and theoretical study. J Org Chem
2011;76:9294−304.
[8] Shao N, Jin JY, Cheung SM, Yang RH, Chan WH, Mo T. A spiropyran-based
ensemble for visual recognition and quantification of cysteine and homocysteine at
physiological levels. Angew Chem Int Ed 2006;45:4944−8.
[9] Refsum H, Ueland PM, Nygard O, Vollset SE. Homocysteine and cardiovascular
disease. Annu Rev Med 1998;49:31−62.
[10] Seshadri S, Beiser A, Selhub J, Jacques PF, Rosenberg IH, D’Agostino RB,
Wilson PWF, Wolf PAN. Plasma homocysteine as a risk factor for dementia and
Alzheimer’s disease. Engl J Med 2002;346:476−83.
[11] Lee HY, Choi YP, Kim S, Yoon T, Guo ZQ, Lee S, Swamy KMK, Kim G, Lee
JY, Shin I, Yoon J. Selective homocysteine turn-on fluorescent probes and their
15

ACCEPTED MANUSCRIPT
bioimaging applications. Chem Commun 2014;50:6967−9.
[12] Yin CX, Huo FJ, Zhang JJ, Martínez-M, Yang YT, Lv HG, Li SD. Thiol-addition
reactions and their applications in thiol recognition. Chem Soc Rev 2013;42:6032−59.
[13] Yang YT, Huo FJ, Yin CX, Zheng AM, Chao JB. Thiolechromene click chemistry:
a coumarin-based derivative and its use as regenerable thiol probe and in bioimaging
applications. Biosens Bioelectron 2013;47:300−6.
[14] Wang CH, Sinskey AJ, Lodish HF. Oxidized redox state of glutathione in the
endoplasmic reticulum. Science 1992;257:1496−502.
[15] Dalton TP, Shertzer HG, Puga A. Regulation of gene expression by reactive
oxygen. Annu Rev Pharmacol Toxicol 1999;39:67−101.
[16] Pullela PK, Chiku T, Carvan MJ, Sem DS. Characterization of a novel
dithiocarbamate glutathione reductase inhibitor and its use as a tool to modulate
intracellular glutathione. Anal Biochem 2006;352:265−73.
[17] Yin J, Kwon Y, Kim D, Lee D, Kim G, Hu Y, Ryu JH, Yoon J. Cyanine-based
fluorescent probe for highly selective detection of glutathione in cell cultures and live
mouse tissues. J Am Chem Soc 2014;136:5351−8.
[18] Ivanov AR, Nazimov IV, Baratova LA. Qualitative and quantitative
determination of biologically active low-molecular-mass thiols in human blood by
reversed-phase high-performance liquid chromatography with photometry and
fluorescence detection. J Chromatogr A 2000;870:433−42.
[19] Inoue T, Kirchhoff JR. Determination of thiols by capillary electrophoresis with
amperometric detection at a coenzyme pyrroloquinoline quinone modified electrode.
16

ACCEPTED MANUSCRIPT
Anal Chem 2002;74:1349−54.
[20] Liang GL, Ronald J, Chen YX, Ye DJ, Pandit P, Ma ML, Rutt B, Rao JH.
Controlled Self-Assembling of Gadolinium Nanoparticles as Smart Molecular
Magnetic Resonance Imaging Contrast Agents. Angew Chem Int Ed 2011;50:6283−6.
[21] Wang W, Li L, Liu SF, Ma CP, Zhang SS. Determination of physiological thiols
by electrochemical detection with piazselenole and its application in rat breast cancer
cells 4T-1. J Am Chem Soc 2008;130:10846−7.
[22] Xu KH, Zhang Y, Tang B, Laskin J, Roach PJ, Chen H. Study of highly selective
and efficient thiol derivatization using selenium reagents by mass spectrometry. Anal
Chem 2010;82:6926−32.
[23] Seiwert B, Karst U. Simultaneous LC/MS/MS determination of thiols and
disulfides in urine samples based on differential labeling with ferrocene-based
maleimides. Anal Chem 2007;79:7131−8.
[24] Peng H, Chen W, Cheng Y, Hakuna L, Strongin R, Wang B. Thiol reactive probes
and chemosensors. Sensors 2012;12:15907-46.
[25] Peng L, Zhou ZJ, Wei RR, Li K, Song PS, Tong AJ. A fluorescent probe for thiols
based on aggregation-induced emission and its application in live-cell imaging. Dyes
Pigm 2014;108:24−31.
[26] Maeda H, Matsuno H, Ushida M, Katayama K, Saeki K, Itoh N.
2,4-Dinitrobenzenesulfonyl fluoresceins as fluorescent alternatives to Ellman’s
reagent in thiol-quantification enzyme assays. Angew Chem Int Ed 2005;44:2922−5.
[27] Long LL, Lin WY, Chen BB, Gao WS, Yuan L. Construction of a FRET-based
17

ACCEPTED MANUSCRIPT
ratiometric fluorescent thiol probe. Chem Commun 2011;47:893−5.
[28] Lee MH, Han JH, Kwon PS, Bhuniya S, Kim JY, Sessler JL, Kang, C, Kim, JS.
Hepatocyte-targeting single galactose-appended naphthalimide: a tool for intracellular
thiol imaging in vivo. J Am Chem Soc 2012;134:1316−22.
[29] Lim CS, Masanta G, Kim HJ, Han JH, Kim HM, Cho BR. Ratiometric detection
of mitochondrial thiols with a two-photon fluorescent probe. J Am Chem Soc
2011;133(29):11132−5.
[30] Tang B, Xing YL, Li P, Zhang N, Yu FB, Yang GW. A rhodamine-based
fluorescent probe containing a Se-N bond for detecting thiols and its application in
living cells. J Am Chem Soc 2007;129:11666−7.
[31] Wei MJ， Yin P， Shen YM， Zhang LL， Deng JH， Xue SY， Li HT， Guo
B， Zhang YY， Yao SZ. A new turn-on fluorescent probe for selective detection of
glutathione and cysteine in living cells. Chem Commun 2013；49：4640−2.
[32] Shiu HY, Wong MK, Che CM. “Turn-on” FRET-based luminescent iridium(III)
probes for the detection of cysteine and homocysteine. Chem Commun
2011;47:4367−9.
[33] Chen YH, Zhao JZ, Guo HM, Xie LJ. Geometry relaxation-induced large stokes
shift in red-emitting borondipyrromethenes (BODIPY) and applications in fluorescent
thiol probes. J Org Chem 2012;77:2192−206.
[34] Shao JY, Sun HY, Guo HM, Ji SM, Zhao JZ, Wu WT, Yuan XL, Zhang CL,
James TD. A highly selective red-emitting FRET fluorescent molecular probe derived
from BODIPY for the detection of cysteine and homocysteine: an experimental and
18

ACCEPTED MANUSCRIPT
theoretical study. Chem Sci 2012;3:1049−61.
[35] Lee KS, Kim TK, Lee JH, Kim HJ, Hong JI. Fluorescence turn-on probe for
homocysteine
and cysteine in water. Chem Commun 2008;(46):6173−5.
[36] Lim S, Escobedo JO, Lowry M, Xu XY, Strongin R. Selective fluorescence
detection of cysteine and N-terminal cysteine peptide residues. Chem Commun
2010;46:5707−9.
[37] Yuan L, Lin WY, Yang YT. A ratiometric fluorescent probe for specific detection
of cysteine over homocysteine and glutathione based on the drastic distinction in the
kinetic profiles. Chem Commun 2011;47:6275−7.
[38] Liu XM, Xi N, Liu SJ, Ma Y, Yang HR, Li HR, He JH, Zhao Q, Li FY, Huang W.
Highly selective phosphorescent nanoprobes for sensing and bioimaging of
homocysteine and cysteine. J Mater Chem 2012;22:7894−901.
[39] Hu MM, Fan JL, Li HL, Song KD, Wang S, Cheng GH, Peng XJ. Fluorescent
chemodosimeter for Cys/Hcy with a large absorption shift and imaging in living cells.
Org Biomol Chem 2011;9:980−3.
[40] Wang P, Liu J, Lv X, Liu YL, Zhao Y, Guo W. A naphthalimide-based glyoxal
hydrazone for selective fluorescence turn-on sensing of Cys and Hcy. Org Lett
2012;14:520−3.
[41] Zhang X, Ren X, Xu QH, Loh KP, Chen ZK. One- and two-photon turn-on
fluorescent probe for cysteine and homocysteine with large emission shift. Org Lett
2009;11:1257−60.
19

ACCEPTED MANUSCRIPT
[42] Zhang M, Li MY, Zhao Q, Li FY, Zhang DQ, Zhang JP, Yi T, Huang CH. Novel
Y-type two-photon active fluorophore: synthesis and application in fluorescent sensor
for cysteine and homocysteine. Tetrahedron Lett 2007;48:2329−33.
[43] Das P, Mandal AK, Chandar NB, Baidya M, Bhatt HB, Ganguly B, et al. New
chemodosimetric reagents as ratiometric probes for cysteine and homocysteine and
possible detection in living cells and in blood plasma. Chem Eur J 2012;18:15382-93.
[44] Yang YT, Huo FJ, Yin CX, Chao JB, Zhang YB. An ‘OFF–ON’ fluorescent probe
for specially recognize on Cys and its application in bioimaging. Dyes Pigm
2015;114:105−9.
[45] Xue SH, Ding SS, Zhai QS, Zhang HY, Feng GQ. A readily available
colorimetric and near-infrared fluorescent turn-on probe for rapid and selective
detection of cysteine in living cells. Biosens Bioelectron 2015;68:316−21.
[46] Zhang RR, Zhang JF, Wang SQ, Cheng YL, Miao JY, Zhao BX. Novel
pyrazoline-based fluorescent probe for detecting thiols and its application in cells.
Spectrochim Acta A. 2015;137:450-5.
[47] Shi JM, Wang YJ, Tang XL, Liu W, Jiang H, Dou W, Liu WS. A colorimetric and
fluorescent probe for thiols based on 1, 8-naphthalimide and its application for
bioimaging. Dyes Pigm 2014;100:255−60.
[48] Liu YB, Liu YW, Liu W, Liang SC. Two-photon fluorescent probe derived from
naphthalimide for cysteine detection and imaging in living cells. Spectrochim Acta A.
2015;137:509-15.
[49] Jung HS, Han JH, Habata Y, Kang C, Kim JS. An iminocoumarin-Cu(II)
20

ACCEPTED MANUSCRIPT
ensemble-based chemodosimeter toward thiols. Chem Commun 2011;47:5142−4.
[50] Kwon H, Lee K, Kim HJ. Coumarin-malonitrile conjugate as a fluorescence
turn-on probe for biothiols and its cellular expression. Chem Commun
2011;47:1773−5.
[51] Wang HL, Zhou GD, Gai HW, Chen XQ. A fluorescein-based probe with high
selectivity to cysteine over homocysteine and glutathione. Chem Commun
2012;48:8341−3.
[52] Das P, Mandal AK, Reddy GU, Baidya M, Ghosh SK, Das A. Designing a thiol
specific fluorescent probe for possible use as a reagent for intracellular detection and
estimation in blood serum: kinetic analysis to probe the role of intramolecular
hydrogen bonding. Org Biomol Chem 2013;11:6604-14.
[53] A AH, G UR, Ali F, Taye N, Chattopadhyay S, Das A. A reagent for specific
recognition of cysteine in aqueous buffer and in natural milk: imaging studies,
enzymatic reaction and analysis of whey protein. Chem Commun 2015;51:15592-5.
[54] Ali F, H AA, Taye N, Gonnade RG, Chattopadhyay S, Das A. A fluorescent probe
for specific detection of cysteine in the lipid dense region of cells. Chem Commun
2015;51:16932-5.
[55] Wang SJ， Ma HM， Li J， Chen XQ， Bao ZJ， Sun SN. Direct determination
of reduced glutathione in biological fluids by Ce(IV)-quinine chemiluminescence.
Talanta 2006;70:518−21.
[56] Reddy GU, Agarwalla H, Taye N, Ghorai S, Chattopadhyay S, Das A. A novel
fluorescence probe for estimation of cysteine/histidine in human blood plasma and
21

ACCEPTED MANUSCRIPT
recognition of endogenous cysteine in live Hct116 cells. Chem Commun
2014;50:9899-902.
[57] Sudeep PK, Joseph STS, Thomas KG. Selective detection of cysteine and
glutathione using gold nanorods. J Am Chem Soc 2005;127:6516−7.
[58] Huang R, Wang XJ, Wang DL, Liu F, Mei B, Tang AM, Jiang J, Liang GL.
Multifunctional fluorescent probe for sequivuential detections of glutathione and
caspase-3 in vitro and in cells. Anal Chem 2013;85:6203−7.
[59] Yuan Y, Zhang J, Wang MJ, Mei B, Guan YF, Liang GL. Detection of
glutathione in vitro and in cells by the controlled self-assembly of nanorings. Anal
Chem 2013;85:1280−4.
[60] Roubinet B, Renard P-Y, Romieu A. New insights into the water-solubilization
of thiol-sensitive fluorogenic probes based on long-wavelength 7-hydroxycoumarin
scaffolds. Dyes Pigm 2014;110:270−84.
[61] Kim Y, Choi M, Seo S, Manjare ST, Jon S, Churchill DG. A selective
fluorescent probe for cysteine and its imaging in live cells. RSC Adv
2014;4:64183−6.
[62] Beija M, Afonso CA, Martinho JM. Synthesis and applications of rhodamine
derivatives as fluorescent probes. Chem Soc Rev 2009;38:2410-33.
[63] Yan F, Wang M, Cao D, Yang N, Ma B, Chen L. Recognition preference of
rhodamine derivative bearing phthalimido Gly for by UV-Vis and fluorescence
spectroscopy. Journal of Spectroscopy. 2013;2013:1-7.
[64] Saha S, Mahato P, Baidya M, Ghosh SK, Das A. An interrupted PET coupled
22

ACCEPTED MANUSCRIPT
TBET process for the design of a specific receptor for Hg2+ and its intracellular
detection in MCF7 cells. Chem Commun 2012;48:9293-5.
[65] Reddy GU, Ramu V, Roy S, Taye N, Chattopadhyay S, Das A. A specific probe
for Hg2+ to delineate even H+ in pure aqueous buffer/Hct116 colon cancer cells:
Hg(II)-η2-arene π-interaction and a TBET-based fluorescence response. Chem
Commun 2014;50:14421-4.
[66] Reddy G U, A AH, Ali F, Taye N, Chattopadhyay S, Das A. FRET-Based probe
for monitoring pH changes in lipid-dense region of Hct116 cells. Org Lett
2015;17:5532-5.
[67] Zhang JJ, Yu BF, Ning, LL, Zhu XY, Wang JX, Chen ZJ, Liu XY, Yao XJ,
Zhang XY, Zhang HX. A near-infrared fluorescence probe for thiols based on
analyte-specific cleavage of carbamate and its application in bioimaging. Eur J Org
Chem 2015;2015:1711−8.
[68] Xiang Y, Tong AJ, Jin PY, Ju Y. New fluorescent rhodamine hydrazone
chemosensor for Cu(II) with high selectivity and sensitivity. Org Lett 2006;8:2863−6.
[69] Pitman IH, Morris IJ. Covalent additions of glutathione, cysteine, homocysteine,
cysteamine and thioglycolic acid to quinazoline cation. Aust J Chem
1979;32:1567-73.
[70] Peng H, Wang K, Dai C, Williamson S, Wang B. Redox-based selective
fluorometric detection of homocysteine. Chem Commun 2014;50:13668-71.
[71] Gu B, Mi NX, Zhang YY, Yin P, Li HT, Yao SZ. A tetraphenylimidazole-based
fluorescent probe for the detection of hydrogen sulfide and its application in living
23

ACCEPTED MANUSCRIPT
cells. Anal Chim Acta 2015;879:85−90.
[72] Chen CY, Liu W, Xu C, Liu WS. A colorimetric and fluorescent probe for
detecting intracellular GSH. Biosens Bioelectron 2015;71:68−74.
[73] Yuan L, Lin WY, Zhao S, Gao WS, Chen B, He LW, Zhu SS. A unique approach
to development of near-infrared fluorescent sensors for in vivo imaging. J Am Chem
Soc 2012;134:13510−23.
[74] Guo HM, Jing YY, Yuan XL, Ji SM, Zhao JZ, Li XH, Kan YY. Highly selective
fluorescent OFF–ON thiol probes based on dyads of BODIPY and potent
intramolecular electron sink 2,4-dinitrobenzenesulfonyl subunits. Org Biomol Chem
2011;9:3844−53.
24

ACCEPTED MANUSCRIPT
Figure and Scheme captions
Scheme 1. Proposed sensing mechanism of probe 1 to biothiols.
Fig. 1. The fluorescent intensity of probe 1 (10 μM) in the absence and presence of 15
equiv Cys, GSH, Hcy at various pH after 80 min (λex = 328 nm, slit: 10/10 nm).
Fig. 2. Time-dependent fluorescence intensities of probe 1 (10 μM) at 520 nm in
o
presence of 15 equiv thiols in DMSO/H2O solution (9: 1, v/v, 10 mM PBS) at 37 C.
(A) pH 3.5, (B) pH 5.5.
Fig. 3. Fluorescence responses of probe 1 (10 μM) to various analytes (15 equiv), Ala,
Glu, Asp, Gly, His, Ile, Tyr, Lys, Phe, Trp, Ser, Val, Cys, Hcy, GSH and CN- for 80
min in DMSO/H2O solution (9: 1, v/v, 10 mM PBS). (A) pH 3.5, (B) pH 5.5.
Fig. 4. (A) Fluorescence titration of probe 1 (10 μM) upon addition of Cys (0-15.0
equiv) at pH 3.5. (B) A linear relationship of fluorescence intensity changes at 520 nm
of probe 1 against [Cys] from 0 to 100 μM. LOD (3σ/k) calculated as 0.117 µM.
Fig. 5. Density functional theory (DFT) optimized structures and frontier molecular
orbitals (MOs) of (A) probe 1 and (B) compound 2. Calculations were based on
ground state geometry by DFT at the B3LYP/6-311G (d, p)/level using Gaussian 09.
Fig. 6. Confocal microscope images of probe 1 in HeLa cells at pH 5.5. (A) Blank
HeLa cells. (B) HeLa cells incubated with probe 1 (20 μM) for 45 min. (C) HeLa cells
pretreated with NMM (1 mM) for 30 min and followed with probe 1 (20 μM) for 45
min. (D) HeLa cells pretreated with NMM (1 mM) for 30 min and then with GSH
(200 μM) for 30 min and with probe 1 (20 μM) for 45 min. (E) Same as (D) except
replacing GSH with Hcy. (F) Same as (D) except replacing GSH with Cys. Top:
25

ACCEPTED MANUSCRIPT
Differential interference contrast (DIC) images; Middle: Fluorescence images;
Bottom: Merge.
26

ACCEPTED MANUSCRIPT
Scheme 1
27

ACCEPTED MANUSCRIPT
Fig. 1
28

ACCEPTED MANUSCRIPT
Fig. 2
29
