Design of Nanosystems for the Delivery of Quorum
Sensing Inhibitors: A Preliminary Study
1
,2
1
1
1,3
Supandeep Singh Hallan
Elisabetta Esposito
and Rita Cortesi 1,3,*
, Paolo Marchetti , Daria Bortolotti , Maddalena Sguizzato
,
1
,3,
4
1
1
* , Paolo Mariani , Claudio Trapella , Roberta Rizzo
1
Department of Chemical and Pharmaceutical Sciences, University of Ferrara, I-44121 Ferrara, Italy;
hllsnd@unife.it (S.S.H.); mcp@unife.it (P.M.); brtdra@unife.it (D.B.); sgzmdl@unife.it (M.S.);
trpcld@unife.it (C.T.); rbr@unife.it (R.R.)
Biofilms—Research Center for Biointerfaces, Faculty of Health and Society, Malmö University,
SE-20506 Malmö, Sweden
Biotechnology Interuniversity Consortium (C.I.B.), Ferrara Section, University of Ferrara, I-44121 Ferrara, Italy
Department of Life and Environmental Sciences, Polytechnic University of Marche, I-60131 Ancona, Italy;
p.mariani@staff.univpm.it
2
3
4
*
Correspondence: ese@unife.it (E.E.); crt@unife.it (R.C.)
ꢀ
ꢁꢂꢀꢃꢄꢅꢆꢇ
Received: 29 October 2020; Accepted: 27 November 2020; Published: 30 November 2020
ꢀ
ꢁꢂꢃꢄꢅꢆ
Abstract: Biofilm production is regulated by the Quorum Sensing system. Nowadays, Quorum Sensing
represents an appealing target to design new compounds to increase antibiotics effects and avoid
development of antibiotics multiresistance. In this research the use of liposomes to target two novel
synthetic biofilm inhibitors is presented, focusing on a preformulation study to select a liposome
composition for in vitro test. Five different liposome (LP) formulations, composed of phosphatidyl
choline, cholesterol and charged surfactant (2:1:1, molar ratio) have been prepared by direct hydration and
extrusion. As charged surfactants dicetyl phosphate didecyldimethylammonium chloride, di isobutyl
phenoxy ethyl dimethyl benzyl ammonium chloride and stearylamine (SA) and have been used.
Liposome charge, size and morphology were investigated by zeta potential, photon correlation
spectroscopy, small angle x-ray spectroscopy and electron microscopy. LP-SA was selected for the
loading of biofilm inhibitors and subjected to high performance liquid chromatography for entrapment
capacity evaluation. LP-SA loaded inhibitors showed a higher diameter (223.6 nm) as compared to
unloaded ones (205.7 nm) and a dose-dependent anti-biofilm effect mainly after 48 h of treatment,
while free biofilm inhibitors loose activity. In conclusion, our data supported the use of liposomes as a
strategy to enhance biofilm inhibitors effect.
Keywords: nanotechnological systems; liposomes; QS inhibitors; drug delivery; biofilm; MTT test
1
. Introduction
Biofilms can be described as a dispersion of immobilized microbial colonies within a self-produced
matrix of hydrophilic extracellular polymers such as polysaccharides, proteins and nucleic acids.
Many factors such as surface properties, nutrient availability and the presence of microbial constituents
are able to influence the structure and composition of biofilms [
initially grow reversibly attached to a surface then create an irreversible attachment facilitating their
survival and leading to a more aggressive and resistant host infection [ ]. However, biofilm formation
1]. Indeed, biofilm forming bacteria
2,3
is a very complex process in which some cells, when it reaches maturity, begin to detach and
separate from the aggregates repeatedly, leading to a continuous generation of bacteria able to spread
and originate new microcolonies [4]. For this reason, bacterial biofilm represents a challenge in
Molecules 2020, 25, 5655; doi:10.3390/molecules25235655
www.mdpi.com/journal/molecules

Molecules 2020, 25, 5655
2 of 16
counteracting different typologies of infection, including chronic and nosocomial infections. The huge
and inappropriate use of antibiotics during the last four decades have reduced the efficacy of traditional
antibiotics increasing the rising of new bacterial defense mechanisms, together with the spread
of antimicrobial resistance. To date in the European Union the infections associated with biofilms
and antimicrobial resistance (AMR) are a leading cause of morbidity and of increased healthcare
costs [5]. Hence, the inhibition of biofilm formation can be considered a suitable target to design new
antibacterial therapies.
Biofilm formation is finely regulated by the Quorum Sensing (QS) system acting intercellular
communication through molecular chemical signals that are able to control the production of virulence
factors and other biofilm cellular functions [6–8]. Therefore, compounds able to interfere with
communication systems could be able to reduce the production of virulence factors and also affect biofilm
formation in order to control the development of resistant mutants. In this view, QS inhibitors have
gained substantial attention to counteract bacterial infection [9], in order to increase the susceptibility to
antibiotics and the clearance of the pathogen by the host immune system [10]. One of the most studied
QS system is that belonging to Pseudomonas aeruginosa (P. aeruginosa), a Gram negative bacterium
often associated to chronic lung diseases (e.g., cystic fibrosis) and nosocomial infections, that takes
advantage by biofilm formation to avoid both the host immune system and antibiotics effect [11,12].
P. aeruginosa possesses two QS systems, Las and Rhl characterized by a hierarchical structure (wit Las
as the main QS system) and include intracellular receptors that bind specific soluble lactones and
function as transcriptional factors [13,14]. The Las system is controlled by the transcriptional activator
LasR and the autoinducer synthase enzyme LasI [15]. Recently, in our department, two novel synthetic
QS inhibitor (QSi) have been synthesized, namely CDC and PF based on a cyclopentilamine ring
(
(
i.e., homoserine lactone analogues) in order to mimic the N-(3-oxododecanoyl)-L-homoserine lactone
3OC12-HSL) scaffold involved in the synthesis of virulence factors and biofilm formation [15].
A critical point in the treatment of biofilm-based bacterial infections is the ability of QSi to
efficiently overcome the mucous biofilm layer. In order to bypass this drawback both allowing the
transport of effective concentration of drug through biofilm and a controlled release, the possibility to
use liposomes was investigated. Particularly, this preformulation study focuses on the selection of a
liposome composition suitable for new inhibitors of P. aeruginosa biofilm formation to be tested in vitro
Among the different drug delivery technologies developed for treatment of the biofilm-related
infections, nanotechnology plays an important role. Notably, a variety of nano-scaled drug delivery
systems have been designed and employed, including polymeric nanoparticles, dendrimers,
.
metal nanoparticles, solid lipid nanoparticles and liposomes [16–20]. Notably, the use of drug delivery
systems such as liposomes is a pharmaceutical formulation considered to manage effective to achieve
a therapeutic effect in humans. As reported in literature, liposomes can be considered one among
different nanoparticle platforms, used to facilitate the delivery of antimicrobials to the infection site [20].
For instance, the use of liposomes as drug carriers seems to be advantageous over other delivery
platforms used to prevent biofilm formation on biomedical surfaces, as demonstrated by the number of
liposomal formulations approved for clinical use for this purpose at the end of the first decade of this
century [21]. Therefore, these systems already suitable for conventional antibiotic delivery, should be
useful for delivery of QSi formulations too.
Liposomes are the most used vesicles to control drug delivery, due to their composition similar
to the eukaryotic and prokaryotic cell membrane. Liposomes are nano-sized to microsized spherical
structures consisting of two layers of naturally or synthetic phospholipids, such as phosphatidylcholine,
phosphatidylethanolamine, phosphatidylserine or phosphatidylglycerol surrounding an aqueous core.
The liposome-forming lipid bilayer identifies two different sections: A lipophilic compartment and an
inner hydrophilic core. Due to its characteristics, the core encapsulates water-soluble molecules while
the hydrophobic domain of the bilayer is responsible for entrapping lipophilic agents. Liposomes
characteristics, including size, lamellarity and encapsulation efficacy and positive or negative charge,
are influenced either by the lipid composition and the preparation method used [22]. Cationic liposomes

Molecules 2020, 25, 5655
3 of 16
can be prepared by incorporating cationic surfactant in the bilayers, therefore allowing a high-yield
interaction with negative charged molecules.
Summarizing, in the present paper the synthesis of two new QSi followed by the design and
production by direct hydration and extrusion of five different liposomes formulations composed of
phosphatidyl choline (PC), cholesterol (CH) and charged surfactant (CS) is described. Liposomes
have been then characterized in terms of size, charge, morphology and in vitro activity to select the
more suitable composition for the loading of the two novel biofilm inhibitors. The selected liposome
composition has been then studied in terms of morphology, size, entrapment capacity and activity
in vitro on biofilm and compared to the activity of the corresponding free compound.
2
. Results and Discussion
2
.1. Synthesis and Activity of LasR Antagonist
On the basis of our previous results [12], two compounds with molecular features characterized
by high probability to act efficiently as QSi were synthetized, namely CDC and PF (Table 1, Figure 1).
The compounds were synthetized as described in the Materials and Methods section following
the synthetic flow schemes reported in Figure 1. Moreover, the description of the synthesis and
characterization of every intermediate molecule obtained in each synthetic step are reported in the
Supplementary Materials.
Table 1. Structure and some physico-chemical characteristics of the newly synthesized Quorum Sensing
inhibitor (QSi).
Biofilm Inhibitor
Chemical Structure
MW
λmax
LogP
O
CDC
O
O
275
220
0.24
N
O
OH
H
O
O
OH
PF
H
413
220
2.51
N
O
HO
OH
O
QSi are based on the 3-oxoacyl-beta-keto-amide structure containing a polyoxyethylene chain
and a cyclopentylamine to increase both stability and solubility in aqueous medium. In addition,
PF compound also has ascorbic acid (vitamin C) in order to take advantage by its natural antimicrobic
function to enhance the inhibitory effect on the biofilm. Since these compounds are designed to
antagonize LasR receptor, which functions as a transcriptional factor, they act at cytoplasmic levels.
Moreover, as above underlined, liposomes can be used to facilitate the delivery of antimicrobials to the
infection site differently from others nanoparticle platforms [20,23].
QSi are not antibiotics, but molecules able to reduce biofilm formation, therefore CDC and PF were
assessed for their ability to inhibit biofilm formation. Both molecules were tested in the concentration
range between 0.5 and 25
at 600 nm [12] and the obtained results indicated that they did not affect the growth of P. aeruginosa
data not shown). Afterwards, the effect of both QSi was tested on biofilm formation by colorimetric
biofilm assay. As described in Figure 2, it was observed that after 24 h of treatment CDC showed
significant biofilm inhibition at 0.5 and 1 M (p < 0.01) (Figure 2a), while all the concentrations tested
for PF are able to significantly inhibit P. aeruginosa biofilm formation in a range comprised between
0–40% (p < 0.01) (Figure 2b). On the other hand, after 48 h of treatment both CDC (Figure 2c) and PF
Figure 2d) decreased their inhibitory effect on biofilm. These data suggest that the amount of QSi
µM for 24 h and 48 h on bacterial growth by measuring the bacterial OD
(
µ
2
(

Molecules 2020, 25, 5655
4 of 16
added to bacteria cultures was enough to counteract the quantity of QS molecules produced during a
2
4 h culture, not of the following 48 h.
Figure 1. Synthetic flow charts for CDC (
products (c).
a) and PF (b
). 1H and 13C NMR spectra values of final

Molecules 2020, 25, 5655
5 of 16
Figure 2. Activity on biofilm of CDC (a,c) or PF (b,d) after 24 h (a,b) and 48 h (c,d) of treatment.
2
.2. Preformulatory Study: Liposome Preparation and Characterization
In order to find a formulation able to allow the efficient passage of QSi through the mucous
biofilm layer, the use of liposomes was investigated by conducting a preformulation study to select
the more suitable liposome composition for in vitro test. Particularly, liposomes composed of PC,
CH and CS in mixture 2:1:1 (molar ratio), respectively, have been prepared by direct hydration.
Charged liposomes were prepared alternatively by adding to the PC/CH mixture the following CS,
namely dicetyl phosphate (LP-DCP), didecyldimethylammonium chloride (LP-DDAC), di isobutyl
phenoxy ethyl dimethyl benzyl ammonium chloride (LP-DEBDA) and stearylamine (LP-SA). As a
comparison, plain liposomes constituted by PC/CH (LP-P) were also prepared. After preparation,
extrusion was performed to obtain unilamellar vesicles with a homogeneous size distribution [24].
This strategy allowed the reduction of vesicles mean diameters up to three-fold as compared to their
size after production and at the meantime decreasing the polydispersity and improving the size
distribution (data not shown) [24].
Extruded-liposomes showed similar macroscopic aspects, characterized by homogeneous slightly
white dispersions (see Figure 3a), even if plain LP-P appeared less transparent as compared to charged
formulations LP-DCP, LP-DDAC, LP-DEBDA and LP-SA (Figure 3a). From the morphological point
of view, each category of liposomes was visualized by mean of freeze-fracture electron microscopy.
A representative series of electron microphotographs are reported in Figure 3b–d showing plain LP-P,
anionic LP-DCP and cationic LP-DDAC liposome formulations, respectively. The three categories of
liposomes displayed unilamellar morphology even if a certain grade of polydispersity was evident.
These results corroborated the extruded dimensional data of the five formulations obtained by photon
correlation spectroscopy (PCS) analyses performed the same day of production and reported in Table 2.

Molecules 2020, 25, 5655
6 of 16
LP-P
LP-
D C P
LP-
D D A C
LP-
D EBD A
LP-SA
(a)
(b)
(c)
(d)

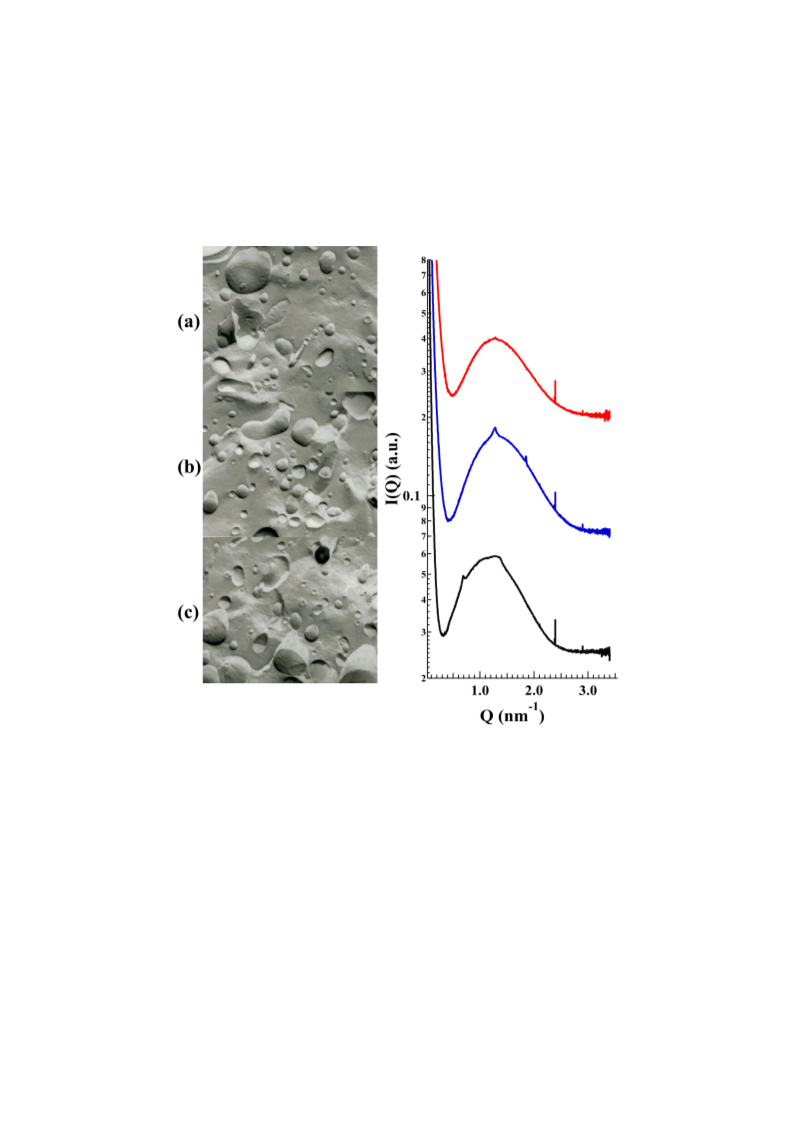

Figure 3.
LP-P), dicetyl phosphate (LP-DCP), didecyldimethylammonium chloride (LP-DDAC), di isobutyl
phenoxy ethyl dimethyl benzyl ammonium chloride (LP-DEBDA) and stearylamine (LP-SA) and
representative electron microphotographs of ( ) plain (LP-P), ( ) anionic (LP-DCP) and ( ) cationic
LP-DDAC) liposomes.
(a) macroscopic aspect of plain liposomes constituted by phosphatidyl choline/cholesterol
(
b
c
d
(
Table 2. Size and zeta potential of liposome formulations after production, as determined by photon
correlation spectroscopy (PCS).
LP-P
PC/CH)
LP-DCP
LP-DDAC
LP-DEBDA
LP-SA
(
(PC/CH/DCP) (PC/CH/DDAC) (PC/CH/DEBDA) (PC/CH/SA)
Z ave (nm) 1
191.5 ± 1.7
0.11 ± 0.07
−28.4 ± 0.4
180.1 ± 3.7
0.36 ± 0.1
197.0 ± 2.1
0.20 ± 0.08
+90.6 ± 0.3
3
180.1 ± 1.0
0.36 ± 0.06
+92.3 ± 2.0
205.7 ± 1.6
0.23 ± 0.05
+63.1 ± 0.9
P.I. 2
ζ Potential (mV) 3
−67.4 ± 2.6
1
2
Zeta average diameter (mean size). Polydispersity index. Zeta Potential. Data are the mean of 5 independent
determinations on different batches of the same dispersion ± standard deviation.
All the formulations showed vesicles mean diameters around 200 nm, ranging from 180 to 205 nm
with a slight increase in the case of LP-SA. Concerning the polydispersity indexes, a slight increase
was evident in the presence of CS in the formulation, as compared to plain liposomes. However,
a monomodal distribution was appreciable, since P.I. values were below 0.4.
The zeta potential values contributed to a good stability of liposome formulations during time,
especially significant upon addition of CS (data not shown). Indeed, thanks to their polar intercalation
within the phospholipid bilayer, CS confer charge to the vesicles, increasing zeta potential values
with respect to plain liposomes, therefore promoting their physical stability over time by mean of
charge repulsion.
In order to shed light on the structural characteristics of the produced empty liposomes, LP-P,
LP-DPC, LP-DDAC, LP-DEBDA and LP-SA were investigated by small-angle X-ray scattering (SAXS).
Results related to the effect of cationic and anionic surfactants on unloaded PC liposomes are reported

Molecules 2020, 25, 5655
7 of 16
in Figure 4. In particular, plain liposomes LP-P (Figure 4a) showed the common small angle X-ray
diffraction pattern of multilamellar vesicles, characterized by a bilayer repeat distance (which measures
the sum of the bilayer thickness and the thickness of the water layer separating two adjacent bilayers)
of about 6.72 nm [24,25]. In contrast, the patterns b–e (Figure 4) demonstrate that the addition of CS to
liposome composition leads to a loss of positional correlations between adjacent bilayers, probably
due to surface charge density conferred to the bilayers upon surfactant insertion. Indeed, the X-ray
−1
diffraction profiles of LP-DDAC, LP-DEBDA and LP-SA display a broad band centered at about 0.14 Å
without any trace of diffraction peaks, e.g., a typical bilayer form factor scattering pattern indicative
of the formation of unilamellar vesicles [25 26]. The effect is even greater for anionic surfactants in
,
which the absence of scattering signal observed in the case of LP-DCP suggests a complete loss of
structure. A last point should be noticed as the position of the broad band roughly corresponded to the
bilayer thickness: The thickness is about 4.7 nm for LP-SA and LP-DEBDA, but increased to about
5.5 nm when liposomes have been prepared in the presence of DDAC. Such an effect could be related
to changes induced by DDAC in PC lateral interactions.
Figure 4. Small-angle X-ray scattering (SAXS) profiles of the different empty LP-P (a), LP-DDAC (b),
LP-DEBDA (c), LP-SA (d) and LP-DCP (e). Experiments were performed at Diamond Light Source (UK).
2
.3. Selection of the Liposome Formulation for LasR Antagonist Loading
In order to allow the selection of the optimal liposome composition for biofilm inhibitors loading,
the five empty liposome formulations were subjected to different in vitro assays, to test their activity
on biofilm formation and viability on P. aeruginosa cultures and A594 pulmonary cells, respectively.
In view to propose this system as a topic treatment by inhalatory administration, A549 lung cell line
was selected to possibly mimic what occurs in vivo. Indeed P. aeruginosa infection often affects the

Molecules 2020, 25, 5655
8 of 16
airway system and mainly interacts with epithelial lung cells. Moreover, chronicization of P. aeruginosa
infection in the lungs is involved in airway diseases (e.g., BCPO and cystic fibrosis). P. aeruginosa
cultures were treated for 24 h with a liposome concentration ranging from 0.5 to 25 µM (Figure 5).
None of the liposome formulations affected the bacterial growth at all tested concentrations (data not
shown). It was found that LP-P and LP-DCP liposomes induced biofilm formation (Figure 5a,b). On the
other hand LP-DDAC and LP-DEBDA slightly reduced biofilm formation (Figure 5c,d), while LP-SA
liposome significantly inhibited biofilm formation at concentrations of 10 and 25 µM (Figure 5e,
p < 0.01). We obtained similar results with a 48 h treatment (data not shown).
Figure 5. Activity of empty liposomes on biofilm after 24 h of treatment. (a) LP-P, (b) LP-DCP,
(
c) LP-DDAC, (d) LP-DEBDA and (e) LP-SA.
Concerning the pulmonary A594 viability performed using MTT test, the obtained results are
reported in Figure 6. It was found that plain LP-P (Figure 6a) and anionic LP-DCP (Figure 6b) showed
a slight or no cytotoxicity on pulmonary cells. On the other hand, cationic liposome formulations
demonstrated a different behavior, depending on the type of cationic surfactant used. Notably,
LP-DDAC (Figure 6c) and LP-DEBDA (Figure 6d) showed a strong cytotoxic effect, whilst LP-SA
(Figure 6e) displayed no cytotoxicity.
Taking together the effect of empty liposomes on cell viability, the bacterial growth and biofilm
formation with the results obtained by preformulation study concerning the characterization of
empty liposomes (i.e., homogeneous aspect, monodisperse distribution and unilamellar morphology),
LP-SA has been selected as composition suitable for the loading of the new synthesized biofilm
inhibitors CDC and PF.
2
.4. Loading of Biofilm Inhibitors on LP-SA Liposomes
LP-SA containing biofilm inhibitors CDC (LP-SA/CDC) and PF (LP-SA/PF) were prepared by direct
hydration and extrusion using the same scheme procedure as described for unloaded formulations.
However, QSi were dissolved in aforementioned organic solvents along with other components to
achieve final concentration 10 mM in the dispersion.
The entrapment capacity (EC) of each drug within LP-SA was determined after 1 day from
liposome production, as described in the Materials and Methods section. Namely, loaded LP-SA
dispersion was separated with a filter centrifugation and an amount of supernatant with loaded
liposomes was disaggregated and quantified by HPLC for drug content [22].

Molecules 2020, 25, 5655
9 of 16
Figure 6. Effect on A549 pulmonary cells viability (MTT assay) after 24h of treatment with LP-P (
LP-DCP (b), LP-DDAC (c), LP-DEBDA (d) and LP-SA (e).
a),
The obtained results summarized in Table 3, show that both compounds were quantitatively
loaded within the vesicles. Concerning the effect of the loading onto the vesicle size, it was found that
both QSi displayed an increase of the mean size of liposomes, being around 11% for CDC and 20% for
PF, but maintained a quite homogeneous size distribution, as indicated by polydispersity index values
(Table 3).
Table 3. Characteristics of LP-SA unloaded or loaded with biofilm inhibitors.
Inhibitor
Concentration (mM)
Z-Ave Diameter
Polydispersity
ζ Potential
LP-SA
EC% 1
1
1
(nm)
Index
(mV)
unloaded
CDC-loaded
PF-loaded
1
/
10
10
205.7 ± 1.6
223.6 ± 1.9
239.6 ± 1.4
0.229 ± 0.02
0.252 ± 0.01
0.326 ± 0.06
+63.1 ± 0.9
+67.8 ± 0.4
+43.1 ± 1.7
/
98.8 ± 0.5
99.4 ± 1.3
Values are the mean of determinations on different batches of the same type of dispersion.
Regarding influences of QSi on deep liposome morphology, Figure 7 reports the freeze-fracture
electron microphotographs (left) and the SAXS profiles (right) obtained from unloaded and CDC or PF
loaded LP-SA. The scattering pattern is essentially characterized by the bilayer form factor, but the drug
presence induced a low-intensity diffraction pattern, which possibly corresponded to a multilamellar
structure characterized by a low positional correlation between adjacent bilayers and/or by a very
low number of stacked bilayers [26]. The measured repeat distances (10.05 and 9.20 nm for CDC and
PF, respectively) displayed a larger value as compared to that observed in plain PC/CH liposomes
(
6.72 nm), therefore confirming strong repulsive bilayer-bilayer interactions induced by the charged
surfactants on the PC bilayers.
2
.5. In Vitro Experiments of LP-SA Loaded Biofilm Inhibitors
The release of QSi from LP-SA formulations was determined by dialysis as described in the
Supplementary Materials. The results reported in Figure S1 indicated that both CDC and PF are
released in a controlled manner reaching after 28 h at least the 60% and 40% of total amount of QSi,
respectively for CDC and PF. QSi-loaded LP-SA were then assessed for biofilm inhibitory activity.

Molecules 2020, 25, 5655
10 of 16
The liposome formulation did not affect bacterial growth after 24 h of treatment at the concentration
range between 0.5–25 M (data not showed). The biofilm assay performed at the same experimental
conditions showed the inhibition of biofilm formation for both compounds in a dose-dependent
manner (Figure 8a,b), that was significant for concentrations above 10 M and 1 M for liposomes
µ
µ
µ
carrying CDC and PF, respectively (p < 0.01). The liposome formulation of both compounds led to a
dose-dependent effect on biofilm formation.
Figure 7. Freeze-fracture electron microphotographs (left) and SAXS profiles (right) of LP-SA
formulations either unloaded (a, red) or CDC (b, blue) and PF (c, black) loaded. SAXS experiments
were performed at Diamond Light Source (UK).
When we compared the results obtained on biofilm inhibition with the QSi alone (Figure 1) or
liposome-loaded (Figure 8), we observed an effective increased biofilm inhibition for LP-SA/CDC
10 and 25 µM as compared to the same concentration of sole CDC. It was hypothesized that the
loading of QSi compounds into LP-SA might reduce the release of the active compounds and needed a
longer treatment. Therefore, biofilm inhibition experiments in the presence of sole or LP-SA loaded
QSi, have been repeated extending the treatment to 48 h. Particularly, after 48 h of treatment both
CDC (Figure 8c) and PF (Figure 8d) decreased their inhibitory effect on biofilm when used alone as
compared to the 24 h treatment (Figure 8a,b). On the contrary, when both QSi were administered as
liposomal formulation, they maintained and increased their effect on biofilm formation (Figure 4c,d),
showing their activity already at low concentrations (LP-SA/CDC: 0.5 µM, p = 0.0005; LP-SA/PF: 1 µM,
p < 0.0001). Therefore, it can be evidenced that QSi-loaded liposomes enhanced their ability to interfere
with biofilm formation supporting a longer activity as compared to the free form of each QSi up to

Molecules 2020, 25, 5655
11 of 16
48 h from the treatment. These data confirm the hypothesis of a gradual release of QSi from the
liposomes, therefore enabling to maintain and to enhance the treatment efficacy for a longer period.
This effect is particularly evident for CDC compound, which presented an increased effect already at
the concentrations of 0.5 and 1
µM, as compared to the administration of CDC alone (0.5 µM: 81% vs.
9
4%; 1 M: 75% vs. 90%; p < 0.01). The enhancement of this effect should be possibly ascribed to
µ
a better distribution of lipophilic molecules in aqueous environment due to the distribution within
vesicle bilayer, therefore influencing its bioavailability [27].
Figure 8. Activity on biofilm of LP-SA loaded CDC (a,c) or PF (b,d) after 24 h (a,b) and 48 h (c,d)
of treatment.
3
. Materials and Methods
3
.1. Materials
Soybean lecithin (PC) (90% phosphatidylcholine) used for liposome preparation was Epikuron
00 from Lucas Meyer, Hamburg, Germany. CH, DCP, DDAC, DEBDA and stearylamine (SA) were
2
purchased from Sigma-Aldrich (St Louis, MO, USA). Solvents and all other chemicals were of analytical
grade and were from Merck Serono S.p.A. (Rome, Italy).
3
.2. Synthesis and Characterization of Las QS Inhibitors
Synthetic flow schemes of CDC and PF are reported in Figure 1. Commercially available reagents
were used without further purification. NMR spectra were recorded on a Varian Mercury Plus
1
13
4
00 spectrometer at 400 MHz ( H) and 100 MHz ( C). Peak positions are given in parts per
million ( ) down-field from tetramethylsilane used as internal standard. J values are expressed
δ
in hertz. Electrospray mass spectra were recorded on a Waters Micromass ZQ-20000 instrument.
All reactions were monitored by thin-layer chromatography and/or reversed-phase high-performance

Molecules 2020, 25, 5655
12 of 16
liquid chromatography (HPLC). Analytical TLC was carried out using Merck precoated silica gel F-254
plates. Preparative flash chromatography was done using Merck silica gel 60 (0.063–0.200 mm) using
the indicated eluent. Solvents were dried according to standard procedures and reactions requiring
anhydrous conditions were performed under argon atmosphere. Solutions containing final product
were dried with Na SO , filtered and concentrated under reduced pressure using a rotatory evaporator.
2
4
Analytical RP-HPLC was performed on a Beckman System Gold 168 using C18 columns, namely a
Phenomex Luna (4.6 mm by 10 cm, 3 ) for CFC and a Waters XBridge (4.6 mm by 15 cm, 5 ) for
PF, the flow was 0.5 mL/min with detection at 220 nm and with a binary eluents system (eluent A:
H O + 0.1% TFA, eluent B: CH CN + 0.1% TFA), using a linear gradient (t = 0 min: 0% B, t = 25 min:
µ
µ
2
3
1
00% B). Final compounds were purified by preparative HPLC Water Delta Prep 4000 with detection
at 220 nm using an XTerra C18 column (30 by 50 mm, 5
µ
) with the binary system (eluent A: H O +
2
2
0
.1%TFA, eluent B: 60% CH CN and 40% H O + 0.1% TFA) using a linear gradient (t = 0 min: 15% B,
3
t = 30 min: 100% B, t = 40 min: 100% B). Melting points were measured with a hot plate Reichert-Kofler
microscope and are uncorrected.
3
.3. Liposomes Preparation
Plain (PC/CH, 2:1 molar ratio) and charged (PC/CH/CS, 2:1:1 molar ratio) liposomes have been
obtained using direct hydration method with slight modifications [28]. In detail, liposome dispersions
were produced by solubilizing 25 mg/mL lipid phase in methylene chloride/methanol mixture (1:1, v/v).
The organic solvent residue was removed using a rotary evaporator under vacuum in order to attain a
thin lipid film, which was subsequently hydrated with 2 mL of sterile water followed by 10 min swirling.
Liposomes were then subjected to extrusion to obtain unilamellar vesicles with a homogeneous size
distribution [24]. For this, liposomal suspension was subjected to five extrusion cycles through two
stacked standard 25
µm diameter polycarbonate filters with 0.2
µm pore size (Nucleopore Corp.,
Pleasanton, CA, USA) supported by 25
µm polyester drain disk. 10–20 bars nitrogen pressure has
been maintained within an extruder (Lipex Biomembranes, Vancouver, BC, Canada) during the entire
process. Finally, liposomes were collected and stored for further studies.
QS inhibitors loaded liposomes were prepared using a similar scheme. However, QS inhibitors
dissolved in aforementioned organic solvents along with other components to achieve final
concentration 10 mM in the system.
3
.4. Liposome Characterization
3
.4.1. Freeze-Fracture Electron Microscopy
Aliquots of liposome preparations were sandwiched between copper plates and frozen using
◦
liquid propane (
−
180 C). Afterwards, the holders containing the frozen samples were transferred to a
◦
Balzers BAF 400 freeze replica apparatus (Balzers, Liechtenstein) and subjected to fracture at
The samples were immediately replicated with Pt/C (2 nm) at an angle of 45 followed by C (20 nm)
at an angle of 90 . After cleaning stripped replicas with 30% sodium hypochloric and potassium
−
150 C.
◦
◦
dichromate-H SO solution followed by distilled water, they were mounted on 300-mesh Ni grids,
2
4
and visualized after drying by mean of a transmission electron microscope (JEM200 CX, JEOL, Tokyo,
Japan). Micrographs were taken randomly within replica regions representative of the sample.
3
.4.2. Photon Correlation Spectroscopy (PCS) and Zeta Potential
Vesicle size measurements were performed on aqueous diluted liposome samples (1:20 by volume)
using a Zetasizer Nano S90 (Malvern Instr., Malvern, UK) equipped with a 5 mW helium neon laser
with a wavelength output of 633 nm, whist zeta potential measurements were performed using
Zetasizer ultra (Malvern panalytical Ltd., Malvern, UK). Plastic-ware was cleaned with detergent
◦
◦
washing and rinsed twice with milliQ water. Measurements were made at 25 C at an angle of 90 ,
run time around 180 s. Data were interpreted by the “CONTIN” method [29].

Molecules 2020, 25, 5655
13 of 16
3
.4.3. Small Angle X-rays Scattering (SAXS)
Small angle X-ray scattering (SAXS) experiments were performed at the bioSAXS beamline B21 in
Diamond Light Source (Harwell, UK). Loaded and unloaded liposomes were put into small tubes in an
automated sample changer. Samples were then moved into a temperature-controlled quartz capillary
◦
and exposed for 1 s, acquiring 30 frames at 20 C. Data were collected utilizing a Dectris Eiger 4M
(
λ
75 by 75
µm pixels) detector. The sample-detector distance was a 3.7 m and the X-ray wavelength
−
1
= 0.1 nm, so that the explored Q-range extended from 0.026 to 3.4 nm . 2D data were corrected for
background, detector efficiency and sample transmission and were radially averaged to derive I(Q) vs.
Q curves [30].
3
.5. Drug Content within Liposomes
The entrapment capacity (EC) of each drug in liposomes has been determined after 1 day from
liposome production. Namely, 500
filter (Microcon centrifugal filter unit YM-10 membrane, NMWCO 10 kDa, Sigma-Aldrich, St. Louis,
MO, USA) and centrifuged at 8000 rpm for 20 min on a Spectrafuge 24D Digital Microcentrifuge,
Woodbridge, NJ, USA). Hundred microliters of supernatant with loaded liposomes have been diluted
with ethanol (1:10, v/v) and maintained under magnetic stirring for 30 min. Afterwards the obtained
solution has been filtrated through a nylon syringe filter (0.22 m pores) and the amount of drug
µL of drug loaded liposome dispersion were poured in a centrifugal
™
(
µ
quantified by HPLC as below reported. The EC was determined using the following equation:
EC = QS inhibitor-d/QS inhibitor-i × 100
(1)
in which QS inhibitor-d is the amount of drug detected from HPLC analysis and QS inhibitor-i is the
total amount of drug used for liposome production. Measurements were conducted at least thrice for
each sample and the mean values ± standard deviations were calculated [31].
Reverse phase high performance liquid chromatography (RP-HPLC) analyses of QS inhibitors
containing LP-SA have been performed on a Beckman HPLC System Gold equipped with a 126 Solvent
Module and a UV detector Module 168. In the case of CDC, samples have been loaded on a stainless
®
steel Zorbax C18 (4.6 by 150 mm) packed with 3.5
µ
m particles (Agilent, Santa Clara, CA, USA),
m particles
has been used (Phenomenex Inc., Torrance, CA, USA). The compounds have been monitored at
20 nm using a linear gradient from 0% of solvent A (water containing 0.1% TFA) to 100% solvent
B (acetonitrile containing 0.1% TFA) over 25 min at a flow rate of 0.7 mL/min in the case of CDC
retention time 5.7 min) and at 0.5 mL/min flow rate in the case of PF (retention time 16.89 min).
while for PF, samples on a stainless steel Kinetex C18 (4.6 by 150 mm) packed with 5
µ
2
(
Data acquisition and processing were performed using 32Karat 8.0 software. The method was validated
for linearity (R2 = 0.995), repeatability (relative standard deviation 0.02%, n = 6 injections) and limit
of quantification (0.04
µg/mL). Analyses were conducted in triplicate, mean and standard deviations
values were calculated.
3
.6. Cell Culture and Cytotoxicity Studies
The effect of plain, cationic or anionic liposomes on cell proliferation was determined on
in vitro cultured human lung carcinoma A549 cells (ATCC® CCL-185
) [27]. Standard conditions
™
for cell growth were D-MEM/F-12 (1:1) (1X), liquid—with L-Glutamine (Invitrogen), medium
supplemented with 10% fetal calf serum (Irvine Scientific, Santa Ana, CA, USA) and Pen-Strep
1
×
(Omega Scientific Inc., Tarzana, CA, USA) in 5% CO2 at 90% humidity. Cell viability was
determined by MTT test (3-(4,5-dimethilthiazol-2yl)-2,5-diphenyl tetrazolium bromide) colorimetric
assay (Roche Diagnostics Corporation, Indianapolis, IN, USA) following the manufacturer’s instructions
as previously described [32]. Cell viability was determined by treating A549 cells with different
concentration of cationic nanocarriers in terms of cationic detergent, from 0 to 25
Afterwards absorbance was read at 590 nm.
µM, for 24 h.

Molecules 2020, 25, 5655
14 of 16
3
.7. P. aeruginosa Culture and Biofilm Formation Assay
Pseudomonas aeruginosa PAO1 strain was grown at 37 C in aerobic condition in M9 Minimal
◦
Salts medium (Sigma-Aldrich, St Louis, MO, USA). Biofilm studies were performed on planktonic
P. aeruginosa PAO1 culture by microtiter plate colorimetric assay [28]. After overnight growth,
optical density at 600 nm was assessed to determine bacterial growth. After appropriate dilution in M9
medium, 100
µL of P. aeruginosa suspension was added in each well of a microtiter plate. The optical
density (OD600) at inoculation was 0.04. Bacteria were then treated with different concentration
(
0.1–25
µ
M) of QS inhibitors, empty liposomes and drug-encapsulated liposomes in triplicates for 24 h
◦
or 48 h at 37 C. Broth without bacteria was used as negative control. Extent of biofilm formation was
measured using crystal violet dye. Briefly, after incubation, the wells were washed three times with
phosphate-buffered saline (PBS; Sigma-Aldrich) and plate was 60 C-dried for 90 min. Samples were
◦
then stained with 200
several times with tap water to eliminate the excess of dye and the plate air-dried. Then, 100
acetic acid 33% was added to each well to solubilize crystal violet and the absorbance read at 570 nm.
µL of crystal violet solution (1%) for 15 min. After incubation, wells were washed
µL of
4
. Conclusions
This preliminary study was finalized to evaluate the possible employment of liposomes as carriers
for QSi. By combining the results obtained from the preformulation study on the choice of liposomes
lipid composition with those on the cytotoxic effect and the inhibitory activity on the formation of
the biofilm, it was possible to select LP-SA as a liposomal formulation to proceed with the loading of
two QSi synthesized in our laboratories. It was found that both molecules could be efficiently loaded
within LP-SA and that no affection on bacterial growth after 24 h of treatment at the concentration
range between 0.5–25 µM occurred. Moreover, both QSi-loaded liposomes led to a dose-dependent
effect on biofilm formation but an effective increased biofilm inhibition for CDC loaded LP-SA was
observed as compared to the same concentration of CDC alone, especially after 48 h treatment.
In conclusion, our results suggest that LP-SA could be considered a promising delivery system for
QSi administration, especially for those compounds showing a lipophilic character, probably in reason
of a better dissolution and subsequent bioavailability in aqueous environment. However, studies are
underway to confirm these resuts, to test the stability over time of the vescicle systems produced and
to improve the release of QSi in the districts involved in the formation of biofilms.
Supplementary Materials: Figure S1: Release kinetics of CDC (
dialysis. Data are the mean of three experiments ± s.d.
#
) and PF ( ) from LP-SA, as determined by
•
Author Contributions: Conceptualization, R.C.; methodology, R.C., E.E., R.R.; preparation of formulations,
S.S.H. and M.S.; liposomal analyses, S.S.H. and M.S.; synthesis of compounds and discussion, P.M. (Paolo Marchetti)
and C.T.; SAXS analysis and discussion, P.M. (Paolo Mariani); in vitro experiments and discussion D.B., R.R.;
original draft preparation, R.C.; writing and editing, R.C., E.E., R.R. All authors have read and agreed to the
published version of the manuscript.
Funding: This research was funded by the University of Ferrara (FIR 2019 and FAR 2019).
Acknowledgments: We acknowledge Diamond Light Source for time on Beamline B21 under Proposal
SM21035-182. Authors also acknowledge the kind support provided by Nikul Khunti for the work carried out at
Diamond Light Source and by Erika Marzola of Ferrara University for HPLC technical issue.
Conflicts of Interest: The authors declare no conflict of interest. The funders had no role in the design of the
study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to
publish the results.
References
1
.
Flemming, H.-C.; Wingender, J. The biofilm matrix. Nat. Rev. Microbiol. 2010, 8, 623–633. [CrossRef]
PubMed]
[
2
.
Penesyan, A.; Gillings, M.; Paulsen, I. Antibiotic Discovery: Combatting Bacterial Resistance in Cells and in
Biofilm Communities. Molecules 2015, 20, 5286–5298. [CrossRef] [PubMed]

Molecules 2020, 25, 5655
15 of 16
3
.
Tacconelli, E.; Carrara, E.; Savoldi, A.; Harbarth, S.; Mendelson, M.; Monnet, D.L.; Pulcini, C.; Kahlmeter, G.;
Kluytmans, J.; Carmeli, Y.; et al. Discovery, research, and development of new antibiotics: The WHO priority
list of antibiotic-resistant bacteria and tuberculosis. Lancet Infect. Dis. 2018, 18, 318–327. [CrossRef]
Hall-Stoodley, L.; Costerton, J.W.; Stoodley, P. Bacterial biofilms: From the Natural environment to infectious
diseases. Nat. Rev. Microbiol. 2004, 2, 95–108. [CrossRef] [PubMed]
European Centre for Disease Prevention and Control. Homepage. Available online: https://www.ecdc.
europa.eu/en (accessed on 23 July 2020).
Greenberg, E.P. Bacterial communication and group behavior. J. Clin. Investig. 2003, 112, 1288–1290.
4.
5.
6.
7.
8.
9.
1
1
[
CrossRef] [PubMed]
Li, Y.-H.; Tian, X. Quorum Sensing and Bacterial Social Interactions in Biofilms. Sensors 2012, 12, 2519–2538.
CrossRef] [PubMed]
[
Hentzer, M.; Givskov, M. Pharmacological inhibition of quorum sensing for the treatment of chronic bacterial
infections. J. Clin. Investig. 2003, 112, 1300–1307. [CrossRef]
Rasko, D.A.; Sperandio, V. Anti-virulence strategies to combat bacteria-mediated disease. Nat. Rev. Drug Discov.
2010, 9, 117–128. [CrossRef]
0. Bjarnsholt, T.; Givskov, M. Quorum-sensing blockade as a strategy for enhancing host defences against
bacterial pathogens. Philos. Trans. R. Soc. B 2007, 362, 1213–1222. [CrossRef]
1. Rizzo, R.; Bergamini, G.; Bortolotti, D.; Leal, T.; D’Orazio, C.; Pintani, E.; Melchiorri, L.; Zavatti, E.;
Assael, B.M.; Sorio, C.; et al. HLA-G expression and regulation during Pseudomonas aeruginosa infection in
cystic fibrosis patients. Future Microbiol. 2016, 11, 363–373. [CrossRef]
1
2. Bortolotti, D.; Trapella, C.; Bragonzi, A.; Marchetti, P.; Zanirato, V.; Alogna, A.; Gentili, V.; Cervellati, C.;
Valacchi, G.; Sicolo, M.; et al. Conjugation of LasR Quorum-Sensing Inhibitors with Ciprofloxacin Decreases
the Antibiotic Tolerance of P. aeruginosa Clinical Strains. J. Chem. 2019, 2019, 1–13. [CrossRef]
3. Gorgani, N.; Ahlbrand, S.; Patterson, A.; Pourmand, N. Detection of point mutations associated with antibiotic
resistance in Pseudomonas aeruginosa. Int. J. Antimicrob. Agents 2009, 34, 414–418. [CrossRef] [PubMed]
4. Lee, J.; Zhang, L. The hierarchy quorum sensing network in Pseudomonas aeruginosa. Protein Cell 2015, 6,
1
1
1
1
1
1
1
2
2
2
6–41. [CrossRef] [PubMed]
5. Malik, A.; Afaq, S.; Shahid, M.; Akhtar, K.; Assiri, A. Influence of ellagic acid on prostate cancer cell
proliferation: A caspase-dependent pathway. Asian Pac. J. Trop. Med. 2011, 4, 550–555. [CrossRef]
6. Guzman, M.; Dille, J.; Godet, S. Synthesis and antibacterial activity of silver nanoparticles against
gram-positive and gram-negative bacteria. Nanomed. Nanotechnol. Biol. Med. 2012, 8, 37–45. [CrossRef]
7. Xie, J.; Ji, Y.; Xue, W.; Ma, D.; Hu, Y. Hyaluronic acid-containing ethosomes as a potential carrier for
transdermal drug delivery. Colloids Surf. B Biointerfaces 2018, 172, 323–329. [CrossRef]
8. Ma, H.; Williams, P.L.; Diamond, S.A. Ecotoxicity of manufactured ZnO nanoparticles—A review.
Environ. Pollut. 2013, 172, 76–85. [CrossRef]
9. Drulis-Kawa, Z.; Dorotkiewicz-Jach, A. Liposomes as delivery systems for antibiotics. Int. J. Pharm. 2010
,
3
87, 187–198. [CrossRef]
0. Zhang, L.; Pornpattananangkul, D.; Hu, C.-M.; Huang, C.-M. Development of Nanoparticles for Antimicrobial
Drug Delivery. Curr. Med. Chem. 2010, 17, 585–594. [CrossRef]
1. Sousa, C.; Botelho, C.; Oliveira, R. Nanotechnology applied to medical biofilms control. In Science Against
Microbial Pathogens: Communicating Current Research and Technological Advances; Formatex: Badajoz, Spain,
2
011; Volume 3, pp. 878–888.
2. Pattni, B.S.; Chupin, V.V.; Torchilin, V.P. New Developments in Liposomal Drug Delivery. Chem. Rev. 2015
15, 10938–10966. [CrossRef]
3. Li, J.; Anraku, Y.; Kataoka, K. Self-Boosting Catalytic Nanoreactors Integrated with Triggerable Crosslinking
Membrane Networks for Initiation of Immunogenic Cell Death by Pyroptosis. Angew. Chem. Int. Ed. 2020
9, 13526–13530. [CrossRef] [PubMed]
2
2
,
1
,
5
2
4. Cortesi, R.; Esposito, E.; Cuccu, I.; Romagnoli, R.; Menegatti, E.; Zaid, A.N.; Nastruzzi, C. Liposomes and
Micellar Dispersions For Delivery of Benzoheterocyclic Derivatives of Distamycin A. Drug Deliv. 2007, 14,
1
–8. [CrossRef] [PubMed]
2
5. Hodzic, A.; Zoumpoulakis, P.; Pabst, G.; Mavromoustakos, T.; Rappolt, M. Losartan’s affinity to fluid bilayers
modulates lipid–cholesterol interactions. Phys. Chem. Chem. Phys. 2012, 14, 4780–4788. [CrossRef] [PubMed]

Molecules 2020, 25, 5655
16 of 16
2
2
6. Andreozzi, P.; Funari, S.S.; La Mesa, C.; Mariani, P.; Ortore, M.G.; Sinibaldi, R.; Spinozzi, F. Multi- to
unilamellar transitions in catanionic vesicles. J. Phys. Chem. B 2010, 114, 8056–8060. [CrossRef]
7. Fahr, A.; van Hoogevest, P.; May, S.; Bergstrand, N.; Leigh, S.M.L. Transfer of lipophilic drugs between
liposomal membranes and biological interfaces: Consequences for drug delivery. Eur. J. Pharm. Sci. 2005, 26,
2
51–265. [CrossRef]
2
8. Puglia, C.; Bonina, F.; Rizza, L.; Cortesi, R.; Merlotti, E.; Drechsler, M.; Mariani, P.; Contado, C.; Ravani, L.;
Esposito, E. Evaluation of Percutaneous Absorption of Naproxen from Different Liposomal Formulations.
J. Pharm. Sci. 2010, 99, 2819–2829. [CrossRef]
2
9. Pecora, R. Dynamic Light Scattering Measurement of Nanometer Particles in Liquids. J. Nanopart. Res. 2000
, 123–131. [CrossRef]
,
2
3
0. Barbosa, L.R.S.; Ortore, M.G.; Spinozzi, F.; Mariani, P.; Bernstorff, S.; Itri, R. The Importance of Protein-Protein
Interactions on the pH-Induced Conformational Changes of Bovine Serum Albumin: A Small-Angle X-ray
Scattering Study. Biophys. J. 2010, 98, 147–157. [CrossRef]
3
1. Cortesi, R.; Esposito, E.; Maietti, A.; Menegatti, E.; Nastruzzi, C. Production and antiproliferative activity of
liposomes containing the antitumour drug chromomycin A . J. Microencapsul. 1998, 15, 465–472. [CrossRef]
3
3
2. Bortolotti, D.; LeMaoult, J.; Trapella, C.; Di Luca, D.; Carosella, E.D.; Rizzo, R. Pseudomonas aeruginosa
Quorum Sensing Molecule N-(3-Oxododecanoyl)-l-Homoserine-Lactone Induces HLA-G Expression in
Human Immune Cells. Infect. Immun. 2015, 83, 3918–3925. [CrossRef]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional
affiliations.
©
2020 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
CC BY) license (http://creativecommons.org/licenses/by/4.0/).
(
