Dithienosilole extended BODIPYs: Synthesis
and spectroscopic properties
Yijuan Sun, Lizhi Gai*,Yitong Wang, Zhirong Qu* and Hua Lu*
Key Laboratory of Organosilicon Chemistry and Material Technology, Ministry of Education, Hangzhou Normal
University, Hangzhou 311121, P. R. China
Received 8 December 2018
Accepted 3 March 2019
ABSTRACT: 3,/3,5-Dithienosilole-vinyl-BODIPYs were readily synthesized through Knoevenagel
condensation reactions. Spectroscopic properties of two dyes in various solvents were investigated.
Dyes 1 and 2 show an absorption maxima at 620 and 738 nm with absorption coefficient of 60900 and
-1
77900 M-1 cm in DCM, respectively. Significant red shifts of the main spectral bands are observed
.
relative to that of the parent 1,3,5,7-tetramethyl-BODIPY. TD-DFT calculations reproduce the spectral
shifts and experimental spectra.
KEYWORDS: BODIPY, dyes, spectroscopic properties, DFT calculations.
aza-BODIPY [4–7, 10–11]. In particular, modification
INTRODUCTION
with functional building blocks at the 3,5-positions
can endow them with excellent NIR photophysical
and optoelectronic properties. For examples, our group
developed a novel “turn-on” fluorescent probe based
on a BODIPY fluorophore to detect hypoxia, by
attaching a styryl substituent with a hydroxyl and nitro
group at 3-position of the BODIPY core [12]. Mack
and Nyokong prepared electrospun polystyrene (PS)
nanofibers embedded with thienylvinyl-BODIPY for
the photocatalytic degradation of azo dyes [13]. Dithie-
nosilole (DTS), a silicon-bridged electron-rich planar
tricyclic p system, is a promising electron–donating
building block for efficient donor material, which
possess a s*–p* conjugation between the silicon s
bonds and the bithiophene p system, resulting in a
unique low-lying lowest unoccupied molecular orbital
(LUMO) level [14–16]. It has been widely used as
efficient donor units of conjugated D–A oligomers and
polymers for organic electronic device materials such as
OPVs, OFETs, dye-sensitized solar cells, and organic
light-emitting diodes [15–18].
Fluorophores with absorption and emission
wavelengths in the near-infrared (NIR) region (650–
900 nm, biological window) are especially attractive
for in vivo imaging due to deep tissue penetration of
NIR light and small background autofluorescence
of biomacromolecules in the living systems [1–3].
Among popular chromophores, Boron-dipyrromethene
(4,4-difluoro-4-bora-3a,4a-diaza-sindacene, BDP or
BODIPY) fluorescent dyes, a family of well-known
luminescent compounds, have drawn much attention with
their fascinating structural and attractive photophysical
properties such as high fluorescence quantum yield, large
absorption coefficient, considerably high photostability
and chemical stability and good solubility in common
solvents of different polarity [4–9]. However, the spectral
properties of the common BODIPY dyes are typically
limited to the 470–530 nm region [4–7].
Until now, shifts of the main spectral band into the
red or NIR region have been developed through aryl,
ethynylaryl and styryl substitution at the 1-, 3-, 5-, and/
or 7-positions, aromatic ring fusion, by replacing the
meso-carbon atom with an nitrogen atom to form an
In this paper, 3,/3,5-dithienosilole-vinyl-BODIPYs
are readily synthesized via Knoevenagel condensation
reactions between 1,3,5,7-tetramethyl BODIPY and
dithienosilole-based aromatic aldehyde. The push–pull
interaction is expected to narrow the HOMO–LUMO
gap, resulting in a large red shift of the main spectral
*Correspondence to: Lizhi Gai, email: lizhigai@hznu.edu.cn;
email: Zhirong Qu, quzr@hznu.edu.cn and Hua Lu, email:
hualu@hznu.edu.cn.
Copyright © 2019 World Scientific Publishing Company

2
Y. SUN ET AL.
band. TD-DFT calculations are performed in order to
explore the effect of DTS moiety and structure–property
correlations.
237 nm for 2 were observed, indicative of the effect of
the greater extent of the p conjugation by incorporation
of DTS moieties. It should be noted that 2 shows intense
absorption peaks at 457 nm, which can be attributed to the
strong S0–S3 and S0–S4 transition and is associated with
the p–p* excited state of DTS moieties. The absorption
maxima do not show any particular trend as a function of
solvent polarity. The emission bands of 1 and 2 exhibit
mirror symmetry with the absorption band. The emission
bands are dependent on solvent polarity and show a
hypsochromic shift of approximately 31 nm (1) and
18 nm (2) with increasing solvent polarity from hexane to
MeCN. 1 exhibits moderate fluorescence, whereas only
very weak emission is observed for 2 in all investigated
solvents, due to double internal conversion probability
induced by more vibrational coupling, which enhances
the rate of intersystem crossing of the dyes [22, 23]. The
fluorescence decay profiles of dyes could be described
by a single-exponential fit (fluorescence lifetime in the
range of 1.29–7.10 ns) in all of the solvents investigated,
similar to the lifetime data of other BODIPY systems
published in the literature [24].
The introduction of vinyl groups at the 3-positions
or 3,5-positions of BODIPY chromophore produces a
greater bathochromic shift, extending the p conjugation
through the 3-positions or 3,5-positions in the reported
literature [7, 10, 25–27]. Compared with the absorption of
classic BODIPY 3, the 3,5-vinyl groups of modification
BODIPY 2a–2c, had larger red shifts with increasing
molar extinction coefficients (Scheme 2), which can be
attributed to a narrowing of the HOMO–LUMO gap due
to enhanced delocalization of the p electrons in vinyl
groups and functional p conjugation rings [7, 10, 25–27].
In addition, dye 2 had low quantum yield related to that
RESULTS AND DISCUSSION
The synthetic route of 1 and 2 is depicted in
Scheme 1. The synthesis of 3,3′-dibromo bithiophene
(6) and the classic BODIPY 3 were reported in the
literature [19]. With 6 as a starting material, after double
Br/Li-exchange, the reaction mixture was reacted with
dichlorobis(2-ethylhexyl)silane to generate 5 in 67%
isolated yield [20]. Compound 4 was synthesized via
Vilsmeier–Haack reaction between 5 and DMF/POCl3 in
moderate yield [21]. Finally, the target dyes 1 and 2 were
readily prepared via Knoevenagel condensation reaction
of the classic BODIPY 3 and 4 under an atmosphere
of p-TSA and piperidine in toluene. The structures of
target products 1 and 2 were characterized by 1H NMR,
13C NMR, 19F NMR, 11B NMR and high resolution mass
spectrometry (HR-MS) (see supporting information).
All compounds are fairly stable under air and moisture
both in solution and in the solid state.
Absorption and emission spectra in different solvents
are presented in Figs 1 and 2, and detailed photophysical
data are collected in Table 1. Dyes 1 and 2 show an
absorption maxima at 620 and 738 nm with maximum
-1
absorption coefficient of 60900 and 77900 M-1 cm in
.
DCM, respectively. In general, the maxima absorption
band can be attributed as typical of a S0→S1 transition
with a shoulder at the high-energy side and owing to the
0–1 vibrational band of the same transition. In contrast to
the absorption spectra of the precursor BODIPY (labs
=
501 nm), dramatic bathochromic shift of 119 nm for 1;
R
R
Si
R
R
Si
Br Br
1) TMEDA/ n-BuLi
-78 °C
DMF/ DCM
POCl3, reflux
CHO
2) SiR2Cl2/THF, r.t
S
S
S
S
S
S
4 (59%)
6
5 (67%)
R = 2-ethylhexyl
+
N
N+
N+
B-
N
B-
4, pTSA/ toluene
F
F
F
F
Piperidine, reflux
N
N
B
F
F
S
S
S
S
R
Si
R
R
2 (22%)
1 (15%)
R
Si R
3
R
Si
S
S
Scheme 1. Synthesis and chemical structures of BODIPY 1–2
Copyright © 2019 World Scientific Publishing Company
J. Porphyrins Phthalocyanines 2019; 23: 2–7

DITHIENOSILOLE EXTENDED BODIPYS: SYNTHESIS AND SPECTROSCOPIC PROPERTIES
3
and TD-DFT calculations were performed using the
B3LYP functional and 6-31G (d, p) basis sets of the
Gaussian09 software package [28]. The analysis of the
TD-DFT wave function had S0–S1 transitions mainly
composed of HOMO to LUMO transitions. The HOMO
are almost effectively spread over the entire molecule
(Fig. 3), however, the LUMO mostly localizes on
the BODIPY p system and less on the DTS fragment,
indicating that weak ICT transition occurs from the
donor DTS unit to the BODIPY p system. The DTS
extension stabilizes LUMO and destabilizes HOMO,
thus effectively narrowing the energy gap, leading to
a bathochromic shift compared with the spectral band
position of the parent BODIPY 3. The lowest-energy
excitations of 1 and 2 are predicted to lie at 584 and
725 nm with oscillator strengths of 1.18 and 0.78,
respectively, consistent with the maxima absorption band

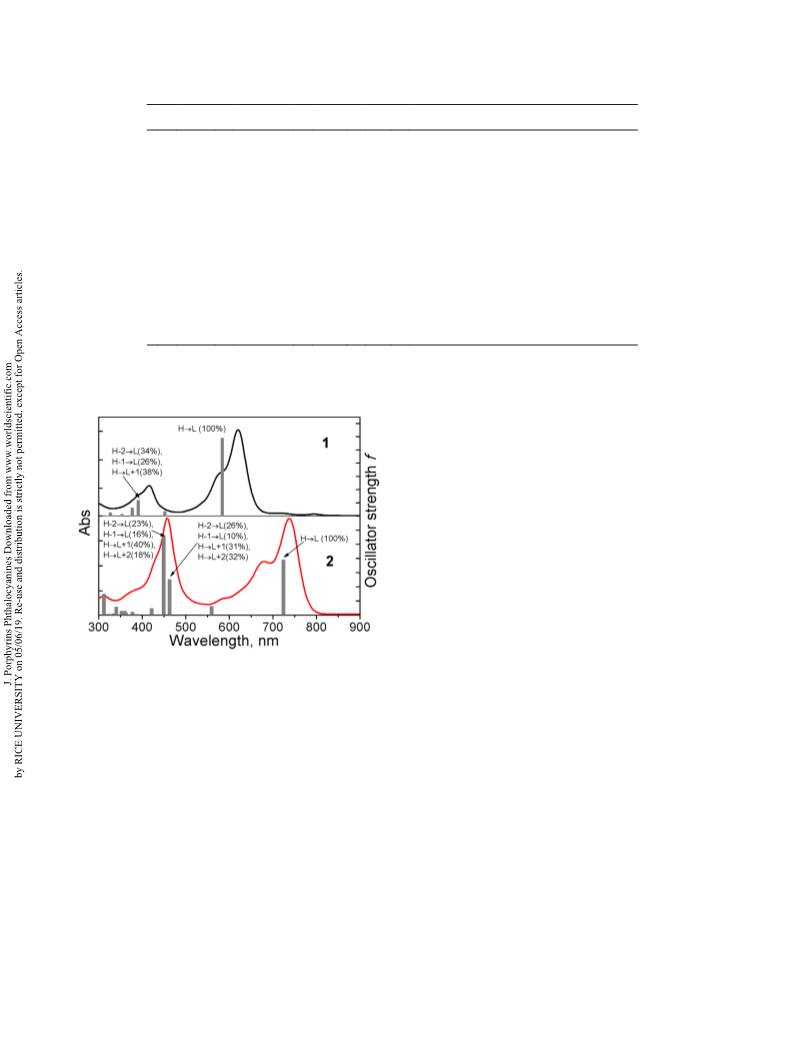

(Table 2). The wavelengths of the third/fourth lowest
energy transitions closely match the experimental data
round 400 nm. Therefore, TD-DFT calculations explain
the absorption spectra well (Fig. 4).
In summary, the synthesis, characterization, and
theoretical analysis of dithienosilole-vinyl-BODIPY dyes
have been described. The introduction of dithienosilole-
vinyl groups is clearly promising for designing NIR
Fig. 1. The absorption and emission spectra of 1 and 2 in DCM.
Photographs of 1 and 2 in DCM under visible (left) and excited
at 365 nm using a UV lamp (right)
of 2a–2c, due to the presence of a thiophene group in the
DTS moiety at the 3,5-positions, which increases the rate
of nonradiative decay.
In order to gain deeper insight into the electronic
structures and observed photophysical properties, DFT
Fig. 2. The absorption (left) and emission (right) spectra of 1 and 2 in different solvents
