Anti-inflammatory effects of the novel PIM kinase inhibitor KMU-470 in raw 264.7 cells through the TLR4-NF-κb-NLRP3 pathway

Article abstract of DOI:10.3390/ijms21145138

PIM kinases, a small family of serine/threonine kinases, are important intermediates in the cytokine signaling pathway of inflammatory disease. In this study, we investigated whether the novel PIM kinase inhibitor KMU-470, a derivative of indolin-2-one, inhibits lipopolysaccharide (LPS)-induced inflammatory responses in RAW 264.7 cells. We demonstrated that KMU-470 suppressed the production of nitric oxide and inducible nitric oxide synthases that are induced by LPS in RAW 264.7 cells. Furthermore, KMU-470 inhibited LPS-induced up-regulation of TLR4 and MyD88, as well as the phosphorylation of IκB kinase and NF-κB in RAW 264.7 cells. Additionally, KMU-470 suppressed LPS-induced up-regulation at the transcriptional level of various proinflammatory cytokines such as IL-1β, TNF-α, and IL-6. Notably, KMU-470 inhibited LPS-induced up-regulation of a major component of the inflammasome complex, NLRP3, in RAW 264.7 cells. Importantly, PIM-1 siRNA transfection attenuated up-regulation of NLRP3 and pro-IL-1β in LPStreated RAW 264.7 cells. Taken together, these findings indicate that PIM-1 plays a key role in inflammatory signaling and that KMU-470 is a potential anti-inflammatory agent.

Full text of DOI:10.3390/ijms21145138

International Journal of
Molecular Sciences
Article
Anti-Inflammatory Effects of the Novel PIM Kinase
Inhibitor KMU-470 in RAW 264.7 Cells through the
TLR4-NF-κB-NLRP3 Pathway
Hye Suk Baek 1,†, Hyeon Ji Min 1,†, Victor Sukbong Hong 2,†, Taeg Kyu Kwon 1
,
Jong Wook Park 1, Jinho Lee 2,* and Shin Kim 1,3,
*
1
Department of Immunology, School of Medicine, Keimyung University, Daegu 42601, Korea;
thortiw@naver.com (H.S.B.); mhj0221@naver.com (H.J.M.); kwontk@dsmc.or.kr (T.K.K.);
j303nih@dsmc.or.kr (J.W.P.)
Department of Chemistry, Keimyung University, Daegu 42601, Korea; victorh@gw.kmu.ac.kr
Institute of Medical Science, Keimyung University, Daegu 42601, Korea
Correspondence: jinho@kmu.ac.kr (J.L.); god98005@dsmc.or.kr (S.K.); Tel.: +82-53-580-5183 (J.L.);
+82-53-258-7359 (S.K.); Fax: +82-050-4154-2213 (J.L.); +82-53-258-7355 (S.K.)
These authors contributed equally to this work.
2
3
*
†
ꢀꢁꢂꢀꢃꢄꢅꢆꢇ
ꢀꢁꢂꢃꢄꢅꢆ
Received: 15 June 2020; Accepted: 17 July 2020; Published: 20 July 2020
Abstract: PIM kinases, a small family of serine/threonine kinases, are important intermediates in
the cytokine signaling pathway of inflammatory disease. In this study, we investigated whether the
novel PIM kinase inhibitor KMU-470, a derivative of indolin-2-one, inhibits lipopolysaccharide
(LPS)-induced inflammatory responses in RAW 264.7 cells. We demonstrated that KMU-470
suppressed the production of nitric oxide and inducible nitric oxide synthases that are induced by LPS
in RAW 264.7 cells. Furthermore, KMU-470 inhibited LPS-induced up-regulation of TLR4 and MyD88,
as well as the phosphorylation of I
suppressed LPS-induced up-regulation at the transcriptional level of various pro-inflammatory
cytokines such as IL-1 , TNF- , and IL-6. Notably, KMU-470 inhibited LPS-induced up-regulation of
a major component of the inflammasome complex, NLRP3, in RAW 264.7 cells. Importantly, PIM-1
siRNA transfection attenuated up-regulation of NLRP3 and pro-IL-1 in LPS-treated RAW 264.7 cells.
κB kinase and NF-κB in RAW 264.7 cells. Additionally, KMU-470
β
α
β
Taken together, these findings indicate that PIM-1 plays a key role in inflammatory signaling and that
KMU-470 is a potential anti-inflammatory agent.
Keywords: KMU-470; PIM kinase; TLR4; LPS; inflammation; NF-κB; NLRP3 inflammasome
1. Introduction
PIM kinases are a family of serine/threonine kinases that were named after they was identified
as proviral integration sites of the Moloney murine leukemia virus [
angiogenesis, immunity, and tumor progression [ ], and consist of three isoforms: PIM-1, PIM-2,
and PIM-3. Recent studies demonstrated that PIM-1 plays an important role in inflammatory
responses [ ]. These results suggest that PIM-1 has promising potential as an anti-inflammatory target.
1]. The PIM kinases regulate
2–4
5–7
Inflammatory responses rely on intracellular signaling pathways and various molecular
interactions. When macrophages are stimulated with lipopolysaccharides (LPS), large molecules
that are a major component of the outer membrane of gram-negative bacteria, by binding to a
potent immune receptor, Toll like receptor 4 (TLR4), it induces activation of nuclear factor kappa-B
(NF-
cytokines [
is crucial for the intracellular inflammatory signal cascade by TLR4 [10]. This cascade results in the
κ
B) [8
] and inflammatory responses, including production and release of pro-inflammatory
9
]. Recruitment of the myeloid differentiation factor (MyD88) to the plasma membrane
Int. J. Mol. Sci. 2020, 21, 5138; doi:10.3390/ijms21145138
www.mdpi.com/journal/ijms

Int. J. Mol. Sci. 2020, 21, 5138
2 of 16
downstream activation of NF-
κ
B and mitogen-activated protein kinase (MAPK), which further
activates the extracellular signal-regulated kinase (ERK), c-Jun NH(2)-terminal kinase (JNK),
and MAPK p38 pathways [11]. Inflammasomes, cytosolic multiprotein complexes, are responsible for
caspase-1-mediated cleavage of pro-inflammatory cytokines, such as interleukin-1β (IL-1β), and consist
of NLRP3, the adaptor molecule apoptosis-associated speck-like protein containing a C-terminal caspase
recruitment domain (ASC) and pro-caspase-1 [9]. Moreover, activation of the NLRP3 inflammasome is
regulated downstream of NF-κB [9].
In the present study, we synthesized a novel PIM kinase inhibitor, a derivative of indolin-2-one,
named KMU-470, and explored its anti-inflammatory properties in LPS-treated RAW 264.7 cells.
We also investigated the potential of PIM-1 as an anti-inflammatory target using PIM-1 siRNA.
2. Results
2.1. Identification of KMU-470 as A Novel PIM Kinase Inhibitor and Analysis of Inflammatory Kinase
KMU-470 was synthesized from 5-bromoindoline-2,3-dione as shown in Figure 1. The compound
1

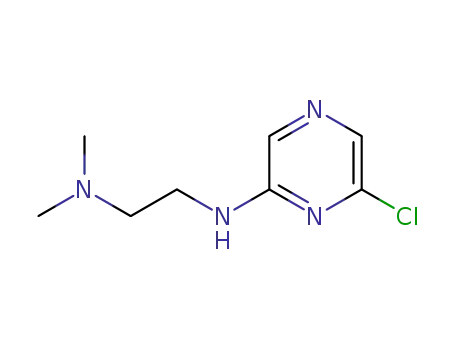

was obtained by reduction and borylation. Suzuki coupling reaction of compound
1 with pyrazine
derivative, , yielded compound . The Knoevenagel condensation with 1H-imidazole-4-carbaldehyde
2
3
gave KMU-470. To confirm KMU-470 as a PIM kinase inhibitor, the PIM kinase inhibitory activity
of the compound was investigated. In addition, the IC50 values of KMU-470 were compared with
those of PIM-447 and AZD-1208, known PIM kinase inhibitors. KMU-470 inhibited PIM-1, PIM-2,
and PIM-3 activities with IC50 values of 5.6, 220, and, 6.9 nM, respectively (Table 1). However, KMU-470
showed inhibitory activities against other kinases, including inflammatory kinases, when it was tested
at concentrations of 10 and 1
µM. In particular, percent activities of MAPK1, Yes, and Lyn at 1 µM
concentration of KMU-470 were found to be 6, 22, and 30, respectively (Table 2).
Figure 1. Reagents and experimental conditions: (
diboron, PdCl2(dppf), KOAc, 1,4-dioxane, microwave; (
DMF; ( ) Pd(PPh3)4, 2M K2CO3, 1,4-dioxane/EtOH (1:1.5), microwave; (
4-carbaldehyde, EtOH, microwave.
a
)
i
) NH2NH2, NaOH, EtOH; ii) bis(pinacolato)
) K2CO3, N,N-dimethylethylenediamine,
) piperidine, 1H-imidazole-
b
c
d

Int. J. Mol. Sci. 2020, 21, 5138
3 of 16
Table 1. PIM kinase inhibitory activities of KMU-470.
Inhibitory Activity IC50 (nM) *
Compound
PIM-1
PIM-2
PIM-3
KMU-470
AZD-1208
PIM-447
5.6
3.0
2.1
220
6.0
12
6.9
3.0
0.9
* Average of two independent experiments.
Table 2. Kinase inhibitory activities of KMU-470 against inflammation-related kinases.
KMU-470 10 (µM) KMU-470 1 (µM)
Activity
(% Control)
Activity
(% Control)
Kinase
Kinase
MAPK1 (h)
Yes (h)
Blk (h)
Fgr (h)
Lyn (h)
−18
−3
5
MAPK1 (h)
Yes (h)
Blk (h)
Fgr (h)
Lyn (h)
Lck (h)
TYK2 (h)
JAK3 (h)
Fyn (h)
JAK1 (h)
Itk (h)
6
22
53
42
30
41
54
38
97
61
75
82
107
8
10
14
14
15
16
20
21
21
23
34
37
41
43
47
50
Lck (h)
TYK2 (h)
JAK3 (h)
Fyn (h)
JAK1 (h)
Itk (h)
Syk (h)
Syk (h)
JAK2 (h)
JAK2 (h)
JNK1α1 (h)
Hck (h)
Pyk2 (h)
Csrc (h)
Bmx (h)
Txk (h)
Tec (h)
71
activated
SAPK2a (h)
BTK (h)
ZAP-70 (h)
77
80
100
2.2. Inhibition of PIM-1 Suppresses LPS-Induced Pro-IL-1β in RAW 264.7 Cells
To investigate the role of PIM-1 in LPS-induced inflammatory responses in RAW 264.7 cells,
we used PIM-1 siRNA and a pan-PIM kinase inhibitor. PIM-1 siRNA inhibited LPS-induced pro-IL-1
β
and phosphorylation of Bad, the substrate of PIM kinase (Figure 2A). Considering KMU-470 as a PIM
kinase inhibitor, we next compared the anti-inflammatory potency between KMU-470 and PIM-447,
a well-known pan-PIM kinase inhibitor in RAW 264.7 cells. A concentration of 1
significantly inhibited LPS-induced up-regulation of IL-1 mRNA expression in RAW 264.7 cells,
whereas the same concentration of PIM-447 did not (Figure 2B).
µM KMU-470
β

Int. J. Mol. Sci. 2020, 21, 5138
4 of 16
Figure 2. Effect of PIM inhibition on lipopolysaccharide (LPS)-mediated inflammatory response in
RAW 264.7 cells. ( ) RAW 264.7 cells transfected with negative siRNA or PIM-1 siRNA for 72 h and
then treated with LPS (50 ng/mL) for 6 h. Whole cell lysates were isolated and used to measure the
protein expression levels of PIM-1, pro-IL-1 , p-Bad, and -actin by Western blot analysis. ( ) Cells
were treated with LPS (50 ng/mL) for 6 h after pre-treatment with different doses of KMU-470 (0.1, 0.5,
and 1 M) and PIM-447 (1 and 10 M) for 1 h. Total RNA was isolated, and used to measure the mRNA
A
β
β
B
µ
µ
expression levels of IL-1b and β-actin by RT-PCR analysis. *** p < 0.001, ** p < 0.01.
2.3. KMU-470 Inhibits LPS-Induced NO Production and iNOS Expression in RAW 264.7 Cells
To measure the influence of KMU-470 on NO production, we performed NO measurement in RAW
264.7 cells. KMU-470 suppressed LPS-induced NO production in RAW 264.7 cells (Figure 3A). In order
to investigate the relevance of iNOS protein and the mechanism of NO suppression, the expression
levels of iNOS protein were determined. KMU-470 attenuated LPS-induced up-regulation of iNOS
protein in RAW 264.7 cells (Figure 3B,C). Next, we evaluated the toxicity of KMU-470 in RAW 264.7 cells.
KMU-470 showed no toxicity up to 1 µM (Figure 3D–F).
Figure 3. Cont.

Int. J. Mol. Sci. 2020, 21, 5138
5 of 16
Figure 3. Inhibitory effect of KMU-470 on LPS-induced NO production and iNOS protein expression,
and cell viability in RAW 264.7 cells. ( ) The cells were pre-treated with KMU-470 at a concentration of
M for 30 min and then treated with different concentrations of LPS for 24 h. Nitrite in the culture
supernatant was collected and evaluated using Griess reagent. Absorbance was measured at 540 nm.
*** p < 0.001, ** p < 0.01, * p < 0.05. ( ) Cells are pre-treated with two different concentrations of
KMU-470 (0.5 M and 1 M) for 30 min, followed by treatment with 1 g/mL LPS for 24 h. -actin
was used as an internal control for Western blot analysis. ( ) Image-J program was used to analyze
the relative optical density of the iNOS band. ( ) Cells were treated with various concentrations of
KMU-470 for 24 h. The effects of KMU-470 on cell proliferation and morphological changes were
observed by microscopy (X100). ( ) The cell proliferation rate was determined by cell count using a
) Effect of KMU-470 on cell viability was measured by XTT assay.
A
1
µ
B
µ
µ
µ
β
C
D
E
trypan blue exclusion assay. *p < 0.05 (
*** p < 0.001.
F
2.4. KMU-470 Suppressed LPS-Induced TLR4 and MyD88 Expression in RAW 264.7 Cells
Next, we determined the effect of KMU-470 on the LPS-induced TLR4 and MyD88 expression in
RAW 264.7 cells. KMU-470 suppressed up-regulation of TLR4 and MyD88 protein by LPS (Figure 4).

Int. J. Mol. Sci. 2020, 21, 5138
6 of 16
Figure 4. Inhibitory effect of KMU-470 on LPS-induced TLR4 and MyD88 protein expression in RAW
264.7 cells. ( ) Cells were pre-treated with 0.5 and 1 M of KMU-470 for 30 min prior to LPS treatment.
Then, total protein was isolated after 6 h exposure to LPS. The protein expression level of TLR4 and
MyD88 were assessed using Western blot analysis. ( ) The relative optical densities of TLR4 and
A,
B
µ
C,D
MyD88 bands were analyzed by the Image-J program. *** p < 0.001.
2.5. KMU-470 Inhibits LPS-Induced Phosphorylation of MAPKs and Activation of NF-κB in RAW 264.7 Cells
LPS induced phosphorylation of ERK, JNK, and p38 in a time dependent manner, whereas
KMU-470 significantly inhibited LPS-induced phosphorylation of JNK and ERK. However, p38 showed
no change in phosphorylation level (Figure 5A,B). Additionally, LPS induced phosphorylation of
IKKα/β and NF-κB, while KMU-470 significantly reduced LPS-induced phosphorylation of IKKα/β
and NF-κB in RAW 264.7 cells (Figure 5C,D).
2.6. KMU-470 Inhibits LPS-Induced NLRP3 Inflammasome Activation and Up-Regulation of Pro-IL-1β
We further investigated whether KMU-470 affected the NLRP3 inflammasome signal. KMU-470
showed a marked decrease in expression of NLRP3, ASC, and pro-IL-1 proteins compared with that
β
of the LPS alone group. However, pro-caspase-1 expression was not changed by KMU-470 (Figure 6A).
2.7. KMU-470 Decreased LPS-Induced Pro-Inflammatory Cytokines in RAW 264.7 Cells
We investigated the effect of KMU-470 on LPS-mediated regulation of inflammatory cytokines.
KMU-470 significantly decreased LPS-induced up-regulation of pro-inflammatory cytokines including
IL-1
up-regulation of IL-1
LPS-mediated up-regulation of pro-inflammatory cytokines.
β
, TNF-
α
, and IL-6 in RAW 264.7 cells (Figure 6A–C). Moreover, KMU-470 reduced LPS-induced
β
protein (Figure 6D). These results indicate that KMU-470 effectively inhibited

Int. J. Mol. Sci. 2020, 21, 5138
7 of 16
Figure 5. Effect of KMU-470 on LPS-induced phosphorylation of MAPKs/ IKKs/ NF-κB in RAW 264.7
cells. (
the indicated times. (
treatment. Total proteins were isolated after 6 h exposure to LPS (50 ng/mL). The protein expression
level of MAPKs, p-IKK , and p-NF- B were assessed using Western blot analyses. ( ) The relative
, and p-NF- B bands were analyzed by the Image-J program.
A
) Cells were pre-treated with 1
µM of KMU-470 for 24 h and stimulated with LPS (50 ng/mL) at
C
) Cells were pre-treated with 0.5 and 1
µM of KMU-470 for 30 min prior to LPS
α
/
β
κ
B,D
optical densities of MAPKs, p-IKK
α
/
β
κ
*** p < 0.001.
Figure 6. Cont.

Int. J. Mol. Sci. 2020, 21, 5138
8 of 16
Figure 6. Inhibitory effect of KMU-470 on LPS-induced up-regulation of pro-inflammatory cytokines
and activation of NLRP3 inflammasome in RAW 264.7 cells. ( ) Cells were treated with KMU-470 for
30 min and stimulated with LPS 50 ng/mL for 6 h. The levels of IL-1 , TNF- , and IL-6 were determined
using real time PCR. *** p < 0.001, *p < 0.05. ( ) Cells were pre-treated with 0.1, 0.5, and 1 M of
KMU-470 for 30 min and treated with LPS 50 ng/mL for 6 h, respectively. Whole cell lysates were
isolated and used to measure the protein expression levels of pro-IL-1 and -actin by Western blot
analysis. ( ) Cells were pre-treated with 0.1, 0.5, and 1 M of KMU-470 for 30 min and treated with
A–C
β
α
D
µ
β
β
E
µ
LPS 50 ng/mL for 6 h, respectively. Whole cell lysates were isolated and used to measure the protein
expression levels of NLRP2, ASC, pro-caspase-1, pro-IL-1β, and β-actin by Western blot analysis.
3. Discussion
Members of the PIM kinase family are known as oncogenes, and many studies have been
conducted on the role of PIM in tumorigenesis [12]. Recently, studies on the function of the PIM
kinase family in the inflammatory response have been attracting attention. PIM-1, one of the three
PIM kinases, is significantly induced by cigarette smoke in RAW 264.7 cells [
of PIM-1 in a dextran sodium sulfate colitis mice model improved colitis by reducing the excessive
activity of macrophages and the immune response of Th1 and Th17 [ ]. In addition, PIM-1 kinase
inhibitors effectively prevent the generation of cytokines, which cause allergic inflammation of the
airways [ ]. These findings highlight the importance of PIM-1 kinase in inflammatory responses.
7], and the inhibition
5
6
However, the exact mechanisms by which PIM kinases influence the inflammatory process remain
unknown. In the present study, we developed a novel PIM kinase inhibitor and investigated its
anti-inflammatory mechanism in RAW 264.7 cells.
Indolin-2-one is considered as a privileged scaffold for the discovery of kinase inhibitor [13].
Antitumor drugs such as Sunitinib and Intedanib are representative kinase inhibitors using an
indolin-2-one scaffold [13]. Most PIM kinase inhibitors utilize the
kinase as a key interaction point. For example, PIM-447 and INCB053914, under clinical trials I and
II, use the pyridine ring [14 15], and AZD-1208 uses the thiazolidine-2,4-dione [16] for this purpose.
Previously we reported that a series of compounds, synthesized using indoln-2-one for a scaffold
and the imidazole ring for the interaction with the -amino group of Lys-67 of PIM-1 kinase, shows
ε-amino group of Lys-67 of PIM-1
,
ε
PIM kinase inhibitory activities with submicromolar IC50 values for all PIM-1, PIM-2, and PIM-3
kinases [17]. It was also found that the introduction of a pyrazine ring substituted with an aminoalkyl
moiety, which was expected to make hydrogen bond interactions with PIM kinases, to an appropriate
scaffold improved the potency of the compound against PIM kinases [18,19]. Therefore, considering
the above three factors, we designed a new series of PIM kinase inhibitors that inhibits PIM kinase
by competitively binding to the ATP binding pocket of PIM kinase. Indolin-2-one was used as a key
scaffold, imidazole was introduced for the interaction with the ε-amino group of Lys-67 (PIM-1), and the
pyrazine ring substituted with an aminoalkyl moiety was attached to the indolin-2-one ring to increase
the potency of compound. We obtained potent PIM kinase inhibitors with single- or double-digit
nanomolar IC50 values for all three PIM kinases. During screening for the anti-inflammatory activity
of the PIM kinase inhibitors, KMU-470 was selected. It strongly inhibited the activities of PIM-1 and
also PIM-3 kinase, with IC50 values of 5.6 nM and 6.9 nM, respectively (Table 1). However, this could

Int. J. Mol. Sci. 2020, 21, 5138
9 of 16
be problematic for targeting if the inhibitor is applied to a multi-cellular system because KMU-470 is a
multi-kinase inhibitor affecting the activity of several different kinases (Table 2).
First, the role of PIM-1 in the LPS-mediated inflammatory response was evaluated using PIM-1
siRNA. As shown in Figure 2A, Pim-1 siRNA inhibited LPS-induced up-regulation of pro-IL-1
p-Bad in RAW 264.7 cells. As shown in Figure 1B, KMU-470 suppressed LPS-induced up-regulation
of pro-IL-1 even at a concentration of about 1/10 that of PIM-447, a pan-PIM kinase inhibitor. This
β and
β
may result from KMU-470 having inhibitory activity on various inflammation-related kinases (Table 2),
but it suggests that the anti-inflammatory effect of KMU-470 is superior to that of PIM-447.
iNOS is an enzyme that generates NO by converting L-arginine to L-citrulline in cells. Excess
amounts of NO induce the expression of inflammatory cytokines. Consequently, the resulting
inflammatory reactions can cause tissue damage, gene mutation, and nerve cell damage [20
LPS promotes the production of iNOS and NO in RAW 264.7 cells, resulting in a pronounced
inflammatory reaction [22 23]. A recent study has shown that LPS-induced increase of iNOS expression
,21].
,
led to the generation of large amounts of NO, resulting in physiological dysfunction [24]. As shown
in Figure 3, KMU-470 significantly decreased the generation of NO and iNOS protein expression.
Accordingly, KMU-470 is considered to have anti-inflammatory effects because NO generation can be
suppressed by suppressing the expression or activity of iNOS.
TLRs recognize pathogens or specific molecular components of pathogens in order to initiate
the immune response [25]. Among them, TLR4 is activated by the LPS displayed on the outer
membrane of Gram-negative bacteria, resulting in the activation of specific intracellular pathways,
receptor dimerization, and the subsequent recruitment of a variety of adapter molecules, such as
MyD88 [26]. We showed that KMU-470 inhibited LPS-induced TLR4 and MyD88 protein expression
(Figure 4). LPS activates macrophages by binding to TLR4, and the LPS-initiated signaling cascade
leads to activation of MAPKs and NF-
κ
B signaling pathways [27]. It was also reported that the
29]. These studies suggest that
activation of NF- B may occur via the MAPK signaling pathway [28
κ
,
blocking the phosphorylation and activation of MAPKs is an important way to alleviate LPS-induced
inflammation [30]. In addition, the LPS stimulus triggers activation of TLR4-MyD88, which activates
NF-
inhibited LPS-induced phosphorylation of IKK α/β and NF- κ B in RAW 264.7 cells.
Previous studies suggest that NF- B is an important transcription factor for regulating
the expression of iNOS and inflammatory cytokines [33]. IL-1 , TNF- , and IL-6, are potent
pro-inflammatory cytokines, and play important roles in various immune responses involving
macrophages, such as inflammation [34 36]. Therefore, we investigated the effects of KMU-470 on
pro-inflammatory cytokines in RAW 264.7 cells. KMU-470 suppressed LPS-induced up-regulation
of IL-1 , TNF- , and IL-6 at the transcriptional level (Figure 6–C). Moreover, KMU-470 inhibited
κB through phosphorylation and degradation of IκBα [31,32]. As shown in Figure 5, KMU-470
κ
β
α
–
β
α
LPS-induced up-regulation of IL-1β in RAW 264.7 cells (Figure 6D).
Recent studies have found that NOD-like receptors (NLRs) are important mediators in
inflammatory diseases [37,38]. In particular, one of the NLRs, known as NLRP3 inflammasome,
is a complex composed of NLRP3, ASC, and caspase-1, which regulates inflammatory cytokines [39].
In this study, KMU-470 inhibited LPS-induced up-regulation of NLRP3 and ASC in RAW 264.7 cells,
suggesting that KMU-470 may also inhibit the inflammasome function of pro-IL-1 β cleavage.
PIM kinase inhibitors, such as AZD-1208 from Astrazeneca and PIM-447 from Novartis, have been
evaluated for their potential in the pharmaceutical market of the anti-cancer field [15,40]. However,
there are no reports of PIM kinase inhibitors entering the anti-inflammatory pharmaceutical market.
As shown in Figure 2, it was revealed that PIM-1 kinase plays an important role in the inflammatory
signaling pathway. In addition, KMU-470 was found to have inhibitory effects against multiple kinases
including PIM kinase, and it was confirmed that KMU-470 has better anti-inflammatory efficacy
than AZD-1208 or PIM-447, which has good PIM kinase selectivity [15,16]. These results suggest the
possibility of KMU-470 entering the anti-inflammatory pharmaceutical market. Moreover, this may
lead to the development of candidate compounds in the anti-inflammatory pharmaceutical market

Int. J. Mol. Sci. 2020, 21, 5138
10 of 16
through appropriate optimizing processes such as pharmacokinetics, pharmacodynamics, in vivo
study, and clinical study.
In conclusion, this study demonstrated that PIM-1 plays an important role in the inflammatory
signaling associated with pro-IL-1
has anti-inflammatory properties by regulating the TLR4/MyD88/p-IKK
β
up-regulation by LPS, and the novel PIM kinase inhibitor, KMU-470,
/p-NF- B signaling pathway
α
/β
κ
and NLRP3 inflammasome (Figure 7), suggesting that this inhibitor may be developed as a potent
anti-inflammatory agent.
Figure 7. Mechanistic scheme of anti-inflammatory signaling pathways of KMU-470. LPS,
lipopolysaccharide; TLR4, toll-like receptor 4; NF-
factor 88; MAPKs, mitogen-activated protein kinases; IKK, inhibitor kappa B kinase, NO, nitric
oxide; iNOS, inducible nitric oxide synthase; COX-2, cyclooxygenase-2; TNF- , tumor necrosis factor;
κB, nuclear factor-κB; MyD88, myeloid differentiation
α
NRLP3, nod-like receptor family, pyrin domain containing 3; ASC, adaptor apoptosis-associated
speck-like protein.
4. Materials and Methods
4.1. Synthesis of KMU-470
4.1.1. General Information
Microwave assisted reactions were performed using a CEM Discover BenchMate.
Reaction completions were monitored on E. Merck silica gel F254 TLC plates. Purification of the
synthesized compounds was performed by flash column chromatography using Merck Silica Gel 60
(230–400 mesh). The synthesized compounds were characterized by an 1H NMR on Bruker AVANCE
400 (1H: 400 MHz) and JEOL ECA 500 (1H: 500 MHz) spectrometers and their chemical shift
δ values
were measured in ppm with TMS as a standard reference. Mass spectra were obtained using a Waters
ACQUITY UPLC, Micromass Quattro microTM API.
4.1.2. 5-(4,4,5,5-Tetramethyl-1,3,2-dioxaborolan-2-yl)indolin-2-one (1)
A microwave vessel was filled with 5-bromoindoline-2,3-dione (0.10 g, 0.41 mmole), hydrazine
hydrate (0.035 g, 1.1 mmole), and ethanol (EtOH, 1.5 mL). The mixture was irradiated for 10 min at
100 ◦C by applying 100 W. After addition of sodium hydroxide (0.053 g, 1.3 mmole), the mixture was
irradiated for 10 min at 90 ◦C by applying 100 W. The mixture was acidified with 6 M hydrochloric
acid (HCl). The precipitate formed by addition of cold water was obtained by filtration and washed

Int. J. Mol. Sci. 2020, 21, 5138
11 of 16
with 6 M HCl and then with water. Drying under vacuum gave 0.07 g of 5-bromoindolin-2-one in 75%
yield, which was used for the next step without further purification.
A microwave vessel was filled with of 5-bromoindolin-2-one (0.065 g, 0.31 mmole), 1,4-dioxane
(2.0 mL). After the addition of bis(pinacolato)diboron (0.086 g, 0.34 mmole) and potassium
acetate (KOAc) (0.091 g, 0.92 mmole), the mixture was purged with N2 gas for 5 min. [1,10-Bis
(diphenylphosphino) ferrocene] dichloropalladium (II) (PdCl2 (dppf)) (0.006 g, 0.009 mmole) in N2 gas
was added to the mixture and irradiated for 10 min at 150 ◦C by applying 100 W. After the removal
of solvent in vacuo, the residue was purified by silica gel chromatography with 1:3 ethyl acetate
1
(EA)/dichloromethane(DCM) to give 0.02 g (25%) of the title compound. H-NMR (400 MHz, CDCl3):
δ 9.14 (s, 1H), 7.70 (d, J. = 7.6 Hz, 1H), 7.67 (s, 1H), 6.91 (d, J. = 7.6 Hz, 1H), 3.53 (s, 2H), 1.34 (s, 12H).
4.1.3. N-(6-Chloropyrazin-2-yl)-N’,N’-dimethylethane-1,2-diamine (2)
N,N-Dimethylethylenediamine (0.25 g, 1.7 mmol) and K2CO3 (0.46 g, 3.3 mmol) were added to
5.0 mL N,N-dimethylformamide (DMF), and the mixture was stirred for 30 min at room temperature.
After addition of 2,6-dichloropyrazine (0.25 g, 2.0 mmol), the reaction mixture was stirred overnight at
room temperature. The solvent was removed in vacuo. After the residue was treated with DCM, it
was filtered with the aid of celite. The filtrate was collected, and the solvent was removed in vacuo.
The residue was purified by silica gel chromatography with 1:9 methanol (MeOH)/DCM to give 0.27 g
1
(75%) of the title compound. H-NMR (400 MHz, CDCl3):
δ 7.77 (s, 1H), 7.75 (s, 1H), 5.53 (s, 1H), 3.39
(q, J = 5.5 Hz, 2H), 2.55 (t, J = 5.7 Hz, 2H), 2.26 (s, 6H).
4.1.4. 5-(6-(2-Dimethylamino)ethylamino)pyrazin-2-yl)indolin-2-one (3)
A microwave vessel was filled with compound (0.25 g, 0.097 mmole), compound
1
2 (0.21 g,
1.1 mmole), 1,4-dioxane (1.0 mL), EtOH (1.5 mL), and 2.0 M aqueous potassium carbonate (2.9 mL,
4.8 mmole). After the addition of tetrakis(triphenylphosphine)palladium(0) (Pd(PPh3)4) (0.033 g,
0.029 mmole) in N2 atmosphere, the mixture was irradiated for 10 min at 110 ◦C by applying 100 W.
The solvent was removed in vacuo. After the residue was treated with MeOH and DCM mixture
(1:9), it was filtered with the aid of celite. The filtrate was collected, and the solvent was removed in
vacuo. The residue was purified by silica gel chromatography with 1:10:100 ammonium hydroxide
1
(NH4OH)/MeOH/chloroform (CHCl3) to give 0.12 g (42%) of the title compound. H-NMR (400 MHz,
CDCl3):
δ 9.33 (s, 1H), 8.19 (s, 1H), 7.89 (s, 1H), 7.85 (d, J = 8.2, 1H), 7.80 (s, 1H), 6.93 (d, J = 8.2, 1H), 3.6
(s, 2H), 3.55-3.51 (m, 2H), 2.61 (t, J = 5.8 Hz, 2H), 2.30 (s, 6H).
4.1.5. (Z)-3-((1H-Imidazol-5-yl)methylene)-5-(6-((2-(dimethylamino)ethyl)amino)pyrazin-2-yl)
indolin-2-one
A microwave vessel was filled with compound
3 (0.12 g, 0.040 mmole), piperidine (4.0 µL,
0.04 mmole), 1H-imidazole-4-carbaldehyde (0.077 g, 0.81 mmole), and EtOH (2.0 mL). The mixture
was irradiated for 10 min at 80 ◦C by applying 100 W. The solvent was removed in vacuo. The residue
was purified by silica gel chromatography with 1:10:100 NH4OH/MeOH/CHCl3 to give 0.03 g (20%) of
1
the title compound. H-NMR (500 MHz, DMSO-d6):
δ 8.38 (s, 1H), 8.29 (s, 1H), 8.05 (s, 1H), 8.00 (s,
1H), 7.93 (d, J = 8 Hz, 1H), 7.88 (s, 1H), 7.66 (s, 1H), 7.99 (d, J = 8 Hz, 1H), 3.49 (dt, J = 6 Hz, J = 6 Hz,
2H), 2.50 (t, J = 6 Hz, 2H), 2.23 (s, 6H). ESI MS: m/z = 376 [M+H]+.
4.2. Reagents and Antibodies
LPS (Escherichia coli serotype) and PIM-447 were purchased from Sigma (St. Louis, Mo, USA) and
Selleck Chemicals (Houston, TX, USA), respectively. Recombinant PIM-1, PIM-2, and PIM-3 kinases
were purchased from Life Technologies (Carlsbad, CA, USA), Abcam (Cambridge, UK), and Millipore
(Burlington, MA, USA), respectively. The IMAP
™ FP Screening Express Kit was obtained from
Molecular Devices (San Jose, CA, USA). The 5-FAM-labelled Bad peptide (5-FAM-RSRHSSYPAGT) was
purchased from AnaSpec (Fremont, CA, USA). Dithiothreitol was obtained from Sigma. The primary

Int. J. Mol. Sci. 2020, 21, 5138
12 of 16
antibodies against TLR4, p-IKK
α
/β, p-NF
κ
B/P65, iNOS, MyD88, ASC, caspase-1, and NLRP3 were
purchased from Cell Signaling Technology (Beverly, MA, USA). Anti-IL-1
from Novus Biologicals (Centennial, CO, USA). Anti-p-Bad and anti-PIM-1 antibodies were purchased
from Abcam (Cambridge, UK). Anti- -actin antibody was purchased from Sigma-Aldrich (St. Louise,
β antibody was purchased
β
MO, USA). Anti-horse anti-mouse IgG-horseradish peroxidase (HRP) and anti-goat anti-rabbit IgG-HRP
antibodies were purchased from Santa Cruz Biotechnology (Santa Cruz, CA, USA). PIM-1 siRNA was
purchased from Life Technologies (Carlsbad, CA, USA).
4.3. Biochemical IC50 Value Determination
The recombinant PIM kinase, human 5-FAM-labelled Bad peptide substrate, and ATP were
prepared in a reaction buffer containing 10 mM HEPES (pH 7.2), 10 mM MgCl2, 0.05% NaN3, 0.01%
Triton X-100, and 2 mM DTT. Kinase reactions were performed in 384-well black flat bottom polystyrene
plates (Corning 3820, Corning, NY, USA). Reagents were added to the plate as follows: 2.5
compound, 2.5 L PIM kinase, 2.5 L ATP, and 2.5 L 5-FAM-labelled Bad peptide substrate (a final
concentration of 100 nM). The final concentrations of ATP in the kinase reactions were 30 M, 5 M,
and 20 M for PIM1, PIM2, and PIM3, respectively. Serial dilutions of the compound (1:3) were
prepared over a range from 10 M to 0.0005 M in reaction buffer (final reaction concentration of
1% DMSO). Kinase reactions were incubated at room temperature for 90 min, and then the reactions
were stopped by the addition of 20 L of IMAP binding reagent (solution containing 75% Buffer A:
µL
µ
µ
µ
µ
µ
µ
µ
µ
µ
25% Buffer B, and a 1 in 600 dilution of beads). After quenching, the plates were incubated at room
temperature for 2 h, and then the fluorescence polarization measurements were carried out on an
Infinity F200 (Tecan, Männedorf, Zürich, Switzerland). The percentage of inhibition was calculated for
each compound concentration and the data were fitted to the equation of a 4-parameter logistic curve.
IC50 values were obtained using GraphPad Prism (GraphPad Software, Inc., La Jolla, CA, USA).
4.4. Kinase Profiling
To test the specificity of the novel PIM kinase inhibitor KMU-470, a kinase profiler service was
conducted by Eurofins Cerep S.A. The screening was performed with 1 and 10 µM of compound and a
concentration of ATP at the Km value for each individual kinase and kinase substrate according to
Eurofin’s protocols.
4.5. Cell Culture
RAW 264.7 murine macrophage cells were purchased from the American Type Culture Collection
(ATCC, Manassas, VA, USA). RAW 264.7 cells were cultured in DMEM (GIBCO, BRL, Grand Island,
NY, USA) with 10% fetal bovine serum (Welgene Inc, Daegu, Korea) and 1% antibiotics. The cells were
grown at 37 ◦C, 5% CO2 in fully humidified air.
4.6. Cell Viability Assay
The cell viability assay was performed using a 2,3-bis (2-methoxy-4-nitro-5-sulphonyl)-
2H-tetrazolium-5-carboxanilide (XTT) assay (Welgene Inc, Daegu, Korea). Briefly, RAW264.7 cells were
plated at a density of 2
×
104 cells/well in 96-well plates for 24 h. Cells were pre-treated with various
concentrations of KMU-470 for 24 h and then incubated in 0.5 mg/mL XTT solution for 3 h at 37 ◦C in
the dark. The optical density (OD) was measured using a microplate reader (BMG Labtech, Ortenberg,
Germany) at a 450 nm wavelength. Experiments were repeated three times.
4.7. Measurement of NO Production
The amount of nitrite accumulated in the cell culture medium was measured directly using a
Griess reagent as an indicator of NO production. RAW 264.7 cells were seeded 0.5
×
106 cells/well
on 12-well plates for 24 h. The cells were treated with a 1 M concentration of KMU-470 for 30 min
µ

Int. J. Mol. Sci. 2020, 21, 5138
13 of 16
before LPS stimulation; they were stimulated with three different concentrations of LPS at 50, 200,
and 1000 ng/mL for 24 h. Cell culture medium (100 L) was mixed with an equal volume of Griess
reagent and incubated for 10 min at room temperature. The OD was measured by spectrophotometer
µ
(BMG Labtech, Ortenberg, Germany) at 540 nm. All data are shown as the mean
of three experiments.
±
standard deviation
4.8. RNA Extraction and Real Time Quantitative PCR Analysis
Total RNA was isolated using TriZol reagent (Life Technologies; Gaithersburg, MD, USA)
according to the manufacturer’s protocol. Total RNA absorbance was quantified by using Nanodrop
1000 (Thermo Fisher Scientific, Waltham, MA, USA). Complementary DNA was synthesized from
total RNA using Revertra aceR qPCR RT master mix (Toyobo, Osaka, Japan). Real time quantitative
PCR was performed by using the SYBR green premix (Roche Diagnostics, Mannheim, Germany) on
the LightCycler 480 PCR (system Roche Diagnostics, Mannheim, Germany). The following primer
sequences were used: L32 (Housekeeping gene): forward 50-ACATTTGCCCTGAATGTGGT-30, reverse
50-ATCCTCTTGCCCTGATCCTT-30; IL-1
β
; forward 50-GCAACTGTTCCTGAACTCAACT-30, reverse
; forward 50-GACGTGGAACTGGCAGAAGAG-30,
50-ATCTTTTGGGGTCCGTCAACT-30; TNF-
α
reverse 50-TGCCACAAGCAGGAATGAGA-30; IL-6; forward 50-CTGCAAGAGACTTCCATCCAG-30,
reverse 50-AGTGGTATAGACAGGTCTGTTGG-30.
4.9. Western Blot Analysis
RAW 264.7 cells were pre-treated with KMU-470 (0.5–1 µM/mL) for 24 h and stimulated with LPS
(50 ng/mL) for 6 h. After stimulation, total cells were harvested, washed with PBS buffer, and then
the total protein was extracted with a RIPA buffer (0.1 mM sodium orthovanadate, 137 mM NaCl,
15 mM EGTA, 0.1% Triton X-100, 25 mM MOPS, 15 mM MgCl2, 100
µM phenylmethylsulfonyl fluoride,
and 20 M leupeptin, adjusted to pH 7.2). The cell culture media supernatants were precipitated using
µ
TCA (trichloroacetic acid, protocol by Luis Sanchez 2001). A BCA protein assay kit (Thermo Scientific,
Wilmington, USA) was used for the determination of the protein concentration. Cell lysates of equal
protein concentrations were prepared in 5 sample buffer (ELPIS Bio Technology, Daejeon, Korea).
×
Lysates were separated by 10% SDS-PAGE gel electrophoresis and then transferred onto Immobilon-P
membranes (Millipore Corporation, Bedford, MA, USA). The membranes were rinsed and incubated
with blocking buffer (5% non-fat milk in 1
TBS/0.1% Tween®20) for 1 h. Then, the membranes were
×
incubated with primary antibodies overnight at 4 ◦C and then with horseradish peroxidase-conjugated
secondary antibodies for 1 h. Immunoreactive proteins were detected using the ELC Western blot
detection system kit (Millipore). Signal intensity was measured using the Chemi Image documentation
system (Fusion Fx7, VILBER LOUTMAT). Protein expression levels were quantified using the Image
J program.
4.10. Small Interfering RNA Transfection
The RAW 264.7 cells were seeded in six-well plates and transfected with PIM-1 siRNA (s10527,
Life Technologies) or control siRNA using a transfection reagent (Santa Cruz biotechnology).
All transfections were carried out with Lipofectamine RNAiMAX (Life Technologies). RAW 264.7 cells
were transfected with 30–45 nM siRNA per well. After 72 h, cells were used for further experiments.
4.11. Statistical Analysis
All data are presented as the mean and standard error of mean (SEM) and experiments were
repeated three times. Data analysis was performed using SPSS 25.0 software program. A p-value < 0.05
was considered significant.
