Full Paper
ing at 3008C. The H2-TPR and CO chemisorption measurements
were both conducted on a XianQuan instrument TP 5076.
to metal–organic-framework-confined Pt (91%) and ligand-
capped PtFe (94%).[57,58] And in citral hydrogenation, the C=O
selectivity of 94% outperforms those of Ir (Ir/SiO2: 47–68%),[59]
and other metals (Pt/Ti-doped mesoporous silica): ꢀ35%, Zn-
Pt/mesoporous silica: ꢀ75%, Pt/TiO2-H2: ꢀ80%, Au/CNT
(CNT=carbon nanotube): ꢀ50%, Au/Nb2O5: ꢀ70%, Ag/SiO2
and Ag-In/SiO2: ꢀ80%).[48,60–65]

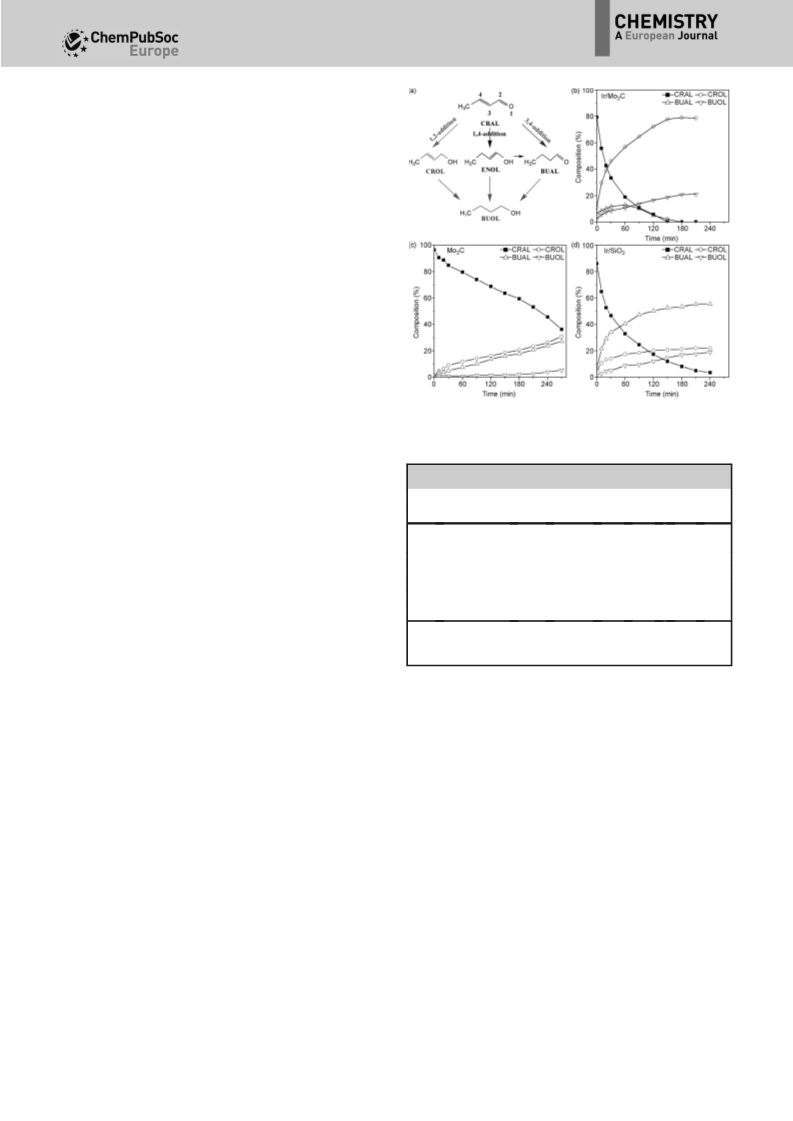

Catalytic performance measurement: CRAL hydrogenation was
carried out in a 100 mL stainless steel autoclave (Parr 4598), in
which the catalyst (25 mg), CRAL (2 mmol), and H2O (50 mL) were
loaded. The reactor was sealed and purged with H2 to remove the
air for five times, and then the reactor was heated to the desired
temperature. H2 (2 MPa) was purged into the reactor after the de-
sired temperature was reached and the stirrer was started. The
products were analyzed by using a Shizumadu GC-2014C with
a FID detector.
Conclusion
Density functional theory calculations: The periodic spin-polar-
ized calculations in the framework of the density functional theory
implemented within the Vienna ab initio simulation program
(VASP)[44,45] were performed to model the supported metal catalysts
for understanding the charge transfer between the metal and the
supports. The projector-augmented-wave (PAW) pseudopoten-
tials[68] were utilized to describe the core–electron interactions. The
generalized gradient approximation (GGA) exchange-correlation
functional of Perdew–Burke–Ernzerhof (PBE)[69] form was utilized to
describe the exchange–correlation interaction. The cut-off energy
of the plane wave basis set was set to 400 eV.
We have developed Ir/Mo2C catalysts with enhanced metal–
support interactions for the chemoselective hydrogenation of

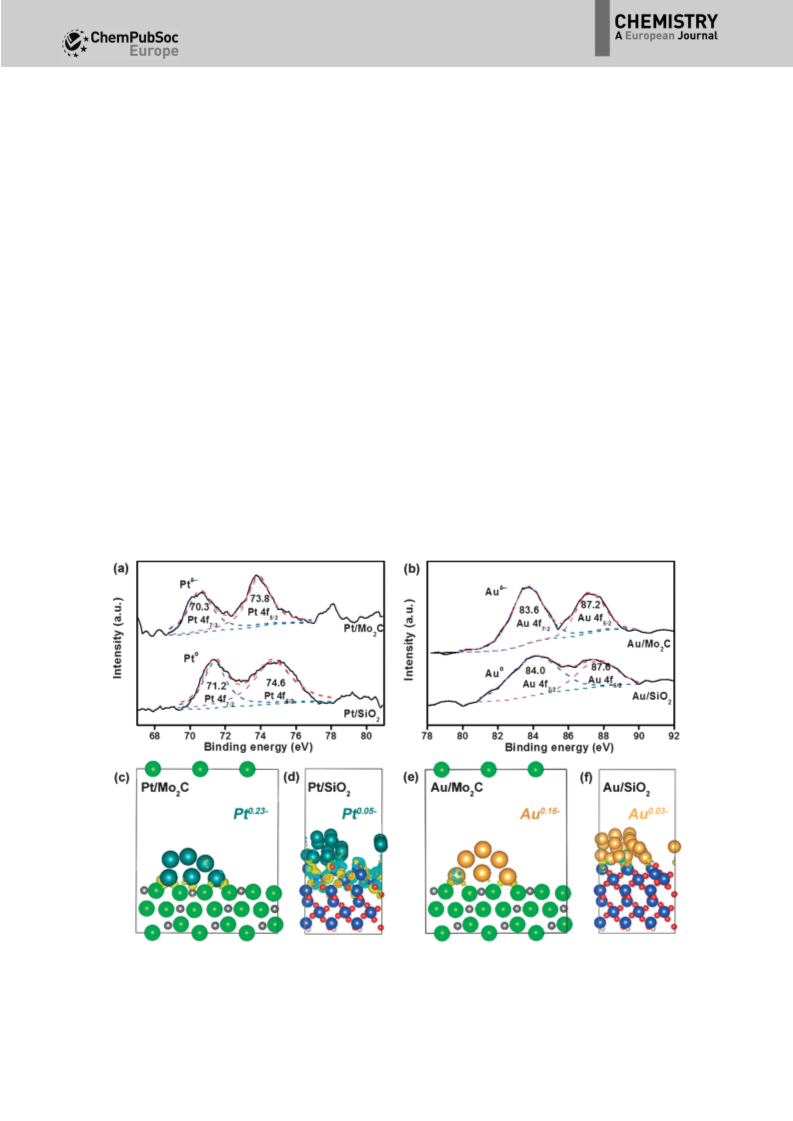

a,b-unsaturated aldehydes, in which the IrdÀ active species re-
sulting from an electron transfer at the interfaces contributes
to the selective routes. Showing the prevailing influences on
various metals by Mo2C supports, this work opens up new op-
portunities for the design of selective catalysts through inter-
face engineering. It is envisioned that the future work with
a better control over the electron and surface properties of
carbide supports[66,67] would further boost the relevant catalytic
applications.
The most stable hydroxylated cleaved stoichiometric (001) surface
of a-quartz, which is the most stable phase of silica at the reaction
temperature,[70] was modeled by a p(32) unit cell of 14.85
2
9.90 with a 12 vacuum between the slabs in the z direction.
The slab contains 18-layer SiO2, corresponding to 36 units of SiO2
per slab. The Brillouin zone was sampled with 231 Monkhorst–
Pack k-point mesh. For Mo2C, the a-phase according to the experi-
mental result was researched. The crystal structure of this phase
has a hexagonal structure with the space group Pbcn. The most
stable (121) surface of this phase was modeled by a p(32) unit
Experimental Section
Catalyst preparation: The synthesis of the Mo2C nanowires was
conducted according to our previous report.[38] Ammonium hepta-
molybdate [(NH4)6Mo7O24·4H2O] (2.48 g) was dissolved in distilled
water (40 mL) and aniline (3.34 g) was added to this solution. After-
wards, a 1m aqueous solution of HCl was dropwise added with
magnetic stirring at room temperature until a white precipitate ap-
peared (pH 4–5). After stirring at 508C in an oil bath for approxi-
mately 2–6 h, the precursor of Mo3O10(C6H8N)2·2H2O was received.
Finally, the Mo2C nanowires were harvested after calcining
Mo3O10(C6H8N)2·2H2O at 7758C for 5 h under an Ar flow.
2
cell of 18.2911.41 with a 12 vacuum between the slabs in
the z direction. The slab contains 9-layer Mo2C, corresponding to
36 units of Mo2C per slab. The Brillouin zone was sampled with 2
31 Monkhorst–Pack k-point mesh. The metal/SiO2 and metal/
Mo2C systems were modeled by adding a three-layer strip of metal
Ir, Pt, or Au on the SiO2(001) or Mo2C(121) surface, respectively.
During all the optimization processes, the bottom nine layers of
SiO2 and three layers of Mo2C were fixed in the slab, whereas the
upmost layers of the supports and metal strips were relaxed. For
each metal–support system, the five lowest energy structures from
the results of Nose thermostat molecular dynamics simulation (T=
1508C, 1 fs per step, 2000 steps) were selected to be further opti-
mized by conjugate gradient methods. Geometry optimization was
performed until all the remaining forces on each relaxed atom
were lower than 0.02 eVÀ1. The structure with the lowest energy
was utilized for the charge population analysis. The charge differ-
ence in the scheme of the Bader charge analysis was constructed
by subtracting the charges of the metal–support systems from the
charges of the metal and the support with each in the same struc-
ture. The isosurfaces of the charge density differences were also
constructed by subtracting the charge densities of the metal–sup-
port systems from the charge densities of the metal and the sup-
porter with each in the same structure.
An impregnation procedure was introduced to prepare the sup-
ported catalysts of Ir and Pt. Typically, the catalyst supports (Mo2C
or SiO2) were impregnated with an aqueous solution containing
the relevant metal ions (i.e., HIrCl4 or H2PtCl6), and then the solu-
tions were stirred for 4 h at 808C. The solids were dried at 508C
overnight, followed by a careful reduction with a stream of 5 vol%
H2/Ar at 3008C for 2 h. Meanwhile, a typical deposition–precipita-
tion procedure was employed to prepare the Au/Mo2C and Au/
SiO2 catalysts. Briefly, Mo2C or SiO2 was dispersed with an aqueous
solution of HAuCl4, and the pH was adjusted to 9.0 by dropwise
addition of a 0.25m aqueous solution of NH3·H2O. After stirring for
6 h and aging for another 2 h, the catalysts were washed with de-
ionized water and then dried at 508C overnight, followed by a re-
duction with 5 vol% H2/Ar at 3008C for 2 h.
Catalyst characterization: XRD analysis was performed on
a Bruker D8 diffractometer by using CuKa radiation (l=1.54056 ).
SEM and TEM investigations were taken on a ZEISS ULTRA55 and
a JEOL JEM 2100F, respectively. EDS attached on TEM was carried
out on a JEOL JEM 2100F. XPS was processed on a Perkin–Elmer
PHI X-tool, by using C 1s (B.E.=284.6 eV) as a reference. The metal
loading was determined by using inductively coupled plasma-
atomic emission spectroscopy (ICP-AES). The Brunauer–Emmett–
Teller (BET) specific surface areas were determined by adsorption–
desorption measurements of nitrogen at the liquid nitrogen tem-
perature, by using a Micromeritics TriStar 3000 equipment, degass-
Acknowledgements
This work is financially supported by the National Basic Re-
search Program of China (2013CB934101), the National Natural
Science Foundation of China (21373102, 21433002, 21333003,
and 21303051), and the Fundamental Research Funds for the
Chem. Eur. J. 2016, 22, 5698 – 5704
5703
ꢀ 2016 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim
