Polymorphism in the Assembly of Phase-Segregated Block Molecules: Pathway Control to 1D and 2D Nanostructures

Article abstract of DOI:10.1021/jacs.9b08733

Nanomaterials with highly ordered, one- or two-dimensional molecular morphologies have promising properties for adaptive materials. Here, we present the synthesis and structural characterization of dinitrohydrazone (hydz) functionalized oligodimethylsiloxanes (oDMSs) of discrete length, which form both 1- and 2D nanostructures by precisely controlling composition and temperature. The morphologies are highly ordered due to the discrete nature of the siloxane oligomers. Columnar, 1D structures are formed from the melt within a few seconds as a result of phase segregation in combination with π-πstacking of the hydrazones. By tuning the length of the siloxane, the synergy between these interactions is observed which results in a highly temperature sensitive material. Macroscopically, this gives a material that switches reversibly and fast between an ordered, solid and a disordered, liquid state at almost equal temperatures. Ordered, 2D lamellar structures are formed under thermodynamic control by cold crystallization of the hydrazones in the amorphous siloxane bulk via a slow process. We elucidate the 1- and 2D morphologies from the nanometer to molecular level by the combined use of solid state NMR and X-ray scattering. The exact packing of the hydrazone rods within the cylinders and lamellae surrounded the liquid-like siloxane matrix is clarified. These results demonstrate that controlling the assembly pathway in the bulk and with that, tuning the nanostructure dimensions and domain spacings, material properties are altered for applications in nanotechnology or thermoresponsive materials.

Full text of DOI:10.1021/jacs.9b08733

Subscriber access provided by Nottingham Trent University
Article
Polymorphism in the assembly of phase-segregated block
molecules: pathway control to 1D and 2D nanostructures
Brigitte A.G. Lamers, Robert Graf, Bas F.M. de Waal, Ghislaine
Vantomme, Anja R.A. Palmans, and Egbert Willem Meijer
J. Am. Chem. Soc., Just Accepted Manuscript • DOI: 10.1021/jacs.9b08733 • Publication Date (Web): 04 Sep 2019
Downloaded from pubs.acs.org on September 4, 2019
Just Accepted
“Just Accepted” manuscripts have been peer-reviewed and accepted for publication. They are posted
online prior to technical editing, formatting for publication and author proofing. The American Chemical
Society provides “Just Accepted” as a service to the research community to expedite the dissemination
of scientific material as soon as possible after acceptance. “Just Accepted” manuscripts appear in
full in PDF format accompanied by an HTML abstract. “Just Accepted” manuscripts have been fully
peer reviewed, but should not be considered the official version of record. They are citable by the
Digital Object Identifier (DOI®). “Just Accepted” is an optional service offered to authors. Therefore,
the “Just Accepted” Web site may not include all articles that will be published in the journal. After
a manuscript is technically edited and formatted, it will be removed from the “Just Accepted” Web
site and published as an ASAP article. Note that technical editing may introduce minor changes
to the manuscript text and/or graphics which could affect content, and all legal disclaimers and
ethical guidelines that apply to the journal pertain. ACS cannot be held responsible for errors or
consequences arising from the use of information contained in these “Just Accepted” manuscripts.
is published by the American Chemical Society. 1155 Sixteenth Street N.W.,
Washington, DC 20036
Published by American Chemical Society. Copyright © American Chemical Society.
However, no copyright claim is made to original U.S. Government works, or works
produced by employees of any Commonwealth realm Crown government in the course
of their duties.

Page 1 of 24
Journal of the American Chemical Society
1
2
3
4
5
6
Polymorphism in the assembly of phase-segregated block
molecules: pathway control to 1D and 2D nanostructures
7
8
9
Brigitte A. G. Lamers,† Robert Graf,§ Bas F.M. de Waal,† Ghislaine Vantomme,† Anja R. A.
Palmans,† E. W. Meijer*,†
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
† Institute for Complex Molecular Systems and Laboratory of Macromolecular and Organic
Chemistry, Eindhoven University of Technology, P.O. Box 513, 5600 MB Eindhoven, The
Netherlands.
§ Max Planck Institute for Polymer Research, Ackermannweg 10, 55128 Mainz, Germany
ABSTRACT: Nanomaterials with highly ordered, one- or two-dimensional molecular
morphologies have promising properties for adaptive materials. Here, we present the synthesis and
structural characterization of dinitrohydrazone (hydz) functionalized oligodimethylsiloxanes
(oDMSs) of discrete length, which form both 1- and 2D nanostructures by precisely controlling
composition and temperature. The morphologies are highly ordered due to the discrete nature of
the siloxane oligomers. Columnar, 1D structures are formed from the melt within a few seconds
as a result of phase segregation in combination with π-π stacking of the hydrazones. By tuning the
length of the siloxane, the synergy between these interactions is observed which results in a highly
temperature sensitive material. Macroscopically, this gives a material that switches reversibly and
fast between an ordered, solid and a disordered, liquid state at almost equal temperatures. Ordered,
2D lamellar structures are formed under thermodynamic control by cold crystallization of the
hydrazones in the amorphous siloxane bulk via a slow process. We elucidate the 1- and 2D
morphologies from the nanometer to molecular level by the combined use of solid state NMR and
X-ray scattering. The exact packing of the hydrazone rods within the cylinders and lamellae
surrounded the liquid-like siloxane matrix is clarified. These results demonstrate that controlling
the assembly pathway in the bulk and with that, tuning the nanostructure dimensions and domain
spacings, material properties are altered for applications in nanotechnology or thermoresponsive
materials.
1
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 2 of 24
1
2
3
4
5
■ INTRODUCTION
Liquid crystals (LCs) and block copolymers (BCPs) form a variety of ordered structures that result
in well-defined morphologies, which have been successfully applied in electronics as well as in
optics or membranes.1–5 Insights into the relation between nanostructure morphology and
macroscopic property is paramount to create functional materials for nanotechnology. Both LCs
and BCPs can access the same type of morphologies such as lamellar, cylindrical, bicontinuous
cubic and spherical phases.6 However, the formation of ordered domains in BCP and LC materials
proceeds via different mechanisms. For BCPs, phase segregation drives the morphology, which
can be tuned by the BCP length (N), composition and Flory-Huggins interaction parameter (χ).7,8
In contrast, the nanostructure formation of LCs results from the directionality of the mesogens,
i.e., rods or discs, in combination with the mobility of the side chains.9
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
A recent target in nanotechnology is to enhance long-range order and decrease domain
spacings. This has resulted in fading boundaries between organic-LC and polymer-BCP chemistry
by merging the directionality and crystallinity of LCs with the phase segregation in BCPs.10 Early
examples are phase-segregated LCs, while more recent examples are based on discrete length
block co-oligomers.6,11–18 Herein, the absence of molar mass dispersity (Ɖ = 1.00) results in phase-
segregated structures even at very low degrees of polymerizations.17,19 Furthermore, the discrete
length of the oligomers gives the ability to really design and understand structure formation into
ordered morphologies. Inspired by telechelic molecules forming supramolecular polymers,20–25 we
recently introduced oligodimethylsiloxane (oDMS) end-functionalized molecules. By balancing
the volume fractions of the blocks and the directional group association, different molecular
arrangements were formed based on supramolecular BCP phase segregation.26 The introduction of
crystalline interactions next to phase segregation can further enhance the nanostructure
organization. In oDMS-based low MW amorphous-crystalline BCOs and block molecules with
crystalline end-groups, the long range order in the nanostructure morphology was improved
indeed.26–31 However, due to the constraints imposed by the crystalline domains, the morphology
is forced into a lamellar structure, irrespective of the volume fraction of the blocks. This
crystallization driven self-assembly has been exploited for the formation of 2D nanomaterials.32,33
The directional interactions of discrete molecules are the driving force for self-assembly in
the bulk and determine the final nanostructure morphology. An analogy can be made with the
assembly of small molecules in solution since the directional interactions between molecules
2
ACS Paragon Plus Environment

Page 3 of 24
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
results in a variety of supramolecular morphologies, similar to phase-segregated structures in the
bulk. Cylindrical, fibrous structures are formed through one-dimensional (1D) interactions, which
can proceed via an isodesmic or cooperative/nucleation‒elongation mechanism.34 Sheet-like
architectures mostly assemble via crystallization of rigid molecules, hence formed via nucleation
and growth.35–37 As a result of the mechanism by which they are formed and the pathway selection,
the assembly of 1D or 2D nanostructures is highly dependent on environmental effects such as
temperature and solvent.38,39 Structures formed under kinetic control can be different than those
resulting from the thermodynamic equilibrium.40–44
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Inspired by the pathway control in solution, we report here on the nanostructure formation
of oDMS end-functionalized block molecules in the bulk into 1D and 2D morphologies. For this,
we synthesized a novel family of homo- and heterotelechelic oDMS-based discrete oligomers end-
capped with dinitrophenylhydrazones that can assemble either via crystallization or
supramolecular interactions (Scheme 1).45,46 The liquid-like siloxane oligomer gives the molecules
mobility and causes confinement of the hydrazones in an amorphous matrix. The compounds all
show the presence of long-range, ordered domains. Solid state nuclear magnetic resonance
spectroscopy in combination with X-ray scattering gives detailed information on the
polymorphism and driving forces of the hydrazone assembly in cylinders or lamellae. The
morphology is controlled by thermodynamics and kinetics, and highly sensitive towards slight
changes in temperature. This gives rise to fast thermal solid‒liquid phase transitions in a very small
temperature window, which can be utilized in thermoresponsive materials. Finally, we show the
influence of dispersity by the incorporation of a disperse oDMS linker, which has not been reported
for this type oDMS-based block molecules.
3
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 4 of 24
1
2
3
4
NO2
H
N
N
O
5
6
O2N
O
Si
Si
14
7
8
9
hydz-Si15
NO2
NO2
H
H
N
N
N
N
O
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
O2N
O
Si
Si
O
NO2
n-1
hydz-Sin-hydz
n= 8, 16, 24, 40
NO2
NO2
H
N
H
N
N
N
O
O2N
O
Si
Si
O
NO2
~21
hydz-Si~22-hydz
Scheme 1: Molecular structures of hydz-Si15, hydz-Sin-hydz and hydz-Si~22-hydz and di- and
triblock molecules. The disperse block is indicated with a tilde (~)
■ RESULTS AND DISCUSSION
Synthesis of Dinitrohydrazone-(oligo)dimethylsiloxane Di- and Triblock Molecules.
We synthesized a series of oDMS end-functionalized hydrazone triblock molecules and one
diblock molecule (Scheme 1). Discrete oDMS-dihydrides with chain lengths of exactly 8, 16, 24
or 40 repeating units (denoted as Si8, Si16, Si24 or Si40) were synthesized via a stepwise procedure
previously described by our group.26 Olefin terminated dinitrohydrazones (hydz) were attached to
the oDMS-dihydrides via a platinum catalyzed hydrosilylation reaction (Scheme S1). Similarly, a
disperse oDMS triblock molecule (Ɖ = 1.2) was obtained from commercially available oDMS-
dihydride with an average of 22 siloxane repeating units (hydz-Si~22-hydz). Moreover, a diblock
molecule (hydz-Si15) was synthesized from discrete oDMS-hydride containing only one reactive
hydride group that was obtained via a literature procedure.16 All compounds were obtained in high
yields (60-97%) and molecular characterization by NMR, MS (Maldi-Tof), DSC and GPC-SEC
indicated the high purity of all the materials (Figures S1-S6).
Temperature Sensitivity of hydz-oDMS Di- and Triblock molecules. Whereas all
oDMS-dihydrides and oDMS-hydride are viscous fluids, after functionalization with the
hydrazone group the block molecules appear as waxy solids. Under the polarized optical
microscope (POM), the formation of birefringent structures was observed upon cooling from the
melt (Figure 1). All discrete block molecules formed spherulites (Figure 1B-E), except the shortest
4
ACS Paragon Plus Environment

Page 5 of 24
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
analogue (hydz-Si8-hydz), which formed a needle-like texture (Figure 1A). Interestingly, the hydz-
Si16-hydz, hydz-Si24-hydz and hydz-Si15 block molecules grow spherulites with sizes up to 5 mm
from one nucleation point (Figure 1F). This has been reported occasionally for mixtures of
polymers and small molecules,47,48 but for oligomers with covalently attached small molecule end-
groups, such large textures have not been reported to date. The nucleation point for spherulite
growth appeared on millisecond timescales, which gives a first hint that a very fast thermal phase
transition occurs in these systems. The nucleation is always observed within the hole of the hot
stage as this spot is slightly cooler than the surrounding material that is in direct contact with the
hot stage. However, the point within the hole is varies upon heating above the clearing temperature
and cooling to the ordered structure repeatedly. When the temperature was kept constant directly
after nucleation, oscillations of the spherulite growth were observed (Video S1). These may result
from the hot stage fluctuations causing small variations in temperature. Alternatively, the release
of energy upon formation of the ordered structure may cause minor heating of the sample resulting
in constantly clearing and growing of the structure. Hence, these block molecules are highly
sensitive to minimal temperature changes around their transition temperatures.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
A
B
D
F
C
E
Figure 1. Polarized optical microscope images of hydz-Si8-hydz (A), hydz-Si16-hydz (B), hydz-
Si24-hydz (C), hydz-Si40-hydz (D) and hydz-Si15 (E). Scale bars represent 250 μm. Giant spherulite
of hydz-Si24-hydz under cross-polarizers (F), scale bar represents 5 mm. Bulk material was melted
between two glass plates and cooled down at 2 K∙min-1.
5
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 6 of 24
1
2
3
4
5
6
7
8
9
Table 1. Thermal properties of hydz-oDMS di- and triblock molecules.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
[b]
[d]
[e]
[e]
[e]
[e]
[e]
Entry
Compound[a]
Mw
Tg
T1
[°C]
T2
∆Hfus
Tcc
Tm
[g∙mol-1] [°C]
[°C] [kJ∙mol-1] [°C]
[°C]
1
2
3
4
5
6
hydz-Si8-hydz
hydz-Si16-hydz
hydz-Si24-hydz
hydz-Si40-hydz
hydz-Si15
1302.0
1913.2
2506.4
3692.9
1482.7
~2360
40.4
3.2
138.2 136.9
147.7 146.7
143.5 143.1
1.3
2.2
101.7 107.8
35.4
n.o.
n.o.
n.o.
47.2
55.7
n.o.
n.o.
n.o.
70.0
−5.8
2.6
−12.6 117.3 116.0
−17.5 124.1 123.5
3.9
3.3
hydz-Si~22-hydz
−8.5
115.4 112.8
~1.1
[a] Block molecules hydz-Sin-hydz as depicted in Scheme 1. Disperse block is indicated with a
tilde (~); [b] Calculated molecular weight; [d] Glass transition temperature (Tg) determined with
DSC using a heating rate of 10 K∙min-1; [e] Order-disorder temperature (T1) measured while
heating, disorder-order temperature (T2) measured while cooling and enthalpy of fusion per mole
block molecule measured while heating (ΔHfus). Cold crystallization temperature (Tcc) and melting
temperature (Tm) measured while heating. Determined with DSC using a heating and cooling rate
of 2 K∙min-1. Enthalpic values are per mole of block molecule; n.o.: not observed.
We evaluated and quantified the thermal sensitivity around the transition temperatures by
differential scanning calorimetry (DSC). Upon heating, all block molecules showed a glass
transition (Tg) at temperatures below 40 °C (Table 1, entry 1-5). For the discrete di- and triblock
molecules, very sharp and narrow, endothermic peaks at temperatures between 117 and 147 °C
(T1) were observed (Figure 2). The corresponding enthalpic energy (∆Hfus = 1.3 ‒ 3.9 kJ∙mol-1) of
this transition is relatively low compared to the crystalline hydrazone block (∆Hfus = 35.4 kJ∙mol-
1, Figure S7). Furthermore, the position of T1 is independent of the heating rate (Figure 2B). Both
results point to the presence of an order-disorder transition in the discrete systems. The related
cooling traces of the materials revealed an equally sharp exothermic transition T2 that is also
independent of the cooling rate (Figure S8). Going through this transition, the material changed
into a solid, ordered morphology. For all discrete block molecules, T2 was nearly identical to the
6
ACS Paragon Plus Environment

Page 7 of 24
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
order-disorder transition (T1) (Figure 2C and S9). In particular, these temperatures differ by only
0.4 ‒ 1.3 °C, indicating that almost no supercooling is necessary to obtain the nanostructured
material from the isotropic melt. Hence, the materials are extremely sensitive towards temperature
fluctuations, as was observed at elevated temperatures under the POM.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
B
A
C

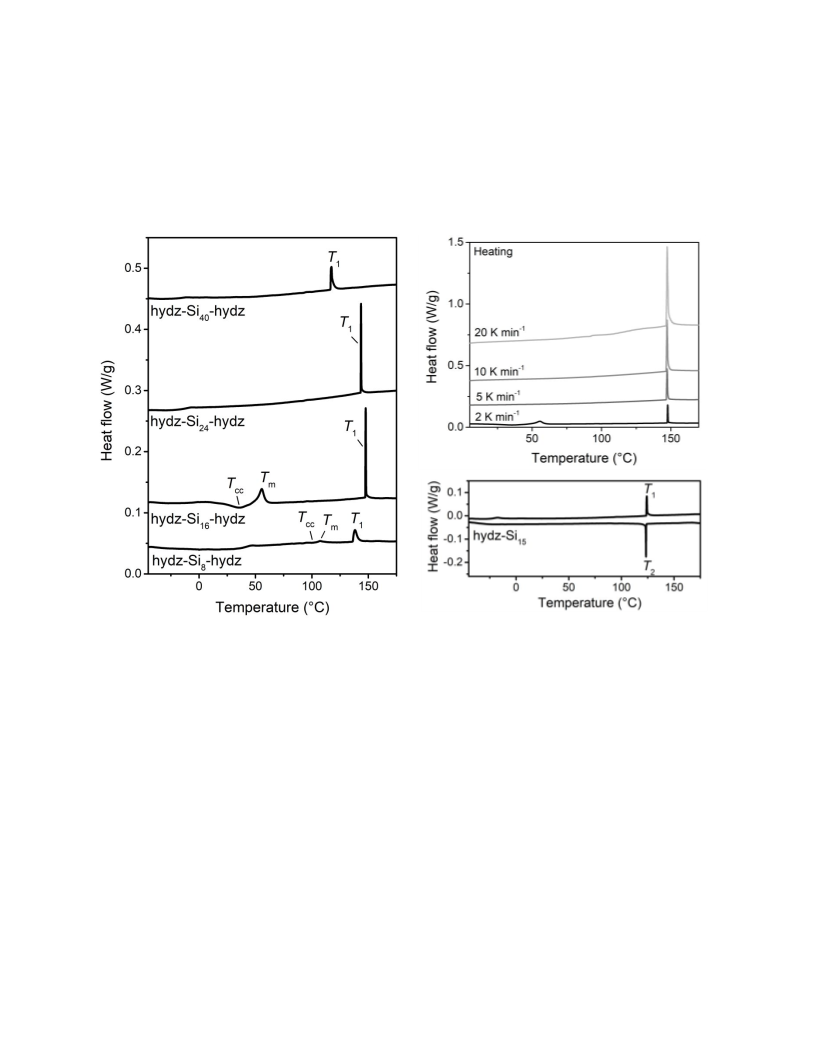

Figure 2. DSC traces (second heating run) of hydz-oDMSn-hydz triblock molecules (A) and hydz-
Si16-hydz with varying heating rates (B). DSC trace (second heating and cooling run) of hydz-Si15
diblock molecule (C). Endothermic heat flows have a positive value. A temperature ramp of 2
K∙min-1 was used if not otherwise specified.
Interestingly, for hydz-Si8-hydz and hydz-Si16-hydz two additional transitions were
observed when a low heating rate was applied (2 K∙min-1, Figure 2A). With the help of variable
temperature X-ray experiments (Figure S10), we could assign the lower temperature to a cold
crystallization transition (Tcc) whereas the higher temperature is a melting transition (Tm). Both
transitions are only observed when heating slowly (2 K∙min-1) and disappear upon heating at 5
K∙min-1 or faster (Figure 2B). Hence, the formation of the crystalline phase for hydz-Si8-hydz and
7
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 8 of 24
1
2
3
4
5
6
hydz-Si16-hydz is a slow process. The other structures with the longer siloxane-spacers did not
show any crystallization.
Nanostructure Formation into 1D Assemblies. The nanoscale morphology of the
hydrazone block molecules was examined using medium and wide angle X-ray scattering
experiments at room temperature. Well-defined and long-range ordered nanostructures were
observed by the appearance of sharp reflection peaks (Figure 3A). All block molecules with fSi ≥
0.72 formed a hexagonally packed cylindrical phase (Table 2, entry 2-5), evidenced by regular
scattering reflections at q*, √3q*, √4q* and √7q* in the 1D transmission scattering profile (Figure
3A). In accordance to the microstructure observed by POM, the nanostructure of hydz-Si8-hydz
was different from all the other discrete hydrazone block molecules. The scattering profile of the
shortest analogue reveals a lamellar structure by the presence of integer multiples of the principle
scattering peak (q*) (Figure 3A). The domain spacings (d) range from 4.0 to 5.4 nm with increasing
size of siloxane (Table 2, entry 1-5). The diblock molecule (hydz-Si15) also forms hexagonally
packed cylinders and its domain spacing matches perfectly the range of the triblock molecules
considering the volume taken up by the siloxane fraction. Accordingly, we confirm similar packing
models for the di- and triblock molecules in which the hydrazone block forms a cylinder with a
diameter ranging from 2.4 to 2.7 nm (see SI for calculation).
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Table 2. Morphological characterization of hydz-oDMS di- and triblock molecules.
[b]
Entry
Compound[a]
hydz-Si8-hydz
hydz-Si16-hydz
hydz-Si24-hydz
hydz-Si40-hydz
hydz-Si15
fSi
Phase[c]
LAM
CYL
d[c] [nm]
4.0
dcryst[d] [nm]
1
2
3
4
5
6
0.56
0.72
0.80
0.87
0.83
~0.78
3.4
4.9
4.2
CYL
4.6
n.o.
n.o.
n.o.
n.o.
CYL
5.4
CYL
4.9
hydz-Si~22-hydz
LAM
5.6
[a] Block molecules hydz-Sin-hydz as depicted in Scheme 1. Disperse block is indicated with a
tide (~); [b] Volume fraction of the siloxane block, calculated using bulk densities for PDMS (0.95
g∙mL-1)16 and the crystal structure of 2,4-dinitrophenylhydrazone (1.558 g∙mL-1)45; [c]
Morphology of nanostructure determined with SAXS at room temperature. LAM = lamellar phase.
CYL = hexagonally packed cylinders. Domain spacing (d) calculated using: d = 2π/q*; [d] Domain
8
ACS Paragon Plus Environment

Page 9 of 24
Journal of the American Chemical Society
1
2
3
4
5
6
spacing of crystalline, lamellar phase determined with SAXS at room temperature. Structure
obtained upon annealing at 102 °C and 36 °C for hydz-Si8-hydz and hydz-Si16-hydz, respectively;
n.o.: not observed.
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
A
B

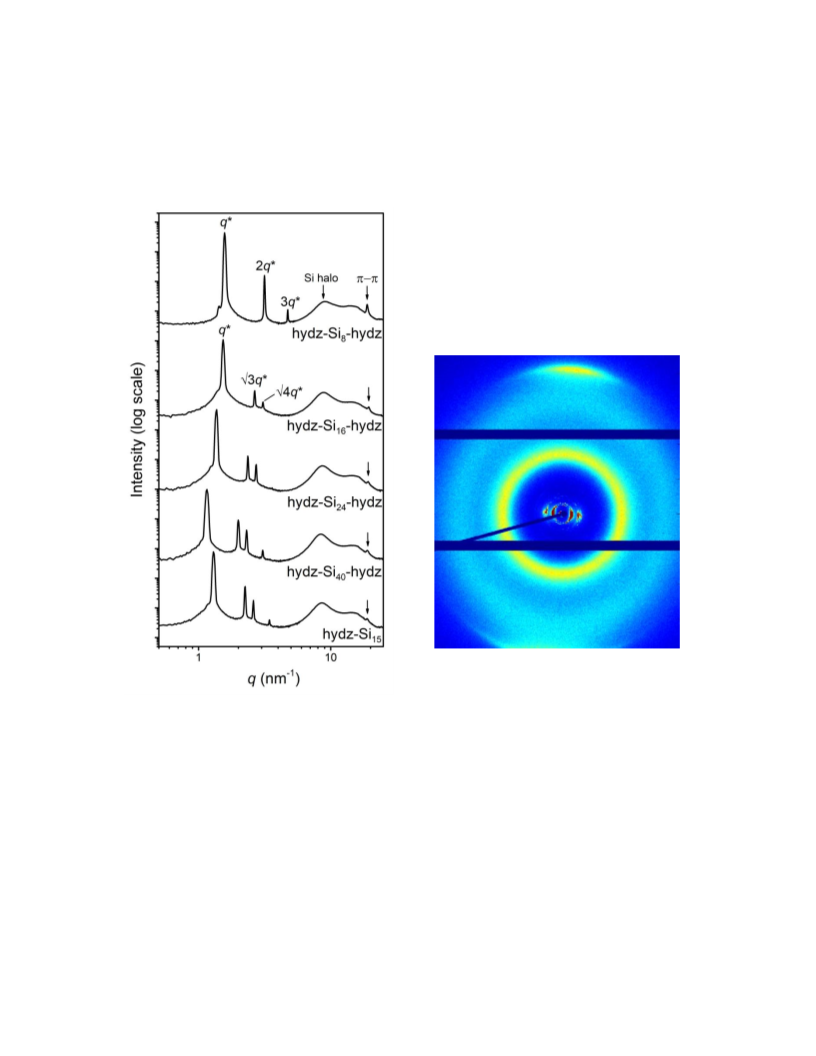

Figure 3. 1D transmission scattering profiles for hydz-oDMS tri- and diblock molecules at room
temperature (A). 2D wide angle X-ray scattering profile for hydz-Si16-hydz showing the alignment
of the cylinders and directional π-π stacking (B).
A single reflection peak was observed in the wide angle region (5 < q < 25 nm-1) for all tri-
and diblock molecules (Figure 3A). This represents a domain spacing of 0.3 nm which we assign
to the inter-disc distances, i.e., π-π stacking of the aromatic rods. These interactions are highly
directional when flow or shear alignment was applied to the sample, as shown in the 2D X-ray
scattering data for hydz-Si16-hydz (Figure 3B). Herein, the presence of highly aligned cylinders
9
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 10 of 24
1
2
3
4
5
6
7
8
9
was observed and the direction of the inter-disc interactions are found perpendicular to the cylinder
orientation. The alignment of the hydrazones was further confirmed by measuring the absorbance
of light linear and perpendicular to the column axis of shear aligned films. We found a dichroic
ratio varying from 2.2 to 5.9 indicating that the absorption of light parallel to the columnar axis is
higher than perpendicular to the axis (Figure S11). Molecular orientation phenomena of the
hydrazones in the cylindrical morphology were further studied by FT-IR. The presence of a ν(NH)
peak at 3275 nm-1 indicates intramolecular hydrogen bonding as this peak did not disappear upon
heating the sample to an isotropic state (Figure S12). A similar discotic hexagonal packing for
semi-discoid dinitrophenylhydrazone molecules was reported by Paulus and coworkers.46 We
share their conclusion and assign the formation of columnar structures to the antiparallel
dimerization of the hydrazones occurring via dipole-dipole interactions.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Nanostructure Formation into 2D Assemblies under Thermodynamic Control. We
measured variable temperature X-ray scattering in order to elucidate the additional transitions (Tcc
and Tm) for hydz-Si8-hydz and hydz-Si16-hydz observed by DSC upon heating at 2 K∙min-1. The
morphology change of these block molecules was followed upon heating with the same rate. We
observe a transition to a lamellar, crystalline structure for both block molecules when heated to Tcc
(Figure S10). Heating above this temperature results in melting of the crystalline structure since
melting is directly followed after crystallization, also observed by DSC (Figure 2A). However, we
were able to trap the crystalline structure for hydz-Si8-hydz and hydz-Si16-hydz at room
temperature by cooling directly after the Tcc was reached (101.7 °C and 35.4 °C, respectively). The
resulting brittle solid consisted of a lamellar nanostructure for both block molecules, indicated by

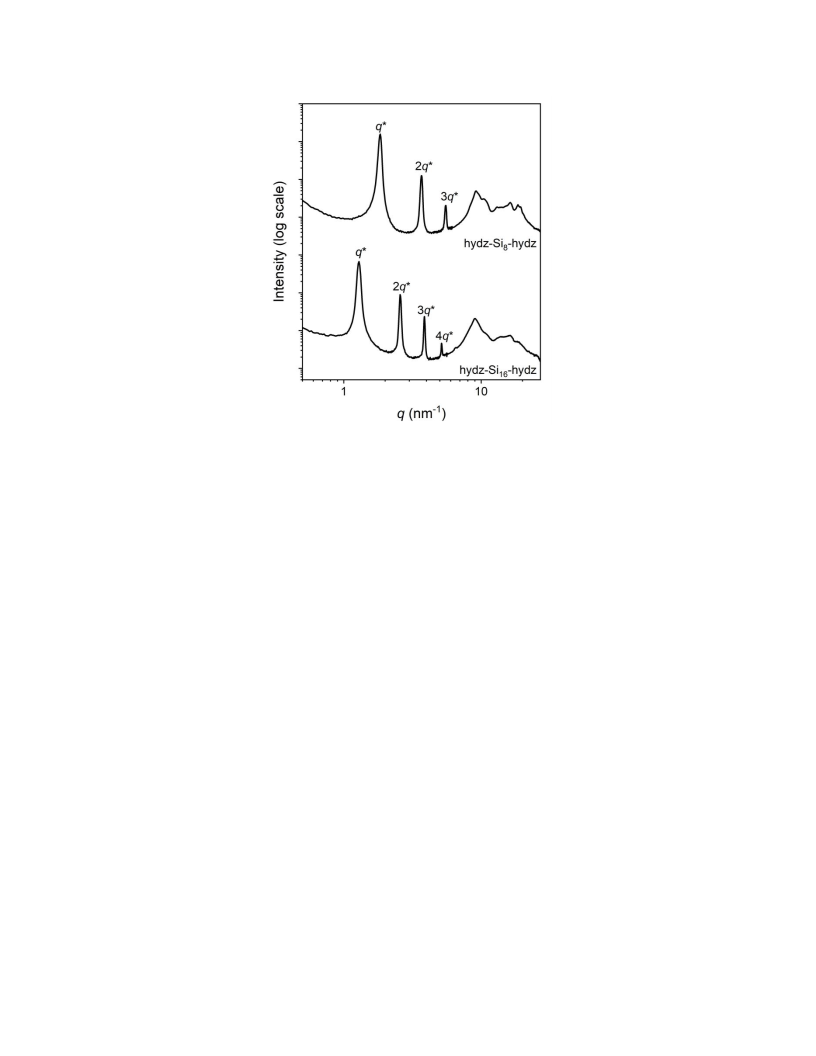

a principle scattering peak (q*) followed by its integer multiples in the 1D transmission scattering
profile (Figure 4). Measuring in the wide-angle regime (5 < q < 25 nm-1) reveals crystallization of
the hydrazone by the presence of multiple scattering peaks. The domain spacing of the lamellar,
crystalline structure (dcryst) is 3.4 nm and 4.9 nm for hydz-Si8-hydz and hydz-Si16-hydz,
respectively (Table 2, entry 1-2). As a result of the crystallization, the lamellar domain spacing
(dcryst) decreased by 0.6 nm compared to the amorphous lamellar domain spacing (d = 4.0 nm) for
hydz-Si8-hydz. Accordingly, the crystallized hydrazone rods are less shifted towards each other
due to intermolecular hydrogen bonding (Figure S13).45
10
ACS Paragon Plus Environment

Page 11 of 24
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 4: 1-D transmission scattering profiles of crystallized hydz-Si8-hydz and hydz-Si16-hydz,
measured at room temperature.
We have shown that the nanostructure of hydz-Si8-hydz and hydz-Si16-hydz can be tuned
towards 1D or 2D assemblies by precisely controlling the temperature. The block molecules that
contain a larger content of siloxane are stable 1D structures at room temperature up to the order-
disorder temperature. Most likely, the siloxane content is too high to form crystalline structures
and therefore the theoretical cold crystallization temperature would be far below room
temperature. Hence, the long siloxanes give too much mobility to the molecular system in order to
allow crystallization of the hydrazones, also explaining the extremely sharp disorder-order and
order-disorder transitions.
A Molecular Picture of the 1D and 2D Assemblies Revealed by Solid State NMR
spectroscopy. Additional information on the molecular packing of the hydrazone rods was
1
1
acquired using solid state NMR spectroscopy. The temperature-dependent H and H double-
quantum (DQ)-filtered MAS NMR spectra indicate that the siloxane is highly mobile at all
temperatures (Figure S14 and S15). Thus, the amorphous siloxane can be seen as a bulk solvent
for the hydrazone assembly, separating fibers of π-stacked hydrazone rods or layers of crystalline
1
1
hydrazones. For the 1D assembly formed by hydz-Si24-hydz, the H and H DQ-filtered MAS
NMR spectra also indicate that the α-protons next to the ether experience the highest dynamic
11
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 12 of 24
1
2
3
4
5
6
7
8
9
restrictions compared to the rest of the alkane spacer and siloxane oligomer (Figure S14). This
means that this group finds itself at the interface of the hydrazone and siloxane phase. The packing
of the π-stacked hydrazones in the cylinders was analyzed by the 13C CP-MAS NMR spectra
(Figure 5A). Herein, motionally broadened signals for the hydrazone units were observed,
indicating substantial molecular fluctuations on the 10 kHz – MHz time scale. The five sharp
signals in the spectrum (δ > 60 ppm) can be assigned to the quaternary aromatic sites in the
hydrazone moiety. The chemical shifts of these signals are significantly less sensitive to local
density fluctuations and molecular motions. Therefore, they show only a reduced motional
broadening. Furthermore, the CP-MAS method, based on heteronuclear dipolar couplings, reveals
that the hydrazone moieties do not move isotropically in the columnar phase. Combining these
findings with the observed π-π stacking reflection in the X-ray diffraction pattern leads to the
structural model depicted in Figure 5B. Herein, the hydrazone units in the columns are stabilized
by phase segregation and stack with a typical π-π stacking distance of 0.3 nm. The hydrazone pairs
are randomly orientated, however, the central point of the column is the nitro-substituted phenyl
ring that experiences the most restrictions in motion.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
B
A
Figure 5. 13C CP MAS NMR of cylinder forming hydz-Si24-hydz at 40 °C (A). Schematic
representation of the proposed packing model of the cylinder-forming hydz-oDMS tri- and diblock
molecules (B).
12
ACS Paragon Plus Environment

Page 13 of 24
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
Moreover, the molecular packing of hydz-Si8-hydz and hydz-Si16-hydz in the 2D,
crystalline morphology was obtained next to the packing into the 1D structure observed above Tm
(60 °C and 110 °C, respectively). Insights into the crystalline packing of the hydrazones was
obtained by the 13C CP MAS NMR spectra. Herein, all peaks are sharp and the signal to noise ratio
obtained under comparable experimental conditions as for the cylinder forming structures is
significantly improved (Figure 6A). This indicates that in the 2D morphology, the hydrazone units
are fully immobilized in a crystalline environment within the amorphous, mobile siloxane matrix
(Figure 6B). The sudden onset for line narrowing of the hydz-Si16-hydz and hydz-Si8-hydz at the
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
1
temperature just above Tm (60 °C and 110 °C, respectively) in the H MAS NMR confirms the
crystalline state of the hydrazone units below these temperatures (Figure S15). Hence, the
molecular mobility is increased rapidly above Tm while for the non-crystalline, 1D structure of
hydz-Si24-hydz, the line narrowing was much more gradual in the same temperature range (Figure
S14). The molecular packing of the hydz-Si8-hydz and hydz-Si16-hydz into the 1D structure
observed above Tm is similar to the hydz-Si24-hydz described above.
A
B

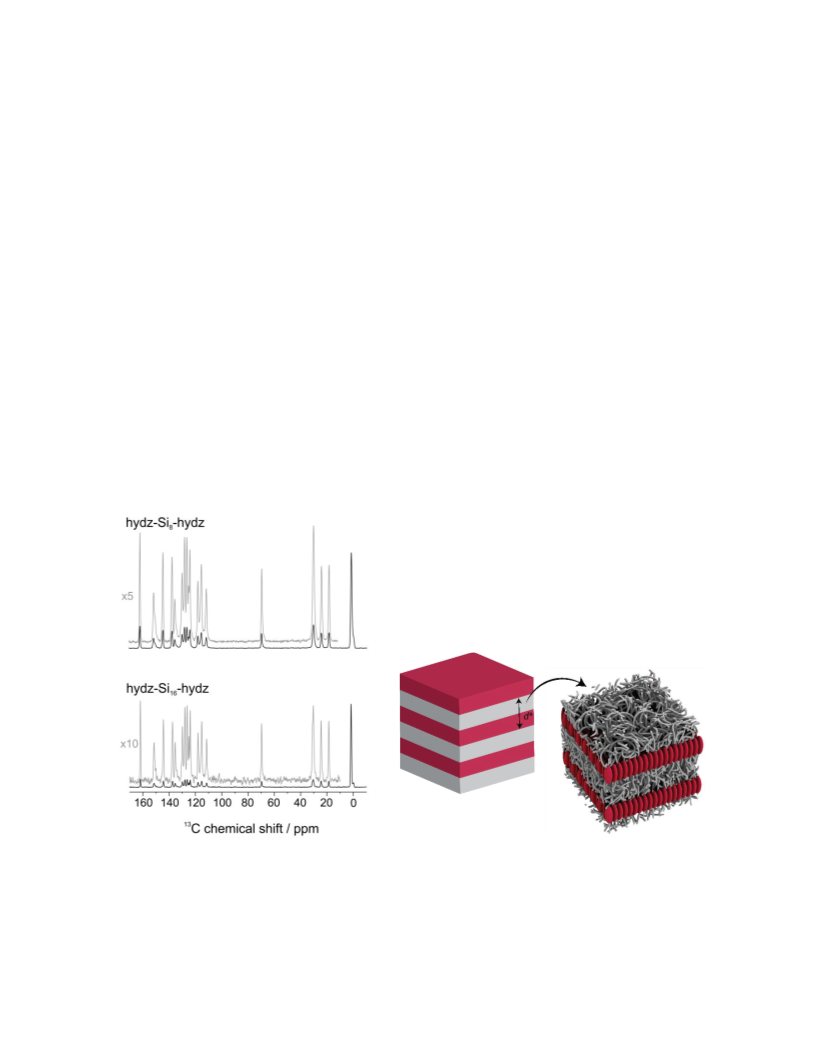

Figure 6. 13C CP MAS NMR spectra of crystallized hydz-Si8-hydz and hydz-Si16-hydz, measured
at 40 °C (A). Schematic representation of the proposed packing model of the crystalline lamellae-
forming hydz-oDMS triblock molecules hydz-Si8-hydz and hydz-Si16-hydz (B).
13
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 14 of 24
1
2
3
4
5
6
7
8
9
Macroscopic Thermal Switching of hydz-oDMS Di- and Triblock molecules. The fast
response towards temperature changes of the columnar structured materials shows that these
materials have a great potential for a sensitive thermal switch. Thus, we evaluated the thermal
switching between the liquid and the ordered, solid state macroscopically by rheology experiments
over a temperature range of 100 °C to 160 °C (Figure 7). All discrete block molecules showed a
sharp drop of the viscosity by almost two orders of magnitude within 8 seconds (0.25 °C) upon
heating the material (Figure S16). This drop appears at the order-disorder transition (T1) and
corresponds to the solid/liquid transition. Upon cooling the sample, the material solidifies within
the same time span and temperature. This result confirms and quantifies the narrow thermal
transitions and the sensitivity towards thermal oscillations observed by DSC and POM,
respectively. Such instantaneous drop in viscosity at the order-disorder transition is not reported
to date for comparable low MW telechelic oligomers or previously reported block molecules.32
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60

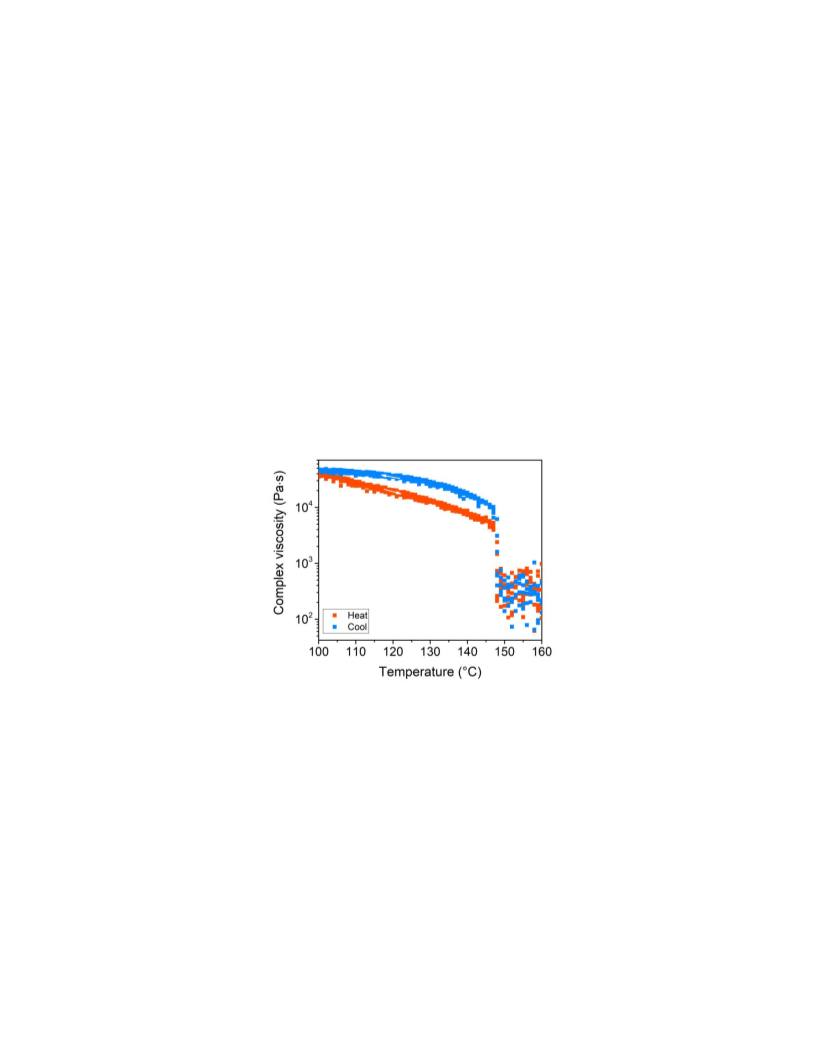

Figure 7. Complex viscosity change of hydz-Si16-hydz measured upon heating (red) and cooling
(blue) by rheology experiments. A constant strain of 0.01 %, angular frequency of 10 rad∙s-1 and a
heating and cooling rate of 2 K∙min-1 were used. The viscosity values for the liquid region (T >
148 °C) have a high standard deviation as a result of melting of the block molecules.
Effect of Dispersity on Nanostructure Morphology and Thermal Properties. In
previous studies, we and others have shown the effect of dispersity on morphologies formed by
discrete length A-B BCOs.17,29,49,50 However, the consequences of dispersity in the oDMS block
in A-oDMS-A type triblock molecules has not been reported to date. The disperse hydz-Si~22-hydz
block molecule (Ɖ = 1.2) with an average volume fraction siloxane of ~0.78 shows significant
14
ACS Paragon Plus Environment

Page 15 of 24
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
differences compared to its discrete counterpart hydz-Si24-hydz. First, the difference is visible
under the POM by the appearance of an ill-defined structure (Figure 8A). X-ray scattering
measurements further highlight the disparity between the morphologies of discrete and the disperse
compounds. For disperse hydz-Si~22-hydz, we can assign a lamellar phase by the presence of
integer multiples of the principle scattering peak (q*) (Figure 8B). The structure is somewhat
distorted, as inferred by broadened reflection peaks and a shoulder on the low q-side of the
principal scattering peak. Furthermore, some relatively weak scattering peaks are present in the
higher q-region (q > 5), indicating (partial) crystallization and the existence of π-π stacking by the
hydrazones in the lamellar matrix. As the discrete analogues form highly ordered cylinders (vide
supra), the presence of dispersity results in significant changes in the morphology and dimensions
of the nanostructures.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
B
A

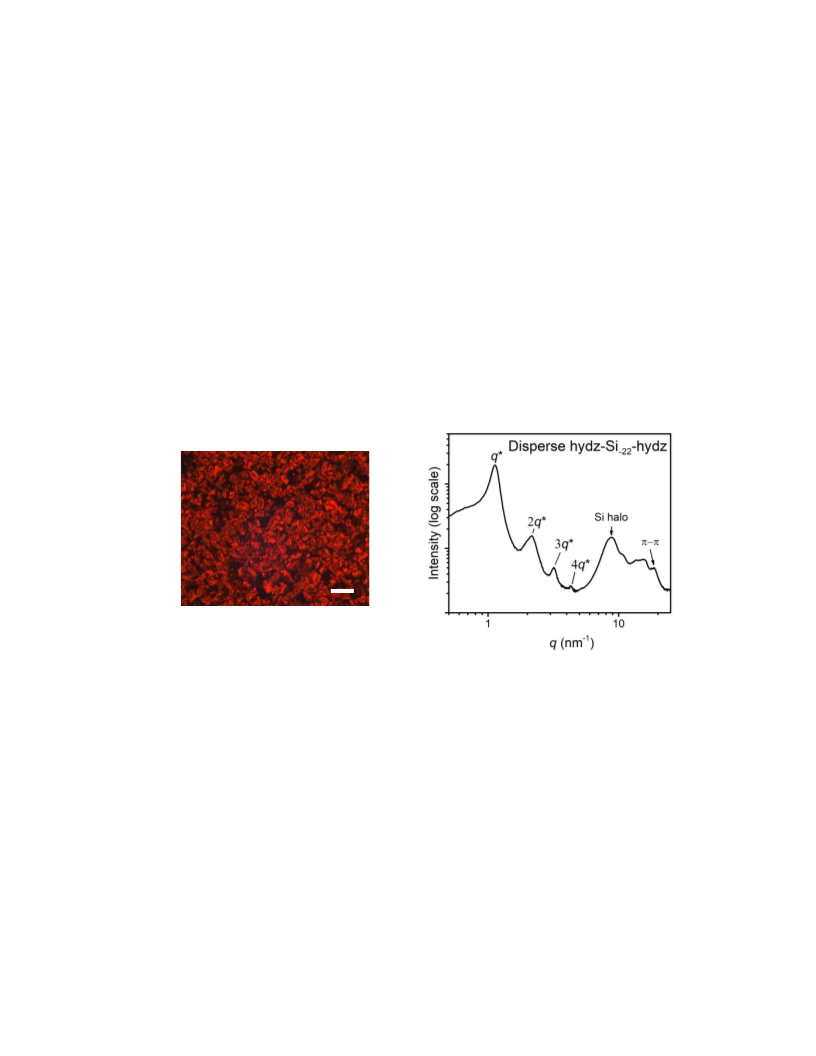

Figure 8. Polarized optical microscope image (A) and 1D transmission X-ray scattering profile
for disperse hydz-Si~22-hydz (B). The bulk material was melted between two glass plates and
cooled down with 2 K∙min-1 for the microscope image. Scale bar represents 250 μm.
The introduction of dispersity in the hydrazone block molecule also results into the
disappearance of the narrow transitions in DSC and with that, the fast thermal switching (Figure
9A). Upon heating, a cold crystallization transition temperature (Tcc) is observed followed by
melting (Tm) similar to the thermal transition in hydz-Si16-hydz. The melting is followed by two
broad, endothermic transitions at 93.2 °C and 115.4 °C. Variable temperature X-ray measurements
show the nature of the transitions by changes in the morphology and domain spacing (Figure 9B).
The first transition is a partial morphological change to another lamellar morphology with a larger
15
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 16 of 24
1
2
3
4
5
6
7
8
9
domain spacing (dlam,2 = 10.5 nm), which is most likely due to the cold crystallization. Then,
passing through the order-order temperature gives a morphology change from two lamellar phases
to one hexagonally packed cylindrical phase with a domain spacing (dcyl) of 4.8 nm. This is
followed by the transition to a disordered liquid (T1). Most likely, the appearance of multiple
morphological transitions is a result of various siloxane block lengths which becomes more
important for low MW materials. Next to low MW BCOs, these results confirm the importance of
a discrete design of block molecules to obtain the desired material properties and morphological
precision.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
B
A
Figure 9. DSC trace (second heating and cooling run) (A) and variable temperature 1-D
transmission X-ray scattering profiles (B) of the disperse hydz-Si~22-hydz. Endothermic heat flows
have a positive value. A temperature ramp of 2 K∙min-1 was used.
■ CONCLUSIONS
We have presented the assembly of hydrazone-oDMS di- and triblock molecules with varying
length of discrete siloxane oligomers. The hydz-oDMS-hydz triblock molecules organize in both
a 1D and 2D nanostructure surrounded by the amorphous, liquid-like siloxane block, resembling
solution self-assembly. The diblock molecule has similar thermal properties and nanostructure
organization. The crystalline, 2D morphology is formed under thermodynamic control if the
16
ACS Paragon Plus Environment

Page 17 of 24
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
siloxane linker of the triblock molecules contains 8 or 16 repeating units. Immobilization of the
hydrazone rod was observed, while the siloxane remained highly mobile. The 1D structure is
formed rapidly over macroscopic length scales and irrespective of heating and cooling rates for all
block molecules. The driving force for the 1D structure formation is phase segregation combined
with π-π stacking by dipole-dipole interactions. The structure is formed within a few seconds
which we attribute to nucleation and elongation only occurring in one direction. The fast thermal
response upon heating and cooling can be utilized in thermoresponsive materials. These materials
can switch reversibly between the ordered, solid and amorphous, liquid state in a very efficient
manner; almost no supercooling is necessary. The fastest thermal responses with the narrowest
temperature range upon cooling and heating were found for the block molecules that have the
complementary driving forces for 1D structure formation. Hence, the block molecules having
volume fractions of siloxane matching a phase segregated hexagonally packed cylindrical phase
combined with the hydrazone preferred assembly into π-stacked rods are the best thermal
switchable material. Competing interactions which are observed for the longest and shortest
triblock molecules, result in broader thermal transitions and decreased sensitivity towards
temperature. Finally, we showed that there is a lack of morphologic control in the disperse triblock
molecule in which a distorted, lamellar morphology was found at room temperature.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
The presence of discrete siloxane linker between two assembling molecules is crucial to
gain control over the nanostructure formation and obtain novel material properties. Tuning the
exact length of the siloxane linker gives rise to various pathways of assembly favoring 1D or 2D
nanostructures, which can be controlled by temperature. The sharp transition with a drop in
viscosity opens new avenues to design materials with unparalleled ease of processing.
Additionally, the discrete molecular design enabled us to find the synergy between two driving
forces for structure formation and with that obtain the fastest and most sensitive thermoresponsive
materials. Therefore, it is important to use discrete oligomers in the future to be able to design
novel and highly responsive materials.
■ ASSOCIATED CONTENT
Supporting Information
The Supporting Information is available and free of charge.
Experimental procedures, characterization data and Figures S1-S16
17
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 18 of 24
1
2
3
4
5
■ AUTHOR INFORMATION
6
7
Corresponding Author:
8
9
*e.w.meijer@tue.nl
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
ORCID
Anja R.A. Palmans: 0000-0002-7201-1548
E.W. Meijer: 0000-0003-4126-7492
Author Contributions
The manuscript was written through contributions of all authors. All authors have given approval
to the final version of the manuscript.
Notes
The authors declare no competing financial interests.
■ ACKNOWLEDGEMENTS
The authors acknowledge Marcel van Genderen for the fruitful discussions. Ruth Cardinaels and
Susana Petisco Ferrero are acknowledged for the help with the rheology measurements. We
acknowledge funding from the Dutch Ministry of Education, Culture and Science (Gravity
program 024.001.035) and the Alexander von Humboldt Foundation.
■ REFERENCES
(1)
(2)
(3)
(4)
(5)
Kato, T.; Uchida, J.; Ichikawa, T.; Sakamoto, T. Functional Liquid Crystals towards the
Next Generation of Materials. Angew. Chemie Int. Ed. 2018, 57, 2–19.
Cheng, J. Y.; Ross, C. A.; Smith, H. I.; Thomas, E. L. Templated Self-Assembly of Block
Copolymers: Top-down Helps Bottom-Up. Adv. Mater. 2006, 18 (19), 2505–2521.
Lugger, J.; Mulder, D.; Sijbesma, R.; Schenning, A. Nanoporous Polymers Based on Liquid
Crystals. Materials 2018, 11, 104.
Whitesides, G. M. Nanoscience, Nanotechnology, and Chemistry. Small 2005, 1 (2), 172–
179.
Schulze, B. M.; Shewmon, N. T.; Zhang, J.; Watkins, D. L.; Mudrick, J. P.; Cao, W.; Bou
18
ACS Paragon Plus Environment

Page 19 of 24
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
Zerdan, R.; Quartararo, A. J.; Ghiviriga, I.; Xue, J.; Castellano, R. K. Consequences of
Hydrogen Bonding on Molecular Organization and Charge Transport in Molecular Organic
Photovoltaic Materials. J. Mater. Chem. A 2014, 2 (5), 1541–1549.
Tschierske, C. Non-Conventional Liquid Crystals—the Importance of Micro-Segregation
for Self-Organisation. J. Mater. Chem. 1998, 8 (7), 1485–1508.
Leibler, L. Theory of Microphase Separation in Block Copolymers. Macromolecules 1980,
13 (10), 1602–1617.
(6)
(7)
(8)
(9)
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Bates, C. M.; Bates, F. S. 50th Anniversary Perspective: Block Polymers-Pure Potential.
Macromolecules 2017, 50 (1), 3–22.
Demus, D.; Goodby, J.; Gray, G. W.; Spiess, H.-W.; Vill, V. Handbook of Liquid Crystals;
Wiley-VCH,Weinheim, 1998.
(10) Hawker, C. J.; Wooley, K. L. The Convergence of Synthetic Organic and Polymer
Chemistries. Science 2005, 309 (5738), 1200–1205.
(11) Newton, J.; Coles, H.; Hodgeb, P.; Hannington, J. Synthesis and Properties of Low-Molar-
Mass Liquid-Crystalline Siloxane Derivatives. J. Mater. Chem. 1994, 4 (6), 869–874.
(12) Johansson, G.; Percec, V.; Ungar, G.; Smith, K. Fluorophobic Effect Generates a Systematic
Approach to the Synthesis of the Simplest Class of Rodlike Liquid Crystals Containing a
Single Benzene Unit. Chem. Mater. 1997, 9 (1), 164–175.
(13) Kato, T. Self-Assembly of Phase-Segregated Liquid Crystal Structures. Science 2002, 295
(5564), 2414–2418.
(14) Kato, T.; Mizoshita, N. Self-Assembly and Phase Segregation in Functional Liquid
Crystals. Curr. Opin. Solid State Mater. Sci. 2002, 6 (6), 579–587.
(15) Nickmans, K.; Murphy, J. N.; Waal, B. De; Leclère, P.; Doise, J.; Gronheid, R.; Broer, D.
J.; Schenning, A. P. H. J. Sub-5 Nm Patterning by Directed Self-Assembly of Oligo (
Dimethylsiloxane ) Liquid Crystal Thin Films. Adv. Mater. 2016, 28, 10068–10072.
(16) Van Genabeek, B.; de Waal, B. F. M.; Gosens, M. M. J.; Pitet, L. M.; Palmans, A. R. A.;
Meijer, E. W. Synthesis and Self-Assembly of Discrete Dimethylsiloxane–Lactic Acid
Diblock Co-Oligomers: The Dononacontamer and Its Shorter Homologues. J. Am. Chem.
Soc. 2016, 138 (12), 4210–4218.
(17) Oschmann, B.; Lawrence, J.; Schulze, M. W.; Ren, J. M.; Anastasaki, A.; Luo, Y.; Nothling,
M. D.; Pester, C. W.; Delaney, K. T.; Connal, L. A.; McGrath, A. J.; Clark, P. G.; Bates, C.
19
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 20 of 24
1
2
3
4
M.; Hawker, C. J.
Effects of Tailored Dispersity on the Self-Assembly of
5
6
7
Dimethylsiloxane-Methyl Methacrylate Block Co-Oligomers. ACS Macro Lett. 2017, 6 (7),
668–673.
8
9
(18) Jiang, Y.; Golder, M. R.; Nguyen, H. V. T.; Wang, Y.; Zhong, M.; Barnes, J. C.; Ehrlich,
D. J. C.; Johnson, J. A. Iterative Exponential Growth Synthesis and Assembly of Uniform
Diblock Copolymers. J. Am. Chem. Soc. 2016, 138 (30), 9369–9372.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
(19) van Genabeek, B.; de Waal, B. F. M.; Ligt, B.; Palmans, A. R. A.; Meijer, E. W. Dispersity
under Scrutiny: Phase Behavior Differences between Disperse and Discrete Low Molecular
Weight Block Co-Oligomers. ACS Macro Lett. 2017, 6 (7), 674–678.
(20) Fox, J. D.; Rowan, S. J. Supramolecular Polymerizations and Main-Chain Supramolecular
Polymers. Macromolecules 2009, 42 (18), 6823–6835.
(21) Bouteiller, L. Hydrogen Bonded Polymers; Advances in Polymer Science, 2007; Vol. 207.
(22) Hirschberg, J. H. K. K.; Brunsveld, L.; Ramzi, A.; Vekemans, J. A. J. M.; Sijbesma, R. P.;
Meijer, E. W. Helical Self-Assembled Polymers from Cooperative Stacking of Hydrogen-
Bonded Pairs. Nature 2000, 407 (6801), 167–170.
(23) Van Beek, D. J. M.; Spiering, A. J. H.; Peters, G. W. M.; Te Nijenhuis, K.; Sijbesma, R. P.
Unidirectional Dimerization and Stacking of Ureidopyrimidinone End Groups in
Polycaprolactone Supramolecular Polymers. Macromolecules 2007, 40 (23), 8464–8475.
(24) Müller, M.; Dardin, A.; Seidel, U.; Balsamo, V.; Iván, B.; Spiess, H. W.; Stadler, R.
Junction Dynamics in Telechelic Hydrogen Bonded Polyisobutylene Networks.
Macromolecules 1996, 29 (7), 2577–2583.
(25) Colombani, O.; Barioz, C.; Bouteiller, L.; Chanéac, C.; Fompérie, L.; Lortie, F.; Montés,
H. Attempt toward 1D Cross-Linked Thermoplastic Elastomers: Structure and Mechanical
Properties of a New System. Macromolecules 2005, 38 (5), 1752–1759.
(26) Zha, R. H.; De Waal, B. F. M.; Lutz, M.; Teunissen, A. J. P.; Meijer, E. W. End Groups of
Functionalized Siloxane Oligomers Direct Block-Copolymeric or Liquid-Crystalline Self-
Assembly Behavior. J. Am. Chem. Soc. 2016, 138 (17), 5693–5698.
(27) Zha, R. H.; Vantomme, G.; Berrocal, J. A.; Gosens, R.; De Waal, B.; Meskers, S.; Meijer,
E. W. Photoswitchable Nanomaterials Based on Hierarchically Organized Siloxane
Oligomers. Adv. Funct. Mater. 2018, 28 (1), 1–8.
(28) Berrocal, J. A.; Zha, R. H.; de Waal, B. F. M.; Lugger, J. A. M.; Lutz, M.; Meijer, E. W.
20
ACS Paragon Plus Environment

Page 21 of 24
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
Unraveling the Driving Forces in the Self-Assembly of Monodisperse Naphthalenediimide-
Oligodimethylsiloxane Block Molecules. ACS Nano 2017, 11 (4), 3733–3741.
(29) van Genabeek, B.; Lamers, B. A. G.; de Waal, B. F. M.; van Son, M. H. C.; Palmans, A. R.
A.; Meijer, E. W. Amplifying (Im)perfection: The Impact of Crystallinity in Discrete and
Disperse Block Co-Oligomers. J. Am. Chem. Soc. 2017, 16139 (42), 14869–14872.
(30) Van Genabeek, B.; de Waal, B. F. M.; Palmans, A. R. A.; Meijer, E. W. Discrete
Oligodimethylsiloxane-Oligomethylene Di- and Triblock Co-Oligomers: Synthesis and
Self-Assembly and Molecular Organization. Polym. Chem. 2018, 9 (20), 2746–2758.
(31) Lamers, B. A. G.; van Genabeek, B.; Hennissen, J.; de Waal, B. F. M.; Palmans, A. R. A.;
Meijer, E. W. Stereocomplexes of Discrete, Isotactic Lactic Acid Oligomers Conjugated
with Oligodimethylsiloxanes. Macromolecules 2019, 52 (3), 1200–1209.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
(32) Cortese, J.; Soulié-Ziakovic, C.; Cloitre, M.; Tencé-Girault, S.; Leibler, L. Order-Disorder
Transition in Supramolecular Polymers. J. Am. Chem. Soc. 2011, 133 (49), 19672–19675.
(33) Ishiwari, F.; Okabe, G.; Ogiwara, H.; Kajitani, T.; Tokita, M.; Takata, M.; Fukushima, T.
Terminal Functionalization with a Triptycene Motif That Dramatically Changes the
Structural and Physical Properties of an Amorphous Polymer. J. Am. Chem. Soc. 2018, 140
(41), 13497–13502.
(34) De Greef, T. F. A.; Smulders, M. M. J.; Wolffs, M.; Schenning, A. P. H. J.; Sijbesma, R.
P.; Meijer, E. W. Supramolecular Polymerization. Chem. Rev. 2009, 109 (11), 5687–5754.
(35) Vybornyi, M.; Rudnev, A.; Häner, R. Assembly of Extra-Large Nanosheets by
Supramolecular Polymerization of Amphiphilic Pyrene Oligomers in Aqueous Solution.
Chem. Mater. 2015, 27 (4), 1426–1431.
(36) Tidhar, Y.; Weissman, H.; Tworowski, D.; Rybtchinski, B. Mechanism of Crystalline Self-
Assembly in Aqueous Medium: A Combined Cryo-TEM/kinetic Study. Chem. - A Eur. J.
2014, 20 (33), 10332–10342.
(37) Avinash, M. B.; Govindaraju, T. Engineering Molecular Organization of
Naphthalenediimides: Large Nanosheets with Metallic Conductivity and Attoliter
Containers. Adv. Funct. Mater. 2011, 21 (20), 3875–3882.
(38) Ogi, S.; Stepanenko, V.; Sugiyasu, K.; Takeuchi, M.; Würthner, F. Mechanism of Self-
Assembly Process and Seeded Supramolecular Polymerization of Perylene Bisimide
Organogelator. J. Am. Chem. Soc. 2015, 137 (9), 3300–3307.
21
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 22 of 24
1
2
3
4
5
6
7
8
9
(39) Mabesoone, M. F. J.; Markvoort, A. J.; Banno, M.; Yamaguchi, T.; Helmich, F.; Naito, Y.;
Yashima, E.; Palmans, A. R. A.; Meijer, E. W. Competing Interactions in Hierarchical
Porphyrin Self-Assembly Introduce Robustness in Pathway Complexity. J. Am. Chem. Soc.
2018, 140 (25), 7810–7819.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
(40) Fukui, T.; Kawai, S.; Fujinuma, S.; Matsushita, Y.; Yasuda, T.; Sakurai, T.; Seki, S.;
Takeuchi, M.; Sugiyasu, K. Control over Differentiation of a Metastable Supramolecular
Assembly in One and Two Dimensions. Nat. Chem. 2017, No. 9, 493–499.
(41) Korevaar, P. A.; De Greef, T. F. A.; Meijer, E. W. Pathway Complexity in π-Conjugated
Materials. Chem. Mater. 2014, 26 (1), 576–586.
(42) Rybtchinski, B. Adaptive Supramolecular Nanomaterials Based on Strong Noncovalent
Interactions. ACS Nano 2011, 5 (9), 6791–6818.
(43) Tantakitti, F.; Boekhoven, J.; Wang, X.; Kazantsev, R. V.; Yu, T.; Li, J.; Zhuang, E.; Zandi,
R.; Ortony, J. H.; Newcomb, C. J.; Palmer, L. C.; Shekhawat, G. S.; De La Cruz, M. O.;
Schatz, G. C.; Stupp, S. I. Energy Landscapes and Functions of Supramolecular Systems.
Nat. Mater. 2016, 15 (4), 469–476.
(44) Sorrenti, A.; Leira-Iglesias, J.; Markvoort, A. J.; De Greef, T. F. A.; Hermans, T. M. Non-
Equilibrium Supramolecular Polymerization. Chem. Soc. Rev. 2017, 46 (18), 5476–5490.
(45) Szczęsna, B.; Urbańczyk-Lipkowska, Z. Cooperative Effect of Multiple Hydrogen Bonding
Involving the Nitro Group: Solid State Dimeric Self-Assembly of O-, M- and P-
Hydroxyphenyl-2,4-Dinitrophenylhydrazones. New J. Chem. 2002, 26 (2), 243–249.
(46) Paulus, W.; Ringsdorf, H.; Diele, S.; Pelzl, G. Columnar Phases from Semi-Discoid
Molecules: Phase Induction via Hydrogen Bonding and Charge Transfer Interactions. Liq.
Cryst. 1991, 9 (6), 807–819.
(47) Wu, Q.-Y.; Wan, L.-S.; Xu, Z.-K. Centimeter-Scale Giant Spherulites in Mixtures of Polar
Polymers and Crystallizable Diluents: Morphology, Structure, Formation and Application.
RSC Adv. 2013, 3 (38), 17105.
(48) Rahman, M. H.; Nandi, A. K. Supramolecular Organization of Poly(vinylidene Fluoride)-
Camphor Sulfonic Acid Blends: Giant Spherulites. Langmuir 2003, 19 (17), 7056–7060.
(49) Van Genabeek, B.; De Waal, B. F. M.; Ligt, B.; Palmans, A. R. A.; Meijer, E. W. Dispersity
under Scrutiny: Phase Behavior Differences between Disperse and Discrete Low Molecular
Weight Block Co-Oligomers. ACS Macro Lett. 2017, 6 (7), 674–678.
22
ACS Paragon Plus Environment

Page 23 of 24
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
(50) Gangloff, N.; Höferth, M.; Stepanenko, V.; Sochor, B.; Schummer, B.; Nickel, J.; Walles,
H.; Hanke, R.; Würthner, F.; Zuckermann, R. N.; Luxenhofer, R. Linking Two Worlds in
Polymer Chemistry: The Influence of Block Uniformity and Dispersity in Amphiphilic
Block Copolypeptoids on Their Self-Assembly. Biopolymers 2019, 4 (110), e23259.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
23
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 24 of 24
1
2
3
4
5
6
For table of contents:
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
24
ACS Paragon Plus Environment
