Two Li-Zn cluster-based metal-organic frameworks: Strong H2/CO2 binding and high selectivity to CO2

Article abstract of DOI:10.1021/acs.inorgchem.6b02407

Two metal-organic frameworks (MOFs) {(Me₂NH₂)[ZnLi(PTCA)(H₂O)]}nn{3DMFC₄H₈O₂ 4H₂O} (1) and {(Me₂NH₂)[ZnLi(PTCA)]}_nn{3DMF 5H₂O} (2) have been constructed from Li-Zn clusters and pyrene-1,3,6,8-tetracarboxylic acid (H₄PTCA) under solvothermal conditions. Gas sorption measurements have revealed that the pore of desolvated 2 (2d) can strongly interact with H2 and CO₂, with high H₂ and CO₂ adsorption heats of 15.3 and 51.9 kJ/mol, respectively. Furthermore, 2d can selectively adsorb CO₂ over N₂and CH₄, with high adsorption selectivity of CO₂/N₂ and CO₂/CH₄.

Full text of DOI:10.1021/acs.inorgchem.6b02407

Communication
pubs.acs.org/IC
Two Li−Zn Cluster-Based Metal−Organic Frameworks: Strong H2/CO2
Binding and High Selectivity to CO2
Yong-Liang Huang,§ Di-Chang Zhong,*,†,‡ Long Jiang,§ Yun-Nan Gong,‡ and Tong-Bu Lu*,†,§
†Institute of New Energy Materials & Low Carbon Technology, School of Material Science & Engineering, Tianjin University of
Technology, Tianjin 300384, China
‡School of Chemistry and Chemical Engineering, Gannan Normal University, Ganzhou 341000, China
§MOE Key Laboratory of Bioinorganic and Synthetic Chemistry, School of Chemistry and Chemical Engineering, Sun Yat-Sen
University, Guangzhou 510275, China
S
* Supporting Information
and a tetra-carboxylate ligand of pyrene-1,3,6,8-tetracarboxylic
ABSTRACT: Two metal−organic frameworks (MOFs)
{(Me2NH2)[ZnLi(PTCA)(H2O)]}n·n{3DMF·C4H8O2·
4H2O} (1) and {(Me2NH2)[ZnLi(PTCA)]}n·n{3DMF·
5H2O} (2) have been constructed from Li−Zn clusters
and pyrene-1,3,6,8-tetracarboxylic acid (H4PTCA) under
solvothermal conditions. Gas sorption measurements have
revealed that the pore of desolvated 2 (2d) can strongly
interact with H2 and CO2, with high H2 and CO2
adsorption heats of 15.3 and 51.9 kJ/mol, respectively.
Furthermore, 2d can selectively adsorb CO2 over N2 and
CH4, with high adsorption selectivity of CO2/N2 and
CO2/CH4.
acid (H4PTCA). Their syntheses, crystal structures, and gas
sorption properties have been thoroughly investigated and
discussed.
A solvothermal reaction of Zn(NO3)2·6H2O and LiCl with
H4PTCA in DMF/dioxane/H2O (2:1:1) at 110 and 140 °C for
48 h led to the formation of yellow crystals of 1 and 2,
respectively (Supporting Information). The result of single-
crystal X-ray diffraction analysis has revealed that 1 crystallizes in
a monoclinic crystal system, with a space group of P21/c (Table
S1). The asymmetric unit of 1 contains one crystallographically
independent Zn(II), one independent Li(I), and one PTCA4−
+
ligand, as well as one Me2NH2 counterion, three DMF, one
dioxane, and four H2O molecules. Zn1 is four-coordinated by
four carboxylate O atoms from four individual PTCA4−, forming
a tetrahedral coordination geometry; Li1 is also four-coordinated
with a tetrahedral coordination geometry. The coordinated
atoms around Li1 are three carboxylate O atoms from three
individual PTCA4− and one O from one coordinated H2O
(Figure 1a). PTCA4− employs two types of coordination modes.
One bridges four pairs of Zn1 and Li1 by four carboxylate groups
(Scheme S2, Mode I), and the other coordinates with four Zn1
and two Li1, where two pairs of Zn1 and Li1 are bridged by two
carboxylate groups and the other two Zn1 are bonded to the
other two carboxylate groups (Scheme S2, Mode II). Zn1 and
Li1 are bridged by three μ2-COO from two PTCA4− in Mode I
and one PTCA4− in Mode II to form a heterobimetallic cluster of
[ZnLi(CO2)3]. The distance of Zn1···Li1 is 3.411(3) Å. Each
[ZnLi(CO2)3] cluster connects with four PTCA4−, and each
PTCA4− links to four [ZnLi(CO2)4] clusters, generating a 3D
(4,4)-connected framework with 1D channels along the c axis
(Figures 1b and S1). The size of the channel is 6.24 Å × 9.63 Å
(the distances of Li1···O8 and Zn1···O6, respectively). The
he interests in simple fabrication and structure inves-
T
tigations of metal−organic frameworks (MOFs) have
evidently decreased during the past several years. However,
research enthusiasm on extending MOF applications is rapidly
increasing. Particularly, ultrafine tuning of the pore size and
delicate modification of the pore surface to endow MOFs with
unique functions have attracted more attention.1 For instance, a
class of “pillared square grids” MOFs named SIFSIX,2−6 which
are constructed from two-dimensional (2D) nets as layers and
hexafluorosilicate (SiF62−) anions as pillars,3 has exhibited
exceptional performance for separation of gas molecules, such
as CO2 from CH4 and N2,4 acetylene from ethylene,5 and
propylene from propane,6 due to their tunable pore sizes and
SiF62−-functionalized pore surfaces. Additionally, a number of
MOFs with pore surfaces decorated with coordinatively
unsaturated metal sites,7 amino groups,8 and exposed N
atoms9 have shown strong binding affinities to gas molecules
such as H2, CO2, and so on, and improved H2 storage or CO2
capture capacities. By this token, untrafine design of the pore
structure is a significant approach to thoroughly develop MOF
applications.
Recently, MOFs with Li-lined pore surfaces, obtained by ion-
exchange, have attracted considerable attention, as Li atoms on
pore surfaces can significantly enhance gas storage.10 However,
Li-MOFs or Li-participated MOFs have been sporadically
reported.11 In this Communication, we report two 3D MOFs,
{(Me2NH2)[ZnLi(PTCA)(H2O)]}n·{3DMF·dioxane·4H2O}n
(1) and {(Me2NH2)[ZnLi(PTCA)]}n·{3DMF·5H2O}n (2),
which are constructed from heterobimetallic Li−Zn clusters
+
Me2NH2 counterions, originating from the decomposition of
DMF molecules, fill in the pore together with the disordered
1
DMF, dioxane, and H2O molecules, which is confirmed by H
NMR analysis (Figure S2a). About 42.2% of the solvent
accessible volume is estimated by the PLATON procedure.12
Compound 2 crystallizes in the space group of C2/m (Table
S1). As shown in Figure 2a, the crystallographically independent
Received: October 9, 2016
© XXXX American Chemical Society
A
DOI: 10.1021/acs.inorgchem.6b02407
Inorg. Chem. XXXX, XXX, XXX−XXX

Inorganic Chemistry
Communication

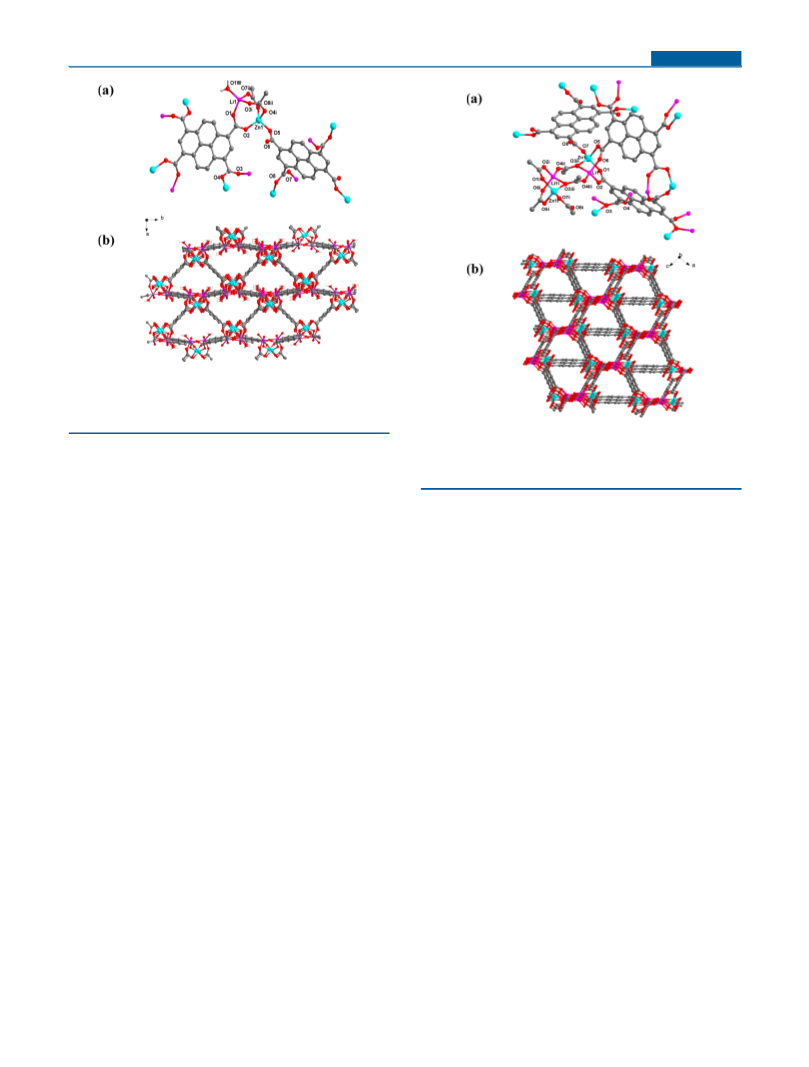

Figure 1. (a) Coordination environments of Zn(II) and Li(I) and
coordination modes of PTCA4− in 1 (symmetry codes: (i) 1 − x, −1/2 +
y, 1/2 − z; (ii) −x, −1/2 + y, 1/2 − z). (b) 3D porous structure of 1 with
1D triangular channels along the c axis.
Figure 2. (a) Coordination environments of Zn(II) and Li(I) and
coordination modes of PTCA4− in 2 (symmetry codes: (i) x, y, 1 − z; (ii)
1/2 − x, 1/2 − y, −z; (iii) x, y, 1 + z). (b) 3D structure of 2 with 1D
trapezium channels along the b axis.
Zn(II) and Li(I) also assume four-coordinated tetrahedral
coordination geometries. All the coordinated atoms around
Zn1/Li1 come from the carboxylate O atoms of PTCA4−. The
PTCA4− also adopts two coordination modes. One coordinates
with four Zn and six Li through four carboxylate groups (Scheme
S2, Mode III), and the other only bonds to four Zn by four
carboxylate groups (Scheme S2, Mode IV). Six carboxylate
groups of six PTCA4− in Mode III connect two Zn1 and two Li1
together to form a planar heterotetranuclear cluster of
[Zn2Li2(CO2)6]. The distance of Zn1···Li1 is 2.953(2) Å,
much shorter than that in 1. Each [Zn2Li2(CO2)6] cluster is
surrounded by eight PTCA4−, and each PTCA4− is encircled by
four [Zn2Li2(CO2)6] clusters, resulting in a 3D (4,8)-connected
porous framework with 1D trapezium channels (Figures 2b and
S3). The size of the channel is 8.58 Å × 7.63 Å (the distances of
C20···O4 and Zn1···O5, respectively), which is filled with
H2O molecules (Calcd 11.2%). Further heated to 360 °C, the
three DMF molecules lose (Calcd 27.3%), then followed the
decomposition of the rest of 2 (Figure S5). To examine the
framework stabilities of 1 and 2, freshly prepared 1/2 was soaked
in methanol/acetonitrile to exchange the guest molecules in the
channels of 1/2. The results of the XRD measurements have
revealed that the framework of 1 collapses after being exchanged
by methanol/acetonitrile (Figure S4a); the framework of 2 can
remain stable after being exchanged by acetonitrile (Figure S4b).
Even with further activation by removal of acetonitrile, the
framework of 2 can remain stable (Figure S4b). The variable-
temperature PXRD for 1 and 2 have given similar results. The
diffraction peaks of 1 disappear when the sample is heated to 120
°C (Figure S6a), illustrating the collapse of the framework; the
diffraction peaks of 2 show no obvious change from 30 to 200 °C
(Figure S6b), demonstrating that the framework of 2 is stable up
to 200 °C. Although both 1 and 2 are constructed from Li−Zn
clusters and the PTCA4− ligand, they show obviously different
framework stabilities. This may be ascribed to the different
structures of the Li−Zn clusters within 1 and 2. The tetranuclear
[Zn2Li2(CO2)6] clusters in 2 are stronger than the bimetallic
[ZnLi(CO2)3] clusters in 1 to strut such large frameworks after
removing the guests inside the cavities.
To further evaluate the permanent porosity in desolvated 2
(2d), N2, H2, and CO2 sorption measurements were carried out
(Supporting Information). The results have shown that 2d
selectively adsorbs H2 and CO2, rather than N2 (Figure 3a). The
isotherm of the CO2 adsorption at 195 K shows a typical I curve,
with the amount of CO2 adsorption increasing abruptly at low
pressure and gradually approaching 133 cm3 (STP)/g at 1.0 atm
(Figure 3a). Fitting the Brunauer−Emmett−Teller (BET)
equation to the sorption isotherm at 195 K gives the estimated
surface area of 602.5 m2/g. The H2 adsorption isotherm for 2d
shows an adsorption capacity of 135 cm3 g−1 (∼1.2 wt %) at 77 K
+
counterion Me2NH2 , disordered DMF, and lattice H2O
1
molecules, confirmed by H NMR analysis (Figure S2b). The
calculated porosity per unit cell volume is 43.8%.12
Compounds 1 and 2 were obtained by tuning reaction
temperature, illustrating that temperature tuning is a useful
approach for constructions of function coordination polymers.13
Single-crystal structural analyses have clearly given the Li/Zn
molar ratio of 1:1 within 1 and 2, which is further evidenced by
the results of ICP-AES analyses for 1 and 2 (Table S2). The bulk
phase purity of 1 and 2 were examined by powder X-ray
diffraction. The results have shown that all the peaks displayed in
the measured patterns closely match with those in the simulated
ones generated from single-crystal diffraction data (Figure S4),
indicating that single phases of 1 and 2 have been formed.
The TG curve of 1 shows a weight loss of 19.5% in the
temperature range from 30 to 180 °C (Figure S5), corresponding
to the removal of one dioxane and five water molecules (Calcd.
20.0%). Then from 180 to 360 °C, a weight loss of 23.3% is
observed, corresponding to the removal of three DMF molecules
(Calcd 24.6%). Upon further heating, the desolvated 1 begin to
decompose. From 30 to 100 °C, the TG curve of 2 shows a
weight loss of 10.5%, corresponding to the removal of five lattice
B
DOI: 10.1021/acs.inorgchem.6b02407
Inorg. Chem. XXXX, XXX, XXX−XXX

Inorganic Chemistry
Communication
with high values of adsorption selectivity, demonstrating that 2
may have applictions in natural gas and flue gas purification.
ASSOCIATED CONTENT
* Supporting Information
The Supporting Information is available free of charge on the
ACS Publications website at DOI: 10.1021/acs.inorg-
chem.6b02407.
■
S
Description of syntheses and structure characterizations of
H4PTCA, 1, and 2; gas sorption measurements and data
handling; additional tables and figures. (PDF)
CIF file for 1. (CIF)
CIF file for 2. (CIF)
AUTHOR INFORMATION
Corresponding Authors
*E-mail: zhong_dichang@hotmail.com (D.-C. Z.).
*E-mail: lutongbu@mail.sysu.edu.cn (T.-B.L.).
■
Figure 3. Gas adsorption isotherms of 2d for (a) N2 at 77 K, H2 at 77 and
87 K, and CO2 at 195 K and (b) CO2, N2, and CH4 at 273 and 298 K,
respectively. (c) Adsorption heat plots of 2d for H2 and CO2. (d)
Adsorption selectivity plots of 2d for CO2/N2 and CO2/CH4 at 273 K.
ORCID
Di-Chang Zhong: 0000-0002-5504-249X
Notes
The authors declare no competing financial interest.
and 1 atm (Figure 3a). Moreover, the adsorption isotherms
present rare steep slopes at low pressure at either 77 or 87 K,
suggesting that the pores in 2d can strongly bind with H2,14
which is supported by the high adsorption heat of 15.3 kJ/mol at
the initial pressure, calculated using the modified Clausius−
Clapeyron equation15 (Figure 3c and Supporting Information).
To the best of our knowledge, this adsorption heat is comparable
to those of the reported MOFs.16
ACKNOWLEDGMENTS
■
This work was supported by the 973 Program of China
(2012CB821706, 2014CB845602), NSFC (21331007,
21363001, 21401026), and NSF of Guangdong Province
(S2012030006240).
REFERENCES
The adsorption heat (Qst) of CO2 for 2d has also been
calculated using the Clausius−Clapeyron method based on two
CO2 adsorption isotherms at 273 and 298 K (Figure 3b and
Supporting Information). The calculated initial value reaches as
high as 51.9 kJ/mol, larger than those of HKUST-1 (23.3 kJ/
mol),17a MIL-53 (32−35 kJ/mol),17b and Ni-MOF-74 (41 kJ/
mol)17c (Figure 3c). This strong interaction of 2d with CO2 may
■
(1) Kumar, A.; Madden, D. G.; Lusi, M.; Chen, K. J.; Daniels, E. A.;
Curtin, T.; Perry, J. J., IV; Zaworotko, M. J. Direct Air Capture of CO2 by
Physisorbent Materials. Angew. Chem., Int. Ed. 2015, 54, 14372−14377.
(2) (a) Uemura, K.; Maeda, A.; Maji, T. K.; Kanoo, P.; Kita, H.
Syntheses, Crystal Structures and Adsorption Properties of Ultra-
microporous Coordination Polymers Constructed from Hexafluorosi-
licate Ions and Pyrazine. Eur. J. Inorg. Chem. 2009, 16, 2329−2337.
(b) Jagiello, J.; Thommes, M. Comparison of DFT characterization
methods based on N2, Ar, CO2, and H2 adsorption applied to carbons
with various pore size distributions. Carbon 2004, 42, 1227−1232.
(c) Noro, S.; Kitagawa, S.; Kondo, M.; Seki, K. A New, Methane
Adsorbent, Porous Coordination Polymer [{CuSiF6(4,4′-bipyridi-
ne)2}n]. Angew. Chem., Int. Ed. 2000, 39, 2081−2084. (d) Shekhah,
O.; Belmabkhout, Y.; Adil, K.; Bhatt, P. M.; Cairns, A. J.; Eddaoudi, M. A
facile solvent-free synthesis route for the assembly of a highly CO2
selective and H2S tolerant NiSIFSIX metal−organic framework. Chem.
Commun. 2015, 51, 13595−13598.
+
be attributed to Me2NH2 in the channels and the charge
framework of 2d. Considering the strong interaction with CO2,
detailed investigations for 2d on the separation of CO2/N2 and
CO2/CH4 have been performed. Therefore, besides the two CO2
sorption isotherms mentioned above, the N2 and CH4 sorption
isotherms have also been respectively recorded at 273 and 298 K
(Figure 3b). The results have shown that under 1 atm, 2d can
adsorb 79.4 and 60.9 cm3/g of CO2, 5.8 and 3.6 cm3/g of N2, and
24.5 and 15.9 cm3/g of CH4, at 273 and 298 K, respectively. On
the basis of the above sorption data, the selective adsorption
performances of 2d to CO2 over N2 and CH4 have been given by
Ideal Adsorbed Solution Theory (IAST, Supporting Informa-
tion).18 The results of IAST calculations have shown that under 1
atm, the selectivity of 2d for a 15:85 CO2/N2 mixture is 277 at
273 K and 126 at 298 K; the selectivity for a 50:50 CO2/CH4
mixture is 35 at 273 K and 26 at 298 K (Figures 3d and S7). To
the best of our knowledge, these values are higher than those of
most previously reported MOFs (Table S3).19 Such a high
selectivity to CO2 can be ascribed to the strong binding of 2d
with CO2.
(3) Subramanian, S.; Zaworotko, M. J. Porous Solids by Design:
[Zn(4,4′-bpy)2(SiF6)]n·xDMF, a Single Framework Octahedral Coor-
dination Polymer with Large Square Channels. Angew. Chem., Int. Ed.
Engl. 1995, 34, 2127−2129.
(4) Burd, S. D.; Ma, S.; Perman, J. A.; Sikora, B. J.; Snurr, R. Q.;
Thallapally, P. K.; Tian, J.; Wojtas, L.; Zaworotko, M. J. Highly Selective
Carbon Dioxide Uptake by [Cu(bpy-n)2(SiF6)] (bpy-1 = 4,4′-
Bipyridine; bpy-2 = 1,2-Bis(4-pyridyl)ethene. J. Am. Chem. Soc. 2012,
134, 3663−3666.
(5) Cui, X.; Chen, K.; Xing, H.; Yang, Q.; Krishna, R.; Bao, Z.; Wu, H.;
Zhou, W.; Dong, X.; Han, Y.; Li, B.; Ren, Q.; Zaworotko, M. J.; Chen, B.
Pore chemistry and size control in hybrid porous materials for acetylene
capture from ethylene. Science 2016, 353, 141−144.
In summary, we have first obtained two porous MOFs
featuring rare Li−Zn heterobimetallic clusters as secondary
building units. The pores of desolvated 2 show strong binding
with H2 and CO2 molecules, with adsorption heat values as high
as 15.3 and 51.9 kJ mol−1, respectively. Moreover, desolvated 2
displays highly selective adsorption for CO2 over CH4 and N2,
(6) Cadiau, A.; Adil, K.; Bhatt, P. M.; Belmabkhout, Y.; Eddaoudi, M. A
metal-organic framework−based splitter for separating propylene from
propane. Science 2016, 353, 137−140.
(7) (a) Ahrenholtz, S. R.; Landaverde-Alvarado, C.; Whiting, M.; Lin,
S.; Slebodnick, C.; Marand, E.; Morris, A. J. Thermodynamic Study of
C
DOI: 10.1021/acs.inorgchem.6b02407
Inorg. Chem. XXXX, XXX, XXX−XXX

Inorganic Chemistry
Communication
CO2 Sorption by Polymorphic Microporous MOFs with Open Zn(II)
Coordination Sites. Inorg. Chem. 2015, 54, 4328−4336. (b) Caskey, S.
R.; Wong-Foy, A. G.; Matzger, A. J. Dramatic Tuning of Carbon Dioxide
Uptake via Metal Substitution in a Coordination Polymer with
Cylindrical Pores. J. Am. Chem. Soc. 2008, 130, 10870−10871.
(c) Zhong, D. C.; Zhang, W. X.; Cao, F. L.; Jiang, L.; Lu, T. B. A
three-dimensional microporous metal−organic framework with large
hydrogen sorption hysteresis. Chem. Commun. 2011, 47, 1204−1206.
(8) (a) McDonald, T. M.; Lee, W. R.; Mason, J. A.; Wiers, B. M.; Hong,
C. S.; Long, J. R. Capture of Carbon Dioxide from Air and Flue Gas in
the Alkylamine-Appended Metal−Organic Framework mmen-
Mg2(dobpdc). J. Am. Chem. Soc. 2012, 134, 7056−7065. (b) Couck,
S.; Denayer, J. F. M.; Baron, G. V.; Remy, T.; Gascon, J.; Kapteijn, F. An
Amine-Functionalized MIL-53 Metal−Organic Framework with Large
Separation Power for CO2 and CH4. J. Am. Chem. Soc. 2009, 131, 6326−
6327. (c) Demessence, A.; D'Alessandro, D. M.; Foo, M. L.; Long, J. R.
Strong CO2 Binding in a Water-Stable, Triazolate-Bridged Metal−
Organic Framework Functionalized with Ethylenediamine. J. Am. Chem.
Soc. 2009, 131, 8784−8786.
(9) (a) Liao, P. Q.; Zhou, D. D.; Zhu, A. X.; Jiang, L.; Lin, R. B.; Zhang,
J. P.; Chen, X. M. Strong and Dynamic CO2 Sorption in a Flexible
Porous Framework Possessing Guest Chelating Claws. J. Am. Chem. Soc.
2012, 134, 17380−17383. (b) Du, L. T.; Lu, Z. Y.; Zheng, K. Y.; Wang, J.
Y.; Zheng, X.; Pan, Y.; You, X. Z.; Bai, J. F. Fine-Tuning Pore Size by
Shifting Coordination Sites of Ligands and Surface Polarization of
Metal−Organic Frameworks To Sharply Enhance the Selectivity for
CO2. J. Am. Chem. Soc. 2013, 135, 562−565.
(10) (a) Bai, L.; Tu, B.; Qi, Y.; Gao, Q.; Liu, D.; Liu, Z.; Zhao, L.; Li, Q.;
Zhao, Y. Enhanced performance in gas adsorption and Li ion batteries by
docking Li+ in a crown ether-based metal−organic framework. Chem.
Commun. 2016, 52, 3003−3006. (b) Zhong, D. C.; Wen, Y. Q.; Deng, J.
H.; Luo, X. Z.; Gong, Y. N.; Lu, T. B. Uncovering the Role of Metal
Catalysis in Tetrazole Formation by an In Situ Cycloaddition Reaction:
An Experimental Approach. Angew. Chem., Int. Ed. 2015, 54, 11795−
11799. (c) Himsl, D.; Wallacher, D.; Hartmann, M. Improving the
Hydrogen-Adsorption Properties of a Hydroxy-Modified MIL-53(Al)
Structural Analogue by Lithium Doping. Angew. Chem., Int. Ed. 2009, 48,
4639−4642.
organic frameworks. Chem. Soc. Rev. 2009, 38, 1294−1314. (c) Zhong,
D. C.; Lin, J. B.; Lu, W. G.; Jiang, L.; Lu, T. B. Strong Hydrogen Binding
within a 3D Microporous Metal−Organic Framework. Inorg. Chem.
2009, 48, 8656−8658. (d) Zhou, W.; Wu, H.; Yildirim, T. Enhanced H2
Adsorption in Isostructural Metal−Organic Frameworks with Open
Metal Sites: Strong Dependence of the Binding Strength on Metal Ions.
̆
J. Am. Chem. Soc. 2008, 130, 15268−15269. (e) Dinca, M.; Dailly, A.;
Liu, Y.; Brown, C. M.; Neumann, D. A.; Long, J. R. Hydrogen Storage in
a Microporous Metal−Organic Framework with Exposed Mn2+
Coordination Sites. J. Am. Chem. Soc. 2006, 128, 16876−16883.
(f) Chen, M.-S.; Chen, M.; Takamizawa, S.; Okamura, T.; Fan, J.; Sun,
W.-Y. Single-crystal-to-single-crystal transformations and selective
adsorption of porous copper (II) frameworks. Chem. Commun. 2011,
47, 3787−3789.
̈
(17) (a) Yazaydın, A. O.; Snurr, R. Q.; Park, T. H.; Koh, K.; Liu, J.;
LeVan, M. D.; Benin, A. I.; Jakubczak, P.; Lanuza, M.; Galloway, D. B.;
Low, J. J.; Willis, R. R. Screening of Metal−Organic Frameworks for
Carbon Dioxide Capture from Flue Gas Using a Combined
Experimental and Modeling Approach. J. Am. Chem. Soc. 2009, 131,
18198−18199. (b) Bourrelly, S.; Llewellyn, P. L.; Serre, C.; Millange, F.;
́
Loiseau, T.; Ferey, G. Different Adsorption Behaviors of Methane and
Carbon Dioxide in the Isotypic Nanoporous Metal Terephthalates MIL-
53 and MIL-47. J. Am. Chem. Soc. 2005, 127, 13519−13521. (c) Caskey,
S. R.; Wong-Foy, A. G.; Matzger, A. J. Dramatic Tuning of Carbon
Dioxide Uptake via Metal Substitution in a Coordination Polymer with
Cylindrical Pores. J. Am. Chem. Soc. 2008, 130, 10870−10871.
(18) Bloch, W. M.; Babarao, R.; Hill, M. R.; Doonan, C. J.; Sumby, C. J.
Post-synthetic Structural Processing in a Metal−Organic Framework
Material as a Mechanism for Exceptional CO2/N2 Selectivity. J. Am.
Chem. Soc. 2013, 135, 10441−10448.
(19) (a) Liao, P. Q.; Chen, H. Y.; Zhou, D. D.; Liu, S. Y.; He, C. T.; Rui,
Z. B.; Ji, H. B.; Zhang, J. P.; Chen, X. M. Monodentate hydroxide as a
super strong yet reversible active site for CO2 capture from high-
humidity flue gas. Energy Environ. Sci. 2015, 8, 1011−1016. (b) Song, C.;
Hu, J.; Ling, Y.; Feng, Y. L.; Krishna, R.; Chen, D.; He, Y. The
accessibility of nitrogen sites makes a difference in selective CO2
adsorption of a family of isostructural metal−organic frameworks. J.
Mater. Chem. A 2015, 3, 19417−19426. (c) Xiong, S.; Gong, Y.; Wang,
H.; Wang, H.; Liu, Q.; Gu, M.; Wang, X.; Chen, B.; Wang, Z. A new
tetrazolate zeolite-like framework for highly selective CO2/CH4 and
CO2/N2 separation. Chem. Commun. 2014, 50, 12101−12104.
(d) Nugent, P.; Belmabkhout, Y.; Burd, S. D.; Cairns, A. J.; Luebke,
R.; Forrest, K.; Pham, T.; Ma, S.; Space, B.; Wojtas, L.; Eddaoudi, M.;
Zaworotko, M. J. Porous materials with optimal adsorption thermody-
namics and kinetics for CO2 separation. Nature 2013, 495, 80−84.
(e) Nugent, P.; Rhodus, V.; Pham, T.; Tudor, B.; Forrest, K.; Wojtas, L.;
Space, B.; Zaworotko, M. Enhancement of CO2 selectivity in a pillared
pcu MOM platform through pillar substitution. Chem. Commun. 2013,
49, 1606−1608. (f) Liang, Z.; Marshall, M.; Chaffee, A. L. CO2
Adsorption-Based Separation by Metal Organic Framework (Cu-
BTC) versus Zeolite (13X). Energy Fuels 2009, 23, 2785−2789.
(g) Lu, W.; Verdegaal, W. M.; Yu, J.; Balbuena, P. B.; Jeong, H. K.; Zhou,
H. C. Building multiple adsorption sites in porous polymer networks for
carbon capture applications. Energy Environ. Sci. 2013, 6, 3559−3564.
(h) Pal, A.; Chand, S.; Senthilkumar, S.; Neogi, S.; Das, M. C. Structural
variation of transition metal coordination polymers based on bent
carboxylate and flexible spacer ligand: polymorphism, gas adsorption
and SC-SC transmetallation. CrystEngComm 2016, 18, 4323−4335.
(11) (a) Osta, R. E.; Frigoli, M.; Marrot, J.; Guillou, N.; Chevreau, H.;
Walton, R. I.; Millange, F. A lithium−organic framework with
coordinatively unsaturated metal sites that reversibly binds water.
Chem. Commun. 2012, 48, 10639−10641. (b) Ong, T. T.; Kavuru, P.;
Nguyen, T.; Cantwell, R.; Wojtas, Ł.; Zaworotko, M. J. 2:1 Cocrystals of
Homochiral and Achiral Amino Acid Zwitterions with Li+ Salts: Water-
Stable Zeolitic and Diamondoid Metal−Organic Materials. J. Am. Chem.
Soc. 2011, 133, 9224−9227. (c) Zhao, X.; Wu, T.; Zheng, S.-T.; Wang,
L.; Bu, X.; Feng, P. A zeolitic porous lithium−organic framework
constructed from cubane clusters. Chem. Commun. 2011, 47, 5536−
5538. (d) Abrahams, B. F.; Grannas, M. J.; Hudson, T. A.; Robson, R. A
Simple Lithium(I) Salt with a Microporous Structure and Its Gas
Sorption Properties. Angew. Chem., Int. Ed. 2010, 49, 1087−1089.
(e) Wu, T.; Zhang, J.; Zhou, C.; Wang, L.; Bu, X.; Feng, P. Zeolite RHO-
Type Net with the Lightest Elements. J. Am. Chem. Soc. 2009, 131,
6111−6113.
(12) Spek, A. L. J. Single-crystal structure validation with the program
PLATON. J. Appl. Crystallogr. 2003, 36, 7−13.
(13) Sun, Y. X.; Sun, W. Y. Influence of temperature on metal-organic
frameworks. Chin. Chem. Lett. 2014, 25, 823−828.
̆
(14) Dinca, M.; Long, J. R. Strong H2 Binding and Selective Gas
Adsorption within the Microporous Coordination Solid Mg3(O2C-
C10H6-CO2)3. J. Am. Chem. Soc. 2005, 127, 9376−9377.
(15) Daniels, F.; Williams, J. W.; Bender, P.; Alberty, R. A.; Cornwell,
C. D. Experimental Physical Chemistry; McGraw-Hill Book Co., Inc.:
New York, 1962.
(16) (a) Zhong, D. C.; Lu, W. G.; Jiang, L.; Lu, T. B.; Feng, X. L. Three
Coordination Polymers Based on 1H-Tetrazole (HTz) Generated via in
Situ Decarboxylation: Synthesis, Structures, and Selective Gas
Adsorption Properties. Cryst. Growth Des. 2010, 10, 739−746.
̆
(b) Murray, L. J.; Dinca, M.; Long, J. R. Hydrogen storage in metal−
D
DOI: 10.1021/acs.inorgchem.6b02407
Inorg. Chem. XXXX, XXX, XXX−XXX
