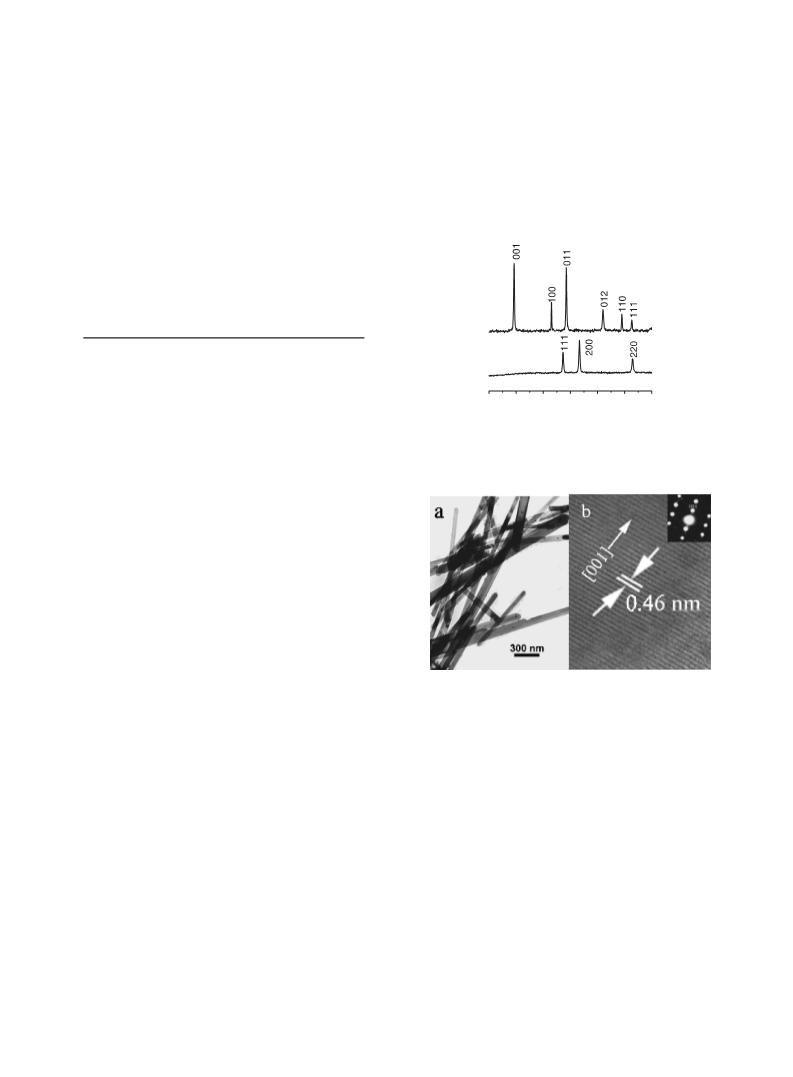

may justly suppose that the formation of Ni(OH)2 nanorods
might be related to the nature of its lamellar 2-D structures.
The further research is on the way.
It is interesting that Ni(OH)2 nanorods would be converted
into NiO nanorings when Ni(OH)2 nanorods were annealed at
500 ꢀC for 6 h. Quantumring-like structures, with the capability
of trapping magnetic flux in their interiors, are regarded as the
ideal candidates for observing Aharonov–Bohm(AB) effects,
such as energy oscillation and persistent currents,14 which has
triggered a strong interest in recent years.15
Figures 3a and 3b shows the overviews of TEM images of
NiO nanorings with different magnifications. It is shown that
the NiO nanorings are uniformand the range is 42–87 nmin di-
ameter. The size and morphology of NiO nanorings are further
examined on a HRTEM and the images of single NiO nanorings
are shown in Figure 3c. The magnification of Figure 3c is
400000, and the shape of single NiO nanoring is clearly ob-
served. It is shown that the ring is a quasi-circle structure and
more like an irregular pentagon structure, of which the longer
outer diameter is about 68.5 nm and the shorter outer diameter
is about 57.5 nm, and of which the longer inner diameter is about
22.5 nm and the shorter inner diameter is about 12.5 nm. The in-
set of Figure 3d is the corresponding SAED pattern of NiO
nanorings, and it is shown that the SAED pattern consists of
many spots, which shows that the NiO nanoring is single crystal.
All spots were identified as the diffraction fromcubic NiO. The
lattice fringes in the nanorings are shown in Figure 3d, which
confirms that structurally uniform and the high crystallizability
of the NiO nanorings. The inset of bottomof Figure 3d corre-
sponds to the area covered by the block plan. It can be calculated
ꢀ
that the interplanar spacing is 0.24 nm(2.4 A), which is in good
agreement with the d spacing of (111) plane of cubic NiO.
This work was supported by NSFC (20025102, 50028201,
20151001), the Foundation for the Author of National Excellent
Doctoral Dissertation of P. R. China, and the state key project of
fundamental research for nanomaterials and nanostructures.
References
1
2
3
4
5
H. M. French, M. J. Henerson, A. R. Hillman, and E. Vieil, J.
Electroanal. Chem., 500, 192 (2001).
M. Akinc, N. Jongen, J. Lemaitre, and H. Hofmann, J. Eur.
Ceram. Soc., 18, 1559 (1998).
A. Delahaye-Vidal and M. Figlarz, J. Appl. Electrochem.,
17, 589 (1987).
C. P. Depauli and V. A. Nacagno, J. Appl. Electrochem., 24,
256 (1994).
C. Chakkaravarthy, P. Periasamy, S. Jegannathan, and K. I.
Vasu, J. Power Sources, 35, 21 (1991).
6
7
8
X. F. Duan and C. M. Lieber, Adv. Mater., 12, 298 (2000).
C. M. Lieber, Solid State Commun., 107, 607 (1998).
K. Matsui, T. Kyoyani, and A. Tomita, Adv. Mater., 14, 1216
(2002).
9
Y. D. Li, X. L. Li, R. H. He, J. Zhu, and Z. X. Deng, J. Am.
Chem. Soc., 124, 1411 (2002).
10 Y. D. Li, X. L. Li, R. H. He, J. Zhu, and Z. X. Deng, Angew.
Chem., Int. Ed., 41, 333 (2002).
11 Y. D. Li, J. W. Wang, Z. X. Deng, Y. Wu, X. Sun, D. Yu, and
P. Yang, J. Am. Chem. Soc., 123, 9904 (2001).
12 R. E. Schak and T. E. Mallouk, Chem. Mater., 12, 3427
(2000).
13 G. B. Saupe, C. C. Waraksa, H. N. Kim, D. M. Kaschak, and
T. E. Mallouk, Chem. Mater., 12, 1556 (2000).
14 Y. Aharonov and D. Bohm, Phys. Rev., 115, 485 (1959).
15 A. Lorke, R. J. Luyken, A. O. Govorov, and J. P. Kotthaus,
Phys. Rev. Lett., 84, 2223 (2000).
Figure 3. The typical TEM (HRTEM) images of the NiO
