[12]
[6]
concentrated solution of 4 in ethanol upon evaporation.
compared to 3-azadibenzophosphole oxide (DE = 0.29 V),
The structure (Figure 1) exhibits a planar backbone with
small CÀC and CÀN bond-length alternation and shows
essentially equidistant endo- and exocyclic PÀC bond lengths
due to the presence of the second nitrogen within the scaffold
of 4. Since the material revealed reversible one-electron
reduction events, assessed by the separation between anodic
and cathodic peak potentials, its electron-transfer constant
[13]
kET was evaluated. 3,7-Diazadibenzophosphole 4 shows a
À4
À1
lower kET = 2.01 ꢁ 10 cms than those observed in the
[
6]
azadibenzophospholes, probably due to the less polar
backbone structure, resulting in lower mobility in an electric
field. Nevertheless, the obtained kET value indicates suffi-
ciently fast electron-transfer processes that are beneficial for
[14]
an application in electronic devices, well within the range of
previously reported phosphadiazole-oxide, thiadiazole, thia-
diazole-oxide and -dioxide fused phenanthrenes, and pyr-
[15]
enes.
After having established synthetic access to the 3,7-
diazadibenzophosphole oxide 4, its reactivity towards tran-
sition metals was investigated. Due to the analogy of the
backbone of 4 to 4,4’-bipyridine, the synthesis of a supra-
molecular square (see Supporting Information), analogous to

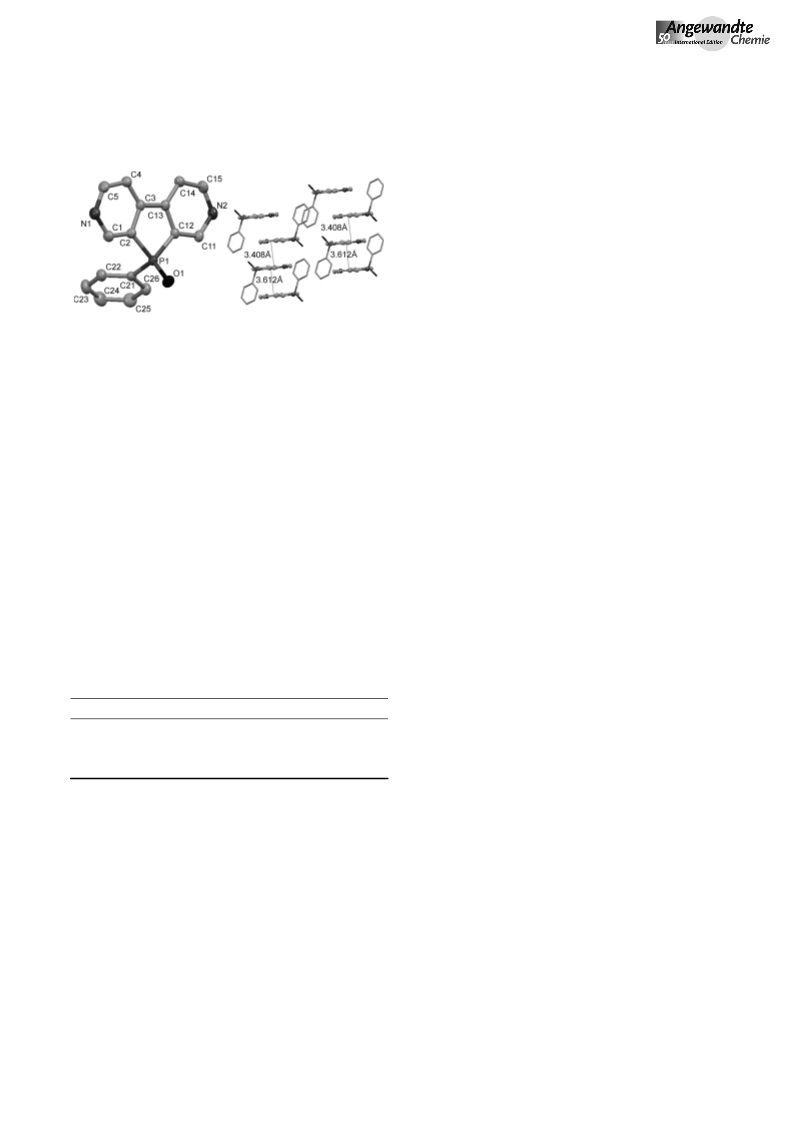

Figure 1. Molecular structure of 4 (left) and packing (right) in the solid
state (thermal ellipsoids set at 50% probability, H atoms are omitted
for clarity). See the Supporting Information for detailed metric
parameters.
[
16]
a compound reported by Fujita and co-workers,
was
that are in good agreement with the reported 1-aza-, and 4-
attempted. However, no reaction was observed upon mixing
[
6]
azadibenzophosphole oxide, as well as dibenzophosphole
of 4 with [Pd(bipy)(NO ) ], and slow heating resulted in
3
2
[
11b]
oxide.
decomposition to unidentified products, as confirmed by
NMR spectroscopy and MALDI-TOF mass spectrometry.
The lack of success can be explained by the electron-
withdrawing effect of the phosphoryl group, making 4 a
The packing in 4 shows a layered motif with two different
face-to-face interactions. The layers with the O-atoms point-
ing toward each other show a strong p-stacking interaction
with a distance of 3.41 ꢀ, whereas the layers with the phenyl
rings pointing toward one another show weaker face-to-face
interactions with a distance of 3.61 ꢀ.
2
+
weak N-donor system not capable of coordination to two Pd
centers. Furthermore, owing to the distortion of the back-
bone, the arrangement of the N donors in 4 is such that the
formation of an ideal square complex is not possible, the
geometry of the product would be a distorted square with
considerable ring strain. Alternatively, the synthesis of a
coordination polymer was attempted by treatment of 4 with
0.9 equivalents of K [PtCl ], affording a poorly soluble, bright
The photophysical features of 4 were investigated by UV/
Vis spectroscopy in dichloromethane (Table 1). The spectrum
(
Supporting Information) shows an absorption profile with a
maximum at l = 276 nm and a molar absorptivity of e276
=
max
À1
À1
1
2
0750 Lmol cm , as well as shoulders at 305 nm and
69 nm; the onset of absorption is found at lonset = 330 nm.
2
4
1
31
orange solid. Despite the fact that H and P NMR spectros-
copy and UV/Vis spectroscopy, as well as MALDI-TOF
spectrometry (see the Supporting Information) suggest the
formation of oligomeric species, the insolubility of the
material precluded a clear assignment of its structure.
However, note in this context that the analogous reaction
using the related monodentate 3-azadibenzophosphole (L) as
ligand cleanly results in the formation of the [Pt(L) Cl ]
The photophysical features are comparable to those observed
[
6]
for the azadibenzophosphole oxides.
2
+
.
Table 1: Photophysical and electrochemical features of 3–5 and MV
À1
À1
Ered[b] [V]
Eox[b] [V]
Compd
lmax[a] [nm]
e [Lmol cm
]
3
4
5
272
276
288
5340
10750
17720
À2.58
0.48, 0.95
0.81
–
2
2
[
6]
À1.85, À2.47
À0.51, À1.00
À1.09, À1.52
complex.

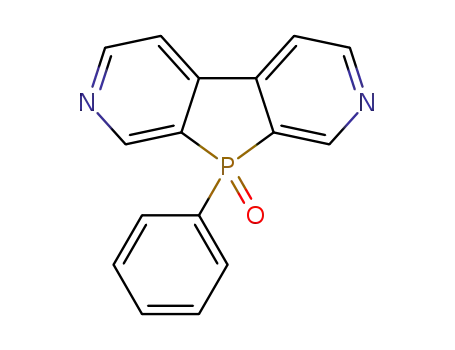

,7-Diazadibenzophosphole oxide 4 was subsequently
3
2
+[17]
MV
–
converted into the methylviologen analogue 5 (Scheme 2).
In stark contrast to the metal complexation, the reaction of 4
proceeded cleanly by addition of two equivalents of methyl
À5
[
a] Dichloromethane, cꢀ10 m. [b] CH CN, NBu PF as supporting
3
4
6
+
electrolyte, vs. Fc/Fc .
2
+
triflate, providing phospha-MV 5 in good yield (79%) as
colorless solid. In addition to multinuclear NMR spectrosco-
py and CHN analysis, the formation of 5 was confirmed by X-
ray crystallography (Figure 2). Single crystals were obtained
from a concentrated solution of 5 in ethanol upon cooling to
The electrochemical characteristics of 4 were probed via
cyclic voltammetry (CV), performed in acetonitrile solution
+
at different scan rates and referenced versus Fc/Fc (Fc = [(h-
[12]
C H ) Fe] see the Supporting Information). The cyclic
08C.
5
5 2
voltammograms show a reversible reduction at Ered1,1/2
=
Note that the triflate anions are disordered over two
positions and only the major component is shown. Due to the
symmetry, both pyridinium rings and triflate anions are
equivalent. The triflate anions are located on top of the
annelated backbone, resulting in a short contact between O12
À1.85 V (E = À2.95 eV). Furthermore, another irrever-
LUMO
sible reduction is observed at E
sible oxidative wave can be found at E
= À2.47 V; an irrever-
red2,1/2
= 0.81 V
ox,peak
(
Table 1). The first reduction occurs at a lower potential
Angew. Chem. Int. Ed. 2011, 50, 7948 –7952
ꢀ 2011 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim
