Synthesis of benzyl acetate catalyzed by lipase immobilized in nontoxic chitosan-polyphosphate beads

Article abstract of DOI:10.3390/molecules22122165

Enzymes serve as biocatalysts for innumerable important reactions, however, their application has limitations, which can in many cases be overcome by using appropriate immobilization strategies. Here, a new support for immobilizing enzymes is proposed. This hybrid organic-inorganic support is composed of chitosan—a natural, nontoxic, biodegradable, and edible biopolymer—and sodium polyphosphate as the inorganic component. Lipase B from Candida antarctica (CALB) was immobilized on microspheres by encapsulation using these polymers. The characterization of the composites (by infrared spectroscopy, thermogravimetric analysis, and confocal Raman microscopy) confirmed the hybrid nature of the support, whose external part consisted of polyphosphate and core was composed of chitosan. The immobilized enzyme had the following advantages: possibility of enzyme reuse, easy biocatalyst recovery, increased resistance to variations in temperature (activity declined from 60^?C and the enzyme was inactivated at 80 ^?C), and increased catalytic activity in the transesterification reactions. The encapsulated enzymes were utilized as biocatalysts for transesterification reactions to produce the compound responsible for the aroma of jasmine.

Full text of DOI:10.3390/molecules22122165

molecules
Article
Synthesis of Benzyl Acetate Catalyzed by Lipase
Immobilized in Nontoxic
Chitosan-Polyphosphate Beads
1
,
2
3
ID
Ana D. Q. Melo *, Francisco F. M. Silva , José C. S. dos Santos
,
Roberto Fernández-Lafuente * , Telma L. G. Lemos 5 and Francisco A. Dias Filho 5
4
,
ID
1
Instituto Federal de Educação, Ciência e Tecnologia do Ceará, Rod. Pres. Juscelino Kubitschek,
Boa Viagem CEP 63870-000, Ceará, Brazil
Instituto Federal de Educação, Ciência e Tecnologia do Rio Grande do Norte, RN 233, Km-02, Nº 999,
2
Bairro Chapada do Apodi, Apodi CEP 59700-000, Rio Grande do Norte, Brazil; fmsilva1986@yahoo.com.br
Instituto de Engenharias e Desenvolvimento Sustentável, Universidade da Integração Internacional da
3
Lusofonia Afro-Brasileira, Redenção CEP 62785-000, Ceará, Brazil; jscleiton@gmail.com
Department of Biocatalysis, ICP-CSIC, Campus UAM-CSIC, Cantoblanco, 28049 Madrid, Spain
Departamento de Química Orgânica e Inorgânica da Universidade Federal do Ceará,
4
5
Campus do Pici, Bloco 940, Fortaleza CEP 60455-760, Ceará, Brazil; tlemos@dqoi.ufc.br (T.L.G.L.);
audisio@ufc.br (F.A.D.F.)
*
Correspondence: danielle.queiroz@ifce.edu.br (A.D.Q.M.); rfl@icp.csic.es (R.F.-L.);
Tel.: +55-85-3366-9972 (A.D.Q.M.); +34-91-9158-54941 (R.F.-L.)
Received: 13 October 2017; Accepted: 3 December 2017; Published: 7 December 2017
Abstract: Enzymes serve as biocatalysts for innumerable important reactions, however,
their application has limitations, which can in many cases be overcome by using appropriate
immobilization strategies. Here, a new support for immobilizing enzymes is proposed. This hybrid
organic-inorganic support is composed of chitosan—a natural, nontoxic, biodegradable, and edible
biopolymer—and sodium polyphosphate as the inorganic component. Lipase B from Candida
antarctica (CALB) was immobilized on microspheres by encapsulation using these polymers.
The characterization of the composites (by infrared spectroscopy, thermogravimetric analysis,
and confocal Raman microscopy) confirmed the hybrid nature of the support, whose external part
consisted of polyphosphate and core was composed of chitosan. The immobilized enzyme had the
following advantages: possibility of enzyme reuse, easy biocatalyst recovery, increased resistance to
◦
◦
variations in temperature (activity declined from 60 C and the enzyme was inactivated at 80 C),
and increased catalytic activity in the transesterification reactions. The encapsulated enzymes were
utilized as biocatalysts for transesterification reactions to produce the compound responsible for the
aroma of jasmine.
Keywords: chitosan; polyphosphate; microspheres; immobilization; lipase; CALB
1
. Introduction
The use of enzymes as industrial catalysts and in organic synthesis is often convenient because
enzymes are very specific, selective and capable of exhibiting a very high activity compared to
conventional catalysts [ ]. However, the use of enzymes for industrial bio-catalysis has certain
1
problems such as the high production cost because they are synthesized in small concentrations
by cells, and their extraction and purification are expensive. This high price is coupled to their
moderate stability under operational conditions, the low activity versus non-physiological substrates,
the non-absolute specificity or selectivity on industrially relevant substrates, etc. Some of these
drawbacks may be overcome by the development of appropriate enzyme immobilization techniques,
Molecules 2017, 22, 2165; doi:10.3390/molecules22122165
www.mdpi.com/journal/molecules

Molecules 2017, 22, 2165
2 of 17
which should maintain (or even increase) enzyme activity, modulate enzyme selectivity or specificity,
improve resistance to inhibitors [ ] and may even increase enzyme purity [ ], together with allowing
2–
4
5
an easy recovery of the catalyst from the reaction medium, thus reducing the overall operational
costs [6–8].
The world market for industrial enzymes is dominated by products containing non-immobilized
enzymes. This is justified by problems arising from the cost of the supports used for immobilization
and the cost of the immobilization process. Moreover, an inadequate enzyme immobilization may
negatively affect enzyme performance [7].
Among enzymes, the use of lipases as biocatalysts has been gaining prominence in the recent years,
since they operate in different types of solvents (ionic liquids, supercritical fluids, organic solvents,
and the least contaminant aqueous media), with many different substrates and being able to catalyze a
broad range of reactions [
to no production of undesirable byproducts and being environmentally safe [12]. Thus, lipases are an
important class of enzymes in biological systems [13 14], being the most commonly used biocatalysts,
9–11]. The use of lipases as catalysts results in selective synthesis, with low
,
with applications in esterification, transesterification, and hydrolysis processes for a variety of chemical
compounds [15]. In other words, in organic syntheses, lipases occupy a pivotal position [16].
The number of immobilization techniques that aim to improve the stability, activity, selectivity and
specificity of lipases as well as their resistance to inhibitors or denaturants, has been increasing over
the past years [2,6,17–20]. There are many techniques for enzyme immobilization, all of them having
advantages and disadvantages [21]. There are two great types of approaches to enzyme immobilization,
namely, irreversible and reversible. The most common irreversible methods are covalent binding [22],
entrapment in supports [23,24], cross-linking of the enzymes that were previously physically adsorbed
on the supports and microencapsulation. The most common reversible method of immobilization is
physical adsorption [25].
Immobilization is in many instances associated with a decrease in enzyme activity produced
by slight distortions in the enzymes’ structure or diffusional limitations, although in some cases an
increase in enzyme activity is achieved [3]. A higher activity of a given immobilized enzyme may be
derived from a decrease in enzyme inhibition or distortion, and not necessarily from the production
of a more active conformation of the enzyme [15]. Prevention of enzyme dissociation in multimeric
enzymes may be another way of improving enzyme activity or stability, mainly when used under
dissociation conditions [26]. The activity of an enzyme depends on its three-dimensional structure,
and the immobilization step can lead to altered conformational rearrangements, with positive or
negative effects on enzyme activity [8].
One of the preferred techniques for enzyme immobilization is using pre-existing supports [22];
however, the production of ex novo solid supports may also be of great interest. These ex novo solid
supports may be synthesized from a mixture of polymers with opposite ionic charges that maximize the
stability, both enzymatic and physical, of an enzyme. Anionic polysaccharides, such as alginate [27
form coacervates maintained via strong interactions or microspheres with cations (e.g., Ca2+) or cationic
polysaccharides, such as chitosan [30 32]. These immobilization strategies may be almost ideal to
–29],
–
stabilize multimeric enzymes because enzyme dissociation will be avoided [26].
Chitosan is a natural polymer which is produced from chitin [33]. Chitin is normally isolated
from the exoskeletons of many species of insects and crustaceans [34]. Furthermore, chitosan is a
biocompatible gel-forming cationic compound that can readily be prepared in different geometrical
configurations, such as membranes, beads, nanoparticles by nano-immobilization [35], fibers,
hollow fibers or sponges [15,36–39].
Sodium polyphosphate is an inorganic, polymeric, poly anionic electrolyte with high
cation sequestration ability [40]. Initially, it was named sodium hexametaphosphate, and later,
the nomenclature was modified because the widely used method for the production of this polymeric
salt produces a mixture of linear polymers with different lengths. Sodium polyphosphate is still
prominent as the only water-soluble phosphate polymer, and because it consists of anionic groups

Molecules 2017, 22, 2165
3 of 17
that are distributed throughout the polymeric chain, cations can interact with its anionic chain [41].
Beads formed by sodium polyphosphate and chitosan were used to immobilize the lipase from
Rhizopus cohnii [42]. In this new report, the enzymes are trapped in a support prepared using a different
technique (see Section 3). That way the enzymes were simultaneously trapped and ionically exchanged.
The use of these two polymers has interest because they are known to be non-toxic and
biodegradable and chitosan is commonly used as a support for the immobilization of lipases [43–45],
being the use of polyphosphate comparatively less extended [42]. Chitosan is already used in
numerous applications, with the approval of national and international regulatory agencies, as means
of immobilizing drugs, in the preparation of protective films for food, in the treatment of water among
other applications [46].
Rattanaphra and Srinophakun used chitosan as a support to immobilize lipase in
transesterification reactions of sunflower and jatropha oil with methanol, finding that the transformation
of sunflower oil is improved [47]. Although the synthesis of this ester by conventional chemical
methods is possible, such production methods have many disadvantages, such as high temperature,
toxicity of reagents, use of corrosive catalysts, and low selectivity, and thus, increasing the possibility
of the generation of by-products that compromise the purity or hinder the purification of the target
product [48]. Moreover, these esters cannot be labeled as a green product.
The interaction between the cationic groups of chitosan and a phospholipid monolayer was
utilized to produce a support for immobilization was reported by Krajewska [49,50]. In this paper, the
manufacture of a phospholipid monolayer following the Langmuir film technique and a study of the
sensitivity of the layer to the temperature and the pH values, demonstrated that not only electrostatic
forces were involved in the formation of the layer, but also significant non-electrostatic contributions
had to be accounted for.
Esters are chemicals of great economic importance in the food, pharmaceutical, and cosmetic
industries [51]. Among the esters of short-chain carboxylic acids, benzyl acetate is of outstanding
interest, with applications in different fields. The annual production of this compound is up to 10,000
tons. This ester can be obtained from natural sources, since it is present in plants, such as jasmine and
gardenia; however, its direct extraction and purification are highly complex and expensive [52].
The objective of this study was to analyze the effects of the encapsulation of a model enzyme on a
novel ex novo support formed of chitosan and polyphosphate. As the model enzyme, we had selected
the lipase B from Candida antarctica (CALB), which is one of the most widely reported enzymes in
the literature [53–56]. This biocatalyst was utilized to produce benzyl acetate via a transesterification
reaction. In the kinetically controlled reactions, the maximum yields are transient (the product could
be hydrolyzed by the enzyme), and therefore the maximum yields are determined by the properties of
the biocatalyst [4].
2
2
2
. Results and Discussion
.1. Characterization of Lipase Immobilized on Polyphosphate and Chitosan Support (LPCS) Microspheres
.1.1. Infrared Spectroscopy
The degree of chitosan deacetylation was directly related to the increase in the number of cationic
sites present in the polymer. This could be followed by monitoring the axial deformation band of the
−
1
C=O amide bond at approximately 1656 cm
.
The positions of the bands that characterized the center of the polyphosphate chain, the chain and
2
−
the terminal atoms were displaced (they were νs (P-O-P), νs (terminal PO ), and νas (PO middle of
3
−
1
the chain) at 877, 1105, and 1293 cm , respectively. The displacement of these bands suggested that
the center of the anionic chain and terminal sites of phosphate are involved in ion exchange with the
cationic chain of chitosan. Figure 1 shows that the identity bands of each precursor polymer appeared
in the spectral profile of the produced microspheres. This confirmed the hybrid (organic-inorganic)
nature of the microspheres.

Molecules 2017, 22, 2165
4 of 17
The new conformation of the material (microspheres of chitosan) after the interaction of the two
macromolecules increased the energy. An evidence of these electrostatic interactions is the red shifts in
the absorption bands [57].

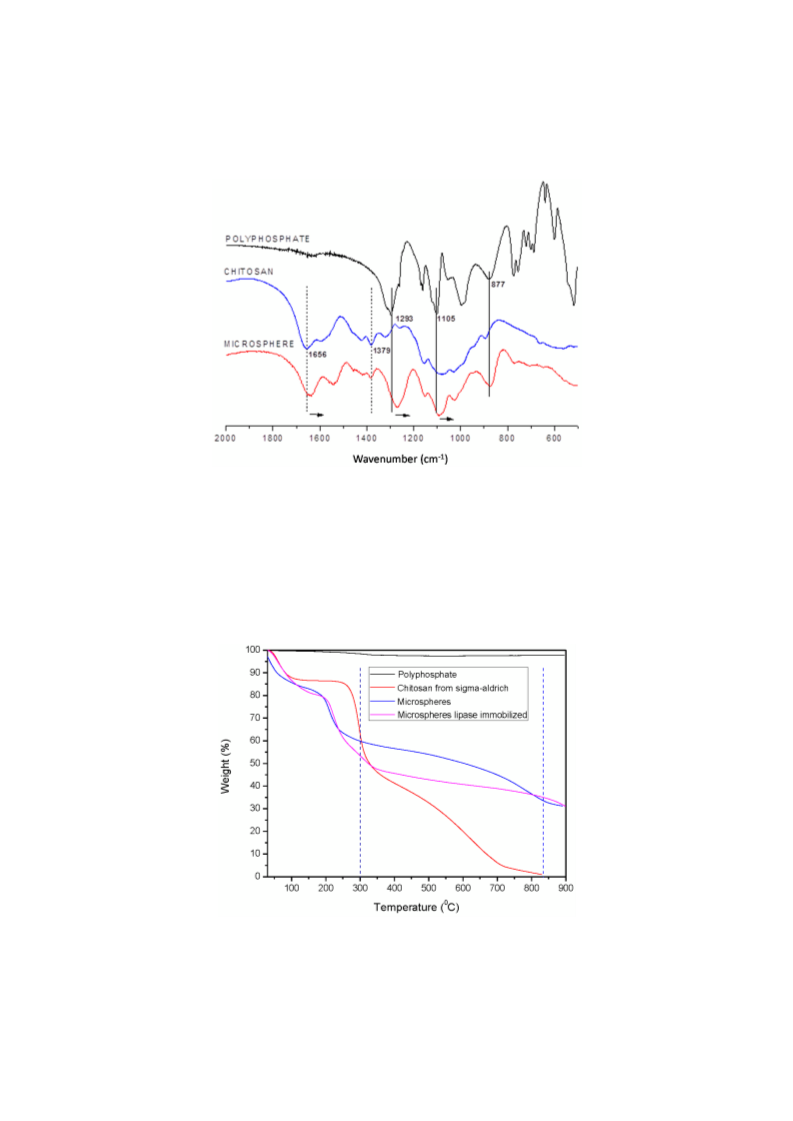

Figure 1. FT-IR spectra of polyphosphate, chitosan and the microspheres formed. The experiments
were performed as described in Section 3.
2
.1.2. Thermogravimetric Analysis
In the thermal decomposition curve of chitosan, two peaks were observed: the first one,
which denoted an endothermic reaction, corresponded to the process of dehydration, and it
◦
was observed at approximately 263 C; the second one, which denoted an exothermic reaction,
corresponded to the process of chitosan decomposition, which continued beyond the temperature
limit, and resulted in the formation of a residual solid mass of 1.8% (Figure 2).
Figure 2. Thermogravimetric Analysis (TG) of chitosan, polyphosphate, microspheres and LPCS
◦
−1
biocatalyst. Experiments have been performed with 10 mg of each sample, heating rate of 10 C
·
min
in a synthetic air atmosphere. Other specifications are described in Section 3.
◦
Using polyphosphate, there was almost no decomposition of the sample, even at 900 C, as it is a
vitreous precursor. The thermal resistance of the microspheres was higher than that of the precursors

Molecules 2017, 22, 2165
5 of 17
because of the strong interactions between sodium polyphosphate and chitosan. Figure 2 also shows
◦
◦
that the first decomposition event occurred between 150 C and 250 C, depending on the microspheres
sample, and the other decomposition events were extended over a wide temperature range for the
sample without lipase (called microspheres). When using the immobilized lipase sample, its thermal
◦
◦
decomposition occurred between 299 C and 834 C.
The residual mass of chitosan was 1.8%, whereas the sample of sodium polyphosphate did not
exhibit any loss in mass. On the other hand, the residual masses were 36.8% and 35% when the
microspheres were used with or without lipase, respectively. This allowed concluding that virtually all
of the residual mass was sodium polyphosphate.
2
.1.3. Confocal Raman Microscopy
Confocal Raman microscopy suggested that the shells of the microspheres were composed of
sodium polyphosphate, and the cores of the spheres were composed mainly of chitosan (Figure 3).

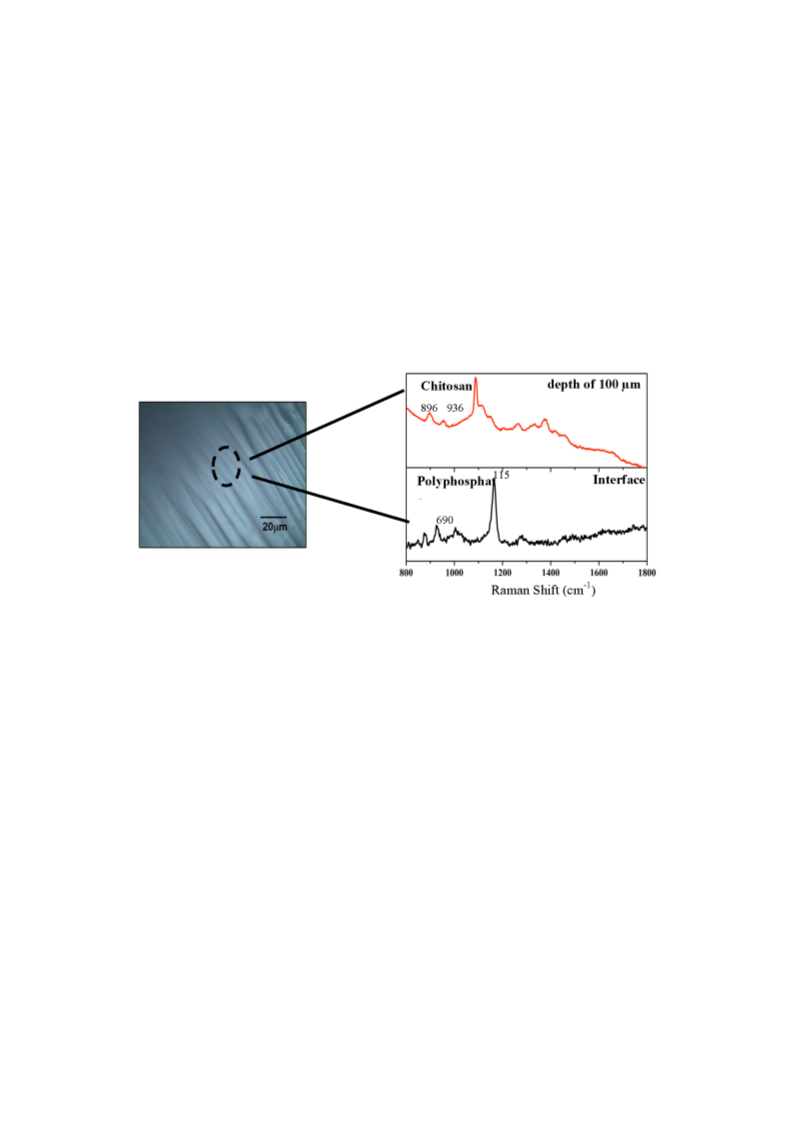

Figure 3. Confocal Raman spectra of two points located on the outside and inside of the microspheres,
−
1
at a depth of 100
in Section 3.
µm and intensity of 520.6 cm band for a Si wafer. Other specifications are described
The peaks for polyphosphate, which were used as signature peaks, were of P-O-P vibrations
and PO2 stretches, which were observed at approximately 690 and 1157 cm , respectively [51].
Although the spectra of chitosan were similar to that of polyphosphate, it was possible to differentiate
between them. The spectral profiles exhibited by the cores of the microspheres suggested that
−
−1
−
1
chitosan was the main component, because the peaks were observed at 896 and 936 cm , which were
characteristic of C-H bending vibrations and C-N stretching [58].
The extent of the encapsulation through immobilization process of the lipase to form LPCS
biocatalyst was next to 100%, and no protein was detected in the supernatant by the Bradford method,
which suggested the complete encapsulation of the enzyme in the microspheres.
2
.2. Characterization of LPCS
2
.2.1. Preservation of the Catalytic Activity of the Lipase by LPCS Immobilization
The ability of the biocatalyst to catalyze hydrolytic reactions was preserved upon its encapsulation
inside the polyphosphate-chitosan support (Figure 4), which maintained 92% of the hydrolytic activity
of the free enzyme. This proved that the support that was developed in this study did not compromise
the catalytic activity of the enzyme [7].

Molecules 2017, 22, 2165
6 of 17
60
55
50
45
40
35
30
25
20
15
10
5
0
biocatalyst
Free enzyme
Immobilized enzyme
Figure 4. Hydrolytic enzyme activity was determined using 0.046 mL of free enzyme solution
◦
(
6.5 mg/mL buffer pH 7) or 5 mg of dry microspheres, 3 mL of aqueous buffer at pH 7.0 and 25 C and
0
.3 mL of 20 mM PNPA in acetone under gently stirring. The enzyme was immobilized as described in
the text. Other specifications are described in Section 3.
2
.2.2. Effect of Reaction Temperature on the Activity of LPCS
The hydrolytic activity of the immobilized enzyme was evaluated at different temperatures.
◦
Figure 5 shows that the activity of the immobilized enzyme increased up to 55 C and decreased at
◦
◦
temperatures higher than 60 C; the enzyme became fully inactive at 80 C while the free enzyme
is fully inactive at 70 C. The optimum temperature of the immobilized lipase was similar to other
◦
reports described in the literature [15].
100
90
80
70
60
50
40
30
20
10
0
0
20
40
60
80
100
Temperature (°C)
Immobilized enzyme
Free enzyme
Figure 5. Effect of the temperature on the activity of different CALB preparations. Values expressed in
Enzymatic Activity Unit (U), defined as the capacity of the catalyst (1 mg) to hydrolyze 1 mol of PNP
L, 20 mM)
µ
per minute. Experiments have been performed at pH 7.0 (3 mL, 0.05 M) using PNPA (300
as substrate and 5 mg catalyst per 10 min at 30 C. Other specifications are described in Section 3.
µ
◦
2
.2.3. Catalytic Ability of the Enzyme Immobilized Using Different Solvents
The hydrolytic activity of the enzyme immobilized in the LPCS support was studied using
different mixtures of solvents and aqueous buffers (Figure 6). LPCS exhibited better performance in
the medium composed of dimethyl sulfoxide/phosphate buffer 7.0 mixture; the enzyme activity in this
medium was more than double compared to the one detected in a pure aqueous medium contradicting

Molecules 2017, 22, 2165
7 of 17
results presented by Bommarius, that showed a deactivation effect of DMSO [59]. This suggests the
good properties of the new biocatalyst. The lowest activity was obtained when tetrahydrofuran/buffer
7
.0 was used as the solvent for the reaction, as shown in Figure 6.
Acetonitrile had a greater negative effect at 60% than at 75%. It is important to note that although
the hydrolytic activity of the enzyme in the different solvents was different, the immobilized enzyme
was reasonably active in all of them, with the exception of the THF solvent where the enzyme had
negligible activity. It was also possible to highlight that the use of binary solvent mixtures with higher
dielectric constant (water, acetonitrile, and DMSO) resulted in higher hydrolytic activity of the enzyme.
The high resistance of the enzyme to negative effects of organic solvents, together with the prevention
of enzyme aggregation, could also be partially due to the partition of the organic solvents away from
the highly hydrophilic environment of LPCS. This phenomenon of solvent partition has been described
in other cases using other ionic polymers [60–62].
1
20
00
1
80
60
40
20
0
T7
MeCN/T7 (75%) MeCN/T7(60%) THF/T7 (40%) DMSO/T7(80%)
Solvent type

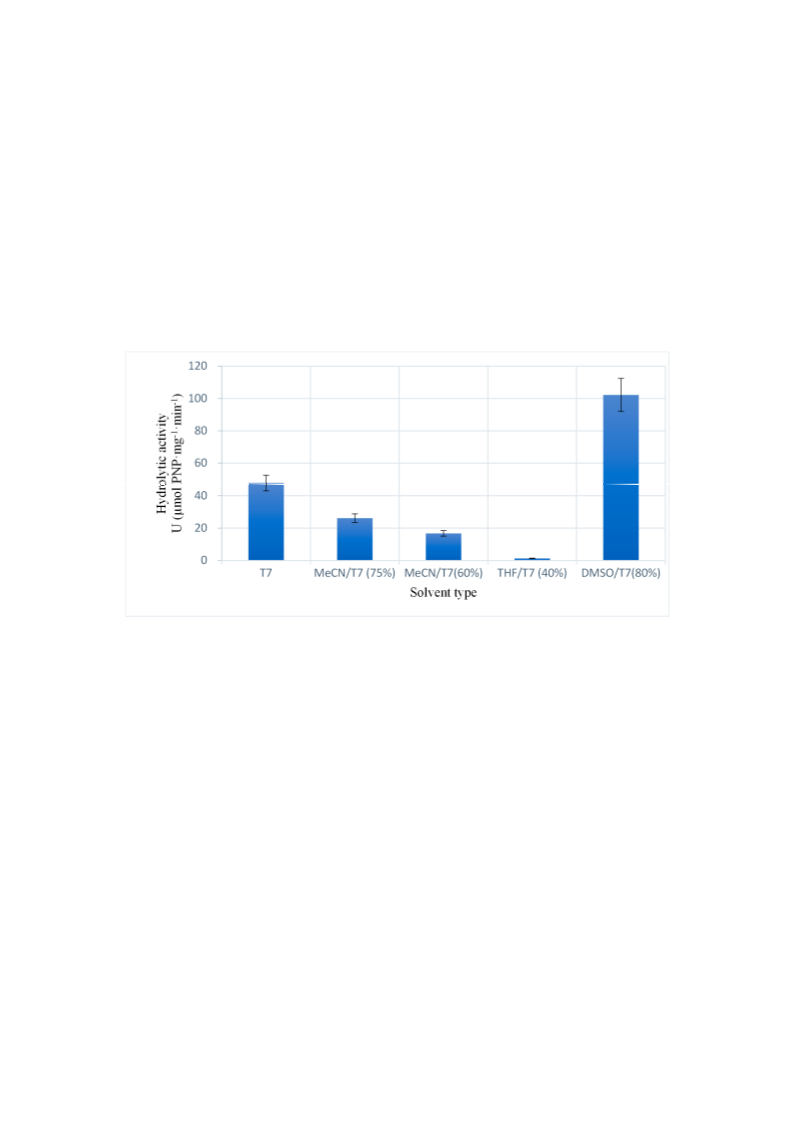

Figure 6. Effect of organic solvents on the enzyme activity on CALB immobilized in LPCS. Values are
expressed in Enzymatic Activity Unit (U), defined as the capacity of the catalyst (1 mg) to hydrolyze
◦
1
µ
mol of PNP per minute. Experiments have been performed at 30 C using PNPA as substrate. MeCN:
Acetonitrile; T7: buffer at pH 7; THF: tetrahydrofuran, DSMO, dimethyl sulfoxide. Other specifications
are described in Section 3.
2
.2.4. Stability of the Enzyme Immobilized in the LPCS Support at Different Values of pH
◦
The analysis of the stability of LPCS at different pH values and 65 C is represented in Figure 7.
◦
The temperature of 65 C for the pH test was selected in order to render the least system stable to be
able to detect some enzyme inactivation after a reasonable time-period.
The enzyme was highly stable at pH 4.0, with a half-life of 366 min. When the medium was basic
(
pH 10.0), the biocatalyst half-life was reduced to 50 min, and even lower, to 25 min at pH 7.0. At pH 7,
the enzyme could interact with both cationic and anionic groups in the support, which could be the
driving force for the enzyme inactivation being faster at neutral pH value than at extreme pH values.
These results suggested greater thermal stability of the enzyme immobilized in the LPCS at
different values of pH than those obtained when the enzyme was immobilized in a pre-formed
chitosan/polyphosphate support via ion exchange [63]. Comparatively Badgujar and Bhanage tested
three enzyme biocatalysts, being the best one that containing chitosan in the structure, but the enzyme
activity was reduced 45 times [64], while by the novel method proposed in this paper, more than 90%
of the enzyme activity was maintained after immobilization. The strong ion exchange between the
enzyme and the ex novo support, which involved the entire enzyme structure and reduced enzyme
mobility, may be the reasons for the excellent results in terms of activity and stability [65].

Molecules 2017, 22, 2165
8 of 17
The immobilized enzyme stability in acidic media agreed with the results of the confocal Raman
microscopy which suggested that polyphosphate constituted the shell of the microspheres, because this
polymer was more resistant in acidic media than chitosan, which was highly soluble in acidic media.
In this way, under acidic pH, the microspheres appear to be completely stable, and this prevented
enzyme inactivation.
Moreover, this methodology presents potential in the application of multimeric enzymes
immobilization because low pH (acidic pH) values may promote the subunit dissociation of many
multimeric enzymes and, consequently, the inactivation of enzymes [26] The dissociation will be
prevented if all enzyme subunits are trapped [26].

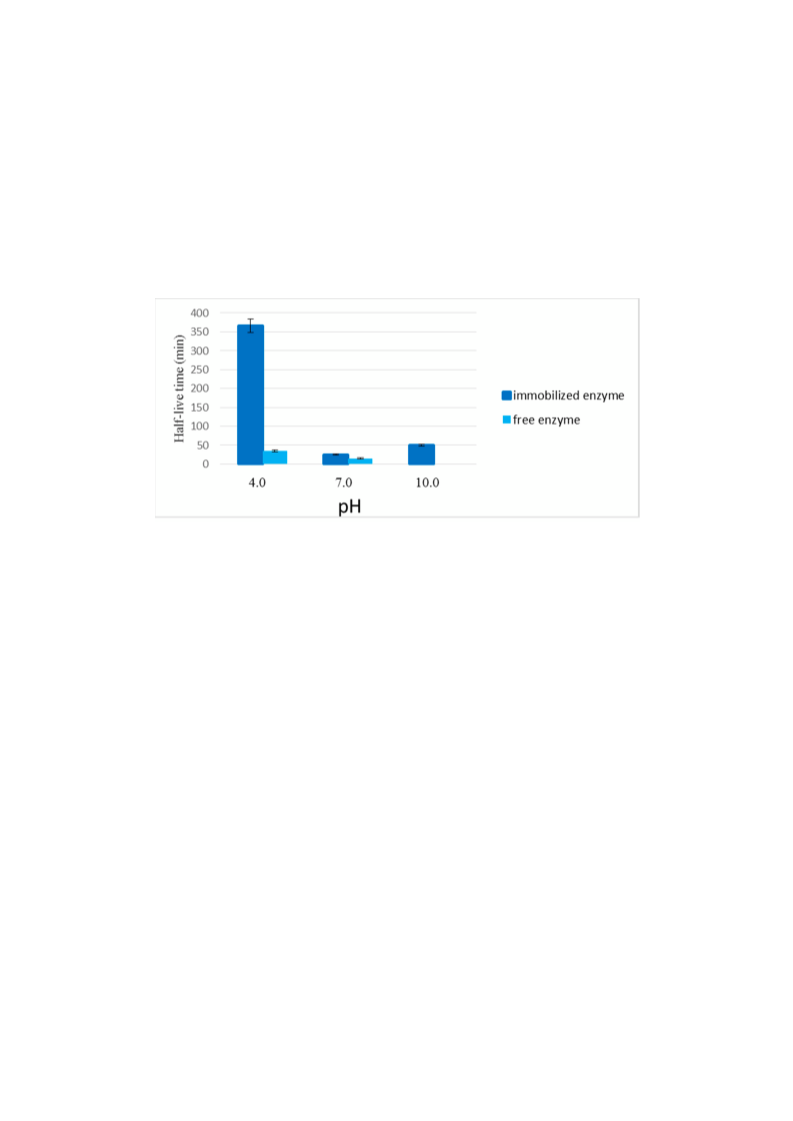

Figure 7. Half-lives (min) of CALB immobilized in different pH (4.0, 7.0 and 10). Experiments have
◦
been performed at 65 C following the activity with PNPA as described in Section 3.
2
.2.5. Enzymatic Synthesis Catalyzed by LPCS of the Compound Responsible for the Aroma
of Jasmine
Another potential application of LPCS, which was evaluated in this study, was its ability to
artificially produce the compound responsible for the aroma of jasmine (Figure 8). This compound has
wide applications in the cosmetic and perfume industries [66]. The immobilized enzyme was able to
catalyze the acetylation of benzyl alcohol with different acyl donors. The activated acyl donor that
permitted the highest enzyme activity in the acetylation reaction was vinyl acetate, which gave also
the highest maximum yield. When acetic acid (this was a direct esterification reaction), ethyl acetate,
or butyl acetate (these were transesterification reactions) were used, the conversion levels were below
4
0% (Figure 9).
The yields of the direct esterification reaction were higher than those of the transesterification
reactions using esters, because in the latter, the released alcohols might compete with benzyl alcohol
reducing the final yields. In any case, in the reaction involving vinyl acetate, during which no such
competitive alcohol was released, a high yield was observed within a short time (74% conversion after
1
2 h, and 98% after 24 h (Figure 10)). These results were better than those previously reported on the
synthesis of esters used in perfumes. For example, conversion levels of less than 90% were reported
after 24 h of reaction when the commercial enzyme Lipozyme RMIM was used using supercritical
carbon dioxide as solvent, that is, a reactive medium more technologically complex than the one
presented in this work [66].
Conversion yields of 97.3% in the synthesis of these esters with jasmine aroma were obtained by
enzymatic catalysis using commercial enzymes as biocatalysts. In those examples Lipozyme TL IM
(
lipase from Thermomyces lanuginosus immobilized on silica gel, 0.25 U/mg) and Novozym 435 (lipase
B from Candida antarctica immobilized on macroporous resin, 10 U/mg) were used to esterify benzyl
alcohol for 24 h. These conditions are similar to those used in this work and they are also reported

Molecules 2017, 22, 2165
9 of 17
in the literature [67] and the comparative among the results suggest the promising LPCS biocatalyst
performance in organic synthesis.
In another study, the enzymatic syntheses of methyl butyrate and octyl acetate (important esters
for the industrial fragrances) were carried out, using commercial immobilized lipase from Rhizopus
oryzae (NRRL 3562) and performing the transesterification reaction under solvent-free conditions.
Molar conversions of 70.42% and 92.35% were obtained in reaction times of 14 and 12 h for methyl
butyrate and octyl acetate, respectively [68].
Figure 8. Scheme of the enzymatic production of the aroma of jasmine (benzyl acetate).
Other specifications are described in Section 3.
Figure 9. Effect of acyl donors on the acetylation of benzyl alcohol catalyzed by CALB immobilized in
◦
LPCS support. Experiments have been performed at 30 C, using 5 mg of dry microspheres, 0.02 mL
of benzyl alcohol, 0.05 mL of different acyl donors completing the volume with hexane to 2 mL.
The reaction was left to proceed for 24 h. Other specifications are described in Section 3.
This enzymatic process has a great interest, both from environmental and operational perspectives,
because in typical chemical acetylation reactions, toxic catalysts (pyridine) are often used with onerous
recovery methods, and in general, they are not ecologically sustainable [69,70].
2
.2.6. LPCS Recycling
In order to evaluate the possibility of the reutilization of LPCS in this reaction, the same LPCS
biocatalyst was utilized for five cycles. It was possible to observe that the reaction yields that were
obtained using LPCS exhibited a progressive but relatively small decrease over successive cycles,
from 98% to 86% after the fifth cycle (Figure 10).
The microspheres lost their structures when they were stored under wet conditions at room
temperature after 30 days. This could be clearly visualized by the release of the liquid that was
trapped inside the LPCS biocatalyst into the medium (as shown in Figure 11). However, when dried,
the spheres retained their shape, the particles became harder, and the enzyme remained immobilized

Molecules 2017, 22, 2165
10 of 17
and active within them during after 30 days. This implied that the use of LPCS in an anhydrous
medium would be of great interest.
100
80
60
40
20
0
1
2
3
4
5
Reaction cycles
Figure 10. Operational stability of CALB immobilized in LPCS during the production of benzyl acetate.
◦
Experiments have been performed at 30 C, using 5 mg of dried microspheres, 0.02 mL of benzyl
alcohol, 0.05 mL of acyl donor (vinyl acetate) completing 2 mL with hexane, reaction time of 24 h.
◦
Then the biocatalyst was washed with hexane, dried at 30 C for 20 min and finally submitted to a new
reaction cycle. Other specifications are described in Section 3.
Figure 11. Photomicrographs of the microspheres at 50
×
magnification factor. (A) microsphere
just after being produced; (
temperature; (
B) microspheres after 30 days of storage under wet conditions at room
◦
C) microspheres after 24 h of being submitted to heating at 30 C in a vacuum dryer.
Other specifications are described in Section 3.
3
. Materials and Methods
All experiments were performed at a minimum in duplicate.
3
.1. Materials
The enzyme that was used in this study was lipase B from Candida antarctica (CALB), which was
supplied by Novozymes (Alcobendas, Spain). Chitosan, benzyl alcohol and p-nitrophenyl acetate
PNPA) were obtained from Sigma-Aldrich (Saint Louis, MO, USA), sodium polyphosphate was
(
supplied by Merck (Kenilworth, NJ, USA) and used without further refinement. Deionized water was
used in this study.
3
.2. Equipments Used for the Characterization of the Biocatalyst
−
1
Fourier transform infrared (FTIR) spectra from 4000 to 400 cm were recorded using an FTLA
000-102 FTIR spectrophotometer (ABB–Bomem, Zurich, Switzerland) using the KBr pellet technique
2
at room temperature.
Thermogravimetric (TG) analysis was performed using a thermogravimetric analyzer (model
◦
◦
TGA/SDTA851e; Mettler-Toledo, Columbus, OH, USA) by heating the samples from 30 C to 900 C
at 10 C·min in a synthetic air atmosphere.
◦
−1
The Raman spectra were obtained using an inVia Qontor Raman microscope (Renishaw,
Gloucestershire, UK) coupled to a Leica DM2500 M microscope (Leica, Mannheim, Germany),

Molecules 2017, 22, 2165
11 of 17
a Renishaw MS 20 motor stage with axial and lateral resolution of 0.10 mm, which was controlled
using the wire 3.6 software (Renishaw, Gloucestershire, UK), excited with radiation at 632.8 nm (He-Ne,
Renishaw) and at 785 nm (diode, Renishaw). The scattered radiation was dispersed using a diffraction
−
1
grating of 1200 lines mm , and recorded using a Peltier-cooled CCD camera. The samples were
·
observed using a LEICA objective lens with a numerical aperture of 0.9 and magnification of 50×.
®
A QP2010SE Plus GC/MS apparatus (Shimadzu, Kyoto, Japan) using a 30-m Rtx -5MS (95%
dimethylpolysiloxane and 5% diphenyl) capillary column, with an internal diameter of 0.25 mm and
film thickness of 0.1
µ
◦
◦
m of the fixed phase was used; The temperatures of the injector and detector
◦
◦
◦
−1
were 240 C and 280 C, respectively. The column conditions were: 60–80 C at 5 C
·
min , held for
◦
◦
−1
3
min, then, from 80 C to 280 C at 30 C
·
min , remaining at this temperature for 10 min using He
−
1
as the gas for entrainment with a flow rate of 1.0 mL
spectrometer in scan mode with an analysis time in 23.67 min; The mass spectra were recorded in the
·
min . Analysis was performed using the mass
range of 35 to 500 daltons per electron impact (EMIE) with an ionization energy of 70 eV (voltage of
◦
1
.5 KV) using a quadrupole mass analyzer and an ion source at 240 C.
The enzyme activities of free lipase and immobilized lipase were monitored by UV–Vis
spectroscopy using a FEMTO 600 S spectrophotometer (FEMTO Indústria e Comércio de Instrumentos,
Sao Paulo, Brazil) at a specific wavelength.
Images of the microspheres were observed using a LABOMED/ANALITICA LX 400 optical
microscope (LABOMED, Los Angeles, CA, USA) equipped with Siedentopf binocular and trinocular
◦
◦
heads inclined at 30 , and 360 , respectively rotation an interpupillary distance of 48–75 mm,
with 10 /20 mm wide-field eye-pieces of optical Infinite RP Series, and Achromatic Flat DIN
Objectives of 4 (WD 30.0 mm), 10 (WD 7.0 mm), 40 (WD 0.65 mm; retractable), and 100
×
×
×
×
×
(
WD 0.23 mm).
3
.3. Synthesis of the Microspheres from Chitosan and Polyphosphate
Microspheres were synthesized by adding a 75% to 85% deacylated chitosan (CH, 2% w/v)
solution dropwise to a solution of sodium polyphosphate (PP), (Merck 68%, 0.2 M), with agitation
≥
at room temperature. Microsphere samples with a molar ratio (PP:CH) ranging from 10:1 to 1000:1
were synthesized.
The chitosan solution was added dropwise to an aqueous solution of sodium polyphosphate at a
concentration of >0.2 M. Ten milliliters of each of the polymer solutions was used; then, the produced
spheres were recovered by decantation, and washed with distilled water (Figure 12). The standard
molar ratio of the two polyelectrolytes (polyphosphate:chitosan) used was 1000:1, since this ratio
resulted in the synthesis of microspheres with higher mechanical resistance than those generated at the
ratios of 100:1 and 10:1. The supernatants were collected for further analysis by UV-Vis spectroscopy.

Molecules 2017, 22, 2165
12 of 17

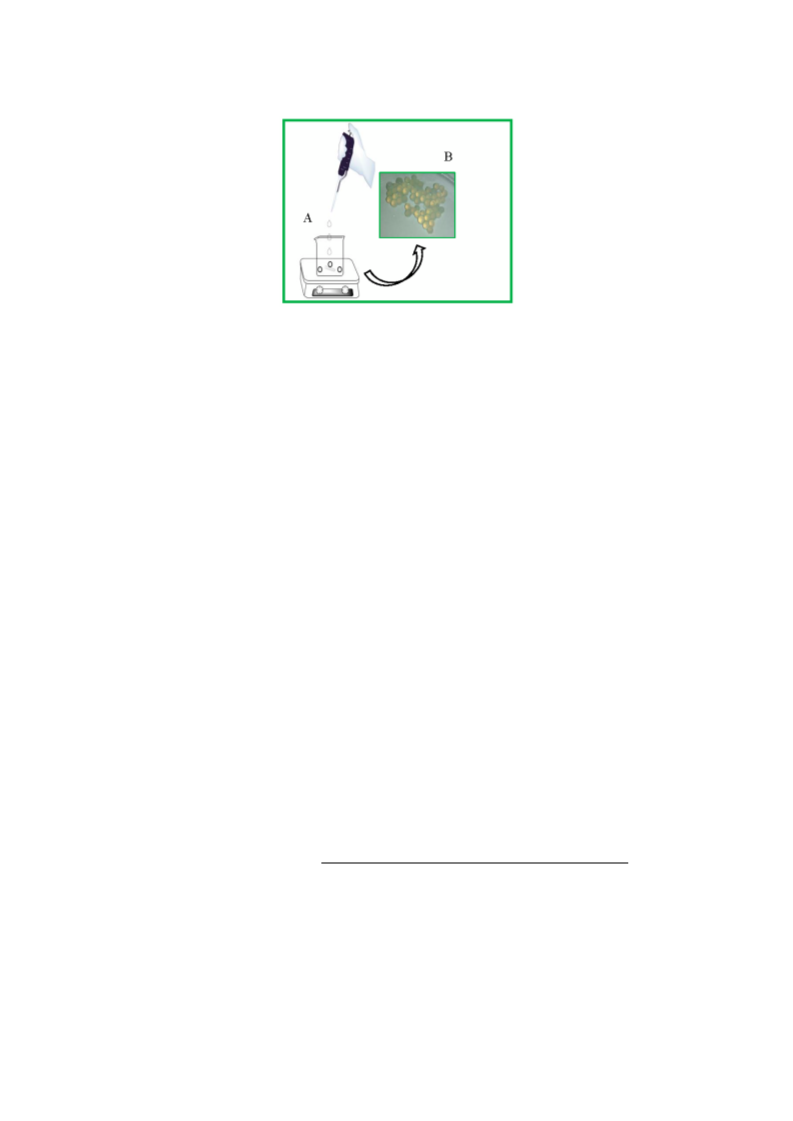

Figure 12. Schematic representation of the procedure for the formation of microspheres, in (
solution (0.38 mL; 1 mg/mL) dissolved in 2.5 mL of 2% (w/v) chitosan solution was added dropwise to
0 mL of 0.2 M sodium polyphosphate and ( ) the image of microspheres. Other specifications are
A) CALB
1
B
described in Section 3.
3
.4. Immobilization of CALB
CALB solution (0.38 mL; 1 mg/mL) was mixed with 2.5 mL of 2% (w/v) chitosan solution, and the
system was subjected to magnetic stirring for 30 min; then, all the mixture of chitosan and CALB was
added dropwise to 10 mL of sodium polyphosphate solution, as described in the previous section,
and subjected to 30 min of mild magnetic stirring. The formation of microspheres was instantaneous
for each added drop. The new biocatalyst-polyphosphate-chitosan support that encapsulated the
lipase was referred to as LPCS.
3
.5. Determination of the Concentration of the Immobilized Enzyme
The concentration of the immobilized enzyme in the support was determined according to
Equation (1):
Amount of immobilized enzyme, (%) = 100 × (1 − protein in supernatant/initial ofered protein)
.6. Hydrolytic Activity
The evaluation of the hydrolytic activity of CALB was based on the hydrolysis of PNPA.
(1)
3
An aliquot of 300 L of 20 mM PNPA in was added to 3 mL of 0.05 M phosphate buffer solution
pH 7.0. Then, 5 mg of the immobilized enzyme was added to the system with stirring (175 rpm) for
0 min. After this, the solution was filtered, and the concentration of PNP that was released was
quantified using a spectrophotometer at 410 nm. One unit of hydrolytic activity (A) was defined
µ
1
−
1
as the amount of enzyme required to release 1
µ
mol of PNP per minute (
µ
mol min ). At certain
·
◦
◦
instances, the temperature was varied between 30 C and 80 C, and different solvents were added.
The hydrolytic activity of the enzyme was calculated according to Equation (2):
Amount of PNP (µmol)
Amount of immobilized enzyme (mg) × time (min)
Hydrolytic activity (A) =
(2)
3
.7. Activity in Organic Solvents
The activity of the enzyme that was encapsulated in the microspheres was tested in different
mixtures of organic solvents (acetonitrile (MeCN); tetrahydrofuran (THF) and dimethyl sulfoxide
DMSO) and phosphate buffer pH 7.0 (T7)), according to the following methodology: 3.0 mL
(
of the evaluated solvent was added to 300
immobilized enzyme.
µL of 20 mM PNPA in acetone with 5 mg of dried

Molecules 2017, 22, 2165
13 of 17
3
.8. Effect of pH
For the analysis of the thermal inactivation of the biocatalyst under stress conditions, 5 mg of
biocatalyst was suspended in 1 mL of 10 mM sodium acetate at pH 4, sodium phosphate at pH 7,
◦
or sodium carbonate at pH 9, in all cases at 65 C (
±
2). Periodically, samples were withdrawn, and the
activity was measured using PNPA. The deactivation constant and half-life of each immobilized
derivative were calculated according to the model of Sadana and Henley [71] using Microcal Origin
version 8.1 (Microcal Software, Inc., Malvern, UK) [44].
3
.9. Enzymatic Synthesis of Esters—Effect of the Acyl Donor Groups and Enzymatic Synthesis of the
Compound Responsible for the Aroma of Jasmine
A quantity of 5 mg of the immobilized enzyme was added to 20 µL of benzyl alcohol and 50 µL
of acyl donor (vinyl acetate, acetic acid, ethyl acetate, and butyl acetate) in 2 mL of hexane solution.
Then, aliquots were withdrawn after 12 and 24 h, and analyzed by gas chromatography coupled with
mass spectrometry using chiral columns.
3
.10. Reuse of the Catalyst
For analyzing the reusability of the immobilized enzyme, a reaction with 20
µL of benzyl alcohol
was performed. The quantities of (5 mg) the immobilized enzyme and vinyl acetate (50
µL) were
maintained with hexane (2 mL) as the solvent. The reaction products were analyzed at different
reaction times (12 and 24 h). After 24 h, the reaction medium was filtered, and the immobilized enzyme
was separated from the reaction medium by filtration. Finally, the support was washed twice with
5
mL of hexane and was dried at room temperature for 30 min, and then, subjected to a new reaction
cycle (five times).
4
. Conclusions
The new proposed LPCS enzymatic biocatalyst, where the enzyme is trapped by oppositely
charged polyions, sodium polyphosphate and chitosan, has proved to be an efficient protocol for the
physical entrapment of enzymes (that is, microencapsulation). The prepared biocatalyst allowed its
application in organic media, with potential use in organic synthesis.
Results showed that the immobilized lipase presented high thermal stabilization and, maintained
high activity in organic solvents, and, finally, the biocatalyst stability in extreme pH values (pH 4 and
1
0) is remarkable. The stability presented at pH 4 was higher than the values reported in the literature
◦
for other immobilized CALB preparations under these conditions, with a half-life of 366 min at 65 C.
The biocatalyst showed good performance for the reactions of enzymatic synthesis of the compound
responsible for the aroma of jasmine with a yield of 98% after 24 h of reaction.
Acknowledgments: This work was supported by the Brazilian Agencies CNPq, CAPES, and FUNCAP.
We gratefully acknowledge the support from the MINECO of the Spanish Government (project number
CTQ2017-86170-R). The help and suggestions of Ángel Berenguer (Instituto de Materiales, Universidad de
Alicante) are gratefully recognized.
Author Contributions: A.D.Q.M. and F.A.D.F. conceived and designed the experiments; F.F.M.S. and T.L.G.L.
analyzed the data; J.C.S.d.S. and R.F.-L. contributed reagents/materials/analysis tools; all the authors wrote
the paper.
Conflicts of Interest: The authors declare no conflict of interest.
References
1
.
Jesionowski, T.; Zdarta, J.; Krajewska, B. Enzyme immobilization by adsorption: A review. Adsorption 2014
0, 801–821. [CrossRef]
,
2

Molecules 2017, 22, 2165
14 of 17
2
3
.
.
Mateo, C.; Palomo, J.M.; Fernandez-Lorente, G.; Guisan, J.M.; Fernandez-Lafuente, R. Improvement of
enzyme activity, stability and selectivity via immobilization techniques. Enzym. Microb. Technol. 2007
0, 1451–1463. [CrossRef]
Garcia-Galan, C.; Berenguer-Murcia, Á.; Fernandez-Lafuente, R.; Rodrigues, R.C. Potential of Different
Enzyme Immobilization Strategies to Improve Enzyme Performance. Adv. Synth. Catal. 2011, 353, 2885–2904.
,
4
[CrossRef]
4
.
.
Rodrigues, R.C.; Ortiz, C.; Berenguer-Murcia, Á.; Torres, R.; Fernández-Lafuente, R. Modifying enzyme
activity and selectivity by immobilization. Chem. Soc. Rev. 2013, 42, 6290–6307. [CrossRef] [PubMed]
Barbosa, O.; Ortiz, C.; Berenguer-Murcia, Á.; Torres, R.; Rodrigues, R.C.; Fernandez-Lafuente, R. Strategies for
5
the one-step immobilization–purification of enzymes as industrial biocatalysts. Biotechnol. Adv. 2015
3, 435–456. [CrossRef] [PubMed]
Sheldon, R.A.; van Pelt, S. Enzyme immobilisation in biocatalysis: Why, what and how. Chem. Soc. Rev. 2013
2, 6223–6235. [CrossRef] [PubMed]
DiCosimo, R.; McAuliffe, J.; Poulose, A.J.; Bohlmann, G. Industrial use of immobilized enzymes.
Chem. Soc. Rev. 2013, 42, 6437–6474. [CrossRef] [PubMed]
,
3
6.
7.
8.
9.
,
4
Liese, A.; Hilterhaus, L. Evaluation of immobilized enzymes for industrial applications. Chem. Soc. Rev.
2
013, 42, 6236–6249. [CrossRef] [PubMed]
Manoel, E.A.; Ribeiro, M.F.P.; Dos Santos, J.C.S.; Coelho, M.A.Z.; Simas, A.B.C.; Fernandez-Lafuente, R.;
Freire, D.M.G. Accurel MP 1000 as a support for the immobilization of lipase from Burkholderia cepacia:
Application to the kinetic resolution of myo-inositol derivatives. Process Biochem. 2015, 50, 1557–1564.
[CrossRef]
1
1
1
1
0. Villalba, M.; Verdasco-Martín, C.M.; dos Santos, J.C.S.; Fernandez-Lafuente, R.; Otero, C.
Operational stabilities of different chemical derivatives of Novozym 435 in an alcoholysis reaction.
Enzym. Microb. Technol. 2016, 90, 35–44. [CrossRef] [PubMed]
1. Bezerra, R.M.; Neto, D.M.A.; Galvão, W.S.; Rios, N.S.; Carvalho, A.C.L.d.M.; Correa, M.A.; Bohn, F.;
Fernandez-Lafuente, R.; Fechine, P.B.A.; de Mattos, M.C.; et al. Design of a lipase-nano particle biocatalysts
and its use in the kinetic resolution of medicament precursors. Biochem. Eng. J. 2017, 125, 104–115. [CrossRef]
2. Kuo, C.-H.; Chen, G.-J.; Chen, C.-I.; Liu, Y.-C.; Shieh, C.-J. Kinetics and optimization of lipase-catalyzed
synthesis of rose fragrance 2-phenylethyl acetate through transesterification. Process Biochem. 2014
9, 437–444. [CrossRef]
3. Cui, Y.; Chen, X.; Li, Y.; Liu, X.; Lei, L.; Xuan, S. Novel magnetic microspheres of P (GMA-b-HEMA):
Preparation, lipase immobilization and enzymatic activity in two phases. Appl. Microbiol. Biotechnol. 2012
5, 147–156. [CrossRef] [PubMed]
,
4
,
9
1
4. Cui, L.; Wei, J.; Du, X.; Zhou, X. Preparation and Evaluation of Self-Assembled Porous Microspheres-Fibers
for Removal of Bisphenol A from Aqueous Solution. Ind. Eng. Chem. Res. 2016, 55, 1566–1574. [CrossRef]
5. Zdarta, J.; Norman, M.; Smułek, W.; Moszynski, D.; Kaczorek, E.; Stelling, A.L.; Ehrlich, H.; Jesionowski, T.
Spongin-Based Scaffolds from Hippospongia communis Demosponge as an Effective Support. Catalysts
1
2
017, 7, 147. [CrossRef]
1
6. Guterman, I.; Masci, T.; Chen, X.; Negre, F.; Pichersky, E.; Dudareva, N.; Weiss, D.; Vainstein, A. Generation
of phenylpropanoid pathway-derived volatiles in transgenic plants: Rose alcohol acetyltransferase produces
phenylethyl acetate and benzyl acetate in petunia flowers. Plant Mol. Biol. 2006, 60, 555–563. [CrossRef]
[
PubMed]
7. Santos, J.C.S.D.; Barbosa, O.; Ortiz, C.; Berenguer-Murcia, A.; Rodrigues, R.C.; Fernandez-Lafuente, R.
Importance of the support properties for immobilization or purification of enzymes. ChemCatChem 2015
, 2413–2432. [CrossRef]
8. De Souza, T.C.; Fonseca, T.d.S.; da Costa, J.A.; Rocha, M.V.P.; de Mattos, M.C.; Fernandez-Lafuente, R.;
Gonçalves, L.R.B.; dos Santos, J.C.S. Cashew apple bagasse as a support for the immobilization of lipase
B from Candida antarctica: Application to the chemoenzymatic production of (R)-Indanol. J. Mol. Catal.
B Enzym. 2016, 58–69. [CrossRef]
1
1
,
7
1
9. Bonazza, H.L.; Manzo, R.M.; Santos, J.C.S.; Mammarella, E.J. Operational and Thermal Stability
Analysis of Thermomyces lanuginosus Lipase Covalently Immobilized onto Modified Chitosan Supports.
Appl. Biochem. Biotechnol. 2017. [CrossRef] [PubMed]

Molecules 2017, 22, 2165
15 of 17
2
0. Rueda, N.; Albuquerque, T.L.; Bartolome-cabrero, R.; Barbosa, O.; Fernandez-lafuente, R. Reversible
Immobilization of Lipases on Heterofunctional Octyl-Amino Agarose Beads. Molecules 2016, 21, 646.
CrossRef] [PubMed]
[
2
2
1. Zhang, D.-H.; Yuwen, L.-X.; Peng, L.-J. Parameters Affecting the Performance of Immobilized Enzyme.
J. Chem. 2013, 2013, 1–7. [CrossRef]
2. Yuce-Dursun, B.; Cigil, A.B.; Dongez, D.; Kahraman, M.V.; Ogan, A.; Demir, S. Preparation and
characterization of sol-gel hybrid coating films for covalent immobilization of lipase enzyme. J. Mol.
Catal. B Enzym. 2016, 127, 18–25. [CrossRef]
2
2
2
2
2
2
3. Brady, D.; Jordaan, J. Advances in enzyme immobilisation. Biotechnol. Lett. 2009, 31, 1639–1650. [CrossRef]
[
PubMed]
4. Magner, E. Immobilisation of enzymes on mesoporous silicate materials. Chem. Soc. Rev. 2013, 42, 6213–6222.
CrossRef] [PubMed]
[
5. Anderson, E.M.; Larsson, K.M.; Kirk, O. One biocatalyst many applications: The use of Candida antarctica
B-lipase in organic syhthesis. Biocatal. Biotransform. 1998, 16, 181–204. [CrossRef]
6. Fernandez-Lafuente, R. Stabilization of multimeric enzymes: Strategies to prevent subunit dissociation.
Enzym. Microb. Technol. 2009, 45, 405–418. [CrossRef]
7. Ravi Kumar, M.N.V.; Muzzarelli, R.A.A.; Sashiwa, H.; Domb, A.J. Chitosan chemistry and phamaceutical
perspective. Chem. Rev. 2004, 104, 6017–6084. [CrossRef] [PubMed]
8. De Queiroz, Á.A.A.; Passes, E.D.; De Brito Alves, S.; Silva, G.S.; Higa, O.Z.; Vítolo, M. Alginate-poly(vinyl
alcohol) core-shell microspheres for lipase immobilization. J. Appl. Polym. Sci. 2006, 102, 1553–1560.
[CrossRef]
2
3
3
3
9. Wen, Y.; Grøndahl, L.; Gallego, M.R.; Jorgensen, L.; Møller, E.H.; Nielsen, H.M. Delivery of Dermatan
Sulfate from Polyelectrolyte Complex-Containing Alginate Composite Microspheres for Tissue Regeneration.
Biomacromolecules 2012, 13, 905–917. [CrossRef] [PubMed]
0. Huo, W.; Xie, G.; Zhang, W.; Wang, W.; Shan, J.; Liu, H.; Zhou, X. Preparation of a novel
chitosan-microcapsules/starch blend film and the study of its drug-release mechanism. Int. J. Biol. Macromol.
2
016, 87, 114–122. [CrossRef] [PubMed]
1. Jiang, R.; Zhu, H.-Y.; Chen, H.-H.; Yao, J.; Fu, Y.-Q.; Zhang, Z.-Y.; Xu, Y.-M. Effect of calcination temperature
on physical parameters and photocatalytic activity of mesoporous titania spheres using chitosan/poly(vinyl
alcohol) hydrogel beads as a template. Appl. Surf. Sci. 2014, 319, 189–196. [CrossRef]
2. Wang, J.; Zhao, G.; Jing, L.; Peng, X.; Li, Y. Facile self-assembly of magnetite nanoparticles on
three-dimensional graphene oxide-chitosan composite for lipase immobilization. Biochem. Eng. J. 2015, 98,
7
5–83. [CrossRef]
3
3
3
3. Shukla, S.K.; Mishra, A.K.; Arotiba, O.A.; Mamba, B.B. Chitosan-based nanomaterials: A state-of-the-art
review. Int. J. Biol. Macromol. 2013, 59, 46–58. [CrossRef] [PubMed]
4. Canella, K.M.N.C.; Garcia, R.B. Caracterização de quitosana por cromatografia de permeação em
gel-influência do método de preparação e do solvente. Quim. Nova 2001, 24, 13–17. [CrossRef]
5. Cipolatti, E.P.; Silva, M.J.A.; Klein, M.; Feddern, V.; Feltes, M.M.C.; Oliveira, J.V.; Oliveira, D.
Enzymatic Current status and trends in enzymatic nanoimmobilization. J. Mol. Catal. B Enzym. 2014
9, 56–67. [CrossRef]
,
9
3
3
3
6. Chen, Y.; Liu, J.; Xia, C.; Zhao, C.; Ren, Z.; Zhang, W. Immobilization of lipase on porous monodisperse
chitosan microspheres. Biotechnol. Appl. Biochem. 2015, 62, 101–106. [CrossRef] [PubMed]
7. Chen, C.; Zhu, X.Y.; Gao, Q.L.; Fang, F.; Wang, L.W.; Huang, X.J. Immobilization of lipase onto functional
cyclomatrix polyphosphazene microspheres. J. Mol. Catal. B Enzym. 2016, 132, 67–74. [CrossRef]
8. Siqueira, N.M.; Garcia, K.C.; Bussamara, R.; Both, F.S.; Vainstein, M.H.; Soares, R.M.D. Poly (lactic
acid)/chitosan fiber mats: Investigation of effects of the support on lipase immobilization. Int. J.
Biol. Macromol. 2015, 72, 998–1004. [CrossRef] [PubMed]
3
4
9. Ramirez, H.L.; Gõmez Brizuela, L.; Úbeda Iranzo, J.; Arevalo-Villena, M.; Briones Pérez, A.I.
Pectinase Immobilization on a Chitosan-Coated Chitin Support. J. Food Process Eng. 2016, 39, 97–104.
[CrossRef]
0. Kopp, W.; Barud, H.S.; Paz, M.F.; Bueno, L.A.; Giordano, R.L.C.; Ribeiro, S.J.L. Calcium polyphosphate
coacervates: Effects of thermal treatment. J. Sol-Gel Sci. Technol. 2012, 63, 219–223. [CrossRef]

Molecules 2017, 22, 2165
16 of 17
4
4
4
1. Wang, J.; Zhao, G.; Yu, F. Facile preparation of Fe3O4@MOF core-shell microspheres for lipase immobilization.
J. Taiwan Inst. Chem. Eng. 2016, 69, 139–145. [CrossRef]
2. Krakowiak, A.; Trzci ska, M.; Sieliwanowicz, B.; Sawicka-Zukowska, R.; Jedrychowska, B.; Ajzenberg, V.
Properties of immobilized and free lipase from Rhizopus cohnii. Pol. J. Food Nutr. Sci. 2003, 12, 39–44.
3. Gupta, A.; Terrell, J.L.; Fernandes, R.; Dowling, M.B.; Payne, G.F.; Raghavan, S.R.; Bentley, W.E. Encapsulated
fusion protein confers “sense and respond” activity to chitosan-alginate capsules to manipulate bacterial
quorum sensing. Biotechnol. Bioeng. 2013, 110, 552–562. [CrossRef] [PubMed]
ƒ
4
4. Dos Santos, J.C.S.; Bonazza, H.L.; de Matos, L.J.B.L.; Carneiro, E.A.; Barbosa, O.; Fernandez-Lafuente, R.;
Gonçalves, L.R.B.; de Sant’ Ana, H.B.; Santiago-Aguiar, R.S. Immobilization of CALB on activated chitosan:
Application to enzymatic synthesis in supercritical and near-critical carbon dioxide. Biotechnol. Rep. 2017
,
1
4, 16–26. [CrossRef] [PubMed]
4
4
4
5. Malmiri, H.J.; Jahanian, M.A.G.; Berenjian, A. Potential applications of chitosan nanoparticles as novel
support in enzyme immobilization. Am. J. Biochem. Biotechnol. 2012, 8, 203–219. [CrossRef]
6. Shahidi, F.; Arachchi, J.K.V.; Jeon, Y.-J. Food applications of chitin and chitosans.pdf. Trends Food Sci. Technol.
1
999, 10, 37–51. [CrossRef]
7. Rattanaphra, D.; Srinophakun, P. Biodiesel Production from Crude Sunflower Oil and Crude Jatropha Oil
Using Immobilized Lipase Biodiesel Production from Crude Sunflower Oil and Crude Jatropha. J. Chem.
Eng. Jpn. 2010, 43, 104–108. [CrossRef]
4
8. Zhu, X.; Zhou, T.; Wu, X.; Cai, Y.; Yao, D.; Xie, C.; Liu, D. Covalent immobilization of enzymes within
micro-aqueous organic media. J. Mol. Catal. B Enzym. 2011, 72, 145–149. [CrossRef]
4
9. Krajewska, B.; Wydro, P.; Kyzioł, A. Colloids and Surfaces A: Physicochemical and Engineering Aspects
Chitosan as a subphase disturbant of membrane lipid monolayers. The effect of temperature at varying pH:
I. DPPG. Colloids Surf. A Physicochem. Eng. Asp. 2013, 434, 349–358. [CrossRef]
5
0. Krajewska, B.; Kyzioł, A.; Wydro, P. Colloids and Surfaces A: Physicochemical and Engineering Aspects
Chitosan as a subphase disturbant of membrane lipid monolayers. The effect of temperature at varying pH:
II. DPPC and cholesterol. Colloids Surf. A Physicochem. Eng. Asp. 2013, 434, 359–364. [CrossRef]
1. Berger, R.G. Biotechnology of flavours—The next generation. Biotechnol. Lett. 2009, 31, 1651–1659. [CrossRef]
5
5
5
[PubMed]
2. Garlapati, V.K.; Kumari, A.; Mahapatra, P.; Banerjee, R. Modeling, Simulation, and Kinetic Studies of
Solvent-Free Biosynthesis of Benzyl Acetate. J. Chem. 2013, 2013, 1–9. [CrossRef]
3. Groboillot, A.F.; Champagne, C.P.; Darling, G.D.; Poncelet, D.; Neufeld, R.J. Membrane Formation by
InterfaciaI Cross-Linking of Chitosan for Microencapsulation of Lactococcus iactis. Biotechnol. Bioeng. 1993, 42,
1
157–1163. [CrossRef] [PubMed]
5
5
5
4. Piacentini, E.; Yan, M.; Giorno, L. Development of enzyme-loaded PVA microspheres by membrane
emulsification. J. Membr. Sci. 2017, 524, 79–86. [CrossRef]
5. Mondal, S.; Li, C.; Wang, K. Bovine Serum Albumin Adsorption on Gluteraldehyde Cross-Linked Chitosan
Hydrogels. J. Chem. Eng. Data 2015, 60, 2356–2362. [CrossRef]
6. Dos Santos, J.C.S.; Rueda, N.; Sanchez, A.; Villalonga, R.; Gonçalves, L.R.B.; Fernandez-Lafuente, R.
Versatility of divinylsulfone supports permits the tuning of CALB properties during its immobilization. RSC
Adv. 2015, 5, 35801–35810. [CrossRef]
5
5
7. Abd-Allah, H.; Kamel, A.O.; Sammour, O.A. Injectable long acting chitosan/tripolyphosphate microspheres
for the intra-articular delivery of lornoxicam: Optimization and in vivo evaluation. Carbohydr. Polym. 2016
49, 263–273. [CrossRef] [PubMed]
,
1
8. Zajac, A.; Hanuza, J.; Wandas, M.; Dymin, L. Determination of N-acetylation degree in chitosan using Raman
spectroscopy A. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2015, 134, 114–120. [CrossRef] [PubMed]
9. Bommarius, A.S. Stabilizing biocatalysts. Chem. Soc. Rev. 2013, 42, 6534–6565. [CrossRef] [PubMed]
0. Wilson, L.; Abia, O.; Pessela, B.C.C.; Ferna, R.; Guisa, M. Co-Aggregation of Penicillin G Acylase and
Polyionic Polymers: An Easy Methodology To Prepare Enzyme Biocatalysts Stable in Organic Media.
Biomacromolecules 2004, 5, 852–857. [CrossRef] [PubMed]
5
6
6
1. Abian, O.; Wilson, L.; Mateo, C.; Fernández-lorente, G.; Palomo, J.M.; Fernández-lafuente, R.; Guisán, J.M.;
Re, D.; Tam, A.; Daminatti, M. Preparation of artificial hyper-hydrophilic micro-environments (polymeric
salts) surrounding enzyme molecules New enzyme derivatives to be used in any reaction medium. J. Mol.
Catal. B Enzym. 2002, 19, 295–303. [CrossRef]

Molecules 2017, 22, 2165
17 of 17
6
2. Virgen-Ortíz, J.J.; Dos Santos, J.C.S.; Berenguer-Murcia, Á.; Barbosa, O.; Rodrigues, R.C.;
Fernandez-Lafuente, R. Polyethylenimine: A very useful ionic polymer in the design of immobilized
enzyme biocatalysts. J. Mater. Chem. B. 2017, 106, 67–74. [CrossRef]
6
6
3. Ka s¸ , H.S. Chitosan: Properties, preparations and application to microparticulate systems. J. Microencapsul.
1
997, 14, 689–711. [CrossRef] [PubMed]
4. Badgujar, K.C.; Bhanage, B.M. Synthesis of geranyl acetate in non-aqueous media using immobilized
Pseudomonas cepacia lipase on biodegradable polymer film: Kinetic modelling and chain length effect study.
Process Biochem. 2014, 49, 1304–1313. [CrossRef]
6
5. Majumder, A.B.; Singh, B.; Dutta, D.; Sadhukhan, S.; Gupta, M.N. Lipase catalyzed synthesis of benzyl
acetate in solvent-free medium using vinyl acetate as acyl donor. Bioorg. Med. Chem. Lett. 2006, 16, 4041–4044.
[CrossRef] [PubMed]
6
6
6
6
7
6. Kumar, R.; Modak, J.; Madras, G. Effect of the chain length of the acid on the enzymatic synthesis of flavors
in supercritical carbon dioxide. Biochem. Eng. J. 2005, 23, 199–202. [CrossRef]
7. Wang, Y.; Zhang, D.H.; Chen, N.; Zhi, G.Y. Synthesis of benzyl cinnamate by enzymatic esterification of
cinnamic acid. Bioresour. Technol. 2015, 198, 256–261. [CrossRef] [PubMed]
8. Garlapati, V.K.; Banerjee, R. Solvent-free synthesis of flavour esters through immobilized lipase mediated
transesterification. Enzym. Res. 2013, 2013, 1–6. [CrossRef] [PubMed]
9. Teixeira, R.; Lourenço, N.M.T. Enzymatic kinetic resolution of sec-alcohols using an ionic liquid anhydride
as acylating agent. Tetrahedron Asymmetry 2014, 25, 944–948. [CrossRef]
0. Larkov, O.; Zaks, A.; Bar, E.; Lewinsohn, E.; Dudai, N.; Mayer, A.M.; Ravid, U. Enantioselective monoterpene
alcohol acetylation in Origanum, Mentha and Salvia species. Phytochemistry 2008, 69, 2565–2571. [CrossRef]
[PubMed]
7
1. Sadana, A.; Henley, J.P. Analysis of enzyme deactivations by a series-type mechanism: Influence of
modification on the activity and stability of enzymes. Ann. N. Y. Acad. Sci. 1987, 501, 73–79. [CrossRef]
[PubMed]
Sample Availability: Samples of the biocatalyst are available from the authors.
©
2017 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
(CC BY) license (http://creativecommons.org/licenses/by/4.0/).
