temperature for approximately 7 h. Care was taken to make sure
the Co2(CO)8 was never exposed to air by sealing the sublimator
under vacuum inside a nitrogen-filled glove box before sublima-
tion. Furthermore, the sublimator seal was not broken until the
Co2(CO)8 was collected in the glove box. Co2(CO)8 was stored in a
freezer at ꢀ20 1C to protect it from thermal degradation. V(CO)6
was prepared by reacting 6 g of [Et4N][V(CO)6] with 40 g of H3PO4
according to the literature preparation [32].
the stoichiometry; thus, one component was exhausted, and the
other could possibly deposit on top of the film as a contaminant.
Hence, the CVD was interrupted before either material was
exhausted to maintain the stoichiometry of the film, and there
was no need to accurately measure the starting materials. Typically,
50 to 75 mg of Co2(CO)8 and ꢂ100 mg of TCNE were used in the
CVD apparatus, and this would deposit ꢂ1.570.5 mg of film on the
glass cover slide over ꢂ4 h of deposition.
Chemical vapor deposition apparatus. The chemical vapor
deposition (CVD) apparatus was based on an earlier version
[16]. The glassware was tested rigorously both outside and inside
the glove box in which all depositions would occur to confirm
that appropriate vacuum levels, flow rates, and temperatures
were attainable. The final apparatus for depositing single-metal
TCNE films is shown in Fig. 1(a).
The CVD of the VyCo1ꢀy[TCNE]2 films followed almost the same
procedure as the Co[TCNE]2 films, with the exception of the
temperature at which the V(CO)6 and Co2(CO)8 were held, which
was increased to 17 1C to increase the rate of sublimation for the
Co2(CO)8. This was done with the intent of introducing more cobalt
into the films to increase the coercivity of the films, as discussed.

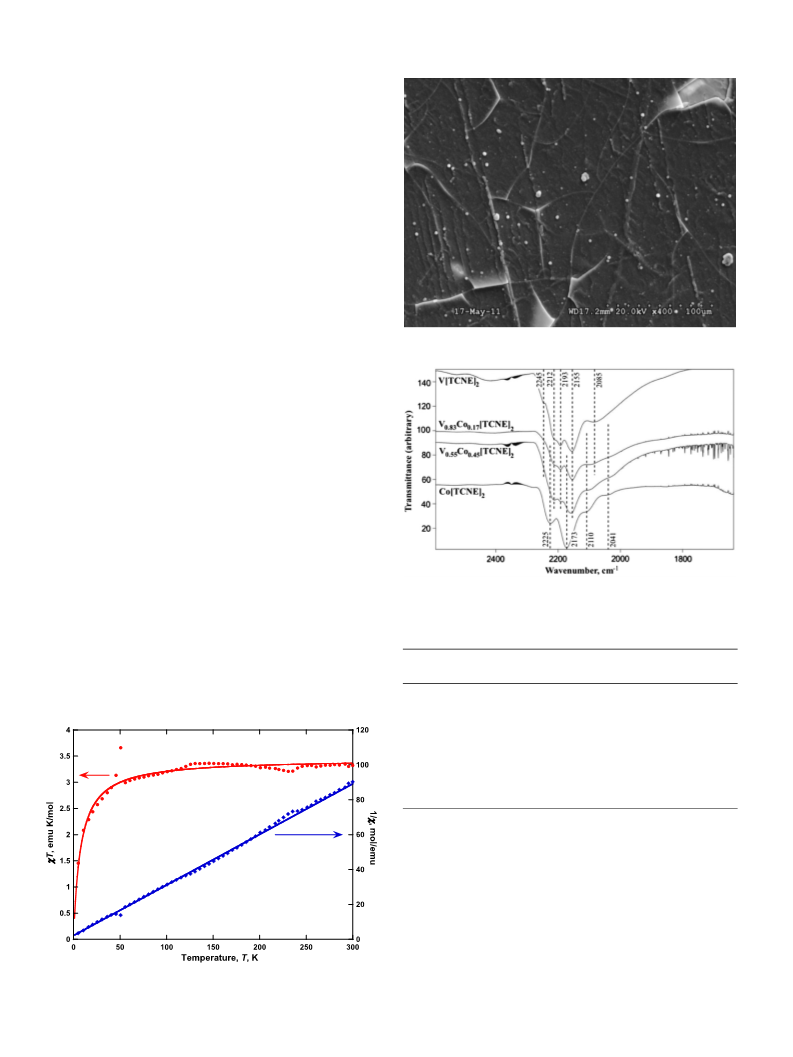

Characterization. Infrared spectroscopy data [400–4000ꢀ1
(71 cmꢀ1)] were collected on a Bruker Tensor 37 Infrared Spectro-
meter. KBr was used as the substrate for all IR measurements. Each
film was measured after deposition was complete. To measure the
effect of time and air exposure on the film, one sample was measured
multiple times up to a week after deposition, and then exposed to air
and measured several more times.
Magnetic data (5–300 K) were collected on a Quantum Design
MPMS 5T SQUID magnetometer, as previously described [33]. The
films deposited on glass cover slides, were used in the magnetic
measurements. The film-covered glass slides were packed into
gelatin capsules during measurements. The films possessed some
ferromagnetic cobalt impurity. The presence and amount of Co
The glass CVD tube was ꢂ50 cm long and had a diameter of
3.3 cm. The inside tube had a diameter of 1 cm and met in the
middle with a 1.27 cm gap in between them. A resistive heater
(Watlow Thinband C/NSTB1G3J1-A12) was wrapped around the
outer chamber over the TCNE boat, and a thermocouple (OMEGA
Chromel Alumel Type K) attached to the outside of the glass near
this heater monitored and controlled its temperature via a
temperature controller (Red Lion Model T-16 Temperature/Pro-
cess Controller). The T-shaped glass holder for the Co2(CO)8 was
submerged in a silicon oil bath mounted on a Peltier cooling unit,
which uses the thermoelectric effect to achieve adequately low
temperatures. Another thermocouple (OMEGA Chromel Alumel
Type K) rested in the silicon oil to monitor and control that
temperature as well. Substrates for film deposition were mounted
in a square glass tube (2 ꢅ 2 cm) and centered in the deposition
chamber for maximum exposure to the deposited film. A hose
was connected to an Edwards E2M5 two-stage vacuum pump
outside the glove box, which pulled nitrogen from the box
through the deposition chamber and out the vacuum line. This
created both the necessary nitrogen flow to carry the vapors to
the center of the chamber as well as a sufficient vacuum level
inside the chamber with a minimum value of 10 Torr.
For VyCo1ꢀy[TCNE]2 thin-films, the apparatus in Fig. 1(b) was
adequate except for the need to introduce two metal sources at
once. In preliminary depositions, both Co2(CO)8 and V(CO)6 were
mixed together and included in the same substrate, but both
metals mirrored out, coating the tube, and no film was deposited.
To resolve this a smaller, concentric tube has been added along
with a second input, allowing Co2(CO)8 to pass down the outer
section and V(CO)6 to pass down the central tube, not meeting
until the point of deposition (Fig. 1(b); thus, alleviating metal
mirroring. Both holders were cooled in the same silicon oil bath to
preserve consistency with the single-metal TCNE film method.
Chemical Vapor Deposition. TCNE (ca 100 mg) was placed in a
small glass boat on the left side of the chamber, and Co2(CO)8 (ca
50 mg) was placed in a T-shaped glass boat on the right, Fig. 1. The
TCNE was heated to 45 to 55 1C, ensuring sublimation inside the
chamber, and the Co2(CO)8 cooled to 10 1C to maintain an accep-
table rate of sublimation. Nitrogen flow (measured in standard cubic
centimeters per minute, SCCM) transported the sublimed TCNE at
120–150 SCCM, and the Co2(CO)8 at 100 SCCM to the center of the
tube where they reacted and deposited onto the substrates. Micro-
scope cover slides (VWR micro cover glass) (ꢂ1.9 cm) were placed
in the substrate holder. Potassium bromide (KBr) plates were used
as substrates for infrared spectroscopy characterization in all films.
Since the film forming reaction is:
was determined from a as a Honda plot [34], i.e.,
w
or M/H vs. Hꢀ1
using the relationship of ppm-Co¼106
Dw/DH
ꢀ1/163 emu/g-Co.
This gives an upper limit of 834 ppm Co for the reported film.
However, when this amount of cobalt was taken into account in
the data workup, it overcorrected and gave a negative
wT(T)
value. Manual adjustment of T(T) levels off with a value of 475
w
and 500 ppm cobalt for Co[TCNE]2 and V0.36Co0.64[TCNE]2 films,
respectively.
For the VyCo1ꢀy[TCNE]2 films, a scanning electron microscope
(SEM) (Hitachi 5-3000N) equipped with energy dispersive X-ray
spectroscopy (EDS) (EDAX PV7746) was used to gather composi-
tion data, focusing on the fractions of vanadium and cobalt in
the films.
