Structure based design of selective SHP2 inhibitors by De novo design, synthesis and biological evaluation

Article abstract of DOI:10.1007/s10822-019-00213-z

SHP2 phosphatase, encoded by the PTPN11 gene, is a non-receptor PTP, which plays an important role in growth factor, cytokine, integrin, hormone signaling pathways, and regulates cellular responses, such as proliferation, differentiation, adhesion migrati

Full text of DOI:10.1007/s10822-019-00213-z

Journal of Computer-Aided Molecular Design
https://doi.org/10.1007/s10822-019-00213-z
Structure based design of selective SHP2 inhibitors by De novo design,
synthesis and biological evaluation
Wen‑Shan Liu1 · Wen‑Yan Jin1 · Liang Zhou1 · Xing‑Hua Lu1 · Wei‑Ya Li1 · Ying Ma1 · Run‑Ling Wang1
Received: 27 December 2018 / Accepted: 8 July 2019
© Springer Nature Switzerland AG 2019
Abstract
SHP2 phosphatase, encoded by the PTPN11 gene, is a non-receptor PTP, which plays an important role in growth factor,
cytokine, integrin, hormone signaling pathways, and regulates cellular responses, such as proliferation, diferentiation, adhe-
sion migration and apoptosis. Many studies have reported that upregulation of SHP2 expression is closely related to human
cancer, such as breast cancer, liver cancer and gastric cancer. Hence, SHP2 has become a promising target for cancer immu-
notherapy. In this paper, we reported the identifcation of compound 1 as SHP2 inhibitor. Fragment-based ligand design, De
novo design, ADMET and Molecular docking were performed to explore potential selective SHP2 allosteric inhibitors based
on SHP836. The results of docking studies indicated that the selected compounds had higher selective SHP2 inhibition than
existing inhibitors. Compound 1 was found to have a novel selectivity against SHP2 with an in vitro enzyme activity IC50
value of 9.97 μM. Fluorescence titration experiment confrmed that compound 1 directly bound to SHP2. Furthermore, the
results of binding free energies demonstrated that electrostatic energy was the primary factor in elucidating the mechanism
of SHP2 inhibition. Dynamic cross correlation studies also supported the results of docking and molecular dynamics simula-
tion. This series of analyses provided important structural features for designing new selective SHP2 inhibitors as potential
drugs and promising candidates for pre-clinical pharmacological investigations.
Keywords SHP2 · Selective allosteric inhibitors · De novo · Molecular dynamics simulation
Abbreviations
H bond
Hydrogen bond
JMML
Juvenile myelomonocytic leukemia
ADMET
Absorption, distribution, metabolism, excre-
tion, and toxicity
MS
Myelodysplastic syndrome
AML
Acute myeloid leukemia
MCSS
FBDD
HIA
Multi-copy simultaneous search
Fragment based drug design
Human intestinal absorption
Blood–brain barrier
TCPTP
PTP1B
SHP1
T cell protein-tyrosine phosphatase
Protein tyrosine phosphatase 1B
SH2 domain-containing phosphatase 1
BBB
PPB
Aqueous solubility plasma protein binding
Particle mesh Ewald
PME
MM-PBSA Molecular mechanics Poisson Boltzmann
surface area
Wen-Shan Liu and Wen-Yan Jin contributed equally to this work.
Electronic supplementary material The online version of this
article (https://doi.org/10.1007/s10822-019-00213-z) contains
supplementary material, which is available to authorized users.
LCPO
DCC
Linear combination of pairwise overlaps
Dynamic cross correlation
MD
Molecular dynamics
* Ying Ma
HTVS
RMSD
RMSF
High throughput virtual screening
Root mean square deviation
Root mean square fuctuation
maying@tmu.edu.cn
* Run-Ling Wang
wangrunling@tmu.edu.cn
1
Tianjin Key Laboratory on Technologies Enabling
Development of Clinical Therapeutics and Diagnostics
(Theranostics), School of Pharmacy, Tianjin Medical
University, No. 22 Qixiangtai Rd, Heping Dist,
Tianjin 300070, People’s Republic of China
Vol.:(0123456789)
1 3

Journal of Computer-Aided Molecular Design
and selective SHP2 allosteric inhibitors, we used De novo
design to generate scafolds. Then, ADMET prediction
was carried out to screen for good quality compounds. The
selected compounds were then docked into binding pock-
ets of SHP2 and SHP1, respectively. In vitro phosphatase
activity and cell proliferation assays were performed to
verify biological activity. Finally, Molecular dynamic
simulation, binding free energy calculation and dynamic
cross correlation study were used to explore the afnity
and selectivity of SHP2. Thus, the fndings obtained could
provide useful insights for developing new and powerful
SHP2 selective allosteric inhibitors against cancer and pro-
vide lead compounds.
Introduction
SHP2 phosphatase, encoded by the PTPN11 gene, is a
non-receptor PTP, which is composed of two N-terminal
Src homology 2 (SH2) domains, one PTP domain, and one
C-terminal tail [1]. In cells, SHP2 plays a role in the cyto-
plasm downstream of multiple receptor-tyrosine kinases
and is involved in many cancer cell signaling cascades
(e.g., RAS–ERK, PI3K–AKT, JAK–STAT) [2]. RAS was
dephosphorylated by SHP2 and then associated with efec-
tor protein RAF to activate downstream proliferative RAS/
ERK/MAPK signaling. Furthermore, germline or somatic
mutations in PTPN11 that cause hyperactivation of SHP2
have been identifed in Noonan syndrome (50%), juvenile
myelomonocytic leukemia (JMML, 35%), myelodysplastic
syndrome (MS, 10%), B cell acute lymphoblastic leukemia
(7%), acute myeloid leukemia (AML, 4%) [3–7], and solid
tumors, including colon cancer, melanoma, lung adeno-
carcinoma, and hepatocellular carcinoma. Thus, SHP2
became a promising target for cancer immunotherapy.
Many SHP2 inhibitors have been identifed so far. For
example, NSC-87877 was the frst PTP inhibitor, inhibit-
ing PTP domain of SHP2 in cell cultures without a detect-
able of-target efect, which cross-inhibited SHP1 in vitro
[8]. Other SHP2 inhibitors, such as II-B08, cefsulodin,
Fumosorinone, had also been identifed and characterized
[2, 3, 9]. However, the discovery of SHP2 inhibitors has
been hampered for two main aspects. Firstly, SHP2 has
low selectivity for other PTPs (such as SHP1, PTP1B, and
TCPTP) due to the highly conserved of PTP domain (the
overall sequence of SHP1 and SHP2 in their PTP domain
has 60% identity and about 75% similarity) [5, 10, 11];
Secondly, it is difcult to identify cell permeable com-
pounds. Thus, SHP2 inhibitors have not yet progressed to
the clinic [12]. The identifcation of SHP2 allosteric sites
(a tunnel-like region formed between the C–SH2, N–SH2,
and PTP domains, but not the PTP catalytic site) repre-
sented a potentially solution to the problem of druggabil-
ity. By binding to this allosteric site comprised of all three
domains (N–SH2, C–SH2, and PTP domain), SHP836, one
of SHP2 allosteric inhibitor, stabilized the active confor-
mation of SHP2, in which the catalytic site was blocked
and no longer accessible to substrate [10]. SHP836 had no
inhibition against PTP domain of SHP2 and had moder-
ate inhibitory activity (IC50 = 12 μM) against full length
SHP2. SHP099, a highly selective, active, potent SHP2
allosteric inhibitor, was further optimized by SHP836,
which was identifed as an allosteric modulator that stabi-
lized the auto-inhibited conformation of SHP2 [13]. There
are many methods to discover novel drugs, one of which
is an economical and time-saving method, namely com-
puter-aided drug design [14]. In order to discover novel
Materials and methods
Our calculations were carried out on Dell Precision TM
T5500 computer with Discovery Studio v 3.5 software
package.
Protein preparation
The crystal structures of SHP1 (PDB ID: 3PS5) and SHP2
(PDB ID: 5EHR) were downloaded from the protein data
bank (PDB) and used for molecular simulation studies [15,
16]. The “clean protein” [17] protocol in Discovery Studio v
3.5 was used to prepare the protein for correcting the miss-
ing atoms and residues, incorrect atom order in amino acids,
deleting alternate conformations and water, and protonating
all the residues at a specifc pH conditions.
Fragment‑based ligand design
Fragment-based ligand design approach, such as the multi-
copy simultaneous search (MCSS) methodology, had proven
to be a useful tool to search novel therapeutic compounds
that bind to pre-specifed targets of known structure. MCSS
offered a variety of advantages over traditional high-
throughput screening methods, and had been applied suc-
cessfully to design novel hit targeting challenging targets.
In our study,MCSS algorithm was used for fragment-based
drug design (FBDD) [18]. The major steps in the procedure
are as follows: distribute fragment replicas in the protein
search sphere; perform a CHARMm minimization; prune
replicas to remove fragments converged to the same min-
ima. According to the top MCSS_score poses, new scafold
libraries (Scafolds A and B) were built to De novo design.
De novo design
Ludi, one of the most widely used re-design algorithm, was
used to discover new potentially active compounds, which
1 3

Journal of Computer-Aided Molecular Design
could save researchers a lot of time [19]. It was a power-
ful design tool, which allowed users to simulate screening
prior to experimental analysis, and allowed the transforma-
tion of existing compounds. The Ludi algorithm worked in
three steps. Firstly, it calculated interaction sites, which were
discrete positions in space that was suitable to form hydro-
gen bonds or fll hydrophobic pockets. Then, the molecu-
lar fragments were ftted onto the interaction sites. Finally,
some or all of the ftted fragments was connected to a single
molecule.
to evaluate the toxicity of the compounds in the Toxicity
Prediction (TOPKAT) module. Promising compounds thus
were obtained for the further studies.
Flexible docking
Molecular docking was one of the most frequently used
methods in drug design, which was used to investigate inter-
action patterns of target protein with its inhibitors [26]. In
the process of docking, the conformations of the protein side
chain and ligand molecular were fexible.
In our study, De novo design method [20] by Ludi algo-
rithm was used to design novel inhibitors. Firstly, De novo
library generation protocol was used to generate fragments
library for De novo design. Secondly, De novo receptor
protocol in Discovery Studio v3.5 was used to defne the
binding site of a receptor. Scafold A and scafold B were
derived from computational Fragment-based drug design
in allosteric sites. Thirdly, the De novo link protocol used
“Ludi algorithm” to add linkers between the defned scaf-
folds A and scafold B in the binding site of a receptor. The
placed linker parts were scored using Ludi energy estima-
tion, and then the fnal scafolds C library was established.
Accordingly, each scafold C was made up of scafold A
and scafold B and linkers, respectively. Fourthly, the pro-
tocol of De novo evolution could develop whole molecule
in the binding site environment of the receptor based on the
scafold C. The Ludi algorithm was used to add appropriate
fragments to scafold C, and then produced a collection of
whole molecules with higher scores. The evolution mode
was set to full evolution, which allowed the scafold C to link
up to a maximum of three fragments. Finally, 24 top-ranked
molecules were selected for the following ADMET analysis.
During the process of core docking, the 1st step, protein
was prepared by the clean protein protocol in DS v3.5. The
2nd step was to calculate protein conformation using Chi-
Flex [27] (CHARMm) by changing the side chain conforma-
tion. The 3rd step, the preparation ligand protocol was used
to prepare ligand for pharmacophore generation, including
removing duplicates, enumerating isomers tautomers, gen-
erating 3D conformation, and generating possible states by
ionization at target pH 7.0 2.0. The 4th step was to defne
the binding site. There were two ways to defne the binding
pocket: the frst was to defne binding site from key residue
in the structure of the receptor; the second was to calculate a
binding site from a selected ligand. In our study, the bind site
was defned applying the second method. In the docking pro-
cess, the residues Arg111, Phe113 Glu250, Leu254, Glu257,
Pro491, and Glu495 were used to generate active site for
SHP2 and Arg109, Glu247, Ser250, Gln254, Gln485 and
Gln489 for SHP1. The 5th step was to optimize the selected
protein side chains using the ChiRotor [27] in the presence
of a rigid ligand. In 6th step, ligands were fexibly docked
to the binding sphere of diverse receptor conformations by
the LibDock program. The last step was to optimize the fnal
ligand using CDOCKER program [28]. Prior to the docking
analysis, the docking model was validated by the re-dock
method. When all steps were fnished, the compounds were
docked into the receptor pockets.
Lipinski’s flter and ADMET analysis
During virtual screening in early drug discovery, the
ADMET descriptors of DS v3.5 could be used for estimat-
ing crucial physicochemical and biological properties for
large numbers of candidate drug compounds. The ADMET
(absorption, distribution, metabolism, excretion, and tox-
icity) properties of each compounds were calculated to
assess the good pharmacokinetics of a drug in the human
body using the ‘ADMET Descriptors’ calculation of DS
v3.5. Some important ADMET descriptors were calcu-
lated, including human intestinal absorption (HIA) [21],
blood–brain barrier (BBB) [22], aqueous solubility plasma
protein binding (PPB) [23] and cytochrome P450 CYP
2D6 inhibition hepatotoxicity [24]. Hence, attrition could
be reduced in drug discovery and development by fltering
the ADMET characteristics of the gained compounds. The
property analyses for carcinogenicity, aerobic biodegrada-
bility, developmental toxicity potentials, AMES mutagen-
icity, and ocular and skin irritancy [25] were considered
Chemistry
All the reagents were purchased from commercial suppliers
and were used without further purifcation unless otherwise
indicated. All the reactions were monitored by thin-layer
chromatography (TLC) on silica gel precoated F254 Merck
plates, and spots were examined under UV light (254 nm).
All column chromatography was performed using 200–300
mesh silica gel. 1H-NMR and 13C-NMR spectra were taken
on a Bruker Avance 300-MHz NMR Spectrometer at 300 K
with TMS as the internal standard, and CDCl3 and DMSO-
d6 were used as solvents, the values of the chemical shifts
(δ) were expressed in parts per million (ppm), and coupling
constants (J) were expressed in hertz (Hz). MS spectra
1 3

Journal of Computer-Aided Molecular Design
were recorded on an Agilent 1100 LC/MSD (ESI) Mass
Spectrum.
Cell growth was measured by 3-(4,5-dimethylthiazol-
2-yl)-5-(3-carboxy methoxyphenyl)-2-(4-sulfophenyl)-
2H-tetrazolium (MTS) assay. Briefy, cells were seeded in
96-well plates at a density of 1.2×105 cells/mL and cultured
for 48 h. 1–3 h before culture termination, 20 μL of MTS
reagent was added to the wells. The absorbance density was
read on a 96-well plate reader (NEST, Nest Biotechnology)
at wavelength 490 nm. IC50 values were calculated as the
concentration of the drug required to obtain 50% of maximal
inhibition in cell viability.
SHP2 kinase assay and fuorescence titrations assay
Glutathione S-transferase (GST) fusion proteins of purifed
SHP2 were used as the enzyme, and a peptide sequence
EFpYAEVGRSPPDPAK (H–Glu–Phe–pTyr–Ala–
Glu–Val–Gly–Arg–Ser–Pro–Pro–Asp–Pro–Ala–Lys)
was used as the substrate. The Malachite Green Phos-
phate Assay Kit was based on quantifcation of the com-
plex formed between Malachite Green, molybdate, and
free orthophosphate. The assay determined free phosphate
generated by dephosphorylation of the substrate using the
Malachite Green Phosphate Assay Kit. Firstly, 0.4 mg/mL
GST–SHP2 protein, 0.06 mM substrate and assay bufer
(25 mM Tris–HCl, 50 mM NaCl, 5 mM DTT, and 2.5 mM
EDTA, pH 7.4) with the tested compounds at various con-
centrations were added in 96well plates at room tempera-
ture for 30 min. Secondly, 25 μL NaOH (4 M) was added
to sample, and heated at 100 °C for 30 min and cooled to
room temperature. Then, 25 μL HCl (4 M) was added to the
sample. Finally, 20 μL of Malachite Green working reagent
was added, and OD620 was measured after 30 min at room
temperature. The tested compounds were used to determine
its IC50 value against SHP2. The results were analyzed by
GraphPad Prism software.
Molecular dynamics
The docked structure was served as a starting structure for
MD simulations using Gromac4.5.5 [29]. GROMOS96
43a1force feld was used for the protein [30]. The complex
was solvated in a rectangular box of spc216 water, with a
minimum distance of 1.0 Å between the protein and the box.
Sodium ions were added to the system by random replace-
ment of water molecules to neutralize the system [31]. The
particle mesh Ewald (PME) method was used to handle
long-range coulomb interactions [32]. Before starting the
dynamics, we could confrm there were no atoms in a col-
lision, no confict of chemical bonds, no irrelevant three-
dimension. Then, the steepest descent method was used
to carry out energy minimization. The whole system was
carried out NVT equilibration at constant temperature of
300 K for 100 ps, and then was equilibrated with NPT with
constant pressure of 1 atm for 100 ps. LINCS algorithm
[32] was used to keep the bonds constrained. A production
run for 10 ns was performed using NPT ensemble at 300 K
and 1.0 atm pressure with a time step of 2 fs. Coordinate
trajectories were recorded every 2 ps for the whole MD runs.
In order to validate that compound 1 (comp#1) bound
directly to the SHP2 protein, fuorescence quenching assay
was used to examine whether the binding of the inhibi-
tor altered the fuorescence of the SHP2 protein. Purifed
SHP2 His-fusion protein was diluted into reaction bufer
with pH 7.4. Titrations were performed by increasing the
compound 1 concentrations while maintaining the SHP2
protein concentration at 0.4 mg/mL. Contributions from
background fuorescence of the inhibitor were explained by
subtracting the fuorescence of individual inhibitors from
the protein–inhibitor solution. The excitation wavelength
was 295 nm, and fuorescence was monitored from 360 to
500 nm. All reported fuorescence intensities were relative
values and were not corrected for wavelength variations in
detector response.
Binding free energy calculation
Binding free energies for all complex systems were calcu-
lated by using the molecular mechanics Poisson Boltzmann
surface area (MM-PBSA) method [33]. The free energy of
binding ∆Gbind was calculated as:
ΔEMM = ΔEinternal + ΔEvdw + ΔEele
(1)
ΔGbind = H − TΔS = ΔEMM + ΔGsol − TΔS
(2)
Cell culture and cell viability assay
ΔGsol = ΔGnonpol + ΔGpol
(3)
Here, ∆EMM, ∆Gsol and T∆S were equivalent to the
changes of the gas phase MM energy, the solvation
free energy and the conformational entropy on binding.
∆EMM was standard molecular mechanics term including
∆Einternal (bond, angel and dihedral energies) which would
be cancelled when we used a single trajectory approach
to reduce the noise [34], van der Waals interaction ∆Evdw
Mouse B lymphocyte BaF3 from the American Type Culture
Collection (ATCC; Manassas, VA, USA) was cultured in
RPMI 1640 (Gibco) medium supplemented with 10% fetal
bovine serum (FBS; Origin South America sterile fltered),
1% penicillin–streptomycin, and 2 ng/mL murine IL-3 at
37 °C in a humidifed atmosphere of 5% CO2.
1 3

Journal of Computer-Aided Molecular Design
and electrostatic ∆Eele energies. The nonpolar solvation
free energy ∆Gnonpol was calculated from the area (SASA)
using the method of linear combination of pairwise overlaps
(LCPO) (∆Gnonpol ¼ = 0.0072 × ∆SASA) [35]. The SASA
here was determined with probe radii of 1.4. The electro-
static free energy of solvation ∆Gpol was calculated by the
generalized Born method (igb ¼ 5) developed by Onufriev
et al. [36]. T∆S was the conformational entropy change cal-
culated by normal mode analysis on a set of conformational
snapshots taken from MD simulation [37, 38].
in allosteric sites, while the linker stemmed from fragment
library by the De novo link protocol. Based on the Scafolds
C, a total of 130 top-ranked “Ludi_3_SCORE” molecules
were selected for the following ADMET procedure.
ADMET analysis
ADMET properties of all designed compounds were pre-
dicted and compared using DS v3.5 based on ADMET
properties of standard compounds. Prediction of ADMET
properties was used to sort out those compounds that already
followed Lipinski′s rule and showed good predicted activ-
ity. DS v3.5 defned the prediction level for all ADMET
properties. For aqueous solubility level: 0 (extremely low);
1 (very low, but possible), 2 (low), 3 (good); for ADMET
plasma protein binding (PPB) level: 0 meant that the bind-
ing level was below 90%, 1 meant that the binding level was
above 90%, and 2 meant that the binding level was above
95%; for blood–brain barrier (BBB) level: 0 (very good), 1
(good), 2 (moderate), 3 (poor), 4 (undefned); for ADMET
Cytochrome P450 2D6 (CYP2D6) Probability level: Less
than 0.5 meant that it was unlikely to inhibit CYP2D6 (Non-
CYP2D6 inhibitors), and above 0.5 meant that it was likely
to inhibit CYP2D6 enzyme (CYP2D6 Inhibitors); for hepa-
totoxic prediction, true represented non-hepatotoxic and for
human intestinal absorption (HIA) level: 0 (good), 1 (moder-
ate), 2 (poor), 3 (very poor). The results of toxicity predic-
tion were listed in Table S1, including Ames Mutagenicity,
Rat Oral LD50, Aerobic Biodegradability, and NTP Carcino-
genicity Call. According to the results of toxicity prediction,
86 molecules were relatively safe by passing ocular irritancy,
mutagenicity, and skin sensitization tests and were found to
be aerobically biodegradable. The toxicity and ADMET pre-
diction of top 10 compounds (Fig. 2) were listed in Table S1
and S2. Finally, 50 promising compounds within the reason-
able ranges were obtained for the further studies.
A total of 50 snapshots that were extracted during equi-
librium phase between 10 and 50 ns were employed for the
calculation using g-mmpbsa tool of Gromacs 4.5.5.
Dynamic cross‑correlation
The dynamic cross correlation (DCC) analysis was a popular
method for analyzing the trajectories of molecular dynamics
(MD) simulations. The DCC between the ith and jth atoms
was defned by the following equation:
⟨Δꢀi(t) ⋅ Δꢀj(t)⟩t
DCC(i, j) =
,
�
�
�
�
�
�
2
(4)
2
�
�
�
�
�
�
�
�
�
�
Δꢀi(t)
Δꢀ (t)
j
t
t
where ri(t) denoted the vector of the ith atom’s coordinates
as a function of time t,<.>t meant the time ensemble aver-
age and Δꢀi(t) = ꢀi(t) − ⟨ ꢀi(t)⟩ [39]. The cross-correlated
t
displacement of Cα atoms across MD simulations could
provide critical information about involvement of specifc
domains in ligand binding. Thus dynamic cross-correlation
maps (DCCM) were generated to denote dynamic cross-
correlated displacements of Cα atoms through MD simula-
tion for both SHP2 and SHP1. The complete frames were
superimposed against the original starting structure of each
system prior to the implementation of the analysis.
Flexible docking
Results and discussion
To estimate the applicability of fexible docking in our study,
the original crystal structure of ligand-SHP2 from the PDB
was re-docked into the X-ray structure of the receptor. The
root mean square deviation (RMSD) between the docked
poses and their actual X-ray poses in the crystal structure
were 0.4461 Å for SHP2 complex [40]. 50 compounds were
docked into crystal structures of SHP1 and SHP2 by using
the fexible docking, respectively.
Fragment‑based ligand and design De novo design
It was a big challenge to identify an appropriate scafold in
developing efective small molecule inhibitors. Most SHP2
inhibitors stemmed from either the modifed derivatives of
pre-existing inhibitor scafolds or the isolation of new scaf-
folds by high throughput virtual screening (HTVS). In our
study, we had designed a series of novel scafolds C by uti-
lizing De novo link protocol. It could be seen from the Fig. 1
that the Scafold C was divided into three parts, Scafold A,
Scafold B, and the linker. Scafold A and Scafold B were
derived from computational Fragment-based drug design
The two-dimensional (2D) diagram of SHP2–SHP099
interaction was shown in Fig. 3. It could be seen from
Fig. 3a that the SHP099 basically occupied same binding
pocket of SHP2. The H-bonding networks played a role in
stabilizing the conformation of the SHP2, which was vitally
important for receptor-binding and activation. The H-bond
1 3

Journal of Computer-Aided Molecular Design
Fig. 1 The illustration to show the chemical structures of the top fve scafolds. The Scafold A, Scafold B and the linker are colored in blue, red
and green, respectively
interactions were formed by three key residues of SHP2,
including Arg111, Phe113 and Glu250. In addition, SHP099
formed hydrophobic interactions with residues His114 and
Lys492 of the side chains. Figure 3b displayed the binding
pattern of the ligand SHP099 and SHP2 at the active site.
For SHP099, it formed H-bond interactions with residues
Arg111–N2 and Phe113–N22 located on the linker between
the N–SH2 and C–SH2 domains and Glu250–N7 from the
PTP domain. The phenyl ring of SHP099 formed a cation–Pi
interaction with residue Arg111.
morpholine (11 mmol) was added dropwise to the system,
and the mixture was heated to 80 °C under N2 for 24 h. The
reaction mixture was poured into ice water (50 mL) for
quenching. Then, it was extracted with CH2Cl2 (3×50 mL),
and the organic phases were combined, washed with 5%
brine (2 × 50 mL) and dried over anhydrous Na2SO4. The
organic phase after drying was removed in vacuo and the
residue obtained was purifed by chromatography to gain
compound 2a. The same method gained compounds 2b, 2c.
Compound 2a (10 mmol) and 30 mL formamide were
added to the fask and heated to 210 °C under N2 for 12 h.
After the temperature of the system was lowered to room
temperature, 30 mL ice water was added to the system,
stirred for 2 h, and then suction fltration. The flter cake
was washed with water (2×20 mL) and ethanol (2×10 mL),
and the flter cake was dried to gain the compound 3a. The
same method gained compounds 3b, 3c
The CDOCKER_ENERGY was an important index
for evaluating the binding afnities. The docking score of
top 10 compounds was listed in Table 1, the compound 1
(CDOCKER_ENERGY=46.7889) had the higher docking
score than SHP099 (CDOCKER_ENERGY=40.9327). The
selected 10 compounds with better binding afnities were
shown in Fig. 2.
Compound 2a (10 mmol), acetonitrile (200 mmol) and
hydrogen chloride in 1,4-dioxane solution (50 mL, 2 mol/L)
were added to the fask. The mixture was stirred at 60 °C
for 12 h, and the reaction was completed by TLC analysis.
After cooling to room temperature, the solvent was removed
under reduced pressure, and pH was adjusted to 9 with
General procedure for the synthesis of compounds
Compound 1a (20 mmol), isopropyl cyanoacetate
(22 mmol), sulfur powder (28 mmol), and 100 mL etha-
nol were added to the fask and stirred for 10 min. Then,
1 3

Journal of Computer-Aided Molecular Design
Fig. 2 The illustration to show the chemical structures of the top 10 compounds. The Scafold C and the fragments generated by the protocol of
De novo evolution are colored in black
Fig. 3 a The ligand–protein interaction diagram of SHP099 and
SHP2 (PDB ID: 5EHR). b The molecular surface is shown around
the binding site of SHP2 (PDB ID: 5EHR). Hydrogen-bond inter-
actions with main-amino acid residues are represented by a green
dashed arrow directed towards pointing to the electron donor. Hydro-
gen-bond interactions with side-amino acid residues are represented
by a blue dashed arrow directed towards pointing to the electron
donor. Pi interactions are represented by an orange line. Residues
involved in hydrogen-bond, charge or polar interactions are repre-
sented by pink rectangles. Residues involved in van der Waals inter-
action are represented by green rectangle
NaHCO3 solution in water, and then extracted with CH2Cl2
(2×50 mL). The combined organic phases were washed with
water (2×50 mL), dried over anhydrous Na2SO4, fltered,
and concentrated in vacuo. Finally, the residue obtained was
purifed by chromatography to gain the compound 3d. The
same method gained compounds 3e, 3f.
1 3

Journal of Computer-Aided Molecular Design
Table 1 The CDOKER_ENERGY between ligands and receptors
compound 1. The compound 1 showed inhibition activity
with an IC50 value of 9.97 μM (Fig. 5a, Table 2).
As shown in Fig. 5b, compound 1 exhibited strong
quenching of SHP2 fuorescence in a dose-dependent man-
ner. These fuorescence quenching experiments implied that
compound 1 bound directly to SHP2, thereby attenuating its
activity on the substrates.
Compounds
SHP2-CDOKER_
SHP1-CDOKER_
ENERGY (kcal/
mol)
ENERGY (kcal/mol)
SHP099
40.9327
46.7889
43.4768
42.9263
41.6485
41.516
38.256
37.655
37.253
35.153
34.826
20.3562
18.5326
17.6859
17.513
15.3245
13.2356
13.0125
12.9586
11.2564
11.1325
10.0248
1
2
3
4
5
6
7
8
9
10
Cell viability assay
The MTS assay was conducted on BaF3 cell lines. Firstly,
the cytotoxicity of 10 selected compounds was estimated at
20 μM concentration in vitro. Secondly, these compounds
were further evaluated to determine their IC50 values at con-
centrations of 0.1, 1.0, 5.0, 10 and 20 μM. In the end, com-
pound 1 showed IC50 value of 10.73 μM on BaF3 cell line.
IC50 values were calculated using Graph-Pad Prism 7, and
the IC50 values of ten compounds were attached in Table 3.
Compound 4 g (10 mmol), pyridine (30 mmol), 60 mL
CH2Cl2 were added to the fask and stirred for 5 min. Then,
Compound 5i (11 mmol) was added dropwise under ice
bath, and stirring was continued for 10 min after the addi-
tion was completed, the ice bath was removed and the reac-
tion was continued at room temperature for 1 h. The reac-
tion was completed by TLC analysis. The reaction mixture
was poured into water (60 mL) and extracted with CH2Cl2
(3×50 mL). The combined organic layers were washed with
5% brine (2×50 mL) and dried over anhydrous Na2SO4. The
organic phase after drying was evaporated in vacuo, and the
obtained residue was purifed by column chromatography
to gain product 6k. The same method gained compounds
6l, 6m, 6n.
Molecular dynamics trajectory analysis
Molecular dynamics can provide useful information for char-
acterizing the internal motions of bio-macromolecules over
time. For comparison study, the 50 ns molecular dynam-
ics simulations were performed for the complexes formed
by SHP2 (5EHR) and SHP1 (3PS5) proteins with ligand
SHP836 by gromacs 4.5.5.
The RMSD versus the simulation time was considered
as a signifcant criterion to evaluate the stability of dynamic
behavior. Initially, the RMSD values of both complexes
increased quickly, which was caused by the relaxation and
repulsion of the complexes after dissolution of the solution.
As we could see from Figs. 6a and 7a, all the characters
concerned reached the simulation equilibrium within the
3 ns. During the simulation, the RMSD values of SHP2
with ligand SHP836 and compound 1 were found to be
relatively stable about 3.9 Å and 3.7 Å, respectively, while
the RMSD values of SHP1 with ligands SHP836 and com-
pound 1 were found to be relatively stable about 0.5 Å and
4.8 Å, respectively. The RMSD curves of SHP2–comp#1
and SHP1–comp#1 were more stable than that of
SHP2–SHP836, SHP2-without ligand, SHP1–SHP836, and
SHP1-without ligand systems.
Compound 3a (4 mmol), Compound 6n (4.4 mmol),
CsCO3 (8 mmol) and 20 mL DMF were added to the fask,
and the mixture was stirred for 8 h at 80 °C. TLC showed
the reaction was completed. After the system was cooled
to room temperature, the reaction mixture was poured into
water (30 mL) and extracted with CH2Cl2 (30 mL×3). The
combined organic layers were washed with 5% brine and
dried over anhydrous Na2SO4. The organic phase after dry-
ing was evaporated in vacuo, and the obtained residue was
purifed by chromatography to gain the fnal compound.
By this method shown in Fig. 4, compounds 1–10 were
obtained.
The root mean square fuctuation (RMSF) was another
useful method to study the stability of systems, refecting the
mobility of certain amino acid residues around their aver-
age positions. The greater the fuctuation of the RMSF, the
more unstable the residues, and the smaller the fuctuation
of the RMSF, the more stable the residues. The RMSF fuc-
tuation of the amino acids in the SHP2–comp#1 complex
were close to that of the SHP2–SHP836 complex, indicat-
ing that the compound 1 had a similar stability function in
SHP2 as SHP836 did (Fig. 6b). As Fig. 6b demonstrated
SHP2 activity assay and fuorescence titrations
Initially, the inhibition of 10 compounds against SHP2 was
evaluated by SHP2 activity assay. In those compounds, com-
pound 1 showed an inhibition rate larger than 50% at the
concentration of 2 μM. Then, all compounds were tested for
half-maximal inhibitory concentrations (IC50) values. All
compounds showed IC50 values more than 10 μM except
1 3

Journal of Computer-Aided Molecular Design
Fig. 4 Synthesis of the Compounds aReagents and conditions: (I)
Isopropyl Cyanoacetate, Cyclopentanone, Sulphur Powder, Morpho-
line, ethanol, N2, 80 °C, 24 h; (II) Formamid, N2, 210 °C, 12 h; (III)
MeCN, HCl, 60 °C, 12 h; (IV) Pyridine, CH2Cl2, 0 °C~25 °C, 1.5 h;
(V) CsCO3, acetone, 80 °C, 8 h
the RMSF of key residues Arg111–S8, Phe113–Cl25, and
Glu250–O14 in the SHP2–comp#1 complex fluctuated
lower than SHP2–SHP836 complex and SHP2 system,
reflecting that compound 1 could form stronger hydro-
gen bond (H bond) interactions with these key residues
than SHP836. For SHP1, the RMSF fuctuations of the
1 3

Journal of Computer-Aided Molecular Design
Fig. 5 a Inhibition of SHP2 after treated with compound 1 at con-
centrations of 0.1, 1, 5, 10, 20 μM. b Fluorescence titration of SHP2
was performed by increasing the concentrations of compound 1 while
maintaining the SHP2 protein concentration (1.0 μg). The fuores-
cence is plotted against the log concentration μmol/L (log [M]) for
the compound. Experiments are repeated three times. Similar results
are obtained in each. Data shown are the mean SEM of triplicates
from one representative experiment
Table 2 The IC50 values of 10
Compound
IC50 (μM)
1
2
3
4
5
6
7
8
9
10
compounds
SHP2
SHP1
9.97
>100
12.33
>100
39.43
>100
>100
>100
>100
>100
28.44
>100
>100
>100
>100 76.7
>100 >100
>100
>100
Table 3 The IC50 values of ten
Compounds
IC50 (μM)
1
2
3
4
5
6
7
8
9
10
compounds
10.73
11.59
37.49
>100
>100
16.29
>100
>100
30.92
48.55
residues in the SHP1–comp#1 complex were similar to the
SHP1–SHP836 complex, indicating that the compound 1
had a similar inhibitory function as SHP836 (Fig. 7b). Fig-
ure 7b also revealed that the RMSF values of key residues
in the SHP2–comp#1 complex were lower than that of
SHP1–comp#1, SHP1–SHP836 and SHP1-without ligand
systems, indicating that the compound 1 formed stronger
interactions with the residues than SHP836. Furthermore,
compared to the complexes of SHP1, the complexes of SHP2
were more stable.
listed in Table 4. It was clear that SHP2–comp#1 com-
plex (− 1603.625 J/mol) showed more negative binding
free energy than SHP2–SHP836 (− 256.936 kJ/mol),
SHP1–SHP836 (2.411 kJ/mol) and SHP1–comp#1 com-
plexes (− 194.569 kJ/mol), which supported the result of
MD simulations, indicating that SHP2–comp#1 complex
was more stable. Comparison of the binding energy com-
ponents provided a better understanding of the relative
contributions of diferent components to the overall bind-
ing free energies. It was apparent that electrostatic interac-
tions, Van der Waals and non-polar solvation energy had
a negative contribution to the total interaction energy, and
only polar solvation energy had a positive contribution to
the total free binding energy, indicating that electrostatic
interactions, Van der Waals and non-polar solvation energy
together contributed to the stability of the SHP2–comp#1,
SHP2–SHP836, SHP1–comp#1, and SHP1–SHP836 com-
plexes. For negative contribution, electrostatic interactions
ofered greater contributions than Van der Waals interac-
tions and the nonpolar free energy in the SHP2–comp#1
system, while for SHP2–SHP836 system, electrostatic
To understand the specifc interactions between protein
systems, the binding free energy was calculated using MM/
PBSA consisting of four terms, including the van der waals
interaction energy, the electrostatic energy, the polar solva-
tion free energy, and the non-polar solvation free energy. For
all systems, each snapshot structures were extracted during
equilibrium phase in the 10–50 ns trajectory to calculate the
binding free energy.
The binding free energies and detailed contributions
of the four energy components obtained from the MM/
PBSA calculation of the protein–ligand complexes were
1 3

Journal of Computer-Aided Molecular Design
Fig. 6 Analysis of molecular
dynamics simulations. a The
RMSD of all backbone atoms
for the receptor SHP2. b The
RMSF of the side-chain atoms
for the receptor SHP2. The
black line indicates the outcome
for the system of the recep-
tor without any ligand; the
red line indicates the outcome
for the system of the receptor
with ligand SHP836; and the
blue line indicates the outcome
for the system of the receptor
with compound 1. The black
rectangular box indicates the
fuctuation of key residues
interactions possessed the largest proportion among the
three components.
Gln495, while some other residues (Leu216, Asn217,
Asp489) played an important role in SHP2–comp#1 system.
For SHP1–SHP836 complex, the key residues were Arg109,
Lys127, Tyr214, Thr216, Glu246, Ser250, Leu251, Gln254,
Asp483, Gln485, Lys486, Gln489, while some other resi-
dues (Ala215, Glu235) also played an important role in
SHP2–comp#1 complex. The SHP2–comp#1 complex
(Fig. 7), the major favorable contributions to the binding
free energy came from Glu110 (−58.8895 kJ/mol), Phe113
(− 9.1562 kJ/mol), His114 (− 19.2202 kJ/mol), Thr218
(− 4.0998 kJ/mol), Thr219 (− 5.0751 kJ/mol), Glu249
(− 180.881 kJ/mol), Glu250 (− 206.436 kJ/mol), Thr253
(−9.2609 kJ/mol), Leu254 (−3.2948 kJ/mol) and Pro491
(−2.6899 kJ/mol). Among those residues, Glu250 gave the
most negative decomposed energy than other residues, sug-
gesting the stronger interactions with SHP2. Additionally,
residues Pro491and Thr108 formed the hydrophobic active
site and made favorable van der Waals/hydrophobic con-
tributions to the total energy. However, Arg111, Thr218,
and Lys492 showed positive decomposed energy, which
indicated their unfavorable contributions. Compared to
SHP2–SHP836 complex, the binding energy of residues
To further elucidate the efects of key residues on the
binding free energies of each complex, the decomposition
in terms of each residue was performed (Fig. 8). In gen-
eral, a residue would be considered as more important if
its decomposed energy was more negative. The key resi-
dues were observed in the signifcantly diferent regions of
SHP2 (Thr108–His114, Leu216–Thr219, Glu249–Gln257,
and Asp489–Gln495) and SHP1 (Pro212–Thr216,
Glu247–Gln254, and Asp483–Gln489), which was in
accordance with the docking results in Fig. 3. The major res-
idues of SHP2–comp#1 and SHP2–SHP836 complexes con-
tributed to the binding free energy varied in the range from
−206.436 to 39.614 kJ/mol and −207.494 to 33.302 kJ/mol,
respectively, while the major residues of SHP1–comp#1 and
SHP1–SHP836 complexes contributed to the binding free
energy varied in the range from −109.584 to 124.2927 kJ/
mol and −363.4859 to 226.8984 kJ/mol, respectively.
For SHP2–SHP836 complex, the key residues were
Thr108, Glu110, Arg111, Phe113, His114, Thr218, Thr219,
Glu249, Glu250, Thr253, Leu254, Gln257, Pro491, Lys492,
1 3

Journal of Computer-Aided Molecular Design
the opportunity to form H bond interactions. Another reason
was that the compound 1 formed more hydrophobic interac-
tions with residues Asp489.
For SHP1–comp#1 complex, Tyr214 (− 12.2148 kJ/
mol), Thr216 (− 0.6229 kJ/mol), Ser250 (− 3.9602 kJ/
mol), Leu251 (− 1.5779 kJ/mol), Gln254 (− 3.1456 kJ/
mol) and Asp483 (−53.1966 kJ/mol) were responsible for
major favorable contributions to the binding free energy
(Fig. 8). Major contribution to the van der Waals energies
came from residues Leu251, Asp483 and Gln489, while the
major contribution of electrostatic energy came from resi-
dues Arg109. The above fndings provided suitable expla-
nation for the diferent binding modes of compound 1 in
the SHP2 and SHP1 proteins. Furthermore, compound 1 in
both complexes exhibited similar hydrophobic interactions
with nearby residues, especially three conserved residues
(Ser109, Ser250 and Gln254 in SHP1 and Ser109, Glu250
and Leu250 in SHP2). Compared to SHP1–SHP836 and
SHP1–comp#1 complexes, the binding energy of all residues
of SHP2–comp#1 complex showed remarkable decrease.
The analysis of H‑bond occupancy
Fig. 7 Analysis of molecular dynamics simulations. a The RMSD of
all backbone atoms for the receptor SHP1. b The RMSF of the side-
chain atoms for the receptor SHP1. The black line indicates the out-
come for the system of the receptor alone without any ligand; the red
line indicates the outcome for the system of the receptor with ligand
SHP836; and the blue line indicates the outcome for the system of the
receptor with compound 1
The stability of the three-dimensional structure of a protein
was decided by the subtle balance among all kinds of weak
interactions, such as conjugation interactions, hydrophobic
interactions, and H bonds, in which hydrogen bonds play the
most important role in stabilizing the system.
The occupancies of H bond interactions in the 50 ns simu-
lations of SHP2–SHP836, SHP2–comp#1, SHP1–SHP836
and SHP1–comp#1 complexes were calculated and listed
in Table 5, respectively. The H bonds formed between
Phe113(O–N22), Glu250(O–N7), and Arg111(NH1–N2)
occupied 62%, 46%, and 2.8% of the whole simulation time
in SHP2–SHP836 system, respectively, whereas the three H
bonds formed between Phe113(O–Cl25), Glu250(O–O14),
and Arg111(HH26–S7) occupied 97.2%, 87.6%, and 20% of
the total simulation time in SHP2–comp#1 system, respec-
tively. It was revealed that these H bonds formed between
these residues were unstable in SHP2–comp#1 system.
Apart from these stable H bonds formed in SHP2–comp#1
system, there were also two other H bonds formed around
it. In SHP2–comp#1 system, the H bond formed between
Glu249 and Glu110 of SHP2–comp#1 complex showed
remarkable decrease, with the binding energy changing from
− 180.881 kJ/mol to − 204.725 kJ/mol, and − 58.8895 kJ/
mol to −65.5473 kJ/mol, respectively. The decrease of the
binding free energy indicated that the interactions between
these residues had been strengthened. One reason was that
compound 1 bound to SHP2 increased the electronic interac-
tions between the residues and SHP2 protein. As shown in
Fig. 1, the Scafold A of compound 1 was pointed close to
residues Arg111 and Pro491, which was benefcial to form
more stable H bond and cation–Pi interactions. The Scafold
B and Scafold C in compound 1 were located nearly to resi-
dues Leu254, Glu249, Thr218, and Thr219 which increased
Table 4 Binding free energies (kJ/mol) and its components between protein and ligand
Complex
Van der Waal energy
Electrostattic energy
Polar solvation
energy
Non-polar energy
Binding energy
SHP2–SHP836
SHP2–comp#1
SHP1–SHP836
SHP1–comp#1
−146.848
−145.798
−176.150
−200.556
−1314.676
−2741.876
−936.630
−807.259
1225.359
1302.632
1135.911
832.354
−20.771
−18.583
−18.720
−19.109
−256.936
−1603.625
2.411
−194.569
1 3

Journal of Computer-Aided Molecular Design
distances between Arg111 and N2 of SHP836 was moved
out of the reasonable H bond distance (0.25–0.35 nm) and
the distances between Phe113 (O–N22) and Glu250 (O–N7)
were within the H bond distance in SHP2–SHP836 sys-
tem. Since the distances of these H bonds (Phe113–O16,
Glu250–O16, and Arg111–Br8, respectively) were remained
within H bond distance throughout the whole simulation,
indicating that compound 1 had higher binding energy than
SHP836.
Compared to SHP2–comp#1, the occupancy of H
bond interactions of Gln485 were only 16% and 15.2% in
SHP1–SHP836 and SHP1–comp#1 complexes, respectively,
indicating that the binding energy of compound 1 to SHP2
was higher than that of compound 1 to SHP1. In conclusion,
the H bond interactions between compound 1 and SHP2
were more stable than that of compound 1 and SHP1, and
the occupancies of H bond interactions between compound
1 and SHP2 were higher, indicating that compound 1 had
higher selectivity for SHP2.
Dynamic cross‑correlation
DCC analysis was performed as described in previous sec-
tion to identify the presence of correlated motions of Cα
atoms within the backbone of the SHP2 and SHP1 systems
obtained after MD simulations. The DCC results for the
SHP2 and SHP1 systems were shown in Fig. 9. The DCC
results clearly show that the active site residues of both the
complexes demonstrated correlated motion which proves
that was bound to the active sites of both SHP2 and SHP1.
The results of DCC showed that only SHP2–comp#1 com-
plex demonstrated the strongly correlated motion between
residues, while SHP1–comp#1 complex did not show the
obviously correlated motion between residues. This indi-
cated that compound 1 was more suitable for binding to
SHP2 but not to SHP1 and confrmed the selectivity of
compound 1 to SHP2, which further supported the results
of docking, MD simulation and binding energy calculations.

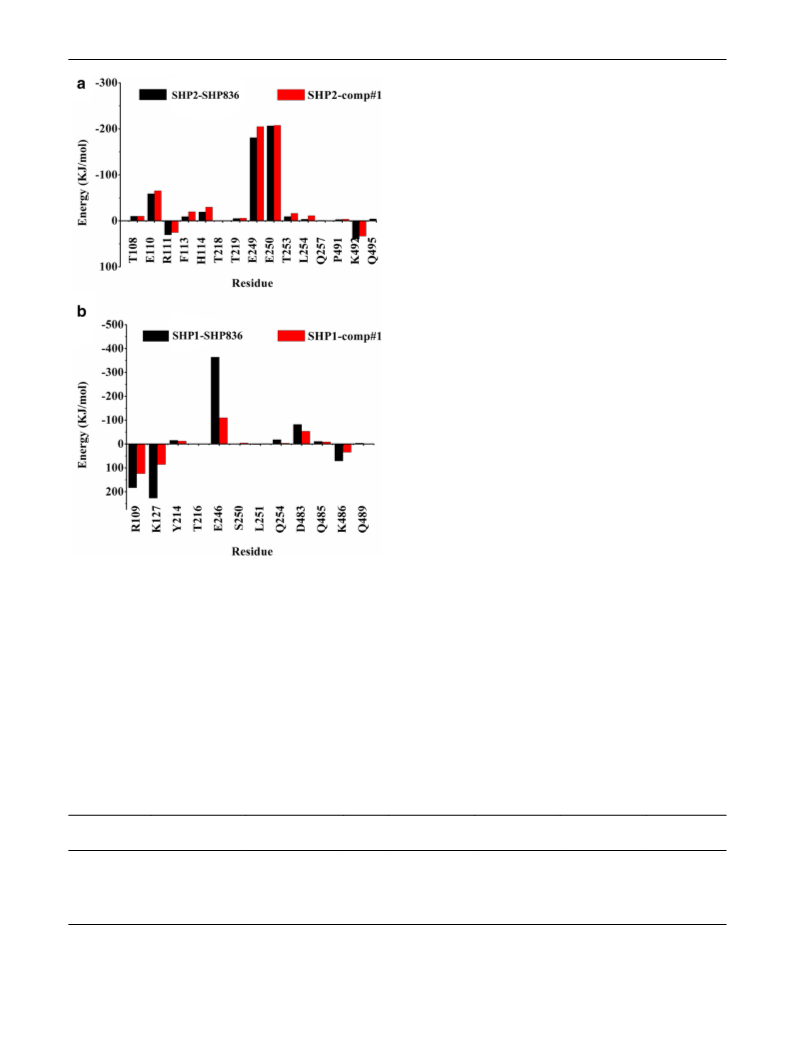

Fig. 8 a Interaction energies between SHP2 and SHP836 (black) and
comp#1 (red), respectively. Black represents SHP2–SHP836 com-
plex, red represents SHP2–comp#1 complex. b Interaction energies
of SHP1 with SHP836 (black) and compound 1 (red), respectively.
Black represents SHP1–SHP836 complex, red represents SHP1–
comp#1 complex
Thr218 (H–O18) and compound 1 occupied 100% of the
whole simulation time. The results were well in accord-
ance with the analysis of fexible docking, revealing that the
Table 5 The occupancies of hydrogen bond interactions in the 50 ns simulations of SHP2–SHP836, SHP2–comp#1, SHP1–SHP836 and SHP1–
comp#1 complexes, respectively
Interaction type Atom1
Atom2
Atom3 Occupancy (%) Occupancy (%) Occupancy (%) Occupancy (%)
(SHP2–SHP836) (SHP2–comp#1) (SHP1–SHP836) (SHP1–comp#1)
Hydrogen bond Arg111(NH1–N2) Arg111(HH26–S7) Gln485 62
97.2
87.6
20
15.2
16
0
0
Hydrogen bond Glu250(O–N7)
Hydrogen bond Phe113(O–N22)
Phe113(O–Cl25)
Glu250(O–O14)
Thr218 (H–O18)
0
0
0
46
2.8
0
0
0
0
Hydrogen bond
0
100
0
1 3

Journal of Computer-Aided Molecular Design
Fig. 9 Dynamic cross-correlation map (DCCM). a DCCM map for
the SHP2–SHP836 complex shows positive and negative correlative
motions between the residues. b DCCM map for SHP2–comp#1 com-
plex shows positive and negative correlative motions between resi-
dues. c DCCM map for the SHP1–SHP836 complex showed positive
and negative correlative motions between the residues. d DCCM map
for SHP1–comp#1 showed positive and negative correlative motions
between residues. Red represents positive correlations, and blue rep-
resents negative correlations
1 directly bound to SHP2. Consequently, the identifed
compound could be regarded as a novel drug candidate or
lead compound to inhibit SHP2. Finally, compound 1 was
used as a representative for 50 ns molecular dynamic sim-
ulations to study the binding afnity of the protein–ligand
complex and selectivity to SHP2. The compound 1 had
a signifcantly higher afnity for SHP2 than SHP1, sug-
gesting that it was a promising selective SHP2 inhibitor.
The interactions of compound 1 with residues Phe113 and
Glu250 in the SHP2 were identifed as the main responsi-
ble for determining selectivity. Compared to the SHP836,
the new inhibitor not only had the similar function of
Conclusion
The aim of our study was to fnd new and highly selective
allosteric inhibitors of SHP2. We utilized computer-aided
drug design method to rapidly screen optimal ligands.
From De novo design study, it was found that 130 com-
pounds might be potential SHP2 inhibitors. It was vali-
dated by Lipinski’s Rule of Five and ADMET prediction.
Compound 1 was found to have a novel selectivity for
SHP2 with an IC50 value of 9.97 μM in enzyme activ-
ity assay and 10.73 μM in cell proliferation assay. Fluo-
rescence titration experiment confrmed that compound
1 3

Journal of Computer-Aided Molecular Design
LR, Larrow J, Lenoir F, Liu G, Liu SM, Lombardo F, Majumdar
D, Meyer MJ, Palermo M, Perez L, Pu MY, Ramsey T, Sellers
WR, Shultz MD, Stams T, Towler C, Wang P, Williams SL,
Zhang JH, LaMarche MJ (2016) Allosteric inhibition of SHP2:
identifcation of a potent, selective, and orally efcacious phos-
phatase inhibitor. J Med Chem 59(17):7773–7782. https://doi.
org/10.1021/acs.jmedchem.6b00680
inhibiting SHP2, but also could form a more stable con-
formation after binding to SHP2 protein.
Acknowledgements This study was supported by the Natural Science
Foundations of China (Grant No. 81273361), the Natural Science
Foundation of Tianjin (Grant No. 16JCZDJC32500) and the Interna-
tional (Regional) Cooperation and Exchange Project of the National
Natural Science Foundation of China (Grant No. 81611130090). The
Science & Technology Development Fund of Tianjin Education Com-
mission for Higher Education (Grant No. 2017KJ229).
11. Chen C, Liang F, Chen B, Sun Z, Xue T, Yang R, Luo D (2017)
Identifcation of demethylincisterol A3 as a selective inhibi-
tor of protein tyrosine phosphatase Shp2. Eur J Pharmacol
795:124–133. https://doi.org/10.1016/j.ejphar.2016.12.012
12. Barr AJ (2010) Protein tyrosine phosphatases as drug targets:
strategies and challenges of inhibitor development. Future Med
Chem 2(10):1563–1576. https://doi.org/10.4155/Fmc.10.241
13. Chen YN, LaMarche MJ, Chan HM, Fekkes P, Garcia-Fortanet
J, Acker MG, Antonakos B, Chen CH, Chen Z, Cooke VG, Dob-
son JR, Deng Z, Fei F, Firestone B, Fodor M, Fridrich C, Gao
H, Grunenfelder D, Hao HX, Jacob J, Ho S, Hsiao K, Kang ZB,
Karki R, Kato M, Larrow J, La Bonte LR, Lenoir F, Liu G, Liu
S, Majumdar D, Meyer MJ, Palermo M, Perez L, Pu M, Price
E, Quinn C, Shakya S, Shultz MD, Slisz J, Venkatesan K, Wang
P, Warmuth M, Williams S, Yang G, Yuan J, Zhang JH, Zhu P,
Ramsey T, Keen NJ, Sellers WR, Stams T, Fortin PD (2016)
Allosteric inhibition of SHP2 phosphatase inhibits cancers
driven by receptor tyrosine kinases. Nature 535(7610):148–152.
https://doi.org/10.1038/nature18621
Compliance with ethical standards
Conflict of interest The authors report no conficts of interest in this
work.
References
1. Hof P, Pluskey S, Dhe-Paganon S, Eck MJ, Shoelson SE (1998)
Crystal structure of the tyrosine phosphatase SHP-2. Cell
92(4):441–450
2. Chen C, Cao M, Zhu S, Wang C, Liang F, Yan L, Luo D (2015)
Discovery of a novel inhibitor of the protein tyrosine phosphatase
Shp2. Sci Rep 5:17626. https://doi.org/10.1038/srep17626
3. Zhang X, He Y, Liu S, Yu Z, Jiang ZX, Yang Z, Dong Y, Nabinger
SC, Wu L, Gunawan AM, Wang L, Chan RJ, Zhang ZY (2010)
Salicylic acid based small molecule inhibitor for the oncogenic Src
homology-2 domain containing protein tyrosine phosphatase-2
(SHP2). J Med Chem 53(6):2482–2493. https://doi.org/10.1021/
jm901645u
14. Veselovsky AV, Ivanov AS (2003) Strategy of computer-aided
drug design. Curr Drug Targets Infect Disord 3(1):33–40
15. Wang W, Liu LJ, Song X, Mo Y, Komma C, Bellamy HD, Zhao
ZJ, Zhou GW (2011) Crystal structure of human protein tyros-
ine phosphatase SHP-1 in the open conformation. J Cell Bio-
chem 112(8):2062–2071. https://doi.org/10.1002/jcb.23125
16. Prlic A, Kalro T, Bhattacharya R, Christie C, Burley SK, Rose
PW (2016) Integrating genomic information with protein
sequence and 3D atomic level structure at the RCSB protein
data bank. Bioinformatics 32(24):3833–3835. https://doi.
org/10.1093/bioinformatics/btw547
4. Yang W, Wang J, Moore DC, Liang H, Dooner M, Wu Q, Terek
R, Chen Q, Ehrlich MG, Quesenberry PJ, Neel BG (2013) Ptpn11
deletion in a novel progenitor causes metachondromatosis by
inducing hedgehog signalling. Nature 499(7459):491–495. https
://doi.org/10.1038/nature12396
17. Ma Y, Jin YY, Wang YL, Wang RL, Lu XH, Kong DX, Xu
WR (2014) The discovery of a novel and selective inhibitor of
PTP1B over TCPTP: 3D QSAR pharmacophore modeling, vir-
tual screening, synthesis, and biological evaluation. Chem Biol
Drug Des 83(6):697–709. https://doi.org/10.1111/cbdd.12283
18. Schubert CR, Stultz CM (2009) The multi-copy simultaneous
search methodology: a fundamental tool for structure-based
drug design. J Comput Aided Mol Des 23(8):475–489. https://
doi.org/10.1007/s10822-009-9287-y
5. Lawrence HR, Pireddu R, Chen L, Luo Y, Sung SS, Szymanski
AM, Yip ML, Guida WC, Sebti SM, Wu J, Lawrence NJ (2008)
Inhibitors of Src homology-2 domain containing protein tyrosine
phosphatase-2 (Shp2) based on oxindole scafolds. J Med Chem
51(16):4948–4956. https://doi.org/10.1021/jm8002526
6. Chan RJ, Feng GS (2007) PTPN11 is the frst identifed proto-
oncogene that encodes a tyrosine phosphatase. Blood 109(3):862–
867. https://doi.org/10.1182/blood-2006-07-028829
19. Bohm HJ (1992) The computer program LUDI: a new method
for the De novo design of enzyme inhibitors. J Comput Aided
Mol Des 6(1):61–78
7. Bentires-Alj M, Paez JG, David FS, Keilhack H, Halmos B, Naoki
K, Maris JM, Richardson A, Bardelli A, Sugarbaker DJ, Richards
WG, Du J, Girard L, Minna JD, Loh ML, Fisher DE, Velculescu
VE, Vogelstein B, Meyerson M, Sellers WR, Neel BG (2004)
Activating mutations of the noonan syndrome-associated SHP2/
PTPN11 gene in human solid tumors and adult acute myelog-
enous leukemia. Cancer Res 64(24):8816–8820. https://doi.
org/10.1158/0008-5472.CAN-04-1923
20. Schneider G, Fechner U (2005) Computer-based De novo design
of drug-like molecules. Nat Rev Drug Discov 4(8):649–663.
https://doi.org/10.1038/nrd1799
21. Egan WJ, Merz KM, Baldwin JJ (2000) Prediction of
drug absorption using multivariate statistics. J Med Chem
43(21):3867–3877. https://doi.org/10.1021/jm000292e
22. Egan WJ, Walters WP, Murcko MA (2002) Guiding mol-
ecules towards drug-likeness. Curr Opin Drug Discov Dev
5(4):540–549
8. Chen L, Sung SS, Yip ML, Lawrence HR, Ren Y, Guida WC,
Sebti SM, Lawrence NJ, Wu J (2006) Discovery of a novel shp2
protein tyrosine phosphatase inhibitor. Mol Pharmacol 70(2):562–
570. https://doi.org/10.1124/mol.106.025536
23. Cheng A, Merz KM Jr (2003) Prediction of aqueous solubil-
ity of a diverse set of compounds using quantitative structure-
property relationships. J Med Chem 46(17):3572–3580. https
://doi.org/10.1021/jm020266b
9. He R, Yu ZH, Zhang RY, Wu L, Gunawan AM, Lane BS, Shim
JS, Zeng LF, He Y, Chen L, Wells CD, Liu JO, Zhang ZY (2015)
Exploring the existing drug space for novel pTyr mimetic and
SHP2 inhibitors. ACS Med Chem Lett 6(7):782–786. https://doi.
org/10.1021/acsmedchemlett.5b00118
24. Wesson L, Eisenberg D (1992) Atomic solvation parameters
applied to molecular dynamics of proteins in solution. Protein
Sci 1(2):227–235. https://doi.org/10.1002/pro.5560010204
10. Fortanet JG, Chen CHT, Chen YNP, Chen ZL, Deng Z, Fire-
stone B, Fekkes P, Fodor M, Fortin PD, Fridrich C, Grunen-
felder D, Ho S, Kang ZB, Karki R, Kato M, Keen N, LaBonte
1 3

Journal of Computer-Aided Molecular Design
25. Xia XY, Maliski EG, Gallant P, Rogers D (2004) Classifca-
tion of kinase inhibitors using a Bayesian model. J Med Chem
47(18):4463–4470. https://doi.org/10.1021/jm0303195
26. Koska J, Spassov VZ, Maynard AJ, Yan L, Austin N, Flook PK,
Venkatachalam CM (2008) Fully automated molecular mechan-
ics based induced ft protein-ligand docking method. J Chem Inf
Model 48(10):1965–1973. https://doi.org/10.1021/ci800081s
27. Spassov VZ, Yan L, Flook PK (2007) The dominant role of side-
chain backbone interactions in structural realization of amino acid
code. ChiRotor: a side-chain prediction algorithm based on side-
chain backbone interactions. Protein Sci 16(3):494–506. https://
doi.org/10.1110/ps.062447107
34. Hou TJ, Wang JM, Li YY, Wang W (2011) Assessing the perfor-
mance of the molecular mechanics/Poisson Boltzmann surface
area and molecular mechanics/generalized born surface area meth-
ods. II. The accuracy of ranking poses generated from docking. J
Comput Chem 32(5):866–877. https://doi.org/10.1002/jcc.21666
35. Weiser J, Shenkin PS, Still WC (1999) Approximate atomic sur-
faces from linear combinations of pairwise overlaps (LCPO). J
Comput Chem 20(2):217–230. https://doi.org/10.1002/(Sici)1096-
987x(19990130)20:2%3c217:Aid-Jcc4%3e3.0.Co;2-A
36. Onufriev A, Bashford D, Case DA (2004) Exploring protein
native states and large-scale conformational changes with a mod-
ifed generalized born model. Proteins Struct Funct Bioinform
55(2):383–394. https://doi.org/10.1002/prot.20033
28. Wu G, Robertson DH, Brooks CL 3rd, Vieth M (2003) Detailed
analysis of grid-based molecular docking: a case study of
CDOCKER-A CHARMm-based MD docking algorithm. J Com-
put Chem 24(13):1549–1562. https://doi.org/10.1002/jcc.10306
29. Abdolmaleki A, Ghasemi F, Ghasemi JB (2017) Computer-aided
drug design to explore cyclodextrin therapeutics and biomedical
applications. Chem Biol Drug Des 89(2):257–268. https://doi.
org/10.1111/cbdd.12825
37. Tama F, Sanejouand YH (2001) Conformational change of pro-
teins arising from normal mode calculations. Protein Eng 14(1):1–
6. https://doi.org/10.1093/Protein/14.1.1
38. Tang BW, Li BQ, Qian YQ, Ao MT, Guo KQ, Fang MJ, Wu
Z (2017) The molecular mechanism of hPPAR alpha activation.
RSC Adv 7(28):17193–17201. https://doi.org/10.1039/c6ra2
7740c
30. Fernandes CL, Sachett LG, Pol-Fachin L, Verli H (2010) GRO-
MOS96 43a1 performance in predicting oligosaccharide con-
formational ensembles within glycoproteins. Carbohydr Res
345(5):663–671. https://doi.org/10.1016/j.carres.2009.12.018
31. Zang LL, Wang XJ, Li XB, Wang SQ, Xu WR, Xie XB, Cheng
XC, Ma H, Wang RL (2014) SAHA-based novel HDAC inhibitor
design by core hopping method. J Mol Gr Model 54:10–18. https
://doi.org/10.1016/j.jmgm.2014.08.005
39. Kasahara K, Fukuda I, Nakamura H (2014) A novel approach of
dynamic cross correlation analysis on molecular dynamics simula-
tions and its application to Ets1 dimer-DNA complex. PLoS ONE
9(11):e112419. https://doi.org/10.1371/journal.pone.0112419
40. Cole JC, Murray CW, Nissink JWM, Taylor RD, Taylor R (2005)
Comparing protein-ligand docking programs is difcult. Proteins
Struct Funct Bioinform 60(3):325–332. https://doi.org/10.1002/
prot.20497
32. Hess B (2008) P-LINCS: a parallel linear constraint solver for
molecular simulation. J Chem Theory Comput 4(1):116–122.
https://doi.org/10.1021/ct700200b
Publisher’s Note Springer Nature remains neutral with regard to
jurisdictional claims in published maps and institutional afliations.
33. Kumari R, Kumar R, Lynn A, Consort OSDD (2014) g_mmpbsa-
A GROMACS tool for high-throughput MM-PBSA calculations. J
Chem Inf Model 54(7):1951–1962. https://doi.org/10.1021/ci500
020m
1 3
