tively, from X-ray crystallography data, in combination with
elemental and thermogravimetric analyses (see Table S1 and
Figure S20 in the Supporting Information). Both 1a and 2a
(Figure 1) contain a central belt of four coplanar ZnII and
SbIII cations sandwiched between two [B-a/b-ZnW9O34]12ꢀ
trivacant Keggin subunits. The two six-coordinate Zn atoms
display octahedral environments, whereas the two Sb atoms
exhibit five-coordinate square-pyramidal geometries. Bond
valence sum (BVS)[13] values of zinc (2.04 and 2.15 for 1a,
2.02 and 2.14 for 2a), antimony (3.08 for 1a, 3.04 for 2a),
and tungsten atoms (5.88–6.00 for 1a and 5.82–6.03 for 2a)
are in line with their respective oxidation states of +2, +3,
and +6 (see Table S3 in the Supporting Information).
identical (see Figure S11), indicating the stability of the
POM in solution. The ESI-MS spectra of compounds 1a and
2a in a mixture of deionized water and acetonitrile (80:20)
are very similar and show the presence of the intact [Zn2Sb2-
AHCTNUGERT(GNNNU ZnW9O34)2] cluster with various amounts of associated cati-
ons and water molecules. Two main distributions of peaks
arise from quadruply and quintuply charged species (see
Figures S26 and S27).

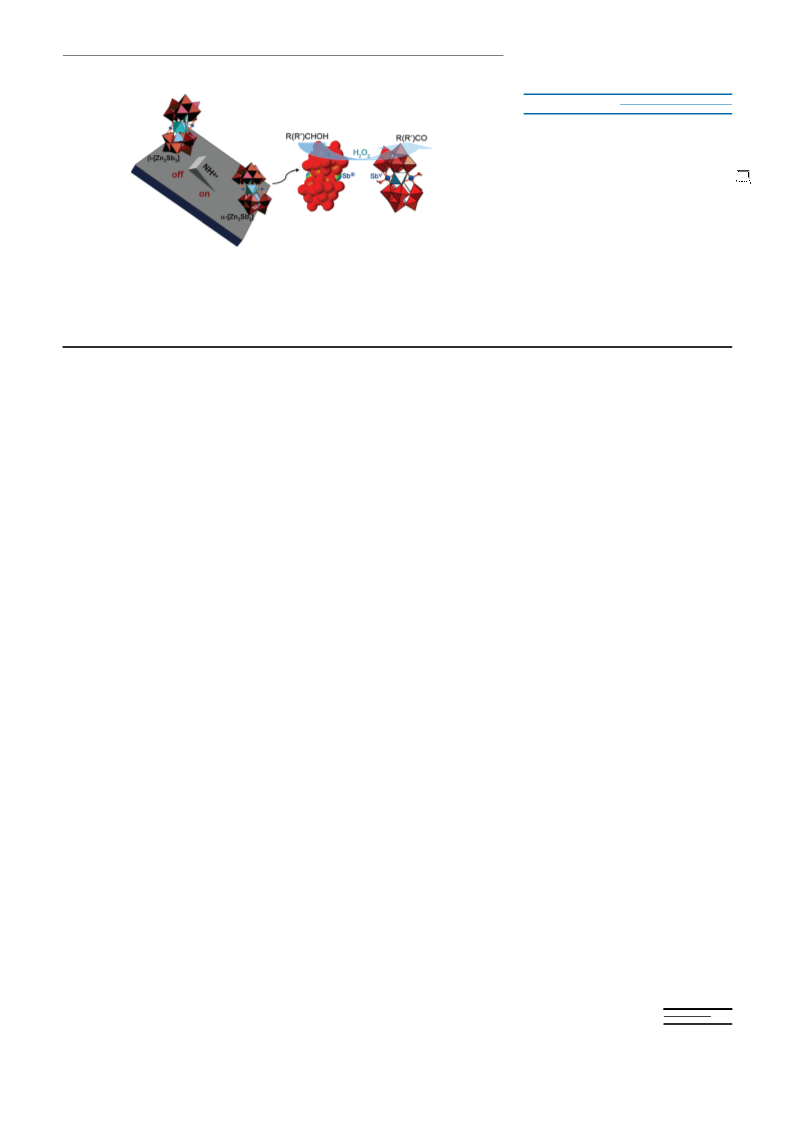

Next, the reactivity of catalysts 1a and 2a with hydrogen
peroxide was investigated. The SbV-containing derivatives of
1a and 2a, Na
·28H2O (3) and Na2A
N
[Zn2SbV (OH)2(B-a-ZnW9O34)2]
8ACHTUNGTERNNUNG
2
U
·20H2O (4), were obtained in single crystalline form by
treatment with H2O2 at 858C (see Table S2 in the Support-
ing Information for the crystallographic details).[21] Decolori-
zation of the yellow solution indicates the oxidation of SbIII
centers in 1a and 2a to SbV, likely through attack of H2O2.
Whereas the basic POM frameworks of 1a and 2a remain
unchanged, the coordination geometry of Sb in a-
[Zn2SbV (OH)2] (3) and b-[Zn2SbV (OH)2] (4) is extended
The two newly synthesized isomers 1a and 2a display
flexible isomerization and interconversion processes with b-
Na-[Zn2Sb2] (2a) playing a central role (see the Supporting
Information). In NH4+/Na+-containing solutions, spontane-
ous isomerization of the b-isomer 2a into the a-form 1a
very slowly sets in. Likewise, b-Na-[Zn2Sb2] (2a) equili-
+
brates with a-Na-[Zn2Sb2] (1b) in the absence of NH4 ions.
2
2
Furthermore, b-Na-[Zn2Sb2] (2a) can undergo a cation ex-
from square-pyramidal to octahedral (Figure 1). BVS values
of 4.63 (Sb1), 2.16 (Zn1), 2.29 (Zn2), and 5.88–5.98 (W) in 3
and 1.99, 2.23 (Zn1, Zn2), 4.95 (Sb1), as well as an average
of 5.94 for W in 4 correspond to ZnII, SbV and WVI in both
compounds. Furthermore, BVS values of 0.91 and 0.87 in 3
and 4, respectively, clearly identify O35 as hydroxo ligand
(see Table S4).
+
change into b-NH4-[Zn2Sb2] (2b) upon addition of NH4
.
The isomerization of 2a into 1a or 1b, respectively, is ther-
modynamically favored. Initially, the a- or b-form can be se-
+
lectively accessed by switching the initial NH4 concentra-
tion. Crystal structure details for 1b and 2b are provided in
Table S1 in the Supporting Information.[21]

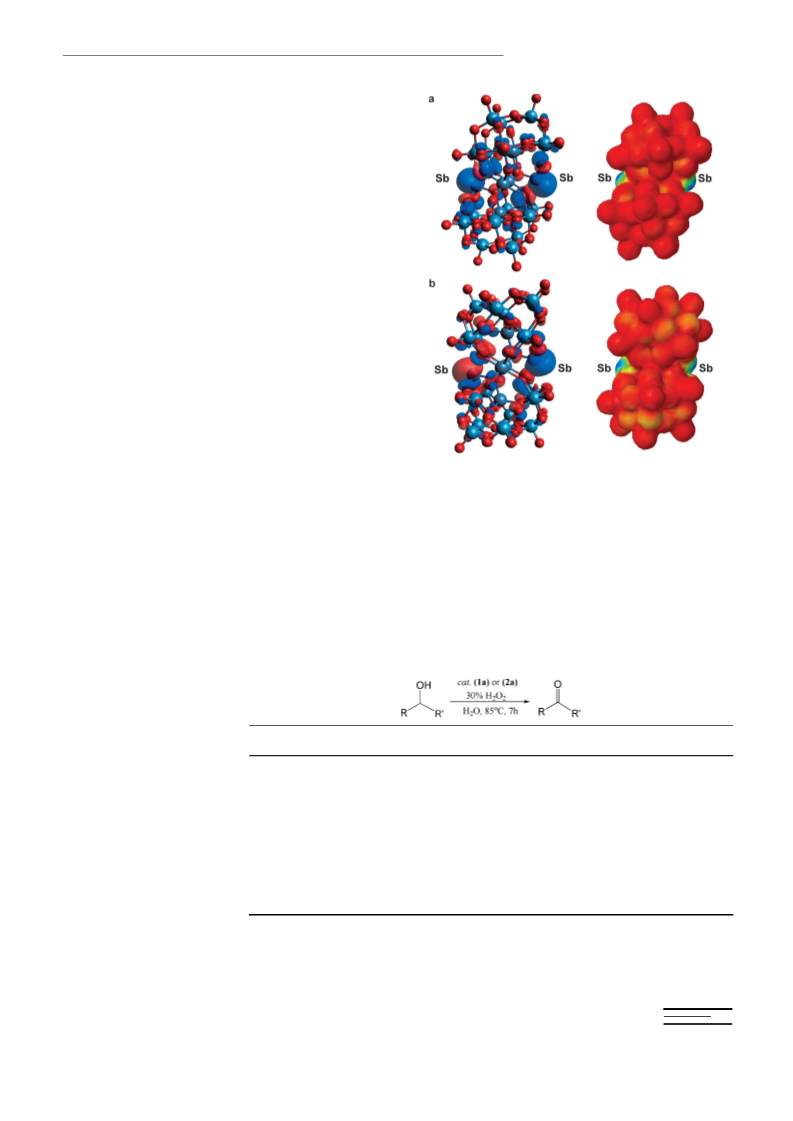

Calculated energetics of 1a and 2a show a relative energy
difference of approximately 1.0 kcalmolꢀ1, with 1a being the
lower energy form (for details on the computational meth-
ods see the Supporting Information). This energy difference
is commensurate with what one would expect given the de-
scribed experimental isomerization process. The fully opti-
mized structural results were found to be in excellent agree-
ment with the crystallographically determined values. Solid-
state UV/Vis spectra of compounds 1a and 2a show visible-
light absorption (Figure S9) with band gap values of 2.78
(2.65) and 2.88 (2.71) eV, respectively, in relatively good
agreement with computationally predicted values shown in
parentheses.
The phase purity of compounds 1a, 1b, 2a, and 2b ob-
tained in this study was confirmed with PXRD measure-
ments (see Figures S14–S17). Cyclic voltammograms (CVs)
of aqueous solutions of 1a and 2a are strongly pH-depend-
ent (see Figures S21 and S22). The redox signals become
weaker and finally disappear with higher solution pH due to
protonation effects.[14] The quasi-reversible peak (I–I’) be-
tween ꢀ0.5 and ꢀ1.0 V at pH 4.0 corresponds to the redox
processes of the WVI centers. The irreversible oxidation
Solid-state and solution FT-IR spectra of the SbV-contain-
ing compound 3 agree well with the SbIII precursor 1a,
which underlines the oxidative stability of the POM motif
(see Figure S11). In line with the observed color change, the
UV/Vis spectra of POMs 3 and 4 exhibit a considerable
blue shift with respect to those of 1a and 2a (see Figure S9).
PXRD measurements confirm the phase purity of 3 and 4
(see Figures S18 and S19). The CV curves of 3 and 4 are
similar to those of 1a and 2a; however, cyclovoltammetric
determination of the SbIII/SbV redox couple is difficult due
to the electro-inactivity of SbV, which hinders the electron
transfer (see Figures S23 and S24).[16] ESI-MS investigations
of compounds 3 and 4 show that three main distributions of
peaks arise from quadruply, quintuply, and sextuply charged
species. All of the main peaks can be assigned to the expect-
ed {Zn2Sb2(OH)2ACHTNUGTRENGN(U ZnW9O34)2} cluster polyanion with differ-
ent cations and charges (see Figures S28 and S29).
X-ray photoelectron spectroscopy (XPS) of the Sb 3d3/2
peak was employed to confirm the SbV valence state in 3
and 4, as the Sb 3d5/2 peak could not be used due to overlap-
ping with the O1s peak in Sb/O-containing compounds (see
Figure S30a). In addition, Sb 4d is almost entirely masked
by the W 4f line of much higher intensity, and is therefore
not available for analysis. The peak at 540.5 eV is assigned
to the 3d3/2 state of SbV in 3, whereas the peak at 539.7 eV
corresponds to the 3d3/2 state of SbIII in 1a.[17] The binding
energy of the Sb 3d3/2 is slightly shifted due to the different
binding sites of the SbIII and SbV cations in 3 and 1a (see
Figure S30a). 121Sb NMR spectra also support the existence
peak (II’) around 0.27 V is assigned to the oxidation of met-
[15]
allic Sb0 to oxygenic Sb3+
.
FT-IR and Raman spectra of
1a and 2a in the solid state are closely related, and the char-
acteristic peaks are assigned to W–O vibrations (see Figur-
es S10, S12, and detailed assignment in Table S13). POM
stability in aqueous media was confirmed by FT-IR spectro-
scopy and electrospray ionization mass spectra (ESI-MS).
Solid-state and solution FT-IR spectra for 1a are practically
2ACTHNUTRGNEUNG
of a-[Zn2SbV (OH) (ZnW9O34)2]12ꢀ in solution. A solution of
2
&
2
&
