Synthesis of peripherally tetra substituted neutral azophenoxy zinc phthalocyanine and its application in bulk hetero junction solar cells

Article abstract of DOI:10.1016/j.molstruc.2019.02.086

Neutral zinc phthalocyanine bearing 4-phenylazopohenoxy group at the periphery (ZnPc-4) has been synthesized from zinc acetate dihydrate Zn(CH₃COO)₂·2H₂O and 4-(phenylazophenoxy)phthalonitrile. The synthesized zinc phthalocyanine ZnPc-4 was characterized using UV–visible, FTIR, ¹H NMR and MALDI-TOF mass spectral measurements. Solution processed bulk hetero junction solar cells were fabricated using ZnPc-4 as the donor material and [6,6]-Phenyl C₆₁ butyric acid methyl ester (PCBM) as the acceptor material. A power conversion efficiency of 0.69% was achieved by optimizing the donor:acceptor weight ratio. Variation in device performance with the donor:acceptor weight ratio was investigated using atomic force microscopy.

Full text of DOI:10.1016/j.molstruc.2019.02.086

Accepted Manuscript
Synthesis of peripherally tetra substituted neutral azophenoxy zinc phthalocyanine
and its application in bulk hetero junction solar cells
G.S. Amitha, M. Yoosuf Ameen, V. Sivaji Reddy, Suni Vasudevan
PII:
S0022-2860(19)30222-4
DOI:
https://doi.org/10.1016/j.molstruc.2019.02.086
MOLSTR 26243
Reference:
To appear in: Journal of Molecular Structure
Received Date: 7 November 2018
Revised Date: 21 February 2019
Accepted Date: 22 February 2019
Please cite this article as: G.S. Amitha, M.Y. Ameen, V.S. Reddy, S. Vasudevan, Synthesis of
peripherally tetra substituted neutral azophenoxy zinc phthalocyanine and its application in bulk
hetero junction solar cells, Journal of Molecular Structure (2019), doi: https://doi.org/10.1016/
j.molstruc.2019.02.086.
This is a PDF file of an unedited manuscript that has been accepted for publication. As a service to
our customers we are providing this early version of the manuscript. The manuscript will undergo
copyediting, typesetting, and review of the resulting proof before it is published in its final form. Please
note that during the production process errors may be discovered which could affect the content, and all
legal disclaimers that apply to the journal pertain.

ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
Article
Synthesis of peripherally tetra substituted neutral
azophenoxy zinc phthalocyanine and its application in bulk
hetero junction solar cells
1
2
2*
1*
Amitha G. S. , M. Yoosuf Ameen , V. Sivaji Reddy and Suni Vasudevan
1
Dept. of Chemistry, National Institute of Technology Calicut, Calicut 673601, Kerala, India
Dept. of Physics, National Institute of Technology Calicut, Calicut 673601, Kerala, India
2
*
Corresponding authors, Email: suniv@nitc.ac.in, sivaji@nitc.ac.in
Abstract
Neutral zinc phthalocyanine bearing 4-phenylazopohenoxy group at the periphery (ZnPc-4) has
been synthesized from zinc acetate dihydrateZn(CH COO) .2H O and
4-
3
2
2
(phenylazophenoxy)phthalonitrile.
The synthesized zinc phthalocyanine ZnPc-4 was
1
characterized using UV-visible, FTIR, H NMR and MALDI-TOF mass spectral measurements.
Solution processed bulk hetero junction solar cells were fabricated using ZnPc-4 as the donor
material and [6,6]-Phenyl C butyric acid methyl ester (PCBM) as the acceptor material. A
6
1
power conversion efficiency of 0.69% was achieved by optimizing the donor:acceptor weight
ratio. Variation in device performance with the donor:acceptor weight ratio was investigated
using atomic force microscopy.
Keywords: soluble zinc phthalocyanine, 4-(phenylazophenoxy)phthalonitrile, bulk hetero
junction solar cell, [6,6]-phenyl C butyric acid methyl ester, solution processing
6
1
1
. Introduction
The world is rapidly approaching a precarious environmental state owing to the extensive
use of fossil fuels, which may be depleted in the near future. Solar energy is a promising

ACCEPTED MANUSCRIPT
sustainable developmental resource to overcome this energy crisis. The emerging trend in the
development of photovoltaics addresses the key issue, i.e., the production of electricity from the
renewable solar power. An organic solar cell is a device that uses small organic molecules or
conductive organic polymers for light absorption and charge transport to produce electricity from
sunlight by the photovoltaic effect[1,2]. Polymeric blend based organic photovoltaics have many
advantages over silicon based inorganic-semiconductor technology in terms of low cost
production, easy fabrication of device, light weight, thin film deposition over large surface and
the fine tuning optical properties of the acceptor-donor materials by slight structural
modification[3–6]. Small molecular organic semiconductors with appropriate properties can also
be used as electron donor materials in OPV devices. Phthalocyanines have drawn significant
research interest from the very beginning of organic solar cell research. Copper phthalocyanine
was used as the donor material in the first bilayer solar cell demonstrated by Tang[7]. The
double-layer structure of a p-and n-type organic semiconductor OSC device was made using
copper phthalocyanine CuPc as the electron donor, a perylenetetracarboxylic derivative as the
electron acceptor and the device attained a power conversion efficiency (PCE) of about 1%. In
1
995, the discovery of ultrafast charge transfer from polymer to fullerene or its functionalized
derivatives [6,6]-phenyl-C61-butyric acid methyl ester (PCBM)facilitated the development of
bulk hetero-junction (BHJ) solar cells and fullerene derivatives are considered as the interesting
class of acceptor materials in the active layer of OSCs[8]. In 2004,Gebeyehu et al. fabricated the
solar cell device by high vaccum co-evaporation technique using ZnPc as donor and fullerene
C
60 as acceptor, the device showed PCE of 3.9% [9]. Pfuetzner et al. fabricated a BHJOSC in
which ZnPc:C blend as photoactive layer and studied the effect of substrate temperatures during
6
0
the deposition of active layer on the substrate[10]. Despite all these attractive features, the
insolubility of phthalocyanines in common organic solvents and their narrow absorption band at
ultraviolet and red wavelengths have limited their widespread application in the low-cost organic
solar cell technology. The insolubility makes them inappropriate for solution processing and
compels the researchers to stick to vacuum thermal evaporation for solar cell fabrication[11–15],
which is not suitable for depositing thin-films over large area. On the other hand, solution-
processing techniques like ink-jet printing, spray coating and spin coating are inexpensive and
highly suitable for large area photovoltaics. The solubility of phthalocyanines can be improved
by substituting the peripheral, non-peripheral or axial positions of Pc core with appropriate

ACCEPTED MANUSCRIPT
substituents[16,17]. Recently, several research groups have reported the synthesis of soluble
phthalocyanines for BHJ solar cell applications. Fischer et al. achieved a power conversion
efficiency (PCE) of 1.6% using soluble ruthenium(II) phthalocyanine complex as the donor
material[18]. Varotto et al. fabricated parallel tandem BHJ solar cells using self-organised blends
of phthalocyanine derivatives and obtained a 4-fold increase in efficiency compared to single
phthalocyanine based devices[19]. Abdullah et al. demonstrated BHJ solar cell with efficiency
around 1.1% using vanadyltetraphenoxy phthalocyanine complexes as the acceptor material[20].
In this paper, we report the synthesis, characterization and BHJ solar cell fabrication of zinc
phthalocyanine (ZnPc-4) peripherally substituted with 4-phenylazophenol moiety by oxygen
linkage. Herein we have utilized the solubility of ZnPc-4 in 1,2-dichlorobenzene (1,2-DCB) for
the solution processed fabrication of bulk heterojunction organic solar cells, using ZnPc-4 as the
donor material and PCBM as the acceptor material.
2
. Experimental
2
.1. Materials & Methods
All chemicals were commercially purchased and used without further purification. The
purity of the products and the progress of the reaction were monitored in each step by TLC (TLC
Silica gel 60 F ).UV-visible absorption spectra were recorded on a Schimadzu UV-Visible
2
54
2
600 Spectrophotometer with quartz cuvette and fluorescence spectra were obtained from Perkin
Elmer LS 45 fluorescence spectrophotometer. FT-IR spectra (KBr pellets) were recorded on a
1
JASCO FT-IR 4700 spectrometer. H NMR spectra were obtained in deuterated chloroform
CDCl , using a BrukerAvance III, 400MHz FT-NMR spectrometer with TMS as internal
3
reference. MALDI-TOF measurements were done on a Voyager-DE PRO from Applied
Biosystems using dihydroxybenzoic acid as the MALDI matrix. Chloroform was used as solvent
in mass analysis and mass analysis was conducted in positive ion mode. The absorption spectra
and photoluminescence (PL) measurements of thin films of ZnPc-4, PCBM and ZnPc-4:PCBM
blend were recorded using Perkin-Elmer lambda-35 spectrophotometer. The highest occupied
molecular orbital (HOMO) and lowest unoccupied molecular orbital (LUMO) energy levels of
ZnPc-4 were evaluated from cyclic voltammetry measurements using a CH-instruments Inc,
USA (Model: CHI660E) equipped with potentiostat/galvanostat with Fourier Transform AC
Voltammeter. The electrochemical cell consists of a three electrode cell assembly; platinum as

ACCEPTED MANUSCRIPT
working electrode, standard calomel electrode (SCE) as reference electrode and a platinum wire
as the counter electrode. The concentration of ZnPc-4 was fixed as 0.5 mM. All the
o
measurements were performed at 25 C in DCM under N2 atmosphere using 0.1 M
tetrabutylammonium perchlorate (TBAP) as the supporting electrolyte at a scan rate of
1
00mV/sec. The current density-voltage (J-V) measurements of the photovoltaic devices were
carried out with Agilent B2902A Source/Measure unit by keeping the devices under AM 1.5
illumination (Photo Emission Tech SS50AAA solar simulator) with a power density of 100
2
mW/cm .The surface morphology of the ZnPc-4:PCBM films of different weight ratio were
investigated using atomic force microscopy (AFM; WITec, Alpha300RA).
2
.2. Synthesis
.2.1. Preparation of 4-phenylazophenol(1)
-phenylazophenol was synthesized according to the reported literature method[21].
2
4
Aniline (5.0 g, 53.7 mmol) was dissolved in HCl (16 ml) and water (16 ml) and digested in a
o
water bath for an hour. The resulting hydrochloride was cooled to 5 C and diazotized with ice-
cold aqueous NaNO solution (3.7 g, 53.6 mmol, 25 ml). A cold solution of phenol (7.78 g,53.6
2
mmol), previously dissolved in 10% NaOH solution (5 g, 50 ml), was then added to the cold
diazonium salt solution with vigorous stirring. A yellow colour developed almost immediately
and the stirring is continued for 1 h. The reaction mixture was kept overnight in a refrigerator
followed by 2h at room temperature. The resulting yellow precipitate was filtered, washed
several times with water to remove soluble starting materials, and then dried in air. The crude
product was re-precipitated from ethanol-water system several times to yield pure yellow
precipitate.
-1
UV-vis (MeOH): λmax, nm (log ε): 239 (4.12), 348 (4.47), 451 (2.97); FTIR (KBr) (νmax, cm ):
3
165 (broad O-H str.), 1602, 1588, 1506 (Ar C=C str.), 1416 (N=N str.), 1143 (C-N str.), 1240
1
(
C-O str.), 836, 767, 680 (Ar =C-H oop bending); HNMR (CDCl , 400MHz) 7.88 (2H, d,
3
3
3
3
3
J =9.2Hz), 7.86 (2H, d, J =7.2Hz), 7.5 (2H, t, J =7.2Hz), 7.44 (1H, t, J =7.2Hz), 6.94 (2H, d,
J=9.2Hz), 5.3 (1H, O-H, broad)
2
.2.2. Preparation of 4-(4-(phenylazophenoxy)phthalonitrile(3):
4
-(4-(phenylazophenoxy)phthalonitrile was prepared by adopting the reported literature
procedures for base catalyzed aromatic nucleophilic ipso-nitro substitution reactions[22,23].4-

ACCEPTED MANUSCRIPT
phenylazophenol (1.500 g, 11.00 mmol) (1) and 4-nitrophthalonitrile (1.900 g, 11.00 mmol) (2)
were added successively with stirring to dry DMF (50 mL). After dissolution, anhydrous
o
K CO (4.550 g, 33.00 mmol) was added and the reaction mixture was stirred at 60 C for 24 h
2
3
under nitrogen. The progress of the reaction was monitored by TLC. The reaction mixture was
poured into 250 mL of cold water and stirred for 15 min. The precipitate was filtered, washed
several times with cold water until the filtrate became neutral. It was dried in vacuo.
-1
UV-vis (CHCl ): λmax, nm (log ε): 325 (4.365), 436 (2.865); FTIR (KBr) (νmax, cm ): 2232 (C≡N
3
str.), 1606, 1589, 1562 (Ar C=C str.), 1485 (N=N str.), 1203 (C-N str.), 1257 (Ar-O-Ar str.), 861,
1
3
7
7
75, 690 (Ar =C-H oop bending); HNMR (400 MHz, CDCl
3
): δ (ppm) 8.03 (2H, d, J =9 Hz),
3
4
3
3
.93 (2H, dd, J =8.2 Hz, J =1.8 Hz), 7.76 (1H, d, J =8.8 Hz), 7.56-7.50 (3H, m, J =8.8 Hz,
4
4
3
4
3
J =1.8 Hz), 7.38 (1H, d, J =2.4 Hz), 7.31 (1H, dd, J =8.6 Hz, J =2.4 Hz), 7.22 (2H, d, J =9 Hz)
2
.2.3. Preparation of 2,9,16, 23-Tetra-(4-phenylazophenoxy) zinc(II) phthalocyanine, ZnPc-4
(4):
A mixture of 4-(4-(phenylazophenoxy) phthalonitrile (3) (0.288 g, 0.889 mmol),
Zn(CH COO) .2H O (0.0488 g, 0.222 mmol) and a catalytic amount of DBU in dry n-pentanol
3
2
2
(dried over molecular sieves) was then refluxed at 170°C with stirring under nitrogen for 16
hours. After cooling to room temperature, the reaction mixture was precipitated by adding 1:1
ethanol- methanol mixture. The crude product was centrifuged and washed several times with
methanol-ethanol mixture until the washings was neutral. The green precipitate was filtered and
dried in vaccum desiccator. The pure green product was isolated by column chromatography
over silica gel using EtOAc/hexane in 3:2 ratio as eluent. Yield: 34% (0.123g). UV-Vis (CHCl3):
λmax, nm (log ε): 681 (5.45), 614 (4.74), 350 (5.33).
Two step synthesis of the compound ZnPc-4 was given in Scheme 1 below.

ACCEPTED MANUSCRIPT

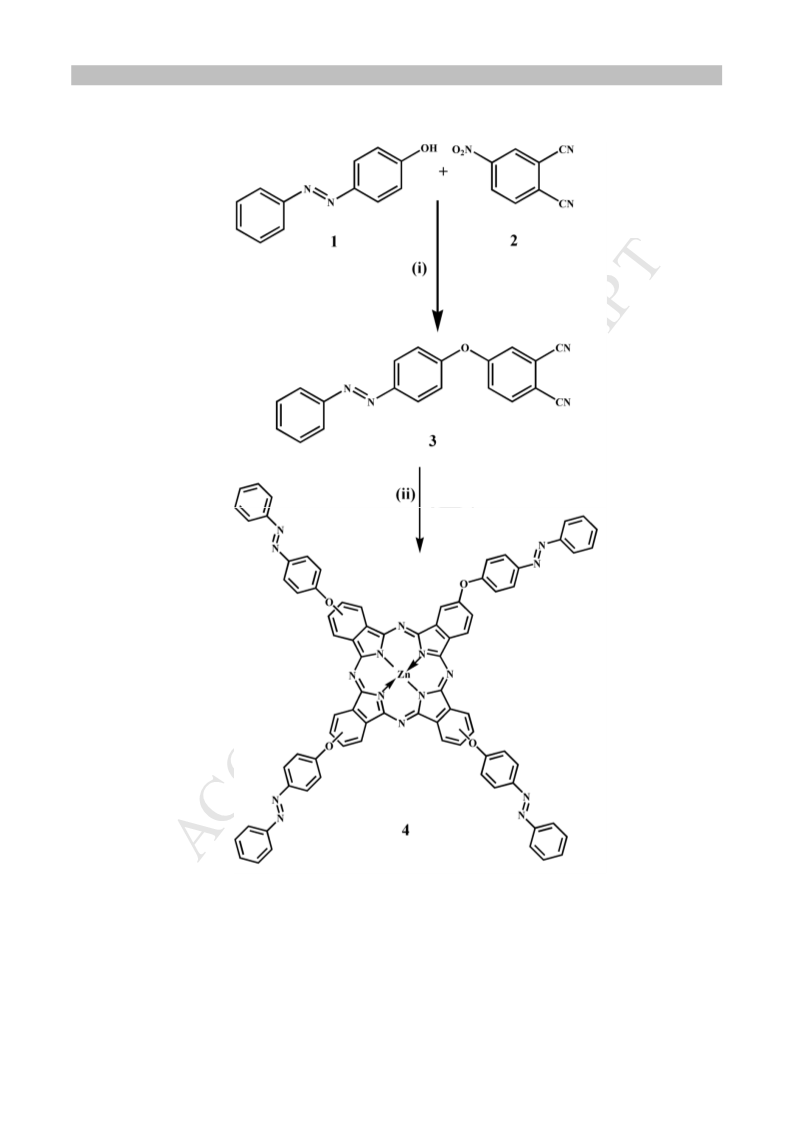

Scheme 1.Syntheticroute for the preparation of
2,9,16,23-Tetra-(4-phenylazophenoxy)
o
2 3 2
zinc(II)phthalocyanine, ZnPc-4 (Compound 4); (i) K CO /DMF, 60 C, N , 48 hours and
o
(
ii)Zn(CH
3
COO)
2
.2H
2
O/n-pentanol-DBU, 170 C, N
2
, 16 hours

ACCEPTED MANUSCRIPT
3
3
. Results and discussion
.1. Characterization
The synthesis of the phthalocyanine precursor bearing 4-phenylazophenoxy substituted
phthalonitrile was achieved by a base-catalyzed nucleophilic aromatic displacement of 4-
phenylazophenol (1) with4-nitrophthalonitrile (2). The peripherally tetra substituted zinc
phthalocyanine ZnPc-4 was prepared by the template cyclotetramerization of 4-(4-
o
(
phenylazophenoxy) phthalonitrile in n-pentanol/DBU with Zn(CH COO) .2H O at 170 C under
3
2
2
N atmosphere overnight. The crude product was precipitated by adding 1:1 ethanol-methanol
2
mixture washed and centrifuged several times with ethanol and then performed the silica column
using ethyl acetate-hexane in 3:2 ratio. The synthesized compound was characterized with
1
spectroscopic techniques such as UV-visible, FTIR, HNMR and MALDI-TOF Mass
Spectroscopy and analyses were consistent with the predicted structures. The characterization
details are given in ESI.
Phthalocyanines are always a mixture of four constitutional isomers of symmetry D2h, C
s
,
C , C andno successful separation method have yet been reported to isolate the isomers by
2
v
4v,
1
common column chromatography, precipitation or recrystallization techniques[24]. The HNMR
data of precursor nitrile derivative revealed a well resolved spectrum, while ZnPc-4 showed
broader signals probably due to the presence of four constitutional positional isomers and a
possibility for chemical exchange resulting in aggregation-disaggregation equilibrium[25](Figs
-1
S3 – S5 in ESI).The disappearance of broad O-H peak of 4-phenylazophenol at 3165 cm as
well as the asymmetric and symmetric NO stretching bands of 4-nitrophthalonitrile at 1539,
356 cm in the FT-IR spectra confirmed the formation of desired product, 4-(4-
2
-1
1
phenylazophenoxy)phthalonitrile, 3(Fig.S6 in ESI).The ZnPc-4 formation resulted by the
cyclotetramerization of the modified dinitrile derivative 3 was also clearly confirmed by the
-1
disappearance of the C≡N stretching band at 2232 cm (Fig.S7).
The mass spectrum of ZnPc-4 in Fig. 1 showed the fragments of the analyte mixed with
+
the fragments of the matrix. Four major peaks were observed. Molecular ion peak [M] was
observed at m/z = 1361.3 (peak 4), assigned to zinc phthalocyanine ZnPc-4. The intense base
peak (peak 2) obtained was that corresponding to the matrix, dihydroxy benzoic acid (DHB-H+).
The peaks obtained at m/z = 106 and 272 indicated the fragmentation of phenyl diazonium (peak
1
) ion and the dimer of isoindoline-1,3-diimine ion (peak 3) respectively .

ACCEPTED MANUSCRIPT
Fig. 1. MALDI-TOF mass spectrum of ZnPc-4
UV-visible spectroscopy is the most worthwhile characterization techniques for the
structural elucidation of phthalocyanines. The UV-visible spectrum of ZnPc-4 represented the
typical electronic spectra of a metal phthalocyanine exhibiting two strong absorption peaks,
namely Q band at about 600-700 nm in the visible region and Soret B band at about 300-400 nm
in UV region[25]. The sharp strong Q band at 684 nm observed for the synthesized metal
phthalocyanine (in Fig. 2) was attributed to the π-π* transition from the highest occupied
molecular orbital (HOMO) to the lowest unoccupied molecular orbital (LUMO) of ZnPc-4 of
D symmetry in the monomeric state. The broad Soret B band situated at a λ of 353 nm was
4
h
max
of significantly higher intensity, comparable to the intensity of Q band of Pc core, which can be
attributed to the combinatorial absorption of diazo group at the periphery and a deep π to LUMO
transition[26]. The shoulder peak situated at 615 nm near the Q band was aroused by aggregation
of phthalocyanine rings[27].

ACCEPTED MANUSCRIPT
Fig. 2.The absorption spectrum of ZnPc-4 in 1,2-dichlorobenzene
3
.2. Application of ZnPC-4 in Bulk Hetero Junction (BHJ) organic solar cell
fabrication:
Solution processed BHJ organic solar cells are attractive candidates for inexpensive and
large area photovoltaics [28,29]. On account of the facile and fast fabrication procedure, the
deposition of the active layer from solution has significant advantages over other methods.
Fullerenes based derivatives and zinc or copper phthalocyanine derivatives have emerged as the
exemplary acceptor and donor materials respectively, in efficient solution processed BHJ
devices[30].
In the present study, organic bulk heterojunction (BHJ) solar cells with structure
ITO/V O /ZnPc-4:PCBM/LiF/Al were fabricated. The active layer blend of ZnPc-4 and phenyl-
2
5
C61-butyric acid methyl ester (PCBM) was prepared by stirring the compounds in 1,2-
dichlorobenzene at a temperature of 65 °C overnight. Three different ZnPc-4:PCBM weight

ACCEPTED MANUSCRIPT
ratios of 1:0.5, 1:1 and 1:1.5, with 20 mg of ZnPc-4 in 1ml of 1,2-dichlorobenzene were taken.
Indium Tin Oxide (ITO) with a sheet resistance 8–12 ꢀ/sq was used as the anode. ITO was
patterned into 3 mm wide parallel strips with a 3 mm separation in between them. Prior to
organic layer deposition, patterned ITO substrates were cleaned in an ultrasonic bath in
detergent, de-ionized water, methanol, isopropanol, and acetone successively. Cleaned ITO
anodes were treated with oxygen plasma for 10 minutes. A V
coated from 0.05 molar isopropanol solution of vanadium(V)oxitriisopropoxide at a speed of
000 rpm for 35 s. Then the substrates were annealed at a temperature of 100 °C for 10 minutes.
The active layer blend was spin coated on the V layer at 1000 rpm for 60 s. The active layer
2 5
O anode buffer layer was spin
4
2
O
5
film was allowed to self-anneal for 30 minutes and then annealed at 130 °C for 10 minutes. A
lithium fluoride cathode buffer layer of 1.2 nm and an aluminum electrode of 100 nm were
-6
thermally evaporated in sequence at a base pressure of 1×10 mbar. All the devices were having
2
an active area of 9 mm . The representative architecture of the bulk heterojunction organic solar
cell is shown in Fig. 3.
Fig. 3.Architecture of bulk heterojunction organic solar cell.
The
absorption
spectra
of
thin
films
of
ZnPc-4,
PCBM
and
ZnPc-4:PCBM blend are shown in Fig. 4 with the chemical structure of PCBM represented in the
inset. The ZnPc-4 thin film exhibited two significant absorption bands: one in the wavelength
range of 300 to 450 nm with a peak at 350 nm and the other in the wavelength range of 575 to
7
75 nm with peaks at 637 nm and 692 nm. However, PCBM showed absorption in the
wavelength range of 400 to 600 nm, where ZnPc-4 exhibits only a weak absorption. So a

ACCEPTED MANUSCRIPT
combination of the two materials would help in realizing absorption over a wide range of solar
spectrum. Fig. 5 revealed the photoluminescence (PL) spectra of pristine ZnPc-4 and ZnPc-
4
:PCBM blend films excited at 630 nm. ZnPc-4 film showed an emission maximum at 732 nm
with a shoulder at 822 nm. Significant PL-quenching was observed for the ZnPc-4:PCBM
composite film. This indicated that the PCBM could help in efficient dissociation of photo-
generated excitons[31].
Fig. 4.UV–visible absorption spectra of thin films of ZnPc-4,PCBM and ZnPc-4/PCBM blend. The inset
shows the chemical structure of PCBM.
Fig. 5. Photoluminescence spectra of pristine ZnPc-4 and ZnPc-4/PCBM blend films excited at 630 nm.

ACCEPTED MANUSCRIPT
Fig.6 (a) shows the cyclic voltammogram of ZnPc-4. The HOMO and LUMO levels of
ZnPc-4 were calculated as 4.79 and 3.63 eV, respectively, from the oxidation onset potential
(Eꢀꢁꢂꢃꢄꢅꢆꢇ) and reduction onset potential (Eꢈꢆꢉꢂꢃꢄꢅꢆꢇ) using the equation put forward by de
Leeuw et al.[32,33]:
ꢊꢋꢌꢍꢌ =ꢎ−ꢏꢊꢌꢐꢂꢑꢒꢓꢔꢕ + ꢖ. ꢖ)ꢔꢗ
ꢊꢘꢙꢍꢌ =ꢎ−ꢏꢊꢚꢔꢛꢂꢑꢒꢓꢔꢕ + ꢖ. ꢖ)ꢔꢗ
(6)
(7)
Fig.6. a)Cyclic voltammogram of ZnPc-4 in DCM containing 0.1M TBAP as supporting electrolyte with
scan rate 100 mV/s. b) Schematic energy band diagram of the photovoltaic device.
Fig.6(b) shows the energy band diagram of the solar cell. The energy levels of all the
materials other than ZnPc-4 were taken from the literature. The HOMO and LUMO energy
levels of ZnPc-4 and PCBM were appropriate to ensure efficient exciton dissociation at the
ZnPc-4/PCBM interface. Thus from the UV-Vis absorption study, photoluminescence
measurement and cyclic voltammetry, it was clear that ZnPc-4 and PCBM can act as an effective
donor/acceptor pair.
Current density-voltage (J-V) characteristics of the photovoltaic devices under dark and
illumination for different ZnPc-4:PCBM weight ratios are shown in Fig. 7 (a)-(c). Comparison of
J-V characteristics under illumination are shown in Fig. 7 (d) and the detailed solar cell

ACCEPTED MANUSCRIPT
parameters are summarized in Table 1. The device with ZnPc-4:PCBM blend ratio 1:0.5
2
exhibited a short-circuit current density (J ) of 2.19 mA/cm , an open-circuit voltage (V ) of
sc
oc
0
0
.63 V, and a fill factor (FF) of 32.24%, leading to a power conversion efficiency (PCE) of
.45%. The device with a weight ratio of 1:1 showed the best PCE of 0.69% with a Jsc of 3.23
2
mA/cm , V of 0.62, and FF of 34.34%. When the weight ratio was changed to 1:1.5, the device
oc
efficiency decreased to 0.63%. These results indicated that the optimum ZnPc-4:PCBM weight
ratio is 1:1. The power conversion efficiency achieved in this study is slightly smaller than the
values reported in the literature for unsubstituted zinc phthalocyanines. However, the main
advantage of ZnPc-4 over unsubstituted ZnPc is its good solubility in organic solvents, so that
ZnPc-4 based BHJ solar cells can be fabricated by the relatively less expensive solution
processing techniques. Table 2 provides the comparison of some previous literature reported
PCE values for the BHJ devices fabricated by solution processing techniques and by employing
similar kind of photoactive layers consisting of substituted zinc phthalocyanine derivatives as
donor and fullerene derivatives as acceptors.

ACCEPTED MANUSCRIPT
Fig.7.J-V characteristics of photovoltaic devices under dark and illumination for different ZnPc-4:PCBM weight
ratios (a) 1:0.5, (b) 1:1, (c) 1:1.5 and (d) comparison of J-V characteristics under illumination.
Table 1.Detailed photovoltaic parameters of devices with different ZnPc-4:PCBM weight ratios.
2
ZnPc-4:PCBM weight ratio
J (mA/cm ) V (V)
FF (%)
32.24
34.34
33.61
PCE (%)
0.45
sc
oc
1
1
1
:0.5
:1
2.19
3.23
3.02
0.63
0.62
0.62
0.69
:1.5
0.63

ACCEPTED MANUSCRIPT
Table 2.Comparison of the literature reported PCE values of the devices fabricated by solution processing technique
by using similar kind of photoactive layers
SI. Donor
No.
Acceptor
PCE
(η %)
0.12
Year
2010
2011
References
[19]
1
Blend of tertiary butyl and
Pyridine functionalized
Fullerene C derivative
thioalkyl substituted ZnPcs
6
0
2
Tertiary butyl substituted ZnPc PC BM
0.77
0.42
[34]
6
1
t
(
Bu ZnPc)
4
3
Octylthiol substituted ZnPc
PCBM
2018
[35]
The morphology of photoactive layer plays a key role in determining the performance of
BHJ solar cells[36–39], which could be influenced by the donor:acceptor weight ratio. Fig. 8
shows the tapping mode 2D and 3D AFM images of the photoactive layer for different ZnPc-4:
PCBM weight ratios. The active layer films with weight ratios 1:0.5, 1:1 and 1:1.5 exhibited
RMS roughness around 0.99 nm, 0.53 nm and 0.63 nm, respectively. Thus, the film with
1
:1weight ratio showed smoother surface compared to other films. This smoother surface is a
clear indication of homogeneous miscibility between the donor and acceptor materials, which
results in a larger donor-acceptor (D-A) interfacial area with nanoscale phase separation. The
smooth and uniform surface morphology with low molecular aggregation observed for the 1:1
weight ratio helped in efficient exciton dissociation and better charge carrier transport leading to
higher J and PCE values. The AFM results are thus in good agreement with the device
sc
performance shown in Table 1.

ACCEPTED MANUSCRIPT
Fig. 8.2D and 3DAFMimages of photoactive layer for differentZnPc-4: PCBM weight ratios: (a) 1:0.5, (b) 1:1 and
(
c)1:1.5.
4
. Conclusion
In summary, peripherally tetra-(4-phenylazophenoxy) substituted zinc phthalocyanine;
ZnPc-4 was synthesized by conventional methods and characterized by UV-visible, FT-IR,
1
HNMR and MALDI-TOF Mass Spectrometric techniques. BHJ solar cells were fabricated by
solution processing technique using ZnPc-4 as the donor material and PCBM as the acceptor
material in different donor: acceptor weight ratios. The device with a weight ratio of 1:1exhibited
the highest PCE, around 0.69%. This better performance is attributed to efficient exciton
dissociation and better charge carrier transport due to the smooth and uniform morphology of the
active layer. Present study revealed that the compound,ZnPc-4 has a great potential as a donor
material for solution processed BHJ solar cells.
Conflict of interest:
The authors declare no conflict of interest.
Acknowledgements

ACCEPTED MANUSCRIPT
Amitha GS is thankful to NCB-GATE for research fellowship and Dr. Suni Vasudevan would
like to thank SERB – Dept. of Science and Technology (Grant Sanction No. SERB/F/3600/2014-
1
5) for financial support.
References
[1]
E.R. Rwenyagila, Review Article A Review of Organic Photovoltaic Energy Source and
Its, Int. J. Photoenergy. 2017 (2017) 1–12. doi:10.1155/2017/1656512.
[2]
N. Grossiord, J.M. Kroon, R. Andriessen, P.W.M. Blom, Degradation mechanisms in
organic photovoltaic devices, Org. Electron. Physics, Mater. Appl. 13 (2012) 432–456.
doi:10.1016/j.orgel.2011.11.027.
[3]
[4]
[5]
H. Hoppe, N.S. Sariciftci, Organic solar cells: An overview, J. Mater. Res. 19 (2004)
1
924–1945. doi:10.1557/JMR.2004.0252.
G. Chidichimo, L. Filippelli, Organic solar cells: Problems and perspectives, Int. J.
Photoenergy. 2010 (2010). doi:10.1155/2010/123534.
G. Williams, Recent Progress in Vacuum-Deposited Small Molecule Organic Solar Cells,
Eng.Uwaterloo.Ca. (n.d.).
http://www.eng.uwaterloo.ca/~g3willia/documents/ECE632_SMOSCReview.pdf.
[6]
[7]
[8]
T. Ameri, G. Dennler, C. Lungenschmied, C.J. Brabec, Organic tandem solar cells: A
review, Energy Environ. Sci. 2 (2009) 347–363. doi:10.1039/b817952b.
C.W. Tang, Two-layer organic photovoltaic cell, Appl. Phys. Lett. 48 (1986) 183.
doi:10.1063/1.96937.
A.J.H. G. Yu,* J. Gao, J. C. Hummelen, F. Wudl, Polymer Photovoltaic Cells: Enhanced
Efficiencies via a Network of Internal Donor-Acceptor Heterojunctions, Science (80-. ).
2
70 (1995) 1–133. doi:10.1126/science.270.5243.1789.
[9]
D. Gebeyehu, B. Maennig, J. Drechsel, K. Leo, M. Pfeiffer,
SolEnergyMaterSolCells_79,81(2003)] Bulk-heterojunction photovoltaic devices based
on donor–acceptor organic small molecule blends.pdf, Sol. Energy Mater. Sol. Cells. 79
[

ACCEPTED MANUSCRIPT
(2003) 81–92.
[
10] S. Pfuetzner, J. Meiss, A. Petrich, M. Riede, K. Leo, Thick C60:ZnPc bulk heterojunction
solar cells with improved performance by film deposition on heated substrates, Appl.
Phys. Lett. 94 (2009) 2009–2011. doi:10.1063/1.3154554.
[
11] T.B. Fleetham, J.P. Mudrick, W. Cao, K. Klimes, J. Xue, J. Li, Efficient zinc
phthalocyanine/C60 heterojunction photovoltaic devices employing tetracene anode
interfacial layers, ACS Appl. Mater. Interfaces. 6 (2014) 7254–7259.
doi:10.1021/am500472m.
[
12] F. Holzmueller, L. Wilde, F. Wölzl, C. Koerner, K. Vandewal, K. Leo, Co-evaporant
induced crystallization of zinc phthalocyanine:C<inf>60</inf> blends for solar cells, Org.
Electron. Physics, Mater. Appl. 27 (2015) 133–136. doi:10.1016/j.orgel.2015.08.031.
[
13] P. P., U. S., F.S. R., Efficient bulk heterojunction photovoltaic cells using small-
molecular-weight organic thin films, Nature. 425 (2005) 158–162.
[
14] J. Meiss, A. Merten, M. Hein, C. Schuenemann, S. Schäfer, M. Tietze, C. Uhrich, M.
Pfeiffer, K. Leo, M. Riede, Fluorinated zinc phthalocyanine as donor for efficient
vacuum-deposited organic solar cells, Adv. Funct. Mater. 22 (2012) 405–414.
doi:10.1002/adfm.201101799.
[
15] L. Zhu, T. Zhao, K. Li, W. Sun, Y. Xing, Bulk heterojunction organic solar cells
fabricated by oblique angle deposition, Phys. Chem. Chem. Phys. 17 (2015) 28765–
2
8769. doi:10.1039/c5cp03604f.
[
16] J.W. Hofman, F. Van Zeeland, S. Turker, H. Talsma, S.A.G. Lambrechts, D. V. Sakharov,
W.E. Hennink, C.F. Van Nostrum, Peripheral and axial substitution of phthalocyanines
with solketal groups: Synthesis and in vitro evaluation for photodynamic therapy, J. Med.
Chem. 50 (2007) 1485–1494. doi:10.1021/jm061136w.
[
17] T. Ateş Turkmen, L. Zeng, Y. Cui, I. Fidan, F. Dumoulin, C. Hirel, Y. Zorlu, V. Ahsen,
A.A. Chernonosov, Y. Chumakov, K.M. Kadish, A.G. Gürek, S. Tokdemir Öztürk, Effect
of the Substitution Pattern (Peripheral vs Non-Peripheral) on the Spectroscopic,

ACCEPTED MANUSCRIPT
Electrochemical, and Magnetic Properties of Octahexylsulfanyl Copper Phthalocyanines,
Inorg. Chem. 57 (2018) 6456–6465. doi:10.1021/acs.inorgchem.8b00528.
[
18] M.K.R. Fischer, I. Lo, M.M. Wienk, M.V. Martı, A.J. Janssen, P. Ba, Functionalized
Dendritic Oligothiophenesꢁ: Ruthenium Phthalocyanine Complexes and Their Application
in Bulk Heterojunction Solar Cells, J. Am. Chem. Soc. (2009) 8669–8676.
doi:10.1039/b904243a.VOL.
[
[
[
19] A. Varotto, C.-Y. Nam, I. Radivojevic, J. P. C. Tomé, J.A.S. Cavaleiro, C.T. Black, C.M.
Drain, Phthalocyanine Blends Improve Bulk Heterojunction Solar Cells, J. Am. Chem.
Soc. 132 (2010) 2552–2554. doi:10.1021/ja907851x.
20] S.M. Abdullah, Z. Ahmad, F. Aziz, K. Sulaiman, Investigation of VOPcPhO as an
acceptor material for bulk heterojunction solar cells, Org. Electron. Physics, Mater. Appl.
1
3 (2012) 2532–2537. doi:10.1016/j.orgel.2012.07.030.
21] R.M. Parker, J.C. Gates, H.L. Rogers, P.G.R. Smith, M.C. Grossel, Using the
photoinduced reversible refractive-index change of an azobenzene co-polymer to
reconfigure an optical Bragg grating, J. Mater. Chem. 20 (2010) 9118.
doi:10.1039/c0jm01334j.
[
[
[
22] Z. Biyiklioĝlu, M. Durmuş, H. Kantekin, Synthesis, photophysical and photochemical
properties of quinoline substituted zinc (II) phthalocyanines and their quaternized
derivatives, J. Photochem. Photobiol. A Chem. 211 (2010) 32–41.
doi:10.1016/j.jphotochem.2010.01.018.
23] V.E. Maizlish, S.A. Ivanovskii, G.P. Shaposhnikov, I.G. Abramov, A. V. Smirnov, V. V.
Bykova, N. V. Usol’tseva, Nucleophilic substitution in 4-bromo-5-nitrophthalodinitrile:
VI. 4-Dimethylphenoxy-5-nitrophenoxyphthalodinitrile and the copper phthalocyanine
derived from it, Russ. J. Gen. Chem. (2002). doi:10.1023/A:1021698417760.
24] Z. Biyiklioǧlu, Novel water-soluble metal-free and metallophthalocyanines: Synthesis,
spectroscopic characterization and aggregation properties, Synth. Met. 161 (2011) 508–
5
15. doi:10.1016/j.synthmet.2010.12.035.

ACCEPTED MANUSCRIPT
[
[
[
25] C. Kantar, H. Akal, B. Kaya, F. Islamoʇlu, M. Türk, S. Şaşmaz, Novel phthalocyanines
containing resorcinol azo dyes; Synthesis, determination of pKa values, antioxidant,
antibacterial and anticancer activity, J. Organomet. Chem. 783 (2015) 28–39.
doi:10.1016/j.jorganchem.2014.12.042.
26] I. Özçeşmeci, A. Tekin, A. Gül, Synthesis and aggregation behavior of zinc
phthalocyanines substituted with bulky naphthoxy and phenylazonaphthoxy groups: An
experimental and theoretical study, Synth. Met. 189 (2014) 100–110.
doi:10.1016/j.synthmet.2014.01.003.
27] M. Durmu?, T. Nyokong, Synthesis, photophysical and photochemical studies of new
water-soluble indium(iii) phthalocyanines, Photochem. Photobiol. Sci. 6 (2007) 659.
doi:10.1039/b618478b.
[
28] J.Y. Kim, K. Lee, N.E. Coates, D. Moses, T. Nguyen, M. Dante, A.J. Heeger, Fabricated
by All-Solution Processing, Sceince. 317 (2007) 222–225. doi:10.1126/science.1141711.
[
29] Y. Liang, Z. Xu, J. Xia, S.T. Tsai, Y. Wu, G. Li, C. Ray, L. Yu, For the bright future-bulk
heterojunction polymer solar cells with power conversion efficiency of 7.4%, Adv. Mater.
2
2 (2010) 135–138. doi:10.1002/adma.200903528.
[
[
[
30] B. Ebenhoch, N.B.A. Prasetya, V.M. Rotello, G. Cooke, I.D.W. Samuel, Solution-
processed boron subphthalocyanine derivatives as acceptors for organic bulk-
heterojunction solar cells, J. Mater. Chem. A. 3 (2015) 7345–7352.
doi:10.1039/c5ta00715a.
31] M. Causa’, J. De Jonghe-Risse, M. Scarongella, J.C. Brauer, E. Buchaca-Domingo, J.-E.
Moser, N. Stingelin, N. Banerji, The fate of electron–hole pairs in polymer:fullerene
blends for organic photovoltaics, Nat. Commun. 7 (2016) 12556.
doi:10.1038/ncomms12556.
32] D.M. de Leeuw, M.M.J. Simenon, a. R. Brown, R.E.F. Einerhand, Stability of n-type
doped conducting polymers and consequences for polymeric microelectronic devices,
Synth. Met. 87 (1997) 53–59. doi:10.1016/S0379-6779(97)80097-5.

ACCEPTED MANUSCRIPT
[
[
[
[
[
33] M. Han, X. Zhang, X. Zhang, C. Liao, B. Zhu, Q. Li, Azo-coupled zinc phthalocyanines:
Towards broad absorption and application in dye-sensitized solar cells, Polyhedron. 85
(2015) 864–873. doi:10.1016/j.poly.2014.10.026.
34] A. Sánchez-díaz, R. Pacios, U. Muñecas, T. Torres, E. Palomares, Charge transfer
reactions in near IR absorbing small molecule solution processed organic bulk-
heterojunction solar, Org. Electron. 12 (2011) 329–335. doi:10.1016/j.orgel.2010.11.014.
35] F.A. Sarı, M. Kazici, E. Harputlu, S. Bozar, Ö. Koyun, Y. Sahin, N. Ugur, M. Ince, S.
Günes, Zn Phthalocyanine Derivatives for Solution-Processed Small Molecule Organic
Solar Cells, ChemistrySelect. 3 (2018) 13692–13699. doi:10.1002/slct.201802991.
36] M. Nazim, S. Ameen, H.K. Seo, H.S. Shin, Effective D-A-D type chromophore of
fumaronitrile-core and terminal alkylated bithiophene for solution-processed small
molecule organic solar cells, Sci. Rep. 5 (2015). doi:10.1038/srep11143.
37] J. Huang, Z. Lin, W. Feng, W. Wang, J. Huang, Z. Lin, W. Feng, W. Wang, Synthesis of
Bithiophene-Based D-A1-D-A2 Terpolymers with Different A2 Moieties for Polymer
Solar Cells via Direct Arylation, Polymers (Basel). 11 (2019) 55.
doi:10.3390/polym11010055.
[
38] Q. An, F. Zhang, J. Zhang, W. Tang, Z. Wang, L. Li, Z. Xu, F. Teng, Y. Wang, Enhanced
performance of polymer solar cells through sensitization by a narrow band gap polymer,
Sol. Energy Mater. Sol. Cells. 118 (2013) 30–35. doi:10.1016/j.solmat.2013.07.050.
[
39] Q. An, F. Zhang, L. Li, J. Wang, J. Zhang, L. Zhou, W. Tang, Improved efficiency of bulk
heterojunction polymer solar cells by doping low-bandgap small molecules, ACS Appl.
Mater. Interfaces. 6 (2014) 6537–6544. doi:10.1021/am500074s.

ACCEPTED MANUSCRIPT
•
•
•
•
•
Synthesised peripherally 4-phenylazophenoxy substituted zinc phthalocyanine (ZnPc-4)
Fabricated solution processed BHJ solar cells with ZnPc-4 (donor) and PCBM (acceptor)
Investigated variation in device efficiency with donor:acceptor weight ratios
Highest efficiency of 0.69% was observed for 1:1 weight ratio
Investigated the morphology of photoactive layer using atomic force microscopy
