Simultaneous visualization of cysteine/homocysteine and glutathione in living cells and Daphnia magna via dual-signaling fluorescent chemosensor

Article abstract of DOI:10.1016/j.dyepig.2019.04.056

Biological thiols, including cysteine (Cys), homocysteine (Hcy) and glutathione (GSH), play crucial roles in living organisms, such as maintaining the cellular redox equilibrium, and are closely related to many diseases. The development of efficient fluor

Full text of DOI:10.1016/j.dyepig.2019.04.056

Accepted Manuscript
Simultaneous visualization of cysteine/homocysteine and glutathione in living cells
and Daphnia magna via dual-signaling fluorescent chemosensor
Mingwang Yang, Jiangli Fan, Wen Sun, Jianjun Du, Saran Long, Xiaojun Peng
PII:
S0143-7208(19)30775-2
https://doi.org/10.1016/j.dyepig.2019.04.056
DYPI 7511
DOI:
Reference:
To appear in: Dyes and Pigments
Received Date: 9 April 2019
Revised Date: 22 April 2019
Accepted Date: 23 April 2019
Please cite this article as: Yang M, Fan J, Sun W, Du J, Long S, Peng X, Simultaneous visualization of
cysteine/homocysteine and glutathione in living cells and Daphnia magna via dual-signaling fluorescent
chemosensor, Dyes and Pigments (2019), doi: https://doi.org/10.1016/j.dyepig.2019.04.056.
This is a PDF file of an unedited manuscript that has been accepted for publication. As a service to
our customers we are providing this early version of the manuscript. The manuscript will undergo
copyediting, typesetting, and review of the resulting proof before it is published in its final form. Please
note that during the production process errors may be discovered which could affect the content, and all
legal disclaimers that apply to the journal pertain.

ACCEPTED MANUSCRIPT

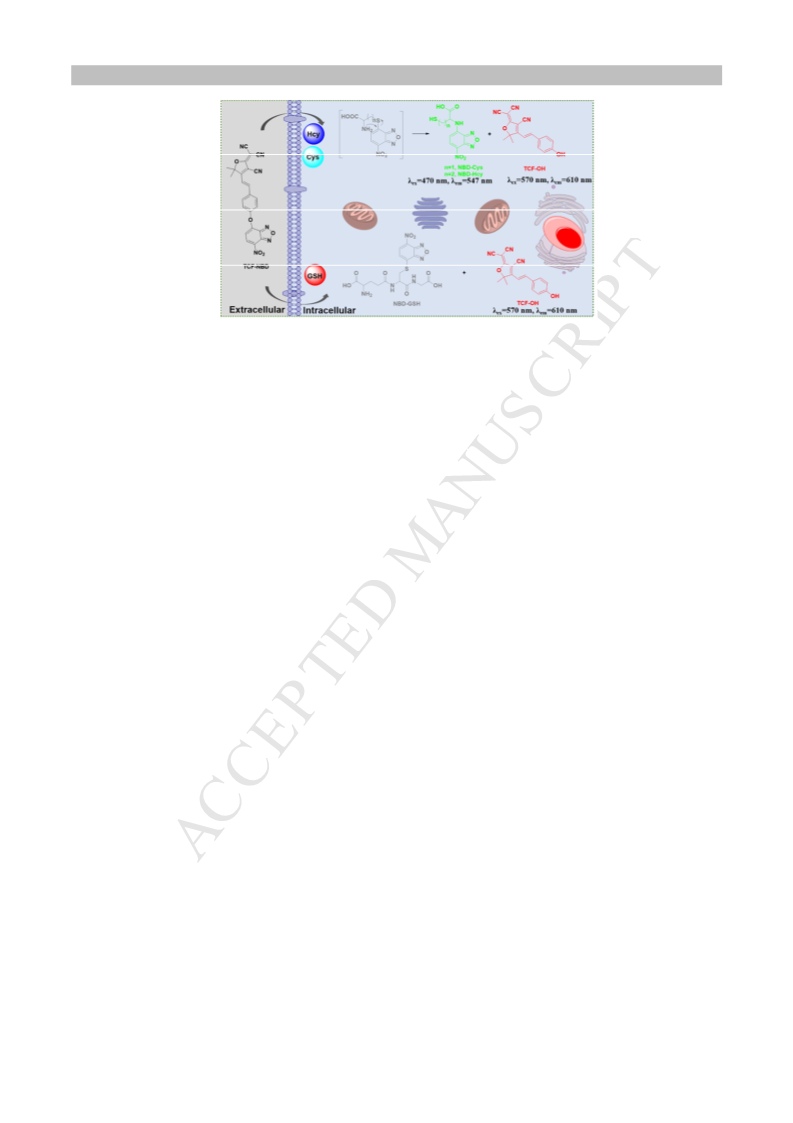

Graphical abstract
A fluorescent probe for simultaneous discrimination of cysteine/homocysteine and glutathione was
developed to visualize biothiols in living cells and Daphnia magna.

ACCEPTED MANUSCRIPT
1
2
Simultaneous visualization of cysteine/homocysteine and
glutathione in living cells and Daphnia magna via dual-signaling
fluorescent chemosensor
3
4
Mingwang Yang1, Jiangli Fan*1,2, Wen Sun1,2, Jianjun Du1,2, Saran Long1,2, Xiaojun
Peng1,2
5
6
1State Key Laboratory of Fine Chemicals, Dalian University of Technology, 2
Linggong Road, Dalian, 116024, P.R. China.
7
8
2Research Institute of Dalian University of Technology in Shenzhen, Gaoxin South
fourth Road, Nanshan District, Shenzhen 518057, China
*Corresponding Author:
9
10
11
Jiangli Fan, Email: fanjl@dlut.edu.cn
12
Abstract
13
14
15
16
17
18
19
20
21
22
Biological thiols, including cysteine (Cys), homocysteine (Hcy) and glutathione
(GSH), play crucial roles in living organisms, such as maintaining the cellular redox
equilibrium, and are closely related to many diseases. The development of efficient
fluorescent probes that can diacritically detect biothiols with similar reactivity are of
great desirable for the study of biological processes. The conventional single-emission
fluorescent probes may be disturbed by surrounding environment and biological
systems, which is greatly lose the accuracy of its detection. Herein, we have
constructed a fluorescent probe (TCF-NBD) by connecting two fluorophores with a
biothiol-reactive linker, which has two separated emissions at 547 nm and 610 nm via
different excitations (470 nm and 570 nm, respectively), for simultaneously fast
1

ACCEPTED MANUSCRIPT
detecting Cys/Hcy and GSH with high selectivity and sensitivity. Furthermore, the
probe TCF-NBD exhibits low cytotoxicity and was successfully applied to visualize
intracellular biothiols in living cells and Daphnia magna by fluorescence imaging. We
believe that TCF-NBD can be a powerful tool for conducting the research of
thiol-related diseases.
23
24
25
26
27
28
29
Keywords: Fluorescent probe; Biothiols; Bioimaging; Separated emissions; Daphnia
magna.
30
1. Introduction
31
32
33
34
35
36
37
38
39
40
41
42
43
44
Intracellular biothiols, such as cysteine (Cys), homocysteine (Hcy) and glutathione
(GSH), play essential roles in many physiological processes, especially in maintaining
cellular redox homeostasis [1-3]. Much studies have shown that abnormal levels of
cellular thiols are closely related with a various of diseases including liver damage,
Parkinson’s disease, leucocyte loss, psoriasis, cardiovascular diseases, Alzheimer’s
and hair depigmentation [4-9]. Consequently, the effective detection of biothiols is
significant for intensive understanding the relationship between diseases and biothiols
and evaluating the disease progression.
Fluorometry have attracted more attention due to its high sensitivity, fast-response,
good biocompatibility, high spatiotemporal resolution and simple operation [10-18],
which are conducive to be applied in biological systems. According, various of
fluorescence probes based on the strong nucleophilicity or the high binding affinity
towards metal ions of the biothiols have been developed to visualize the thiols in vitro
and vivo [19-32]. Most of the optical probes involve specific reactions between thiols
2

ACCEPTED MANUSCRIPT
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
and probes including Michael addition, cyclization or cleavage reaction [33-56]. Yao
and co-workers reported a coumarin-benzothiazolium fluorescent probe (BCC) for
selectively detect Cys, Hcy and GSH in DMSO/PBS (pH 7.4, 10 mM, v/v 6:4) [54].
Sun et al identified a commercial compound, 2,3,5,6-tetrafluoroterephthalonitrile
(4F-2CN), which was used for simultaneously distinguish Cys, Hcy and GSH with
the addition of CTAB and a detection time up to 2h [55] (Table S1). However, many
of them also suffer from various of deficiencies, such as longer response time, the
inability to distinguish between Cys/Hcy and GSH, the need for surfactants or higher
ration of organic solvent (Table S1). Since the concentration of Cys (30-200 µM) and
Hcy (5-12 µM) are much lower than GSH (1-10 mM) in cells as well as the similar
structures and reaction activities of Cys/Hcy and GSH, it would be highly desirable to
construct fluorescent sensor that could simultaneous distinguish Cys/Hcy and GSH
with few interferences and a rapid response time, which is helpful to understand their
generation and metabolism mechanisms [57,58].
The single-emission fluorescent probes may be disturbed by surrounding
environment and biological systems, but, by contrast, the two-emissions channels
fluorescent probes could effectively avoid these interferences due to its good
self-calibration of two build-in excitation and emission wavelengths [59,60]. In this
work, we develop a fluorescent probe for simultaneously detecting Cys/Hcy and GSH
with different emissions via two independent excitation wavelengths, as shown in
Scheme
1.
The
probe
TCF-NBD
consists
of
two
parts:
a
dicyanomethylenedifuran-based fluorophore (TCF-OH) and 7-Nitrobenzofurazan
3

ACCEPTED MANUSCRIPT
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
(NBD), connecting by an ether linker which serves as the recognitive group for
Cys/Hcy and GSH and allow the probe exhibits two separated emission signals upon
reaction with biothiols. The probe NR-HNO is non-fluorescent state due to the
intramolecular electron transfer (ICT) blocked quenching [61-63]. Since Cys/Hcy
would induce the occurrence of intramolecular rearrangement cascade reaction
[64-67], in the presence of Cys/Hcy, there were two separated different fluorescence
emissions, including NBD moiety in 547 nm and TCF-OH in 610 nm with two
independent excitations (470 nm and 570 nm, separately). Due to the lack of a
proximal amine group, however, GSH was unable to induce intramolecular
rearrangement reaction, which resulting that only one emission of TCF-OH (610 nm)
was observed in the presence of GSH [61, 63]. The probe TCF-NBD exhibited high
sensitivity and selectivity to distinguish between Cys/Hcy and GSH toward others
amino acids by dual fluorescence signals in vitro and vivo and a rapid response time
(about four minutes). Moreover, the probe is low cytotoxicity and was successfully
applied to visualize intracellular Cys/Hcy and GSH in living HeLa cells and Daphnia
magna by fluorescence imaging.
4

ACCEPTED MANUSCRIPT
83
84
Scheme 1 Chemical structure and response mechanism of TCF-NBD for Cys/Hcy
and GSH
85 2. Experimental section
86
2.1. Materials and instruments
87
88
89
90
91
92
93
94
95
96
97
98
All chemicals and solvents were purchased from commercial suppliers and used
without further purification unless otherwise stated. The solvents were purified by
traditional methods before used. 4-chloro-7-nitrobenzo[c], [1,2,5] oxadiazole was
purchased from TCI chemical. Silica gel (200-300 mesh) used for flash column
1
chromatography was purchased from Qingdao Haiyang Chemical Co., Ltd. HNMR
and 13CNMR spectra were determined by 400 MHz and 100 MHz using Bruker NMR
spectrometers. Chemical shifts (δ) were expressed as parts per million (ppm, in CDCl3
or DMSO). Meanwhile, high-resolution mass spectrometry was achieved with
ESI-TOF instrument. The absorption spectra and fluorescence spectra were measured
on a PerkinElmer Lambda 35 UV−vis spectrophotometer and Agilent Technologies
CARY Eclipse fluorescence spectrophotometer respectively. The pH values of
detection solutions were determined with a precise pH-meter pHS-3C. MTT assays
5

ACCEPTED MANUSCRIPT
experiments were conducted on the Varioskan LUX Multimode Microplate Reader.
The Olympus FV 1000 confocal microscopy was used for live HeLa cells
fluorescence imaging
99
100
101
102
2.2. The preparation of TCF-NBD
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
Compound 1: NaOEt (0.9 g, 13 mmol) was added to EtOH (10 mL) solution which
include 3-hydroxy-3-methyl-2-butanone (9 g, 88 mmol) and malonitrile (12 g, 181
mmol) and then stirred for 1 h. After that, 30 mL EtOH was added and the mixture was
then refluxed for 1 h, which was then cooled in refrigerator. The solid precipitate was
filtered and washed with minimal amount of cold EtOH, affording the compound 1 as
off-white crystalline solid (8.8 g, 44 mmol, 50.0 %). 1H NMR (400 MHz, DMSO-d6) δ
(ppm): 2.37 (s, 3H), 1.60 (s, 6H). MS (ESI-TOF): calculated for C11H8N3O-, [M-H]-,
m/z, 198.07, found: 198.42.
TCF-OH: The 4-hydroxybenzaldehyde (0.122 g, 1 mmol) and compound 1 (0.3 g,
1.15 mmol) were mixed in EtOH (10 mL), then two drops of piperidine were added to
the mixture. The reaction was conducted in the microwave reactor for 20 min at 100oC,
which was then cooled to room temperature. After he solvent was removed, the residue
was purified by column chromatography with CH2Cl2: MeOH (50:1) to afford the
desire product as a deep brown solid (0.197 g, yield 65.0%).1H NMR (400 MHz,
DMSO-d6) δ (ppm): 10.61 (s, 1H), 7.90 (d, J = 16.2 Hz, 2H), 7.80 (d, J = 8.5 Hz, 2H),
7.02 (d, J = 16.3 Hz, 1H), 6.90 (d, J = 8.6 Hz, 2H), 1.77 (s, 6H). MS (ESI-TOF):
-
calculated for C18H12N3O2 , [M-H]-, m/z, 302.09, found: 302.36.
6

ACCEPTED MANUSCRIPT
120
121
122
123
124
125
126
127
128
129
130
131
132
TCF-NBD: The Et3N (0.056 mL, 0.4 mmol) was added to a mixture of TCF-OH
(60.4 mg, 0.2 mmol) and NBD-Cl (80 mg, 0.4 mmol) in 5 mL of DMF. The mixture
was stirred overnight at 25 oC under argon atmosphere. After the reaction completed,
50 mL of water was added to the mixture and extracted with dichloromethane for three
times, dried over anhydrous Na2SO4. After he solvent was removed, the residue was
purified by silica gel column chromatography with CH2Cl2: MeOH (20:1) as the eluent
1
to afford the desired product as yellow solid (59 mg, 63.3%). H NMR (400 MHz,
DMSO-d6) δ (ppm): 8.68 (d, J = 8.4 Hz, 1H), 8.14 (d, J = 8.5 Hz, 2H), 7.98 (d, J = 16.3
Hz, 1H), 7.55 (d, J = 8.5 Hz, 2H), 7.29 (d, J = 16.8 Hz, 1H), 6.93 (d, J = 8.6 Hz, 1H),
1.82 (s, 1H). 13C NMR (101 MHz, DMSO-d6) δ (ppm): 177.52, 175.46, 156.36, 152.50,
146.17, 145.92, 144.93, 135.71, 133.26, 132.40, 131.46, 121.77, 116.48, 113.08,
112.24, 111.82, 111.22, 100.46, 99.97, 55.21, 25.55. HRMS (ESI-TOF): calculated for
C24H13N6O5 , [M-H]-, m/z, 465.0953, found: 465.0959.
-
133
2.3. Spectral studies
134
135
136
137
138
139
140
The probe TCF-NBD was dissolved in DMSO to form the stock solution at a
concentration of 2 mM. The stock solutions (10 mM) of Cys, Hcy and GSH were
prepared in ultrapure water. The following solutions (50 mM) were prepared in
deionized water: amino acids (His, Asp, Val, Phe, Tyr, Ala, Ser, Leu, Arg, Pro, Thr,
Trp, Lys), and inorganic salts (NaHCO3, NaClO4, NaOAc, AgNO3, NaSCN, PdCl2,
MgCl2, NaF, KBr, KI, Na2SO4, Na2SO3, Na2S, FeCl3, CaCl2, ZnCl2, CuCl2). For the
spectral test, the probe stock solution was diluted to 10 µM in 10 mM PBS buffer
7

ACCEPTED MANUSCRIPT
141
142
143
144
145
146
147
148
149
(containing 10% DMF) solutions and then the various of analytes were added and
reacted at 37 °C for 10 min. Unless otherwise stated, the excitation wavelength is 470
nm and 570 nm for all measurements.
2.4. Determination of detection limits
The calibration curve was determined by the relationship between the specific
wavelength fluorescence intensity and the analyte concentration (Cys, Hcy or GSH).
The probe detection limit was calculated using the equation: Detection limit = 3σ/k.
Where σ is the standard deviation of the blank sample (n=10), k is the slop between
the fluorescence intensity versus the concentrations of biothiols.
150
2.5. Cell culture and cell viability assay
151
152
153
154
155
156
157
158
159
160
161
Human cervical cancer cells (HeLa) were purchased form Institute of Basic
Medical Sciences (IBMS) of the Chinese Academy of Medical Sciences. HeLa cells
were cultured in 90% Dulbecco's Modified Eagle Medium (DMEM) including with
10% FBS and 1% antibiotics (100 U/mL penicillin and 100 µg/mL streptomycin) in
an atmosphere of 37°C and 5% CO2. The MTT method was employed to evaluate the
cytotoxicity of probe TCF-NBD. Before experiments, HeLa cells at a density of
1×104 cells/well were seeded into 96-well plates and cultured for 24 h. Then the fresh
culture with different concentrations of TCF-NBD (0-30 µM) (n = 6) were used to
replace the previous media, and further incubation for 24 h. After that, 10 µL of MTT
(5 mg/mL in PBS) was added into per well and incubated for another 4 h. Finally, 100
µL of DMSO was then added to dissolve formazan. The absorbance at 490 nm was
8

ACCEPTED MANUSCRIPT
measured, and the cell viability (%) was calculated according to the following
equation: Viability (%) = [OD490 (sample) - OD490 (blank)] / [OD490 (control) -
OD490 (blank)] × 100
162
163
164
165
2.6. Cell imaging experiments
166
167
168
169
170
171
172
173
174
One day before imaging, the HeLa cells were replanted separately on
glass-bottomed dishes and incubated for 24h. In the first control experiment, the cells
were pretreated with or without NEM (500 µM) at 37 °C for 30 min, then washing
cells with PBS, the cells were further incubated with the probe TCF-NBD (10 µM) at
37°C for 30 min before imaging. In the second experiments, the HeLa cells were
pretreated with NEM (500 µM) at 37°C for 30 min and washed three times with PBS,
then the cells were further incubated with 100 µM Cys, Hcy or GSH respectively for
30 min, then incubated with the probe TCF-NBD (10 µM) at 37 °C for 30 min before
imaging.
175
176
177
178
179
2.7. Fluorescence imaging experiment in Daphnia magna
The Daphnia magna (age < 72 h) were cultured in clean non-chlorinated tap water
under cool-white light (14 h)-dark (10 h) photoperiod. The animals were pretreated
with or without 500 µM NEM for 30 min, and then incubated with 10 µM TCF-NBD
for another 30 min, followed by washing twice with PBS before imaging.
180 3. Results and discussion
181
182
3.1. Synthesis of TCF-NBD
TCF-NBD was readily
synthesized
by
coupling
TCF-OH
with
9

ACCEPTED MANUSCRIPT
183
184
185
186
4-chloro-7-nitro-1,2,3-benzoxadiazole in the presence of Et3N at room temperature
1
13
(Scheme S1). The target compound was well characterized by H NMR, C NMR,
HR-MS (Figs. S6-S12).
3.2. Spectral response of TCF-NBD to Cys/Hcy and GSH
187
188
189
190
191
The optical spectra evaluation of probe and its reaction with Cys, Hcy and GSH were
initially measured in PBS (10 mM, pH 7.4, 10% DMF). As shown in Fig. 1A, the
probe TCF-NBD shows the obvious absorption peak at 400 nm. When the Cys and
Hcy were added respectively, significant absorption peak appeared at both around 470
nm and 570 nm. While in case of GSH, the main absorption peak appeared only at
192
570 nm.
193
194
195
196
Fig.1 The absorption spectra (A) and fluorescence spectra (B) changes of probe
TCF-NBD (10 µM) prior and after addition of Cys, Hcy, GSH (100 µM each) in PBS
(10 mM, pH 7.4, 10% DMF) at 37oC for 10 min. For fluorescence measurements, λex
=470 nm and 570 nm for NBD moiety and TCF–OH moiety respectively.
197
198
199
200
Due to the presence of intramolecular electron transfer (ICT) blocked quenching, the
probe is non-fluorescent when the excitation wavelength is 470 nm or 570 nm. The
fluorescence responses of the probe TCF-NBD (10 µM) to different concentration of
Cys/Hcy or GSH are summarized in Figs. 2A-I. Upon increasing the concentrations
10

ACCEPTED MANUSCRIPT
201
202
203
204
205
206
207
208
209
210
211
212
213
214
of Cys or Hcy, both the fluorescence intensity at 547 nm and 610 nm gradually
increased when excitation wavelengths were 470 nm and 570 nm, respectively (Figs.
2A-F). The fluorescence intensity at 547 nm and 610 nm reached plateau when 100
µM analytes were added (Fig. S1). And the detection limit of Cys and Hcy were
calculated to be 0.015 µM and 0.034 µM respectively (Table S2). In the case of GSH,
the fluorescence intensity at 610 nm increased gradually and the fluorescence
emission signal at 547 nm did not change significantly (Figs. 2G-I). The detection
limit for GSH were determined to be 0.030 µM (Table S2). In order to make a deeper
understanding of the reaction mechanism, we monitored the reaction process of the
probe TCF-NBD and biothiols by HRMS. The new peak appeared at m/z=302.0937
[M]- was attributed to TCH-OH and another peak appear at m/z=283.0150 [M]- was
assigned to TCF-Cys (Fig. S4); similarly, in Fig. S5, the peak at m/z= 469.0783 was
the product TCF-GSH. Thus, the probe TCF-NBD can simultaneous differentiate
Cys/Hcy and GSH with different excitation wavelengths.
11

ACCEPTED MANUSCRIPT
215
216
217
218
219
220
221
222
Fig. 2 Fluorescence spectra of TCF-NBD (10 µM) upon addition of varied
concentration of Cys (A), Hcy (D) and GSH (G) respectively in PBS (10 mM, pH 7.4,
10% DMF). Fluorescence intensity changes at 547 nm as a function of concentrations
of Cys (B), Hcy (E) and GSH (H) respectively and at 610 nm as a function of
concentrations of Cys (C), Hcy (F) and GSH (I) respectively. For fluorescence
measurements, λex =470 nm and 570 nm for NBD moiety and TCF–OH moiety
respectively.
223
224
225
226
3.3. Time-dependent and pH-dependent fluorescence changes of probe
TCF-NBD
We then investigated the time-dependent fluorescence response of the probe
TCF-NBD in the presence of 100 µM Cys/Hcy and GSH (Fig. 3). Upon addition of
12

ACCEPTED MANUSCRIPT
227
228
229
230
231
232
233
234
235
Cys and Hcy, the fluorescence intensity of probe at 547 nm and 610 nm increased
rapidly and reached plateau within 10 min. When GSH was added, the fluorescence
intensity at 610 nm could reach its strongest after 10 min of reaction, while there was
almost no significant fluorescence change at 547 nm with the extended response time.
Meanwhile, the effect of pH from pH 5.0-9.0 on the fluorescence detection of
Cys/Hcy and GSH were carried out. As shown in Fig. S2, in the absence of thiols, the
probe TCF-NBD shows little fluorescence change but displays significant
fluorescence enhancement at 610 nm in the pH range from 6.0-8.0 with 100 µM Cys,
Hcy and GSH, respectively. Meanwhile, Cys/Hcy can also increase the fluorescence
236
237
intensity at 547 nm in the pH range of 7.0-9.0. These data show that the probe is
capable of detecting biothiol under physiological conditions.
238
239
240
241
242
243
244
245
Fig. 3 Time-dependent changes of fluorescence intensity at 547 nm (A) and 610 nm
(B) of probe TCF-NBD (10 µM) upon addition of 100 µM Cys, Hcy, GSH in PBS (10
mM, pH 7.4, 10% DMF). λex =470 nm and 570 nm.
3.4. Selectivity of probe TCF-NBD
High selectivity is a necessary and crucial indicator for the application of the
fluorescent probe to biological system. We then used various analytes, such as amino
-
acids (His, Asp, Val, Phe, Tyr, Ala, Ser, Leu, Arg, Pro, Thr, Trp, Lys,) and ions (HCO3 ,
-
-
2-
2-
ClO4 , OAc-, NO3 , SCN-, F-, Cl-, Br-, I-, SO3 , SO4 , S2-, Pd2+, Mg2+, Fe3+, Ca2+, Zn2+,
13

ACCEPTED MANUSCRIPT
246
247
248
249
250
251
252
253
254
Cu2+) and others (H2O2, NaClO, NO) to investigate the selectivity of the probe
TCF-NBD towards Cys/Hcy and GSH. As shown in Fig. 4 and S3, the fluorescence
intensity of probe TCF-NBD at 547 nm and 610 nm are significantly enhanced after
the addition of 100 µM Cys or Hcy; and the fluorescence turn-on response only at 610
nm after addition of 100 µM GSH. However, there was no obvious change in
fluorescence response can be observed when the probe reacted with other analytes
with the excitation at 470 nm or 570 nm. These results indicated that the ability of
TCF-NBD to specifically recognize Cys/Hcy and GSH over others relative analytes
in complexed biosystem.
255
256

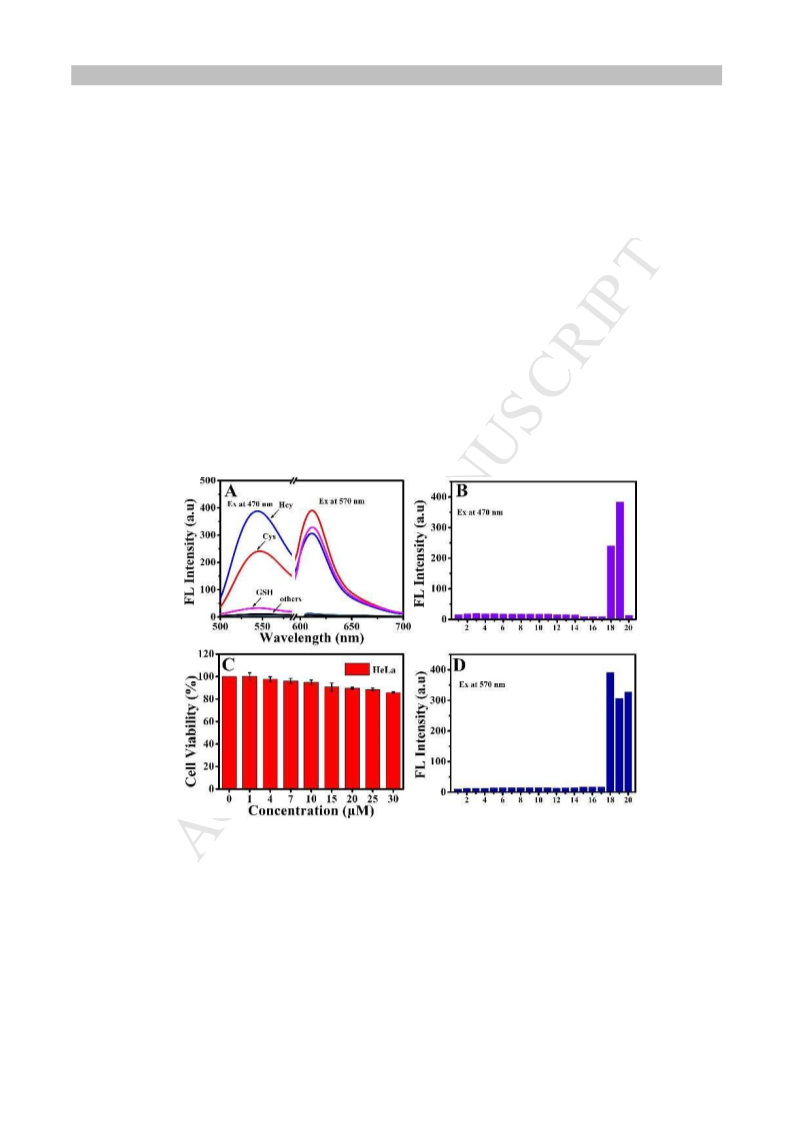

Fig. 4 (A) Fluorescence spectra of TCF-NBD (10 µM) in the presence of Cys, Hcy or
GSH (100 µM) and some relevant species (500 µM): (1) Probe, (2) His, (3) Asp, (4)
Val, (5) Phe, (6) Tyr, (7) Ala, (8) Ser, (9) Leu, (10) Arg, (11)Pro, (12)Thr, (13)Trp,
(14)Lys, (15) H2O2, (16) NaClO, (17) NO, (18) Cys, (19) Hcy, (20) GSH in PBS (10
257
258
259
260
mM, pH 7.4, 10% DMF). Fluorescence intensity of TCF-NBD (10 µM) upon addition
14

ACCEPTED MANUSCRIPT
of different analytes: (B) λex =470 nm, λem =547 nm (D) λex =570 nm, λem =610 nm.
(C) The cell cytotoxicity of various concentration of TCF-NBD in HeLa cells for 24
h.
261
262
263
264
3.5. Fluorescence imaging of probe TCF-NBD in living cells
265
266
267
268
269
270
271
Fig.5 Fluorescence imaging for HeLa cells. (A1-A5): HeLa cells were incubated with
10 µM TCF-NBD only for 30 min; (B1-B5): The cells were pretreated with 500 µM
NEM for 30 min, and then incubated with 10 µM TCF-NBD for 30 min. The cells
were pretreated with 500 µM NEM for 30 min, and then treated with 100 µM Cys
(C1-C5), Hcy (D1-D5) and GSH (E1-E5) respectively and further incubated with 10
µM TCF-NBD for 30 min. Green channel: λex =488 nm, collected: 500-550 nm; Red
15

ACCEPTED MANUSCRIPT
272
channel: λex =559 nm, collected: 570-630 nm. Scaler bar: 20 µm.
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
In order to verify the bioavailability of the probe TCF-NBD, we evaluated its
capability to selectively visualize intracellular Cys/Hcy and GSH with fluorescence
imaging. Accordingly, the cytotoxicity of TCF-NBD was established using MTT
assays with HeLa cells. It was found that the cell viabilities exceed 94% when
incubated cells for 24 h with10 µM TCF-NBD, demonstrating that the probe
TCF-NBD is of low cytotoxicity and is suitable for fluorescence confocal biological
imaging (Fig. 4C).
As shown in Fig. 5A, when the HeLa cells were only incubated with probe
TCF-NBD (10 µM), it shows fluorescence signals in green and red channels
simultaneously, which were caused by the endogenous biothiols in HeLa cells. We
then performed a series of control experiments so that to evaluate selective responses
of probe TCF-NBD toward Cys/Hcy and GSH in living cells. When
N-ethylmaleimide (NEM, a thiol-consumptive agent)-pretreated cells were further
incubated with TCF-NBD for 30 min, however, an obvious fluorescence reduction in
both green and red channels can be observed (Fig. 5B), indicating that thiols were
completely reacted with NEM [68]. In contrast, when NEM-pretreated HeLa cells
were incubated with Cys/Hcy and then treated with probe TCF-NBD for 30 min,
strong fluorescence signals occurred in green and red channels (Figs. 5C and 5D).
Upon the addition of 100 µM GSH to NEM-pretreated cells followed by incubation
with probe, only obvious red fluorescence signal was observed (Fig. 5E). These
above experiments indicated that TCF-NBD could discriminate intracellular Cys/Hcy
16

ACCEPTED MANUSCRIPT
and GSH by different emission signals and serve as a potential tool for investigating
the metabolism and mechanism of biothiols.
294
295
296
3.6. Fluorescence imaging of probe TCF-NBD in Daphnia magna
297
298
Fig.6 Fluorescence images of endogenous biothiols in Daphnia magna. (A1-A5)
Daphnia magna were incubated with 10 µM TCF-NBD only for 30 min. (B1-B5)
Daphnia magna were pretreated with 500 µM NEM for 30 min, and then incubated
with 10 µM TCF-NBD for 30 min. Scale bar: 300 µm.
299
300
301
302
303
304
305
306
307
308
309
310
The ability of TCF-NBD for visualizing biothiols in vivo was also evaluated in
living Daphnia magna, a widely used animal as a standard Environmental Protection
Agency test organism [69], using fluorescence imaging. As shown in Fig. 6A, the gut
of Daphnia magna exhibited strong fluorescence signals in green channel and red
channel when the Daphnia magna were incubated with 10 µM TCF-NBD for 30 min,
indicating that there were abundant endogenous biothiols in the gut of Daphnia
magna. To verify this result, Daphnia magna were pretreated with 500 µM NEM for
30 min, and then incubated with 10 µM TCF-NBD for further 30 min before
fluorescence imaging. The Daphnia magna displays almost unobservable
17

ACCEPTED MANUSCRIPT
311
312
313
fluorescence signals in two channels (Fig. 6B), suggesting the signals observed in Fig.
6A were induced by endogenous biothiols. These results indicating that TCF-NBD
could be used for tracking biothiols in complex living bodies.
314
4. Conclusions
315
316
317
318
319
320
321
322
323
324
325
326
327
328
In summary, an efficient fluorescent probe, TCF-NBD, for simultaneously
discriminating Cys/Hcy and GSH by separated emissions via independent excitations
was designed and synthesized. The strategy is to couple two fluorophores, TCF-OH
and NBD with a biothiol-sensitive ether linkage. This probe emits a dual emission
signal toward Cys and Hcy through a substitution- rearrangement cascade reaction;
however, a single emission response toward GSH, which can be used to
simultaneously distinguish Cys/Hcy and GSH. Taking the merits of low cytotoxicity
and good selectivity of probe TCF-NBD into consideration, we have successfully
applied it for discriminative detecting of Cys/Hcy and GSH in HeLa cells through
fluorescence confocal imaging. More importantly, the in vivo ability of TCF-NBD
was proved by the visualization of endogenous biothiols in Daphnia magna.
Therefore, the probe TCF-NBD would serve as a powerful tool for further elucidating
the physiological role of biothiols and conducting pathological analysis of
thiol-related diseases.
329
330
Acknowledgements
This work was financially supported by National Science Foundation of China
18

ACCEPTED MANUSCRIPT
(21576037, 21676047, 21421005, 21703025), NSFC-Liaoning United Fund
(U1608222).
331
332
333
References
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
[1] Ball RO, Courtney-Martin G, Pencharz PB. The in vivo sparing of methionine by
cysteine in sulfur amino acid requirements in animal models and adult humans. J
Nutr 2006; 136: 1682S-1693S.
[2] Zhou Y, Yoon J. Recent progress in fluorescent and colorimetric chemosensors for
detection of amino acids. Chem Soc Rev 2012; 41: 52-67.
[3] Townsend DM, Tew KD, Tapiero H. The importance of glutathione in human
disease. Biomed Pharmacother 2003; 57: 145-155.
[4] Paul BD, Sbodio JI, Xu R, Vandiver MS, Cha JY, Snowman AM, et al.
Cystathionine gamma-lyase deficiency mediates neurodegeneration in
Huntington's disease. Nature 2014; 509: 96-100.
[5] Forman HJ, Zhang H, Rinna A. Glutathione: Overview of its protective roles,
measurement, and biosynthesis. Mol Aspects Med 2009; 30: 1-12.
[6] Shahrokhian S. Lead phthalocyanine as a selective carrier for preparation of a
cysteine-selective electrode. Anal Chem 2001; 73: 5972-5978.
[7] Refsum H, Smith AD, Ueland PM, Nexo E, Clarke R, McPartlin J, et al. Facts and
recommendations about total homocysteine determinations: An expert opinion.
Clin Chem 2004; 50: 3-32.
[8] Lu SC. Regulation of glutathione synthesis. Mol Aspects Med 2009; 30: 42-59.
19

ACCEPTED MANUSCRIPT
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
[9] Seshadri S, Beiser A, Selhub J, Jacques PF, Rosenberg IH, D'Agostino RB, et al.
Plasma homocysteine as a risk factor for dementia and Alzheimer's disease. New
Engl J Med 2002; 346: 476-483.
[10] Chan J, Dodani SC, Chang CJ. Reaction-based small-molecule fluorescent
probes for chemoselective bioimaging. Nat Chem 2012; 4: 973-984.
[11] Chen X, Wang F, Hyun JY, Wei T, Qiang J, Ren X, et al. Recent progress in the
development of fluorescent, luminescent and colorimetric probes for detection of
reactive oxygen and nitrogen species. Chem Soc Rev 2016; 45: 2976-3016.
[12] Jiao X, Li Y, Niu J, Xie X, Wang X, Tang B. Small-Molecule Fluorescent Probes
for Imaging and Detection of Reactive Oxygen, Nitrogen, and Sulfur Species in
Biological Systems. Anal Chem 2018; 90: 533-555.
[13] Yin C-X, Xiong K-M, Huo F-J, Salamanca JC, Strongin RM. Fluorescent Probes
with Multiple Binding Sites for the Discrimination of Cys, Hcy, and GSH.
Angew Chem Int Edit 2017; 56: 13188-13198.
[14] Zhang W, Huo F, Yin C. Recent advances of dicyano-based materials in biology
and medicine. J Mater Chem B 2018; 6: 6919-6929.
[15] Lou Z, Li P, Han K. Redox-Responsive Fluorescent Probes with Different
Design Strategies. Acc Chem Res 2015; 48: 1358-1368.
[16] Chen X, Zhou Y, Peng X, Yoon J. Fluorescent and colorimetric probes for
detection of thiols. Chem Soc Rev 2010; 39: 2120-2135.
[17] Yang Y, Zhao Q, Feng W, Li F. Luminescent Chemodosimeters for Bioimaging.
Chem Rev 2013; 113: 192-270.
20

ACCEPTED MANUSCRIPT
374
375
376
[18] Yang M, Fan J, Zhang J, Du J, Peng X. Visualization of methylglyoxal in living
cells and diabetic mice model with a 1,8-naphthalimide-based two-photon
fluorescent probe. Chem Sci 2018; 9: 6758-6764.
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
[19] Li X, Huo F, Yue Y, Zhang Y, Yin C. A coumarin-based "off-on" sensor for
fluorescence selectivily discriminating GSH from Cys/Hcy and its bioimaging in
living cells. Sensor Actuat B-chem 2017; 253: 42-49.
[20] Liu T, Huo F, Li J, Chao J, Zhang Y, Yin C. An off-on fluorescent probe for
specifically detecting cysteine and its application in bioimaging. Sensor Actuat
B-chem 2016; 237: 127-132.
[21] Yue Y, Huo F, Li X, Wen Y, Yi T, Salamanca J, et al. pH-Dependent
Fluorescent Probe That Can Be Tuned for Cysteine or Homocysteine. Org Lett
2017; 19: 82-85.
[22] Yue Y, Yin C, Huo F, Chao J, Zhang Y. Thiol-chromene click chemistry: A
turn-on fluorescent probe for specific detection of cysteine and its application in
bioimaging. Sensor Actuat B-chem 2016; 223: 496-500.
[23] Yang Y, Huo F, Yin C, Chao J, Zhang Y. An 'OFF-ON' fluorescent probe for
specially recognize on Cys and its application in bioimaging. Dyes Pigments
2015; 114: 105-109.
[24] Huo F, Kang J, Yin C, Zhang Y, Chao J. A turn-on green fluorescent thiol probe
based on the 1,2-addition reaction and its application for bioimaging. Sensor
Actuat B-chem 2015; 207: 139-143.
[25] Yue Y, Huo F, Yue P, Meng X, Salamanca JC, Escobedo JO, et al. In Situ
Lysosomal
Cysteine-Specific
Targeting
and
Imaging
during
Dexamethasone-Induced Apoptosis. Anal Chem 2018; 90: 7018-7024.
[26] Liu T, Huo FJ, Yin CX, Li JF, Niu LX. A highly selective fluorescence sensor
for cysteine/homocysteine and its application in bioimaging. Rsc Advances 2015;
5: 28713-28716.
[27] Huo F-J, Sun Y-Q, Su J, Chao J-B, Zhi H-J, Yin C-X. Colorimetric Detection of
21

ACCEPTED MANUSCRIPT
402
403
404
405
406
407
408
409
410
411
412
413
Thiols Using a Chromene Molecule. Org Lett 2009; 11: 4918-4921.
[28] Yang Y, Huo F, Yin C, Zheng A, Chao J, Li Y, et al. Thiol-chromene click
chemistry: A coumarin-based derivative and its use as regenerable thiol probe
and in bioimaging applications. Biosens Bioelectron 2013; 47: 300-306.
[29] Kang J, Huo F, Chao J, Yin C. Nitroolefin-based BODIPY as a novel
water-soluble ratiometric fluorescent probe for detection of endogenous thiols.
Spectrochim Acta A 2018; 195: 16-20.
[30] Xie XX, Yin CX, Yue YK, Huo FJ. Rational design of fluorescent probe for Cys
dynamics imaging in living cell. Sensor Actuat B-chem 2018; 267: 76-82.
[31] Li J, Yue Y, Huo F, Yin C. Rational design of cysteine-specific ratiometric probe
based on steric hindrance effect and its biological application. Dyes Pigments
2019; 164: 335-340.
414
415
416
417
418
419
420
421
422
423
424
425
426
[32] Chen T, Pei X, Yue Y, Huo F, Yin C. An enhanced fluorescence sensor for
specific detection Cys over Hcy/GSH and its bioimaging in living cells.
Spectrochim Acta A 2019; 209: 223-227.
[33] Peng H, Chen W, Cheng Y, Hakuna L, Strongin R, Wang B. Thiol Reactive
Probes and Chemosensors. Sensors 2012; 12: 15907-15946.
[34] Yin C, Huo F, Zhang J, Martinez-Manez R, Yang Y, Lv H, et al. Thiol-addition
reactions and their applications in thiol recognition. Chem Soc Rev 2013; 42:
6032-6059.
[35] Lin VS, Chen W, Xian M, Chang CJ. Chemical probes for molecular imaging
and detection of hydrogen sulfide and reactive sulfur species in biological
systems. Chem Soc Rev 2015; 44: 4596-4618.
[36] Sun W, Guo S, Hu C, Fan J, Peng X. Recent Development of Chemosensors
Based on Cyanine Platforms. Chem Rev 2016; 116: 7768-7817.
22

ACCEPTED MANUSCRIPT
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
[37] Niu L-Y, Chen Y-Z, Zheng H-R, Wu L-Z, Tung C-H, Yang Q-Z. Design
strategies of fluorescent probes for selective detection among biothiols. Chem
Soc Rev 2015; 44: 6143-6160.
[38] Liu T, Huo F, Yin C, Li J, Chao J, Zhang Y. A triphenylamine as a fluorophore
and maleimide as a bonding group selective turn-on fluorescent imaging probe
for thiols. Dyes Pigments 2016; 128: 209-214.
[39] Kong F, Liu R, Chu R, Wang X, Xu K, Tang B. A highly sensitive near-infrared
fluorescent probe for cysteine and homocysteine in living cells. Chem Commun
2013; 49: 9176-9178.
[40] Zhang J, Ji X, Ren H, Zhou J, Chen Z, Dong X, et al. Meso-heteroaryl BODIPY
dyes as dual-responsive fluorescent probes for discrimination of Cys from Hcy
and GSH. Sensor Actuat B-chem 2018; 260: 861-869.
[41] Lee D, Jeong K, Luo X, Kim G, Yang Y, Chen X, et al. Near-infrared fluorescent
probes for the detection of glutathione and their application in the fluorescence
imaging of living cells and tumor-bearing mice. J Mater Chem B 2018; 6:
2541-2546.
[42] Wang J-Y, Liu Z-R, Ren M, Kong X, Lin W. A fast-response two-photon
fluorescent probe for the detection of Cys over GSH/Hcy with a large turn-on
signal and its application in living tissues. J Mater Chem B 2017; 5: 134-138.
[43] Yue Y, Huo F, Ning P, Zhang Y, Chao J, Meng X, et al. Dual-Site Fluorescent
Probe for Visualizing the Metabolism of Cys in Living Cells. J Am Chem Soc
2017; 139: 3181-3185.
23

ACCEPTED MANUSCRIPT
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
[44] Fu Y-J, Li Z, Li C-Y, Li Y-F, Wu P, Wen Z-H. Borondipyrrolemethene-based
fluorescent probe for distinguishing cysteine from biological thiols and its
application in cell image. Dyes Pigments 2017; 139: 381-387.
[45] Li M, Cui P, Li K, Feng J, Zou M, Yu X. Dual-site fluorescent probe for highly
selective and sensitive detection of sulfite and biothiols. Chinese Chem Lett 2018;
29: 992-994.
[46] He L, Yang X, Xu K, Lin W. Improved Aromatic Substitution
Rearrangement-Based Ratiometric Fluorescent Cysteine-Specific Probe and Its
Application of Real-Time Imaging under Oxidative Stress in Living Zebrafish.
Anal Chem 2017; 89: 9567-9573.
[47] Huang Y, Zhou Q, Feng Y, Zhang W, Fang G, Fang M, et al. Rational design of
a ratiometric two-photon fluorescent probe for real-time visualization of
apoptosis. Chem Commun 2018; 54: 10495-10498.
[48] Gao M, Wang R, Yu F, Li B, Chen L. Imaging of intracellular sulfane sulfur
expression changes under hypoxic stress via a selenium-containing near-infrared
fluorescent probe. J Mater Chem B 2018; 6: 6637-6645.
[49] Wang F-F, Liu Y-J, Wang B-B, Gao L-X, Jiang F-L, Liu Y. A
BODIPY-basedmitochondria-targeted turn-on fluorescent probe with dual
response units for the rapid detection of intracellular biothiols. Dyes Pigments
2018; 152: 29-35.
[50] Han C, Yang H, Chen M, Su Q, Feng W, Li F. Mitochondria-Targeted
Near-Infrared Fluorescent Off-On Probe for Selective Detection of Cysteine in
24

ACCEPTED MANUSCRIPT
Living Cells and in Vivo. ACS Appl Mater Inter 2015; 7: 27968-27975.
[51] Yin K, Yu F, Zhang W, Chen L. A near-infrared ratiometric fluorescent probe for
cysteine detection over glutathione indicating mitochondrial oxidative stress in
vivo. Biosens Bioelectron 2015; 74: 156-164.
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
[52] Niu W, Guo L, Li Y, Shuang S, Dong C, Wong MS. Highly Selective
Two-Photon Fluorescent Probe for Ratiometric Sensing and Imaging Cysteine in
Mitochondria. Anal Chem 2016; 88: 1908-1914.
[53] Yang L, Su Y, Geng Y, Zhang Y, Ren X, He L, et al. A Triple-Emission
Fluorescent Probe for Discriminatory Detection of Cysteine/Homocysteine,
Glutathione/Hydrogen Sulfide, and Thiophenol in Living Cells. ACS Sensors
2018; 3: 1863-1869.
[54] Yin G-x, Niu T-t, Gan Y-b, Yu T, Yin P, Chen H-m, et al. A Multi-signal
Fluorescent Probe with Multiple Binding Sites for Simultaneous Sensing of
Cysteine, Homocysteine, and Glutathione. Angew Chem Int Edit 2018; 57:
4991-4994.
[55] Zhang H, Liu R, Liu J, Li L, Wang P, Yao SQ, et al. A minimalist fluorescent
probe for differentiating Cys, Hcy and GSH in live cells. Chem Sci 2016; 7:
256-260.
[56] Tian Y, Zhu B, Yang W, Jing J, Zhang X. A fluorescent probe for differentiating
Cys, Hcy and GSH via a stepwise interaction. Sensor Actuat B-chem 2018; 262:
345-349.
[57] Hwang C, Sinskey AJ, Lodish HF. Oxidized redox state of glutathione in the
25

ACCEPTED MANUSCRIPT
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
endoplasmic reticulum. Science 1992; 257: 1496-1502.
[58] Jung HS, Pradhan T, Han JH, Heo KJ, Lee JH, Kang C, et al. Molecular
modulated cysteine-selective fluorescent probe. Biomaterials 2012; 33:
8495-8502.
[59] Lu Z, Fan W, Shi X, Lu Y, Fan C. Two Distinctly Separated Emission
Colorimetric NIR Fluorescent Probe for Fast Hydrazine Detection in Living
Cells and Mice upon Independent Excitations. Anal Chem 2017; 89: 9918-9925.
[60] Wang X, Guo Z, Zhu S, Tian H, Zhu W. A naked-eye and ratiometric
near-infrared probe for palladium via modulation of a pi-conjugated system of
cyanines. Chem Commun 2014; 50: 13525-13528.
[61] Wang K, Zhao C-X, Leng T-H, Wang C-Y, Lu Y-X, Shen Y-J, et al. Dual
quenching strategy for sensitive detection of toxic thiolphenols based on a
NIR-illuminant platform with a large Stokes shift. Dyes Pigments 2018; 151:
194-201.
[62] Hu Q, Yu C, Xia X, Zeng F, Wu S. A fluorescent probe for simultaneous
discrimination of GSH and Cys/Hcy in human serum samples via
distinctly-separated emissions with independent excitations. Biosens Bioelectron
2016; 81: 341-348.
[63] Wang P, Wang Y, Li N, Huang J, Wang Q, Gu Y. A novel DCM-NBD conjugate
fluorescent probe for discrimination of Cys/Hcy from GSH and its bioimaging
applications in living cells and animals. Sensor Actuat B-chem 2017; 245:
297-304.
26

ACCEPTED MANUSCRIPT
[64] Montoya LA, Pluth MD. Hydrogen Sulfide Deactivates Common
Nitrobenzofurazan-Based Fluorescent Thiol Labeling Reagents. Anal Chem
2014; 86: 6032-6039.
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
[65] Gao X, Li X, Li L, Zhou J, Ma H. A simple fluorescent off-on probe for the
discrimination of cysteine from glutathione. Chem Commun 2015; 51:
9388-9390.
[66] Hammers MD, Pluth MD. Ratiometric Measurement of Hydrogen Sulfide and
Cysteine/Homocysteine Ratios Using a Dual-Fluorophore Fragmentation
Strategy. Anal Chem 2014; 86: 7135-7140.
[67] Lee D, Kim G, Yin J, Yoon J. An aryl-thioether substituted nitrobenzothiadiazole
probe for the selective detection of cysteine and homocysteine. Chem Commun
2015; 51: 6518-6520.
[68] Yellaturu CR, Bhanoori M, Neeli I, Rao GN. N-ethylmaleimide inhibits
platelet-derived growth factor BB-stimulated Akt phosphorylation via activation
of protein phosphatase 2A. J Biol Chem 2002; 277: 40148-40155.
[69] Lovern SB, Klaper R. Daphnia magna mortality when exposed to titanium
dioxide and fullerene (C-60) nanoparticles. Environ Toxicol Chem 2006; 25:
1132-1137.
27

ACCEPTED MANUSCRIPT
Supporting Information
Simultaneous visualization of cysteine/homocysteine and
glutathione in living cells and Daphnia magna via dual-signaling
fluorescent chemosensor
Mingwang Yang1, Jiangli Fan*1,2, Wen Sun1,2, Jianjun Du1,2, Saran Long1,2, Xiaojun
Peng1,2
1State Key Laboratory of Fine Chemicals, Dalian University of Technology, 2
Linggong Road, Dalian, 116024, P.R. China.
2Research Institute of Dalian University of Technology in Shenzhen, Gaoxin South
fourth Road, Nanshan District, Shenzhen 518057, China
Email: fanjl@dlut.edu.cn
28
