Bioinspired Heterocyclic Partnership in a Cyanine-Type Acidichromic Chromophore

Article abstract of DOI:10.3390/molecules25173817

A new red hair-inspired 1,4-benzothiazine-based scaffold is disclosed herein, built upon a modular D-π-A architecture via condensation of the easily accessible 3-phenyl-2H-1,4-benzothiazine with indole-3-carboxaldehyde. The compound was obtained in around

Full text of DOI:10.3390/molecules25173817

molecules
Article
Bioinspired Heterocyclic Partnership in a
Cyanine-Type Acidichromic Chromophore
Maria Laura Alfieri, Lucia Panzella , Marco d’Ischia and Alessandra Napolitano *
Department of Chemical Sciences, University of Naples “Federico II”, I-80126 Naples, Italy;
marialaura.alfieri@unina.it (M.L.A.); panzella@unina.it (L.P.); dischia@unina.it (M.d.)
* Correspondence: alesnapo@unina.it
ꢀꢁꢂꢀꢃꢄꢅꢆꢇ
Academic Editors: Ugo Caruso and Derek J. McPhee
Received: 25 July 2020; Accepted: 19 August 2020; Published: 21 August 2020
ꢀꢁꢂꢃꢄꢅꢆ
Abstract: A new red hair-inspired 1,4-benzothiazine-based scaffold is disclosed herein, built upon a
modular D- -A architecture via condensation of the easily accessible 3-phenyl-2H-1,4-benzothiazine
π
with indole-3-carboxaldehyde. The compound was obtained in around 50% yields and was
characterized by complete spectroscopic analysis. The new benzothiazine-based cyanine displayed a
characteristic reversible acidichromic behavior with a marked bathochromic shift upon acidification.
The chromophore resisted at least fifteen hydrochloric acid/sodium hydroxide cycles without
appreciable alterations. The expedient and scalable synthetic procedure together with the pH
sensitive chromophoric properties would make the new compound an attractive prototype for novel
modular chromophore for pH-sensing and other applications.
Keywords: benzothiazine-based chromophores; heterocyclic aromatic aldehyde; cyanine dyes;
acidichromism; pH sensors
1. Introduction
The design and build-up of organic-based chromophores exhibiting tailored electronic and optical
features has become an active research field over the past decade. Among different applications,
particular interest has been focused on optoelectronics (e.g., dye sensitized solar cells, photo- and
chemical-switching systems, organic light emitting devices) [1–5], organic electronics, such as organic
semiconductors [ ], imaging technologies (e.g., electrophotography, thermal printing, and ink-jet
6–9
printing) [10], and biomedicine (e.g., fluorescent sensors and anticancer treatments or photodynamic
therapy) [11–17].
In addition to chemical stability and intense absorption in the visible region, desirable properties
of functional dyes include any change of the chromophoric properties, such as photochromism or
solvatochromism, that is associated with a modification of the external parameters or aggregation
state [18–22].
An interesting nature-inspired class of compounds featuring most of the requisites for technological
applications are cyanine dyes, which are structurally related to the betacyanin pigments occurring
in fruits and vegetables and exhibiting red purple chromophores. These dyes feature an imine and
an enamine type site arranged to form a push-pull system. Because of their excellent photophysical
properties, such as high molar extinction coefficients and high fluorescence quantum yields, outstanding
biocompatibility, and low toxicity to living systems, cyanines are good candidates for developing
chemosensors [23–26].
Recently, novel cyanine-type dyes, designated trichocyanines [27], have been built upon a modular
2,20
D-
π-A architecture which incorporates ring systems inspired by the
∆
-bi-(2H-1,4-benzothiazine)
structural core of trichochromes: unique pH-dependent aminoacidic pigments occurring in red human
hair and avian feathers [28 30] (Figure 1). The most characteristic feature of trichochromes is their
–
Molecules 2020, 25, 3817; doi:10.3390/molecules25173817
www.mdpi.com/journal/molecules

Molecules 2020, 25, 3817
2 of 9
doubly cross-conjugated yellow-to-red chromophore, which undergoes a marked bathochromic shift
to an intense blue coloration in acid as a result of the protonation of the benzothiazine nitrogen that
enhances its acceptor character [31–33].

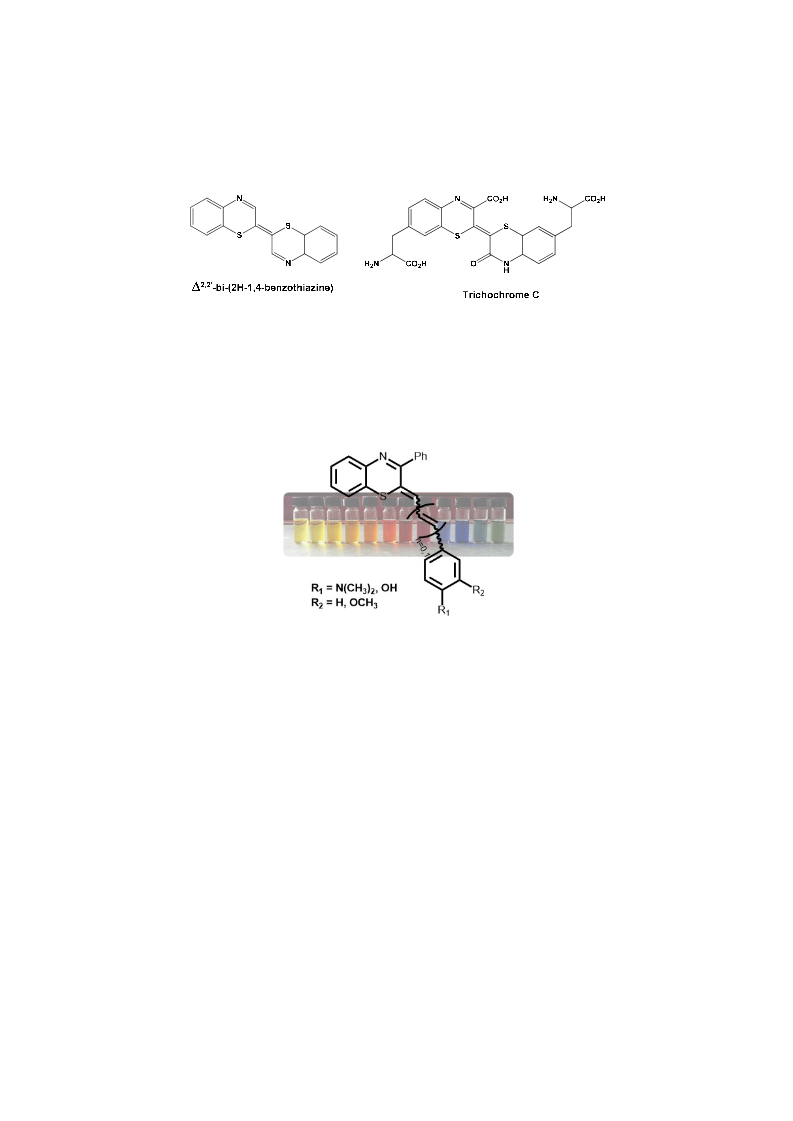

Figure 1. Representative structures of trichochromes.
The trichocyanines, in particular, showed an extension of the conjugated system compared to that
exhibited by
∆
2,2’-bi-(2H-1,4-benzothiazine) [32
,
34], which expectedly resulted in a larger bathochromic
shift in acid. Therefore, variation of the
π
-bridge could be recognized as a facile and effective approach
for developing push-pull chromophores with specific properties and easy tunability by modulating
the electron-donating substituent(s) on the phenyl ring (Figure 2).
Figure 2. Structure of the trichocyanines synthesized and color variation associated to pH changes in
the range 1–12 [27].
Starting from this background it was argued that novel functional chromophores could be obtained
by reaction of the nucleophilic enamine-type C2 position of the 2H-1,4-benzothiazine moiety [35–37]
with carboxaldehydes of nitrogenous heterocyclic aromatic systems. This would allow the build-up of
a variant of the benzothiazine-based cyanine chromophore, with the benzothiazine nitrogen acting as
acceptor and the nitrogen of the heterocyclic aromatic system as donor component.
In this work this rationale was tested through the preparation and characterization of a new
benzothiazine-based system by reaction of the easily accessible 3-phenyl-2H-1,4-benzothiazine [35
]
with indole-3-carboxaldehyde. The ease of the synthetic procedure and the peculiar acidichromic
behavior open new perspectives for the design and exploitation of nature-inspired chromophores for
technological applications.
2. Results and Discussion
2.1. Synthesis and Structural Characterization of Cyanine 1
First, the 3-phenyl-(2H)-1,4-benzothiazine was synthesized using a previously developed
procedure [35] in which the o-aminothiophenol was reacted with phenacyl bromide in anhydrous
diethyl ether. In 2 h a complete conversion of the starting materials was obtained and the compound
separated from the reaction mixture as a yellow solid in pure form (ca. 80% yields) (Scheme 1).

Molecules 2020, 25, 3817
3 of 9
Scheme 1. Synthesis of 3-phenyl-(2H)-1,4-benzothiazine.
In the first series of experiments, the reaction between 3-phenyl-2H-1,4-benzothiazine and
indole-3-carboxaldehyde was optimized starting from the conditions previously developed for the
reaction with benzaldehyde or cinnamaldehyde in acetonitrile in the presence of HCl [27] (Table 1).
TLC analysis of the reaction mixtures using different amounts of the acid showed that concentrations
as high as 2.5 M were required to achieve a satisfactory and rapid consumption of the benzothiazine
and to minimize by-product formation. In addition, the reaction proved faster, with an almost
complete consumption of the starting reagent at 3 h, at which point the temperature was raised from
◦
◦
25 C to 70 C. Notably, this reaction time was significantly shorter than that used in previously
reported procedures [27]. The stoichiometric ratio of the two reagents was varied in the range
benzothiazine/aldehyde from 0.5:1 to 1:2. A 1:1.5 molar ratio proved to be an optimal condition to
favor product formation over side reactions such as self-coupling of the benzothiazine.
Table 1. Optimization of reaction condition for the synthesis of cyanine 1.
Entry
Benzothiazine/Aldehyde (Molar Ratio)
Solvent
Temperature (◦C)
Time (h)
1
2
3
4
5
6
7
8
1:1
1:1
1:1
1:1
1:1
0.5:1
1:2
1:1.5
CH3CN/0.5 M HCl
CH3CN/1.5 M HCl
CH3CN/2.5 M HCl
CH3CN/2.5 M HCl
CH3CN/2.5 M HCl
CH3CN/2.5 M HCl
CH3CN/2.5 M HCl
CH3CN/2.5 M HCl
r.t.
r.t.
r.t.
45
70
70
70
70
24
24
24
8
3
3
3
3
On this basis, for synthetic purposes, the reaction was run on a preparative scale in 12 M
HCl/acetonitrile 1:4 v/v, at 70 ◦C, starting from hundreds milligrams of 3-phenyl-(2H)-1,4-benzothiazine.
After 3 h TLC analysis showed the presence of a main component (Rf = 0.42, eluant cyclohexane/ethyl
acetate 8:2 v/v) together with minor components. After removal of acetonitrile under reduced
pressure, the aqueous acid mixture was extracted with ethyl acetate. The main product of the reaction,
yellow in color, was isolated in pure form by silica gel column chromatography fractionation in around
50% yield and subjected to a complete spectroscopic characterization that led to its formulation as
2-((1H-indol-3-yl)methylene)-3-phenyl-2H-1,4-benzothiazine) (1) shown in Scheme 2.
Scheme 2. Synthesis of 2-((1H-indol-3-yl)methylene)-3-phenyl-2H-1,4-benzothiazine) (1).

Molecules 2020, 25, 3817
4 of 9
MALDI mass spectrometry analysis in positive reflectron mode (Figure S1) indicated a
pseudomolecular ion peak [M + H]+ at m/z 353, as expected for the condensation product
1.
Complete spectral characterization (Figures S2–S6) confirmed structure
1 proposed for the compound.
1
The H NMR spectrum (Figure S2) showed a well-defined pattern of resonances attributable to
the 1,4-benzothiazine and indole moieties, the phenyl substituent, and the diagnostic singlet for
the exocyclic double bond at 7.30 ppm. In addition, the NOESY spectrum (Figure S7) allowed the
assignment of the Z configuration to the double bond formed in the condensation reaction, showing a
cross-peak between the singlet at 7.30 ppm and the multiplet at 7.82 ppm due to the protons of the
phenyl ring ortho to the substitution position. A 2D NMR analysis allowed complete assignment of
proton and carbon resonances (Figure S8).
2.2. Characterization of the pH-Dependent Chromophore
The chromophoric properties of cyanine 1 were systematically investigated over the whole pH
range. The cyanine proved freely soluble in organic solvents like chloroform or alcohols and also
exhibited a good solubility in ethanol or methanol/water 70:30 and 50:50 mixtures. For the purpose
of spectrophotometric experiments, a mother solution in methanol at 5 mM was prepared and then
properly diluted in the buffer solutions. At neutral pHs, absorption maxima centered at 332 and
444 nm were observed. At acidic pH below 3 the band at higher wavelength underwent a large
bathochromic shift (544 nm) and a marked hyperchromic effect (Figure 3). This shift is likely due
to the protonation of the imine nitrogen of the benzothiazine moiety whose relatively high basicity
stems from the stabilization of the resulting iminium ion provided by the indole nitrogen (Figure 3).
The molar extinction coefficients (ε) for the neutral (444 nm) and acid (544 nm) forms were found to be
5403 ± 48 M−1 cm−1 and 12461 ± 29 M−1 cm−1 respectively.

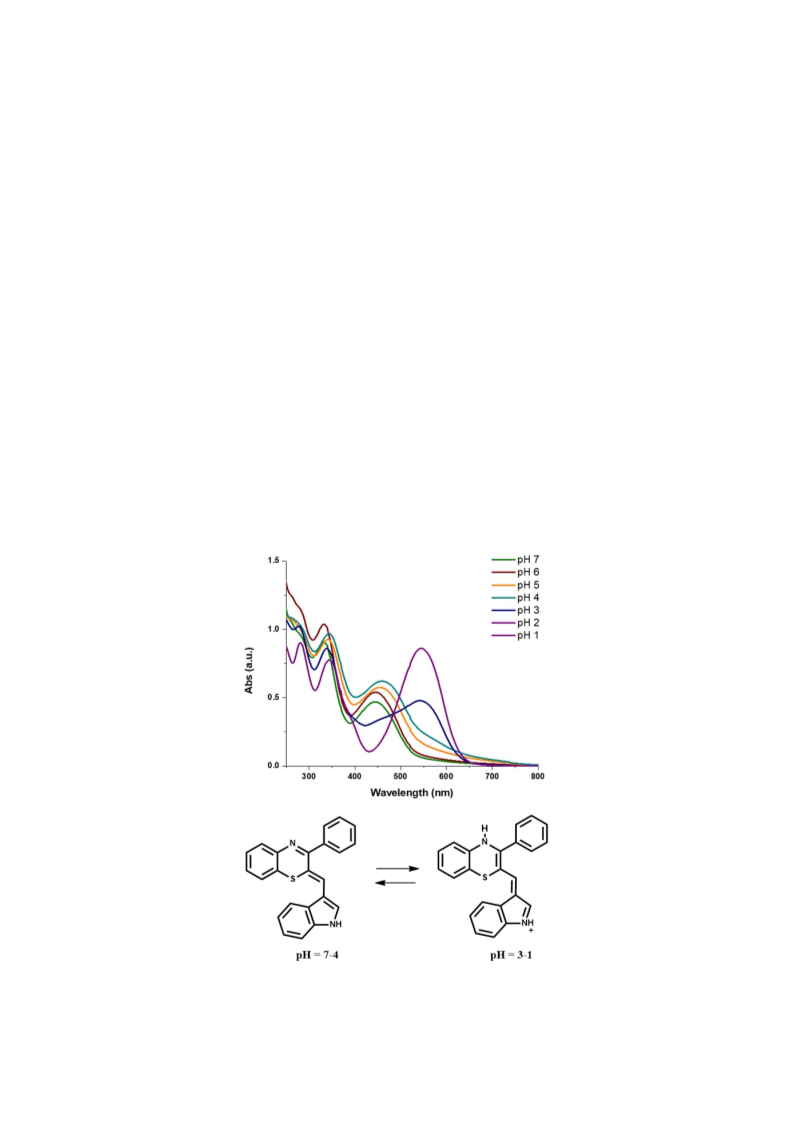

Figure 3. Top: UV-vis absorption spectra of cyanine
1 dissolved in methanol and diluted to 0.1 mM in
50 mM sodium phosphate buffer at different pHs. Bottom: protonation equilibrium of cyanine 1.

Molecules 2020, 25, 3817
5 of 9
Notably, the acid/base shift proved fully reversible over at least fifteen HCl/NaOH addition cycles
(Figure 4).

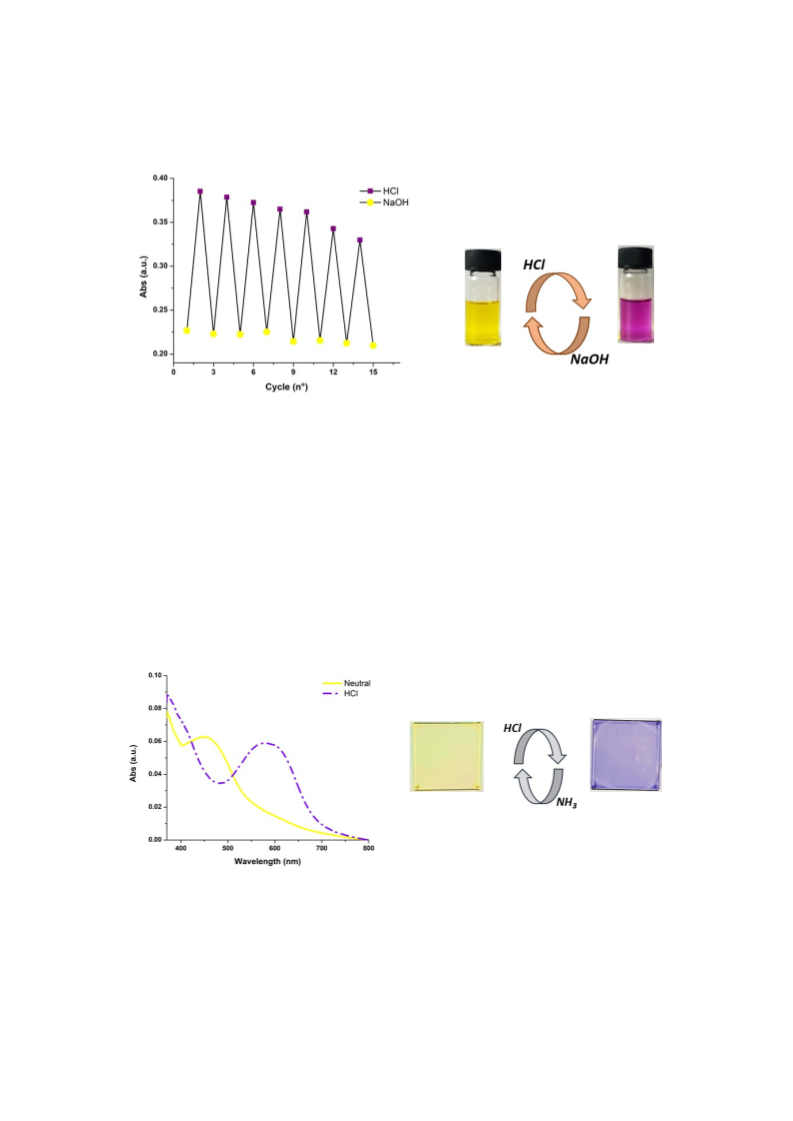

Figure 4. Changes of absorbance at 544 nm and digital pictures of
1 at 0.1 mM following repeated
sequential addition of HCl and NaOH solution, up to pH 2.0 or 7.0 respectively.
The chromophore of the cyanine 1 in the neutral form proved to be affected by solvent changes
only to a limited extent with a maximum bathochromic shift of around 15 nm passing from chloroform
to water (Figure S9).
In other experiments the fluorescence properties of cyanine 1 at different pHs were also evaluated.
The product showed a moderate fluorescence at pH 7.0 by irradiation at 332 nm that was quenched in
acid (pH = 2.0), without the generation of any other fluorophore (Figure S10).
Cyanine
1 in methanol was easily deposited by spin coating onto different substrates
(e.g., glass slides), yielding homogeneous thin films yellow in color which rapidly turned violet after
exposure to gaseous hydrochloric acid (Figure 5). Notably, the shift proved to be completely reversible
upon exposure to gaseous ammonia. Exposure to vapors of organic acids such as trifluoroacetic acid
or acetic acid produced a similar though less marked color shift (Figure S11).
Figure 5. UV-vis spectra and digital pictures of glass slides coated with
1 (5 mM) before and after
exposure to acidic vapors.
In further experiments the potential of cyanine
1 as dye was evaluated using materials much
different in nature spanning from nylon to cotton and filter paper. As apparent from pictures in Figure 6
in all cases the materials were homogeneously dyed and underwent a rapid and well appreciable shift
of the hue on exposure to acidic vapors.

Molecules 2020, 25, 3817
6 of 9

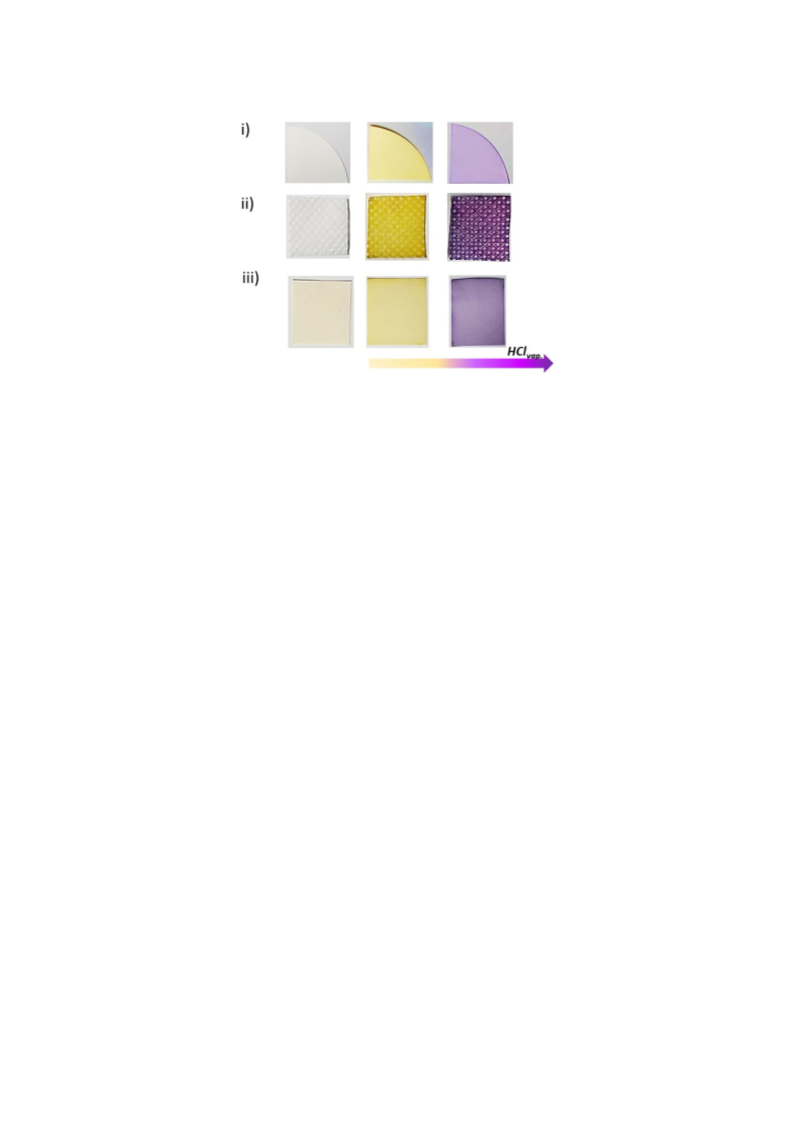

Figure 6. Nylon (i), cotton (ii), and filter paper (iii) dyed by dipping into a 5 mM methanol solution
of cyanine . Rows (i)–(iii): Left: before dyeing, middle: dyeing with
1
1; right: after exposure to
acidic vapors.
3. Materials and Methods
Phenacyl bromide, indole-3-carboxaldehyde, and 2,5-dihydroxybenzoic acid were purchased
from Sigma-Aldrich; o-aminothiophenol was purchased from Fluka. All solvents were obtained
from Carlo Erba. Analytical TLC were carried out on silica gel plates (0.25 mm) from Merck using
cyclohexane/ethyl acetate 8:2 v/v as the eluent.
UV-vis spectra were recorded with a Jasco V-560 UV-vis spectrophotometer.
Fluorescence spectra were recorded with a Jasco FP-750 spectrofluorometer.
1H NMR and 13C NMR spectra were recorded in CDCl3 at 400 MHz on a Bruker 400 MHz
spectrometer. 1H,1H COSY, 1H,13C HSQC, and 1H,13C HMBC were run at 400 MHz using Bruker
standard pulse programs.
Positive Reflectron MALDI spectra were recorded on an AB Sciex TOF/TOF 5800 instrument
using 2,5-dihydroxybenzoic acid as the matrix. One milliliter of the analyte, dissolved in chloroform,
was premixed with 1 mL of the matrix in a centrifuge tube, and then 2 µL of the resulting mixture
was pipetted on the MALDI target plate and air-dried for MALDI-ToF MS analysis. The laser was
operated at 3700 Hz and the spectrum represented the sum of 15,000 laser pulses from randomly
chosen spots per sample position. Raw data were analyzed using the computer software provided by
the manufacturers and were reported as monoisotopic masses.
Spin-coating experiments were conducted with a spin-coater Laurell WS-650MZ-23NPP/LITE.
The spin coating parameters were set as the following:
α = 500 rpm/s, ω = 2000 rpm, t = 30 s.
Glass slides were cleaned by sonication in ethanol for 10 min, then washed with isopropanol and dried
with a compressed air flow.
3.1. Synthesis of 3-Phenyl-(2H)-1,4-benzothiazine
The 3-phenyl-(2H)-1,4-benzothiazine was prepared according to Santacroce et al. [35]. A solution
of o-aminothiophenol (1.1 mL, 8.7 mmol) in anhydrous ethyl ether (5 mL) was treated at room
temperature with a solution of phenacyl bromide (2.2 g, 11 mmol) in anhydrous ethyl ether (25 mL)
under magnetic stirring for 2 h. The yellow solid that separated was filtered, washed with ethyl ether,
and then dried under vacuum to give the pure product (82% yield). The purity was checked by 1H
NMR analysis.

Molecules 2020, 25, 3817
7 of 9
3.2. Synthesis of 2Z-((1H-Indol-3-yl)methylene)-3-phenyl-2H-1,4-benzothiazine)
3-phenyl-2H-1,4-benzothiazine (200 mg, 0.62 mmol) dissolved in acetonitrile/12 M hydrochloric
acid (4:1 v/v) (16 mL) was treated with indole-3-carboxaldehyde (103 mg, 0.89 mmol) under stirring at
70 ◦C for 3 h. After 3 h, at complete consumption of the benzothiazine (TLC analysis), acetonitrile
was removed under reduced pressure and the mixture was extracted with ethyl acetate (3
The organic layers were dried over anhydrous sodium sulphate and taken to dryness. The residue
thus obtained (150 mg) was dissolved in chloroform (2 mL) and fractionated by silica gel column
×
50 mL).
chromatography (eluent cyclohexane/ethyl acetate 80:20 v/v) to give
UV:
max (CH3OH) 332 nm, 444 nm; MALDI-MS: C23H16N2S m/z 353 ([M + H]+); 1H NMR (CDCl3)
(ppm): 7.07 (m, 1H), 7.10 (m, 1H), 7.20 (m, 3H), 7.30 (s, 1H), 7.40 (m, 2H), 7.49 (d, 4H), 7.82 (m, 2H),
7.95 (s, 1H), 7.99 (s, 1H); 13C NMR (CDCl3)
(ppm): 111.3 (CH), 111.4 (CH), 112.3 (C), 117.1 (C),
1 in pure form (120 mg, 55% yield).
λ
δ
δ
118.3 (CH), 120.4 (CH), 123.0 (C), 123.5 (C), 124.4 (CH), 126.0 (CH), 126.1 (CH), 126.7 (CH), 127.1 (C),
127.3 (CH), 128.4 (CH × 2), 129.3 (CH × 2), 129.4 (CH), 129.8 (CH), 135.3 (C), 140.4 (C), 162.6 (C).
3.3. Film Formation with 1 and Dyeing Experiments
Cyanine
1
dissolved in methanol at 5 mM was deposited on glass slides using a spin-coater.
in methanol at 5 mM for
For dyeing experiments, the proper fabric was dipped into a solution of
1
1 min and then allowed to dry in air. In all cases the dyed materials were exposed to acid vapors at
room temperature (12 M HCl, trifluoroacetic acid, glacial acetic acid).
4. Conclusions
In recent years cyanine dyes have largely been exploited as biological reporters and in other
technological applications by virtue of their peculiar chromophoric and fluorescence properties.
2,20
Inspired by
∆
-bibenzothiazine photochromic and acidichromic chromophore of red human hair
pigments trichochromes, a new class of cyanine dyes termed trichocyanines was designed in which a
highly tunable cyanine-type chromophore was implemented using the benzothiazine nitrogen as the
acceptor moiety at high basicity, allowing for a marked bathochromic shift even at slightly acidic pHs.
Herein we have synthesized a new 1,4-benzothiazine based cyanine chromophore by condensation
of indole-3-carboxaldehyde with 3-phenyl-1,4-benzothiazine at the nucleophilic 2 position. The
cyanine thus obtained, characterized as 2Z-((1H-indol-3-yl)methylene)-3-phenyl-2H-1,4-benzothiazine)
by complete spectral analysis, exhibited a reversible acidichromic behavior with a marked bathochromic
shift upon acidification from yellow (444 nm at neutral pH) to violet (544 nm at pH 2) with molar
extinction coefficient in the order of 12,000 M−1 cm−1 (acid form). The ease and scalability of the
synthetic procedures and the preliminary assessment of the dyeing ability of the cyanine would
encourage exploitation of the new acidichromic system as a core unit for pH sensing devices and related
applications. The results reported herein are also of interest for the possibility of developing adhesive
formulations of the reported cyanine involving, e.g., mussel-inspired polydopamine films and related
coatings, in order to assess their possible exploitation for pH sensing on various surfaces underwater.
Supplementary Materials: The following are available online, Figure S1: Segmental spectrum of MALDI-ToF
(m/z: 250–800 Da) characterization of compound
1
. Figure S2: 1H NMR spectrum of
1
in CDCl3. Figure S3:
(CDCl3). Figure S5:
(CDCl3).
13C NMR spectrum of compound
1
in CDCl3. Figure S4: 1H,1H COSY spectrum of compound
1
1H,13C HSQC spectrum of compound
1
(CDCl3). Figure S6: H,13C HMBC spectrum of compound
1
1
Figure S7: NOESY spectrum of compound
1
(CDCl3). Figure S8: 1H (black) and 13C (red) NMR resonances of
(100 M) in different organic solvents. Figure S10:
. Figure S11: UV-vis spectra and digital pictures
cyanine
1
. Figure S9: UV-vis absorption spectra of cyanine
1
µ
Emission spectra of the neutral and protonated forms of cyanine
of glass slides, coated with 1, after exposure to acidic vapors.
1
Author Contributions: Conceptualization, A.N. and L.P.; methodology, M.L.A.; investigation, M.L.A.;
data curation, M.L.A.; writing—original draft preparation, A.N.; writing—review and editing, M.d. All authors
have read and agreed to the published version of the manuscript.
Funding: This research received no external funding.

Molecules 2020, 25, 3817
8 of 9
Acknowledgments: M.d. thanks the 2017YJMPZN PRIN project “MUSSEL” for financial support.
Conflicts of Interest: The authors declare no conflict of interest.
References
1.
2.
3.
Pepe, G.; Cole, J.M.; Waddell, P.G.; McKechnie, S. Molecular engineering of cyanine dyes to design a
panchromatic response in co-sensitized dye-sensitized solar cells. Mol. Syst. Des. Eng. 2016, 1, 86–98.
[CrossRef]
Liu, H.; Liao, X.; Li, X.; Wu, D.; Guo, Q.; Wu, J.; Qian, S.; Lan, J.; Wang, R.; You, J. Molecular design of
new organic sensitizers based on thieno[1,4]benzothiazine for dye-sensitized solar cells. RSC Adv. 2015, 5,
56865–56871. [CrossRef]
Lerch, M.M.; Medved, M.; Lapini, A.; Laurent, A.D.; Iagatti, A.; Bussotti, L.; Szyman´ski, W.; Jan Buma, W.;
Foggi, P.; Di Donato, M.; et al. Tailoring photoisomerization pathways in donor-acceptor stenhouse adducts:
The role of the hydroxy group. J. Phys. Chem. A 2018, 122, 955–964. [CrossRef] [PubMed]
Lin, S.L.; Kuo, P.Y.; Yang, D.Y. Design and synthesis of a coumarin-based acidichromic colorant. Molecules
2007, 12, 1316–1324. [CrossRef] [PubMed]
4.
5.
Liu, X.Y.; Ge, H.T.; Zhao, Y.; Zhao, D.; Fan, J.; Liao, L.S. Novel carbazole derivatives designed by an
ortho-linkage strategy for efficient phosphorescent organic light-emitting diodes. J. Mater. Chem. C 2018, 6,
4300–4307. [CrossRef]
6.
7.
8.
9.
Gsänger, M.; Bialas, D.; Huang, L.; Stolte, M.; Würthner, F. Organic semiconductors based on dyes and color
pigments. Adv. Mater. 2016, 28, 3615–3645. [CrossRef]
Wang, X.; Liu, H.; Wu, J.; Xie, Z.; Zhang, Q. Synthesis and photovoltaic properties of new conjugated
polymers based on red hair pigment skeleton. Dyes Pigm. 2019, 160, 823–829. [CrossRef]
Luo, S.M.; Stellmach, K.A.; Ikuzwe, S.M.; Cao, D.D. Redox-active heteroacene chromophores derived from a
nonlinear aromatic diimide. J. Org. Chem. 2019, 84, 10362–10370. [CrossRef]
Cai, K.; Xie, J.; Yang, X.; Zhao, D. Heterohexacene diimides: Anti- and syn-isomers and quinonoid forms.
Org. Lett. 2014, 16, 1852–1855. [CrossRef]
10. Yu, Z.; Wu, Y.; Xiao, L.; Chen, J.; Liao, Q.; Yao, J.; Fu, H. Organic phosphorescence nanowire lasers. J. Am.
Chem. Soc. 2017, 139, 6376–6381. [CrossRef]
11. Bonaccorsi, P.; Papalia, T.; Barattucci, A.; Salerno, T.M.G.; Rosano, C.; Castagnola, P.; Viale, M.; Monticone, M.;
Campagna, S.; Puntoriero, F. Localization-controlled two-color luminescence imaging via environmental
modulation of energy transfer in a multichromophoric species. Dalton Trans. 2018, 47, 4733–4738. [CrossRef]
[PubMed]
12. Guan, Y.; Zhang, Y.; Zou, J.; Huang, L.P.; Chordia, M.D.; Yue, W.; Wu, J.J.; Pan, D.F. Synthesis and biological
evaluation of genistein-IR783 conjugate: Cancer cell targeted delivery in MCF-7 for superior anti-cancer
therapy. Molecules 2019, 24, 4120. [CrossRef] [PubMed]
13. Yang, X.G.; Mou, Y.H.; Wang, Y.J.; Wang, J.; Li, Y.Y.; Kong, R.H.; Ding, M.; Wang, D.; Guo, C. Design, synthesis,
and evaluation of monoamine oxidase a inhibitors–indocyanine dyes conjugates as targeted antitumor
agents. Molecules 2019, 24, 1400. [CrossRef] [PubMed]
14. Zhang, Y.; Bi, J.; Xia, S.; Mazi, W.; Wan, S.; Mikesell, L.; Rudy, L.L.; Liu, H. A near-infrared fluorescent probe
based on a FRET rhodamine donor linked to a cyanine acceptor for sensitive detection of intracellular pH
alternations. Molecules 2018, 23, 2679. [CrossRef] [PubMed]
15. James, N.S.; Cheruku, R.R.; Missert, J.R.; Sunar, U.; Pandey, R.K. Measurement of cyanine dye photobleaching
in photosensitizer cyanine dye conjugates could help in optimizing light dosimetry for improved
photodynamic therapy of cancer. Molecules 2018, 23, 1842. [CrossRef]
16. Ahoulou, E.O.; Drinkard, K.K.; Basnet, K.; St. Lorenz, A.; Taratula, O.; Henary, M.; Grant, K.B.
DNA photocleavage in the near-infrared wavelength range by 2-quinolinium dicarbocyanine dyes. Molecules
2020, 25, 2926. [CrossRef]
17. Lin, C.M.; Usama, S.M.; Burgess, K. Site-specific labeling of proteins with near-IR heptamethine cyanine
dyes. Molecules 2018, 23, 2900. [CrossRef]
18. Zhang, Y.; Yuan, L.; Jia, S.; Liu, X.; Zhao, J.; Yin, G. Dicyanovinyl substituted push–pull chromophores:
Effects of central C=C/phenyl spacers, crystal structures and application in hydrazine sensing. Phys. Chem.
Chem. Phys. 2019, 21, 3218–3226. [CrossRef]

Molecules 2020, 25, 3817
9 of 9
19. Šarlah, D.; Juranovicˇ, A.; Kožar, B.; Rejc, L.; Golobicˇ, A.; Petricˇ, A. Synthesis of naphthalene-based push-pull
molecules with a heteroaromatic electron acceptor. Molecules 2016, 21, 267. [CrossRef]
20. Jin, R.; Zhang, X.; Xiao, W. Theoretical studies of photophysical properties of D−π− −π−D-type
A
diketopyrrolopyrrole-based molecules for organic light-emitting diodes and organic solar cells. Molecules
2020, 25, 667. [CrossRef]
21. Gayton, J.N.; Autry, S.; Fortenberry, R.C.; Hammer, N.I.; Delcamp, J.H. Counter anion effect on the
photophysical properties of emissive indolizine-cyanine dyes in solution and solid state. Molecules 2018
23, 3051. [CrossRef] [PubMed]
,
22. El-Shishtawy, R.M.; Oliveira, A.S.; Almeida, P.; Ferreira, D.P.; Conceição, D.S.; Ferreira, L.F.V. Photophysical
studies of a new water soluble indocarbocyanine dye adsorbed onto microcrystalline cellulose and
beta-cyclodextrin. Molecules 2013, 18, 5648–5668. [CrossRef] [PubMed]
23. Mukhopadhyay, A.; Mandal, K.J.; Narasimha Moorthy, J. Anionic merocyanine dyes based on
thiazol-2-hydrazides: Reverse solvatochromism, preferential solvation and multiparametric approaches to
spectral shifts. Phys. Chem. Chem. Phys. 2018, 20, 4149–4159. [CrossRef] [PubMed]
24. Sun, W.; Guo, S.; Hu, C.; Fan, J.; Peng, X. Recent development of chemosensors based on cyanine platforms.
Chem. Rev. 2016, 116, 7768–7817. [CrossRef]
25. Schwechheimer, C.; Rönicke, F.; Schepersb, U.; Wagenknecht, H.A. A new structure-activity relationship for
cyanine dyes to improve photostability and fluorescence properties for live cell imaging. Chem. Sci. 2018, 9,
6557–6563. [CrossRef]
26. Soriano, E.; Holder, C.; Levitz, A.; Henary, M. Benz[c,d]indolium-containing monomethine cyanine dyes:
Synthesis and photophysical properties. Molecules 2016, 21, 23. [CrossRef]
27. Leone, L.; Pezzella, S.; Crescenzi, O.; Napolitano, A.; Barone, V.; d’Ischia, M. Trichocyanines: A red-hair-inspired
modular platform for dye-Based one-time-pad molecular cryptography. ChemistryOpen 2015, 4, 370–377.
[CrossRef]
28. Napolitano, A.; Panzella, L.; Leone, L.; d’Ischia, M. Red hair benzothiazines and benzothiazoles:
Mutation-inspired chemistry in the quest for functionality. Acc. Chem. Res. 2013, 46, 519–528. [CrossRef]
29. Simon, J.D.; Peles, D.N. The red and the black. Acc. Chem. Res. 2010, 43, 1452–1460. [CrossRef]
30. Napolitano, A.; De Lucia, M.; Panzella, L.; d’Ischia, M. The “Benzothiazine” chromophore of pheomelanins:
A reassessment. Photochem. Photobiol. 2008, 84, 593–599. [CrossRef]
31. Napolitano, A.; Di Donato, P.; Prota, G. Zinc-catalyzed oxidation of 5-S-cysteinyldopa to 2,2’-bi(2H-1,4-
benzothiazine): Tracking the biosynthetic pathway of trichochromes, the characteristic pigments of red hair.
J. Org. Chem. 2001, 66, 6958–6966. [CrossRef] [PubMed]
32. Leone, L.; Crescenzi, O.; Napolitano, A.; Barone, V.; d’Ischia, M. The
2,20
∆
-bi(2H-1,4-benzothiazine) structural
motif of red hair pigments revisited: Photochromism and acidichromism in a unique four-state system.
Eur. J. Org. Chem. 2012, 27, 5136–5140. [CrossRef]
33. Ye, T.; Lamb, L.E.; Wakamatsu, K.; Ito, S.; Simon, J.D. Ultrafast absorption and photothermal studies of
decarboxytrichochrome C in solution. Photochem. Photobiol. Sci. 2003, 2, 821–823. [CrossRef] [PubMed]
34. Leone, L.; Crescenzi, O.; Amorati, R.; Valgimigli, L.; Napolitano, A.; Barone, V.; d’Ischia, M. Red-hair-inspired
chromogenic system based on a proton-switched dehydrogenative free-radical coupling. Org. Lett. 2013, 15,
4944–4947. [CrossRef]
35. Santacroce, C.; Sica, D.; Nicolaus, R.A. Sintesi di 1,4-benzotiazine. Gazz. Chim. Ital. 1968, 98, 85–96.
36. MacKenzie, N.E.; Thomson, R.H.; Greenhalgh, C.W. New dyes based on 3-aryl-benzo- and -naphtho-
l,4-thiazines. J. Chem. Soc. Perkin Trans. 1 1980, 1, 2923–2932. [CrossRef]
37. Lin, Y.M.; Lu, G.P.; Wang, R.K.; Yi, W.B. Radical route to 1,4-benzothiazine derivatives from
2-aminobenzenethiols and ketones under transition-metal-free. Org. Lett. 2016, 18, 6424–6427. [CrossRef]
Sample Availability: Samples of the compounds 3-phenyl-(2H)-1,4-benzothiazine and 2Z-((1H-indol-3-
yl)methylene)-3-phenyl-2H-1,4-benzothiazine) are available from the authors.
©
2020 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
(CC BY) license (http://creativecommons.org/licenses/by/4.0/).
