spectra and XPS studies of the LB films of HIHQ deposited
in pure water and in a copper containing subphase were
investigated.
revealed that the favoured crystal face was (110). Just as the
Cu ions induce HIHQ formation in the deposition of LB films
in the presence of Cu2+, so the HIHQ monolayer induces
formation of CuSO ·5H O crystals at the monolayer in the
Fig. 4 shows UV–VIS spectra of HIHQ in ethanol, a 13-
layer LB film on a quartz substrate deposited from pure water
and from a subphase containing Cu2+ ions, respectively.
4
2
crystallization process.
As already known, the influence of an inorganic–organic
interface is important in the regulation of inorganic crystal
growth and in the resulting specificity of crystal morphology
and particle aggregation.23–25 It is postulated that the localized
chemical control, spatial localization and constraints, and
molecular complementarity can influence the matching
between the potential fields surrounding the inorganic and
organic surfaces.
Compared with the absorption of HIHQ in ethanol, the 1L
band of an HIHQ LB film deposited from pure water is
bathochromically shifted from 400 to 410 nm, and that of the
a
1
B band in LB film is shifted from 240 to 245 nm. These red
b
shifts might be attributed to a strong interaction between the
molecules of HIHQ in the LB film. Similarly, different absorp-
tion spectra were obtained by constructing LB films on different
subphases. Red shifts of 1L (from 410 to 420 nm) and 1B
HIHQ is an amphiphilic ligand. According to the principle
of coordination and HSAB (theory of hard and soft acids and
bases), it coordinates preferably to soft acids such as Cu2+.
HIHQ is also a typical surface active agent and can increase
the concentration of the solute in domains located under the
monolayer. When the monolayer HIHQ is formed, the local
concentration of CuSO ·5H O, Cu2+ ions and the value of
a
b
(
from 245 to 257 nm) bands were observed in the LB film
deposited from a subphase containing copper ions. In particu-
lar, a band at 203 nm, which is assigned to the np* transition
of the long alkyl chain, was also red shifted and observable in
the UV. All these indicated that interfacial coordination occurs
immediately after spreading the HIHQ molecules on a sub-
phase containing Cu2+ ions.
4
2
supersaturation ratio (S) at the interface are increased. On the
other hand, the surface energy is decreased upon formation of
the monolayer. The monolayer can be also considered as a
different phase formed on the surface of the solution and can
act as a site for heterogeneous nucleation; the Gibbs energy
(G ) of heterogeneous nucleation is much lower than G for
XPS is a technique which provides elemental and chemical
information about a solid surface, and generally, the shift of
binding energy usually provides a measurement of the electron
density about the atom with the shift increasing with decrease
in electron density.21,22 In our experiment, two nitrogen atom
signals (399.1, 400.1 eV) were observed for the HIHQ film
deposited from pure water. A similar result (399.5, 400.1) was
obtained for the HIHQ film deposited from a subphase con-
taining copper ions. The 400.1 eV signal can be assigned to N
I
I
homogeneous nucleation. Thus, nucleation of CuSO ·5H O
occurs initially at the interface between the monolayer and
the solution.
4
2
In the period of crystal growth, since the crystals are attached
to the monolayer, they are restricted in growing towards the
monolayer. Some directions of crystal expansion are inhibited
and a remarkable growth distortion along (110) at the mono-
layer is observed. Since the monolayer cannot bear too heavy
masses when the crystal expands to a certain size its mass will
overcome the support force of the monolayer and the crystal
will separate from the monolayer and drop down to the bottom
of the solution.
1
s of nitrogen atoms near the alkyl chain. The shift of the
binding energy of the nitrogen atom of the quinoline ring
from 399.1 to 399.5 eV) and that of oxygen (from 532.1 to
32.4 eV) show that the coordination bonds were formed in
(
5
conjunction with electron transfer from N and O atoms of the
monolayer to copper ions. The surface composition of the LB
films constructed from the Cu2+ aqueous subphase was also
determined by XPS. It is found that the Cu5N5C atomic ratio
was ca. about 154552; two HIHQ molecules appear to interact
with one copper ion as shown in Fig. 3(d).
The most important aspect of the crystal growth under the
monolayer is the oriented crystallization and the CuSO ·5H O
4
2
crystal has a given face (110) attached to the monolayer
corresponding to the interaction between the crystal and the
monolayer. The key to specificity in nucleation is the presence
of some forms of molecular complementarity between func-
tional groups on the HIHQ monolayer and copper ions, which
determines the specificity in nucleation and orientation of the
crystals. In fact, the monolayer is an organized aggregation
and has a definite lattice structure. If the lattice of the mono-
layer is similar to a certain crystal face of CuSO ·5H O, then
Oriented crystallization of CuSO ·5H O under HIHQ
monolayers
4
2
In the absence of the monolayer, the crystallization of
CuSO ·5H O in the supercooled solution is uncontrolled.
4
2
Nucleation occurred both at the air–water interface and at the
bottom of the trough. These crystals were randomly aggregated
and had a heterogeneous size distribution. However, nucleation
of CuSO ·5H O was induced by the compressed HIHQ mono-
4
2
4
2
this crystal face will readily form under the monolayer.
We studied the lattice structure of the HIHQ monolayer on
the subphase of Cu2+ by computer simulation26,27 and results
are shown in Fig. 6; the structural parameters of the monolayer
are: a=7.0, b=6.0, h=72.5°, with the area per molecule of
layer and was found to be oriented. X-Ray diffraction patterns
˚
Cu2+(HIHQ) on the monolayer being 40.0 A2. The corre-
2
sponding lattice parameters of the (110) crystal face of

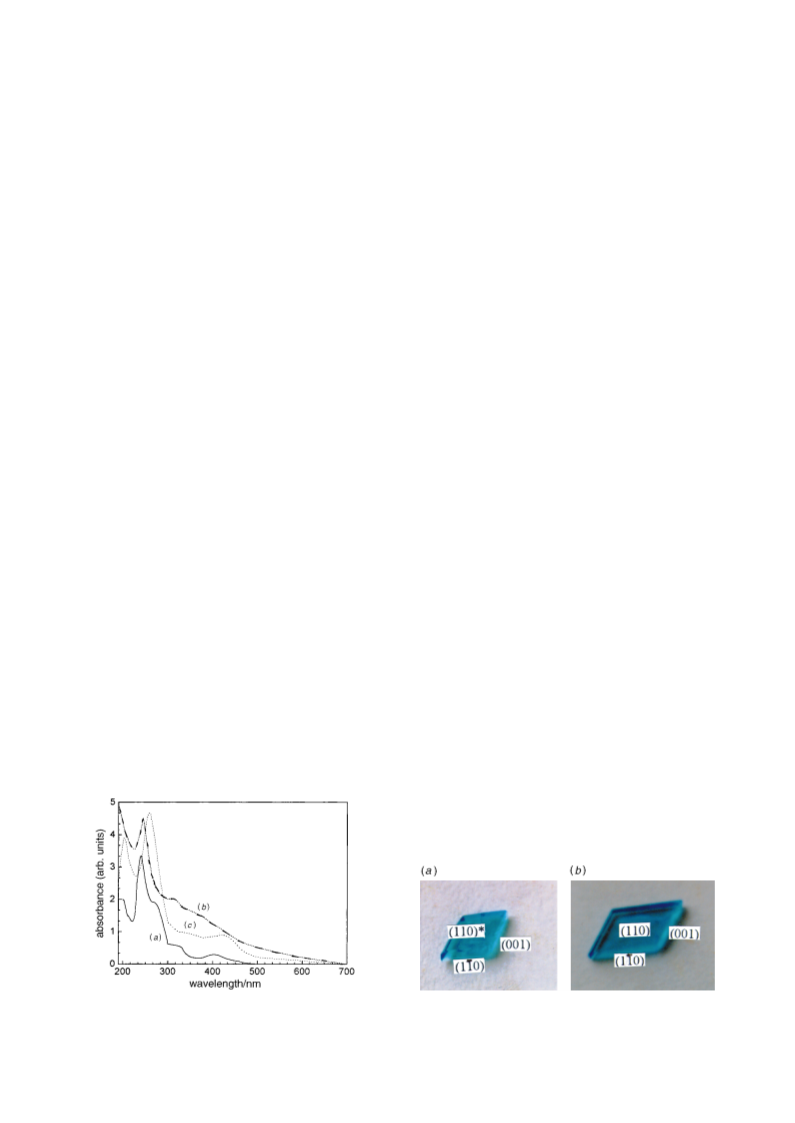

Fig. 4 UV–VIS absorption spectra of HIHQ in ethanol solution (a),
HIHQ LB film deposited from pure water (b) and from a subphase
containing Cu2+ ions (c)
Fig. 5 Topographies of the CuSO ·5H O crystals. A CuSO ·5H O
crystal removed from the monolayer (a) is different from one grown
without the monolayer (b).
4
2
4
2
J. Mater. Chem., 1998, 8(1), 81–84
83
