molecules
Article
Barbituric Acid Based Fluorogens: Synthesis,
Aggregation-Induced Emission, and Protein
Fibril Detection
Siyang Ding †, Bicheng Yao †, Louis Schobben and Yuning Hong *
Department of Chemistry and Physics, La Trobe Institute for Molecular Science, La Trobe University, Melbourne,
VIC 3086, Australia; Siyang.Ding@latrobe.edu.au (S.D.); b.yao@latrobe.edu.au (B.Y.);
19341287@students.latrobe.edu.au (L.S.)
* Correspondence: y.hong@latrobe.edu.au; Tel.: +61-3-9479-2995
† These authors contributed equally to this work.
ꢀꢁꢂꢀꢃꢄꢅꢆꢇ
Received: 9 December 2019; Accepted: 19 December 2019; Published: 20 December 2019
ꢀꢁꢂꢃꢄꢅꢆ
Abstract: Fluorescent dyes, especially those emitting in the long wavelength region, are excellent
candidates in the area of bioassay and bioimaging. In this work, we report a series of simple
organic fluorescent dyes consisting of electron-donating aniline groups and electron-withdrawing
barbituric acid groups. These dyes are very easy to construct while emitting strongly in the red
region in their solid state. The photophysical properties of these dyes, such as solvatochromism and
aggregation-induced emission, are systematically characterized. Afterward, the structure–property
relationships of these barbituric acid based fluorogens are discussed. Finally, we demonstrate their
potential applications for protein amyloid fibril detection.
Keywords: barbituric acid; aggregation-induced emission; solvatochromism; protein fibril detection
1. Introduction
In the past decades, fluorescence technique had been widely applied in many areas,
e.g., bioimaging [1,2], clinical diagnosis [3], and optoelectronics [4]. As the fundamental element
of fluorescence technique, fluorescent materials have drawn considerable research attention.
Organic fluorescent dye, with the advantages of high quantum efficiency, tunable emission color,
easy-approachable post-functionalization, and low toxicity, plays an important role among all kinds of
fluorescent materials. However, conventional organic fluorescent dyes usually emit bright fluorescence
in the dilute solutions but suffer from the notorious effect of aggregation-caused quenching (ACQ)
in the condensed phase [5]. When dispersed in aqueous media or fabricated into solid film,
the emission of conventional organic fluorescent dyes is usually weakened or even quenched,
which greatly reduces their performance as bio-probes or in optoelectronic devices manufacture.
In 2001, an abnormal photophysical phenomenon was observed and reported by the Tang’s group:
hexaphenylsilole is non-emissive when molecularly dissolved but can be induced to emit intensely
upon aggregation [6]. Since the emission was induced by aggregation, this novel phenomenon
was defined as “aggregation-induced emission (AIE)”. This finding provides an efficient method to
overcome the ACQ effect and greatly broaden the application of organic fluorescent dyes in the real
world [7–11].
Up to now, numerous fluorophore cores with AIE properties have been reported, e.g.,
tetraphenylethene (TPE) [12], distyrylanthracene (DSA) [13], and tetraphenylpyrazine (TPP) [14].
However, most of the AIE-active molecules derived from the abovementioned cores emit blue or green
fluorescence, while very few of them show long-wavelength emission. In order to obtain acceptable
Molecules 2020, 25, 32; doi:10.3390/molecules25010032
www.mdpi.com/journal/molecules

Molecules 2020, 25, 32
2 of 13
penetration depth and avoid the auto-fluorescence of a biological matter, long-wavelength fluorescent
dyes are usually in high demand [15]. The most commonly used strategy to construct organic fluorescent
dyes with both AIE features and long-wavelength emission is to incorporate AIE fluorophore core into
flat and extended conjugated frameworks or strong donor–acceptor skeletons [16–20]. Nevertheless,
this strategy normally requires tedious multistep synthesis and usually gives AIE molecules with bulky
structures. Therefore, it is still of great value to discover AIE fluorescent dyes with long-wavelength
emission and simple structure.
Barbituric acid (BA) is an organic compound based on a pyrimidine heterocyclic skeleton that was
initially used as a central nervous system depressant. Using the Knoevenagel condensation reaction, BA
can form a large variety of barbiturate derivatives which can be used as organic fluorescent dyes. In 2013,
Shukla et al. reported a series of novel BA-based compounds [21]. These compounds displayed good
photoluminescent properties, high molar extinction coefficient, and large Stokes shift. In 2015, Cui et al.
reported a series of fluorescent probes with BA acceptors for in vivo detection of amyloid plaques [22].
Due to the planar structure and strong electron-withdrawing ability of BA moieties, all these probes
displayed long-emission wavelengths and large Stokes shifts, as well as high affinities for amyloid
β-peptide aggregates. Additionally, two structurally simple and red-light-emitting fluorescent dyes
bearing BA acceptor were reported by Li et al. in 2016 [23]. Both of the molecules show typical
characteristics of AIE and mechanochromism. Inspired by these works, we designed and synthesized a
series of BA-based fluorogens and investigated their structure–property relationships, which are of vital
importance for guiding the design of red-emission AIE fluorescent dyes. Subsequently, photophysical
properties, e.g., AIE and solvatochromism, were systematically studied, followed by demonstration of
their potential application in differentiation of different types of protein aggregates.
2. Results and Discussion
2.1. Dye Design and Synthesis
The synthetic routes and chemical structures of target BA-based fluorescent dyes are shown in
Scheme 1. Ten dyes were one-step synthesized by the Knoevenagel condensation of 4-benzaldehyde
derivatives and barbituric acid or 1,3-dimethyl barbituric acid. Detailed information of the synthesis
procedure can be found in the Materials and Methods section. Among these dyes, while the synthesis of
MeB, MeB-M, EtB, EtB-M, EtHB, and MoB has already been reported by previously works [21–25], PyB,
PyB-M, EtHB-M, and MoB-M are novel compounds. For the purpose of studying structure–property
relationships, substituent groups with different electron-donating ability, e.g., N,N-dimethylaniline,
N,N-diethylaniline, N-phenylpyrrolidine, and N-phenylmorpholine, were linked with BA groups via
a C=C double bond. Moreover, 1,3-dimethyl BA group was introduced as an electron-withdrawing
moiety to study the effect of intermolecular interactions on their photophysical properties. Furthermore,

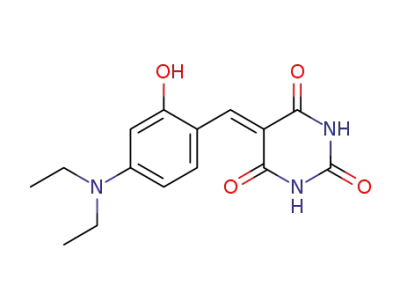

dye EtHB and EtHB-M with hydroxy group were designed to improve their water solubility. Finally,
all products were fully characterized by 1HNMR, 13C NMR, and high-resolution mass spectra (HRMS),
which gave satisfactory results corresponding to their chemical structures. The spectral characterization
of the previously reported compounds is also consistent with the values reported in the literature [21–25].

Molecules 2020, 25, 32
3 of 13
Scheme 1. Synthetic routes to BA-based fluorogens.
2.2. Structure–Property Relationships
2.2.1. Absorption and Emission Spectra
With the desired fluorescent dyes in hand, UV absorption and fluorescence emission spectra were
first measured in DMSO. As shown in Figure 1, absorption and emission profiles of all the dyes were
analyzed by normalized absorption spectra. It is obvious that all the absorption spectra have similar
profiles and the maximum absorbance wavelengths all locate in the range of 450–480 nm. Specific
values of the maximum absorbance wavelength were summarized in Table 1. As we can see, dyes
PyB, EtB, and EtHB reached maximal absorbance at very similar wavelengths (469, 469, and 471 nm,
respectively), while dye MeB exhibited a slight blue-shift at about 464 nm. Due to the twisted structure
and weak electron-donating ability of morpholine, MoB showed a distinct blue-shift at about 455 nm.
Furthermore, all the dyes with a methylated BA group exhibited red-shifts of 3–4 nm when compared
with the maximum absorbance of their non-substituted analogues. Subsequently, the emission spectra
of the BA-based luminogens were measured as excited at their recorded absorption maxima. As shown
in Figure 1B and Table 1, dyes MeB, MoB, PyB, and EtB exhibited similar emission maxima at 526, 527,
527, and 532 nm, respectively, in dilute DMSO solution. However, dye EtHB showed a slight blue-shift
with the maximum at 521 nm. In addition, emission spectra of the methylated dyes exhibited ~10 nm
red-shifts when compared with the ones of their analogues, owing to the extension of conjugation
through the methyl groups. In order to get more understanding of the photophysical properties of
solid samples, fluorescence emission and quantum yields of solid samples were measured. According
to the data in Table 1, all the BA-based dyes emitted orange or red (589~656 nm) light with relatively
high quantum yields (up to 32.8%); as an exception, EtHB and EtHB-M showed weak emission due to
the introduction of hydroxy group.
Figure 1. Normalized (
Concentration = 10 M. Excitation wavelength: 464 (MeB), 468 (MeB-M), 455 (MoB), 459 (MoB-M), 469
(PyB), 473 (PyB-M), 470 (EtHB), 474 (EtHB-M), 469 (EtB), and 473 nm (EtB-M).
A) absorption and (B) emission spectra of the BA-based dyes in DMSO.
µ

Molecules 2020, 25, 32
4 of 13
Table 1. Photophysical properties of the BA-based dyes.
Solution Absorbance
Molar Absorptivity at
Solution Emission
Solid Emission
(nm)
Quantum Yield of
Solid Film (%)
Compound
1
[1]
λ
(nm) [1]
λ
(M− cm−1
)
λ
(nm) [1]
λ
max
max
max
max
6.58 × 104
6.06 × 104
4.90 × 104
5.22 × 104
7.02 × 104
6.54 × 104
6.84 × 104
1.09 × 105
5.76 × 104
6.63 × 104
MeB
MeB-M
MoB
MoB-M
PyB
PyB-M
EtHB
EtHB-M
EtB
464
468
455
459
469
473
471
474
469
473
526
538
527
537
527
536
521
530
532
541
629
10.6
29.2
15.5
595
589
621
640
616
644
603
638
656
[2]
\
9.0
14.1
1.5
2.5
19.1
32.8
EtB-M
1
2
Measured in DMSO solutions. Data cannot be obtained due to poor solubility and film-forming property.
2.2.2. Effect of Solvent Polarity
The sensitivity of these BA-based luminogens to solvent polarity was further investigated. UV-vis
absorption spectra of all the dyes in different solvents were presented in Figures S1 and S2. Using the
wavelength of maximal absorption as the excitation wavelength, emission spectra of all the dyes in
different solvents can be obtained as well (Figure 2 and Figure S3).
The absorption maxima of dyes MeB and MeB-M, obtained from the normalized absorption spectra
in different solvents, ranged from 448 to 488 nm and 450 to 488 nm, respectively (Figure S2A,B). It was
noteworthy that the absorption spectra of MeB-M in water and 1,4-dioxane were double-peaked and
remarkedly weaker than those in other solvents. According to our previous work, this phenomenon
can be ascribed to the poor solubility of MeB-M in the corresponding solvents [26]. Those two
peaks at short wavelength region indicated the formation of large aggregates. The corresponding
fluorescence emission spectra of dyes MeB and MeB-M in different solvents were shown in Figure
S3A,B. The strongest emission was observed in DMSO, while the lowest emission occurred in water.
As shown in Figure 2A,B, the normalized emission spectra indicated that emission maxima of dyes
MeB and MeB-M in different solvents ranged from 500 to 542 nm and 496 to 546 nm, respectively.
The absorption maxima of dyes MoB and MoB-M in different solvents ranged from 438 to 478 nm
and 440 to 475 nm, respectively (Figure S2C,D). Similar phenomenon can be observed in water due to
the solubility factor. In terms of fluorescence emission spectra, the results of dyes MoB and MoB-M
in different solvents were shown in Figure S3C,D, respectively. For both dye MoB and dye MoB-M,
strongest emission can be observed in DMSO, while the lowest emission occurred in water, which is
similar to the spectra of dyes MeB and MeB-M. The emission maxima of MoB and MoB-M in different
solvents were recorded to range from 502 to 535 nm and 507 to 568 nm (Figure 2C,D). Additionally,
an obvious shoulder peak appeared in the spectrum of dye MoB-M in water. Specifically, the maximum
of this shoulder peak was located at 614 nm, which is very close to the emission wavelength of dye
MoB-M in solid state (Figure S5). This result can further prove the formation of aggregates in water.
As aforementioned, the aggregation process occurred in water solutions of dyes MeB-M and MoB
as well. Therefore, we analyzed the normalized fluorescence emission spectra of dyes MeB-M and
MoB (Figure 2B,C), finding two neglected shoulder peaks at longer wavelengths which are almost the
same as their solid emission wavelength, respectively. Such a finding is highly consistent with our
previous analysis.
The absorption maxima of dyes PyB and PyB-M in different solvents ranged from 455 to 487 nm
and 456 to 494 nm, respectively (Figure S2E,F). Due to the poor solubility in water, dye PyB exhibited a
weak and broad absorption spectrum, which is shown in Figure S1E. The fluorescence emission spectra
of dyes PyB and PyB-M are summarized in Figure 2E,F. The emission maxima of PyB and PyB-M in
different solvents were recorded to range from 503 to 654 nm and 501 to 559 nm. It is noteworthy that
water caused an arresting emission red-shift of PyB to 654 nm, which can be ascribed to the fast and
intense aggregation process.

Molecules 2020, 25, 32
5 of 13
For dyes EtB, EtB-M, EtHB, and EtHB-M, their absorption maxima in different solvents were in
the ranges of 493~534 nm, 510~543 nm, 496~529 nm, and 502~541 nm, respectively (Figure S2G,J).
As other dyes we discussed before, water can induce the rise of a side peak at shorter wavelength
region, due to the solubility factor. After the introduction of hydroxy group, the solubility of dyes
EtHB, and EtHB-M got worse in all the solvents we used. The fluorescence emission spectra of dyes
EtB, EtB-M, EtHB, and EtHB-M are shown in Figure 2G–J. To be specific, their emission maxima in
different solvents were recorded to range from 493 to 534 nm, 510 to 543 nm, 496 to 529 nm, and 502 to
541 nm, respectively. As a result of relatively good solubility, no obvious red-shift was observed in
water and all other solvents applied.
Subsequently, we quantitatively analyzed the influence of solvent polarity on the Stokes shift
(
∆λ) of all the BA-based dyes (Figure S4). Solvent polarity parameter
∆f was calculated by using the
Lippert–Mataga equation [27]. According to the plots of f vs. ∆λ, the Stokes shifts of EtHB and EtHB-M
∆
were mostly proportional to solvent polarities, suggesting they possess positive solvatochromism,
like most of the fluorophores with push–pull structural feature. For all the other dyes, we observed
that the Stokes shifts fluctuated in different solvents, possibly due to the aggregation issue that shed
the dye molecules away from solvents that affect intramolecular charge transfer in the excited state.
Figure 2. Normalized fluorescence emission spectra of (
) PyB, ( ) PyB-M, ( ) EtHB, ( ) EtHB-M, ( ) EtB, and ( ) EtB-M in different solvents. Concentration =
10 µM. λex = 438~494 nm.
A) MeB, (B) MeB-M, (C) MoB, (D) MoB-M,
(E
F
G
H
I
J
2.2.3. Aggregation-Induced Emission
After synthesis of these BA-based compounds, we found that most of them emitted strong
orange-to-red fluorescence in the solid state (Figure 3). As a contrast, they were only weakly
emissive when molecularly dissolved in DMSO, a relatively good solvent for the BA-based compounds.

Molecules 2020, 25, 32
6 of 13
The absolute quantum yields of all dyes in the solid state are shown in Table 1. In general, the methylated
BA series exhibited higher quantum efficiency than the non-substituted counterparts, for example,
10.6% for MeB vs. 29.2% for MeB-M. The EtHB series has a lower solid-state quantum yield among all
the compounds, consistent with the other results in solution. Therefore, these BA-based luminogens
possess the unique AIE property.
The AIE properties of all the BA-based dyes were investigated in a series of DMSO/water or
methanol/water mixtures with different water fractions. Taking dye MeB as an example, it exhibited
weak emission peaked at 530 nm when molecularly dissolved in DMSO (Figure 4A). With the addition
of water, which acts as a poor solvent herein, the peak at 530 nm decreased gradually and shifted
toward longer wavelength slightly. This is reasonable as the polarity of the mixed solution increased
with the addition of water. When the water fraction reached 80%, a new peak emerged with the
maximum located at ~640 nm. Such emission is similar to that of MeB in solid state. The fluorescence
intensity reached the highest value when water fraction was 90%, showing the typical AIE phenomenon.
Moreover, as shown in Figure 4, dyes MeB-M, MoB, MoB-M, PyB, PyB-M, EtB, and EtB-M showed
similar behavior as dye MeB: they were wea or non-emissive until the water percentage increased up
to 90%; thereafter, they showed a sharp increase in intensity. As an exception, both dyes EtHB and
EtHB-M were non-emissive in the DMSO/water mixture even with 99% water fraction due to the poor
solubility in the solvent system. Therefore, we optimized the solvent system and determined to use
methanol/water pair to measure their AIE behavior. Finally, the fluorescence enhancement process can
be observed with the gradual addition of water. As shown in Figure 5, the photos of all the dyes in
solution and aggregation state were taken under UV light, which exhibited the AIE process intuitively.
In summary, all these BA-based dyes are AIE-active luminogens which can be used in solid state or
under high concentration.
Figure 3. Photos of dyes MeB, MeB-M, MoB, MoB-M, PyB, PyB-M, EtHB, EtHB-M, EtB, and EtB-M in
solid powder state under day light (upper line) and 365 nm UV light (lower line).

Molecules 2020, 25, 32
7 of 13
Figure 4. Emission intensity of (
) EtHB, ( ) EtHB-M, ( ) EtB, and (
M. fw = water fraction. λex = 464, 468, 455, 459, 469, 473, 470, 474, 469, and
A
) MeB, (B) MeB-M, (C) MoB, (D) MoB-M, (E) PyB, (F) PyB-M,
(
G
H
I
J
) EtB-M in DMSO/water mixtures with different water fractions.
Concentration = 100
µ
473 nm respectively.
Figure 5. Fluorescence photos of dyes MeB, MeB-M, MoB, MoB-M, PyB, PyB-M, EtHB, EtHB-M, EtB,
and EtB-M in solution (DMSO or methanol) and aggregation (fw = 90 or 99%) state taken under a
hand-held 365 nm UV lamp.

Molecules 2020, 25, 32
8 of 13
2.3. Application for Amyloid Protein Detection
At the molecular level, highly ordered protein aggregates, termed amyloid fibrils, have been
found to appear in a board range of neurodegenerative diseases before clinical symptoms manifest.
Thus, protein fibrils have been regarded as a potential pre-symptomatically diagnostic biomarker,
and recent efforts by many groups have demonstrated and expanded the utility of amyloid-targeting
fluorophores as clinical tools for disease diagnostics [28,29]. AIE-based fluorogens, owing to their
twisted molecular configurations and excellent photophysical properties, have been applied in
recognition and differentiation of fibril-forming processes [30]. Moreover, it has been found that
the coplanar geometry of a probe is crucial for fibril binding [22]. As such, we further employed
dyes constructed by the planar BA moieties in the biological evaluation of fibril binding (Figure 6A).
The fibril and amorphous formation of hen egg white lysozyme (HEWL) were prepared in acidic and
alkaline pH, respectively, according to the previous publications [31,32]. As the counterpart, monomer
solution of HEWL was made by directly dissolving powder in the acidic buffer. As shown in Figure 6B,
PyB-M was slightly emitted in the water containing 1% DMSO (blank) and barely fluorescent in the
HEWL amorphous and monomer solution. This phenomenon was ascribed to the poor solubility
induced aggregates in water, whereas the increased hydrophobicity of protein solutions further extinct
the emission of PyB-M. However, upon interacting with HEWL fibrils, the fluorescent intensity of
PyB-M was markedly turned on, exhibiting 30-fold and 55-fold increases compared with HEWL
amorphous and monomer solution, respectively. In contrast, as the routinely used amyloid detecting
gold standard, thioflavin T (ThT) fluorescence showed no response in distinguishing HEWL fibrils
and monomers (Figure S6). The protonated effect even triggered the ThT fluorescence in the blank
condition. The finding is consistent with our previous observation that ThT cannot exert its function in
a low-pH environment [30]. In this regard, PyB-M could be a better alternative to ThT, owing to its
stability in low pH and emission at long wavelength (>600 nm) that can overcome the interference of
autofluorescence from biological samples.
Figure 6.
fibrils. (
(
A
) Schematic diagrams showing the fluorescent turn-on effect of PyB-M toward protein
B
) Fluorescence emission spectra of PyB-M binding with fibril, amorphous, or monomer
formations of HEWL. PyB-M concentration: 50 µM. λex = 494 nm.
3. Materials and Methods
3.1. Materials and General Information
Barbituric acid, 1,3-dimethylbarbituric acid and 4-(diethylamino)benzaldehyde were purchased
from Acros Organics (Geel, Belgium).
4-(Dimethylamino)benzaldehyde and DMSO was
purchased from Sigma-Aldrich (Castle Hill, NSW, Australia). 4-(4-Morpholinyl)benzaldehyde,
4-(1-pyrrolidino)benzaldehyde and 4-(diethylamino)salicylaldehyde were purchased from Accela
Chembio (Shanghai, China). Other solvents were purchased from Chem-supply (Adelaide, SA,
Australia). All chemicals were used as received without further purification.

Molecules 2020, 25, 32
9 of 13
1H-NMR and 13C-NMR spectra were recorded by using a 400 MHz Bruker AV3HD-400
spectrometer (Billerica, MA, USA) at 298 K, with tetramethylsilane (TMS, = 0) as the internal
δ
standard. HRMS spectra were acquired by using a Thermo Scientific Q Exactive Plus Orbitrap
LC–MS/MS instrument operating in ESI (Electrospray ionization) mode. UV-visible absorption spectra
were recorded at room temperature on a Cary 300 UV-visible spectrophotometer (Agilent Technologies,
Inc., Santa Clara, CA, USA) equipped with a 1.0 cm quartz cell. Fluorescence emission spectra were
recorded on a Cary Eclipse Fluorescence Spectrophotometer (Agilent Technologies, Inc., Santa Clara,
CA, USA) and used 1.0 cm quartz cells. Data were plotted by using Origin 2019.
3.2. Synthesis and Characterization
The general synthetic method of BA-based dyes can be briefly described as follows: aldehyde
compound (1.1 mmol) was added into a 100 mL round-bottom flask and dissolved with 8 mL of
ethanol. Subsequently, equivalent molarity of (substituted) barbituric acid (1 mmol) in 2 mL of hot
water was added, and the mixture was heated up to 60 ◦C and stirred for about 6 h. After cooling, the
resulting solid was collected, washed three times with ice-cold ethanol, and dried over, to afford the
final product.
5-(4-(dimethylamino)benzylidene)pyrimidine-2,4,6(1H,3H,5H)-trione (MeB) (0.23 g, yield 89%).
1H-NMR (400 MHz, DMSO-d6):
δ
(ppm): 10.95 (s, 2H), 8.42 (d, J = 9.2 Hz, 2H), 8.15 (s, 1H),
6.80 (d, J = 9.2 Hz, 2H), 3.12 (s, 6H). 13C-NMR (101 MHz, DMSO-d6):
δ
(ppm): 165.15, 163.18, 155.93,
154.63, 150.76, 139.50, 120.45, 111.66, 110.02. HRMS (ESI-MS): m/z 260.1023, calcd. 259.0957.
5-(4-(dimethylamino)benzylidene)-1,3-dimethylpyrimidine-2,4,6(1H,3H,5H)-trione (MeB-M) (0.26 g,
1
yield 92%). H-NMR (400 MHz, DMSO-d6):
δ
(ppm): 8.41 (d, J = 9.3 Hz, 2H), 8.24 (s, 1H), 6.83 (d,
(ppm): 163.71, 161.66,
J = 9.3 Hz, 2H), 3.23 (s, 6H), 3.14 (s, 6H). 13C-NMR (101 MHz, DMSO-d6):
δ
156.79, 154.72, 151.72, 139.57, 120.50, 111.67, 109.80, 28.98, 28.35. HRMS (ESI-MS): m/z 288.1342, calcd.
287.1270.
1
5-(4-morpholinobenzylidene)pyrimidine-2,4,6(1H,3H,5H)-trione (MoB) (0.23 g, yield 75%). H-NMR
(400 MHz, DMSO-d6):
δ (ppm): 11.06 (d, J = 50.6 Hz, 2H), 8.39 (d, J = 9.1 Hz, 2H), 8.16 (s, 1H), 7.02 (d, J
= 9.2 Hz, 2H), 3.77–3.69 (m, 4H), 3.50–3.43 (m, 4H). 13C-NMR (101 MHz, DMSO-d6): δ (ppm): 164.91,
163.02, 155.66, 154.66, 150.72, 138.99, 122.12, 112.88, 111.97, 66.25, 46.66. HRMS (ESI-MS): m/z 302.1143,
calcd. 301.1063.
1,3-dimethyl-5-(4-morpholinobenzylidene)pyrimidine-2,4,6(1H,3H,5H)-trione (MoB-M) (0.26 g, yield
1
80%). H-NMR (400 MHz, DMSO-d6):
δ (ppm): 8.41 (d, J = 9.3 Hz, 2H), 8.26 (s, 1H), 7.05 (d, J = 9.3 Hz,
2H), 3.73 (m, 4H), 3.48 (m, 4H), 3.23 (s, 6H). HRMS (ESI-MS): m/z 330.1446, calcd. 329.1376.
5-(4-(pyrrolidin-1-yl)benzylidene)pyrimidine-2,4,6(1H,3H,5H)-trione (PyB) (0.27 g, yield 95%).
1H-NMR (400 MHz, DMSO-d6):
δ
(ppm): 10.94 (d, J = 49.0 Hz, 2H), 8.44 (d, J = 9.1 Hz, 2H),
8.14 (s, 1H), 6.66 (d, J = 9.2 Hz, 2H), 3.44 (t, J = 6.5 Hz, 4H), 1.99 (t, J = 6.6 Hz, 4H). 13C-NMR (101 MHz,
DMSO-d6): (ppm): 165.22, 163.23, 156.00, 152.18, 150.78, 139.79, 120.39, 112.20, 109.37, 48.11, 25.30.
δ
HRMS (ESI-MS): m/z 286.1182, calcd. 285.1113.
1,3-dimethyl-5-(4-(pyrrolidin-1-yl)benzylidene)pyrimidine-2,4,6(1H,3H,5H)-trione (PyB-M) (0.29 g,
1
yield 93%). H-NMR (400 MHz, DMSO-d6): δ (ppm): 8.44 (d, J = 9.1 Hz, 2H), 8.24 (s, 1H), 6.68 (d, J =
9.2 Hz, 2H), 3.46 (m, 4H), 3.23 (s, 6H), 2.00 (s, 4H). 13C-NMR (101 MHz, DMSO-d6):
δ (ppm): 163.76,
161.69, 156.87, 152.28, 151.74, 139.86, 120.45, 112.24, 109.15, 48.15, 28.96, 28.34, 25.30. HRMS (ESI-MS):
m/z 314.1494, calcd. 313.1426.
5-(4-(diethylamino)-2-hydroxybenzylidene)pyrimidine-2,4,6(1H,3H,5H)-trione (EtHB) (0.18 g, yield
1
58%). H-NMR (400 MHz, DMSO-d6):
δ (ppm): 10.77 (s, 1H), 8.99 (d, J = 9.5 Hz, 1H), 8.76 (s, 1H),
6.35 (dd, J = 9.6, 2.4 Hz, 1H), 6.16 (d, J = 2.5 Hz, 1H), 3.44 (q, J = 7.0 Hz, 4H), 1.15 (t, J = 7.0 Hz, 6H).

Molecules 2020, 25, 32
10 of 13
13C-NMR (101 MHz, DMSO-d6):
δ
(ppm): 164.43, 155.32, 150.90, 148.80, 137.29, 110.33, 106.59, 105.25,
95.89, 44.84, 13.13. HRMS (ESI-MS): m/z 304.1289, calcd. 303.1219.
5-(4-(diethylamino)-2-hydroxybenzylidene)-1,3-dimethylpyrimidine-2,4,6(1H,3H,5H)-trione (EtHB-M
)
1
(0.14 g, yield 43%). H-NMR (400 MHz, DMSO-d6):
δ (ppm): 10.69 (s, 1H), 8.94 (d, J = 9.6 Hz, 1H),
8.85 (s, 1H), 6.38 (d, J = 9.6 Hz, 1H), 6.17 (d, J = 2.5 Hz, 1H), 3.45 (m, 4H), 3.21 (S, 6H), 1.16 (m, 6H).
13C-NMR (101 MHz, DMSO-d6):
(ppm): 164.54, 164.13, 161.81, 155.42, 151.86, 149.79, 137.09, 110.48,
δ
106.38, 105.28, 95.83, 44.88, 28.82, 28.24, 13.13. HRMS (ESI-MS): m/z 332.1608, calcd. 331.1532.
1
5-(4-(diethylamino)benzylidene)pyrimidine-2,4,6(1H,3H,5H)-trione (EtB) (0.23 g, yield 81%). H-NMR
(400 MHz, DMSO-d6):
δ (ppm): 10.95 (d, J = 38.5 Hz, 2H), 8.41 (d, J = 9.3 Hz, 2H), 8.12 (s, 1H), 6.79
(d, J = 9.3 Hz, 2H), 3.51 (q, J = 7.0 Hz, 4H), 1.16 (t, J = 7.0 Hz, 6H). 13C-NMR (101 MHz, DMSO-d6):
δ
(ppm): 165.23, 163.21, 155.71, 152.71, 150.77, 139.98, 120.13, 111.39, 109.46, 44.71, 12.96. HRMS (ESI-MS):
m/z 288.1344, calcd. 287.1270.
5-(4-(diethylamino)benzylidene)-1,3-dimethylpyrimidine-2,4,6(1H,3H,5H)-trione (EtB-M) (0.24 g, yield
1
77%). H-NMR (400 MHz, DMSO-d6):
δ (ppm): 8.41 (d, J = 9.3 Hz, 2H), 8.21 (s, 1H), 6.80 (d, J = 9.3
Hz, 2H), 3.52 (q, J = 7.0 Hz, 4H), 3.22 (s, 6H), 1.16 (t, J = 7.0 Hz, 6H). 13C-NMR (101 MHz, DMSO-d6):
(ppm): 163.75, 161.66, 156.59, 152.82, 151.72, 140.04, 120.18, 111.40, 109.21, 44.74, 28.95, 28.32, 12.96.
δ
HRMS (ESI-MS): m/z 316.1652, calcd. 315.1583.
3.3. Sample Preparation for Spectroscopy Measurement
For solvatochromism experiments, all stock solutions of dyes were prepared at 1 mM in DMSO.
Afterward, the stock solutions were diluted 100 times, using different solvents, to obtain working
solutions with a concentration of 10 µM. In UV-vis absorption measurement, the background of solvent
alone was subtracted. For the AIE curve measurement, a stock solution of BA-based dye in DMSO
(1 or 10 mM) was first prepared. Aliquots of this stock solution were transferred into volumetric flasks
(10 mL), into which appropriate volumes of DMSO and water were added dropwise, under vigorous
stirring, to furnish 100
spectra were measured immediately after the solutions were prepared.
µ
M solutions with different water contents (0 99 vol%). Fluorescence emission
−
3.4. Quantum Yield Measurements
Solid film fluorescence quantum yields were measured, using a Hamamatsu absolute PL quantum
yield spectrometer C11347 Quantaurus_QY (Hamamatsu City, Shizuoka Prefecture, Japan) and a
matched integrating sphere. Data showed averaged values of three detected readings from the machine.
3.5. Protein-Formation Detection
The preparation methods of protein samples were adopted from the strategies previously described
by Carver et al. [30], which are summarized in detail in Table 2.
Table 2. Aggregation conditions for HEWL and the corresponding aggregate types.
Concentration
Aggregation Condition
Type of Aggregate
50 mM of glycine-HCl pH 2.0, 137 mM of NaCl, 2.7 mM of KCl,
35 µM
Fibril
0.01% (w/v) NaN3, 55 ◦C, medium shaking, 8 h [31]
70 µM
70 µM
50 mM of glycine-HCl pH 12.2, 37 ◦C, 300 rpm, 8 h [32]
Amorphous
Monomer
50 mM of glycine-HCl pH 2.0
The dye PyB-M was prepared at 5 mM in DMSO, as the stock solution. Assays were conducted by
1:100 diluting the stock solution of dyes into protein samples, and emission spectra were immediately
recorded by the fluorescence spectrophotometer. The excitation wavelengths of PyB-M and ThT were
set at 494 and 440 nm, respectively.

Molecules 2020, 25, 32
11 of 13
4. Conclusions
In summary, we synthesized ten organic AIE-active fluorescent dyes through the simple and robust
Knoevenagel condensation reaction of BA blocks and benzaldehydes. Among these dyes, PyB, PyB-M,
MoB-M, and EtHB-M are new molecules, which have never been reported before. All these BA-based
dyes exhibited long-wavelength absorption and emission in the orange-to-red region. Besides, most of
the dyes in solid state enjoy high quantum yields, which can be as high as 32.8%. Thanks to the electron
pull–push architecture, these dyes exhibited the special photophysical property of solvatochromism.
Finally, the AIE behaviors of these dyes were demonstrated by using standard fluorometric techniques.
We further demonstrated the application of differentiating pathogenic amyloid fibrils from other
protein conformers by using one of the novel analogues. Further application of the BA-based dyes in
biosensing is ongoing in our lab.
Supplementary Materials: Supplementary materials are available online.
Author Contributions: Y.H. and S.D. conceived of and designed the experiments; S.D., B.Y., and L.S. performed
the experiments; S.D., B.Y., and Y.H. analyzed the data; S.D., B.Y., and Y.H. wrote the manuscript with feedback
from the other authors. All authors have read and agreed to the published version of the manuscript.
Funding: This research was funded by Australian Research Council, grant number DE170100058 and Department
of Industry, Innovation and Science Australia-China Science and Research Fund (Joint Research Centre on Personal
Health Technologies), grant number ACSRF65777.
Acknowledgments: We thank Conor Hogan and group members from La Trobe University for providing technical
support on fluorescence measurement; Zujin Zhao and Zeyan Zhuang from South China University of Technology
for providing access and assistance of Hamamatsu absolute PL quantum yield spectrometer; and Ming Chen from
Jinan University and Ju Mei from East China University of Science and Technology for helpful discussions.
Conflicts of Interest: The authors declare no conflicts of interest.
References
1.
2.
Weissleder, R.; Mahmood, U. Molecular imaging. Radiology 2001, 219, 316–333. [CrossRef] [PubMed]
Ntziachristos, V. Fluorescence molecular imaging. Annu. Rev. Biomed. Eng. 2006, 8, 1–33. [CrossRef]
[PubMed]
3.
4.
Sanai, N.; Eschbacher, J.; Hattendorf, G.; Coons, S.W.; Preul, M.C.; Smith, K.A.; Nakaji, P.; Spetzler, R.F.
Intraoperative confocal microscopy for brain tumors: A feasibility analysis in humans. Neurosurgery 2011
68, 282–290. [CrossRef] [PubMed]
,
Chien, C.H.; Chen, C.K.; Hsu, F.M.; Shu, C.F.; Chou, P.T.; Lai, C.H. Multifunctional Deep-Blue Emitter
Comprising an Anthracene Core and Terminal Triphenylphosphine Oxide Groups. Adv. Funct. Mater. 2009
,
19, 560–566. [CrossRef]
5.
6.
Förster, T.; Kasper, K. Ein Konzentrationsumschlag der Fluoreszenz. Z. Phys. Chem. (MuenchenGer.) 1954, 1,
275–277. [CrossRef]
Luo, J.; Xie, Z.; Lam, J.W.Y.; Cheng, L.; Chen, H.; Qiu, C.; Kwok, H.S.; Zhan, X.; Liu, Y.; Zhu, D.; et al.
Aggregation-induced emission of 1-methyl-1,2,3,4,5-pentaphenylsilole. Chem. Commun. 2001, 18, 1740–1741.
[CrossRef]
7.
8.
9.
Hong, Y.; Lam, J.W.Y.; Tang, B.Z. Aggregation-induced emission: Phenomenon, mechanism and applications.
Chem. Commun. 2009, 29, 4332. [CrossRef]
Hong, Y.; Lam, J.W.Y.; Tang, B.Z. Aggregation-induced emission. Chem. Soc. Rev. 2011, 40, 5361–5388.
[CrossRef]
Hu, R.; Leung, N.L.C.; Tang, B.Z. AIE macromolecules: Syntheses, structures and functionalities. Chem. Soc.
Rev. 2014, 43, 4494–4562. [CrossRef]
10. Mei, J.; Hong, Y.; Lam, J.W.Y.; Qin, A.; Tang, Y.; Tang, B.Z. Aggregation-Induced Emission: The Whole Is
More Brilliant than the Parts. Adv. Mater. 2014, 26, 5429–5479. [CrossRef]
11. Mei, J.; Leung, N.L.C.; Kwok, R.T.K.; Lam, J.W.Y.; Tang, B.Z. Aggregation-Induced Emission: Together We
Shine, United We Soar! Chem. Rev. 2015, 115, 11718–11940. [CrossRef] [PubMed]

Molecules 2020, 25, 32
12 of 13
12. Dong, Y.; Lam, J.W.Y.; Qin, A.; Liu, J.; Li, Z.; Tang, B.Z. Aggregation-induced emissions of tetraphenylethene
derivatives and their utilities as chemical vapor sensors and in organic light-emitting diodes. Appl. Phys.
Lett. 2007, 91, 011111. [CrossRef]
13. He, J.; Xu, B.; Chen, F.; Xia, H.; Li, K.; Ye, L.; Tian, W. Aggregation-Induced Emission in the Crystals of
9,10-Distyrylanthracene Derivatives: The Essential Role of Restricted Intramolecular Torsion. J. Phys. Chem.
C 2009, 113, 9892–9899. [CrossRef]
14. Chen, M.; Li, L.; Nie, H.; Tong, J.; Yan, L.; Xu, B.; Sun, J.Z.; Tian, W.; Zhao, Z.; Qin, A.; et al.
Tetraphenylpyrazine-based AIEgens: Facile preparation and tunable light emission. Chem. Sci. 2015
6, 1932–1937. [CrossRef]
,
15. Ntziachristos, V.; Ripoll, J.; Wang, L.V.; Weissleder, R. Looking and listening to light: The evolution of
whole-body photonic imaging. Nat. Biotechnol. 2005, 23, 313–320. [CrossRef]
16. Li, H.; Chi, Z.; Zhang, X.; Xu, B.; Liu, S.; Zhang, Y.; Xu, J. New thermally stable aggregation-induced emission
enhancement compounds for non-doped red organic light-emitting diodes. Chem. Commun. 2011, 47,
11273–11275. [CrossRef]
17. Zhao, Q.; Zhang, S.; Liu, Y.; Mei, J.; Chen, S.; Lu, P.; Qin, A.; Ma, Y.; Sun, J.Z.; Tang, B.Z.
Tetraphenylethenyl-modified perylene bisimide: Aggregation-induced red emission, electrochemical
properties and ordered microstructures. J. Mater. Chem. C 2012, 22, 7387–7394. [CrossRef]
18. Zhao, Z.; Geng, J.; Chang, Z.; Chen, S.; Deng, C.; Jiang, T.; Qin, W.; Lam, J.W.Y.; Kwok, H.S.; Qiu, H.; et al.
A tetraphenylethene-based red luminophor for an efficient non-doped electroluminescence device and
cellular imaging. J. Mater. Chem. C 2012, 22, 11018–11021. [CrossRef]
19. Li, K.; Qin, W.; Ding, D.; Tomczak, N.; Geng, J.; Liu, R.; Liu, J.; Zhang, X.; Liu, H.; Liu, B.; et al. Photostable
fluorescent organic dots with aggregation-induced emission (AIE dots) for noninvasive long-term cell tracing.
Sci. Rep. 2013, 3, 1150. [CrossRef]
20. Wang, E.; Lam, J.W.Y.; Hu, R.; Zhang, C.; Zhao, Y.S.; Tang, B.Z. Twisted intramolecular charge transfer,
aggregation-induced emission, supramolecular self-assembly and the optical waveguide of barbituric
acid-functionalized tetraphenylethene. J. Mater. Chem. C 2014, 2, 1801–1807. [CrossRef]
21. Borse, B.N.; Shukla, S.R.; Sonawane, Y.A.; Shankerling, G.S. Synthesis of some novel pyrimidinedione and
pyrimidinetrione derivatives by a greener method: Study of their antimicrobial activity and photophysical
properties. Synth. Commun. 2012, 43, 865–876. [CrossRef]
22. Zhou, K.; Fu, H.; Feng, L.; Cui, M.; Dai, J.; Liu, B. The synthesis and evaluation of near-infrared probes with
barbituric acid acceptors for in vivo detection of amyloid plaques. Chem. Commun. 2015, 51, 11665–11668.
[CrossRef] [PubMed]
23. Yin, G.; Ma, Y.; Xiong, Y.; Cao, X.; Li, Y.; Chen, L. Enhanced AIE and different stimuli-responses in red
fluorescent (1,3-dimethyl)barbituric acid-functionalized anthracenes. J. Mater. Chem. C 2016, 4, 751–757.
[CrossRef]
24. Mercaldi, G.F.; D’Antonio, E.L.; Aguessi, A.; Rodriguez, A.; Cordeiro, A.T. Discovery of antichagasic
inhibitors by high-throughput screening with Trypanosoma cruzi glucokinase. Bioorganic Med. Chem. Lett.
2019, 29, 1948–1953. [CrossRef]
25. Ahmed, E.; Sharif, A.; Chohan, S.; Khan, M.A.; Munawar, M.A.; Farrukh, A.; Begum, R.; Afza, N.; Ashraf, M.;
Arshad, S. A convenient Synthesis of Bioactive 5-Arylidenebarbiturates. J. Chem. Soc. Pak. 2012, 34,
1305–1311.
26. Liu, M.; Onchaiya, S.; Tan, L.Y.F.; Haghighatbin, M.A.; Luu, T.; Owyong, T.C.; Hushiarian, R.; Hogan, C.F.;
Smith, T.A.; Hong, Y. 9-Vinylanthracene based fluorogens: Synthesis, structure-property relationships and
applications. Molecules 2017, 22, 2148. [CrossRef]
27. Suppan, P. Invited review solvatochromic shifts: The influence of the medium on the energy of electronic
states. J. Photochem. Photobiol. A Chem. 1990, 50, 293–330. [CrossRef]
28. Cao, J.K.; Yang, J. Translational opportunities for amyloid-targeting fluorophores. Chem. Commun. 2018, 54,
9107–9118. [CrossRef]
29. Verwilst, P.; Kim, S.H.; Kim, S.; Kang, C.; Kim, S.J. Shedding light on tau protein aggregation: The progress
in developing highly selective fluorophores. Chem. Sov. Rev. 2018, 47, 2249–2265. [CrossRef]
30. Kumar, M.; Hong, Y.; Thorn, C.D.; Ecroyd, H.; Carver, A.J. Monitoring Early-Stage Protein Aggregation by
an AggregationInduced Emission Fluorogen. Anal. Chem. 2017, 89, 9322–9329. [CrossRef]

Molecules 2020, 25, 32
13 of 13
31. Wang, S.S.; Liu, K.N.; Lee, W.H. Effect of curcumin on the amyloid fibrillogenesis of hen egg-white lysozyme.
Biophys. Chem. 2009, 144, 78–87. [CrossRef] [PubMed]
32. Kumar, S.; Ravi, V.K.; Swaminathan, R. Suppression of lysozyme aggregation at alkaline pH by
tri-N-acetylchitotriose. Biochim. Biophys. Acta 2009, 1794, 913–920. [CrossRef] [PubMed]
Sample Availability: Samples of the all the BA-based dyes are available from the authors.
©
2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
(CC BY) license (http://creativecommons.org/licenses/by/4.0/).
