Synthesis of metal-azo dyes and their optical and thermal properties as recording materials for DVD-R

Article abstract of DOI:10.1246/bcsj.75.2067

Four kinds of azo dyes and their metal-azo dyes were synthesized in order to obtain a high reflective index and better thermal stability as a recording material for DVD-R. Several kinds of novel azo dyes based on benzoic acid, 6-methoxybenzothiazole, benzothiazole-6-carboxylic acid, and benzimidazole have been synthesized. These azo dyes reacted with metal ions, such as Ni²⁺, Cu²⁺, Zn²⁺, and Co²⁺, as ligands. All structures of the compounds were confirmed by ¹H-NMR and FT-IR analyses. The optical and thermal properties of azo dyes and their metal-azo dyes were characterized by UV-vis and TGA analyses. In the UV-vis spectra, the absorption maxima of metal-azo dyes show at longer wavelength than those of azo dyes. These spectral shifts are affected by substituent groups, electron-donating or -withdrawing groups, of azo dyes and metal ions. The metal-azo dyes were thermally stable up to 300°C, which were confirmed by TGA analyses. Particularly, in the case of an azo dye complexed with Zn based on 6-methoxybenzothiazole, good absorption at 635 nm was observed, and its thermal stability was maintained up to 300°C, with high refractive index of about 2.08.

Full text of DOI:10.1246/bcsj.75.2067

c. Jpn.
e Chemical © 2002 The Chemical Society of Japan
Bull. Chem. Soc. Jpn., 75, 2067–2070 (2002) 2067
ciety of Ja-
n
e Chemical
ciety of Ja-
n
M
Synthesis of Metal-Azo Dyes and Their Optical and Thermal Properties
as Recording Materials for DVD-R
Synthesis of Metal-Azo Dyes and Their Properties
H. Park et al.
,
†
Hyeyoung Park, Eung-Ryul Kim, Dong Jin Kim,* and Haiwon Lee*
02
6
7
7
0
Department of Chemistry, Hanyang University, Seoul 133-791, Korea
†
Medicinal Chemistry Research Center, Korea Institute of Science and Technology, Seoul 130-650, Korea
SJA8
0
9-2673
(
Received January 8, 2002)
0
0
0
06
Four kinds of azo dyes and their metal-azo dyes were synthesized in order to obtain a high reflective index and bet-
2
2
ter thermal stability as a recording material for DVD-R. Several kinds of novel azo dyes based on benzoic acid, 6-meth-
oxybenzothiazole, benzothiazole-6-carboxylic acid, and benzimidazole have been synthesized. These azo dyes reacted
2
+
2+
2+
2+
1
with metal ions, such as Ni , Cu , Zn , and Co , as ligands. All structures of the compounds were confirmed by H-
NMR and FT-IR analyses. The optical and thermal properties of azo dyes and their metal-azo dyes were characterized by
UV-vis and TGA analyses. In the UV-vis spectra, the absorption maxima of metal-azo dyes show at longer wavelength
than those of azo dyes. These spectral shifts are affected by substituent groups, electron-donating or -withdrawing
groups, of azo dyes and metal ions. The metal-azo dyes were thermally stable up to 300 °C, which were confirmed by
TGA analyses. Particularly, in the case of an azo dye complexed with Zn based on 6-methoxybenzothiazole, good ab-
sorption at 635 nm was observed, and its thermal stability was maintained up to 300 °C, with high refractive index of
about 2.08.
.
.
2
3
Optical data storage has become a core technology in the
multimedia environment for both the entertainment and com-
puting industries. Rapidly increased information solicits a
groups of azo dyes and metal ions.
Experimental
1–2
more convenient and efficient storage method. The structure
of a DVD-R (Digital Versatile Disc-Recordable) consists of a
polycarbonate substrate, a recording layer, a metal reflective
Samples. 2-Aminobenzoic acid (1), 2-amino-benzothiazole-
-carboxylic acid (2), 2-amino-6-methoxy benzothiazole (3), 2-
6
aminobenzimidazole (4), 3-(diethylamino)phenol (5), sodium hy-
drogen carbonate, sulfuric acid, nitrosyl hydrogensulfate, nick-
el(Ⅱ) acetate (a), cupper(Ⅱ) acetate (b), zinc nitrate (c), and co-
balt(Ⅱ) nitrate (d) were obtained from Aldrich Chemical Co. and
were used without further purification.
3
layer, and a protective layer as a kind of optical data storage.
The recording layer is easily decomposed by laser light with
4–6
6
35 and 650 nm wavelengths.
The recording layer has a
high refractive index, so it can effectively absorb light and gen-
erate heat when the laser beam is focused on the film. The heat
is transferred to both the PC substrate and the recording layer.
In order to achieve a better storage medium, the following fac-
tors should be considered for synthesizing new recording ma-
terials: (1) a high refractive index at 635 nm with the most gen-
erally used in a recent DVD player, (2) thermal stability at high
temperature up to 250 °C, and (3) good solubility for a spin
coating process onto a polycarbonate substrate. In general, cy-
anine dyes, phthalocyanine dyes, and metal-azo complexes
Preparation of Azo and Metal Azo Dyes.
Figure 1 shows
synthetic schemes of azo dyes and metal-azo dyes. To the amine
compounds (1–4), (1 mmol) in sulfuric acid (17 mL), 35% ni-
trosyl hydrogensulfate (3.8 g) was slowly added at −20 °C. After
stirring for 2 h at the same temperature, 3-(diethylamino)phenol
(5) (1 mmol) in methanol (20 mL) was added into the resulting di-
azonium solution at −20 °C. After completion of diazo-coupling,
the reaction mixture was neutralized with a saturated sodium hy-
drogencarbonate solution to pH 6. The product was obtained by
filtering and recrystallized with methanol. To the azo dyes (6–9),
7
–10
dyes are used for DVD-R.
stable against light and not durable for repeated reading
use.
As for cyanine dyes, they are un-
(
1 mmol) in methanol (10 mL), metal(Ⅱ) acetate solution (0.5
mmol) in methanol were added. After completion of complex-
ation, the reaction mixture was diluted with water (50 mL). The
precipitated metal azo dyes were filtered, washed with hot water,
and dried.
11–13
Phthalocyanine dyes also have demerits, such as a
worse solubility and higher cost than cyanine dyes. On the
other hand, metal-azo complexes are more stable than cyanine
dyes against light, provide easier control of the wavelength ac-
cording to the substituted groups, and have good thermal sta-
bility with a metal complex. Based upon the consideration of
the above requirements, we designed and synthesized several
azo dyes and their metal-azo dyes. Herein, we report on the
syntheses of the compounds. Their optical and thermal proper-
ties for DVD-R are discussed while considering substituted
Analytical Data for Final Compounds (8, 8a, and 8c).
1
Compound 8: H NMR (CDCl
2
3
) δ = 1.17 (t, 3H), 3.35–3.59 (m,
H), 6.15 (s, 1H), 6.42 (d, 1H), 7.1 (d, 1H), 7.5 (d, 1H), 7.82 (d,
1H), and 8.28 (s, 1H); Anal. Calcd for C H N O S: C, 60.65; H,
1
8
20
4
2
5.66; N, 15.72; S, 9.00%. Found: C, 60.63; H, 5.56; N, 15.66; S,
9.02%; IR (KBr pallet) 3428 (OH) and 1630 cm− (NwN), Com-
1
44 8 4 2
pound 8a: Anal. Calcd for C38H N NiO S : C, 57.08; H, 5.55; N,

2
068 Bull. Chem. Soc. Jpn., 75, No. 9 (2002)
Synthesis of Metal-Azo Dyes and Their Properties

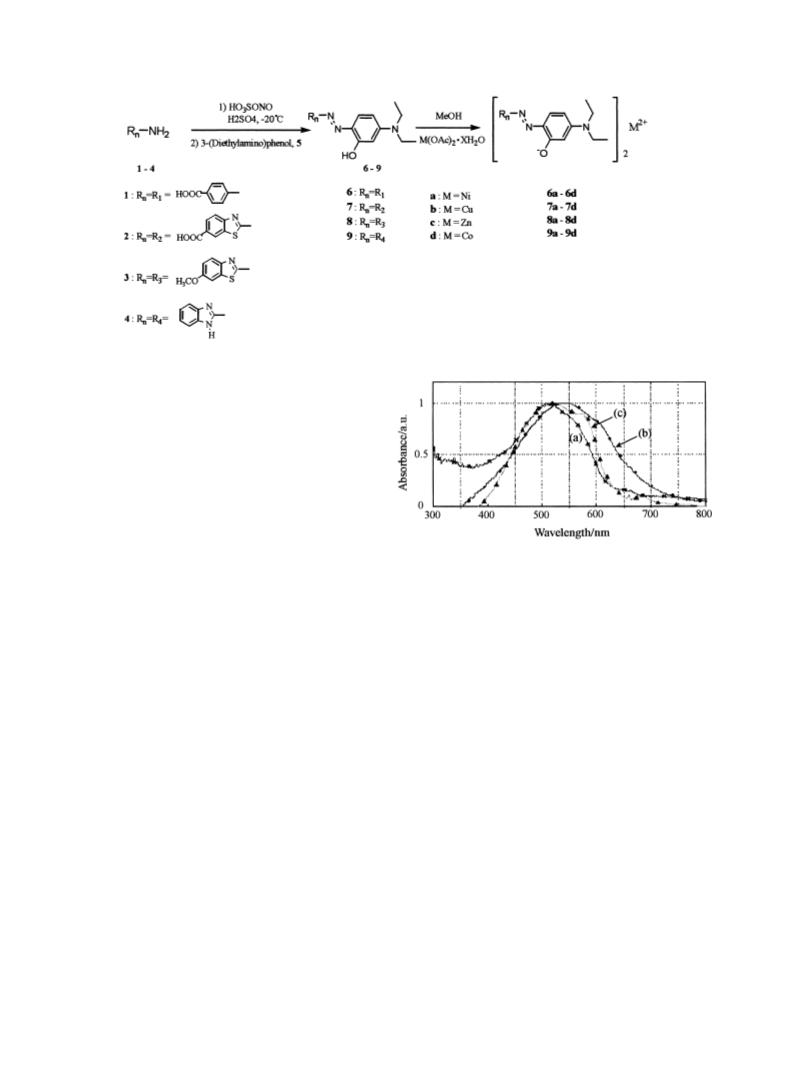

Fig. 1. Synthesis of azo dyes and metal-azo dyes.
1
KBr pallet) 1597 cm− (NwN), Compound 8c: Anal. Calcd for
Zn: C, 56.60; H, 5.50; N, 13.90; S, 7.95%. Found:
4.01; S, 8.02%. Found: C, 52.25; H, 4.62; N, 13.44; S, 8.37%; IR
1
(
38 44 8 4 2
C H N O S
−
1
C, 57.60; H, 4.27; N, 14.16;S, 9.26%; IR (KBr pallet) 1597 cm
NwN).
Instrumentation. FT-IR spectra were recorded as KBr pel-
(
−
1
lets over the range 4000–200 cm using a Perkin-Elmer system.
1
The H NMR spectra were obtained on a Varian INOVA (400
MHz) spectrometer. Elemental analyses were performed with an
elemental analyzer (EA1110). UV spectra were recorded as PC
films coated by 2.0 wt% over the range 300–800 nm using a Scin-
co spectrophotometer. The refractive indexes were measured by a
Rudolph Technologies ellipsometer. Thermal properties were an-
alyzed with a Rheometric Scientific System (TGA1000, DSC
PLUS) at a heating rate of 10 °C/min under a nitrogen atmo-
sphere.
Fig. 2. UV spectra of MBT-A-X dyes: (a) 8; (b) 8a; (c) 8c.
516 (8), and 489 nm (9), respectively. These spectral shifts are
affected by the substituent groups of the azo dye and metal
1
6
ions. The longer double bond in the azo dye caused longer
max wavelength from the shorter double bond in the normal-
Results and Discussion
λ
The diazonium salt was easily obtained by using sodium ni-
trite. Azo dyes were synthesized by azo coupling. These prod-
ucts were confirmed by the H NMR and FT-IR spectra. FT-IR
ized UV-vis. spectrum. Also a λmax of 7 was observed to be al-
most identical to that of 8. The π–π* transitions of an azo con-
taining benzothiazole moiety were not affected by the substitu-
1
spectra indicate the presence of coordination sites of metal-azo
3
ent group (–COOH, –OCH ). However, a λmax of 7 was ob-
−
1
dyes. A strong band at around 3310 cm corresponding to
OH in the azo ligand was very weak, and a sharp single band
served at a longer wavelength than that of 9 due to a sulfur at-
om. In the normalized UV-vis Spectra, the λmax were observed
at 476 (6a), 537 (7a), 541 (8a), and 522 nm (9a), respectively.
6a and 9a showed a slight absorption shoulder near 635 nm.
In contrast, 8a showed a very broad absorption band at 635
nm; 7a showed a sharp absorption band at 635 nm.
−
1
around 1630 cm corresponding to NwN in the azo ligand
−
1
was shifted to 1597 cm in the spectra of the metal com-
1
4–16
plex.
identical. Therefore, strong coordinations between metal ions
The peak of carbonyl and other peaks were almost
1
4
and hydroxy and azo groups were formed.

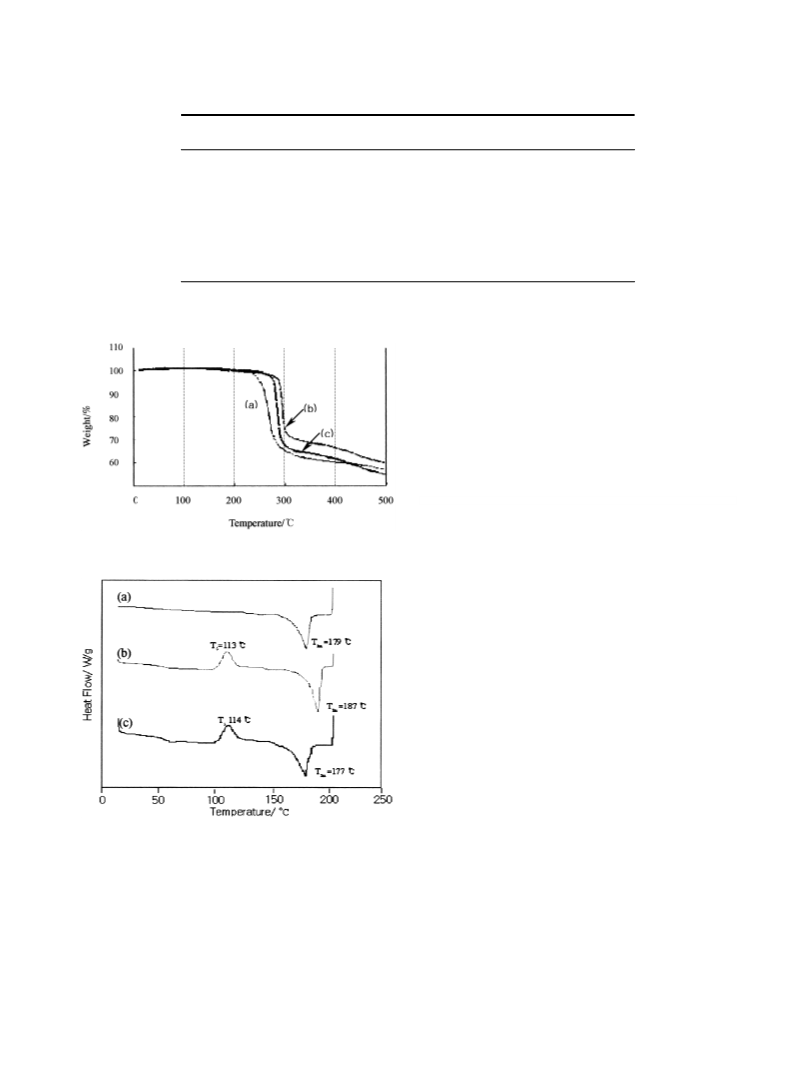

Thermal characterizations of the products were accom-
plished by TGA and DSC analyses (Figs. 3 and 4). The onset
temperatures of weight loss were 240 (6), 220 (7), and 243 °C
(8), respectively. The decomposition temperatures were 300
(8a), 310 (8b), 300 (8c), and 280 °C (8d), respectively. Metal-
azo dyes were more thermally stable at about 50 °C higher
than that of the azo dyes. Also, the metal-azo dyes showed
crystallization temperatures as shown in Fig. 4. The melting
temperatures were 179 (8), 187 (8a), and 177 (8c), respective-
ly.
Optical characterization of the products was accomplished
using a UV-vis. spectra. Figure 2 shows the optical properties
of azo and their metal-azo dyes. The recording material should
be decomposed by 635 nm laser absorption; for recording it
should absorb a 635 nm wavelength. Also, for reading the disc
recorded by 635 nm, the same laser source is used. This means
that a material should reflect a little light at 635 nm. Therefore
the value of the absorbance for the recording material is good
at about 0.4–0.5 in the normalized UV-vis. spectrum. The π–
1
8
π* transitions were observed in the spectra of azo dyes.
The recording dye must be soluble in specific organic sol-
vents, such as 2,2,3,3-tetrafluoro-1-propanol (TFP) or diace-
tone alcohol (DAA), 4-hydroxy-4-methyl-2-pentane, because
Their π–π* transitions were exhibited by the absorption with
the maximum absorbances (λmax) at around 427 (6), 512 (7),

H. Park et al.
Bull. Chem. Soc. Jpn., 75, No. 9 (2002) 2069
Table 1. Summary of Physical and Optical Properties for Azo and Metal-Azo Dyes
a)
c)
c)
d)
Product
Solubility
Refractive index
λ
max /nm
Abs.
d
T /°C
b)
number
at 632 nm
at 635 nm
0.0
0.19
0.21
0.02
0.02
0.11
0.20
0.05
6
7
8
9
O
O
O
O
X
O
O
O
O
—
—
1.66
—
—
—
1.87
—
2.08
427
512
516
489
476
537
541
522
517
240
220
243
—
290
250
292
220
284
6
7
8
9
8
a
a
a
a
c
0.54
a) in TFP solvent (O: good, X: bad), b) on Si-substrate,
c) on PC substrate with TFP solvent, d) 10 °C/min under N
2
gas
16–18
high-modulated amplitude of the recording signal.
To im-
prove the recording sensitivity with high refraction and a high
signal amplitude, the recording materials should have high n
values. The n values of the products were measured by an el-
lipsometer with the optimized thickness and optical constant
(k) at 632 nm. The k value means the absorbance at 632 nm, it
was obtained from the UV-vis spectrum. The n values of met-
al-azo dyes are higher than those of azo dyes because the n val-
ue is enhanced by metal. Table 1 gives a summary of the phys-
ical and optical properties for the azo and metal-azo dyes.
Conclusion
In summary, we synthesized four kinds of azo dyes and their
metal-azo dyes in order to obtain a high reflective index and
better thermal stability as a recording material. Almost all of
the metal-azo dyes had good thermal stability up to 300 °C.
From the UV-vis spectrum, it could be seen that the azo dye
complexed with Ni based on 2-amino-benzothiazole-6-carbox-
ylic acid (7a) had good optical property, but its solubility was
very poor. The azo dye complexed with Zn based on 2-amino-
Fig. 3. TGA curves of MBT- A-X dyes: (a) 8; (b) 8a; (c) 8c.
6
-methoxy benzothiazole (8c) showed good optical, thermal,
and solubility properties compared to other metal-azo dyes.
The absorption maximum of 8c was observed at 517 nm and
the decomposition temperature was 280 °C. The UV-vis spec-
trum of 8c included a steep and weak absorption band at 635
nm. Also, the refractive index of 8c was 2.08 at 632 nm wave-
length. Because of the optical and thermal characteristics of
8
c were nearly satisfied, it will be suitable as a recording dye
for DVD-R.
This work was supported by a program of National Re-
search Laboratory, the Ministry of Science and Technology
Fig. 4. DSC curves of MBT-A-X dyes: (a) 8; (b) 8a; (c) 8c.
(
Grant Number: 99-N-NL-01-C-103) and by the National Pro-
gram for Tera-level Nanodevices of the Ministry of Science
and Technology.
the recording layer is applied on a polycarbonate substrate by
the spin-coating method. In general, more than 2.0 wt% solu-
bility is necessary. All of the synthesized materials were solu-
ble in TFP solvent except for 6a. Although the optical proper-
ty of 6a was good, disc fabrication will be hard due to poor sol-
ubility. DVD-R dye has an absorption maximum at 590–610
nm and an absorption edge at the recording or reading wave-
length (635–650 nm), the refractive index (n) value of the dye
is maximized at 650 nm. This high refractive index results in a
References
1
H. J. Borgl and R. Woudenberg, J. Mag. Mag. Mater., 193,
19 (1999).
Y. Suzuki, M. Horie, Y. Okamoto, Y. Kurose, and S.
Maeda, Jpn. J. Appl. Phys., 37, 2084 (1998).
K. S. Min, Y. J. Huh, and H. K. Shim, Jpn. J. Appl. Phys.,
5
2
3

2
070 Bull. Chem. Soc. Jpn., 75, No. 9 (2002)
8, 1675 (1999).
Synthesis of Metal-Azo Dyes and Their Properties
3
12 S. Morishima, K. Wariishi, Y. Inagaki, M. Shibata, T.
Ishida, and H. Kubota, ISOM’98 Technical Digest (Tsukuba,
Japan), 94 (1998).
4
5
B. K. Sugiyama and N. Neubert, SMPTE J., 762 (1997).
“DVD Specifications for Recordable Disc (DVD-R) Part 1,
Ver. 1.0” DVD FLLC Press (1996).
Y. Suzuki, Y. Okamoto, Y. Kurose, and S. Maeda, Jpn. J.
Appl. Phys., 38, 1669 (1999).
13 B. K. Santra, P. Munshi, P. Bharadwaj, and G. K. Lahiri,
Polyhedron, 18, 617 (1999).
14 N. Su, J. S. Bradshaw, X. X. Zhang, H. Song, P. B. Savage,
G. Xue, K. E. Krakowiak, and R. M. Izatt, J. Org. Chem., 64, 8855
(1999).
6
7
8
E. Hamada, Jpn. Patent, 10-181211 (1998).
E. Hamada, T. Fujii, Y. Tomizawa, and S. Iimura, Jpn. J.
Appl. Phys., 36, 593 (1997).
15 T. K. Misra, D. Das, C. Sinha, P. Ghosh, and C. K. Pal,
Inorg. Chem., 37, 1672 (1998).
9
Y. Suzuki, Y. Okamoto, Y. Kurose, and S. Maeda, Jpn. J.
Appl. Phys., 38, 1669 (1999).
16 M. Sado, T. Ozawa, K. Jitsukawa, and H. Einnaga, Poly-
hedron, 14, 2985 (1995).
17 H. Takanobu and K. Hajime, J. Appl. Phys., 39, 933 (2000).
18 Y. Kawata, H. Ishitobi, and S. Kawata, Opt. Lett., 23, 756
(1998).
1
0
H. Nakazumi, E. Hamada, T. Ishiguro, H. Shiozaki, and T.
Kitao, J. Soc. Dyers Colour., 26, 105 (1989).
S. Yasui, M. Matsuoka, and T. Kitao, Dyes Pigments, 10,
3 (1989).
1
1
1
