Direct synthesis of porous organosilicas containing chiral organic
groups within their framework and a new analytical method for
enantiomeric purity of organosilicas{
Shinji Inagaki,*ab Shiyou Guan,{a Qihua Yang,§a Mahendra P. Kapoor"a and Toyoshi Shimada*bc
Received (in Cambridge, UK) 13th September 2007, Accepted 11th October 2007
First published as an Advance Article on the web 17th October 2007
DOI: 10.1039/b714163g
mesoporous ethylene-silicas from 100% chiral borated ethylene-
bridged disilane precursors prepared by enantioselective hydro-
boration. However, borated ethylene-bridged precursors are
limited in that they only yield mesoporous organosilicas functio-
nalized with amino and hydroxy groups. A variety of sol–gel
precursors having highly controlled asymmetric centers would
open a wide range of opportunities for the development of chiral
organosilicas. The development of a simple analytical method for
determining the enantiomeric purity of chiral organosilicas is of
utmost importance as well.
Organosilica porous solids containing chiral organic moieties in
the framework with an enantiomeric purity of 95% ee,
estimated by eluting organic constituent units from chiral
organosilicas, were synthesized from a newly designed chiral
(R)-(+)-1,2-bis(trimethoxysilyl)phenylethane precursor via
a
surfactant-mediated self-assembly approach.
The concept of periodic mesoporous organosilicas (PMOs)
possessing a homogeneous distribution of organic and silica
moieties in its framework emerged in the late 1990’s with the
expansion of conventional mesoporous materials.1 PMOs, synthe-
sized from 100% or less organic-bridged organosilane precursors
[(R9O)3Si–R–Si(OR9)3], are widely studied because they offer
multiple advantages in designing materials for diverse applica-
tions.2 The introduction of chirality into PMOs is one of the most
exciting topics. Several groups reported the synthesis of PMOs
from bridged organosilanes containing various chiral organic
groups such as bulky vanadyl Schiff base complexes,3 a binaphthyl
group,4 and diaminocyclohexane groups.5,6 The PMOs showed
optical activity and enhanced activity for asymmetric reactions.
They showed the higher potential of the chiral mesoporous
organosilicas for applications such as chromatography of optical
isomers or enantioselective catalysis. Previous studies have
typically employed a large amount of pure silica precursor such
as tetraethoxysilane (60–95 mol%) for co-condensation to stabilize
the porous framework because the bridging organic groups are too
bulky to accommodate in the framework. However, the introduc-
tion of a higher amount of chiral organic groups in the framework
of mesoporous materials is highly promising from the standpoint
of improving the performance of chiral organosilicas. Recently,
Polarz et al.7 and Ide et al.8 reported the synthesis of functionalized
In this communication, we present a novel synthesis of chiral
porous organosilicas via surfactant-mediated self-assembly from a
newly designed chiral (R)-(+)-1,2-bis(trimethoxysilyl)phenylethane,
1, of 95% ee (Scheme 1), and describe a simple, widely applicable
method for determining the enantiomeric purity of organosilica
solids.

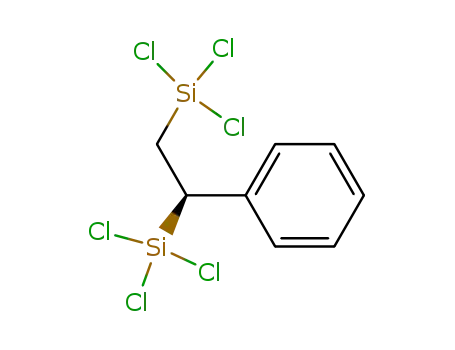

The hydrosilylation of (E)-1-phenyl-2-trichlorosilylethene
(14.3 g) with trichlorosilane in the presence of 0.3 mol%
palladium–(R)-3 as catalyst, followed by the addition of methanol
and triethylamine, gave 18.9 g of 1 in 91% yield and 95% ee
(Scheme 2, Supporting Information{).9
Further, in a typical synthesis of organosilica, 0.63 g of
octadecyltrimethylammonium chloride (C18TMACl) was dissolved
in 9 g of deionized water and 4.5 g of HCl (y36%) was added to
obtain a homogeneous aqueous acid solution. Then, 0.87 g of 1
was slowly introduced, and the mixture was stirred vigorously
under ambient conditions for 42 h. After heating at 80 uC for 8 h
under static conditions, the gel was cooled and kept under ambient
conditions for around 16 h, followed by further heating at 80 uC
for another 7 h under static conditions. The resultant precipitate
was recovered by filtration and suspended in a C18TMACl
solution of NH4F at 70 uC for 6 h to stabilize the framework
structure. The surfactant was removed by extraction using an
ethanol–HCl solution as described elsewhere.1
aToyota Central R&D Labs., Inc., Nagakute, Aichi 480-1192, Japan.
E-mail: inagaki@mosk.tytlabs.co.jp; Fax: +81-561-63-6507;
Tel: +81-561-71-7393
bCore Research and Evolution Science and Technology (CREST),
Japan Science and Technology (JST), Japan
In the basic synthesis procedure, 0.91 g of precursor 1 was
added to a homogeneous solution of C18TMACl surfactant
cDepartment of Chemical Engineering, Nara National College of
Technology, 22 Yata-cho, Yamatokoriyama, Nara 639-1080, Japan.
E-mail: shimada@chem.nara-k.ac.jp; Fax: +81-743-55-6154;
Tel: + 81-743-55-6154
{ Electronic supplementary information (ESI) available: Experimental
details. See DOI: 10.1039/b714163g
{ Current address: Sanyo Chemical Industry, Ltd., Higashiyama, Kyoto,
605-0995, Japan. E-mail: s.guan@sanyo-chemical.com
§ Current address: Dalian Institute of Chemical Physics, Chinese Academy
of Sciences, Zhongshan Road, Dalian 116023, China.
E-mail: yangqh@dicp.ac.cn
" Current address: Taiyo Kagaku Co. Ltd., 1-3 Takaramachi, Yokkaichi,
Mie 510-0844, Japan. E-mail: mkapoor@taiyokagaku.co.jp
Scheme 1
