A General Approach to Sequence-Controlled Polymers Using Macrocyclic Ring Opening Metathesis Polymerization

Article abstract of DOI:10.1021/jacs.5b04940

A new and general strategy for the synthesis of sequence-defined polymers is described that employs relay metathesis to promote the ring opening polymerization of unstrained macrocyclic structures. Central to this approach is the development of a small molecule "polymerization trigger" which when coupled with a diverse range of sequence-defined units allows for the controlled, directional synthesis of sequence controlled polymers.

Full text of DOI:10.1021/jacs.5b04940

Subscriber access provided by NEW YORK UNIV
Communication
A General Approach to Sequence-Controlled
Polymers Using Macrocyclic ROMP
Will R. Gutekunst, and Craig J. Hawker
J. Am. Chem. Soc., Just Accepted Manuscript • Publication Date (Web): 08 Jun 2015
Downloaded from http://pubs.acs.org on June 8, 2015
Just Accepted
“Just Accepted” manuscripts have been peer-reviewed and accepted for publication. They are posted
online prior to technical editing, formatting for publication and author proofing. The American Chemical
Society provides “Just Accepted” as a free service to the research community to expedite the
dissemination of scientific material as soon as possible after acceptance. “Just Accepted” manuscripts
appear in full in PDF format accompanied by an HTML abstract. “Just Accepted” manuscripts have been
fully peer reviewed, but should not be considered the official version of record. They are accessible to all
readers and citable by the Digital Object Identifier (DOI®). “Just Accepted” is an optional service offered
to authors. Therefore, the “Just Accepted” Web site may not include all articles that will be published
in the journal. After a manuscript is technically edited and formatted, it will be removed from the “Just
Accepted” Web site and published as an ASAP article. Note that technical editing may introduce minor
changes to the manuscript text and/or graphics which could affect content, and all legal disclaimers
and ethical guidelines that apply to the journal pertain. ACS cannot be held responsible for errors
or consequences arising from the use of information contained in these “Just Accepted” manuscripts.
Journal of the American Chemical Society is published by the American Chemical
Society. 1155 Sixteenth Street N.W., Washington, DC 20036
Published by American Chemical Society. Copyright © American Chemical Society.
However, no copyright claim is made to original U.S. Government works, or works
produced by employees of any Commonwealth realm Crown government in the course
of their duties.

Page 1 of 5
Journal of the American Chemical Society
1
2
3
4
5
6
A General Approach to Sequence-Controlled Polymers Using
Macrocyclic ROMP
7
8
9
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
6
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
†
† ‡
,
Will R. Gutekunst* and Craig J. Hawker*
†
Materials Department, Materials Research Laboratory, University of California, Santa Barbara, California 93106, United
States
Department of Chemistry and Biochemistry, University of California, Santa Barbara, California 93106, United States
‡
Supporting Information Placeholder
ABSTRACT: A new and general strategy for the syn-
thesis of sequence-defined polymers is described
that employs relay metathesis to promote the ring
opening polymerization of unstrained macrocyclic
structures. Central to this approach is the develop-
ment of a small molecule “polymerization trigger”
which when coupled with a diverse range of se-
quence-defined units allows for the controlled, di-
rectional synthesis of sequence controlled polymers.
Biopolymers, such as proteins and DNA, clearly illus-
trate the power of defined polymer sequences, with
remarkable functions such as catalysis, molecular
recognition and data storage emerging. Inspired by
these natural, sequence-defined materials, strategies
to control the primary structure of synthetic poly-
mers has become an active area of research with the
aim to develop materials with next-generation per-
1
formance and functions. Synthetic methods for se-
quence-controlled polymerization fall into three

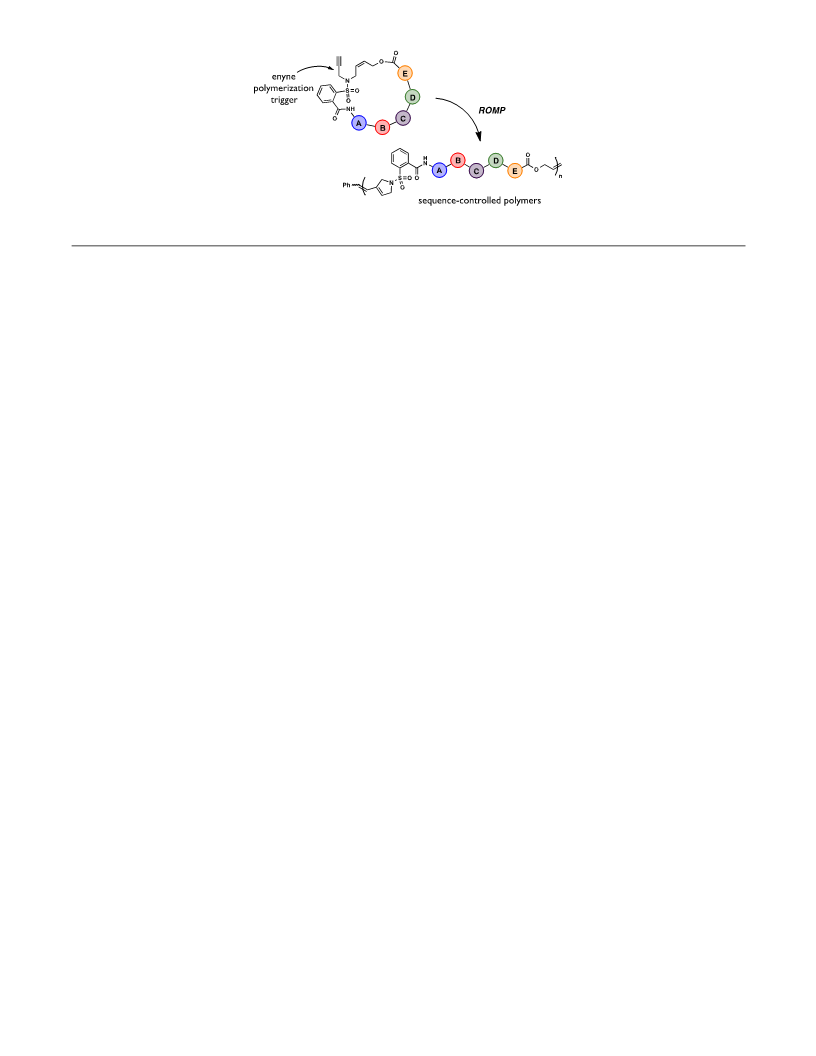

Scheme 1. Development of macrocyclic ROMP
general categories: iterative, step-growth and chain-
growth. Iterative strategies employ the classic Merri-
field approach in which each monomer is appended
7
ing metathesis polymerization (ROMP), and multi-
8
2
block copolymers. In order to combine the sequence
to the chain end sequentially. This leads to highly
precision of step-growth methods with the function-
al group tolerance and chain-growth characteristics
of ROMP, the living polymerization of sequence-
defined macrocycles is reported herein.
controlled microstructures, but is unable to produce
high molecular weights and is generally time inten-
sive. Step-growth approaches, such as click polymer-
3
4
ization or ADMET can generate elaborate periodic
polymers from preformed sequences, but lack con-
trol over polymer molecular weight and dispersity. In
contrast, chain-growth strategies have controlled
polymerization characteristics, but lack a high level
of sequence precision when compared to the previ-
ous methods. Recent advances in chain-growth
chemistry include the timed addition of kinetically
The challenge inherent to this approach is the lack of
ring strain for macrocycles when compared with tra-
ditional ROMP monomers (Scheme 1A). Inspiration
for this new strategy originates from Hoye’s seminal
9
work on relay-ring closing metathesis. A tandem
reaction was therefore desired that could “relay” a
ruthenium carbene to affect a kinetically driven, in-
tramolecular ring-opening of the macrocyclic olefin.
Further encouragement derives from
5
6
fast monomers, templated polymerizations, cy-
clooctene ring open-
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 2 of 5
1
2
3
4
5
6
7
8
9
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
6
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
Scheme 3. Synthesis and x-ray crystal structure of
macrocyclic monomer 9
Scheme 2. Polymerization trigger synthesis
Choi’s polymerization of an unstrained cyclohexene
“sequence” was investigated. The macrocyclic mon-
10
using an alkyne unit as the relay (Scheme 1B).
omer 9 was prepared as shown in Scheme 3, involv-
ing EDC coupling, deprotection with TFA, and
HATU mediated macrocyclization. Significantly, the
macrocyclization gave the crystalline, 17-membered
monomer 9 in a very reasonable 79% yield.
While NHC-ligated Grubbs catalysts are highly reac-
11
tive towards terminal alkynes, the resulting vinyl
ruthenium carbenes are usually resistant to further
metathesis chemistry. As a result, the key to this pro-
cess is the close proximity of the cyclohexene olefin
to the alkyne, permitting fast intramolecular cycliza-
tion and rapid polymerization. Given this precedent,
it was reasoned that an unstrained macrocyclic
enyne should also be a competent monomer. With
this idea in mind, a small molecule “polymerization
trigger” was envisioned that contains the critical
enyne motif and also functional handles for incorpo-
ration of arbitrary macrocyclic sequences (Scheme
Initial attempts to polymerize macrocycle 9 with
rd
Grubbs 3 generation catalyst (G3) revealed solubili-
ty issues in THF, DCM and other traditional solvents.
While a DCM/methanol solvent system resulted in
homogeneous polymerization, rapid chain transfer
caused considerable broadening of the PDIs. Howev-
er, adding 3,5-dichloropyridine as
Table 1. Polymerization of macrocyclic monomer 9
1
C).
In order to test this concept, an efficient and scalable
synthesis of the polymerization trigger was devised
starting from readily available saccharin 1, a com-
mercial artificial sweetener. N-alkylation of saccha-
rin with propargyl bromide gives 2, which was then
subjected to a one-pot difunctionalization sequence
(Scheme 2). First, the saccharin heterocycle was re-
gioselectively ring-opened with veratryl alcohol 3, an
acid labile protecting group, to generate an interme-
diate sulfonamide anion. Addition of acetoxy allyl
bromide 4 to this anion in the same pot furnished
the desired enyne system 5 as a crystalline solid in 68
a
a
b
entry time (min) M/I
M
(g/mol)
Đ
conversion
38%
n
1
1
2
50
50
50
50
12.5
25
11,500
1.07
1.12
1.20
1.30
1.18
1.19
1.26
1.51
2
3
4
5
6
7
8
17,100
48%
5
22,100
24,900
8,500
79%
%
yield. Finally, the acetate was quantitavely cleaved
15
3
98%
with sodium methoxide to give the monoprotected
polymerization trigger 6. Notably, this short se-
quence employs inexpensive, readily available rea-
gents and does not require column chromatography,
as each intermediate is isolated via precipitation or
recrystallization.
90%
5
12,800
21,000
32,900
91%
10
15
50
75
89%
95%
a
Determined using DMF size exclusion chromatog-
b
In order to evaluate the competency of the polymeri-
zation trigger, a simple aliphatic amino acid
raphy calibrated with polystyrene standards. Deter-
mined by crude H-NMR.
1
ACS Paragon Plus Environment

Page 3 of 5
Journal of the American Chemical Society
Table 2. Polymerization of sequenced macrocycles 10 and 11
1
2
3
4
5
6
7
8
9
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
6
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
a
a
b
entry
monomer
time (min)
M/I
25
M (g/mol)
Đ
conversion
81%
n
1
10
10
11
11
11
11
5
10
3
10,800
19,300
9,400
1.18
2
3
4
5
6
50
1.27
1.16
1.15
92%
12.5
25
77%
5
16,300
32,600
41,400
81%
10
15
50
1.26
1.39
92%
75
84%
a
b
Determined using DMF size exclusion chromatography calibrated with polystyrene standards. Determined by
1
crude H-NMR.
additional ligand resulted in controlled polymeriza-
ROMP. These monomers proved to polymerize slow-
er than 9 using the developed reaction conditions,
but reducing the amount of ligand to 20 mM led to
comparable reaction rates. Under these conditions,
both monomer 10 (entries 1 and 2) and monomer 11
(entries 3-6) produced sequence-defined polymers
with accurate control over molecular weight and low
polydispersity. For example, entry 4 gave P-11 with
tion of 9 to P-9 with excellent olefin stereoselectivity
1
2
(
9:1 E/Z), as shown in Table 1. When the polymeri-
zation was performed with a monomer to initiator
ratio (M/I) of 50:1 (entries 1–4), conversion of the
monomer increased with molecular weight over
time, with full conversion reached in 15 minutes at 0°
13
C. Further support for the chain growth and con-
trolled nature of this polymerization is the ability to
target different molecular weights by varying the
M/I, with high conversions being obtained in each
case (entries 5–8). This demonstrates the synthetic
utility of this novel macrocyclic ROMP as a variety of
polymers can be prepared with excellent control over
molecular weight and molecular weight distribution.
M of 32,600 and a PDI of 1.26, which corresponds to
n
a polymer chain consisting of ~250 perfectly se-
quenced units. This readily illustrates the precision
and wide range of chemical diversity that can be in-
corporated into these synthetic polymers with func-
tionality ranging from chiral esters to sulfonamides
to amides.
With this proof of concept established and general
conditions developed, more elaborate sequences
were developed following Meyer’s work on se-
A further unique aspect of this methodology com-
pared to traditional ROMP is the ability to control
functionality in the backbone of the polymer. Tradi-
tional ROMP polymers are not hydrolytically de-
gradable, a quality that limits their use in a number
14
quenced polyesters. The hybrid-polyester mono-
mers 10 and 11 were readily prepared using iterative
15
16
coupling methods (See SI for details), resulting in
0 and 23-membered macrocycles, respectively (Ta-
of applications. Since P-10 and P-11 are polyesters,
2
they can break down into their small molecule con-
stituents. To demonstrate this reactivity, P-11 was
degraded with triazabicyclodecene (TBD) using
ble 2). The monomers are comprised of the polymer-
ization trigger attached to a series of glycolate (Gly),
17
(
S)-lactate (Lact), (S)-phenyllactate (PhLact), and
conditions developed by Leibfarth and coworkers.
The reaction was readily followed by GPC analysis
β
beta-alanine ( Ala) units to give ABCD and/or E se-
quences that will be displayed in the backbone after
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 4 of 5

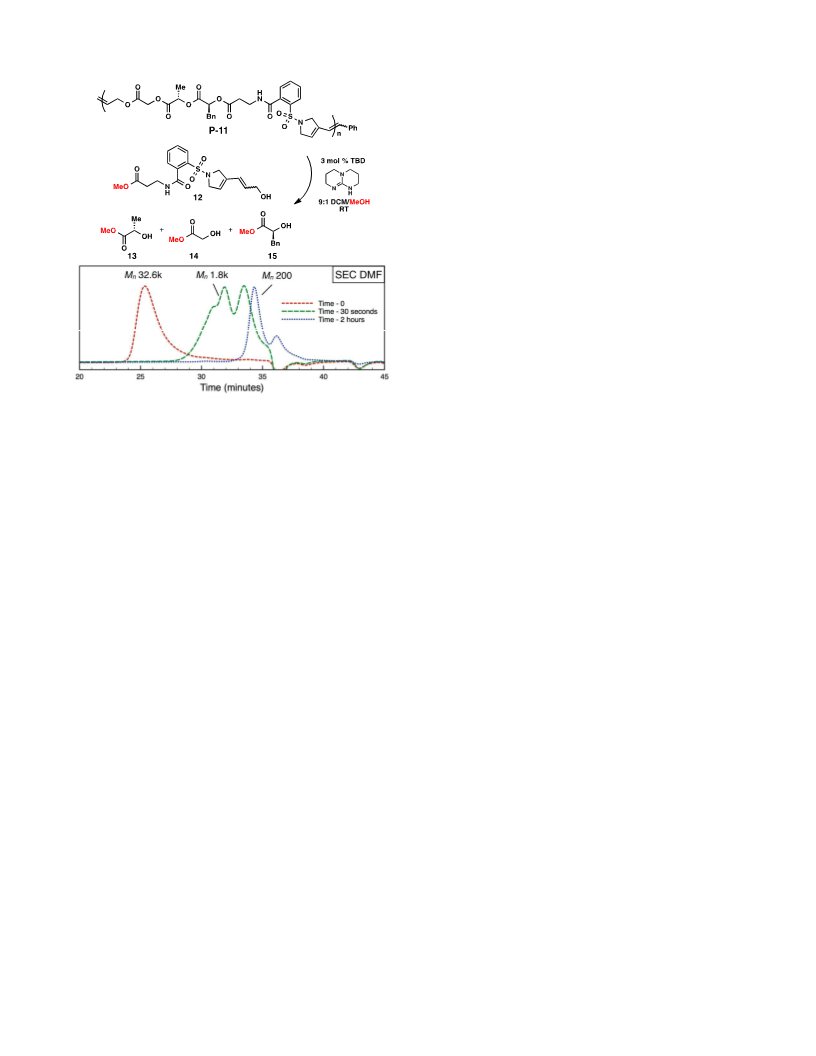

Scheme 4. Degradation of P-11 with TBD
*hawker@mrl.ucsb.edu
1
2
3
4
5
6
7
8
9
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
6
Notes
The authors declare no competing financial interest.
ACKNOWLEDGMENTS
We thank the MRSEC program of the National Science
Foundation (DMR 1121053, W.R.G. and C.J.H.) for fund-
ing. W.R.G thanks the NIH for a postdoctoral fellowship
(F32GM108323). We also thank Dr. Guang Wu (UCSB)
for X-ray analysis.
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
REFERENCES
1
. (a) Lutz, J.-F., Polym. Chem. 2010, 1, 55-62; (b) Badi, N.; Lutz,
J.-F., Chem. Soc. Rev. 2009, 38, 3383.; (c) Lutz, J.-F.; Ouchi, M.;
Liu, D. R.; Sawamoto, M., Science 2013, 341.
2. (a) Merrifield, R. B., J. Am. Chem. Soc. 1963, 85, 2149; (b)
Espeel, P.; Carrette, L. L. G.; Bury, K.; Capenberghs, S.;
Martins, J. C.; Du Prez, F. E.; Madder, A., Angew. Chem. Int.
Ed. 2013, 52, 13261; (c) Pfeifer, S.; Zarafshani, Z.; Badi, N.; Lutz,
J.-F., J. Am. Chem. Soc. 2009, 131, 9195; (d) Rosales, A. M.;
Segalman, R. A.; Zuckermann, R. N., Soft Matter 2013, 9, 8400.
3
4
. Chen, Y.; Guan, Z., J. Am. Chem. Soc. 2010, 132, 4577.
. (a) Atallah, P.; Wagener, K. B.; Schulz, M. D., Macromolecules
013, 46, 4735; (b) Li, Z.-L.; Lv, A.; Du, F.-S.; Li, Z.-C.,
Macromolecules 2014, 47, 5942.
with a dramatic molecular weight reduction ob-
served after only 30 seconds and complete conver-
sion to small molecule methyl esters (12–15) after two
hours (Scheme 4). These degradation experiments
highlight the enabling nature of this macrocyclic
ROMP strategy for accessing sequence-defined pol-
ymers, as well as for introducing specific properties
into these materials.
2
5. (a) Pfeifer, S.; Lutz, J.-F., J. Am. Chem. Soc. 2007, 129, 9542; (b)
Schmidt, B. V. K. J.; Fechler, N.; Falkenhagen, J.; Lutz, J.-F.,
Nat. Chem. 2011, 3, 234; (c) Zamfir, M.; Lutz, J.-F., Nat.
Commun. 2012, 1138; (d) Moatsou, D.; Hansell, C. F.; O'Reilly,
R. K., Chem. Sci. 2014, 5, 2246.
6
. (a) Hibi, Y.; Ouchi, M.; Sawamoto, M., Angewandte Chemie
2011, 123, 7572; (b) Niu, J.; Hili, R.; Liu, D. R., Nat. Chem. 2013,
5, 282.
In summary, a small molecule polymerization trig-
ger 6 has been developed that allows for the facile
synthesis and polymerization of unstrained macro-
cyclic sequences. For the first time, polymers with
arbitrary functionality (ester, amide, sulfonamide,
aliphatic, aromatic, heterocyclic, etc.) within the
backbone can be produced while still providing con-
trol over molecular weight and molecular weight
distribution. Future work will examine the general
nature of this platform and its application to the
synthesis copolymers with traditional ROMP mon-
omers for the creation of new functional materials
with applications in fields ranging from catalysis to
self-assembly to drug delivery.
7. (a) Zhang, J.; Matta, M. E.; Hillmyer, M. A., ACS Macro Lett.
2012, 1, 1383; (b) Kobayashi, S.; Pitet, L. M.; Hillmyer, M. A., J.
Am. Chem. Soc. 2011, 133, 5794.
8
. (a) Gody, G.; Maschmeyer, T.; Zetterlund, P. B.; Perrier, S.,
Macromolecules 2014, 47, 3451; (b) Anastasaki, A.; Nikolaou,
V.; Pappas, G. S.; Zhang, Q.; Wan, C.; Wilson, P.; Davis, T. P.;
Whittaker, M. R.; Haddleton, D. M., Chem. Sci. 2014, 5, 3536.
9. Hoye, T. R.; Jeffrey, C. S.; Tennakoon, M. A.; Wang, J.; Zhao,
H., J. Am. Chem. Soc. 2004, 126, 10210.
10. (a) Park, H.; Choi, T.-L., J. Am. Chem. Soc. 2012, 134, 7270; (b)
Park, H.; Lee, H.-K.; Choi, T.-L., J. Am. Chem. Soc. 2013, 135,
10769.
11. Lee, O. S.; Kim, K. H.; Kim, J.; Kwon, K.; Ok, T.; Ihee, H.; Lee,
H.-Y.; Sohn, J.-H., J. Org. Chem. 2013, 78, 8242.
12. Kang, E.-H.; Yu, S. Y.; Lee, I. S.; Park, S. E.; Choi, T.-L., J. Am.
Chem. Soc. 2014, 136, 10508.
13. During polymerization a monomer isomerization process is
observed (15-20%); see SI for discussion.
ASSOCIATED CONTENT
14. (a) Li, J.; Rothstein, S. N.; Little, S. R.; Edenborn, H. M.;
Meyer, T. Y., J. Am. Chem. Soc. 2012, 134, 16352; (b) Li, J.;
Stayshich, R. M.; Meyer, T. Y., J. Am. Chem. Soc. 2011, 133,
Experimental procedures for preparation of all compounds
and characterization data for all compounds. This material
is available free of charge via the Internet at
http://pubs.acs.org.
6910.
1
5. (a) Takizawa, K.; Nulwala, H.; Hu, J.; Yoshinaga, K.; Hawker,
C. J., J. Poly. Sci., Part A: Polym. Chem. 2008, 46, 5977; (b)
Takizawa, K.; Tang, C.; Hawker, C. J., J. Am. Chem. Soc. 2008,
130, 1718.
AUTHOR INFORMATION
16. Fishman, J. M.; Kiessling, L. L., Angew. Chem. Int. Ed. 2013, 52,
5061.
Corresponding Author
*willgute@mrl.ucsb.edu
17. Leibfarth, F. A.; Moreno, N.; Hawker, A. P.; Shand, J. D., J.
Poly. Sci., Part A: Polym. Chem. 2012, 50, 4814.
ACS Paragon Plus Environment

Page 5 of 5
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
5
ACS Paragon Plus Environment
