Unexpected Photoisomerization of a Pincer-type Amido Ligand Leads to
Facial Coordination at Pt(IV)
Seth B. Harkins and Jonas C. Peters*
DiVision of Chemistry and Chemical Engineering, Arnold and Mabel Beckman Laboratories of
Chemical Synthesis, California Institute of Technology, Pasadena, California 91125
Received November 22, 2005

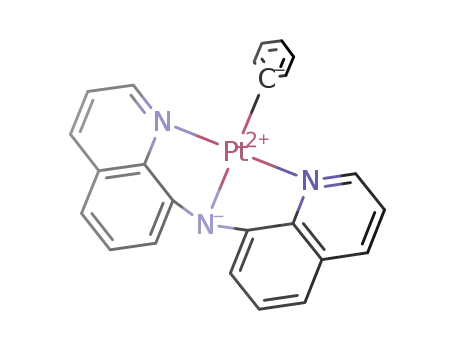

Scheme 1
The divalent complex (BQA)PtMe undergoes oxidative addition with
MeI to afford the octahedral complex cis-(mer-BQA)PtMe2I
bis(8-quinolinyl)amide . When this molecule is irradiated with
{
(BQA)-
)
}
visible light, it isomerizes to (fac-BQA)PtMe2I, where the BQA ligand
adopts an unexpected facial coordination mode. The amide nitrogen
in this molecule is sp3 hybridized and can be easily quarternized
with HBF4, resulting in [H(fac-BQA)PtMe2I][BF4], with only minor
perturbation to the coordination sphere.
Scheme 2
Pincer-type amido ligands constructed using diarylamido
backbones are considerably more flexible than one might
expect.1-3 For example, the tridentate diarylamides [PNP]-
and [SNS]- can exhibit the expected mer configuration when
bound to a transition metal (e.g., square planar [SNS]CuCl)
or can conversely adopt a highly twisted structure in
bimetallic systems (e.g., D2 {(SNS)Cu}2.)2 The inherent
stability of these D2 twisted structure types was first noted
from the dimeric structure of {(BQA)Li}2 (BQA ) bis(8-
quinolinyl)amido).3 We now report the surprising discovery
that the pincer-type BQA ligand can accommodate, and may
even thermodynamically prefer, a facially coordinated ge-
ometry for a mononuclear, octahedral Pt(IV) center. This
geometry gives rise to an atypical amido substituent that is
sp3 rather than sp2 hybridized.4 The possibility for such
geometric flexibility is important to note with respect to the
growing family of diarylamido pincer-type ligands.5,6
(BQA)PtOTf reacts with benzene in a base-promoted process
(NiPr2Et) to generate (BQA)PtPh and a stoichiometric
equivalent of [HNiPr2Et][OTf].7 Whereas this reaction re-
quired elevated temperatures (ca. 150 °C) and extensive
reaction times (∼36 h), the addition of B(C6F5)3 to
(BQA)PtMe (1) in benzene facilitates a similar transforma-
tion at 23 °C within seconds (Scheme 1, see Supporting
Information). Because Pt(IV) intermediates are likely opera-
tive (e.g., [(BQA)Pt(H)(Ph)(L)]+)8,9 in the transformation,
we sought to examine a well-defined (BQA)Pt(II/IV) redox
couple.10
The addition of excess MeI to 1 in acetone solution suits
this purpose to afford cis-(mer-BQA)PtMe2I (2) as a purple
solid in very good yield (Scheme 2). The reaction proceeds
sluggishly at 25 °C and needs to be heated at 70 °C for 18
h to reach completion. Complex 2 exhibits an intense
absorption at 534 nm (ꢀ 15 500 M-1 cm-1) that is slightly
red-shifted relative to 1 (λmax ) 527 nm (ꢀ 12 000 M-1
The system of interest was elucidated while probing the
reaction chemistry of square planar (BQA)Pt-X systems (X
) OTf, Me, Ph). We had previously established that
* To whom correspondence should be addressed.
(1) Harkins, S. B.; Peters, J. C. J. Am. Chem. Soc. 2005, 127, 2030-
2031.
1
cm-1)).7 There are three diagnostic resonances in the H
(2) Harkins, S. B.; Peters, J. C. J. Am. Chem. Soc. 2004, 126, 2885-
NMR spectrum that exhibit strong 195Pt-H coupling: the
2893.
3
(3) Peters, J. C.; Harkins, S. B.; Brown, S. D.; Day, M. W. Inorg. Chem.
2001, 40, 5083-5091.
2-position of the quinoline ring (8.71 ppm, JPtH ) 41 Hz),
(4) Fryzuk, M. D.; Joshi, K.; Chadha, R. K. J. Am. Chem. Soc. 1989,
111, 4498-4500.
(7) Harkins, S. B.; Peters, J. C. Organometallics 2002, 21, 1753-1755.
(8) Shilov, A. E.; Shul’pin, G. B. Chem. ReV. 1997, 97, 2879-2932.
(9) Stahl, S. S.; Labinger, J. A.; Bercaw, J. E. Angew. Chem., Int. Ed.
1998, 37, 2181-2192.
(5) Ozerov, O. V.; Guo, C. Y.; Papkov, V. A.; Foxman, B. M. J. Am.
Chem. Soc. 2004, 126, 4792-4793.
(6) Liang, L. C.; Lee, W. Y.; Yin, C. C. Organometallics 2004, 23, 3538-
3547.
(10) Rendina, L. M.; Puddephatt, R. J. Chem. ReV. 1997, 97, 1735-1754.
4316 Inorganic Chemistry, Vol. 45, No. 11, 2006
10.1021/ic052014h CCC: $33.50
© 2006 American Chemical Society
Published on Web 04/25/2006

COMMUNICATION
Figure 1. Solid-state molecular structures (50% ellipsoids) for 2, 3, and 4 (BF4 anion omitted).
Table 1. Bond Lengths and Angles for (mer-BQA)PtMe2I (2), (fac-BQA)PtMe2I (3), and [H(fac-BQA)PtMe2I][BF4] (4)
2
3
4
2
3
4
Pt-N1
Pt-N2
Pt-N3
Pt-I
2.008(4) Å
2.033(3) Å
2.017(4) Å
2.783(1) Å
2.088(5) Å
2.102(5) Å
2.137(3) Å
2.036(3) Å
2.146(3) Å
2.630(2) Å
2.052(3) Å
2.045(3) Å
2.152(4) Å
N2-Pt-I
90.16(9)°
81.47(16)°
81.82(16)°
163.22(17)°
87.15(17)°
131.93(42)°
177.73(7)°
81.06(10)°
80.53(10)°
97.50(10)°
90.55(12)°
114.82(25)°
177.95(15)°
80.62(11)°
-
94.67(12)°
87.08(16)°
114.02(17)°
2.135(6) Å
N2-Pt-N1
b
b
-
N2-Pt-N3
2.598(1) Å
N1-Pt-N3
Pt-C19a
Pt-C20
2.152(4) Å
C19{10}-Pt-C20{10}a
C8-N2-C17{8′}c
b
-
a C17, C19, and C20 corresponds to 2 and 3, C8′ and C10 corresponds to 4. b Values are omitted because they are generated by the symmetry transformation
{x, -y + 1/2, z}. c C8′ generated by a symmetry transformation {x, -y + 1/2, z}.
the equatorial methyl group trans to the amido N atom (1.67
ppm, 2JPtH ) 60 Hz), and the axial methyl group (1.43 ppm,
2JPtH ) 70 Hz). These assignments are supported by a 1D
NOE coupling experiment, performed by saturation (0.5 s
mixing time) of the 2-position proton of the quinoline ring.
As expected, NOE is observed to the equatorial methyl
protons, but no NOE is observed to the axial methyl protons.
The solid-state structure of 2 was determined by X-ray
diffraction (Figure 1) and confirms the cis relationship
between the methyl groups and axial placement of the iodo
ligand.
Oxidative addition using d3-MeI under the same conditions
affords a 1:1 mixture of axial and equatorial CD3 products
(1H and 2H NMR). This result suggests a labile iodide ligand
in acetone solution that facilitates methyl group isomeriza-
tion, in accord with observations made by Puddephatt and
co-workers concerning the {cis-1-(NdCHC6H4)-2-(Nd
CHC6H5)C6H10}PtMe2I system.11
photoisomerized to trans-(mer-BQA)PtMe2I, an isomer of
2 in which the iodide ligand is coordinated in the equatorial
position, trans to the amido N atom.
Single crystals of the new product were subjected to XRD
analysis, which firmly established the identity of the pho-
toproduct as cis-(fac-BQA)PtMe2I, 3 (Figure 1). The BQA
ligand in 3 is coordinated facially, and the two methyl groups
are cis disposed to one another (90.5(1)°) and, therefore, trans
to the quinolinyl N-donor nitrogen ligands. The most
interesting structural aspect of 3 is that the amide donor is
highly pyramidalized and is best described as sp3 hybridized,
reflected by the contraction of the C8-N2-C17 angle from
131.93(42)° in 2 to 114.82(25)° in 3. This geometry at
nitrogen had not to our knowledge been previously observed
for transition metal diarylamide complexes. Also distinctive
in the structure of 3 is that the iodide ligand now resides at
the position trans to the amido N donor and that the Pt-I
bond distance exhibits a significant contraction (ca. 0.15 Å)
upon isomerization from 2 to 3 (see Table 1 for all key
structural parameters). This contraction presumably reflects
the greater trans influence of a methyl versus the amido
substituent. The approximately tetrahedral geometry at the
amide nitrogen in 3 causes a dramatic decrease in its lone
pair donation to Pt, indicated by a large shift in an amide-
to-Pt LMCT band (534 nm in 2; 422 nm in 3). The charge-
