The Synthesis of 1-(4-Triethoxysilyl)phenyl)-4,4,4-trifluoro-1,3-
butanedione, a Novel Trialkoxysilane Monomer for the
Preparation of Functionalized Sol-gel Matrix Materials
Christopher J. Peeples, Raghu Ram Earni and John C. DiCesare *
8
00 South Tucker Drive, Department of Chemistry and Biochemistry, The University of Tulsa,
Tulsa, Oklahoma, 74104, USA
*
Author to whom correspondence should be addressed; E-mail: john-dicesare@utulsa.edu;
Tel.: +918-631-3520; Fax: +918-631-3404.
Received: 23 September 2008; in revised form: 3 October 2008 / Accepted: 7 October 2008 /
Published: 20 October 2008
Abstract: The title compound, 1-(4-triethoxysilyl)phenyl)-4,4,4-trifluoro-1,3-butanedione,
was synthesized in a three-step sequence starting from 2-(4-bromophenyl)propene.
Containing both a trialkoxysilyl and a substituted 1,3-butanedione functional grouping
within its structure, this new silane is a viable starting material for the preparation of
functionalized sol-gel materials.
Keywords: Trialkoxysilane, 4,4,4-Trifluoro-1-phenyl-1,3-butanedione (4-TPB), Sol-gel,
Molecular imprinting.
Introduction
The use of molecular imprinting on a silica sol-gel thin film constitutes an important process for the
development of chemical sensor materials [1-6]. In our present efforts to develop a fluorometric
sensing material for organophosphonate nerve agents using a templated sol-gel matrix incorporating
the Eu(III) cation [7-9], initial studies using the ligand 4,4,4-trifluoro-1-phenyl-1,3-butanedione (1)
seemed to indicate that the 4,4,4-trifluoro-1,3-butanedionyl moiety was the superior binding group for
use in forming the desired ligand-Eu(III) complex. In view of this observation, it was envisioned that
the use of an appropriate trialkoxysilyl monomer incorporating this binding group such as the silane 1-

Molecules 2008, 13
2602
(
4-(triethoxysilyl)phenyl)-4,4,4-trifluoro-1,3-butanedione (2) would allow for the covalent integration
of the ligand-Eu(III) complex into the sol-gel matrix in the initial stages of the overall molecular-
imprinting process. In this study, we wish to report the successful preparation of 2, a new
triethoxysilane monomer that we are using in this study.
Figure 1. 4,4,4-Trifluoro-1-phenyl-1,3-butanedione (1) and the title compound 2.
Results and Discussion
In our attempts to prepare 2, the two main issues of interest were the successful introduction of
both the triethoxysilyl and 1,3-diketone functionalities and the use of reaction conditions that would
not hydrolyze the acid-labile triethoxysilyl portion of the molecule. While this sensitivity to acid
hydrolysis led to some difficulties initially, we were eventually successful in devising an efficient and
cost-effective synthesis for this potentially-useful and interesting silane monomer.
In the first of our attempts, the dimethyl ketal of 4-bromoacetophenone was converted to the
corresponding Grignard reagent which was then reacted with tetraethoxysilane (TEOS) to afford the
expected triethoxysilyl dimethyl ketal 3. It was thought that a selective hydrolysis of the ketal
grouping might yield the anticipated ketone 4-(triethoxysilyl)acetophenone (7) which could then be
acylated via a Claisen condensation to afford 2. However, numerous difficulties were encountered in
our attempts to selectively-hydrolyze the ketal with the triethoxysilyl group also being so affected.
Figure 2. Ketal 3 and Enamine 4.

Molecules 2008, 13
2603
In another related attempt, the morpholine enamine derived from 4-bromoacetophenone was
submitted to the same Grignard sequence to yield the anticipated triethoxysilyl enamine 4. It was
expected that the acylation of 4 with trifluoroacetic anhydride [10], followed up with the "traditional"
Stork work-up, could potentially afford 2. However, the same difficulties with over-hydrolysis were
encountered here as well. A successful synthesis of 2 was accomplished by employing a more
traditional approach using 2-(4-bromophenyl)propene (5) as the primary starting material [11, 12]. The
Grignard reagent of 5 was reacted with TEOS to give 2-(4-(triethoxysilyl)phenyl)propene (6) in 81%
yield.
Scheme 1. The synthesis of 2 form 2-(4-bromopheny)propene (5).
The subsequent ozonolysis of 6 afforded 4-(triethoxysilyl)acetophenone (7) [13, 14] in 70% yield
which was then reacted with a five-fold excess of 2,2,2-trifluoroethyl trifluoroacetate in an LDA-
directed Claisen condensation [15] to provide the title compound 1-(4-(triethoxysilyl)-phenyl)-4,4,4-
1
trifluoro-1,3-butanedione (2) in 73% yield. In characterizing 2, H-NMR analysis indicated that the
enol tautomer was the predominant form present (>98%) with virtually none of the keto form being
detected.

Molecules 2008, 13
2604
Conclusions
The route as devised for the preparation of 2 represents an efficient and cost-effective process that
is readily amendable to scale-up. Following our successful synthesis of 2, subsequent follow-up
studies have indicated that this monomer complexes quite well with the Eu(III) ion and does exhibit
fluorometric activity in the presence of our VX-simulant compounds making it a viable candidate for
fabricating our desired sol-gel materials. This encouraging observation tends to imply that this
monomer may have other potential uses within the realm of molecular imprinting and templated sol-
gel production. The results of our current efforts in this project will be the focus of future journal
articles.
Experimental
General
All reactions were run under dry N . Any reactions involving the generation or use of either
2
Grignard reagents or LDA were run in glassware previously flame-dried under vacuum. Anhydrous
acetone, TEOS, dimethylsulfide, anhydrous diethyl ether, and 2,2,2-trifluoroethyl trifluoroacetate were
obtained from Aldrich and were used as received. LDA was obtained in the form of a commercial
solution from Aldrich (1.5 M solution in cyclohexane) and was used as received. Anhydrous THF was
prepared by distillation from a solvent still containing Na/benzophenone ketal immediately prior to
use. Vacuum distillations were carried out using a Kugelrohr apparatus with all boiling points being
reported at 0.20 mmHg. A PCI ozonizer (1 lb/day generation capacity) was used for the ozonolysis
2
reactions with dry O being used as the feed gas source. FT-IR spectra were obtained using a Nicolet
1
13
Avatar 360 spectrophotometer with NaCl plates being used for all thin films. H-NMR and C-NMR
spectra were obtained using a Varian Unity Plus 300 MHz spectrometer and were measured at 300 and
7
5 MHz respectively, with all chemical shifts reported in ppm using TMS as the internal standard and
all determined J values reported in Hz.
2
-(4-(Triethoxysilyl)phenyl)propene (6). Into a 250-mL round-bottom three-neck flask were placed
magnesium turnings (875 mg, 36.0 mmol) and a magnetic stirring bar and the resulting assembly was
flame-dried under vacuum. The flask was then fitted with a reflux condensor and pressure-equalized
2
dropping funnel, was flame-dried under a stream of dry N and allowed to cool to RT. The dropping
funnel was charged with a solution of 2-(4-bromophenyl)propene (5) (5.91 g, 30.0 mmol) in anhydrous
THF (60 mL). Approximately 15 mL of the bromide-THF solution was discharged from the dropping
funnel, 1,2-dibromoethane (four drops) was added to the solution in the flask and the resulting mixture
was heated to reflux and stirred until the formation of the Grignard reagent had commenced (circa 10
min). The remainder of the bromide-THF solution was then added dropwise with continued heating
and stirring over the course of 1 h and the reaction mixture was refluxed with stirring for an additional
9
0 min. The reaction mixture was allowed to cool to RT, a solution of tetraethoxysilane (6.87 g, 7.35
mL, 33.0 mmol) in anhydrous THF (10 mL) was added rapidly with stirring over the course of 2 min,
and the resulting mixture was refluxed with continued stirring for an additional 16 h. The reaction

Molecules 2008, 13
2605
°
mixture was then allowed to cool to RT, was cooled to 0-5 C by immersion in an icebath, sat.
NH Cl(aq) (15 mL) was added dropwise with vigorous stirring over the course of 5 min and the
4
resulting mixture was stirred for an additional 10 min with continued cooling. The mixture was filtered
®
through Celite and the collected magnesium salts were washed with three portions of ether (50 mL
each). The combined organic extracts were washed with water and saturated aqueous NaCl, dried
(
4
MgSO ) and concentrated in vacuo to afford the crude silane product as a thick, golden-yellow oil
that was purified by vacuum distillation: 6.78 g (24.2 mmol, 81%); isolated as a clear, colorless thick
°
oil; bp 92-95 C (Kugelrohr, 0.20 mmHg); FT IR (thin film) 1628 (mod.), 1616 (w)
-
1 1
cm ; H-NMR (CDCl ) δ 7.69 (2H, d, J = 8.1 Hz), 7.52 (2H, d, J = 8.1 Hz), 5.45 (1H, d, J
geminal
= 1.5
3
13
Hz), 5.15 (1H, d, Jgeminal = 1.5 Hz), 3.92 (6H, q, J = 6.3 Hz), 2.19 (3H, s), 1.29 (9H, t, J = 6.3 Hz); C-
NMR (CDCl ) δ 143.4, 143.3, 135.1, 130.1, 125.2, 113.3, 59.0, 21.9, 18.50.
3
4

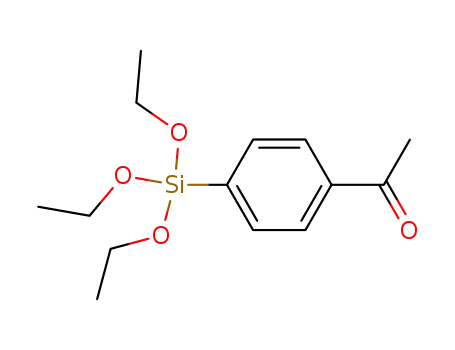

-(Triethoxysilyl)acetophenone (7). Into a 200-mL round-bottom three-neck reaction flask equipped
with a magnetic stirring bar, a fire-polished bubbler tube, a glass stopper and a gas outlet portal was
placed a solution of 6 (3.00 g, 10.7 mmol) dissolved in a 1:4 (v/v) mixture of dry ethanol in
°
dichloromethane (60 mL) and the stirred solution was cooled to -78 C. With continued cooling and
3
stirring, the solution was treated with O for 5 min [16]. Following the purgement of excess ozone gas
from the solution, dimethyl sulfide (3.5 mL, 3.0 g, 48.3 mmol) was added to the cooled and stirred
solution over the course of 2 min and the resulting mixture was allowed to warm to and stir at RT for
an additional 12 h. The reaction mixture was concentrated in vacuo and the isolated residue was
dissolved into ether (50 mL). The resulting ethereal solution was washed with two portions of water
(
4
50 mL each) and saturated aqueous NaCl, dried (MgSO ) and concentrated in vacuo to afford the
crude ketone product as a thick, light-yellow oil that was purified by vacuum distillation: 2.12 g (7.51
°
mmol, 70%); isolated as a clear, colorless thick oil; bp 128-131 C (Kugelrohr, 0.20 mmHg); FT IR
-
1
1
(
3
thin film) 1689 cm (vs, C=O); H-NMR (CDCl ) δ 7.95 (2H, d, J = 8.1 Hz), 7.79 (2H, d, J = 8.1 Hz),
1
3
3
1
.89 (6H, q, J = 7.1 Hz), 2.63 (3H, s), 1.26 (9H, t, J = 7.1 Hz); C-NMR (CDCl
37.5, 135.3, 127.5, 59.1, 26.9, 18.4.
3
) δ 198.7, 138.6,
1
-(4-(Triethoxysilyl)phenyl)-4,4,4-trifluoro-1,3-butanedione (2). The general approach described by
Zayia [15] was followed with several modifications. A 50-mL round-bottom three-neck reaction flask
was flame-dried under vacuum and was equipped with a magnetic stirring bar, three rubber septa and a
positive-pressure N
2
inlet line. The flask was charged with a solution of 7 (1.00 g, 3.55 mmol)
°
dissolved in anhydrous diethyl ether (15 mL). The flask was cooled to -78 C, and with stirring, a 1.5 M
solution of LDA in cyclohexane (2.61 mL, 3.91 mmol of LDA) was added dropwise with a syringe
°
over the course of 2 min and the resulting mixture was stirred at -78 C for an additional 90 min. With
continued cooling and stirring, neat 2,2,2-trifluoroethyl trifluoroacetate (2.38 mL, 3.48 g, 17.75 mmol)
was quickly added over the course of 1 min with a syringe and the resulting mixture was stirred at -
°
7
8 C for 4 h. Neat H
2
SO
4
(0.40 mL, 0.732 g, 7.46 mmol) was then added in one portion with vigorous
stirring using a microsyringe and the reaction mixture was allowed to warm to RT. The mixture was
poured into a 125-mL separatory funnel containing ether (25 mL) and water (25 mL), the organic layer
3
was isolated, and was washed with water, 10% aqueous NaHCO and saturated aqueous NaCl, dried
(
MgSO ) and concentrated in vacuo to afford the title diketone 2 as a thick, clear oil that was used
4

Molecules 2008, 13
2606
without further purification: 0.98 g (2.59 mmol, 73%); FT IR (thin film) 3520-3280 (mod , O-H), 1605
1
(
vs and broad, enolic form), and 1162 cm-1 (vs and broad, C-O); H-NMR (CDCl ) d 14.9 (1H, bs),
3
7
.95 (2H, d, J = 7.8 Hz), 7.80 (2H, d, J = 7.8 Hz), 6.62 (1H, s), 3.87 (6H, q, J = 7.2 Hz), 1.31 (9H, t, J
1
3
2
=
7.2 Hz); C-NMR (CDCl ) d 185.8, 177.8 (q, J = 35.9 Hz), 138.9, 135.3, 130.3, 126.5, 117.1 (q, ,
3 CF
1
J
CF = 284.3 Hz), 92.5, 59.0, 18.2. The product as isolated was found to be of sufficient purity for use
in the subsequent sol-gel studies. Attempts to obtain an analytical sample of 2 via vacuum distillation
failed due to the labile nature of the product though it was possible to obtain an enriched fraction of
°
>
95% purity (bp 142-146 C, Kugelrohr, 0.20 mmHg).
Acknowledgements
This material is based upon work supported by the U.S. Army Research Laboratory and the U.S.
Army Research Office under grant number D8AD190110476.
References and Notes
1
.
.
Collinson, M. Sol-gel strategies for the preparation of selective materials for chemical analysis.
Crit. Rev. Anal. Chem. 1999, 29, 289-311.
2
Dickey, F. H. The Preparation of Specific Adsorbents. Proc. Natl. Acad. Sci. USA 1949, 35, 227-
2
29.
3
.
.
Dickey, F. H. Specific Adsorption. J. Phys. Chem. 1955, 59, 695-707.
4
Sasaki, D. Y.; Rush, D. J.; Daitch, C. E.; Alalm, T. M.; Assink, R. A.; Ashely, C. S.; Brinker, J.
C.; Shea, K. J. In Molecular and Ionic Recognition with Imprinted Polymers, ACS Symposium
Series 703; Bartsch, R. A., Maeda, M., Eds.; American Chemical Society: Washington DC, USA,
1
998; pp. 314-324.
5.
6.
7.
Makote, R.; Collinson, M. Template Recognition in Inorganic-Organic Hybrid Films Prepared
by the Sol-Gel Process. Chem. Mater. 1998, 10, 2440.
Makote, R.; Collinson, M. Dopamine recognition in templated silicate films. Chem. Comm.
1
998, 3, 425.
Kepley, L. J.; Crooks, R. M.; Ricco, A. J. A. selective SAW-based organophosphonate chemical
sensor employing a self-assembled, composite monolayer: a new paradigm for sensor design.
Anal. Chem. 1992, 64, 3191-3193.
8
9
.
.
Hierlemann, A.; Ricco, A. J.; Bodenhofer, K.; Gopel, W. Effective Use of Molecular
Recognition in Gas Sensing: Results from Acoustic Wave and in Situ FT-IR Measurements.
Anal. Chem. 1999, 71, 3022-3035.
Thomas, R. C.; Hierlemann, A.; Staton, A. W.; Hill, M.; Ricco, A. J. Reflectance Infrared
Spectroscopy on Operating Surface Acoustic Wave Chemical Sensors during Exposure to Gas-
Phase Analytes. Anal. Chem. 1999, 71, 3615-3621.
1
1
0. Stork, G.; Brizzolara, A.; Landesman, H.; Szmuszkovicz, J.; Terrell, R. The Enamine Alkylation
and Acylation of Carbonyl Compounds. J. Am. Chem. Soc. 1963, 85, 207-222.
1. Fraenkel, G.; Geckle, J. M. Influence of substituents on NMR and barriers to rotation in tert-
benzyllithium compounds. J. Am. Chem. Soc. 1980, 102, 2869-2880.

Molecules 2008, 13
2607
1
1
2. Seymour, D.; Wolfstirn, K. B. Preparation and Properties of Trimethylsilylmethanol. J. Am.
Chem. Soc. 1948, 70, 1177-1179.
3. For an alternate preparation of 7 via a Rh(I)-catalyzed silylation of 4-iodoacetophenone, see:
Murata, M.; Ishikura, M.; Nagata, M.; Watanabe, S.; Masuda, Y. Rhodium(I) Catalyzed
Silylation of Aryl Halides with Triethoxysilane: Practical Synthetic Route to
Aryltriethoxysilanes. Org. Lett. 2002, 4, 1843-1845.
1
4. For an alternate preparation of 7 via a Pd(0)-catalyzed silylation of 4-iodoacetophenone, see:
Manoso, A. S.; DeShong, P. Improved Synthesis of Aryltriethoxysilanes via Palladium(0)-
Catalyzed Silylation of Aryl Iodides and Bromides with Triethoxysilane. J. Org. Chem. 2001,
6
6, 7449-7455.
1
5. Zayia, G. H. First General Method for Direct Formylation of Kinetically-Generated Ketone
Enolates. Org. Lett. 1999, 1, 989-991.
1
6. Claus, R.; Schreiber, S. Ozonolytic Cleavage of Cyclohexene to Terminally Differentiated
Products: Methyl 6-Oxohexonate, 6,6-Dimethoxyhexanal, Methyl 6,6-Dimethoxyhexanoate.
Org. Synth. 1990, Collective Volume VII, 168.
Sample Availability: Contact the authors.
2008 by the authors; licensee Molecular Diversity Preservation International, Basel, Switzerland.
©
This article is an open-access article distributed under the terms and conditions of the Creative
Commons Attribution license (http://creativecommons.org/licenses/by/3.0/).
