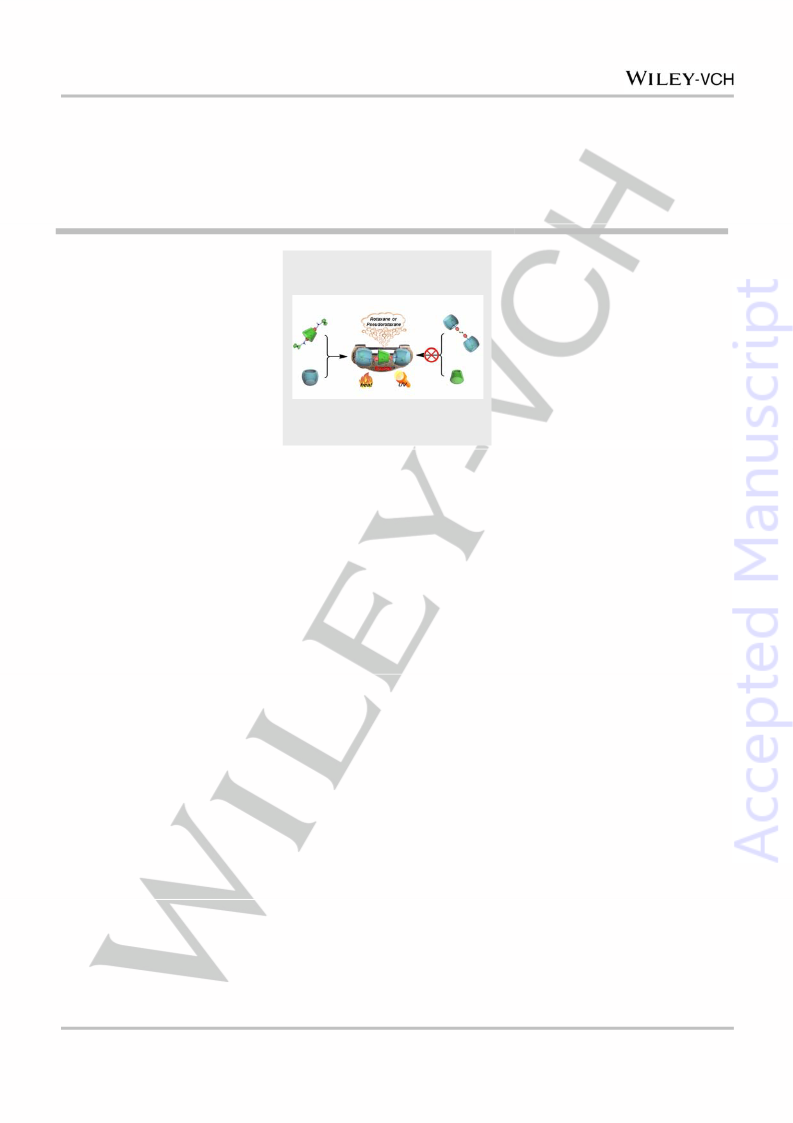

pseudo[4]rotaxane as [2]rotaxane, in which the stoppers is not
the bulky groups in covalent bond, but the cyclic CB[7] by non-
covalent interaction. This new observation will open a door for
designing a wide range of rotaxane, which maybe possess a lot
of specific applications like molecular cars, molecular bearings.
Acknowledgements
We thank the National Natural Science Foundation of China
(Nos. 21372128, 21432004, and 91527301), and the 973
Program (2015CB856500) for financial support.
Keywords: Supramolecular Chemistry • Pseudorotaxane •
Experimental Section
Rotaxane
Materials. All the reagents and solvents were commercially available and
used as received unless otherwise specified purification. The phosphate
buffer solution of pH 7.2 was prepared by dissolving disodium hydrogen
phosphate (Na2HPO412H2O, 25.75 g) and sodium dihydrogen
phosphate (NaH2PO42H2O, 4.34 g) in distilled deionized water (1 L) to
make a 0.1 M solution. The pH value of the buffer solution was then
verified on a pH-meter calibrated with two standard buffer solutions.
[1]
a) M. Xue; Y. Yang; X. Chi; X. Yan and F. Huang, Chem. Rev. 2015,
115, 7398-7501; b) X. Ma and H. Tian, Chem. Soc. Rev. 2010, 39, 70-
80; c) A. Harada; A. Hashidzume; H. Yamaguchi and Y. Takashima,
Chem. Rev. 2009, 109, 5974-6023; d) V. Balzani; A. Credi; F. M.
Raymo and J. F. Stoddart, Angew. Chem. 2000, 112, 3484 –3530;
Angew. Chem. Int. Ed. 2000, 39, 3348-3391; e) E. R. Kay; D. A. Leigh
and F. Zerbetto, Angew. Chem. 2007, 119, 72-196; Angew. Chem. Int.
Ed. 2007, 46, 72-191; f) D.-H. Qu and H. Tian, Chemical Science 2011,
2, 1011-1015; g) Z. Meng; J.-F. Xiang and C.-F. Chen, Chemical
Science 2014, 5, 1520-1525; h) Z. Meng; J.-F. Xiang and C.-F. Chen, J.
Am. Chem. Soc. 2016, 138, 5652-5658; i) Q. Zhang; D.-H. Qu; Q.-C.
Wang and H. Tian, Angew. Chem. 2015, 127, 16015 –16019; Angew.
Chem. Int. Ed. 2015, 54, 15789-15793; j) Z.-Q. Cao; Q. Miao; Q. Zhang;
H. Li; D.-H. Qu and H. Tian, Chem. Commun. 2015, 51, 4973-4976; k)
X. Fu; Q. Zhang; S.-J. Rao; D.-H. Qu and H. Tian, Chemical Science
2016, 7, 1696-1701; l) Q. Zhang; W.-Z. Wang; J.-J. Yu; D.-H. Qu and H.
Tian, Adv. Mater. 2016, DOI: 10.1002/adma.201604948.

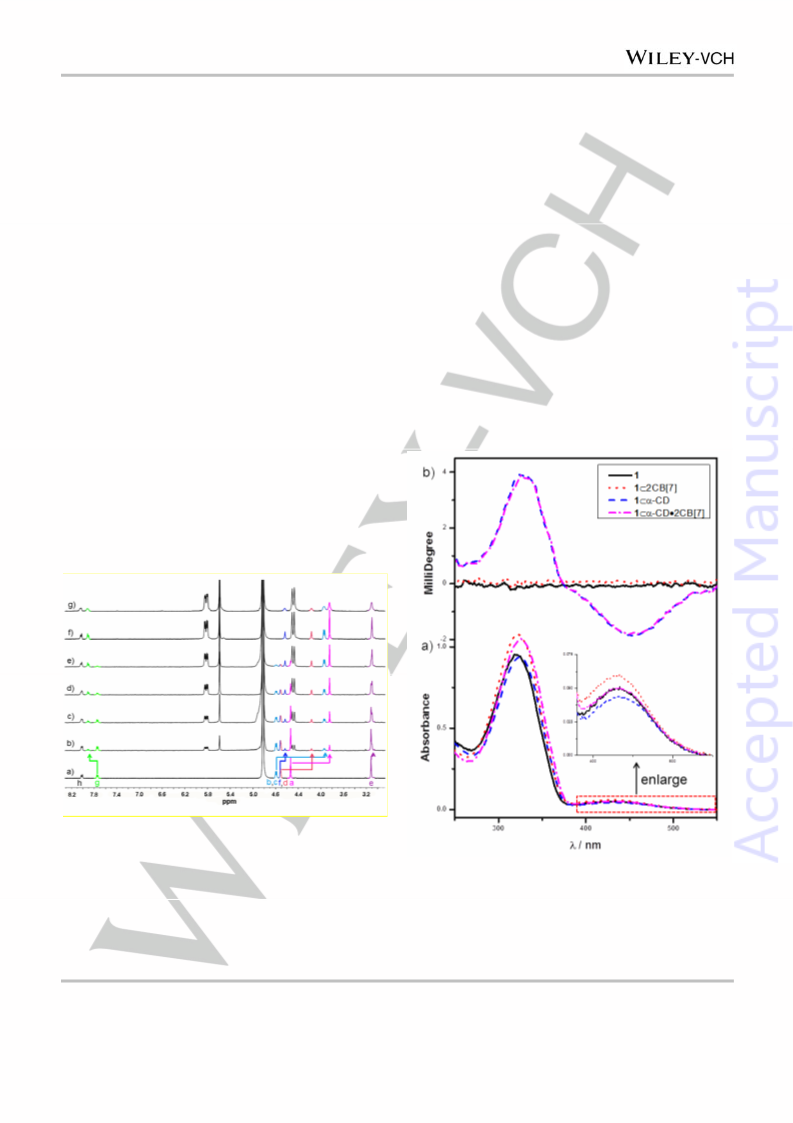

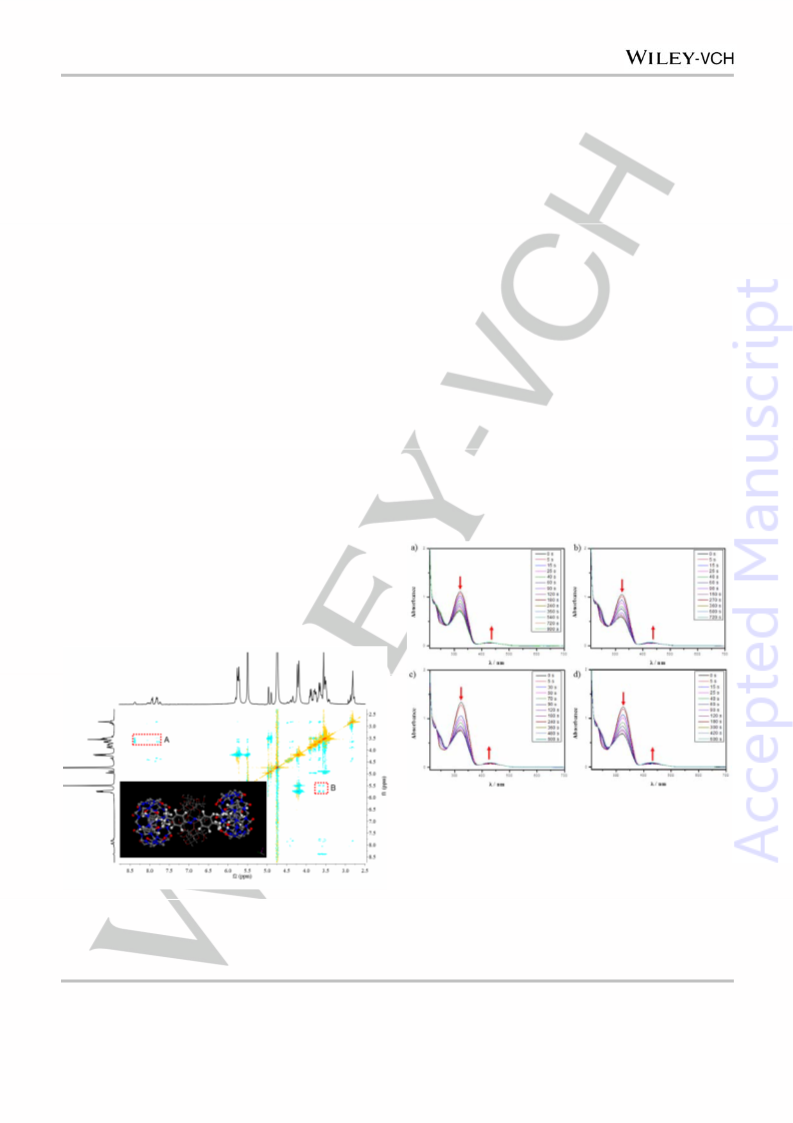

Measurements. NMR spectra were recorded using a Bruker AV400
instrument or a Varian Mercury VX-300 spectrometer in D2O, d6-DMSO.
Electrospray ionization mass spectra (ESI-MS) were measured by
Agilent 6520 Q-TOF-MS. UV-vis spectra were recorded on a UV-vis
spectrometer (light path 10 mm). CD spectra were collected on a
spectropolarimeter in a light path 10 mm quartz cell. The temperature
was controlled by a TCU accessory with temperature probe which was
plunged into the cuvette to measure the sample temperature.
Synthesis of bis-(4-methyl-phenyl)-diazene (A1).
[2]
[3]
a) A. R. Pease; J. O. Jeppesen; J. F. Stoddart; Y. Luo; C. P. Collier and
J. R. Heath, Acc. Chem. Res. 2001, 34, 433-444; b) J. F. Stoddart; D. J.
Williams; D. B. Amabilino; P.-L. Anelli; P. R. Ashton; G. R. Brown; E.
Cordova; L. A. Godinez and W. Hayes, J. Am. Chem. Soc. 1995, 117,
11142-11170; c) D. Xia; P. Wei; B. Shi and F. Huang, Chem. Commun.
2016, 52, 513-516; d) A. Yerin; S. Wilks Edward; P. Moss Gerard and A.
Harada, Pure Appl. Chem. 2008; 80, 2041-2068..
Cuprous chloride (30 g) was added into anhydrous pyridine (170 ml), and
the mixture was kept stirring at room temperature for more than 10 min;
then the solid was filtered and washed with 30 ml pyridine. P-toluidine
(43.2 g) was added slowly into the above filtrate and the mixture was
stirred at least for 12 h with air blowing. The pyridine solution was dried
directly under vacuum. and the solid was washed with large amount of
dichloromethane. The orange solution was dried and further purified by
flash column chromatography to give out orange compound A1 (32.4 g,
75%). 1H NMR (400 MHz,CDCl3, ppm): δ = 7.81 (d, J=8.3, 4H), 7.31 (d,
J=8.1, 4H), 2.43 (s, 6H).
a) X. Liao; G. Chen; X. Liu; W. Chen; F. Chen and M. Jiang, Angew.
Chem. 2010, 122, 4511–4515; Angew. Chem. Int. Ed. 2010, 49, 4409-
4413; b) G. Narayanan; R. Aguda; M. Hartman; C.-C. Chung; R. Boy; B.
S. Gupta and A. E. Tonelli, Biomacromolecules 2016, 17, 271-279; c) C.
Park; K. Oh; S. C. Lee and C. Kim, Angew. Chem. 2007, 119, 1477 –
1479; Angew. Chem. Int. Ed. 2007, 46, 1455-1457.
[4]
[5]
a) H. W. Gibson; Y. X. Shen; M. C. Bheda and C. Gong, Polymer 2014,
55, 3202-3211; b) S. Kang; M. M. Cetin; R. Jiang; E. S. Clevenger and
M. F. Mayer, J. Am. Chem. Soc. 2014, 136, 12588-12591; c) J. Wang;
H.-Y. Zhang; X.-J. Zhang; Z.-H. Song; X.-J. Zhao and Y. Liu, Chem.
Commun. 2015, 51, 7329-7332.
Synthesis of bis-(4-bromomethyl-phenyl)-diazene (A2).
A2 was synthesized and purified according a literature procedure.19
A
mixture of A1 (8.0 g), NBS (17.2 g) and BPO (0.26 g) was added into 360
ml CCl4, the mixture solution was refluxed overnight under Ar gas
atmosphere. The resulting solution was filtered while it was hot and the
filter cake was washed with water. Then the orange product was dried
under vacuum overnight. (9.2g, 65.6%). 1H NMR (400 MHz,CDCl3, ppm):
δ = 7.90 (d, J=8.4, 4H), 7.54 (d, J=8.4, 4H), 4.56 (s, 4H).
a) Q. Zhou; Y. Li; Z. Han; L. Gong; J. Chen; H. Zhang; J. Xia; H. Peng;
S. Fang; B. He; W. Yang; L. Liu; Q. Shen; S. Zong; H. Zhang; X. Zhou;
Y. Hu and W. Sun, Supramol. Chem. 2016, 1-7; b) X. Ma; Q. Wang; D.
Qu; Y. Xu; F. Ji and H. Tian, Adv. Funct. Mater. 2007, 17, 829-837.
a) D. Whang; J. Heo; J. H. Park and K. Kim, Angew. Chem. 1998, 110,
83 – 85; Angew. Chem. Int. Ed. 1998, 37, 78-80; b) Y. Chen and Y. Liu,
Adv. Mater. 2015, 27, 5403-5409.
[6]
[7]
Synthesis of azobenzene-bridged bis-ferrocenes (1).
a) X. Hou; C. Ke; C. J. Bruns; P. R. McGonigal; R. B. Pettman and J. F.
Stoddart, Nat Commun 2015, 6; b) C. Ke; R. A. Smaldone; T. Kikuchi;
H. Li; A. P. Davis and J. F. Stoddart, Angew. Chem. 2013, 125, 399-
405; Angew. Chem. Int. Ed. 2013, 52, 381-387; c) P. Branna; M.
Rouchal; Z. Pruckova; L. Dastychova; R. Lenobel; T. Pospisil; K. Malac
and R. Vicha, Chem. Eur. J. 2015, 21, 11712-11718.
A mixture of A2 (368 mg, 1 mM) and ferrocenemethylamine (972 mg, 4
mM) were dissolved in DMF (50 ml) and degassed. The mixture was
stirred overnight under argon atmosphere, thereafter the precipitation
was filtered and washed with mount of ether, dried in vacuo, and then
gave out pure orange compound 1 (673 mg, 78.5 %). 1H NMR (400 MHz,
DMSO-d6, ppm): δ = 8.03 (d, J = 7.6 Hz, 4H), 7.83 (d, J = 7.6 Hz, 4H),
4.62 – 4.52 (m, 12H), 4.43 (s, 4H), 4.28 (s, 10H), 2.83 (s, 12H). 13C NMR
(101 MHz, DMSO-d6): δ = 152.58, 134.39, 131.66, 122.90, 72.77, 72.30,
70.16, 69.00, 65.50, 65.17, 48.05. ESI-MS: 772.9 [M Br]+, 805.0 [M
Br + MeOH]+.
[8]
[9]
a) J. W. Lee; S. Samal; N. Selvapalam; H.-J. Kim and K. Kim, Acc.
Chem. Res. 2003, 36, 621-630; b) K. Kim; N. Selvapalam and D. H. Oh,
J. Incl. Phenom. Macro. 2004, 50, 31-36.
a) S. Senler; W. Li; M. H. Tootoonchi; S. Yi and A. E. Kaifer, Supramol.
Chem. 2014, 26, 677-683; b) I. W. Wyman and D. H. Macartney, Org.
Biomol. Chem. 2008, 6, 1796-1801; c) D. Sobransingh and A. E. Kaifer,
