Synthesis, spectroscopic properties, thermal properties and aggregation behaviors of
macrogol-substituted phthalocyanines
*
Songül Şahin , Erbil Ağar
Ondokuz Mayıs University, Department of Chemistry, 55139, Samsun, Turkey
Abstract
The synthesis, characterization, spectroscopic data, solubility and aggregation behaviors
depend on the solvents of metalled (Co, Cu, Ni, Zn) and metal free pegylated phthalocyanines
(Pcs) were reported. Precursor phthalonitrile compound (4) for phthalocyanine formation was
synthesized by nucleophilic substitution reaction between tetraethylene glycol substituted
phthalonitrile (2) and tetraethylene glycol monotosylate (3). Related phthalocyanines (4-H, 4-
1
13
Co, 4-Cu, 4-Ni, and 4-Zn) were characterized by FT-IR, H NMR, C NMR, and UV-Vis
spectroscopies and elemental analysis. Thermal stabilities of the phthalocyanines were
determined in the range between room temperature and 1000 °C. Pegylated phthalocyanines
showed high solubility in water and common organic solvents including methanol, ethanol,
acetone, pyridine, 1,4-dioxane, dimethylformamide, dimethylsulfoxide, dichloromethane, and
chloroform. Aggregation states of all phthalocyanines were investigated in the
aforementioned solvents using UV-Vis spectroscopy method. All phthalocyanines were
especially found highly aggregated in their aqueous solutions.
Keywords: Phthalocyanine; Macrogol; Phthalocyanine aggregation; Polyethylene glycol;
Water solubility; PEGylation
*
Corresponding author.
E-mail address: songul.sahin@omu.edu.tr (S.Şahin)

ACCEPTED MANUSCRIPT
1
. Introduction
Phthalocyanines (Pcs) and their derivatives are one of the most studied subjects in functional
material science [1]. Thanks to their constitutional electronic delocalization, they were found
useful for many application areas in different fields [2]. Using them as photosensitizer in
photodynamic therapy is one of these fields [3] . They are also used in optical data storage,
liquid crystals, molecular semiconductors, sensors, photovoltaic devices, electrochromic
devices, non-linear optics, fuel cells [4, 5]. However, phthalocyanine compounds have some
undesirable properties. First of all they are prone to aggregation [6-8]. Phthalocyanine
aggregation is generally defined as coplanar association of the molecules range from
monomer to long-range order complexes by means of secondary interactions. In the
aggregation state, physical and chemical properties of the molecules change compare to their
monomeric state. This aggregation phenomenon is important especially in color,
photodynamic activity, catalytic activity and their relevant applications [9]. The aggregation
is reducible via different approaches including choosing hydrophilic and amphiphilic groups
such as carboxylates, sulfonates, phosphonates, PEGs, and bulky axial substituents at
phthalocyanine macrocyclic [10]. Another problem related to phthalocyanines is solubility [7,
1
1]. The solubility can be increased with bonding to phthalocyanine of carboxylates,
sulfonates, quaternized amino and pyridine groups[12-14]; hydroxyl group, peptides,
oligonucleotides and polyethylene glycol (PEG) groups [13, 14].
Polyethylene glycol, PEG, is a synthetic polymer composed of ethylene oxide monomers.
PEG is nontoxic, nonimmunogenic, nonantigenic, amphiphilic and FDA approved in different
pharmaceutical applications [15]. Pegylation is defined in different ways by different groups
[
15-19]. Most comprehensive definition of pegylation is bound of polyethylene glycols to
molecules that changing from drugs to macromolecules via covalent or non-covalent
interactions [20]. Pegylated molecules have many advantages compare to non-pegylated
counterparts: increased half-life in body and thus, enhanced bioavailability [15, 17, 21-23],
solubility in aqueous medium [21, 23], decreased immunogenicity [15, 17, 21, 23], protection
against enzymatic degredation and reticuloendothelial cells [15, 19, 21, 22], improved tumour
targeting [17, 21], decreased aggregation and increased thermal stability [18].
Directly or indirectly pegylated phthalocyanines have been synthesized by different groups
[
12-14, 24-30]. Our aim in this study is to synthesize of pegylated phthalocyanines with PEG
1

ACCEPTED MANUSCRIPT
4
00 (belong to family of macrogol or polyethylene glycol), to investigate their aggregation
behaviors in different solvents and to determine their thermal stabilities.
2
. Experimental
2
.1. Materials
Tetraethylene glycol (TEG), absolute methanol and ethanol, chloroform, dichloromethane,
hexane, diethyl ether, ethyl acetate, tetrahydrofuran, dimethylformamide, dimethylsolfoxide,
all metal salts (Zn(CH COO) , NiCl , CuCl , CoCl ), anhydrous sodium sulfate, anhydrous
3
2
2
2
2
magnesium sulfate, phthalimide and ammonia solution (25%) were purchased from Sigma-
Aldrich. HCl solution (37-38%) was supplied from J.T. Baker. 1-Pentanol was supplied from
Honeywell Riedel de Haën. Sodium hydride (60% dispersion in mineral oil) was purchased
from ACROS Organics. TLC Plates (Silica Gel 60 F 254) were purchased from Merck. Flash
column chromatography was performed on silica gel (200–400 mesh particle size, from
Sigma Aldrich). Compounds 1 [31], 2 [27] and 3 [32] were synthesized according to the
given articles.
2
.2. Equipment
1
13
Proton and carbon nuclear magnetic resonance spectra ( H NMR, C NMR) were recorded
on Agilent Technologies 400/54/ASP Magnet spectrometer. Elemental analysis results were
obtained from Thermo Scientific Flash 2000 instrument. FTIR spectra were recorded on
Perkin-Elmer spectrum version 10.03.06. TGA measurements were performed by Shimadzu
DTG 60/60H TG/DTA simultaneous measuring instrument. Melting points were measured by
using Stuart SMP 30 instrument. UV-Vis spectra were recorded on Thermo Scientific
evolution array UV-Vis spectrophotometer. TLC plates were visualized by CAMAG UV
Cabinet 4. All samples were weighed by the electronic single pan balance, Precisa XB 220A.
Elektro-Mag M 6040 P Sterilizer was used for drying procedures. A Heidolph MR Hei-
Standard hot plate was used to control the temperatures.
2
2
.3. Synthesis
.3.1. 4-(23-hydroxy-3,6,9,12,15,18,21-heptaoxatricosyloxy)phthalonitrile (4)
A solution of NaH (60% dispersion in mineral oil) (0.48 g, 11 mmol) in THF (30 mL) was
cooled down to 0 °C. A solution of compound 2 (3.5 g, 11 mmol), 4-(2-(2-(2-(2-
2

ACCEPTED MANUSCRIPT
hydroxyethoxy)ethoxy)ethoxy)ethoxy)phthalonitrile, in THF (30 mL) was added drop by drop
to NaH solution and the mixture was stirred for two hours at the same temperature. A solution
of compound 3 (3.83 g, 11 mmol), 2-(2-(2-(2-hydroxyethoxy)ethoxy)ethoxy)ethyl 4-methyl
benzenesulfonate, in THF (10 mL) was added drop by drop to the solution and the mixture
was stirred for ten hours. At the end of time, the mixture was warmed to room temperature.
The reaction mixture was filtered and all volatile compounds were removed by rotary
evaporation. The recovered product was solved in toluene and the organic layer was extracted
with distilled water (3x10 mL). The aqueous layer was extracted with chloroform (3x10 mL).
The remaining organic layer was dried with MgSO . The solvent was removed by rotary
4
evaporation. The product was obtained as a yellow and oily compound.
-1
Yield: 39% (2.1 g), R : 0.75 (dichloromethane/methanol, 1:1, v/v), FTIR (ATR), ν/cm :
f
3
500-3200 (OH), 3097 (Ar. C-H), 2975, 2870 (Al. C-H), 2226 (CN), 1590, 1560, 1490, 1450
1
(
C=C), 1245, 1178, 1100 (C-O-C). H NMR (400 MHz, CDCl ) (δ: ppm): 7.64 ( dd, 1H, Ar-
3
H), 7.17 (d, 1H, Ar-H), 7.05 (d, 1H, Ar-H), 4.24-3.00 (m, 32H, O-CH CH -O), 2.32(s, b, 1H,-
2
2
1
3
OH). C NMR (101 MHz, CDCl ) (δ: ppm): 61.14, 68.38, 69.41-72.88, 106.9, 115.4, 115.8,
3
1
16.8, 119.87, 119.6, 135.0, 161.9.
2
.3.2. Synthesis procedure of metalled and metal-free phthalocyanines
Pegylated phthalonitrile (4), (0.3 g, 0.6 mmol) was stirred in pentanol at 60 °C under nitrogen
atmosphere for 30 minutes and later on, metal salt, except metal-free phthalocyanine, [CoCl2
(
0.039 g, 0.3 mmol), CuCl (0.04 g, 0.3 mmol), NiCl (0.039 g, 0.3 mmol), Zn(OAc) (0.055
2 2 2
g, 0.3 mmol)] and DBU(0.23 mL, 1.5 mmol) were added. The final mixture was heated to
reflux temperature and stirred under nitrogen atmosphere for 48 h. Pentanol was removed
under reduced pressure. The recovered product was dissolved in chloroform (10 mL) and
extracted with distilled water (3x10 mL). The organic layer was dried with sodium sulfate
overnight. The solvent was removed by rotary evaporation. Bluish green compound was
washed with ether and ethyl acetate. The colored compound was purified by flash column
chromatography on silica gel with dichloromethane, dichloromethane/methanol (92:8, v/v) as
eluent, respectively. All volatile organic compounds were removed in vacuum. The bluish
green solid was dried at 120 °C.
-1
Pegylated metal free phthalocyanine (4-H): Yield: 12.4% (0.037 g), FTIR (ATR), ν/cm :
3
385, 3211 (-OH); 3075 (Ar. CH), 2921, 2871 (Al. CH), 1660, 1606, 1523, 1451 (C=C,
1
C=N), 1239 (Ar-O-C), 1094, 1066 (C-O-C). H NMR (400 MHz, CDCl ) (δ: ppm): 2.28 (s, b,
3
3

ACCEPTED MANUSCRIPT
1
3
4
H,-OH); 3.25-4.80 (m, 128H, OCH CH O); 6.82-7.87 (m, 12H, Ar-H). C NMR (101 MHz,
2 2
CDCl ) (δ: ppm): 61.63, 69.35, 70.26-70.76, 72.49, 125.87, 128.78, 130.89. Elemental
3
analysis: Anal. Calcd for C H N O (%): C 57.99, H 7.40, N 5.64. Found: C 57.84, H
9
6
146
8
36
7
3
.43, N 5.66. UV-Vis (CHCl ), λ nm (logε): 699 (5.00), 675 (5.10), 642 (4.82), 614 (4.72),
3 max
74 (5.03).
-1
Pegylated cobalt phthalocyanine (4-Co): Yield: 9% (0.027 g), FTIR (ATR), ν/cm : 3391(-
OH); 2921, 2872 (Al. CH), 1662, 1609, 1455 (C=C, C=N), 1241 (Ar-O-C), 1095, 1067 (C-O-
C). Elemental analysis: Anal. Calcd for C H N O Co (%): C 56.38, H 7.10, N 5.48.
9
6
144
8
36
Found: C 56.33, H 7.11, N 5.50. UV-Vis (CHCl ), λ nm (logε): 674 (3.99), 614 (3.55), 309
3
max
(4.29).
-1
Pegylated copper phthalocyanine (4-Cu): Yield: 27% (0.07 g), FTIR (ATR), ν/cm : 3391,
3
1
7
6
195 (-OH); 3053(Ar. CH), 2921 (Al. CH), 1651, 1610, 1438 (C=C, C=N), 1244 (Ar-O-C),
097, 1063 (C-O-C). Elemental analysis: Anal. Calcd for C H N O Cu (%): C 56.25, H
9
6
144
8
36
.08, N 5.47. Found: C 56.22, H 7.10, N 5.49. UV-Vis (CHCl ), λ nm (logε): 682 (4.56),
3
max
21 (4.20), 380 (4.21), 334 (4.54).
-1
Pegylated nickel phthalocyanine (4-Ni): Yield: 20% (0.06 g), FTIR (ATR), ν/cm : 3373,
3
1
1
6
205 (-OH); 2923, 2870 (Al. CH), 1660, 1609, 1453 (C=C, C=N), 1242 (Ar-O-C), 1094,
1
066 (C-O-C). H NMR (400 MHz, CDCl ) (δ: ppm): 1.67 (s, b, 4H,-OH); 2.84-4.51(m,
3
1
3
28H, OCH CH O); 7.02-8.00 (m, 12H, Ar-H). C NMR (101 MHz, CDCl ) (δ: ppm):
2
2
3
1.50, 68.28, 69.34, 69.69-70.99, 72.77. Elemental analysis: Anal. Calcd for C H N O Ni
96
144
8
36
(
%): C 56.39, H 7.10, N 5.48. Found: C 56.37, H 7.11, N 5.50. UV-Vis (CHCl ), λmax, nm
3
(logε): 674 (4.35), 621 (4.02), 372 (3.62).
-1
Pegylated zinc phthalocyanine (4-Zn): Yield: 14% (0.042g), FTIR (ATR), ν/cm : 3391, 3212
(-OH); 3071 (Ar. CH), 2917, 2872 (Al. CH), 1664, 1607, 1487, 1450 (C=C, C=N), 1232(Ar-
1
O-C), 1092, 1059 (C-O-C). H NMR (400 MHz, CDCl ) (δ: ppm): 2.27 (s, b, 4H,-OH); 3.20-
3
1
3
4
.74 (m, 128H, OCH CH O); 6.88-7.80 (m, 12H, Ar-H). C NMR (101 MHz, CDCl ) (δ:
2 2 3
ppm): 61.50, 68.21, 69.27, 70.19-70.77, 72.42, 108.54, 109.99, 120.66, 124.61, 125.12,
25.93, 128.55, 128.78, 130.90, 135.09, 139.54, 163.90, 167.90, 167.96. Elemental analysis:
Anal. Calcd for C H N O Zn (%): C 56.20, H 7.07, N 5.46. Found: C 56.18, H 7.08, N
1
9
6
144
8
36
5
.48. UV-Vis (CHCl ), λ nm (logε): 683 (3.70), 617 (3.08), 337 (3.71).
3 max
4

ACCEPTED MANUSCRIPT
3
. Results and discussion
3
.1. Synthesis and characterization

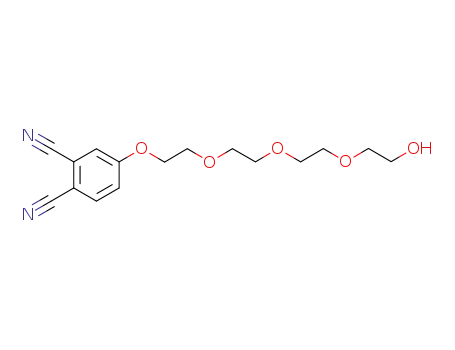

Pegylated phthalonitrile derivative (4) was synthesized via nucleophilic substitution
reaction between 4-(2-(2-(2-(2-hydroxyethoxy)ethoxy)ethoxy)ethoxy)phthalonitrile (2) and 2-
2-(2-(2-hydroxyethoxy)ethoxy)ethoxy)ethyl 4-methyl benzenesulfonate (3) in 39% yield.
Precursor molecules 1, 2 and 3 for this reaction were synthesized as given in [27], [31] and
32], respectively. The synthesis routes of these compounds were given in scheme 1.
(
[
O
S Cl
O
NC
NC
H
H
O
O
O
O
O
O
OH
O
O
OH
NO2
TEG
ii
TEG
1
i
O
O
O
O
O
O
O
OH
NC
NC
O
O
2
OH
S
O
3
iii
NC
NC
Macrogol group
O
(PEG 400)
O
O
O
OH
O
O
O
O
4
Scheme 1. Synthesis routes to 2, 3, and 4 numbered compounds. (i) NaOH, THF, 2h and 0 °C. (ii)
K CO , DMF, N , 15h and 105 °C. (iii) NaH, THF, 9h and 0 °C.
2
3
2
Five phthalocyanine compounds including metal free, cobalt, copper, nickel, and zinc
phthalocyanines were synthesized by cyclotetramerization reaction of pegylated phthalonitrile
4) in the presence of n-pentanol as the solvent, DBU as the catalyzer and corresponding
(
anhydrous metal salt under the nitrogen atmosphere. The synthesis routes of these compounds
were given in scheme 2. The compounds were obtained as bluish green solids, 12.3%, 9%,
2
7%, 20%, 14% in yields for 4-H, 4-Co, 4-Cu, 4-Ni, 4-Zn, respectively. All compounds were
5

ACCEPTED MANUSCRIPT
1
13
characterized by suitable characterization techniques including FTIR, UV-Vis, H NMR, C
NMR, elemental analysis. Main findings were found suitable for proposed compounds.
Scheme 2. Synthesis route to the pegylated metal free and metalled phthalocyanines. (i) n-pentanol,
DBU, N , 48 h, reflux (common for 4-H, 4-Co, 4-Cu, 4-Ni, 4-Zn) and CoCl (for 4-Co), CuCl (for 4-
2
2
2
Cu), NiCl (for 4-Ni), Zn(OAc) (for 4-Zn).
2
2
In the FTIR spectrum of the pegylated phthalonitrile (4), the broad peak between 3500
-1
-1
and 3200 cm points at the presence of OH, the peak at 3097 cm points at the presence of
-1
aromatic protons, the peaks at 1590, 1560, 1490, 1450 cm points at the presence of aromatic
-1
-1
C=C bonds, the peaks at 2975, 2870 cm and at 1245, 1175, 1108 cm points at the presence
of aliphatic proton and different C-O-C bonds in the pegylated molecule. Additionally, very
-1
1
sharp peak at 2226 cm indicates the presence of CN bonded to the aromatic ring. In the H-
NMR spectrum of the phthalonitrile derivative, the aromatic protons were observed at 7.64
(dd), 7.17 (d), 7.05 (d) ppm for three different aromatic protons in the aromatic ring.
Methylene protons of PEG chain in the molecule were observed from 3.00 ppm to 4.24 ppm
as a sharp multiplet peak because of its asymmetric bonding to phthalonitrile. Hydroxyl peak
1
3
of the molecule was observed broad shaped at 2.32 ppm. In the C NMR spectrum of the
same compound, the peaks at 115.4 and 115.8 ppm belong to carbon atoms of CN groups. It
confirms clearly the presence of the CN groups in the related molecule. The peak groups
6

ACCEPTED MANUSCRIPT
between 72.88 - 61.4 ppm belong to oxyethylene carbons in the pegylated molecule. The
peaks at 161.9, 135.0, 119.6, 119.87, 116.8 and 106.9 ppm belong to six different aromatic
carbons in the molecule.
FTIR spectrum of 4-H (metal free phthalocyanine) showed all functional group peaks in
the molecule. Aromatic carbon peaks couldn’t be clearly observed there. The peak at 3385
-1
-1
-1
cm together with the shoulder at 3211 cm is the signal of OH. The peak at 3075 cm is the
-1
signal of Ar-H. The peaks at 2921 and 2871 cm are signals of aliphatic protons. The peaks at
1
1
660, 1606, 1523 and 1451 are signals of C=C and C=N double bond and finally, the peaks at
239, 1094, 1066 are signal of different C-O vibrations in the molecule. Additionally, the
disappearance of CN peak in the FTIR spectrum of 4-H is related to the formation of
1
phthalocyanine macrocycle and it confirms that phthalocyanine synthesis was successful. H
NMR spectrum of this compound shows three different peak groups concerning to aromatic
protons, aliphatic protons, and hydroxyl proton at 7.87-6.82, 4.80-3.25 and 2.28 ppm,
1
3
respectively. C NMR spectrum of this compound shows oxyethylene carbon peaks range
from 61.63 ppm to 72.49 ppm and some aromatic carbon peaks at 125.87, 128.78, and 130.89
1
3
ppm as minor peaks. In the C NMR of 4-H, differentiation of carbon peaks in comparison to
compound 4 is also an evidence of phthalocyanine formation. Phthalocyanines are well
known their characteristic absorption bands in UV-Vis spectrum. These bonds are known as
*
Q and B bands. The Q bands are seen in the red side of the visible region and relevant to n-π
*
electronic transitions; the B bands are seen in the near UV and relevant to π- π electronic
transitions [33]. Metal free phthalocyanines due to their symmetry (D ) give two bands
2
h
known as Q and Q in the Q band region [34]. In the UV-Vis spectrum of 4-H, these bands
x
y
are seen at 699 and 675 nm in response to the Q and Q , respectively and at 374 nm in
x
y
-5
response to the B band. UV-Vis spectrum of 4-H has been obtained in chloroform at 1x10 M
as given in Fig. 1. This electronic data are a sign to the presence of NH protons in
phthalocyanine center and the formation of the related phthalocyanine.
7

ACCEPTED MANUSCRIPT
-5
Fig. 1. UV-Vis spectrum of 4-H in chloroform at 1x10 M.
-1
In the FTIR spectrum of 4-Co (pegylated cobalt phthalocyanine), the peak at 3391 cm
-1
belongs to OH, the peaks at 2921 and 2822 cm belong to Al-H, the peaks at 1662, 1609,
-1
-1
1
455 cm belong to C=N and C=C, the peaks at 1241, 1095 and 1067 cm belong to C-O-C
(Related spectrum was given in Fig.3 as an example to the synthesized phthalocyanines).
Characteristic bands for UV-Vis spectrum of the metalled phthalocyanine were seen at 674
with the shoulder at 614 nm in response to the Q band and at 309 nm in response to the B
-5
band. UV-Vis spectrum of 4-Co has been obtained in chloroform at 5x10 M as given in Fig.
2
.
-5
Fig. 2. UV-Vis spectrum of 4-Co in chloroform at 5x10 M.
8

ACCEPTED MANUSCRIPT
Fig. 3. FTIR spectrum of 4-Co
In the FTIR spectrum of 4-Cu (pegylated copper phthalocyanine), the peaks at 3391 and
-1
-1
-1
3
195 cm belong to OH, the peak at 3053 cm belongs to Ar-H, the peak at 2921 cm
-1
belongs to Al-H, the peaks at 1651, 1610, 1438 cm belong to C=N and C=C, the peaks at
-1
1
244, 1097 and 1063 cm belong to C-O-C. Characteristic bands for UV-Vis spectrum of the
metalled phthalocyanine were seen at 682 and 621 nm in response to the Q band and at 380
and 334 nm in response to the B band. UV-Vis spectrum of 4-Cu has been obtained in
-5
chloroform at 5x10 M as given in Fig. 4.
-5
Fig. 4. UV-Vis spectrum of 4-Cu in chloroform at 5x 10 M.
9

ACCEPTED MANUSCRIPT
FTIR spectrum of 4-Ni (pegylated nickel phthalocyanine) showed all functional group
-1
-1
peaks in the molecule. The peak at 3373 cm with the shoulder at 3205 cm is signal of OH.
-1
The peaks at 2923 and 2870 cm are signal of aliphatic protons. The peaks at 1660, 1609,
1
453 are signal of C=C and C=N double bond and finally, the peaks at 1242, 1094, 1066 are
1
signal of different C-O vibrations in the molecule. H NMR spectrum of this compound shows
three different peak groups concerning with aromatic protons, aliphatic protons, and hydroxyl
1
3
proton at 8.00-7.02, 4.51-2.84 and 1.67 ppm, respectively. C NMR spectrum of this
compound shows oxyethylene carbon peaks range from 61.50 ppm to 72.77 ppm. Aromatic
carbon peaks were not observed due to paramagnetic contrubition of nuclear relaxation. In the
UV-Vis spectrum of 4-Ni, the Q band is seen at 674 with the shoulder at 621 nm and the B
-5
band is seen at 372 nm. UV-Vis spectrum of 4-Ni has been obtained in chloroform at 5x10
M as given in Fig. 5.
-5
Fig. 5. UV-Vis spectrum of 4-Ni in chloroform at 5x 10 M.
FTIR spectrum of 4-Zn (pegylated zinc phthalocyanine) showed all functional group
-1
-1
peaks in the molecule. The peak at 3391 cm with the shoulder at 3212 cm is signal of OH.
-1
The peak at 3071 is signal of aromatic protons. The peaks at 2917 and 2872 cm are signal of
aliphatic protons. The peaks at 1664, 1607, 1487, 1450 are signal of C=C and C=N double
bond and finally, the peaks at 1232, 1092, 1059 are signal of different C-O vibrations in the
1
molecule. H NMR spectrum of this compound shows three different peak groups concerning
with aromatic protons, aliphatic protons and hydroxyl proton at 7.80-6.88, 4.74-3.20 and 2.27
ppm, respectively. Related spectrum was given in Fig.7 as a sample spectrum for the
1
0

ACCEPTED MANUSCRIPT
1
3
pegylated phthalocyanines. C NMR spectrum of this compound shows oxyethylene carbon
peaks range from 61.50 ppm to 72.42 ppm and aromatic carbon peaks range from 108.54 ppm
to 167.96 ppm. In the UV-Vis spectrum of 4-Zn, the Q band is seen at 683 with the shoulder
at 617 nm and the B band is seen at 337 nm. UV-Vis spectrum of 4-Zn has been obtained in
-4
chloroform at 1x10 M as given in Fig. 6.
-4
Fig. 6. UV-Vis spectrum of 4-Zn in chloroform at 1x10 M.
1
1

ACCEPTED MANUSCRIPT
1
Fig. 7. H NMR spectrum of 4-Zn in CDCl
3
3
.2. Aggregation Studies
Aggregation is an important phenomenon in phthalocyanine chemistry. Phthalocyanines
in the aggregated state have different properties from nonaggregated phthalocyanines [9, 35,
6]. Aggregation behaviors of phthalocyanines as a photosensitizer are a particularly
3
important problem in photodynamic therapy studies. Aggregation decreases their
photochemical and photophysical properties [37-39]. Aggregation behaviors of the
synthesized compounds were determined by using electronic spectroscopy and investigated
depending on solvents in different solvents including chloroform, dimethylformamide,
dimethylsulfoxide, ethanol, methanol, and water. The related results were given in Fig. 8 for
4
-H, 9 for 4-Co, 10 for 4-Cu, 11 for 4-Ni, 12 for 4-Zn. Also, the aggregation behaviors based
on concentration for 4-Cu and 4-Ni were investigated in foregoing solvents. The results of the
latter study were given in Fig. 13 for 4-Cu and 14 for 4-Ni.
According to absorption spectra of 4-H (Fig. 8), corresponding pegylated
phthalocyanine was found both aggregated and nonaggregated in the six solvents that used.
This compound has high aggregation tendency in methanol (pink), ethanol (cyan) and
aqueous (bright green) solutions. This aggregation species is a sign of H type aggregation
formation in these solutions. This formation is easily recognized from blue shift and
1
2

ACCEPTED MANUSCRIPT
broadening of their Q band absorption peak [40, 41] in the polar protic solvent solutions. On
the other hand, this compound was found as monomeric species in chloroform,
dimethylformamide and dimethylsulfoxide solutions.
According to absorption spectra of 4-Co (Fig. 9), corresponding pegylated
phthalocyanine was found disaggregated in all solutions except in the aqueous solution (bright
green).
According to absorption spectra of 4-Cu (Fig. 10), corresponding pegylated
phthalocyanine was found aggregated in polar protic solvent solutions similar to 4-H. It was
found that the compound disaggregated in polar aprotic solvent solutions.
Aggregation behavior of compound 4-Ni is similar to both 4-H and 4-Cu according to
Fig. 11. While polar protic solvents were increasing the aggregation, polar aprotic solvents
decrease the aggregation formation of the phthalocyanine.
Lastly, the aggregation behavior of 4-Zn is slightly different from the others. It was
found highly aggregated only in aqueous solution. But, in the other solutions, it was found
disaggregated. In methanol (pink), the peak corresponding to the monomer is still present in
the UV-Vis spectrum (Fig.12), besides that, a broadening is seen at blue shift side in the same
curve for methanol.
1
3

ACCEPTED MANUSCRIPT
1.4
1.2
1.0
0.8
ethanol
methanol
chloroform
water
0.6
dimethylformamide
dimethylsulfoxide
0.4
0.2
0.0
-0.2
500
600
700
800
Wavelength (nm)
—
5
Fig. 8. UV-Vis spectra of 4-H in different solvents at 3 x10 M concentration.
1
1
1
0
0
0
0
.4
.2
.0
.8
.6
.4
water
ethanol
methanol
dimethylformamide
dimethylsulfoxide
chloroform
.2
5
00
600
700
800
Wavelength (nm)
-5
Fig. 9. UV-Vis spectra of 4-Co in different solvents at 5 x10 M concentration.
1
4

ACCEPTED MANUSCRIPT
1
.0
.9
.8
.7
.6
.5
.4
.3
.2
.1
.0
0.1
0
0
0
0
0
dimethylformamide
ethanol
water
chloroform
methanol
dimethylsulfoxide
0
0
0
0
0
-
500
600
700
800
Wavelength (nm)
-5
Fig. 10. UV-Vis spectra of 4-Cu in different solvents at 1 x10 M concentration.
2
2
1
1
0
0
.5
.0
.5
.0
.5
water
ethanol
methanol
dimethylformamide
dimethylsulfoxide
chloroform
.0
5
00
600
700
800
Wavelength (nm)
-5
Fig. 11. UV-Vis spectra of 4-Ni in different solvents at 6.5 x 10 M concentration.
1
5

ACCEPTED MANUSCRIPT
2.2
2.0
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0.0
5
methanol
ethanol
water
dimethylformamide
dimethylsulfoxide
chloroform
00
600
700
800
Wavelength (nm)
-5
Fig. 12. UV-Vis spectra of 4-Zn in different solvents at 7 x 10 M concentration.
Fig. 13 shows dependence on the concentration of the aggregation for 4-Cu. All spectra were
-5
-5
measured at concentrations changing from 9.75x 10 to 3.5x 10 M as average eight different
concentrations. In the related spectra, it wasn’t seen any differentiation from previous studies.
Compound 4-Cu showed disaggregation in chloroform, dimethylformamide and
dimethylsulfoxide and aggregation in methanol, ethanol, and water similar to previous
studies.
1
6

ACCEPTED MANUSCRIPT
C1= 0.4mg/2mL
2.5
C1
C2
C3
C4
C5
C6
C7
C2= 0.4mg/2.5mL
C3= 0.4mg/3mL
C4= 0.4mg/3.5mL
C5= 0.4mg/4mL
C6= 0.4mg/4.5mL
C7= 0.4mg/5mL
C8= 0.4mg/5.5mL
3
2
1
0
2.0
1.5
1.0
0.5
0.0
4
00
500
600
700
700
700
400
400
400
500
600
600
600
700
700
700
Wavelength (nm)
Wavelength (nm)
Chloroform
Dimethylformamide
2.0
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0.0
C1
C2
C3
C4
C5
C6
C7
C8
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
C1
C2
C3
C4
C5
C6
C7
400
500
600
500
Wavelength (nm)
Wavelength (nm)
Dimethylsulfoxide
Ethanol
C1
C2
C3
C4
C5
C6
C7
C8
C9
C1
C2
C3
C4
C5
C6
C7
2.5
2.0
1.5
1.0
0.5
0.0
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0.0
400
500
600
500
Wavelength (nm)
Wavelength (nm)
Methanol
Water
Fig. 13. UV-Vis absorption spectra of 4-Cu in different solvents at varying concentrations from 9.75 x
-5
-5
1
0 M to 3.5 x 10 M.
1
7

ACCEPTED MANUSCRIPT
Fig. 14 shows dependence on the concentration of the aggregation for 4-Ni. All spectra were
-5
-4
measured at concentrations changing from 1.70 x 10 to 1.5x 10 M as average eight
different concentrations. These spectra show a differentiation from the others at C1 and C2
-4
-5
concentration, 1.5x 10 and 9.7 x10 M, respectively, in polar aprotic solvents. In the former
concentration, it is seen that there is a dramatic decline at absorption peak together with the
flattening and an alteration at characteristic absorption peak for the Q band of metalled
phthalocyanines. As the concentration was decreased to the levels lower than C2, it is seen
that there is normalization to the characteristic absorption curves of disaggregated metalled
phthalocyanines. In the latter concentration, the absorption curve of 4-Ni seems as if it
belongs to metal free phthalocyanine. It is more suitable to investigate this compound in the
-4
concentration lower than 10 M. In the case of polar protic solvents (methanol, ethanol, and
water) it was already seen absorption peak particular to the aggregated status of
phthalocyanine in all studied concentrations.
1
8

ACCEPTED MANUSCRIPT
C1= 0.4 mg/1.5mL
3
2
1
0
C1
C3
C4
C5
C6
C7
C8
C4/2
C2
C2= 0.4 mg/2mL
C3= 0.4 mg/2.5mL
C4= 0.4 mg/3mL
C5= 0.4 mg/3.5mL
C6= 0.4 mg/4mL
C7= 0.4 mg/4.5 mL
C8= 0.4 mg/5mL
C9= 0.4 mg/7.5 mL
C10= 0.4 mg/10mL
C11= 0.4 mg/11.5mL
5
4
3
2
1
0
4
00
500
600
700
700
700
400
500
600
Wavelength (nm)
700
700
700
Wavelength (nm)
Chloroform
Dimethylformamide
C1
C2
C3
C4
C5
C6
C7
C7/2
C1
C2
C3
C4
C5
C6
2.0
1.8
1.6
2
1
0
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0.0
400
500
600
400
500
600
Wavelength (nm)
Wavelength (nm)
Dimethylsulfoxide
Ethanol
C1
C2
C3
C4
C5
C6
2.0
C1
C2
C3
C4
C5
C6
2.4
2.2
2.0
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0.0
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0.0
400
500
600
Wavelength (nm)
400
500
600
Wavelength (nm)
Methanol
Water
Fig. 14. UV-Vis absorption spectra of 4-Ni in different concentration at varying concentrations from
-4
-5
1
.3 x 10 M to 1.7 x 10 M.
1
9

ACCEPTED MANUSCRIPT
3
.3. Thermal decomposition studies
All thermal analysis experiments were carried out in a dry air atmosphere, at 50
mL/min the purge gas flow rate and 20 °C/min heating rate, between 20 °C and 1000 °C by
using DTG 60/60H TG/DTA simultaneous measuring instrument. All samples were dried at
1
20 °C before analysis.
All pegylated phthalocyanines were decomposed at two steps. The first step is related to
degradation of PEG chains which are bonded to the phthalocyanine macrocyclic. The second
step is related to degradation of the phthalocyanine ring. Onset decomposition temperature of
PEG chain in the molecule is 291 °C as a minimum value and offset decomposition
temperature of PEG chain is 399 °C as a maximum value in all synthesized phthalocyanine
derivatives. Onset and offset decomposition temperatures as the minimum and maximum
values of the phthalocyanine ring are 446 °C and 665 °C, respectively. TGA and DTA curves
of 4-Cu as a sample have been given in Fig.15. All the curves for five phthalocyanine
compounds are similar to each other with small degradation temperature differences within
the ranges given above. Table 1 gives the information about thermal gravimetric analysis
results containing decomposition ranges for PEG and Pc rings in the pegylated
phthalocyanines.
Decomposition range temperature (°C)
Compound code
for PEG
304-385
302-382
319-399
291-386
290-391
for Pc ring
555-665
526-636
446-605
511-634
509-621
4-H
4-Co
4-Cu
4-Ni
4-Zn
Table 1. Thermal analysis results of synthesized phthalocyanines
2
0

ACCEPTED MANUSCRIPT
Fig. 15. TGA (red) and DTA (blue) curves of 4-Cu.
Conclusions
In this paper, we have reported the synthesis and analysis, aggregation status, thermal
decomposition ranges of the pegylated phthalocyanine series (symbolized as 4-H, 4-Co, 4-
Cu, 4-Ni, and 4-Zn). Structural analysis of the phthalocyanines and phthalocyanine precursor
molecule (symbolized as 4) were carried on using classical analysis methods such as FTIR,
1
13
H-NMR, C NMR, UV-Vis, and elemental analysis. The data confirmed the formation and
the structure of targeted molecules. All phthalocyanines have high solubility in water,
methanol, ethanol, acetone, pyridine, 1,4-dioxane, dichloromethane, chloroform,
tetrahydrofuran, dimethyformamide and dimethylsulfoxide. The phthalocyanines are insoluble
in diethyl ether, acetonitrile, hexane and ethyl acetate. Aggregation status of all pegylated
phthalocyanines were determined by electronic absorption spectroscopy method. The
phthalocyanines were found the aggregated state in polar protic solvent solutions (methanol,
ethanol, water) and nonaggregated state in polar aprotic solvent solutions
(dimethylformamide, dimethylsulfoxide and chloroform). It was found that there is a small
aberration from this state in 4-Co and 4-Zn. They showed aggregation only in their aqueous
2
1

ACCEPTED MANUSCRIPT
solutions. Thermal degradation temperatures of the phthalocyanines were found at 291 °C
minimum value and 665 °C maximum value.
Declaration of interest
Both authors affirm no conflict of interest. The authors are only responsible for the content
and writing of this article.
Acknowledgement
This study was supported by Ondokuz Mayıs University Scientific Researching Projects
Fund. (Project no: PYO. FEN.1904.16.012)
References
[
1]
J.A. and Meyer, T.J., Editors. 2003, Pergamon: Oxford. p. 507-514. doi: https://doi.org/10.1016/B0-
8-043748-6/01071-9
McKeown, N.B., Phthalocyanines, in Comprehensive Coordination Chemistry II, McCleverty,
0
[
2] de la Torre, G., Nicolau, M., and Torres, T., Chapter 1 - Phthalocyanines: Synthesis,
Supramolecular Organization, and Physical Properties A2 - Nalwa, Hari Singh, in Supramolecular
Photosensitive and Electroactive Materials. 2001, Academic Press: San Diego. p. 1-111. doi:
http://dx.doi.org/10.1016/B978-012513904-5/50003-X
[
3]
Henderson, B.W., et al., Photodynamic Therapy. JNCI: Journal of the National Cancer
Institute, 1998. 90(12): p. 889-905. doi: 10.1093/jnci/90.12.889
[
4] Leznoff, C.C. and Lever, A.B.P., Phthalocyanines : properties and applications. 1989, New
York, NY: VCH
5] McKeown, N.B., Phthalocyanine materials : synthesis, structure, and function. 1998,
Cambridge, U.K.; New York: Cambridge University Press
6] de la Escosura, A., et al., Donor−Acceptor Phthalocyanine Nanoaggregates. Journal of the
American Chemical Society, 2003. 125(40): p. 12300-12308. doi: 10.1021/ja030038m
7] Ongarora, B.G., et al., Synthesis, spectroscopic, and cellular properties of α-pegylated cis-
A(2)B(2)- and A(3)B-types ZnPcs. Journal of porphyrins and phthalocyanines, 2014. 18(10-11): p.
021-1033. doi: 10.1142/S1088424614500849
8] Liu, D., et al., Dissociation of zinc phthalocyanine aggregation on bacterial surface is key for
photodynamic antimicrobial effect. Journal of Porphyrins and Phthalocyanines, 2018. 22(09n10): p.
25-934. doi: 10.1142/s1088424618500888
9] Snow, A.W., 109 - Phthalocyanine Aggregation, in The Porphyrin Handbook, Kadish, K.M.,
[
[
[
1
[
9
[
Smith, K.M., and Guilard, R., Editors. 2003, Academic Press: Amsterdam. p. 129-176. doi:
https://doi.org/10.1016/B978-0-08-092391-8.50009-1
[
10]
Li, H., et al., Syntheses and Properties of a Series of Cationic Water-Soluble Phthalocyanines.
Journal of Medicinal Chemistry, 2008. 51(3): p. 502-511. doi: 10.1021/jm070781f
[
11] Bayrak, R., et al., Synthesis, aggregation and spectroscopic studies of novel water soluble
metal free, zinc, copper and magnesium phthalocyanines and investigation of their anti-bacterial
2
2

ACCEPTED MANUSCRIPT
properties. Spectrochimica Acta Part A: Molecular and Biomolecular Spectroscopy, 2014. 133: p.
2
72-280. doi: https://doi.org/10.1016/j.saa.2014.05.075
[
12] Baygu, Y. and Gök, Y., A highly water-soluble zinc(II) phthalocyanines as potential for PDT
studies: Synthesis and characterization. Inorganic Chemistry Communications, 2018. 96: p. 133-138.
doi: https://doi.org/10.1016/j.inoche.2018.08.004
[
13]
conjugated symmetrical and asymmetrical zinc phthalocyanines. Journal of Molecular Structure, 2015.
102: p. 190-196. doi: https://doi.org/10.1016/j.molstruc.2015.08.067
Dinçer, H., et al., Synthesis and photophysicochemical studies of poly(ethylene glycol)
1
[
14] Li, H., Fronczek, F.R., and Vicente, M.G.H., Pegylated phthalocyanines: synthesis and
spectroscopic properties. Tetrahedron Letters, 2011. 52(50): p. 6675-6678. doi:
http://dx.doi.org/10.1016/j.tetlet.2011.10.002
[
15]
Li, W., et al., Current drug research on PEGylation with small molecular agents. Progress in
Polymer Science, 2013. 38(3-4): p. 421-444. doi: 10.1016/j.progpolymsci.2012.07.006
[
16] Harris, J.M., Martin, N.E., and Modi, M., Pegylation. Clinical Pharmacokinetics, 2001. 40(7):
p. 539-551. doi: 10.2165/00003088-200140070-00005
17] Molineux, G., Pegylation: engineering improved pharmaceuticals for enhanced therapy.
Cancer Treatment Reviews, 2002. 28: p. 13-16. doi: https://doi.org/10.1016/S0305-7372(02)80004-4
18] Pasut, G. and Veronese, F.M., State of the art in PEGylation: the great versatility achieved
after forty years of research. Control Release, 2012. 161(2): p. 461-72. doi:
0.1016/j.jconrel.2011.10.037
19] Mishra, P., Nayak, B., and Dey, R.K., PEGylation in anti-cancer therapy: An overview. Asian
Journal of Pharmaceutical Sciences, 2016. 11(3): p. 337-348. doi: 10.1016/j.ajps.2015.08.011
20] Abbina, S. and Parambath, A., PEGylation and its alternatives. 2018: p. 363-376. doi:
0.1016/b978-0-08-101750-0.00014-3
21] Pasut, G. and Veronese, F.M., PEG conjugates in clinical development or use as anticancer
[
[
J
1
[
[
1
[
agents: An overview. Advanced Drug Delivery Reviews, 2009. 61(13): p. 1177-1188. doi:
https://doi.org/10.1016/j.addr.2009.02.010
[
22]
Knop, K., et al., Poly(ethylene glycol) in drug delivery: pros and cons as well as potential
alternatives. Angew Chem Int Ed Engl, 2010. 49(36): p. 6288-308. doi: 10.1002/anie.200902672
[
23] Turecek, P.L., et al., PEGylation of Biopharmaceuticals: A Review of Chemistry and
Nonclinical Safety Information of Approved Drugs. J Pharm Sci, 2016. 105(2): p. 460-475. doi:
0.1016/j.xphs.2015.11.015
24] Lv, F., et al., Zinc Phthalocyanine Labelled Polyethylene Glycol: Preparation,
1
[
Characterization, Interaction with Bovine Serum Albumin and Near Infrared Fluorescence Imaging in
Vivo. Molecules, 2012. 17(6): p. 6348. doi, http://www.mdpi.com/1420-3049/17/6/6348
[
25]
phthalocyanines via Mitsunobu reaction and Cu(i)-catalysed azide–alkyne cycloaddition (CuAAC)
click” chemistry. Polymer Chemistry, 2013. 4(16): p. 4405. doi: 10.1039/c3py00609c
Li, M., Khoshdel, E., and Haddleton, D.M., Synthesis of water soluble PEGylated (copper)
“
[
26] Ongarora, B.G., et al., Syntheses and Photodynamic Activity of Pegylated Cationic Zn(II)-
Phthalocyanines in HEp2 Cells. Theranostics, 2012. 2(9): p. 850-70. doi: 10.7150/thno.4547
27] Karabörk, M. and Serin, S., Synthesis and characterization of phthalocyanines with non-ionic
[
solubilizing groups. Synthesis and Reactivity in Inorganic and Metal-Organic Chemistry, 2002. 32(9):
p. 1635-1647. doi: 10.1081/SIM-120015084
[
28]
Jeong, J., et al., Photophysical, electrochemical, thermal and aggregation properties of new
metal phthalocyanines. Journal of Molecular Structure, 2017. 1147: p. 469-479. doi:
https://doi.org/10.1016/j.molstruc.2017.06.125
2
3

ACCEPTED MANUSCRIPT
[
29]
Li, X., et al., Nanostructured Phthalocyanine Assemblies with Protein-Driven Switchable
Photoactivities for Biophotonic Imaging and Therapy. Journal of the American Chemical Society,
017. 139(31): p. 10880-10886. doi: 10.1021/jacs.7b05916
2
[
30] Tuncel, S., et al., A set of highly water-soluble tetraethyleneglycol-substituted Zn(ii)
phthalocyanines: synthesis, photochemical and photophysical properties, interaction with plasma
proteins and in vitro phototoxicity. Dalton Transactions, 2011. 40(16): p. 4067-4079. doi:
1
0.1039/C0DT01260B
31] Young, J.G. and Onyebuagu, W., Synthesis and characterization of di-disubstituted
phthalocyanines. The Journal of Organic Chemistry, 1990. 55(7): p. 2155-2159. doi:
0.1021/jo00294a032
32] Stricker, L., et al., Arylazopyrazoles as Light-Responsive Molecular Switches in Cyclodextrin-
Based Supramolecular Systems. Journal of the American Chemical Society, 2016. 138(13): p. 4547-
554. doi: 10.1021/jacs.6b00484
33] Brozek-Pluska, B., Orlikowski, M., and Abramczyk, H., Phthalocyanines: From Dyes to
[
1
[
4
[
Photosensitizers in Diagnostics and Treatment of Cancer. Spectroscopy and Raman Imaging Studies
of Phthalocyanines in Human Breast Tissues, in Handbook of Porphyrin Science. p. 1-49. doi:
1
0.1142/9789813149595_0001
34] Bian, Y., et al., The effect of a hydrogen bond on the supramolecular self-aggregation mode
and the extent of metal-free benzoxazole-substituted phthalocyanines. New Journal of Chemistry,
015. 39(7): p. 5750-5758. doi: 10.1039/C5NJ00494B
35] Martynenko, I.V., et al., The influence of phthalocyanine aggregation in complexes with
[
2
[
CdSe/ZnS quantum dots on the photophysical properties of the complexes. Beilstein journal of
nanotechnology, 2016. 7: p. 1018-1027. doi: 10.3762/bjnano.7.94
[
36]
Ramos, A.A., et al., Photochemical and Photophysical Properties of Phthalocyanines
Modified with Optically Active Alcohols. Molecules, 2015. 20(8). doi: 10.3390/molecules200813575
[
37] Palewska, K., Sworakowski, J., and Lipiński, J., Molecular aggregation in soluble
phthalocyanines – Chemical interactions vs. π-stacking. Optical Materials, 2012. 34(10): p. 1717-
724. doi: 10.1016/j.optmat.2012.02.009
38] Rosenthal, I., Phthalocyanines as photodynamic sensitizers*. Photochemistry and
Photobiology, 1991. 53(6): p. 859-870. doi: 10.1111/j.1751-1097.1991.tb09900.x
39] Simon, J. and Vacus, J., Luminescence and anti-aggregative properties of polyoxyethylene-
substituted phthalocyanine complexes. Advanced Materials, 1995. 7(9): p. 797-800. doi:
0.1002/adma.19950070908
40] Dilber, G., Durmuş, M., and Kantekin, H., Non-aggregated zwitterionic Zinc(II)
phthalocyanine complexes in water with high singlet oxygen quantum yield. Dyes and Pigments, 2019.
60: p. 267-284. doi: https://doi.org/10.1016/j.dyepig.2018.08.019
41] Bayda, M., et al., Fluorescent H-aggregates of an asymmetrically substituted mono-amino
Zn(ii) phthalocyanine. Dalton Transactions, 2017. 46(6): p. 1914-1926. doi: 10.1039/C6DT02651F
1
[
[
1
[
1
[
2
4

ACCEPTED MANUSCRIPT
Highlights
•
•
•
Tetrasubstituted metalled and metal free phthalocyanines including PEG 400 were
synthesized.
1
13
The phthalocyanines were characterized by FTIR, H-NMR, C NMR, UV-Vis
spectroscopies and elemental analysis technique.
Aggregation statuses of the phthalocyanines were determined depend on the solvents
including methanol, ethanol, water, dimethylformamide, dimethylsulfoxide, and
chloroform.
•
Thermal decomposition ranges of these compounds were determined.
