A New Class of Ionically Conducting Fluorinated Ether Electrolytes with High Electrochemical Stability

Article abstract of DOI:10.1021/jacs.9b11056

Increasing battery energy density is greatly desired for applications such as portable electronics and transportation. However, many next-generation batteries are limited by electrolyte selection because high ionic conductivity and poor electrochemical st

Full text of DOI:10.1021/jacs.9b11056

Subscriber access provided by University of Victoria Libraries
Article
A new class of ionically conducting fluorinated
ether electrolytes with high electrochemical stability
Chibueze Amanchukwu, Zhiao Yu, Xian Kong, Jian Qin, Yi Cui, and Zhenan Bao
J. Am. Chem. Soc., Just Accepted Manuscript • DOI: 10.1021/jacs.9b11056 • Publication Date (Web): 01 Apr 2020
Downloaded from pubs.acs.org on April 4, 2020
Just Accepted
“Just Accepted” manuscripts have been peer-reviewed and accepted for publication. They are posted
online prior to technical editing, formatting for publication and author proofing. The American Chemical
Society provides “Just Accepted” as a service to the research community to expedite the dissemination
of scientific material as soon as possible after acceptance. “Just Accepted” manuscripts appear in
full in PDF format accompanied by an HTML abstract. “Just Accepted” manuscripts have been fully
peer reviewed, but should not be considered the official version of record. They are citable by the
Digital Object Identifier (DOI®). “Just Accepted” is an optional service offered to authors. Therefore,
the “Just Accepted” Web site may not include all articles that will be published in the journal. After
a manuscript is technically edited and formatted, it will be removed from the “Just Accepted” Web
site and published as an ASAP article. Note that technical editing may introduce minor changes
to the manuscript text and/or graphics which could affect content, and all legal disclaimers and
ethical guidelines that apply to the journal pertain. ACS cannot be held responsible for errors or
consequences arising from the use of information contained in these “Just Accepted” manuscripts.
is published by the American Chemical Society. 1155 Sixteenth Street N.W.,
Washington, DC 20036
Published by American Chemical Society. Copyright © American Chemical Society.
However, no copyright claim is made to original U.S. Government works, or works
produced by employees of any Commonwealth realm Crown government in the course
of their duties.

Page 1 of 29
Journal of the American Chemical Society
1
2
3
4
5
6
A new class of ionically conducting fluorinated ether electrolytes with high
electrochemical stability
Chibueze V. Amanchukwu,† Zhiao Yu,┴ Xian Kong,† Jian Qin,† Yi Cui,‡§* and Zhenan Bao†*
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
†Department of Chemical Engineering, ┴Department of Chemistry, ‡Department of Materials
Science and Engineering, Stanford University, Stanford CA 94305, USA. §Stanford Institute for
Materials and Energy Sciences, SLAC National Accelerator Laboratory, Menlo Park, CA 94025,
USA.
Abstract
Increasing battery energy density is greatly desired for applications such as portable electronics
and transportation. However, many next generation batteries are limited by electrolyte selection
because high ionic conductivity and poor electrochemical stability are typically observed in most
electrolytes. For example, ether-based electrolytes have high ionic conductivity, but are
oxidatively unstable above 4 V, which prevents the use of high voltage cathodes that promise
higher energy densities. In contrast, hydrofluoroethers (HFEs) have high oxidative stability, but
do not dissolve lithium salt. In this work, we synthesize a new class of fluorinated ether
electrolytes that combine the oxidative stability of HFEs with the ionic conductivity of ethers in
a single compound. We show that conductivities of up to 2.7×10⁻4 S/cm (at 30°C) can be
obtained with oxidative stability up to 5.6 V. The compounds also show higher lithium
transference numbers compared to typical ethers. Furthermore, we use nuclear magnetic
resonance (NMR) and molecular dynamics (MD) to study their ionic transport behavior and ion
solvation environment, respectively. Finally, we demonstrate that these new class of electrolytes
can be used with a Ni-rich layered cathode (NMC 811) to obtain over 100 cycles at a C/5 rate.
The design of new molecules with high ionic conductivity and high electrochemical stability is a
novel approach for the rational design of next generation batteries.
1
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 2 of 29
1
2
3
4
Introduction
5
6
7
The availability of energy-dense and compact batteries has galvanized interest in the
electrification of transport and further integration of renewables in the grid. Rechargeable
lithium-ion batteries are the batteries of choice today because they have the highest energy
densities (~250 Wh/kg).1,2 However, their energy densities and cost are currently insufficient to
keep pace with our insatiable demand for longer range electric vehicles and a reduction in our
carbon footprint.1 Li-ion batteries use graphite as the anode, a mixture of carbonates as the
electrolyte, and a transition metal oxide (TMO) such as LiCoO2 as the cathode. To obtain higher
energy densities, battery chemistries such as lithium-high voltage TMO (~ 440 Wh/kg), lithium-
sulfur (~ 650 Wh/kg), and lithium-air (~ 950 Wh/kg) have been heavily explored.1–4 These
improvements in energy density are predicated on the use of lithium metal as the anode because
of its high theoretical specific capacity (3860 mAh/gLi) and low reduction potential (–3.04 V).2,5–
7 However, lithium metal reacts significantly with the electrolyte (because of the low reduction
potential) to generate a solid electrolyte interface (SEI).8 Unlike in graphite where the SEI can be
quite robust and sustains long-term cycling, the SEI on lithium metal is quite porous and
continuous electrolyte degradation leads to cell death.9 Electrolyte stability against the cathode is
also of great interest because of the existence of electrodes such as Ni-rich LiNi0.8Mn0.1Co0.1O2
(NMC 811) with capacities much higher than NMC 111 used commercially today. However,
accessing the energy density in Ni-rich NMC 811 requires high charging cutoff potentials (at
least 4.4 V or above).10 Increasing the oxidative stability of electrolytes while maintaining stable
lithium metal deposition/stripping and high ionic conductivities is a great challenge, because the
electrochemical stability window shifts between different classes of electrolytes.11
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
There are two classes of electrolytes that dominate the lithium metal literature: carbonates and
ethers. Carbonates such as ethylene carbonate (EC) and ethyl methyl carbonate (EMC) are
currently used in today’s lithium-ion batteries because of their high dielectric constant (and high
ionic conductivities), and the ability of EC to form a robust SEI on graphite.9 Unfortunately,
when carbonates are used in lithium metal batteries, the SEI is porous and side reactions with
lithium metal are exacerbated, leading to low coulombic efficiencies.9,12 Therefore, typical
carbonates used in lithium-ion batteries have been eschewed for ethers in lithium metal batteries.
Ethers such as 1,3-dioxolane (DOL) and 1,2-dimethoxyethane (DME) also support high ionic
2
ACS Paragon Plus Environment

Page 3 of 29
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
conductivities, and high coulombic efficiencies for lithium metal deposition and stripping.13,14
However, ethers at typical 0.1 M or 1 M salt concentrations cannot be used with Ni-rich NMC
811 or other high voltage cathodes because of the low oxidative stability of ethers (less than 4 V
vs Li/Li+).14–16 Therefore, there is great need for the design and synthesis of new electrolytes to
support both lithium metal and high voltage cathodes.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Several electrolyte engineering strategies are typically pursued to improve oxidative stability.
For example, solvent-in-salt systems – with a high salt concentration in the electrolyte to
decrease the ‘free’ solvent concentration and mobility – have been shown to improve oxidative
stability.14,15,17,18 Unfortunately, the solvent-in-salt electrolytes have high viscosity, high cost,
lower ionic conductivities, and slower reaction kinetics.19–21 Another engineering approach
involves additives such as hydrofluoroethers.19 Hydrofluoroethers such as 1,1,2,2-
tetrafluoroethyl-2,2,3,3-tetrafluoropropylether (TTE) and bis(2,2,2-trifluoroethyl) ether (BTFE)
have found great use in lithium metal batteries as diluents for solvent-in-salt electrolytes.22,23
These hydrofluoroethers do not dissolve any salt and have no ionic conductivity, but have high
oxidative stabilities (Figure 1).24,25 Unfortunately, mixing these HFEs with typical ethers do not
significantly increase the oxidative stability of the overall electrolyte mixture. Therefore, a new
approach (beyond electrolyte engineering) is highly desired to combine the high ionic
conductivity of ether solvents with the high oxidative stability of hydrofluoroethers. Thus, we
pursued an electrolyte chemistry approach.
Some ionically conductive fluorinated electrolytes have been synthesized by Balsara and
DeSimone et al.,26–30 but all these systems have carbonate groups attached, which are undesired
for lithium metal batteries as mentioned above. In this work, we show a novel method to
combine high ionic conductivity with high oxidative stability in a single molecule by

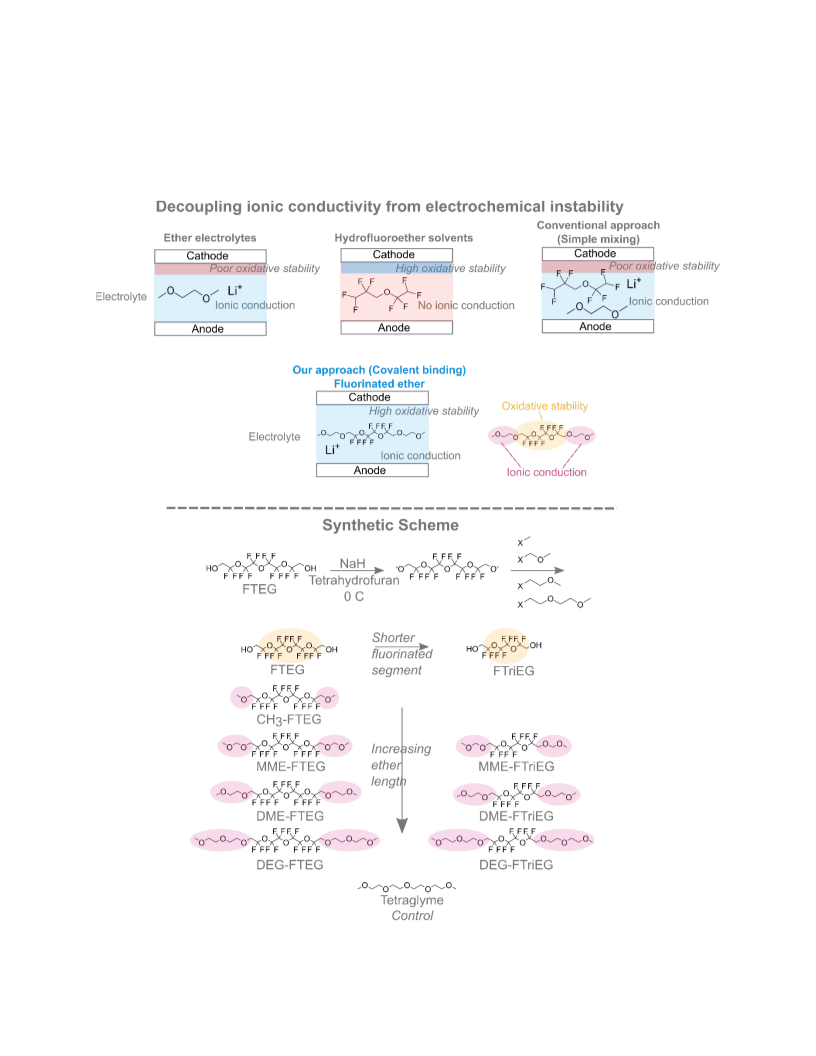

synthesizing a new class of fluorinated ether electrolytes (Figure 1). We vary the length and type
of ether group, and the length of the fluorinated segment to obtain structure-property
relationships. We show that the molecules (although liquid at room temperature with low
molecular weight) actually have glass transitions instead of melting transitions of typical ethers.
Ionic conductivity within this class of compounds is higher with longer ether groups and with a
shorter fluorinated segment, and we show conductivities as high as 2.7x10⁻4 S/cm (at 30°C) and
lithium transference numbers higher than typical ethers (tetraglyme). In addition to the high ionic
3
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 4 of 29
1
2
3
4
5
6
7
8
9
conductivity, these compounds also have high oxidative stabilities up to 5.6 V (at least 1.4 V
greater than tetraglyme or a tetraglyme:TTE mixture), showing the powerful combination of
covalently attaching an ether segment for high ionic conductivity and a fluorinated segment for
high oxidative stability in a single molecule. Using nuclear magnetic resonance (NMR)
spectroscopy and molecular dynamics (MD) simulations, we study the influence of electrolyte
structure on ionic transport, diffusivity, and salt solvation structure. Finally, we show that this
class of electrolytes are promising for high voltage Li-NMC 811 batteries supporting over 100
cycles at rates as high as C/5. Our approach to obtain high ionic conductivity and
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
electrochemical stability in the same compound can be explored with other solvent classes such
as nitriles and sulfones, and increase the number of electrolytes of interest for battery
chemistries. Designing new electrolytes with novel properties is essential to revolutionize our
energy landscape and bring batteries closer to fulfilling their great promise.
Results and Discussion
Rationale for molecular design
The rationale for molecular design was guided by the need to combine the oxidative stability of
hydrofluoroethers such as BTFE/TTE with the ionic conductivity properties of ethers (Figure 1).
Ether solvents have high ionic conductivities, but suffer from poor oxidative stability.15,18 In
contrast, hydrofluoroethers have high oxidative stability but cannot dissolve lithium salts.19,24,25
Conventionally, the literature has pursued a mixing approach,31 but as we will show, a simple
mixture does not combine the benefits of both classes of compounds because the mixture is still
limited by one of the components with low oxidative stability. In this work, we pursue a covalent
approach where a fluorinated core is covalently bound to the ether ‘end group’. Hence, the
fluorinated core can lead to high oxidative stability, and support Ni-rich cathodes such as
LiNi0.8Mn0.1Co0.1O2 (NMC 811) with a high charge cutoff, while the ether group imbues the
compound with high salt dissolution and ionic conductivity (Figure 1). In this manner, the design
accomplishes an ionically conductive fluorinated ether. We avoid carbonate functionality
because of their poor stability against lithium metal.9,12 We chose tetraglyme as our control
because it has been heavily studied15,32,33 and the ether length is comparable to our synthesized
4
ACS Paragon Plus Environment

Page 5 of 29
Journal of the American Chemical Society
1
2
3
4
5
6
fluorinated ethers. Meanwhile, our ability to vary the length of both the fluorinated and ether
segments in a modular fashion allows for systematic study of structure-property relationships.
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
5
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 6 of 29
1
2
3
4
5
6
7
8
9
Figure 1 | Motivation and synthetic scheme. Illustration of typical challenges with common
electrolytes. Ethers support ion conduction, but have poor oxidative stability. Hydrofluoroethers
have high oxidative stability, but support no ion conduction. Simply mixing hydrofluoroethers
and ethers at typical 0.1 M or 1 M salt concentrations still suffer from poor oxidative stability.
Covalently attaching an ether to the hydrofluoroether allows for both high ionic conductivity and
oxidative stability (our approach). Synthesis of fluorinated ethers through deprotonation of
fluorinated tetraethylene glycol (FTEG) and fluorinated triethylene glycol (FTriEG) and
subsequent addition of varying alkoxy halides. The fluorinated segment is varied between FTEG
and FTriEG to understand the effect of the fluorinated group, and the ether group is varied from
MME to DME to DEG to understand effect of ether type and length. Tetraglyme (shown) serves
as the control for comparisons.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Synthesis and confirmation of structure
Fluorinated ethers were synthesized by functionalizing fluorinated glycols with alkoxy halides
(Figure 1). Commercially available fluorinated tetraethylene glycol (FTEG) and fluorinated
triethylene glycol (FTriEG) were deprotonated using sodium hydride. After deprotonation,
varying alkoxy halides were added to substitute the terminal group. The modular nature of this
synthesis allows for a library of possible compounds. By moving from FTEG to FTriEG, we can
understand the effect of the fluorinated length on ionic conductivity, oxidative stability and
subsequent properties. The ether length can be tuned from methyl methyl ether (MME) to
dimethylether (DME) to understand the effect of the spacer group (methylene vs ethylene) while
maintaining the total number of oxygen groups. Comparison of DME to diethylene glycol (DEG)
makes it possible to understand the effect of ether length. We use alkoxy halides for ease of
synthesis because halides are facile leaving groups, although their cost can be a hindrance. For
DEG-FTEG, we synthesize using tosyl leaving groups showing the versatility of our approach
(see Experimental Section). Once functionalized, flash column chromatography was used to
purify the compounds, and nuclear magnetic resonance (NMR) spectroscopy (Figure S1) and
Fourier Transform Infrared (FTIR) spectroscopy (Figure S2) were used to confirm the structure
and product purity.
6
ACS Paragon Plus Environment

Page 7 of 29
Journal of the American Chemical Society
1
2
3
4
Thermal properties
5
6
7
8
The thermal properties of the compounds were characterized. Figures S3 show decomposition
and/or evaporation profiles obtained using thermogravimetric analysis (TGA), where the length
of the ether and fluorinated segments dictate the temperature at which evaporation occurs.
Differential scanning calorimetry (DSC) was used to study the thermal behavior of the
fluorinated ethers. Figure S4 shows cooling traces at a rate of 5°C/min after a prior heating run.
The starting glycol reactants (FTEG and FTriEG) have crystallization peaks (after the heating
cycle created a melt) and tetraglyme also has a crystallization peak.16 However, the fluorinated
ethers do not have melting transitions, but glass transitions (Tg) around –21°C, despite being
small molecules. Despite the low scan rates used, the molecules are unable to pack to form a
crystal, a behavior that has also been observed for other bulky small molecules.34 Finally, the Tg
seems insensitive to changes in either fluorinated or ether segments.
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Ionic conductivity and transport mechanism
The ionic conductivity of lithium salts dissolved in the fluorinated compounds was examined
using electrochemical impedance spectroscopy (EIS). Figures 2a-b shows conductivity as a
function of temperature for different salt concentration and fluorinated ether combinations. We
chose lithium bis(fluorosulfonyl)amide (LiFSA) salt for this work because it can dissolve in
concentrations larger than 1 M in all the synthesized compounds (except for CH3-FTEG which
was not studied further). Figure 2a shows that as the spacer group increases from (-CH2O-) in
MME-FTEG to (-CH2CH2O-) in DME-FTEG, there is a 30x increase in ionic conductivity at
30°C (Table S1). Furthermore, as one increases the ether length from DME-FTEG to DEG-
FTEG, there is only a 6x increase. The FTriEG compounds in Figure 2b also corroborate the
effect of ether length on ionic conductivity as observed with the FTEG compounds in Figure 2a.
Furthermore, an increase in salt concentration from 0.1 M to 1 M also leads to an increase in
ionic conductivity as expected. Finally, as the fluorinated segment is shortened from FTEG to
FTriEG, there is also an increase in ionic conductivity (Figure 2b). 1 M LiFSA in DEG-FTriEG
has the highest ionic conductivity at 2.7x10⁻4 S/cm at 30°C; conductivities in the range of 10⁻4
S/cm and above are relevant for electrochemical systems. However, the conductivity of 1 M
LiFSA in tetraglyme is still an order of magnitude higher at 30°C.
7
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 8 of 29
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60

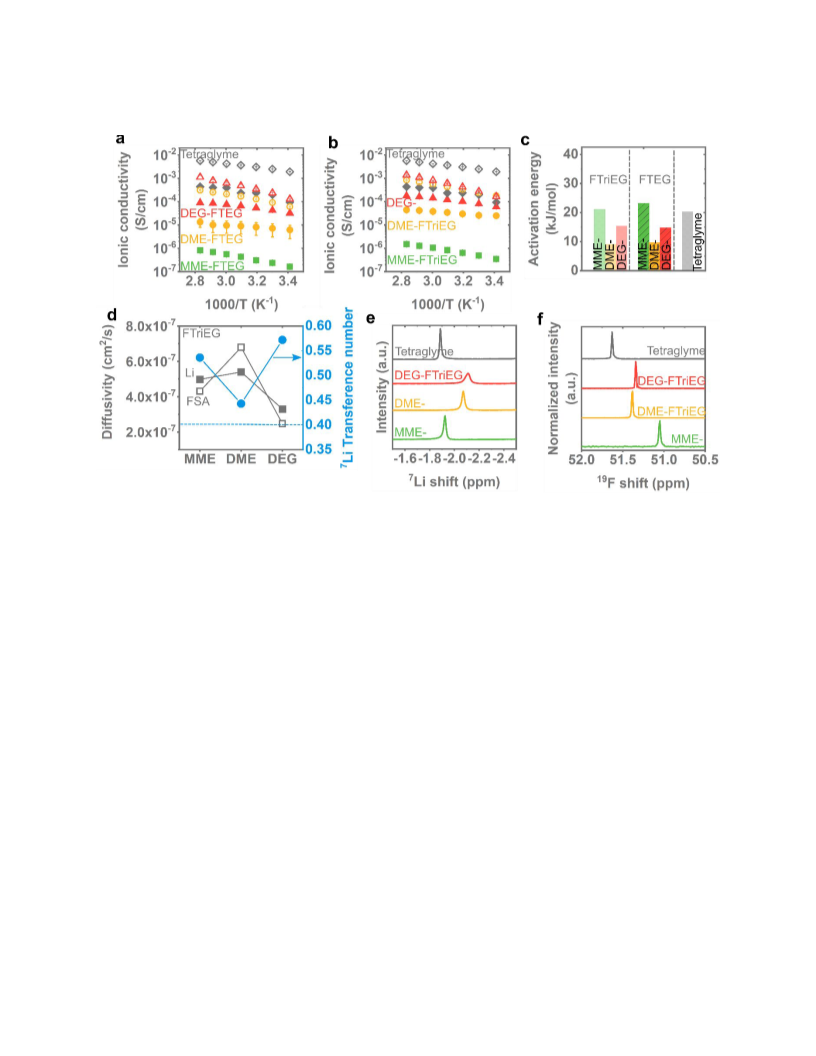

Figure 2 | Ionic transport and conductivity. Ionic conductivity as a function of LiFSA salt
content (closed symbol – 0.1 M, open symbol – 1 M) for (a) FTEG compounds and (b) FTriEG
compounds with tetraglyme as the control in both. All the data points in the conductivity plots
have error bars representing the standard deviation from at least three different cells. (c)
Activation energy obtained from Arrhenius fits of conductivity versus temperature for 0.1 M
LiFSA salt concentration. (d) Lithium (7Li) cation and FSA (19F) anion diffusivities and lithium
(7Li) transference number obtained through pulsed field gradient NMR for 0.1 M LiFSA in
FTriEG compounds. The dashed line at 0.4 represents the lithium transference number in
tetraglyme. Measured diffusivity for Li (1.28x10⁻6 cm2/s) and FSA (1.93x10⁻6 cm2/s) in 0.1 M
LiFSA tetraglyme. Corresponding (e) lithium (7Li) and (f) fluorine (19F) shifts for the lithium
cation and the FSA anion for 0.1 M LiFSA dissolved in FTriEG compounds and tetraglyme.
The conductivity dependence on temperature can be fitted using an Arrhenius form (Figure S5)
to obtain the activation energy barrier for ion transport. The insignificant shift in Tg precluded
the use of the Vogel-Tammann-Fulcher (VTF) form. Although Figures 2a-b showed a direct
8
ACS Paragon Plus Environment

Page 9 of 29
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
correlation between ether length and conductivity, the correlation with activation energy is
nuanced (Figures 2c and S5). The activation energy is a function of only ether spacer type and
ether length. For 0.1 M electrolytes, DME-FTriEG electrolyte has lower activation energies
compared to MME-FTriEG, DEG-FTriEG and tetraglyme. The difference in activation energy
barrier is surprising because DEG-FTriEG and tetraglyme support higher ionic conductivities
than DME-FTriEG. The FTEG compounds behave similarly (Figure 2c), and increasing the salt
concentration does not change the activation energy trends between both the FTriEG and FTEG
compounds (Figure S5).
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
The different trends in activation energy barrier prompted further spectroscopic study of the
ionic transport environment within the electrolytes. We use pulsed field gradient (PFG) NMR to
probe lithium (7Li for Li+) and anion (19F for FSA⁻) diffusion. Figure 2d shows diffusivity within
the FTriEG class of compounds. Remarkably, the trend for Li+ and FSA⁻ diffusivity mirrors the
activation energy trend in Figure 2c. Li+ and FSA⁻ diffusivity is highest in DME-FTriEG than in
MME or DEG-FTriEG. Despite the lower ionic conductivity in MME-FTriEG compared to
DEG-FTriEG, lithium diffuses faster, an observation we partly attribute to the lower viscosity of
MME compared to DEG-FTriEG (Table S2). Furthermore, within DME-FTriEG, FSA⁻ diffuses
faster than Li+ whereas Li+ diffuses faster than FSA⁻ in MME and DEG-FTriEG. Using PFG
NMR, Figure 2d shows that the lithium transference number is higher in MME and DEG-
FTriEG compared to DME-FTriEG. A similar trend in transference numbers is also observed for
the FTEG class of compounds (Figure S6). Despite these differences, these compounds have
higher lithium transference numbers compared to tetraglyme (tLi+ = 0.4). Figure S10 shows Mean
Squared Displacement (MSD) for 1 M LiFSA dissolved in MME-FTriEG, DME-FTriEG and
tetraglyme and the lithium transference number trends match our experimental results; however,
simulations tend to underestimate diffusion coefficients.35,36 Balsara et al.26–30 have shown that
carbonate-terminated perfluoropolyether compounds also show higher transference number
compared to a carbonate solvent control. Furthermore, these compounds show higher
transference numbers compared to previously reported LiTFSI in perfluoropolyether
(PFPE):polyethyleneglycol (PEG) blends.31
The ion binding environment was also examined using 7Li and 19F NMR. An NMR capillary
setup was used for 7Li NMR (see Experimental section) and the data referenced to a 1 M LiClO4
9
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 10 of 29
1
2
3
4
5
6
7
8
9
in acetonitrile internal standard (–2.80 ppm).37 Within the FTriEG family, as one moves from
MME to DME to DEG, an upfield shift is observed (Figure 2e), which could be due to stronger
ion solvation or an increase in ion-pairing; unfortunately Figure 2e alone is insufficient to
distinguish between the two as both phenomena will lead to upfield shifts.38–40 Figure 2f shows
the 19F chemical shift where a downfield trend is observed for FSA⁻ as one increases the ether
length. Compared to tetraglyme, the peaks are upfield, signaling increased Li+ ion pairing with
the FSA anion or also stronger binding between the FSA anion and the fluorinated ether.38
Between Figures 2e and 2f, the shifts from MME to DME are much greater (Δ = 0.15 ppm 7Li
and 0.34 ppm 19F) than moving from DME to DEG (Δ = 0.04 ppm 7Li and 0.05 ppm 19F),
indicating the spacer group effect especially relating to ionic solvation (-CH2O- to -CH2CH2O-)
is more dominant than the ether length effect (-CH2CH2O- to -CH2CH2OCH2CH2O-). Figure S7
shows that similar chemical shift trends are observed within the FTEG class of compounds,
although DEG-FTEG has more of a downfield shift compared to DEG-FTriEG. 7Li spin-lattice
relaxation times (T1), where relaxation occurs by translational and rotational motion, were
measured as a function of temperature for FTriEG and FTEG compounds (Figure S8).22,41 As a
quadrupolar nuclei, 7Li can also undergo quadrupolar relaxation mechanisms.22 Figure S8 shows
that tetraglyme has the longest T1 and the T1 decreases as one goes from MME to DEG (in both
FTriEG and FTEG), with the DEG compounds having the shortest T1. Unfortunately, the T1
values correlate with viscosity of the fluorinated ethers, which does not allow for easy
delineation on the impact of ion pair formation on T1 relaxation.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
10
ACS Paragon Plus Environment

Page 11 of 29
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60

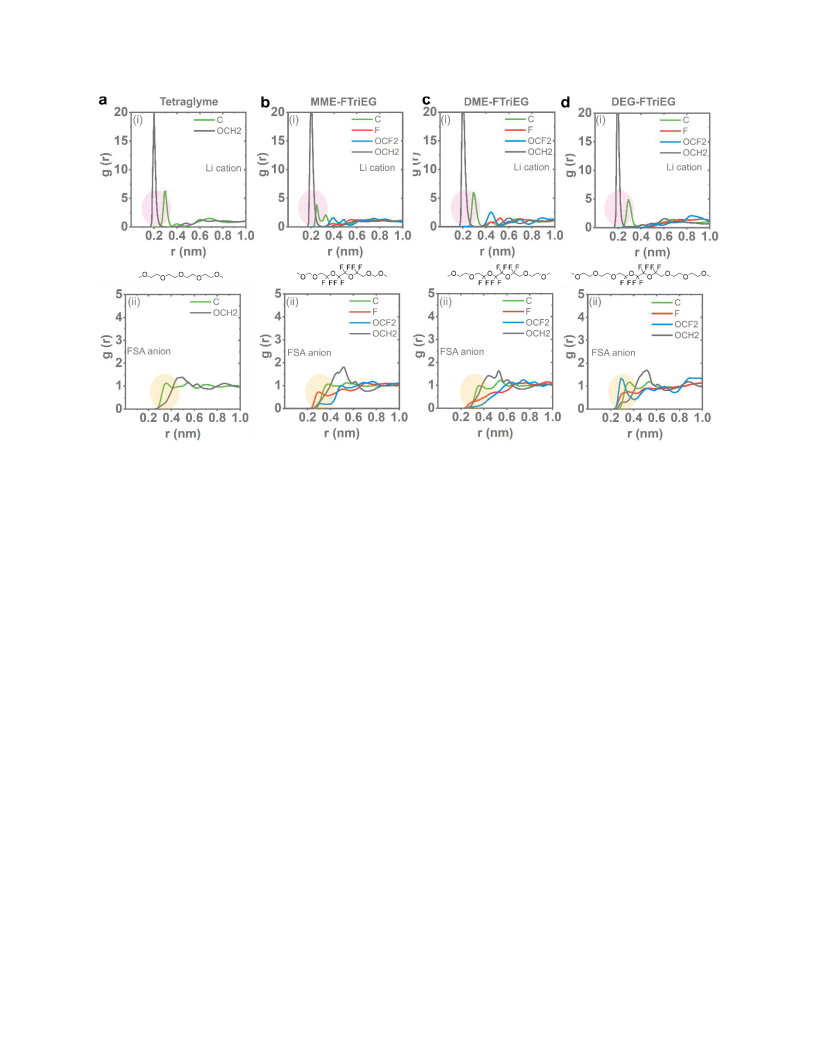

Figure 3 | Salt solvation structure in the electrolyte. Radial distribution functions (RDFs) of
0.1 M LiFSA in the different electrolytes (a) tetraglyme (b) MME-FTriEG (c) DME-FTriEG and
(d) DEG-FTriEG. The highlighted regions are to draw attention to the differences between the
spectra for both the lithium cation and the FSA anion. The chemical structures are added for ease
of comparison. –OCF2 and –OCH2 in the legends allow for differentiation of which oxygen atom
is adjacent to either the cation or anion, where –OCF2 represents the oxygen from the fluorinated
component, and –OCH2 represent the oxygen from the ether end groups. (i) lithium cation and
(ii) FSA anion for the respective electrolytes. The anion spectra in (ii) refers to the interaction
between the fluorine atom in the FSA anion and the respective compounds.
Ionic solvation structure
Molecular dynamics (MD) simulations were performed to better understand the lithium and
anion solvation environment within these fluorinated ethers (Figures 3 and S9). Figure 3 shows
radial distribution functions (RDFs) for the lithium cation and the FSA anion in tetraglyme and
the FTriEG compounds at a 0.1 M concentration As Figure 3a shows, the oxygen (with its lone
pair) on the ether group (OCH2) of tetraglyme has the highest probability of being adjacent to the
lithium cation.. Figure S9 shows the RDF for CH3-FTEG, and both OCH2 and OCF2 are adjacent
11
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 12 of 29
1
2
3
4
5
6
7
8
9
to the lithium cation. The high OCF2 peak coincides with the first peak of OCH2, implying that
OCH2 and OCF2 have comparable interaction with Li+. Since OCF2 doesn’t support lithium
transport, this means that CH3-FTEG has poor solvation power for Li+, which may explain the
observed low solubility of LiFSA in CH3-FTEG (< 0.1 M LiFSA solubility). Comparing the
RDFs for lithium in Figures 3b-d show the ether group adjacent to the lithium cation. This
supports the hypothesis shown in Figure 1 where the ether segment in the fluorinated ether
coordinates with lithium and supports its transport. Comparing 3b (i) and 3c (i) show that as one
moves from the methylene to the ethylene spacer unit, there is less interference from the carbon
within the first solvation shell, and an increased probability of the carbon being in the next
solvation shell. Also, looking at 3b (i), 3c (i), and 3d (i) shows that as the ether length is
increased, the probability of OCF2 in the lithium solvation shell diminishes. Again, this may help
explain why increasing the ether length leads to higher ionic conductivities.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
The increase in transference number observed here was also observed by Balsara et al.26,29 and
attributed to the interaction between the fluorinated ether and the anion. We remarked about the
nonlinear trend involving MME-, DME-, and DEG-FTriEG regarding the activation energy and
lithium transference numbers in Figures 2c-d. Figure S11 shows RDF analyses at a 1 M LiFSA
concentration in the fluorinated ether electrolytes and they show that both F and H atoms from
the solvent contribute significantly to the interaction with the FSA anion. Therefore, it appears
that the fluorinated segment in these compounds interact significantly with the fluorinated anion
through the ‘fluorous effect’ hence inhibiting anionic transport (which is desired); a hypothesis
originally proposed by Balsara et al.,29 but no conclusive evidence was provided until this work.
However, for DME-FTriEG, Figure S11 shows that the binding between the ether group (O-H
peak) is much higher than in MME-FTriEG and DEG-FTriEG, slowing lithium ion diffusion and
explaining the lower lithium transference number observed experimentally. Figure 2d
corroborates the MD data by showing that FSA⁻ diffuses faster than Li+ in DME-FTriEG (as also
observed with tetraglyme). Therefore, the ether segment in the fluorinated ether coordinates with
lithium while the fluorinated segment coordinates preferentially with the FSA anion. All these
fluorinated ethers have higher transference numbers compared to tetraglyme because the fluorine
group in the fluorinated ether interacts with the anion, albeit to different degrees.
12
ACS Paragon Plus Environment

Page 13 of 29
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 4 | Oxidative and reductive stability. (a) Linear sweep voltammetry at 0.1 mV/s with
FTEG compounds, FTriEG compounds, tetraglyme, and a tetraglyme:TTE (1:1 v/v) mixture with
a stainless steel (SS) working electrode and 0.1 M LiFSA salt concentration. Potentiostatic holds
for 3 hours at different voltages with stainless steel as the working electrode and 0.1 M LiFSA in
(b) tetraglyme and tetraglyme:TTE (1:1 v/v) and (c) FTriEG electrolytes. Potentiostatic holds
with aluminum (Al) foil as the working electrode and 1 M LiFSA salt concentration in
13
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 14 of 29
1
2
3
4
5
6
7
8
9
tetraglyme, DME-FTriEG, DEG-FTriEG and 1 M LiPF6 in EC-EMC at (d) room temperature
(RT) and (e) 60°C. Potentiostatic holds with (f) NMC 811 as the working electrode in 0.1 M
LiFSA in DEG-FTEG and the tetraglyme:TTE (1:1 v/v) mixture. (g) Cyclic voltammetry
scanning reductively at 0.1 mV/s with 0.1 M LiFSA in FTEG compounds and a stainless steel
working electrode. Reference and counter electrode: lithium metal. EC-EMC = ethylene
carbonate:ethyl methyl carbonate. RT= room temperature
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Oxidative and reductive stability
The oxidative stability of these fluorinated ethers was explored. Our motivation for synthesizing
these new class of electrolytes is to couple high ionic conductivity with high oxidative stability
in a single molecule. Figure 4a shows a linear sweep voltammetry (LSV) plot with a scan rate of
0.1 mV/s from open circuit to 6 V. As the data remarkably shows, all the fluorinated ethers have
oxidative voltages at least 1.4 V greater than tetraglyme (Table S1). Furthermore, the oxidative
voltage is a function of ether length with MME-FTriEG and MME-FTEG showing excellent
stability. We also studied the oxidative stability of a simple yet typically-studied mixture of
tetraglyme:TTE in a 1:1 volume ratio (1:1.45 molar ratio) and Figure 4a shows that the oxidative
stability of the mixture is still poor compared to the synthesized fluorinated ethers, further
validating our design strategy in Figure 1 that focuses on covalently attaching ethers to the
fluorinated segment instead of simple mixing. The result is intriguing because despite the
presence of ethers in the synthesized fluorinated compounds, there is still a significant
improvement in oxidative stability. For example, DEG-FTriEG has more ether groups than
tetraglyme, but the oxidative voltage is still higher (>5.1 V vs 4 V). In addition, the oxidative
stability in Li/SS cells is not influenced by increasing the salt concentration from 0.1 M to 1 M
(Figures S13-S14). The inductive electron-withdrawing effect of fluorine shifts electron density
away from the oxygen groups within the ether segment, decreasing the ether propensity for
oxidation.9,42,43 Another evidence of the shift in electron density is the lowered ability of the
ether segment in the FTEG and FTriEG compounds to coordinate and transport lithium (Figure
2). We believe the accessibility of the ether group to the electrode surface is also limited in the
fluorinated ether compared to tetraglyme, where the fluorinated segment may orient towards the
electrode surface limiting ether accessibility to the surface. Somorjai et al.44 have previously
14
ACS Paragon Plus Environment

Page 15 of 29
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
shown using sum frequency generation (SFG) vibrational spectroscopy that when a fluorinated
compound is adjacent to an electrode (e.g., amorphous silicon), it reorients to expose the CF3
groups to the surface to form an ordered fluorine-dominated passivation layer on the electrode
surface. Although our synthesized compounds do not have fluorinated terminal groups, our
observation of high oxidative stability despite the presence of ethers lends credence to the
importance of electrolyte orientation on oxidative stability. Our strategy could provide great
utility in the design of new electrolytes with greater electrochemical stability.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
We also use potentiostatic holds to further probe the oxidative stability of the fluorinated
compounds.45 Using a stainless steel, aluminum, or Ni-rich NMC 811 electrode with different
electrolytes, we hold the potential for three hours at increasingly higher potentials and record the
current response. If no undesired Faradaic reactions are occurring, the current should decay.45
Potentiostatic hold experiments for long times are less susceptible to the influence of impurities
that could lead to early current rise – earlier than the true compound oxidation – in LSV
experiments. Therefore, we quote the oxidative voltages from potentiostatic hold experiments.
Figure 4b shows current response as a function of voltage comparing tetraglyme and the simple
tetraglyme:TTE (1:1 v/v) mixture with a stainless steel electrode. The tetraglyme or
tetraglyme:TTE mixture shows an oxidative stability between 3.8–4 V, as previously reported.46
Meanwhile, Figure 4c shows a similar setup but with the FTriEG compounds, and the oxidative
stabilities increase up to 5.4–5.6 V. Significant increases in oxidative stability are also observed
with the FTEG compounds (Figure S12 and Table S1). However, continuous stainless steel
corrosion at earlier voltages is observed at 60°C for both FTriEG compounds and tetraglyme
(Figure S14). Although stainless steel electrodes provide great information on oxidative stability,
they are not practically relevant. We also explored the oxidative stability of 1 M salt
concentration in fluorinated ethers in commercially relevant Li/Al cells at room temperature and
at 60°C (Figures 4d-e). Aluminum is currently used as the current collector in commercial
lithium-ion cells, but imide salts such as LiFSA have been eschewed in commercial cells because
of Al corrosion.8,21,43,47 Figures 4d-e shows that these fluorinated ethers can passivate the Al
surface and are stable at high voltages; similar to commercial 1 M LiPF6 in EC:EMC (ethylene
carbonate:ethyl methyl carbonate) electrolytes and much better again than 1 M LiFSA in
tetraglyme. Typically, very high LiFSA salt concentrations are required when Al is used, but
these fluorinated ether electrolytes allow for normal 1 M salt concentration.21 Since, we are
15
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 16 of 29
1
2
3
4
5
6
interested in stability against high voltage cathode systems, we also performed potentiostatic
holds with NMC 811 as the electrode. Figure 4f shows a comparison between the
tetraglyme:TTE mixture and DEG-FTEG. The uninhibited current rise observed in 4b-c is not
seen with NMC 811, but the tetraglyme:TTE mixture show higher currents at around 3.8–4 V as
observed in Figure 4b. Meanwhile, the DEG-FTEG electrolyte shows much improved stability.
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
The ability to support lithium metal deposition and stripping was also investigated. Supporting
efficient cycling of lithium metal is vital and Figures 4g and S15 shows that the electrolytes can
support lithium metal deposition and stripping. Figure S16 shows lithium/lithium cells cycled in
various electrolytes where DEG-FTriEG can support long-term Li/Li cycling (comparably to
tetraglyme and 1 M LiPF6 in EC-EMC commercial electrolytes) albeit with higher overpotentials
due to the lower ionic conductivity of the fluorinated electrolytes. In addition, Figure S17 shows
Li/Cu cells where a 1 M LiFSA in DEG-FTriEG electrolyte supports more efficient lithium
cycling similar to 1 M LiFSA in tetraglyme, but much better than a commercial 1 M LiPF6 in
EC:EMC electrolyte.
Investigation with a high voltage cathode
The ability of these novel electrolytes to support battery cycling was investigated. Electrolytes
with high oxidative stability are desired for next generation cathode materials with higher energy
densities such as NMC 811. To probe the influence of our electrolyte, we use an NMC 811
electrode (theoretical capacity ~ 203 mAh/g)10 with a loading of 4 mg/cm2 and cycled from 3 to

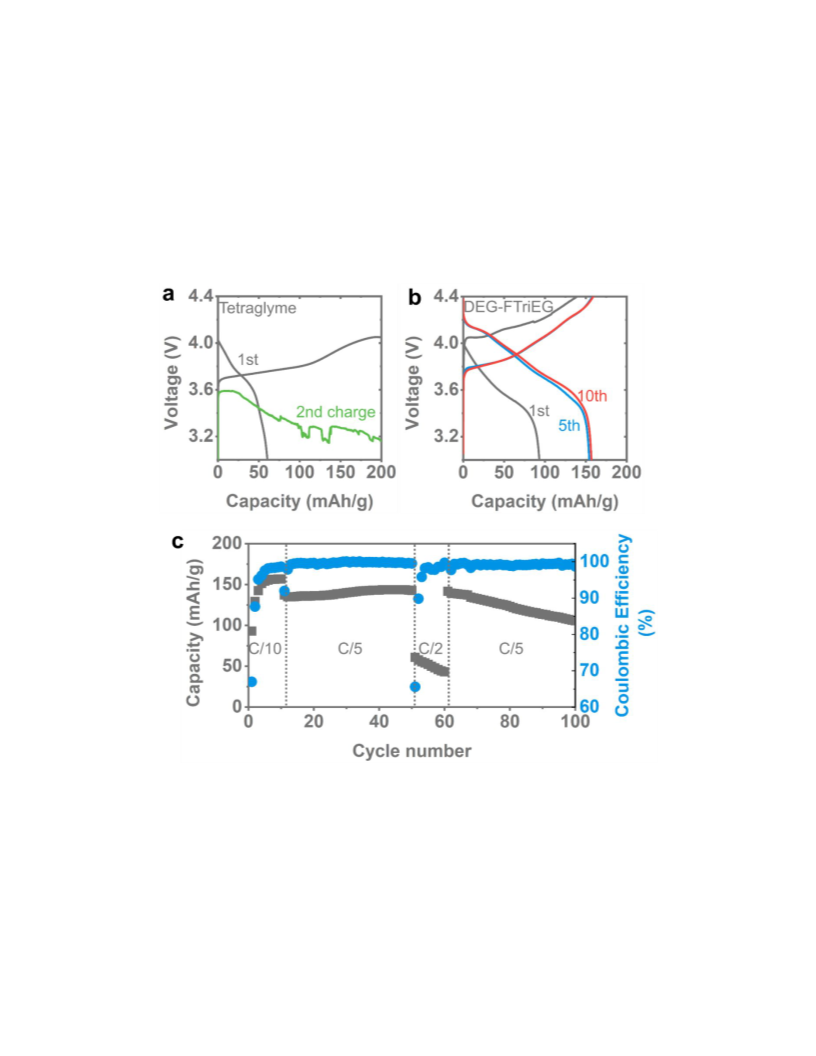

4.4 V. Figure 5a shows a cell with 1 M LiFSA in tetraglyme as the electrolyte with NMC 811 as
the cathode cycled at a current rate of C/10. By the first charge, the cathode cannot be charged to
the cutoff as undesired side reactions occur.48 Although the cell can be discharged to low
capacity (~50 mAh/g), the second charge is quite poor as the electrolyte is continuously
consumed.48 In contrast, Figure 5b shows significant improvement in cycling when 1 M LiFSA
in DEG-FTriEG is used as the electrolyte even with a 4.4 V charge cutoff. We chose DEG-
FTriEG for exploration in a battery because it has the highest ionic conductivity of the
compounds explored in this work, and high oxidative stability. The cycling result is exciting
because it shows that the significant increase in oxidative stability has enabled cycling of a Ni-
rich cathode. Figure 5c shows long term cycling at C/10 and C/5 current rates for over 100
16
ACS Paragon Plus Environment

Page 17 of 29
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
cycles. The coulombic efficiency observed in the Li/Cu cell in Figure S17 is lower than that in
Figure 5c, and may be due to the larger surface area lithium that is deposited in a Li/Cu cell that
will continuously react with the electrolyte. The ability to couple high ionic conductivity and
high oxidative stability has enabled the operation of an ionically conductive fluorinated ether as
the electrolyte in a high voltage lithium-metal-based battery.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 5 | Battery Performance. Galvanostatic cycling of 1 M LiFSA in (a) tetraglyme and (b)
DEG-FTriEG with an NMC 811 cathode (~0.9 mAh/cm2) at a current rate of C/10. (c) Discharge
capacity and coulombic efficiency as a function of cycle number for the 1 M LiFSA in DEG-
FTriEG electrolyte.
17
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 18 of 29
1
2
3
4
Conclusions
5
6
7
8
9
New electrolytes are vital for high energy density battery chemistries. However, currently used
ether electrolytes have low oxidative stability (< 4V), whereas typical hydrofluoroethers
currently used as diluents have high oxidative stability but cannot dissolve lithium salts. In this
work, we show a novel method to combine the high ionic conductivity of ethers with the high
oxidative stability of fluorinated compounds into a single compound. We synthesize a variety of
new fluorinated ether compounds and obtain structure-property relationships. These compounds
have ionic conductivities as high as 2.7x10⁻4 S/cm at 30°C, and oxidative voltages as high as 5.6
V (4 V in tetraglyme). Remarkably, LiFSA imide salt does not corrode aluminum in the presence
of these fluorinated ethers at a typical 1 M concentration, and the fluorinated electrolytes have
oxidative stability characteristics similar to commercial carbonate electrolytes while enabling
efficient lithium metal cycling. Importantly, we show that a simple mixture of tetraglyme with a
widely used hydrofluoroether still suffers from low oxidative stability. Therefore, our approach
of covalently combining the ether and the fluorinated segment allows for high ionic conductivity
and high oxidative stability. Using NMR and MD simulations, we explore structure-property
relationships and show that ionic conductivity in our fluorinated ether increases with longer ether
segment and shorter fluorinated segment. We show that the high transference number is due to
specific interactions between the anion and the fluorinated segment. Finally, we fabricate
batteries using NMC 811 as the cathode with a loading of 4 mg/cm2 and show that the cells can
be cycled over 100 times using these fluorinated ethers, and current rates up to C/5 are
accessible. The combination of all these properties in a class of new electrolytes is exciting, and
will inspire the design and synthesis of new electrolyte structures for next generation battery
systems.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Acknowledgments
C.V.A. is supported by the TomKat Center Postdoctoral Fellowship in Sustainable Energy at
Stanford University and the California Alliance Postdoctoral Fellowship. We thank Jianyu Li
and Arumugam Manthiram for providing the NMC 811 samples. NMR was performed at the
NMR Facility in the Stanford Department of Chemistry. The authors thank Stephen Lynch for
help with the NMR experiments.
18
ACS Paragon Plus Environment

Page 19 of 29
Journal of the American Chemical Society
1
2
3
4
5
6
Competing Interests
7
8
There are no competing interests to declare.
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Additional Information
Supplementary information is available in the online version of this paper. Correspondence and
request for materials should be addressed to C.V.A., Y.C., and Z.B.
Email: yicui@stanford.edu; zbao@stanford.edu
Experimental Section
Materials
19
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 20 of 29
1
2
3
4
5
6
7
8
9
Fluorinated tetraethylene glycol (FTEG) (98% purity), Fluorinate triethylene glycol (FTriEG)
(98% purity), 1,1,2,2-tetrafluoroethyl-2,2,3,3-tetrafluoropropylether (TTE) (98%+ purity), and
lithium bis(fluorosulfonyl)amide (99 % purity) were obtained from Oakwood Chemical and
Synquest Laboratories. 1-Bromo-2-(2-methoxyethoxy) ethane (>90% purity), and sodium
hydride (60% in paraffin oil) were obtained from TCI America. 2-Bromoethyl methyl ether
(>85% purity), iodomethyl methyl ether (90% purity, with copper stabilizer) and tetraglyme
(>99%) were obtained from Sigma-Aldrich. Lithium metal (750 um thickness) was obtained
from Alfa Aesar. Deuterated acetonitrile (D, 99.8%) was obtained from Cambridge Isotope
Laboratories. Aluminum foil was obtained from MTI. NMR capillary tubes were obtained from
New Era Enterprises. 1 M LiPF6 in EC-EMC (LP57) was obtained from Gotion.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Synthesis and purification
Synthesis of DEG-FTEG:
Synthesis of 1-tosyl-2-(2-methoxyethoxy) ethane: To a round-bottom flask were added 50
mL dry THF (from solvent extraction system), 50 mL 6 M NaOH solution, and 18 g diethylene
glycol methyl ether. The suspension was cooled to 0oC with an ice bath, purged with nitrogen,
and stirred for about 30 minutes. Tosyl chloride (~54 g) was separately dissolved in 80 mL dry
THF, and added dropwise using a syringe to the stirring suspension. The flask was stirred at 500
rpm and room temperature for 5 hours. Thin layer chromatography (TLC) with UV detector was
used to monitor the progress of the reaction.
After allowing the reaction to return to room temperature, the suspension was extracted by 300
mL diethyl ether. The organic layer was washed with distilled water and dried with Na2SO4. The
diethyl ether was removed under vacuo to yield a light yellow oil. The crude product was
purified by flash column chromatography (methanol: dichloromethane=10:90) to yield the final
product as colorless oil for the next step.
Synthesis of DEG-FTEG: To a round-bottom flask were added ~150 mL dry THF (from
solvent extraction system) and 2.5 mol equivalents (relative to FTEG amount) of NaH. The
suspension was cooled to 0oC with an ice bath, purged with nitrogen, and stirred for about 20
minutes. FTEG (~10 g) was separately dissolved in 20 mL dry THF, and added dropwise using a
syringe to the suspension. Bubbling can be observed upon FTEG addition. The suspension was
further stirred under nitrogen atmosphere at 0oC for about 2 hours. Then, 2.2 mol equivalents
(relative to FTEG amount) of 1-tosyl-2-(2-methoxyethoxy) ethane was added to the flask. More
THF is added for a total of roughly 200 mL. The flask was stirred at 500 rpm and 100 °C under
reflux for 5 hours. Thin layer chromatography (TLC) with iodine staining was used to monitor
the progress of the reaction.
After allowing the reaction to return to room temperature, the excess NaH was quenched by
dropwise addition of isopropanol. The mixture was then rotavaped to remove most of the
solvent. The residue was dissolved in a small amount of water and was neutralized by dumping
into dilute HCl. The aqueous solution was then extracted with dichloromethane (~200 mL * 3
20
ACS Paragon Plus Environment

Page 21 of 29
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
times). The organic layer was washed with distilled water (or dilute HCl) and dried with Na2SO4.
The dichloromethane was removed under vacuo to yield an orange oil. The crude product was
purified by flash column chromatography (ethyl acetate:hexanes=15:85) to yield the final
product as colorless oil. The product was then filtered off through 0.45 µm PTFE filter and
moved to an Argon glovebox where it was then stored over 4 Å molecular sieves. NMR
confirmation of structure can be found in Figure S1. Yield after purification: 30%
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Synthesis of DME-FTriEG: To a round-bottom flask were added ~150 mL dry THF (from
solvent extraction system) and 5 mol equivalents (relative to 10 grams of FTriEG) of NaH (6.8
grams NaH). The suspension was cooled to 0oC with an ice bath, purged with nitrogen, and
stirred for about 20 minutes. FTriEG (~10 g) was separately dissolved in 20 mL dry THF, and
added dropwise using a syringe to the suspension. Bubbling can be observed upon FTriEG
addition. The suspension was further stirred under nitrogen atmosphere at 0oC for about 2 hours.
Then, 2.5 mol equivalents (relative to FTriEG amount) of 2-bromoethyl methyl ether was added
to the flask. More THF is added for a total of roughly 200 mL. The flask was stirred at 500 rpm
and 80 °C under reflux for 2 days. Thin layer chromatography (TLC) with iodine staining was
used to monitor the progress of the reaction.
After allowing the reaction to return to room temperature, the excess NaH was quenched by
dropwise addition of isopropanol. The mixture was then rotavaped to remove most of the
solvent. The residue was dissolved in a small amount of water and was neutralized by dumping
into dilute HCl (0.1 M, 200 mL). The aqueous solution was then extracted with dichloromethane
(~200 mL × 3 times). The organic layer was washed with distilled water (or dilute HCl) and
dried with Na2SO4. The dichloromethane was removed under vacuo to yield an orange oil. The
crude product was purified by flash column chromatography (ethyl acetate:hexanes=15:85) to
yield the final product as colorless oil. The product was then filtered off through 0.25 µm PTFE
filter and moved to an Argon glovebox where it was then stored over 4 Å molecular sieves.
NMR was used to confirm product structure and purity (See Supplementary Information). NMR
confirmation of structure can be found in Figure S1. Yield after purification: 48%
Synthesis of DME-FTEG: Fluorinated tetraethylene glycol (10 grams), 2-bromoethyle methyl
ether (2.5 mol equiv.), sodium hydride (5 equiv.). Mol equivalents are relative to FTEG starting
amount. Similar procedure as detailed for DME-FTriEG. NMR confirmation of structure can be
found in Figure S1. Yield after purification: 63%
Synthesis of DEG-FTriEG: Fluorinated triethylene glycol (10 grams), 1-bromo-2-(2-
methoxyethoxy) ethane (2.5 mol equiv., 15.6 grams), sodium hydride (5 equiv., 6.8 grams). Mol
equivalents are relative to FTriEg starting amount.
Similar procedure as detailed for DME-FTriEG with the following additions: The reaction was
refluxed at 80°C for 3 nights. The sample was run through the flash column (50wt% ethyl
acetate, 50 wt% hexanes) four times to completely purify the product. The concentrated product
was then filtered using a 0.45 µm PTFE filter and moved to an Argon glovebox where it was
stored under 4 Å molecular sieves. NMR confirmation of structure can be found in Figure S1.
Yield after purification: 50%
21
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 22 of 29
1
2
3
4
5
6
7
8
9
Synthesis of MME-FTriEG: Similar procedure as detailed for DME-FTriEG with the following
additions: 2.2 mol equivalent of iodomethyl methyl ether (10 grams) was used for the reaction
with 5 equiv of NaH (5.49 grams) and 7.67 grams of fluorinated triethylene glycol. Mole
equivalents are relative to FTriEG starting amount. For flash column chromatography, a solvent
mixture of hexane (95%) and ethyl acetate (5%) was used. NMR confirmation of structure can be
found in Figure S1. Yield after purification: 78%
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Synthesis of MME-FTEG: Similar procedure as detailed for DME-FTriEG with the following
additions. 2.2 mol equivalent iodomethyl methyl ether (10 grams) was used for the reaction with
5 mol equivalent NaH (5.29 grams) and 10.84 grams of fluorinated tetraethlyene glycol. Mole
equivalents are relative to FTEG starting amount. For flash column chromatography, a solvent
mixture of hexane (95%) and ethyl acetate (5%) was used. NMR confirmation of structure can be
found in Figure S1. Yield after purification: 70%
Synthesis of CH3-FTEG: In a round-bottom flask, sodium hydride (5 g) was added to and stirred
in dry tetrahydrofuran (~150 mL)and cooled to 0oC. In a vial, FTEG (10 g) was first dissolved in
THF (~20 mL)and was then added into the suspension dropwise. The flask was purged with
nitrogen multiple times. The reaction was allowed to run for 2 hours at 0oC. Afterwards,
methyliodide (2.5 equiv) was added dropwise, and the reaction was allowed to return to room
temperature, and it was stirred overnight. For flash column chromatography, a solvent mixture of
hexane (90%) and ethyl acetate (10%) was used. NMR confirmation of structure can be found in
Figure S1. Yield after purification: 75%
Characterization
Fourier Transform Infrared (FTIR) Spectroscopy was performed using a Nicolet iS50 FTIR
Spectrometer, and measurements were performed using ATR mode. Thermal gravimetric
analysis (TGA) was performed using a TA Instrument Q500. DSC was performed using a TA
Instrument Q2000. The samples for DSC were first cooled to –90°C to reset any thermal history.
Then, the samples were heated at 5°C/min to 80°C and then cooled at the same rate to –90°C
(this heating and cooling cycle is reported in the manuscript). Viscosity measurements were done
using a TA ARES G2 Rheometer with an 8 mm diameter stainless steel parallel plate geometry.
Nuclear magnetic resonance (NMR) spectroscopy
NMR was used to confirm synthesis of product and efficacy of purification. Once synthesized
and purified and filtered, a little amount of the compound was dissolved in deuterated DMSO
and NMR was performed. A Varian Inova 400 MHz instrument was used.
For NMR experiments for the electrolytes, an NMR capillary setup was used. Sample
preparation was done inside an Argon glovebox where 0.1 M LiFSA was dissolved in the
different fluorinated compounds. The fluorinated compounds had been stored in 4 Å molecular
sieves. The electrolytes were freshly prepared for the measurements. The electrolyte mixture was
22
ACS Paragon Plus Environment

Page 23 of 29
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
placed inside a capillary tube, sealed with a PTFE cap, and added to the NMR tube containing a
1 M LiClO4 in deuterated acetonitrile as the internal standard. We chose 1 M LiClO4 in CD3CN
as the internal standard because both its 7Li and 1H shifts do not interfere with the compounds of
interest. 7Li, 1H, 19F were performed using a Varian Inova 300 MHz and a Varian 400 MHz
instrument.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Pulsed field gradient (PFG) NMR was used to study the diffusivity of lithium and anion in the
respective fluorinated solvents. For the diffusivity measurements, the capillary setup was used,
except that the 1 M LiClO4 in CD3CN internal standard was removed. The capillaries were
placed in an empty 5 mm NMR tube. All diffusion measurements were made with the Varian
400 MHz at a temperature of 20.7°C (the temperature was not controlled to limit convection
effects).49 A convection compensation pulse sequence (program ‘Dbppste_cc’) was used for the
7Li diffusion (for lithium ion) measurements while no convection compensation was needed for
the 19F measurements (for FSI anion) (program ‘pgste’). Gradient strengths of up to 15 G/cm was
used, pulses of (19F: δ = 0.005 – 0.01 s and Δ = 0.15 s ; 7Li: δ = 0.0075 – 0.01 s and Δ = 0.15 –
0.6 s) The peak intensity was used for the fitting and diffusion constants were obtained by fitting
the linearized version of the following equation:
훿
퐼/퐼0 = exp ( ―훾2푔2훿2퐷 ∆ ―
)
(
)
3
(where I = intensity as a function of gradient, γ = gyromagnetic ratio, g = gradient strength, δ =
duration pulse, D = diffusion constant, and Δ = gradient pulse interval)
The lithium transference number was calculated using the diffusivity values obtained from PFG
NMR and the following equation:
퐷퐿푖 +
푡퐿푖 =
퐷퐿푖 + + 퐷퐹푆퐼
Spin-lattice relaxation (T1) measurements were made on a Varian Inova 300 MHz instrument.
Temperature calibration was first done using a sealed ethylene glycol sample. The sample was
allowed to equilibrate for 5 minutes at the desired temperature before the T1 was measured.
Measurements were done in heating mode.
Electrochemical Characterization
Ionic conductivity measurements were performed using coin cells (CR2032) with stainless steel
(SS)/stainless steel (SS) blocking electrodes. Coin cells were fabricated in an argon glovebox in
the following manner: SS || 20 µL ||1 Celgard 2325 || 20 µL || SS. SS (16.2 mm diameter),
Celgard 2325 (25 µm thickness, 2 cm2). Temperature sweeps (cooling mode) were done using an
ESPEC environmental chamber. The cells were first held at 80 °C and then cooled to obtain 70
°C, 60 °C, 50 °C, 40 °C, 30 °C and 20 °C. The cells were held at each temperature for at least 2
23
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 24 of 29
1
2
3
4
5
6
7
8
9
hours before cell impedance was measured. The cell constant is 7.75. The cell constant was
obtained by fabricating coin cells with 1 M LiFSA in tetraglyme electrolyte and a PTFE spacer
with a 1 cm2 hole (2 cm2 disk, 0.348 mm thickness). Comparing this result to the cell measured
with Celgard separator allowed for a determination of the cell constant. A Biologic VSP3 was
used for the impedance measurements.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Battery Fabrication
Coin cells (CR2035) were used for battery fabrication. Li metal || 15 µL || 1 Celgard 2325 || 15
µL || electrode. For the oxidative and reductive stability experiments, the electrode was either
stainless steel (16.2 mm diameter) or NMC 811 (12.7 mm). Cells were allowed to rest for 3-5
hours before measurements were performed. A Biologic MPG2 or VSP3 potentiostat was used
for all the measurements. For the 30°C cells, an ESPEC environmental chamber was used to
maintain constant temperature. The NMC 811 electrode (4 mg/cm2, 8:1:1 mass ratio of NMC
811: PVdF:Super P carbon). PVdF = polyvinylidene fluoride.
Molecular Dynamics Simulation
The interactions between molecules/ions were described by the Optimized Potentials for Liquid
Simulations all atom (OPLS-AA) based force field.50 Atomic charges of the fluorinated ether
solvents were calculated using Møller-Plesset second-order perturbation method with the
correlation-consistent polarized valence cc-pVTZ(-f) basis set.51 The simulation boxes contain
one pair of LiFSA solvated in a particular number of solvents so that the salt concentration is
approximately 0.1 M. The radial distribution functions were calculated from MD trajectories of
20 ns long. Larger simulation boxes with more than one pairs of LiFSA were also tested and
found no significant changes in the radial distribution functions. All MD simulations were
conducted with the Gromacs 2018 program.52 The temperature was controlled at 300K using the
Nosé–Hoover thermostat with a relaxation time of 0.2 ps while the pressure was controlled at 1
bar using Parrinello-Rahman barostat with a relaxation time of 2.0 ps.
References
(1)
Peter G. Bruce, Stefan A. Freunberger, Laurence J. Hardwick, and J.-M. T.Li–O2 and Li–
S Batteries with High Energy Storage. Nat. Mater. 2012, 19–29.
https://doi.org/10.1038/NMAT3191.
(2)
(3)
Lin, D.; Liu, Y.; Cui, Y.Reviving the Lithium Metal Anode for High-Energy Batteries.
Nat. Nanotechnol. | 2017, 12. https://doi.org/10.1038/NNANO.2017.16.
Amanchukwu, C.V; Chang, H.-H.; Gauthier, M.; Feng, S.; Batcho, T. P.; Hammond, P.
T.One-Electron Mechanism in a Gel−Polymer Electrolyte Li−O 2 Battery. Chem. Mater.
24
ACS Paragon Plus Environment

Page 25 of 29
Journal of the American Chemical Society
1
2
3
4
2016, 28 (19), 7167–7177. https://doi.org/10.1021/acs.chemmater.6b03718.
5
6
7
8
(4)
(5)
Amanchukwu, C.V; Chang, H.-H.; Hammond, P. T.Influence of Ammonium Salts on
Discharge and Charge of Li−O 2 Batteries. J. Phys. Chem. C 2017, 121 (33), 17671–
17681. https://doi.org/10.1021/acs.jpcc.7b05322.
9
Girishkumar, G.; Mccloskey, B.; Luntz, A. C.; Swanson, S.; Wilcke, W.Lithium-Air
Battery: Promise and Challenges. J. Phys. Chem. Lett 2010, 1, 2193–2203.
https://doi.org/10.1021/jz1005384.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
(6)
(7)
Manthiram, A.; Fu, Y.; Su, Y. S.Challenges and Prospects of Lithium-Sulfur Batteries.
Acc. Chem. Res. 2013, 46 (5), 1125–1134. https://doi.org/10.1021/ar300179v.
Tikekar, M. D.; Choudhury, S.; Tu, Z.; Archer, L. A.Design Principles for Electrolytes
and Interfaces for Stable Lithium-Metal Batteries. Nat. Energy 2016, 1 (9), 16114.
https://doi.org/10.1038/nenergy.2016.114.
(8)
(9)
Winter, M.; Barnett, B.; Xu, K.Before Li Ion Batteries. Chem. Rev. 2018, 118 (23),
11433–11456. https://doi.org/10.1021/acs.chemrev.8b00422.
Xu, K.Nonaqueous Liquid Electrolytes for Lithium-Based Rechargeable Batteries. Chem.
Rev. 2004, 104 (10), 4303–4418. https://doi.org/10.1021/cr030203g.
(10) Jung, R.; Metzger, M.; Maglia, F.; Stinner, C.; Gasteiger, H. A.Oxygen Release and Its
Effect on the Cycling Stability of LiNi x Mn y Co z O 2 (NMC) Cathode Materials for Li-
Ion Batteries. J. Electrochem. Soc. 2017, 164 (7), 1361–1377.
https://doi.org/10.1149/2.0021707jes.
(11) Etacheri, V.; Marom, R.; Elazari, R.; Salitra, G.; Aurbach, D.Challenges in the
Development of Advanced Li-Ion Batteries: A Review. Energy Environ. Sci. 2011, 4,
3243–3262. https://doi.org/10.1039/c1ee01598b.
(12) Ding, F.; Xu, W.; Chen, X.; Zhang, J.; Engelhard, M. H.; Zhang, Y.; Johnson, B. R.;
Crum, J.V.; Blake, T. A.; Liu, X.; et al.Effects of Carbonate Solvents and Lithium Salts on
Morphology and Coulombic Efficiency of Lithium Electrode. J. Electrochem. Soc. 2013,
160 (10), A1894–A1901. https://doi.org/10.1149/2.100310jes.
(13) Pei, A.; Zheng, G.; Shi, F.; Li, Y.; Cui, Y.Nanoscale Nucleation and Growth of
Electrodeposited Lithium Metal. Nano Lett 2017, 17, 1132–1139.
https://doi.org/10.1021/acs.nanolett.6b04755.
(14) Jiao, S.; Ren, X.; Cao, R.; Engelhard, M. H.; Liu, Y.; Hu, D.; Mei, D.; Zheng, J.; Zhao,
W.; Li, Q.; et al.Stable Cycling of High-Voltage Lithium Metal Batteries in Ether
Electrolytes. Nat. Energy 2018, 3, 739–746. https://doi.org/10.1038/s41560-018-0199-8.
(15) Yoshida, K.; Nakamura, M.; Kazue, Y.; Tachikawa, N.; Tsuzuki, S.; Seki, S.; Dokko, K.;
Watanabe, M.Oxidative-Stability Enhancement and Charge Transport Mechanism in
GlymeÀLithium Salt Equimolar Complexes. J. Am. Chem. Soc 2011, 133, 13121–13129.
https://doi.org/10.1021/ja203983r.
(16) Yoshida, K.; Nakamura, M.; Kazue, Y.; Dokko, K.; Watanabe, M.Characterization of
Glyme-Lthium Salt Complexes as Ionic Liquids with Li+ Ion Conductivity. In Meeting
25
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 26 of 29
1
2
3
4
Abstracts. No. 49. The Electrochemical Society; 2008; pp 3022–3022.
5
6
7
8
(17) Suo, L.; Borodin, O.; Gao, T.; Olguin, M.; Ho, J.; Fan, X.; Luo, C.; Wang, C.; Xu,
K.&quot;Water-in-Salt&quot; Electrolyte Enables High-Voltage Aqueous Lithium-Ion
Chemistries. Science 2015, 350 (6263), 938–943. https://doi.org/10.1126/science.aab1595.
9
(18) Suo, L.; Hu, Y.-S.; Li, H.; Armand, M.; Chen, L.A New Class of Solvent-in-Salt
Electrolyte for High-Energy Rechargeable Metallic Lithium Batteries. Nat. Commun.
2013, 4 (1), 1481. https://doi.org/10.1038/ncomms2513.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
(19) Lee, C.-W.; Pang, Q.; Ha, S.; Cheng, L.; Han, S.-D.; Zavadil, K. R.; Gallagher, K. G.;
Nazar, L. F.; Balasubramanian, M.Directing the Lithium–Sulfur Reaction Pathway via
Sparingly Solvating Electrolytes for High Energy Density Batteries. ACS Cent. Sci. 2017,
3 (6), 605–613. https://doi.org/10.1021/acscentsci.7b00123.
(20) Ueno, K.; Murai, J.; Moon, H.; Dokko, K.; Watanabe, M.A Design Approach to Lithium-
Ion Battery Electrolyte Based on Diluted Solvate Ionic Liquids. J. Electrochem. Soc.
2017, 164 (1), A6088–A6094. https://doi.org/10.1149/2.0121701jes.
(21) Yamada, Y.; Wang, J.; Ko, S.; Watanabe, E.; Yamada, A.Advances and Issues in
Developing Salt-Concentrated Battery Electrolytes. Nat. Energy 2019, 4, 269–280.
https://doi.org/10.1038/s41560-019-0336-z.
(22) See, K. A.; Wu, H.-L.; Lau, K. C.; Shin, M.; Cheng, L.; Balasubramanian, M.; Gallagher,
K. G.; Curtiss, L. A.; Gewirth, A. A.Effect of Hydrofluoroether Cosolvent Addition on Li
Solvation in Acetonitrile-Based Solvate Electrolytes and Its Influence on S Reduction in a
Li–S Battery. ACS Appl. Mater. Interfaces 2016, 8 (50), 34360–34371.
https://doi.org/10.1021/acsami.6b11358.
(23) Chen, S.; Zheng, J.; Mei, D.; Han, K. S.; Engelhard, M. H.; Zhao, W.; Xu, W.; Liu, J.;
Zhang, J.-G.High-Voltage Lithium-Metal Batteries Enabled by Localized High-
Concentration Electrolytes. Adv. Mater. 2018, 30 (21), 1706102.
https://doi.org/10.1002/adma.201706102.
(24) Borodin, O.Challenges with Prediction of Battery Electrolyte Electrochemical Stability
Window and Guiding the Electrode – Electrolyte Stabilization. Curr. Opin. Electrochem.
2019, 13, 86–93. https://doi.org/10.1016/J.COELEC.2018.10.015.
(25) Fan, X.; Chen, L.; Borodin, O.; Ji, X.; Chen, J.; Hou, S.; Deng, T.; Zheng, J.; Yang, C.;
Liou, S.-C.; et al.Non-Flammable Electrolyte Enables Li-Metal Batteries with Aggressive
Cathode Chemistries. Nat. Nanotechnol. 2018, 13 (8), 715–722.
https://doi.org/10.1038/s41565-018-0183-2.
(26) Shah, D. B.; Olson, K. R.; Karny, A.; Mecham, S. J.; DeSimone, J. M.; Balsara, N.
P.Effect of Anion Size on Conductivity and Transference Number of Perfluoroether
Electrolytes with Lithium Salts. J. Electrochem. Soc. 2017, 164 (14), A3511–A3517.
https://doi.org/10.1149/2.0301714jes.
(27) Olson, K. R.; Wong, D. H. C.; Chintapalli, M.; Timachova, K.; Janusziewicz, R.; Daniel,
W. F. M.; Mecham, S.; Sheiko, S.; Balsara, N. P.; DeSimone, J. M.Liquid
Perfluoropolyether Electrolytes with Enhanced Ionic Conductivity for Lithium Battery
26
ACS Paragon Plus Environment

Page 27 of 29
Journal of the American Chemical Society
1
2
3
4
5
Applications. Polymer (Guildf). 2016, 100, 126–133.
https://doi.org/10.1016/J.POLYMER.2016.08.020.
6
7
8
9
(28) Chintapalli, M.; Timachova, K.; Olson, K. R.; Mecham, S. J.; Devaux, D.; DeSimone, J.
M.; Balsara, N. P.Relationship between Conductivity, Ion Diffusion, and Transference
Number in Perfluoropolyether Electrolytes. Macromolecules 2016, 49 (9), 3508–3515.
https://doi.org/10.1021/acs.macromol.6b00412.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
(29) Wong, D. H. C.; Thelen, J. L.; Fu, Y.; Devaux, D.; Pandya, A. A.; Battaglia, V. S.;
Balsara, N. P.; DeSimone, J. M.Nonflammable Perfluoropolyether-Based Electrolytes for
Lithium Batteries. Proc. Natl. Acad. Sci. U. S. A. 2014, 111 (9), 3327–3331.
https://doi.org/10.1073/pnas.1314615111.
(30) Timachova, K.; Chintapalli, M.; Olson, K. R.; Mecham, S. J.; DeSimone, J. M.; Balsara,
N. P.Mechanism of Ion Transport in Perfluoropolyether Electrolytes with a Lithium Salt.
Soft Matter 2017, 13 (32), 5389–5396. https://doi.org/10.1039/C7SM00794A.
(31) Wong, D. H. C.; Vitale, A.; Devaux, D.; Taylor, A.; Pandya, A. A.; Hallinan, D. T.;
Thelen, J. L.; Mecham, S. J.; Lux, S. F.; Lapides, A. M.; et al.Phase Behavior and
Electrochemical Characterization of Blends of Perfluoropolyether, Poly(Ethylene Glycol),
and a Lithium Salt. Chem. Mater. 2015, 27 (2), 597−603.
https://doi.org/10.1021/cm504228a.
(32) Tamura, T.; Yoshida, K.; Hachida, T.; Tsuchiya, M.; Nakamura, M.; Kazue, Y.;
Tachikawa, N.; Dokko, K.; Watanabe, M.Physicochemical Properties of Glyme-Li Salt
Complexes as a New Family of Room-Temperature Ionic Liquids. Chem. Lett. 2010, 39
(7), 753–755. https://doi.org/10.1246/cl.2010.753.
(33) Watanabe, M.; Dokko, K.; Ueno, K.; Thomas, M. L.; Leitner, W.; Kozinski, J. A.; Butler,
P. I.; Japan, R. (; Ryung Byon, H.Account/Review for Materials Innovation From Ionic
Liquids to Solvate Ionic Liquids: Challenges and Opportunities for Next Generation
Battery Electrolytes. Chem. Soc. Jpn 2018, 91, 1660–1682.
https://doi.org/10.1246/bcsj.20180216.
(34) Wnek, G. E.Structure−Property Relationships of Small Organic Molecules as a Prelude to
the Teaching of Polymer Science. J. Chem. Educ 2017, 94, 59.
https://doi.org/10.1021/acs.jchemed.6b00747.
(35) Salanne, M.Simulations of Room Temperature Ionic Liquids: From Polarizable to Coarse-
Grained Force Fields. Phys. Chem. Chem. Phys 2015, 17, 14270–14279.
https://doi.org/10.1039/c4cp05550k.
(36) Rajput, N. N.; Murugesan, V.; Shin, Y.; Han, K. S.; Kah, ⊥; Lau, C.; Chen, J.; Liu, J.;
Curtiss, L. A.; Mueller, K. T.; et al.Elucidating the Solvation Structure and Dynamics of
Lithium Polysulfides Resulting from Competitive Salt and Solvent Interactions. Chem.
Mater. 2017, 29, 3375–3379. https://doi.org/10.1021/acs.chemmater.7b00068.
(37) Gunther, H.Lithium NMR. In Encyclopedia of Magnetic Resonance; John Wiley & Sons,
Ltd: Chichester, UK, 2007. https://doi.org/10.1002/9780470034590.emrstm0273.
(38) Lukatskaya, M. R.; Feldblyum, J. I.; Mackanic, D. G.; Lissel, F.; Michels, D. L.; Cui, Y.;
27
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 28 of 29
1
2
3
4
5
6
Bao, Z.Concentrated Mixed Cation Acetate “Water-in-Salt” Solutions as Green and Low-
Cost High Voltage Electrolytes for Aqueous Batteries. Energy Environ. Sci. 2018, 11 (10),
2876–2883. https://doi.org/10.1039/C8EE00833G.
7
8
9
(39) Qiao, B.; Leverick, G. M.; Zhao, W.; Flood, A. H.; Johnson, J. A.; Shao-Horn,
Y.Supramolecular Regulation of Anions Enhances Conductivity and Transference
Number of Lithium in Liquid Electrolytes. J. Am. Chem. Soc 2018, 140 (35), 10932–
10936. https://doi.org/10.1021/jacs.8b05915.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
(40) Amanchukwu, C.V.; Kong, X.; Qin, J.; Cui, Y.; Bao, Z.Nonpolar Alkanes Modify
Lithium‐Ion Solvation for Improved Lithium Deposition and Stripping. Adv. Energy
Mater. 2019, 9 (41), 1902116. https://doi.org/10.1002/aenm.201902116.
(41) Bloembergen, N.; Purcell, E. M.; Pound, R.V.Relaxation Effects in Nuclear Magnetic
Resonance Absorption. Phys. Rev. 1948, 73 (7), 679–712.
(42) Amanchukwu, C.V; Harding, J. R.; Shao-Horn, Y.; Hammond, P. T.Understanding the
Chemical Stability of Polymers for Lithium−Air Batteries. Chem. Mater 2014, 27 (2),
550–561. https://doi.org/10.1021/cm5040003.
(43) vonAspern, N.; Röschenthaler, G.-V.; Winter, M.; Cekic-Laskovic, I.Fluorine and
Lithium: Ideal Partners for High-Performance Rechargeable Battery Electrolytes. Angew.
Chemie Int. Ed. 2019, 58 (45), 15978–16000. https://doi.org/10.1002/anie.201901381.
(44) Horowitz, Yonatan Han, Hui-Ling Ralston, Walter T. Joyce Rodrigues de Araujo,
Kreidler, Eric Brooks, Chris and Somorjai, G. A.Fluorinated End-Groups in Electrolytes
Induce Ordered Electrolyte/Anode Interface Even at Open-Circuit Potential as Revealed
by Sum Frequency Generation Vibrational Spectroscopy. Adv. Energy Mater. 2017, 7
(17), 1602060.
(45) Huang, M.; Feng, S.; Zhang, W.; Giordano, L.; Chen, M.; Amanchukwu, C.V.;
Anandakathir, R.; Shao-Horn, Y.; Johnson, J. A.Fluorinated Aryl Sulfonimide Tagged
(FAST) Salts: Modular Synthesis and Structure–Property Relationships for Battery
Applications. Energy Environ. Sci. 2018, 11 (5), 1326–1334.
https://doi.org/10.1039/C7EE03509H.
(46) Terada, S.; Mandai, T.; Suzuki, S.; Tsuzuki, S.; Watanabe, K.; Kamei, Y.; Ueno, K.;
Dokko, K.; Watanabe, M.Thermal and Electrochemical Stability of
Tetraglyme−Magnesium Bis(Trifluoromethanesulfonyl)Amide Complex: Electric Field
Effect of Divalent Cation on Solvate Stability. J. Phys. Chem. C 2016, 120, 1353–1365.
https://doi.org/10.1021/acs.jpcc.5b09779.
(47) Krause, LJ; Lamanna, W; Summerfield, J; Engle, M; Korba, G; Loch, R; Atanasoski,
R.Corrosion of Aluminum at High Voltages in Non-Aqueous Electrolytes Containing
Perfluoroalkylsulfonyl Imides; New Lithium Salts for Lithium-Ion Cells. J. Power
Sources 1997, 68, 320–325.
(48) Choudhury, S.; Tu, Z.; Nijamudheen, A.; Zachman, M. J.; Stalin, S.; Deng, Y.; Zhao, Q.;
Vu, D.; Kourkoutis, L. F.; Mendoza-Cortes, J. L.; et al.Stabilizing Polymer Electrolytes in
High-Voltage Lithium Batteries. Nat. Commun. 2019, 10 (1), 3091.
https://doi.org/10.1038/s41467-019-11015-0.
28
ACS Paragon Plus Environment

Page 29 of 29
Journal of the American Chemical Society
1
2
3
4
5
6
(49) Swan, I.; Reid, M.; Howe, P. W. A.; Connell, M. A.; Nilsson, M.; Moore, M. A.; Morris,
G. A.Sample Convection in Liquid-State NMR: Why It Is Always with Us, and What We
Can Do about It. J. Magn. Reson. 2015, 252, 120–129.
https://doi.org/10.1016/j.jmr.2014.12.006.
7
8
9
(50) Jorgensen, W. L.; Maxwell, D. S.; Tirado-Rives, J.Development and Testing of the OPLS
All-Atom Force Field on Conformational Energetics and Properties of Organic Liquids. J.
Am. Chem. Soc. 1996, 118 (45), 11225–11236.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
(51) Sambasivarao, S.V.; Acevedo, O.Development of OPLS-AA Force Field Parameters for
68 Unique Ionic Liquids. J. Chem. Theory Comput. 2009, 5 (4), 1038–1050.
https://doi.org/10.1021/ct900009a.
(52) Abraham, M. J.; Murtola, T.; Schulz, R.; Páll, S.; Smith, J. C.; Hess, B.; Lindahl,
E.GROMACS: High Performance Molecular Simulations through Multi-Level Parallelism
from Laptops to Supercomputers. SoftwareX 2015, 1–2, 19–25.
https://doi.org/10.1016/J.SOFTX.2015.06.001.
29
ACS Paragon Plus Environment
