Chelation of specific metal ions imparts coplanarity and fluorescence in two
imidazo[1,2-a]pyridine derivatives: potential chemosensors for detection of
metal ions in aqueous and biosamples
Ramanjaneyulu Malaa,b, Koorathota Sumana Manivannan Nandhagopalc, Mathivanan
Narayanasamyc and Sathiah Thennarasu*a,b
b
aOrganic and biorgnic Chemistry Laboratory, Academy of Scientific and Innovative Research
(AcSIR), CSIR-Central Leather Research Institute, Adyar, Chennai 600020, India.
c Biocontrol and Microbial Metabolites Lab, Centre for Advanced Studies in Botany, University
of Madras, Guindy Campus, Chennai 600025, India.
*Corresponding Author; E-mail:thennarasu@gmail.com; Tel: +91 44 24437269
Abstract
Synthesis and chelation induced fluorescence emission from two imidazo[1,2-a]pyridine
derivatives are described. The nonfluorescent molecule 1 containing N and O donor atoms,
achieves coplanarity upon interactions with trivalent cations Al3+, Fe3+ and Cr3+, that favours
fluorescence emission. Molecule 2 containing two N donor atoms attains coplanarity upon
interaction with the only Zn2+ and becomes fluorescent. Both molecules 1 and 2 form a 1:1
complex with interacting metal ions. Other trivalent metal ions (including Bi3+ and In3+) and
common divalent metal ions (including Hg2+ and Cd2+) fail to form any complex with 1 or 2, and
they do not interfere in the detection of Zn2+, Al3+, Fe3+ or Cr3+ ions. Noninterference of other
metal ions renders 1 and 2 suitable for the detection of fungal cells contaminated with Zn2+, Al3+,
Fe3+ or Cr3+ ions.
Keywords
Imidazo[1,2-a]pyridine derivatives; Chelation induced fluorescence; Coplanar structure;
Detection of metal ions; Cell imaging.

ACCEPTED MANUSCRIPT
1. Introduction
Development of new chemosensors for collective or selective detection of heavy and
transition metal ions has attracted the attention of a large number of research groups in recent
years, owing to the importance of these metal ions on human health and their impact on the
environment [1-4]. Significant effort has been devoted for the synthesis and evaluation of
chemosensors that bind more than one trivalent cation [5-7] or more than one divalent cation [8-
10]. Chemosensors with binding affinity for both trivalent and divalent metal ions have also been
reported [11-13].
Fluorescent chemosensors are very attractive as they possess the potential for real-time
monitoring of molecular interactions with high selectivity and sensitivity. Fluorescence turn-on
response upon interaction with metal ions offers a non-destructive analytical approach for the
detection of toxic metal ions by using low-cost instrumentation and simple operational
techniques. Mechanisms that involve fluorescence turn-on response include internal charge
transfer (ICT) [14], twisted intramolecular charge transfer (TICT) [15], excited state
intramolecular proton transfer (ESIPT) [16], photoinduced electron transfer (PET) [17],
chelation-enhanced fluorescence (CHEF) [18], Förster resonance energy transfer (FRET) [19],
spirolactam ring-opening in rhodamine based sensors [20] and deprotonation [21] upon
complexation. Among these, CHEF approach is unique in that chelation of metal ion with
organic receptor ligands drastically increases the conjugation, which results in enhanced
fluorescence emission [22]. However, examples of chemosensors attaining coplanar structure
upon interaction with specific metal ions are rare [23].
In continuation of our research on fluorescence turn-on chemosensors [24], herein, we report the
synthesis and photophysical properties of two imidazo[1,2-a]pyridine based probes 1 and 2 with
NO and NN combination of coordinating donor atoms, respectively. Experimental studies
revealed that both probes are nonfluorescent in aqueous solutions, and they emit fluorescence
upon interaction with specific metal ions. Probe 1 displays CHEF effect in response to trivalent
Al3+, Fe3+, and Cr3+ ions, while probe 2 is highly selective towards Zn2+ ions. This study assumes
significance in that the development of fluorescence turn-on chemosensors is challenging due to
the paramagnetic quenching nature of Fe3+ and Cr3+, and the weak coordinating ability of Al3+

ACCEPTED MANUSCRIPT
ions [25]. Similarly, the absence of any vacant d orbitals and unpaired electrons in Zn2+ hinder
spectrometric and magnetic detection of Zn2+ ions [26]. Using spectroscopic methods, we have
shown the specific interactions of 1 with Al3+, Fe3+ and Cr3+ ions, and those of 2 with Zn2+ ions
leading to coplanar geometry and metal chelation induced enhancement in fluorescence emission
intensity. The colour change associated with CHEF effect permits naked-eye detection.
Microscopic imaging of fungal cells contaminated with these metal ions is also demonstrated.
Scheme 1 Synthetic route for imidazo[1,2-a]pyridine derivatives: 1, 2 and reference molecule
2. Experimental section
Dry acetonitrile (analytical grade) and double distilled water were used in all experiments. All
the materials for synthesis were purchased from commercial suppliers and used without further
purification. The solutions of metal ions were prepared from the corresponding nitrate and
chloride salts. Absorption spectra were recorded on SPECORD 200 PLUS UV-visible
spectrophotometer. Fluorescence measurements were performed on Agilent Technologies Cary
Eclipse fluorescence spectrophotometer (Excitation wavelength 338 nm; Slit width 5 nm).
Fluorescence quantum yields were calculated by using quinine sulfate (ՓR = 0.577 in 0.1M
H2SO4) as a standard report. NMR spectra were recorded using Bruker Advance 400 MHz
spectrometer. HRMS spectra were obtained on Thermo Exactive PE Sciex API3000 mass
analyzer.

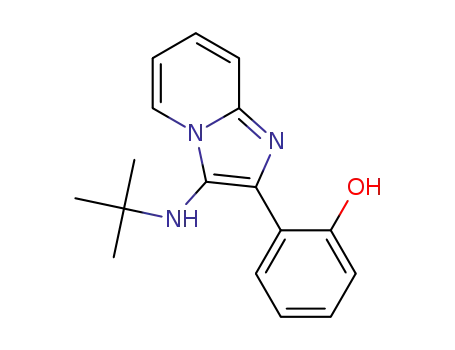

2.1 Synthesis of 2-(3-(tert-butylamino)imidazo[1,2-a]pyridin-2yl) phenol (1)
2-Aminopyridine (0.94g, 10 mmol) and 2-hydroxy benzaldehyde (1.06 mL, 10 mmol) were
solubilized in ethanol (25 mL). To this solution, tert-butylisocyanide (1.13 mL, 10 mmol) and
iodine (0.5 mmol) were added. The reaction mixture was stirred at room temperature overnight.
The white precipitate formed was separated and purified further using silica-gel column

ACCEPTED MANUSCRIPT
chromatography to obtain ligand 1 in 80% yield. Mass calculated for C17H19N3O was 281.10;
ESI m/z found was 282.20 (M+H)+. 1H NMR (400 MHz, CDCl3): δ 12.48 (s, 1H), 8.21 (d, J =
6.9 Hz, 1H), 8.13 (dd, J = 7.8, 1.6 Hz, 1H), 7.57 – 7.49 (m, 1H), 7.22 (tdd, J = 8.8, 7.0, 1.5 Hz,
2H), 7.04 (dd, J = 8.2, 1.1 Hz, 1H), 6.91 (td, J = 7.8, 1.3 Hz, 1H), 6.86 (td, J = 6.8, 1.1 Hz, 1H),
3.16 (s, 1H), 1.18 (s, 9H). 13C NMR (100 MHz, CDCl3): δ 156.94, 140.58, 129.34, 128.02,
124.79, 122.94, 121.90, 118.57, 117.64, 116.75, 112.02, 57.06, 30.36.
2.2 Synthesis of N-(tert-butyl)-2-(pyridin-2-yl)imidazo[1,2a]pyridin-3-amine (2)
2-Aminopyridine (0.94g, 10 mmol) and picolinaldehyde (0.95 mL, 10 mmol) were solubilized in
ethanol (40 mL). To this solution, tert-butylisocyanide (1.13 mL, 10 mmol) and iodine (0.5
mmol %) were added. The reaction mixture was stirred at room temperature overnight. The
white solid formed was separated by filtration and purified using silica-gel column
chromatography that afforded the ligand 2 in 90% yield. Calculated mass for C16H18N4 is 266.15
Observed mass (ESI m/z) = 267.33 (M + H) +.1H NMR (400 MHz,CDCl3) δ 8.57 (d, J = 4.3 Hz,
1H),8.28 (d, J = 7.0 Hz, 1H), 8.17 (d, J = 8.0 Hz, 1H),7.76 (td, J = 7.8, 1.7 Hz, 1H), 7.51 (d, J =
9.1 Hz, 1H), 7.27 (s, 1H), 7.07-7.18 (m, J = 19.1, 2H), 6.73 (t, J = 7.2 Hz, 1H), 5.44 (N-H)(s,
1H), 1.15 (s, 9H). 13C NMR (101 MHz, CDCl3) δ 155.13, 148.29, 141.72, 136.45, 134.84,
128.90, 124.25, 123.88, 121.60, 121.27, 117.50, 111.16, 57.08, 30.04.
2.3 Preparation of test solutions
UV-Vis and fluorescence titrations were conducted in low concentration range at room
temperature to avoid dilution-error. Stock solutions of the ligands 1 and 2 were prepared by
dissolving 2.81 mg of 1 or 3.0 mg of 2 in CH3CN and making up to the mark in a 10 mL
volumetric flask. Stock solutions of metal ions (1.0 M) were prepared in de-ionized water. We
used 10 µM solution of 1 and 5.6 μM solution of 2 for metal ion titration experiments. Buffer
solutions were prepared using tablets as per the specifications supplied by SRL Chemicals, India.
2.4 Microscopic observation
The fluorescent microscopic observation of fungal mycelia was carried out under wet
mount technique. Rhizoctonia solani (Obtained from Biocontrol Microbial Metabolites Lab,
Centre for Advanced Studies in Botany, University of Madras, and Guindy) used as the test

ACCEPTED MANUSCRIPT
organisms, Fungal growth medium potato dextrose Agar (PDA) (potato 20 g, dextrose 2 g &
agar 2 g per 100 mL) obtained from Sisco Reserch Laboratories (PM033), New Mumbai, was
prepared and sterilized at 121 °C for 20 minutes at 15 lbs. medium poured in to sterile petriplate
and allowed to solidify small portion of fungal mycelium placed in center of PDA agar plates
and incubated for 6 days at 20°C. After incubation small portion of fungal mycelium was taken
using inoculation needle and treated with 5 µL of 10 mM solution of target metal ions (Fe3+,
Al3+, Cr3+ and Zn2+) at room temperature for 5 minutes. After washing the contaminated mycelia
with sterile distilled water, 5 µL of probe 1 (0.0035 mmol) or probe 2 (0.0037 mmol) plus 10 µL
distilled water were added to each microscopic slide separately, mixed using inoculation needle,
covered with cover slip, and observed under bright field and fluorescent field with 40X
magnification. Optika fluorescent microscope (EM535AF45) was used with a cut-on wavelength
510 ± 2 nm and cut-off wavelength 560 ± 5 nm.
3. Results and Discussion
The synthesis and photophysical properties of imidazo[1,2-a]pyridine derivatives have been
reported recently [27]. While exploring the synthesis of imidazo[1,2-a]pyridine and imidazo[1,2-
a]pyrazine derivatives through alternate methods (Scheme 1, Fig. S1-6), we observed that 4-(3-
(tert-butylamino)imidazo[1,2-a]pyridine-2-yl)phenol was fluorescent and 2-(3-(tert-butylamino)
imidazo[1,2-a]pyridine-2-yl)phenol (ligand 1) was non-fluorescent (Fig. S7). A comparison of
MM2 energy minimized structures of both compounds revealed the loss of co-planarity in ligand
1. Consequently, single crystal analysis (Fig. 1, Table S1) confirmed the loss of co-planarity in
ligand 1, supporting the notion that loss of co-planarity led to the loss of fluorescence. We
envisaged that ligand 1 would emit fluorescence if co-planarity is established through chelation
of metal ions. With only two potential chelating atoms, ligand 1 could be expected to behave like
the bipyridyl ligand, as a subtle variation in donor atoms is known to modulate metal ion specific
binding [28, 29]. By the same analogy, ligand 2 (Fig. 1, S8, Table S1) was also envisaged to
display turn-on fluorescence upon chelation with metal ions.
………………………………………Figure 1 …………………………………………………..
3.1 Interaction of metal ions with ligand 1

ACCEPTED MANUSCRIPT
We first investigated the absorbance profile of ligand 1 in the presence of metal ions such as,
Na+, K+, Ag+, Zn2+, Co2+, Ni2+, Ca2+, Ba2+, Pb2+, Cu2+, Mn2+, Hg2+, Cd2+, Fe2+, Mg2+, Fe3+,Cr3+,
Al3+ , In3+ and Bi3+ in acetonitrile medium to explore the chelation potential of 1. In the absence
of any metal ions, the UV-Visible spectrum of 1 (10 µM) showed an absorption maximum at
~338 nm ( = 122000 M-1 cm-1), corresponding to the imidazo[1,2-a]pyridine moiety. When of
10 equiv. of the indicated metal ions were added, only Al3+, Fe3+ and Cr3+ induced significant
changes in the absorption profile of 1 (Fig. 2a). Serial addition of Al3+, Fe3+ or Cr3+ ions resulted
………………………………………Figures 2,3 and 4 ……………………………………..
in a steady blue-shift of the absorption maximum at ~338 nm, and upon addition of 13, 25 and 15
equiv. of Al3+, Fe3+ or Cr3+, the absorption maximum appeared at ~317 nm (Fig. 3). When other
trivalent and divalent metal ions were added to ligand 1 in acetonitrile, the almost negligible
effect was observed (Fig 2a). These observations implied that only Al3+, Fe3+ and Cr3+ had the
ability to form a complex with 1. The observed blue-shift in absorption is attributed to trivalent
cation binding to ligand 1, which results in a more rigid structure of the probe after complex
formation. As the metal ions Al3+, Fe3+ and Cr3+ possess the same charge; the one with the right
ionic radius is expected to induce the greatest blue-shift. It is imperative to note that metal
complex formation with 1 could also be detected by naked-eye when illuminated under a UV
lamp (Fig. 4).
3.2 Chelation of specific metal ions with ligand 1 turns on fluorescence
The observed blue-shift in absorption upon complex formation prompted us to investigate the
fluorescence profiles of 1 (10 µM) in the presence of 100 equiv. of the metal ions in acetonitrile
medium (Fig.2b). Ligand 1 in acetonitrile and in the presence of other metal ions did not show
any detectable fluorescence. However, the addition of 100 equiv. of Al3+, Fe3+ or Cr3+ rendered a
remarkable increase in fluorescence emission at 471 nm. The observed 197, 183 and 134 fold
increments in the emission intensity was ascribed to the selective interactions of Fe3+, Al3+ or
Cr3+, respectively. The fluorescence quantum yields [30] of the putative 1-Al3+, 1-Fe3+ and 1-
Cr3+ complexes were calculated to be 0.445, 0.339 and 0.202, respectively, with respect to
quinine sulphate (ՓR=0.577 in 0.1M H2SO4). Effect of pH on the fluorescence emission from
probe 1, with and without Al3+, Fe3+ or Cr3+ ions, showed that probe 1 is useful only in the
neutral and basic pH range for detection purposes (Fig. S9a).

ACCEPTED MANUSCRIPT
………………………………………Figures 3,4,5 and 6……………………………………..
3.3 Understanding metal ion interactions with ligand 1
To understand metal ion induced fluorescence emission, 1H and 13C NMR spectra of ligand 1
and 1-Fe3+ were recorded. Involvement of the hydroxyl group of 1 was readily observed by
comparing the 1H NMR spectra of 1 and 1-Fe3+ (Fig. 5). Analysis of 13C NMR spectra of 1 and
1-Fe3+ revealed the involvement of N-atom of the imidazo[1,2-a]pyridine moiety as the
resonance positions of these carbons were shifted significantly. To confirm the formation of a
metal complex with ligand 1, we used the proton difference NOE experiment. As would be
expected, 5H of imidazo[1,2-a]pyridine moiety and 3H of phenol moiety in ligand 1 showed
NOE enhancements upon saturation of tert-butyl protons. The ratio of the area of the peaks
corresponding to 5H and 3H was calculated to be 2.0. A similar analysis of the area of the peaks
corresponding to 5H and 3H after adding Al3+ was found to be 1.3 (Fig 6). This observation 
increment in the NOE enhancement of 3H  was attributed to the attainment of co-planarity in
ligand 1 upon complex formation. Co-planarity in 1-Al3+ complex can bestow fluorescence
emission[31] and hence, ligand 1 can be used as a chemosensor for the detection of low levels of
Al3+, Fe3+ and Cr3+ ions.
3.4 Exploring the binding behaviour of ligand 2 with different metal ions
Encouraged by the observations described above, we set out to explore ligand 2 for chelation
induced co-planarity and the associated fluorescence emission from its complex with metal ions.
When the absorption profiles of ligand 2 were studied under the conditions applied to ligand 1,
only Zn2+ (and not the other divalent and trivalent metal ions) showed noticeable changes in the
absorption profile of 2 (Fig. 7a). Serial addition of Zn2+ ions resulted in a steady increase in
absorption, and the maximum absorption was observed upon addition of 10 equiv. of Zn2+ (Fig.
8). Under comparable conditions, ligand 2 in CH3CN-H2O (1:1) mixture did not show any
detectable fluorescence in the presence of common metal ions. However, the addition of 10
equiv. of Zn2+ resulted in a remarkable increase in fluorescence emission at 460 nm (Fig. 7b).
The observed 4 fold increment in the fluorescence intensity was attributed to the Zn2+ selective
interactions of ligand 2. The fluorescence quantum yield of the putative 2-Zn2+ complex was
calculated to be 0.463. The structure of the 2-Zn2+ complex was analyzed using single crystals
obtained from ethanol solution. Single crystal XRD studies of 2 and 2-Zn2+ complex proved the

ACCEPTED MANUSCRIPT
co-planar structure of 2-Zn2+ complex (Fig. 9, Table S2) and the lack of co-planarity in the
structure of 2. Thus, metal chelation stabilized the coplanar structure of 2-Zn2+ complex, and
fluorescence emission due to the attainment of coplanar structure were confirmed. It is
imperative to note that complex formation between 2 and Zn2+ could also be detected by naked-
eye when illuminated under a UV lamp (Fig. 4b).
………………………………………Figures 7,8,9 and 10 ……………….…………………..
3.5 Exploiting chelation induced fluorescence for detection of specific metal ions
As ligand 1 showed an affinity for trivalent ions (Fe3+, Al3+ and Cr3+) and ligand 2 had an
affinity for only Zn2+, we exploited their potential for chemosensor applications. As shown in
Fig. 10 and Fig. 11, the plot of emission intensity versus the concentration of trivalent and
divalent cations showed a linear relationship. The detection limits for Al3+, Fe3+, Cr3+ and Zn2+
ions were calculated to be 1.8 × 10-9 M, 1.9 × 10-9 M, 3.2 × 10-9 M, and 1.64×10-10 M,
respectively (detection limit, DL = 3σ/S, where σ is the standard deviation of the blank solution,
and S is the slope of the calibration curve). Curiously, Job plot measurements clearly showed the
formation of complexes 1-Al3+, 1-Fe3+, 1-Cr3+ and 2-Zn2+ in 1:1 stoichiometry (Fig. 12). The
ESI-MS spectra of these 1-Al3+, 1-Fe3+, 1-Cr3+ and 2-Zn2+ also confirmed the 1:1 stoichiometry
of these complexes (Fig.S10-S13). The calculated association constants based on Benesi-
Hildebrand method were 5.5 × 106 M-1, 2.77 × 106 M-1, 5.0 × 106 M-1 and 1.69 ×10-9 M-1 for 1-
Al3+, 1-Fe3+, 1-Cr3+ and 2-Zn2+ complexes, respectively (Fig. S14). Effect of pH on the
fluorescence emission from probe 2, with and without Zn2+ ions, showed that probe 2 is useful
only in the neutral and basic pH range for detection purposes (Fig. S9b).
………………………………………Figures 11,12 and 13 …………………………………..
Further, the fluorescence emission of 1-Al3+, 1-Fe3+, 1-Cr3+ and 2-Zn2+ complexes (10 M)
at 471 nm, in the presence of 50 M quantity of other metal ions (Na+, K+, Ag+, Zn2+, Co2+,
Ni2+, Ca2+, Ba2+, Pb2+, Cu2+, Mn2+, Hg2+, Cd2+, Fe2+, Mg2+, Fe3+,Cr3+, Al3+ ,and In3+ and Bi3+)
indicated little or no interference in the detection process (Fig.S15). The non-interference of
competing for metal ions clearly suggest that ligands 1and 2 can be used as sensors for the
detection of specific metal ions. The major distinction between the two ligands is the difference
between the two donor-atoms present in them. Ligand 1 that senses trivalent metal ions contains

ACCEPTED MANUSCRIPT
N and O combination of donor-atoms, separated by four intervening bonds. Ligand 2 that detects
divalent Zn2+ ions has N and N combination of donor-atoms, separated by three bonds. Common
divalent metal ions (including Hg2+ and Cd2+), and trivalent cations (including Bi3+ and In3+) do
not interference in the formation of 1-Al3+, 1-Fe3+, 1-Cr3+ and 2-Zn2+ complexes. These
observations clearly demonstrate the role of donor atoms vis-à-vis ionic radius in the selective
recognition of Zn2+ by ligand 2, and Fe3+, Al3+ and Cr3+ by ligand 1.
………………………………………Figure 13 ………………………………………………..
To assess the potential of the probes 1and 2 for possible applications in biological samples,
we explored their suitability as a turn-on sensors for the detection of Fe3+, Al3+, Cr3+ and Zn2+
ions in live Rhizoctonia solani cells. The mycelia of R. solani were exposed to these four metal
ions as described in the experimental section, and then washed with sterile distilled water to
remove excess metal ions. When the mycelia were viewed through the fluorescence microscope,
bright blue fluorescence was observed (Fig. 13) only from the cells treated with both the metal
ion and the probe 1 or 2. R. solani mycelia treated only with the probe or only with the metal
ions, did not show any fluorescence. The fact that ~3.5 μM concentration of probes was enough
to exhibit the desired level of fluorescence for imaging cells clearly demonstrated the sensitivity
of 1 and 2 (Fig. S16).
4. Conclusions
In this report, we provide evidence for chelation of specific metal ions with two non-
luminescent imidazo[1,2-a]pyridine derivatives that leads to chelation induced fluorescence turn-
on behaviour. The ability of ligand 1 to form a 1:1 complex with Fe3+, Al3+ or Cr3+ has been
proved using Job plot. The selectivity displayed by ligand 2 for Zn2+ is also confirmed by the 1:1
geometry of the complex, as deduced from Job plot. Both ligands 1 and 2 attain coplanar
structure upon complex formation as revealed by difference NOE experiments and XRD
analysis. Complex formation with Zn2+, Fe3+, Al3+ or Cr3+ by ligands 1 and 2 is not disrupted by
common monovalent, divalent and trivalent metal ions. In the case of ligand 1, the direct
involvement of donor atoms O and N in complex formation has been demonstrated using NMR
methods. In the case of probe 2, the involvement of pyridyl and imidazolyl N-atoms in complex

ACCEPTED MANUSCRIPT
formation has been confirmed by XRD analysis, and the suitability of 2 for selective detection of
Zn2+ is demonstrated. The suitability of probes 1 and 2 for bioimaging is also demonstrated.
Acknowledgements
One of the authors, MR, thanks to the UGC, New Delhi, India, for Senior Research
Fellowship. Financial support from CSIR 12th plan project CSC0201 is acknowledged.
References
[1] (a) Jiasheng Wu, Weimin Liu, Jiechao Ge, Hongyan Zhang and Pengfei Wang, New sensing
mechanisms for design of fluorescent chemosensors emerging in recent years Chem. Soc. Rev.,
40 (2011) 3483-3495; (b) Kyle P. Carter, Alexandra M. Young, and Amy E. Palmer Fluorescent
Sensors for Measuring Metal Ions in Living Systems Chem. Rev. 114 (2014) 4564-4601; (c)
Yongsuk Jeong and Juyoung Yoon Recent progress on fluorescent chemosensors for metal ions
Inorganica Chimica Acta 381 (2012) 2-14; (d) Aragay G, Pons J, Merkoci A. Chem Rev 111
(2012) 3433-3458.
[2] (a) Junfeng Wang, Yingbo Li, Nikul G, Patel Ge Zhang, Demin Zhou and Yi Pang. Chem.
Comm.50 (2014) 12258-12261; (b) A. Mahammad, R. Alam, R. Bhowmick, A.S.M. Islam, A.
Katarkar and K. Chaudhuri. New J. Chem. 41 (2017) 8359-8369; (c) Xiaoqia ng Chan, Tuhin
Pradhan, Fang Wang, Jong Seung Kim, and Juyoung Yoon. Chem. Rec. 112 (2001) 1910-1956.
[3] (a) Sima Paul, Abhishek Manna and S.Goswami. Dalton Trans. 44 (2015) 11805-11810; (b)
S.Goswami, K.Aich, Sangita Das, Avijit Kumar Das, Deblina Sarkar, Sukanya Panja, Tapan
Kumar Mondal and S.Mukhopadhyay. Chem.Comm. 49 (2013) 10739-10741; (c) Li X, Gao X,
Shi W, Ma H. Chem Rev., 114 (2014) 590-659.

ACCEPTED MANUSCRIPT
[4] (a) Katja Dralle Mjos, Jacqueline F. Cawthray, Elena Polishchuk, Michael J. Abrams and
Chris Orvig. Dalton Trans. 45 (2016) 13146-13160 ; (b) Yufeng Li, Chunying Chen, Bai Li, Jin
Sun, Jiangxue Wang, Yuxi Gao, Yuliang Zhao and Zhifang Chai J.Anal.At.Spectrom 21 (2006)
94-96; (b) Zhu H, Fan J, Wang B, Peng X. Chem. Soc. Rev., 44 (2015) 4337- 4366.
[5] R.S. Eisenstein, Iron regulatory proteins and the molecular control of mammalian iron
metabolism, Annu. Rev. Nutr 20 (2000) 627-662.
[6] J.B. Vincent, Recent advances in the nutritional biochemistry of trivalent chromium, Proc.
Nutr. Soc., 63 (2004) 41- 47.
[7] T.P. Flaten, Aluminium as a risk factor in Alzheimer's disease, with emphasis on drinking
water, Brain Res. Bull., 55 (2001) 187-196.
[8] E. DeVoto, R.A. Yokel, The biological speciation and toxicokinetics of aluminum, Environ.
Health Perspect 102 (1994) 940-951.
[9] S.V. Verstraeten, L. Aimo, P.I. Oteiza, Aluminium and lead: molecular mechanisms of brain
toxicity, Arch. Toxicol 82 (2008) 789-802.
[10] R.A. Anderson, Chromium, glucose intolerance and diabetes, J. Am. Coll. Nutr 17 (1998)
548-555.
[11] J.R.Walton, Aluminum in hippocampal neurons from humans with Alzheimer's disease,
Neurotoxicology 27 (2006) 385-394.
[12] P. Nayak, Aluminum: impacts and disease, Environ. Res 89 (2002) 101-115.

ACCEPTED MANUSCRIPT
[13] R.R. Crichton, D.T. Dexter, J. Ward, Metal based neurodegenerative diseases-from
molecular mechanisms to therapeutic strategies, Coord. Chem. Rev 252 (2008) 1189-1199.
[14] ( a) Z. Xu, Y. Xiao, X. Qian, J. Cui and D. Cui, Ratiometric and Selective Fluorescent
Sensor for CuII Based on Internal Charge Transfer (ICT), Org. Lett., 7 (2005) 889-892; (b) J.
Wang, X. Qian and J. Cui, Detecting Hg2+ Ions with an ICT Fluorescent Sensor Molecule:ꢀ
Remarkable Emission Spectra Shift and Unique Selectivity, J. Org. Chem.,71 (2006) 4308-4311;
(c) F. Qian, C. Zhang, Y. Zhang, W. He, X. Gao, P. Hu and Z. Guo, Visible Light Excitable
Zn2+ Fluorescent Sensor Derived from an Intramolecular Charge Transfer Fluorophore and Its in
Vitro and in Vivo Application, J. Am. Chem. Soc.,131 (2009) 1460-1468; (d) S. Goswami, D.
Sen and N. K. Das, A New Highly Selective, Ratiometric and Colorimetric Fluorescence Sensor
for Cu2+ with a Remarkable Red Shift in Absorption and Emission Spectra Based on Internal
Charge Transfer, Org. Lett., 12 (2010) 856-859; (e) M. Shellaiah, Y.-H. Wu and H.-C. Lin,
Simple pyridyl-salicylimine-based fluorescence “turn-on” sensors for distinct detections of Zn2+,
Al3+and OH− ions in mixed aqueous media, Analyst, 138 (2013) 2931-2942.
[15] (a) Hu, R.; Azael Go´mez-Dura´n, C. F.; Lam, J. W. Y.; Belmonte-Va´zquez, J. L.; Deng,
C.; Chen, S.; Ye, R.; Pena˜-Cabrera, E.; Zhong, Y.; Wong, K. S.; Tang, B. Z., Synthesis,
solvatochromism, aggregation-induced emission and cell imaging of tetra phenylethene-conta
ining BODIPY derivatives with large Stokes shifts, Chem. Commun. 48 (2012) 10099-10101;
(b) Gao, B.-R.; Wang, H.-Y.; Hao, Y.-W.; Fu, L.-M.; Fang, H.-H.; Jiang, Y.; Wang, L.; Chen,
Q.-D.; Xia, H.; Pan, L.-Y.; Ma, Y.-G.; Sun, H.-B. Time-Resolved Fluorescence Study of
Aggregation-Induced Emission Enhancement by Restriction of Intramolecular Charge Transfer
State, J. Phys. Chem.B 114 (2010) 128-134; (c) Zhu, L.; Yang, C.; Qin, J., An aggregation-
induced blue shift of emission and the self-assembly of nanoparticles from a novel amphiphilic

ACCEPTED MANUSCRIPT
oligofluorene, Chem. Commun. 0 (2008) 6303-6305 ; (d) Li, Y.; Wu, Y.; Chang, J.; Chen, M.;
Liu, R.; Li, F. A bioprobe based on aggregation induced emission (AIE) for cell membrane tracking,
Chem. Commun. 49 (2013) 11335-11337;( e) Un, H.-I.; Huang, C.-B.; Huang, C.; Jia, T.; Zhao,
X.-L.; Wang, C. -H.; Xu, L.; Yang, H.-B. , A versatile fluorescent dye based on naphthalimide:
highly selective detection of Hg2+ in aqueous solution and living cells and its aggregation-induced
emission behaviour, Org. Chem. Front.,1 (2014) 1083-1090; (f) Mukherjee, S.; Thilagar, P.,
Molecular flexibility tuned emission in “V” shaped naphthalimides: Hg(II) detection and aggregation-
induced emission enhancement (AIEE), Chem. Commun. 49 (2013) 7292-7294; (g) Lin, H. H.;
Chan, Y. C.; Chen, J. W.; Chang, C. C., Aggregation-induced emission enhancement
characteristics of naphthalimide derivatives and their applications in cell imaging, J. Mater.
Chem. 21 (2011) 3170-3177; (h) Sun, Y.; Liang, X.; Wei, S.; Fan, J.; Yang, X., Fluorescent turn-
on detection and assay of water based on 4-(2-dimethylaminoethyloxy)-N-octadecyl-1,8-
naphthalimide with aggregation-induced emission enhancement, Spectrochim. Acta, Part A 97
(2012) 352-358; (i) Sun, Y.; Liang, X.; Fan, J.; Han, Q. Studies on the photophysical properties
of 1,8-naphthalimide derivative and aggregation induced emission recognition for casein,J.
Lumin. 2141 (2013) 93-98.
[16] (a) Z. Xu, L. Xu, J. Zhou, Y. Xu, W. Zhu and X. Qian, A highly selective fluorescent
probe for fast detection of hydrogen sulfide in aqueous solution and living cells, Chem. Commun., 48
(2012) 10871-10873; (b) M. Santra, B. Roy and K. H. Ahn, A “Reactive” Ratiometric
Fluorescent Probe for Mercury Species, Org. Lett., 13 (2011) 3422-3425; (c) D. Maity, V.
Kumar and T. Govindaraju, Reactive Probes for Ratiometric Detection of Co2+ and Cu+ Based on
Excited-State Intramolecular Proton Transfer Mechanism, Org. Lett., 14 (2012) 6008-6011; (d)
Z. Song, R. T. K. Kwok, E. Zhao, Z. He, Y. Hong, J. W. Y. Lam, B. Liu and B. Z. Tang, A

ACCEPTED MANUSCRIPT
Ratiometric Fluorescent Probe Based on ESIPT and AIE Processes for Alkaline Phosphatase
Activity Assay and Visualization in Living Cells,ACS Appl. Mater. Interfaces, 6 (2014) 17245-
17254; (e) L. Tang, Z. Zheng, Z. Huang, K. Zhong, Y. Biana and R. Nandha kumar, Multi-
analyte, ratiometric and relay recognition of a 2,5-diphenyl-1,3,4-oxadiazole-based fluorescent sensor
through modulating ESIPT, RSC Adv., 5 (2015) 10505-10511; ( f) L. Tang, M. Cai, P. Zhou, J.
Zhao, K. Zhong, S. Hou and Y. Bian, A highly selective and ratiometric fluorescent sensor for relay
recognition of zinc(II) and sulfide ions based on modulation of excited-state
intramolecular proton transfer, RSC Adv., 3 (2013) 16802-16809; (g) L. Tang, X. Dai, K. Zhong,
D. Wu and X. Wen, A novel 2,5-diphenyl-1,3,4-oxadiazole derived fluorescent sensor for highly
selective and ratiometric recognition of Zn2+ in water through switching on ESIPT, Sens.
Actuators, B, 203 (2014) 557-564; (h) S. Goswami, S. Das, K. Aich, B. Pakhira, S. Panja, S. K.
Mukherjee and S. Sarkar, A Chemodosimeter for the Ratiometric Detection of Hydrazine Based
on Return of ESIPT and Its Application in Live-Cell Imaging, Org. Lett., 15 (2013) 5412-5415;
(i) S. Goswami, A. Manna, S. Paul, A. K. Das, K. Aich and P. K. Nandi, Resonance-assisted
hydrogen bonding induced nucleophilic addition to hamper ESIPT: ratiometric detection of
cyanide in aqueous media Chem. Commun., 49 (2013) 2912-2914.
[17] (a) V. Thiagarajan, P. Ramamurthy, D. Thirumalai and V. T. Ramakrishnan, A Novel
Colorimetric and Fluorescent Chemosensor for Anions Involving PET and ICT Pathways,Org.
Lett., 7 (2005) 657-660; (b) M. Choi, M. Kim, K. D. Lee, K.-N. Han, I.-A. Yoon, H.-J. Chung
and J. Yoon, A New Reverse PET Chemosensor and Its Chelatoselective Aromatic Cadmiation ,
Org. Lett., 3 (2001) 3455-3457; (c) W.-H. Ding, D. Wang, X.-J. Zheng, W.-J. Ding, J.-Q. Zheng,
W.-H. Mu, W. Cao and L.-P. Jin, Sens. Actuators, B, A turn-on fluorescence chemosensor for
Al3+, F− and CN− ions, and its application in cell imaging, 209 (2015) 359-367; (d) S. A. Lee, G.

ACCEPTED MANUSCRIPT
R. You, Y. W. Choi, H. Y. Jo, A. R. Kim, I. Noh, S.-J. Kim, Y. Kim and C. Kim, A new
multifunctional Schiff base as a fluorescence sensor for Al3+ and a colorimetric sensor for CN− in
aqueous media: an application to bioimaging , Dalton Trans., 43 (2014) 6650-6659; (e) R. Alam, R.
Bhowmick, A. S. M. Islam, A. Katarkar, K. Chaudhuri and M. Ali, A rhodamine based fluorescent
trivalent sensor (Fe3+, Al3+, Cr3+) with potential applications for live cell imaging and combinational
logic circuits and memory devices, New J. Chem., 41 (2017) 8359-8369.
[18] (a) N. C. Lim, S. V. Pavlova and C. Br¨uckner, Squaramide Hydroxamate-Based
Chemidosimeter Responding to Iron(III) with a Fluorescence Intensity Increase, Inorg. Chem.,
48 (2008) 1173-1182; (b) C.-r. Li, J.-c. Qin, G.-q. Wang, B.-d. Wang, A.-k. Fu and Z.-y. Yang,
Development of a simple pyrazine-derived “turn on” Al3+ fluorescent sensor with high selectivity
and sensitivity, Inorg. Chim. Acta, 430 (2015) 91-95; (c) E. Oliveira, H. M. Santos, J. L. Capelo
and C. Lodeiro, New emissive dopamine derivatives as fluorescent chemosensors for metal ions:
A CHEF effect for Al(III) interaction,Inorg. Chim. Acta, 381 (2012) 203-211; (d) M. Mukherjee,
B. Sen, S. Pal, A. Maji, D. Budhadev and P. Chattopadhyay, Development of a cell permeable
red-shifted CHEF-based chemosensor for Al3 + ion by controlling PET, Spectrochim. Acta, Part
A 157 (2016) 11-16; (e) A. Gogoi, S. Samanta and G. Das, A benzothiazole containing CHEF
−
based fluorescence turn-ON sensor for Zn2+ and Cd2+and subsequent sensing of H2PO4 and
P4O74− in physiological pH Sens. Actuators, B, 202 (2014) 788-794; (f) P. Alaei, S. Rouhani, K.
Gharanjig and J. Ghasemi, A new polymerizable fluorescent PET chemosensor of fluoride (F−)
based on naphthalimide–thiourea dye, Spectrochim. Acta, Part A, 90 (2012) 85-92.
[19] (a) M. Suresh, S. Mishra, S. K. Mishra, E. Suresh, A. K. Mandal, A. Shrivastav and A. Das,
Resonance Energy Transfer Approach and a New Ratiometric Probe for Hg2+ in Aqueous Media
and Living Organism Org. Lett., 11 (2009) 2740-2743; (b) H.Yu, Y. Xiao, H. Guo and X. Qian,

ACCEPTED MANUSCRIPT
Convenient and Efficient FRET Platform Featuring a Rigid Biphenyl Spacer between
Rhodamine and BODIPY: Transformation of ‘Turn‐ On’ Sensors into Ratiometric Ones with
Dual Emission, Chem.Eur.J., 17 (2011) 3179-3191; (c) M. Kumar, N. Kumar, V. Bhalla, H.
Singh, P. R. Sharma and T. Kaur, Naphthalimide Appended Rhodamine Derivative: Through
Bond Energy Transfer for Sensing of Hg2+ Ions, Org. Lett.,13 (2011) 1422-1425; (d) G. He, X.
Zhang, C. He, X. Zhao and C. Duan, Ratiometric fluorescence chemosensors for copper(II) and
mercury(II) based on FRET systems Tetrahedron, 66 (2010) 9762-9768; (e) X. Zhang, Y. Xiao
and X. Qian, A ratiometric fluorescent probe based on FRET for imaging Hg2+ ions in living
cells, Angew. Chem., Int. Ed., 47 (2008) 8025-8029; (f) Z. Zhou, M. Yu, H. Yang, K. Huang, F.
Li, T. Yi and C. Huang, FRET-based sensor for imaging chromium(III) in living cells, Chem.
Commun., 0 (2008) 3387-3389.
[20] (a) K-P. Wang, Y.Lei, S-J.Zhang, W-J.Zheng, J-P.Chen, S.Chen, Q.Zhang, Y-B. Z-Q.Hu,
Fluo rescent probe for Fe(III) with high selectivity and its application in living cells, Sensors
and Actuators B: Chemical, 2017, 252,1140–1145; (b) K-P Wang, W-J. Zheng, Y.Lei, S-J.
Zhang, Q.Zhang, S.Chen, Z-Q.Hu, A thiophene-rhodamine dyad as fluorescence probe for ferric
ion and its application in living cells imaging Journal of Luminescence, 208 (2019) 468–474; (c)
K-P.Wang, S-J.Zhang, C.-D.Lv,H-S.Shang, Z.-H. Jin, S.Chen, Q.Zhang,Y.-B. Zhanga, Z.-Q.Hu,
A highly sensitive and selective turn-on fluorescent sensor for dihydrogen phosphate in living
cells, Sensors and Actuators B: Chemical, 247 (2017) 791–796.
[21] Akul Sen Gupta, Kamaldeep Paul and Vijay Luxami, A new ‘Turn-on’ PET-CHEF based
fluorescent sensor for Al3+ and CN−ions: applications in real samples, Anal. Methods, 10 (2018)
983-990.

ACCEPTED MANUSCRIPT
[22] (a) Chirantan Kar, Manab Deb Adhikari, Barun Kumar Datta, Aiyagari Ramesh, Gopal Das,
A CHEF-based biocompatible turn ON ratiometric sensor for sensitive and selective probing of
Cu2+, Sensors and Actuators B 188 (2013) 1132-1140; (b) Lakshman Patra, Sangita Das,
Saswati Gharami, Krishnendu Aich and Tapan Kumar Mondal A new multi-analyte fluorogenic
sensor for efficient detection of Al3+and Zn2+ ions based on ESIPT and CHEF features, New J.
Chem., 42 (2018) 19076-19082; (c) Shyamaprosad Goswami, Sangita Das, Krishnendu Aich,
Deblina Sarkar, Tapan Kumar Mondal, Ching Kheng Quah and Hoong-Kun Fun, CHEF induced
highly selective and sensitive turn-on fluorogenic and colorimetric sensor for Fe3+, Dalton Trans., 42
(2013) 15113-15119; (d) Shyamaprosad Goswami, Krishnendu Aich, Sangita Das, Chitrangada
Das Mukhopadhyay, Deblina Sarkar and Tapan Kumar Mondal, A new visible-light-excitable
ICT-CHEF-mediated fluorescence ‘turn-on’ probe for the selective detection of Cd2+ in a mixed
aqueous system with live-cell imaging , Dalton Trans., 44 (2015) 5763-5770; (e) Kanokthorn
Boonkitpatarakul, Junfeng Wang, Nakorn Niamnont, Bin Liu, Lucas Mcdonald, Yi Pang, and
Mongkol Sukwattanasinitt, Novel Turn-On Fluorescent Sensors with Mega Stokes Shifts for
Dual Detection of Al3+ and Zn2+ ACS Sens. 1 (2016) 144-150.
[23] G. Balamurugan and S. Velmathi, Coplanarity driven fluorescence turn-on sensor for
chromium(III) and its application towards bio-imaging, Photochem. Photobiol. Sci., 17 (2018)
239-244.
[24] (a) N. R. Chereddy, S. Thennarasu and A. B. Mandal. Tuning copper (II) ion selectivity:
The role of basicity, size of the chelating ring and orientation of coordinating atoms. Dalton
Transactions, 42 (36), 2013, 12873-12877; (b) N.R. Chereddy, K. Saranraj, A.K. Barui, C.R.
Patra, V.J. Rao, S Thennarasu. Donor atom selective coordination of Fe3+ and Cr3+ trigger
fluorophore specific emission in a rhodamine–naphthalimide dyad. RSC Advances, 2014, 4 (46),

ACCEPTED MANUSCRIPT
24324-24327; (c) N.R. Chereddy, P. Nagaraju, M.V.N. Raju, K. Saranraj, S Thennarasu, V.J.
Rao. A two fluorophore embedded probe for collective and ratiometric detection of Hg2+ and F−
ions. Dyes and Pigments, 2015, 112, 201-209.
[25] (a) Rabiul Alam, Rahul Bhowmick, Abu Saleh Musha Islam, Atul katarkar, Keya
Chaudhuri and Mahammad Ali., A rhodamine based fluorescent trivalent sensor (Fe3+, Al3+, Cr3+)
with potential applications for live cell imaging and combinational logic circuits and memory
devices,New J. Chem 41 (2017) 8359-8369; (b) Xu Tang, Yun Wang, Juan Han, Liang Ni,
Huiqin Zhang, Cheng Li, Jing Li and Yue Qiu., A novel fluorescent probe based on biphenyl and
rhodamine for multi-metal ion recognition and its application , Dalton Trans. 47 (2018) 3378-3387;
(c) M. Venkateswarulu, Trinetra Mukherjee, Subhrakanti Mukherjee and R. R.Koner, Turn-on
trivalent cation selective chemodosimetric probe to image native cellular iron pools, Dalton Trans. 43
(2014) 5269-5273; (d) Junfeng Wang, Yingbo Li, Nikul G. Patel, Ge Zhang, Demin Zhou , Yi
Pang., A single molecular probe for multi-analyte (Cr3+, Al3+ and Fe3+) detection in aqueous medium
and its biological application, Chem. Comm. 50 (2014) 12258-12261.
[26] Yuning Hong, Sijie Chen, Chris Wai Tung Leung, Jacky Wing Yip Lam, Jianzhao Liu, Nai-
Wen Tseng, Ryan Tsz Kin Kwok, Yong Yu, Zhengke Wang, and Ben Zhong Tang, Fluorogenic
Zn(II) and Chromogenic Fe(II) Sensors Based on Terpyridine-Substituted Tetraphenylethenes
with Aggregation-Induced Emission Characteristics,ACS Appl. Mater. Interfaces, 3 (2011)
3411-3418.
[27] (a) Olga N. Burchak, Laurent Mugherli. Mariano Ostuni, Jean Jacques Lacapere, Maxim
Y.Balakirev, Combinatorial Discovery of Fluorescent Pharmacophores by Multi component
Reactions in Droplet Arrays, J. Am. Chem. Soc., 133 (2011) 10058-10061; (b) K. D. Paul, V.

ACCEPTED MANUSCRIPT
Luxami and R. Goel. Recent advances in development of imidazo[1,2-a]pyrazines: synthesis,
reactivity and their biological applications, Org. Biomol. Chem., 13 (2015) 3525-3555.
[28] (a) Debabrata Maity and T. Govindaraju, Pyrrolidine constrained bipyridyl-dansyl click fluoro
ionophore as selective Al3+ sensor, Chem. Comm., 46 (2010) 4499-4501 ; (b) Andrea Barba-Bon,
Ana M. Costero, Salvador Gil, Margarita Parra,Juan Soto,Ramo´n Martı´nez-Ma´n˜ezz and
Fe´lix Sanceno´n, A new selective fluorogenic probe for trivalent cations ,Chem. Comm.,48 (2012)
3000-3002; (c) Debabrata Maity and T. Govindaraju, Conformationally Constrained (Coumarin-
Triazolyl-Bipyridyl) Click Fluoroionophore as a Selective Al3+ Sensor, Inorg. Chem., 49 (2010)
7229-7231.
[29] (a) D.Schweinfurth, K. I. Hardcastle, Uwe H. F. Bunz, 1,3-Dipolar cycloaddition
of alkynes to azides. Construction of operationally functional metal responsive fluorophores, Chem.
Commun 0 (2008) 2203-2205; (b) S.Goswami, A. Manna, S. paul, Anup Kumar M, Partha S,
C. K. Quahc, H.-K. Fun, FRET based ‘red-switch’ for Al3+ over ESIPT based ‘green-switch’ for
Zn2+: dual channel detection with live-cell imaging on a dyad platform, RSC Adv 4 (2014) 34572-
34576.
[30] (a) Williams, Stephen A.Winfield, J.N.Miller, Relative fluorescence quantum yields using a
computer-controlled luminescence spectrometer, Analyst, 108 (1983) 1067-1071; (b) M. Brouwer.
Standards for photoluminescence quantum yield measurements in solution, Pure Appl.Chem. 83
(2011) 2213-2228; (c) S. Link, M. a. el-Sayed, Shape and size dependence of radiative, non-
radiative and photothermal properties of gold nanocrystals Int. Reviews in Physical Chemistry,
19 (2000) 409-453.

ACCEPTED MANUSCRIPT
[31] (a) Christian Totland, Willy Nerdal, and Signe Steinkopf, Effects and Location of Coplanar
and Noncoplanar PCB in a Lipid Bilayer: A Solid-State NMR Study, Environ. Sci.Technol 50
(2016) 8290-8295; (b) David A. Stenger, Jacque H. Georger, Charles S. Dulcey, James J.
Hickman, Alan S. Rudolph, Thor B. Nielsen, Stephen M. McCort, and Jeffrey M. Calvert.,
Coplanar molecular assemblies of amino- and perfluorinated alkylsilanes: characterization and
geometric definition of mammalian cell adhesion and growth, J. Am.Chem. Soc., 114 (1992)
8435-8442.

ACCEPTED MANUSCRIPT
Figure Legends
Probe 1
Probe 2
Fig. 1 ORTEP diagrams of ligand 1 and 2 obtained from single crystal XRD analysis
(a)
(b)
Fig. 2 Absorption (a) and fluorescence profiles of probe 1 (10µM) in response to the addition of
indicated metal ions. Only Al3+, Cr3+ and Fe3+ cause an effect.

ACCEPTED MANUSCRIPT
(a)
(b)
(c)
Figure 3. Changes in the absorption profile of 1 (10 µM) in CH3CN upon addition of various amounts of
trivalent metal ions: (a) Al3+ (0-13 equiv.) (b) Fe3+ (0-25equiv.) and (c) Cr3+ (0-15 equiv.).

ACCEPTED MANUSCRIPT
Cr3+
2+ In3+
Hg2+ Zn2+ Mg
Fe2+
Bi3+
Al3+
Mn2+
Ni2+
Cu2+ Sm3+
Co2+
Ca2+
Fe3
Ba2+
Dye 1
Cd2+
+
(a)
Mn2+
Fe3+
Zn2+
Fe2+
Cu2+
Bi3+ Sm3+
Co2+
Ba2+
Hg2+
Ni2+
Al3+
Cd2+
Mg2+ In3+
Ca2+
Cr3+
Dye 2
(b)
Figure 4. Naked-eye detection of (a) trivalent Al3+/Cr3+/Fe3+ in CH3CN and (b) divalent Zn2+ in water-
CH3CN (1:1, v/v) mixture under UV-light; the concentration of probe 1 was 10 µM, probe 2 was 6.6 µM
and the metal ions was 15µM.

ACCEPTED MANUSCRIPT
Figure 5. 1H NMR (a) and 13C NMR (b) spectra of 1 in CDCl3:D2O (8:2) mixture with indicated amounts
of Fe3+ ions.

ACCEPTED MANUSCRIPT
Calculation of enhancement in NOE
푃푒푎푘 퐴
0.0585
0.0287
NOE of Probe 1
=
= 2.0383
푃푒푎푘 퐵
푃푒푎푘 퐴
푃푒푎푘 퐵
0.1509
NOE of Probe 1+Al3+ complex
=
= 1.388
0.1087
Figure 6. A comparison of difference NOE spectra of probe 1 and 1-Al3+ complex shows more NOE in
1-Al3+ complex suggesting a coplanar structure for the complex.

ACCEPTED MANUSCRIPT
Fig. 7 Absorption (a) and fluorescence profiles of probe 2 (5.6 μM) in response to the addition of
indicated metal ions. Only Zn2+ causes an effect.
1000
[Zn2+
]
800
600
400
200
0
(a)
(b)
400
450
500
550
600
650
Wavelength(nm)
Figure 8. Changes in the absorption (a) and fluorescence (b) profiles of probe 2 (5.6 μM) in water-CH3CN (1:1,
v/v) mixture upon addition of various concentrations of Zn2+ions (0-60 μM).

ACCEPTED MANUSCRIPT
Fig. 9. ORTEP diagram of the 2-ZnCl2 complex obtained from single crystal XRD analysis
Fig. 10. Linear fit obtained from the plot of fluorescence intensity versus concentration of metal
ion: (a) probe 1 (10 µM) titrated against serial concentrations of trivalent (Al3+, Cr3+ and Fe3+)
metal ions (em 471 nm); (b) probe 2 (5.6 μM) titrated against indicated concentrations of Zn2+
ions (em 460 nm).

ACCEPTED MANUSCRIPT
800
(a)
600
400
200
0
400
450
500
550
600
Wavelength(nm)
800
600
400
200
0
(b)
400
450
500
550
600
Wavelength (nm)

ACCEPTED MANUSCRIPT
(c)
Figure 11. Changes in the fluorescence profile of 1 (10 µM) in CH3CN upon addition of various
concentrations of trivalent metal ions: (a) Al3+ (0-15 equiv.), (b) Fe3+ (0-15 equiv.) and (c) Cr3+ (0-15
equiv.)
