1356
H. Wei et al. / Materials Research Bulletin 48 (2013) 1352–1356
with the increase of Zn content. Photocatalytic production of
aniline via nitrobenzene reduction from CH3OH as a solvent in the
absence of oxygen was investigated. Cd0.73Zn0.27S exhibited the
highest activity under visible-light irradiation due to its energy
band structures, large specific areas, and one-dimensional
nanobelt-like microstructures.
Acknowledgment
We express our thanks to financial support from National
Natural Science Fund of China (NSFC 50972083, 21071124 and
21173189).
References
[1] A. Fujishima, K. Honda, Nature 238 (1972) 37.
[2] W.Y. Choi, A. Termin, M.R. Hoffmann, J. Phys. Chem. 84 (1994) 13669.
[3] S.U.M. Khan, M. Al-Shahry, W.B. Ingler Jr., Science 297 (2002) 2243.
[4] S. Sakthivel, M. Janczarek, H. Kisch, J. Phys. Chem. B 108 (2004) 19384.
[5] X. Du, J.H. He, Y.Q. Zhao, J. Phys. Chem. C 113 (2009) 14151.
[6] Y. Matsumoto, M. Murakami, T. Shono, T. Hasegawa, T. Fukumura, Science 291
(2001) 854.

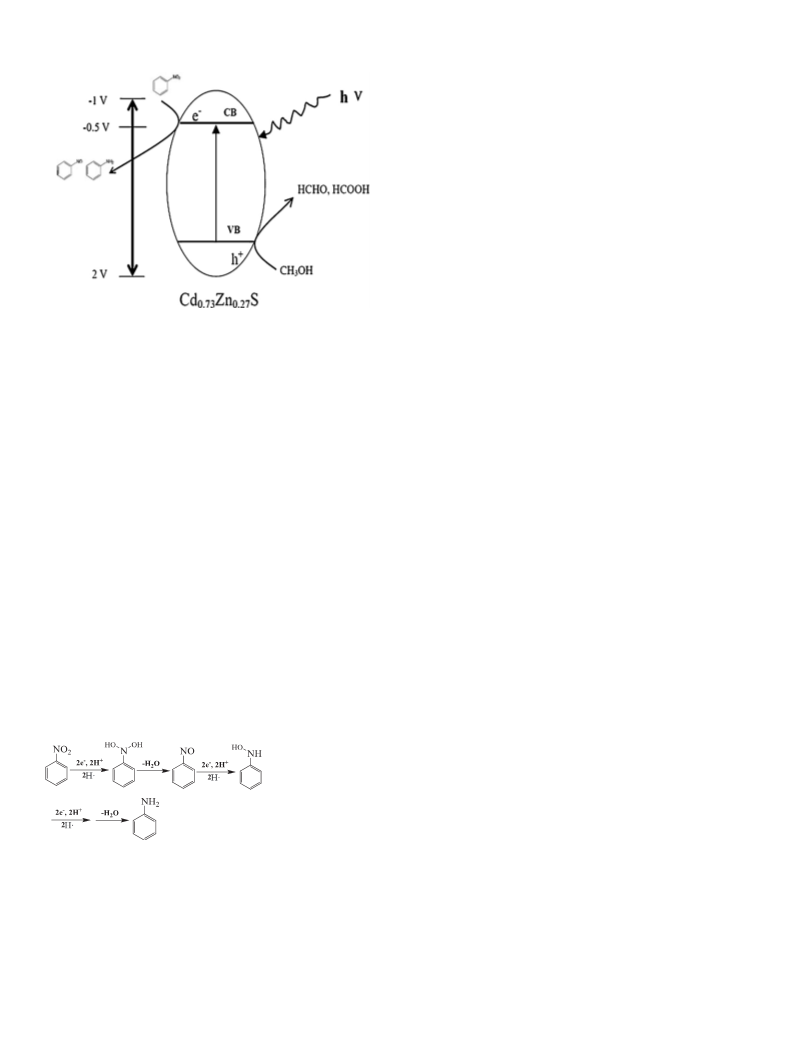

Fig. 7. Reaction mechanism of nitrobenzene reduction over Cd0.73Zn0.27S sample.
[7] S.Q. Peng, R. An, Y.X. Li, G.X. Lu, S.B. Li, Hydrogen Energy 37 (2012) 1366.
[8] Y.X. Li, D. Gao, S.Q. Peng, G.X. Li, S.B. Li, Int. J. Hydrogen Energy 36 (2011) 4291.
[9] H.W. Gu, R.K. Zheng, X.X. Zhang, B. Xu, J. Am. Chem. Soc. 126 (2004) 5664.
[10] K.W. Kwon, M. Shim, J. Am. Chem. Soc. 127 (2005) 10269.
[11] A. Zaban, O.I. Mic´ic´, B.A. Gregg, A.J. Nozik, Langmuir 14 (1998) 3153.
[12] Y.H. Zheng, L.R. Zheng, Y.Y. Zhan, X.Y. Lin, Q. Zheng, K.M. Wei, Inorg. Chem. 46
(2007) 6980.
[13] G.K. Mor, K. Shankar, M. Paulose, O.K. Varghese, C.A. Grimes, Nano Lett. 6 (2006)
215.
[14] G.J. Meyer, Inorg. Chem. 44 (2005) 6852.
recombination of photogenerated electron–hole pairs during the
transfer process. The ECB (ꢀ0.88 V vs. SCE) of Cd0.73Zn0.27S is more
negative than the reduction potential of nitrobenzene (ꢀ0.5 V vs.
SCE) [49], which is beneficial to the reduction of nitrobenzene.
Owing to these factors, Cd0.73Zn0.27S exhibits the highest activity
under visible-light irradiation. The reaction mechanism was
shown in Fig. 7. When irradiated with UV light, ZnS sample
exhibited the highest activity due to its negative conduction band,
high surface area, and thin belt-like microstructure.
The photocatalytic reduction of NB over CdxZn(1ꢀx)S semicon-
ductor alloys is discussed as follows: (1) Production of photo-
generated hole–electron pairs. When irradiated by photos with
energy equal or larger than its band gap, electrons transfer from
the valence band of CdxZn(1ꢀx)S to conduction band, producing
oxidative photogenerated valence holes (h+) and reductive
conduction electrons (eꢀ) (Eq. (4)). (2) Photogenerated holes
and electrons without recombination move to CdxZn(1ꢀx)S photo-
catalyst’s surface. (3) Chemical reactions between photogenerated
carriers and adsorbents. The holes are captured by CH3OH solvent,
producing HCHO oxide and reductive Hꢄ (Eqs. (5) and (6)). NB is
reduced by photogenerated electrons and Hꢄ, producing nitroso-
benzene and aniline further [50] (Eq. (7)).
[15] Y.X. Li, G.F. Ma, S.Q. Peng, G.X. Lu, S.B. Li, Appl. Catal. A 363 (2009) 180.
[16] G.Z. Shen, D. Chen, C.J. Lee, J. Phys. Chem. B 110 (2006) 15689.
[17] X. Zong, H.J. Yan, G.P. Wu, G.J. Ma, F.Y. Wen, L. Wang, C. Li, J. Am. Chem. Soc. 130
(2008) 7176.
[18] J.Y. Kim, F.E. Osterloh, J. Am. Chem. Soc. 127 (2005) 10152.
[19] S.J. Park, Y.S. Jang, J.W. Shim, S.K. Ryu, J. Colloid Interface Sci. 260 (2003) 259.
[20] K. Zhang, D.W. Jing, C.J. Xing, L.J. Guo, Int. J. Hydrogen Energy 32 (2007) 4685.
[21] C.J. Xing, Y.J. Zhang, W. Yan, L.J. Guo, Int. J. Hydrogen Energy 31 (2006) 2018.
[22] W.J. Li, D.Z. Li, W.J. Zhang, Y. Hu, Y.H. He, X.Z. Fu, J. Phys. Chem. C 114 (2010) 2154.
[23] S.G. Zu, Z.Y. Wang, B. Liu, X.P. Fan, G.D. Qian, J. Alloys Compd. 476 (2009) 689.
[24] S. Guha, B.J. Wu, H. Cheng, J.M. Depuydt, Appl. Phys. Lett. 63 (1993) 2129.
[25] Y. Wada, D. Niinobe, M. Kaneko, Y. Tsukahara, J. Alloys Compd. 35 (2006) 62.
[26] Y.K. Liu, J.A. Zapien, Y.Y. Shan, C. Geng, C.S. Lee, S. Lee, Adv. Mater. 17 (2005) 1372.
[27] T. Zhai, Z. Gu, W. Yang, X. Zhang, J. Huang, Y. Zhao, D. Yu, H. Fu, Y. Ma, J. Yao,
Nanotechnology 17 (2006) 4644.
[28] Z.Y. Yang, P. Zhang, W. Zhong, Y. Deng, C.T. Au, Y.W. Du, CrystEngComm 14 (2012)
4298.
[29] T.Y. Zhai, X.Z. Zhang, W.S. Yang, Y. Ma, J.F. Wang, Z.J. Gu, D.P. Yu, H. Yang, J.N. Yao,
Chem. Phys. Lett. 427 (2006) 371.
[30] Y.F. Yu, J. Zhang, X. Wu, W.W. Zhao, B. Zhang, Angew. Chem. Int. Ed. 50 (2011) 1.
[31] H. Tada, T. Ishida, A. Takao, S. Ito, Langmuir 20 (2004) 7898.
[32] O. Makarova, T. Rajh, M. Thurnauer, Environ. Sci. Technol. 34 (2000) 4797.
[33] T.K. Kima, M.N. Leea, S.H. Leeb, Y.C. Parkb, C.K. Jungb, J.H. Boo, Thin Solid Films 475
(2005) 171.
[34] I. Tsuji, H. Kato, H. Kobayashi, A. Kudo, J. Am. Chem. Soc. 126 (2004) 13406.
[35] P. Yan, Y. Xie, Y.T. Qian, X.M. Liu, Chem. Commun. 14 (1999) 1293.
[36] G.D. Moon, S. Ko, Y.N. Xia, U. Jeong, ACS Nano 4 (2010) 2307.
[37] J.W. Tang, Z.G. Zou, J.H. Ye, J. Phys. Chem. C 111 (2007) 12779.
[38] L. Wang, W.Z. Wang, M. Shang, W.Z. Yin, S.M. Sun, L. Zhang, Int. J. Hydrogen
Energy 35 (2010) 19.
CdxZn
S þ h
n
! CdxZn
Sðhþ þ eꢀÞ
ð1ꢀxÞ
(4)
(5)
(6)
ð1ꢀxÞ
CH3OH þ hþ ! CH3Oꢄ
þ
ꢄCH2OH
CH3Oꢄ
þ
ꢄCH2OH ! 2HCHO þ 2Hꢄ
[39] Y.X. Li, Y.F. Hu, S.Q. Peng, G.X. Lu, S.B. Li, J. Phys. Chem. C 113 (2009) 9352.
[40] Y.P. Zhang, W. Liu, R.M. Wang, Nanoscale 4 (2012) 2394.
[41] S.L. Xiong, J.M. Shen, Q. Xie, Y.Q. Gao, Q. Tang, Y.T. Qian, Adv. Funct. Mater. 15
(2005) 1787.
(7)
[42] Z.H. Jing, J.H. Zhan, Adv. Mater. 20 (2008) 4547.
[43] K. Krishsas, R. Plane, Inorg. Chem. 5 (1966) 852.
[44] J. Yang, J.H. Zeng, S.H. Yu, L. Yang, G.E. Zhou, Y.T. Qian, Chem. Mater. 12 (2000)
3259.
[45] Z.X. Deng, C. Wang, X.M. Sun, Y.D. Li, Inorg. Chem. 41 (2002) 869.
[46] Y.C. Zhang, W.W. Chen, X.Y. Hu, Cryst. Growth Des. 7 (2007) 580.
[47] G. Palmisano, V. Augugliaro, M. Pagliaro, L. Palmisano, Chem. Commun. 33 (2007)
3425.
[48] A.L. Stroyuk, I.V. Sobran, A.V. Korzhak, A.E. Raevskaya, S.Y. Kuchmiy, Colloid
Polym. Sci. 286 (2008) 489.
4. Conclusion
In summary, a series of hexagonal-phased CdxZn(1ꢀx)S semi-
conductor alloys with tuneable band gaps were successfully
prepared in a mixed solvent of ethylenediamine and water (v/v) at
180 8C for 12 h. Results showed that the products’ microstructures,
BET specific areas, UV–vis absorption spectral changed gradually
´
´
´
[49] S.O. Flores, O.R. Bernij, M.A. Valenzuela, I. Cordova, R. Gomez, R. Gutierrez, Top.
Catal. 44 (2007) 507.
[50] J.L. Ferry, W.H. Glaze, Langmuir 14 (1998) 3551.
