Catalytic Activity of Li1 + xHf2 – xInx(PO4)3-Based NASICON-Type
Materials for Ethanol Conversion Reactions
S. A. Novikovaa, A. B. Il’inb, N. A. Zhilyaevab, and A. B. Yaroslavtseva, b,
*
aKurnakov Institute of General and Inorganic Chemistry, Russian Academy of Sciences,
Leninskii pr. 31, Moscow, 119991 Russia
bTopchiev Institute of Petrochemical Synthesis, Russian Academy of Sciences, Leninskii pr. 29, Moscow, 119991 Russia
*e-mail: yaroslav@igic.ras.ru
Received January 30, 2018
Abstract—Li1 + xHf2 – xInx(PO4)3 (x = 0, 0.05, 0.1) materials have been prepared by solid-state reactions and
characterized by X-ray diffraction, low-temperature nitrogen adsorption measurements, and scanning elec-
tron microscopy. The materials consist of NASICON-type lithium hafnium double phosphates with a hex-
agonal structure. Milling in a planetary mill has been found to increase the specific surface area of the
Li1 + xHf2 – xInx(PO4)3 materials by almost one order of magnitude (from 1.5 to 13 m2/g in the case of
LiHf2(PO4)3). The materials with a larger surface area exhibit catalytic activity for ethanol dehydration reac-
tions and are less active for ethanol dehydrogenation. Ethanol conversion predominantly yields diethyl ether
at low temperatures and ethylene at higher temperatures. The diethyl ether selectivity of the catalytic pro-
cesses reaches 85% at 350°C, with 60% conversion, and the ethylene selectivity reaches 96% at 510°C, with
100% conversion. Indium doping raises the high-temperature acetaldehyde selectivity from 4 to 8% and leads
to the formation of C4 hydrocarbons as reaction products. C4 selectivity reaches 15 and 17% in the case of the
Li1.05Hf1.95In0.05(PO4)3 and Li1.1Hf1.9In0.1(PO4)3 materials, respectively (420°C, 97 and 92% conversion,
respectively).
Keywords: lithium hafnium double phosphate, NASICON, doping, indium, mechanochemical activation,
catalysis, ethanol conversion
DOI: 10.1134/S0020168518070117
INTRODUCTION
supports [39–45]. Another possible example of cata-
lysts is NASICON-type mixed phosphates [18–35].
For example, it is well documented that CuZr2(PO4)3,
Cu0.5B2(PO4)3 (B = Ti, Zr, Sn), AgB2(PO4)3 (B = Zr,
Hf), Na1 – xCuxZr2(PO4)3, and Na1 + xFexZr2 – x(PO4)3
are active catalysts for the conversion of the butyl alco-
hols and isopropanol [31–34]. Note that ethanol is
one of the most promising alcohols as a biomass
decomposition product [2, 3]. Depending on the cat-
alyst used and process conditions, ethanol conversion
may follow different reaction paths, leading to the for-
mation of ethylene, diethyl ether, acetaldehyde,
hydrogen, water, carbon monoxide, ethyl acetate, or a
mixture of products [29, 35–41].
In the NASICON-type phosphates, iso- or het-
erovalent substitutions on both the cation and anion
sites are possible [1–3]. Such substitutions have a sig-
nificant effect on both the ionic conductivity and
composition of the products of alcohol conversion
catalyzed by NASICON-type phosphates [27, 29, 36].
For example, indium- and molybdenum-doped
LiZr2(PO4)3-based materials offer high catalytic activ-
NASICON-type compounds constitute a large
class of materials with the general formula
AxB2(PO4)3, where A = H, Li, Na, K, H3O, or NH4
and B = In, Sc, Fe, Zr, Ti, Hf, Sn, Ge, etc. [1–4]. The
alternating voids in their framework crystal structure
ensure fast ion transport, which makes these materials
potentially attractive solid electrolytes with consider-
able lithium-ion, sodium-ion, or proton conductivity
[1–3, 5, 15]. The NASICON-type phosphates con-
taining polyvalent cations capable of changing their
oxidation state (Ti, Fe, and V) can be used as electrode
materials [4, 16]. Other advantages of the NASICON-
type materials are their high chemical and thermal sta-
bility, good ion-exchange properties [17], and catalytic
activity for alcohol dehydrogenation and dehydration
processes [18–35].
The catalytic conversion of alcohols is of great
practical interest because it offers the possibility of
obtaining important products, such as ethers, alde-
hydes, ketones, hydrocarbons, and hydrogen, by envi-
ronmentally safe processes [18–42]. Catalysts for such ity for dehydrogenation processes, whereas niobium-
processes typically have the form of metals on oxide doped materials exhibit higher activity for dehydration
676

CATALYTIC ACTIVITY OF Li1 + xHf2 – xInx(PO4)3-BASED
677
processes [29]. The NASICON-type materials with The mechanochemical activation of the samples
the general formula (NH4)1 – xHxHf2(PO4)3 (x = 0–1) was carried out in a Fritsch Pulverisette 7 planetary
mill using agate bowls with an inner volume of 45 mL,
each containing ten agate balls 10 mm in diameter.
The powder load was 750 mg. To each vial, 8 mL of
ethanol was added. The samples were milled for 24 h
at a rotation speed of 400 rpm. Every 3 min, the mill-
ing process was interrupted for 2 min.
The specific surface area of the samples was deter-
mined by BET measurements with a Micromeritics
ASAP 2020 analyzer. The samples were degassed at a
temperature of 350°C for 1 h. Analyses were carried out
at relative pressures (p/p0) in the range from 0.01 to 0.99.
exhibit catalytic activity for ethanol dehydration reac-
tions. Ethanol conversion predominantly yields
diethyl ether at low temperatures and ethylene at
higher temperatures. The composition of ethanol
dehydrogenation and dehydration reaction products
was shown to depend significantly on which singly
charged cation (H+ or
+) enters into the composi-
NH4
tion of the hafnium double phosphate [36].
In this paper, we report the synthesis of Li1 + xHf2 – x
Inx(PO4)3 NASICON-type phosphates, their phase
composition, and their catalytic activity for the etha-
nol conversion process. In addition, we examine the
effect of mechanochemical processing on the particle
size and catalytic activity of the materials.
-
The samples were examined by scanning electron
microscopy (SEM) on a Carl Zeiss NVision 40
equipped with an elemental analysis accessory. The
accelerating voltage was 1 kV.
Catalytic properties were studied in a flow-type
quartz reactor under flowing helium or argon with
ethanol additions. The reaction products were ana-
lyzed on a Crystallux 4000 M chromatograph
equipped with a thermal conductivity detector and
HayeSep T 60/80 mesh (2 m, 150°C, 30 mL/min,
He), SKT-6 (2 m, 150°C, 30 mL/min, He), and Mole
Sieve 5 A (2 m, 25°C, 30 mL/min, Ar) columns. In our
experiments, a weighed amount (0.3 g) of a catalyst
was mixed with ground quartz (d = 315–400 μm) and
placed in a reactor 6 mm in inner diameter so that the
catalyst layer was 17 cm in thickness. To ensure an
appropriate ethanol vapor concentration, the carrier
gas was passed at a volumetric flow rate of 20 mL/min
through a bubbler containing ethanol and thermo-
stated at 11°C.
EXPERIMENTAL
Li1 + xHf2 – xInx(PO4)3 (x = 0, 0.05, 0.1) materials
were prepared by solid-state reactions according to the
following scheme:
6(NH ) HPO + 4 – 2x HfO
(
)
4 2
4
2
(1)
+ xIn2O3 + (1 + x)Li2CO3
→ 2Li1+xHf2–xInx(PO4)3.
The starting chemicals used were (NH4)2HPO4
(Roth, >97%), HfO2 (Aldrich, 98%), In2O3 (analyti-
cal grade), and Li2CO3 (Merck, >99%). Stoichiomet-
ric ratios of the starting materials were mixed, thor-
oughly ground in a mortar, and fired at a temperature
of 600°C for 6 h in platinum crucibles. Next, the resul-
tant mixture was reground and pressed into pellets to
improve chemical interaction between particles. The
pellets were packed with powder of similar composi-
tion, containing 20% excess lithium carbonate, to pre-
vent the volatilization of lithium compounds from the
main material at high temperatures and annealed at
1000°C for 24 h.
Conversion and selectivity were evaluated using the
following relations:
ϕ0 − ϕ1
(3)
(4)
X =
S =
× 100%,
× 100%,
ϕ0
ϕi
ϕ0 − ϕ1
The phase composition of the samples thus pre-
pared was determined by X-ray diffraction on a Rigaku where ϕ0 and ϕ1 are the initial and final volume fractions
D/MAX 2200 diffractometer (CuKα radiation). For of the alcohol, respectively, and ϕi is the fraction of the
alcohol consumed for the formation of product i.
data processing and qualitative analysis of X-ray dif-
fraction patterns, we used the Rigaku Application
Data Processing and FullProf Suite software pack-
ages. The crystallite size was assessed from X-ray dif-
fraction line broadening using the Scherrer formula:
RESULTS AND DISCUSSION
According to X-ray diffraction data, the synthe-
sized lithium hafnium double phosphate LiHf2(PO4)3
is single-phase and has a hexagonal NASICON-
related structure (PDF-2, card no. 53-0569). The
X-ray diffraction patterns of the Li1 + xHf2 – xInx(PO4)3
kλ
(2)
d =
,
B2 − b2 cos θ
where d is the crystallite size, λ is the X-ray wavelength
used, θ is the diffraction angle, k = 0.9 is the Scherrer (x = 0.05, 0.1) doped materials also contain only
constant, B is the experimentally determined full reflections from a hexagonal phase, which are slightly
width at half maximum (FWHM) of the line, and b is shifted (Fig. 1). In addition, near 2θ ~ 27.3°, 45.3°,
the FWHM of a line of a standard. As a standard for and 53.7° the X-ray diffraction patterns contain
evaluating the instrumental broadening, we used LaB6 reflections from germanium, which was used as a stan-
powder (Standard Reference Material 660a).
dard (card no. 04-0545). The unit-cell parameters of
INORGANIC MATERIALS Vol. 54 No. 7 2018

678
NOVIKOVA et al.
Ge standard
x = 0.1
x = 0.05
x = 0
2
1
10
20
30
2θ, deg
40
50
14 16 18 20 22 24 26 28 30
2θ, deg
Fig. 1. X-ray diffraction patterns of the Li
Hf
In (PO )
1 + x 2 – x x 4 3
samples with different degrees of indium substitution for haf-
nium.
Fig. 2. Portions of the X-ray diffraction patterns of the
LiHf (PO ) samples (1) before and (2) after milling.
2
4 3
ples had an extremely small surface area: 1–2 m2/g.
Milling increased the specific surface area S to 12–
15 m2/g (Table 2).
Materials with a larger surface area are more active
catalysts for ethanol conversion [21]. In view of this,
we used ground materials in our catalytic ethanol con-
version experiments. Those materials exhibited cata-
lytic activity for ethanol dehydration and dehydroge-
nation reactions (Fig. 4). The main observed transfor-
mations can be represented by the following reaction
schemes:
the phosphates increase with an increase in the degree
of indium substitution for hafnium (Table 1), which
points to the formation of solid solutions. The
observed increase in unit-cell volume can be
accounted for by the larger ionic radius of In3+ in com-
parison with Hf4+ (0.80 and 0.71 Å, respectively [46]).
The mechanochemical processing of the samples
in the planetary mill led to X-ray diffraction line
broadening (Fig. 2). The crystallite sizes evaluated
from linewidths are presented in Table 2. For example,
the crystallite size of the as-prepared LiHf2(PO4)3,
Li1.05Hf1.95In0.05(PO4)3, and Li1.1Hf1.9In0.1(PO4)3 mate-
rials was 62, 41, and 42 nm, respectively. Mechanical
processing reduced the crystallite size by a factor of
1.3–1.5, to 41, 32, and 33 nm, respectively (Table 2).
X-ray diffraction line broadening can be due to both a
small particle size and increased defect density in the

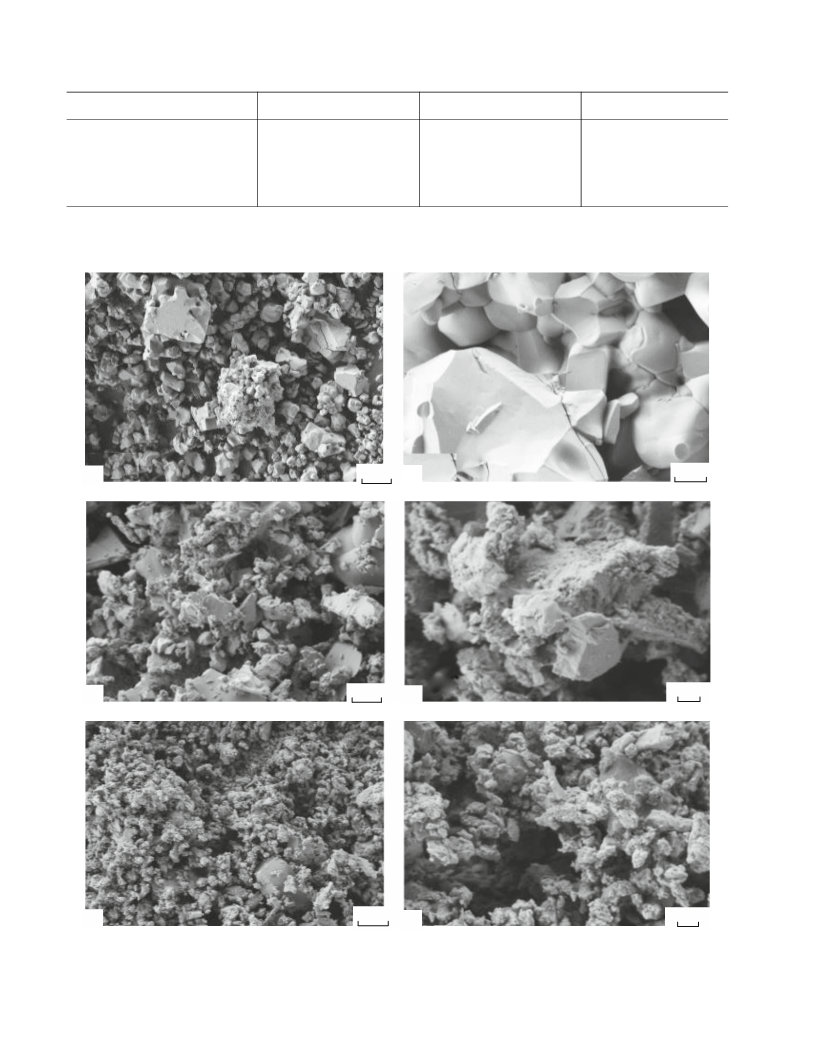

structure [47, 48]. Electron microscopy data confirm
that milling reduced the average particle size (Fig. 3).
The as-prepared samples had the form of polydisperse
crystalline materials ranging in particle size from 1 to
10 μm (Figs. 3a, 3b). After mechanical processing, the
particles ranged in size from 30 nm to 1 μm (Figs. 3c–3f).
These values considerably exceed the crystallite size,
suggesting that the samples consist of agglomerates of
individual crystallites.
2C2H5OH → C2H5OC2H5 + H2O,
(5)
°
ΔH298 = –88.48 kJ mol;
C2H5OH → CH3CHO + H2,
(6)
(7)
°
ΔH298 = +17.36 kJ mol;
C2H5OH → C2H4 + H2O,
°
ΔH298 = +28.99 kJ mol.
The major reaction products are ethylene, diethyl
ether, C4 hydrocarbons, acetaldehyde, and hydrogen.
We also observed the formation of a small amount
(<0.3%) of C3 hydrocarbons.
According to low-temperature nitrogen adsorption
experiments, the unmilled Li1 + xHf2 – xInx(PO4)3 sam-
The onset temperature for noticeable ethanol con-
version (≥5%) and the composition of the product
Table 1. Unit-cell parameters of the samples with the general formula Li1 + xHf2 – xInx(PO4)3
Vcell, Å3
Sample
a, Å
c, Å
LiHf2(PO4)3
8.825 (2)
8.827(2)
8.829(1)
22.007 (3)
22.014(1)
22.016(1)
1484.4(9)
1485.4(7)
1486.6(4)
Li1.05Hf1.95In0.05(PO4)3
Li1.1Hf1.9In0.1(PO4)3
INORGANIC MATERIALS
Vol. 54
No. 7
2018

CATALYTIC ACTIVITY OF Li1 + xHf2 – xInx(PO4)3-BASED
679
Table 2. Particle size and specific surface area of the Li1 + xHf2 – xInx(PO4)3 samples before and after milling
S, m2/g
Sample
Crystallite size, nm
Particle size (SEM), μm
LiHf2(PO4)3 (as-prepared)
LiHf2(PO4)3
62
41
32
33
1–10
0.05–1
0.03–1
0.03–1
1.5
13
Li1.05Hf1.95In0.05(PO4)3
Li1.1Hf1.9In0.1(PO4)3
12
15
1 μm
10 μm
(b)
(a)
200 nm
1 μm
(c)
(d)
1 μm
200 nm
(e)
(f)
Fig. 3. SEM images of the as-prepared LiHf (PO ) (a, b) and the milled samples: LiHf (PO ) (c, d) and Li Hf In (PO ) (e, f).
2
4 3
2
4 3
1.1 1.9 0.1
4 3
INORGANIC MATERIALS Vol. 54 No. 7 2018

680
NOVIKOVA et al.
On heating, the Gibbs energy of reactions (6) and (7)
(a)
becomes negative and the reactions become feasible.
With increasing temperature, dehydration to ethylene
according to scheme (7) becomes the main ethanol con-
version path on all catalysts, in spite of the poorer ther-
modynamics of this process. Ethylene selectivity
reaches 96, 88, and 85% for the LiHf2(PO4)3,
Li1.05Hf1.95In0.05(PO4)3, and Li1.1Hf1.9In0.1(PO4)3 sam-
ples at 510, 450, and 450°C, respectively (at 100% con-
version).
The dehydrogenation process (6) on these catalysts is
less active and has a higher rate in the case of the indium-
doped materials. Acetaldehyde selectivity reaches 4% for
LiHf2(PO4)3 (510°C, 100% conversion) and 8% for
Li1.05Hf1.95In0.05(PO4)3 and Li1.1Hf1.9In0.1(PO4)3 (420°C;
97 and 92% conversion, respectively).
100
80
60
40
20
0
Ethylene
Acetaldehyde
Diethyl ether
Conversion
250
300
350
400
450
500
Temperature, °C
(b)
In
addition,
in
the
case
of
the
100
Li1.05Hf1.95In0.05(PO4)3 and Li1.1Hf1.9In0.1(PO4)3 sam-
ples we observed the release of C4 hydrocarbons. The
formation of C4 hydrocarbons was found to pass
through a maximum at 420°C. C4 selectivity reaches
15 and 17% in the case of the Li1.05Hf1.95In0.05(PO4)3 and
Li1.1Hf1.9In0.1(PO4)3 samples, respectively (420°C).
Thus, the addition of a small amount of indium makes
it possible to obtain C4 hydrocarbons, which were not
detected in the case of LiHf2(PO4)3 (Fig. 4).
80
60
40
20
0
Ethylene
C4
Acetaldehyde
Diethyl ether
Conversion
Moreover, indium doping reduces the catalytic
transformation temperature. Ethanol conversion
reaches 100% at 510°C for LiHf2(PO4)3 and at 450°C
for Li1 + xHf2 – xInx(PO4)3. Comparison of the specific
surface areas of the catalysts (Table 2), which differ
very little, with catalysis results leads us to conclude
that, in the indium-doped materials, the number and
activity of centers responsible for the formation of C4
hydrocarbons and acetaldehyde are higher. This
changes the reaction path and the activity of the cata-
lysts at high temperatures. The materials studied here
were shown to be capable of stable operation for 24 h.
250
300
350
400
450
500
Temperature, °C
(c)
100
80
60
40
20
0
Ethylene
C4
Acetaldehyde
Diethyl ether
Conversion
CONCLUSIONS
We have synthesized Li1 + xHf2 – xInx(PO4)3 (x = 0,
0.05, 0.1) NASICON-type materials, which crystal-
lize in hexagonal symmetry. Milling in a planetary mill
has been found to reduce the size of primary particles
of Li1 + xHf2 – xInx(PO4)3 by a factor of 1.3–1.5 and
increase the specific surface area of the materials by
almost one order of magnitude (from 1.5 to 13 m2/g in
the case of LiHf2(PO4)3). Our results on the catalytic
properties of the synthesized materials in ethanol con-
version reactions demonstrate that they exhibit cata-
lytic activity for ethanol dehydration reactions and are
less active for ethanol dehydrogenation. Ethanol con-
version predominantly yields diethyl ether at low tem-
peratures (85% at 60% conversion at 350°C on
LiHf2(PO4)3) and ethylene at higher temperatures
(96% at 100% conversion at 510°C on LiHf2(PO4)3).
250 300 350 400 450 500
Temperature, °C
Fig. 4. Temperature dependences of selectivity for the for-
mation of ethylene, acetaldehyde, diethyl ether, and C
4
hydrocarbons in the presence of the (a) LiHf (PO ) , (b)
2
4 3
Li Hf In (PO ) , and (c) Li Hf In (PO )
4 3
1.05 1.95 0.05
4 3
1.1 1.9 0.1
materials after milling and ethanol conversion as a func-
tion of temperature.
mixture at low temperatures (270–350°C) are similar
for all of the materials studied (Fig. 4). At low tem-
peratures, the most thermodynamically favorable pro-
cess if dehydration to diethyl ether according to
scheme (5). The selectivity for this reaction product is
80–85%, with 60% conversion at 350°C (Fig. 4).
INORGANIC MATERIALS
Vol. 54
No. 7
2018

CATALYTIC ACTIVITY OF Li1 + xHf2 – xInx(PO4)3-BASED
681
13. Voropaeva, D.Yu., Moshareva, M.A., Ilin, A.B.,
Novikova, S.A., and Yaroslavtsev, A.B., Phase transi-
tions and proton conductivity in hafnium hydrogen
phosphate with the NASICON structure, Mendeleev
Commun., 2016, vol. 26, pp. 152–153.
14. Moshareva, M.A., Novikova, S.A., and Yaroslavtsev, A.B.,
Synthesis and ionic conductivity of (NH4)1 – xHx-
Hf2(PO4)3 (x = 0–1) NASICON-type materials, Inorg.
Mater., 2016, vol. 52, no. 12, pp. 1283–1290.
Indium doping reduces the 100% ethanol conversion
temperature by 60°C and raises the yield of acetalde-
hyde and C4 hydrocarbons at high temperatures. C4
selectivity reaches 15 and 17% in the case of the
Li1.05Hf1.95In0.05(PO4)3 and Li1.1Hf1.9In0.1(PO4)3 mate-
rials, respectively (420°C, 97 and 92% conversion,
respectively).
15. Stenina, I.A. and Yaroslavtsev, A.B., Low- and inter-
mediate-temperature proton-conducting electrolytes,
Inorg. Mater., 2017, vol. 53, no. 3, pp. 253–262.
16. Chekannikov, A., Kapaev, R., Novikova, S., Tabach-
kova, N., Kulova, T., Skundin, A., and Yaroslavtsev, A.,
Na3V2(PO4)3/C/Ag nanocomposite materials for Na-
ion batteries obtained by the modified Pechini method,
J. Solid State Electrochem., 2017, vol. 21, no. 6,
pp. 1615–1624.
17. Hirose, N. and Kuwano, J., Ion-exchange properties of
NASICON-type phosphates with the frameworks
[Ti2(PO4)3] and [Ti1.7Al0.3(PO4)3], J. Mater. Chem.,
1994, vol. 4, pp. 9–12.
18. Agaskar, P., Grasselli, R., Buttrey, D., and White, B.,
Structural and catalytic aspects of some NASICON-
based mixed metal phosphates, Stud. Surf. Sci. Catal.,
1997, vol. 110, pp. 219–225.
19. Orlova, A.I., Pet’kov, V.L., Gul’yanova, S.T., Ermi-
lova, M.M., Ienealem, S.L., Samuilova, O.K., Chekh-
lova, T.K., and Gryaznov, V.M., The catalytic proper-
ties of new complex zirconium and iron orthophos-
phates, Russ. J. Phys. Chem. A, 1999, vol. 73, no. 11,
pp. 1767–1769.
20. Brik, Y., Kacimi, M., Bozon-Verduraz, F., and Ziyad, M.,
Characterization of active sites on AgHf2(PO4)3 in
butan-2-ol conversion, Microporous Mesoporous
Mater., 2001, vol. 43, pp. 103–112.
21. Il’in, A.B., Novikova, S.A., Sukhanov, M.V., Ermi-
lova, M.M., Orekhova, N.V., and Yaroslavtsev, A.B.,
Catalytic activity of NASICON-type phosphates for
ethanol dehydration and dehydrogenation, Inorg.
Mater., 2012, vol. 48, no. 4, pp. 397–401.
22. Ermilova, M.M., Sukhanov, M.V., Borisov, R.S.,
Orekhova, N.V., Pet’kov, V.I., Novikova, S.A., Il’in, A.B.,
and Yaroslavtsev, A.B., Synthesis of the new framework
phosphates and their catalytic activity in ethanol con-
version into hydrocarbons, Catal. Today, 2012, vol. 193,
pp. 37–41.
ACKNOWLEDGMENTS
This work was supported by the Presidium of the
Russian Academy of Sciences (program no. 37P, proj-
ect no. I.37.3) and was carried out using equipment of
the Joint Research Center of IGIC RAS.
REFERENCES
1. Yaroslavtsev, A.B. and Stenina, I.A., Complex phos-
phates with the NASICON structure (MxA2(PO4)3),
Russ. J. Inorg. Chem., 2006, vol. 51, pp. S97–S116.
2. Pet’kov, V.I., Mixed phosphates of metal cations in the
oxidation states I and IV, Russ. Chem. Rev., 2012,
vol. 81, no. 7, pp. 606–637.
3. Anantharamulu, N., Rao, K.K., Rambabu, G.,
Kumar, B.V., Radha, V., and Vithal, M., A wide-rang-
ing review on Nasicon type materials, J. Mater. Sci.,
2011, vol. 46, no. 9, pp. 2821–2837.
4. Jian, Z., Hu, Y.-S., Ji, X., and Chen, W., NASICON-
structured materials for energy storage, Adv. Mater.,
2017, vol. 29, no. 20, paper 1 601 925.
5. Goodenough, J.B., Hong, H.Y.-P., and Kafalas, J.A.,
Fast Na+-ion transport in skeleton structures, Mater.
Res. Bull., 1976, vol. 11, pp. 203–220.
6. Noguchi, Y., Kobayashi, E., Plashnitsa, L.S., Okada, Sh.,
and Yamaki, J., Fabrication and performances of all
solid-state symmetric sodium battery based on NASI-
CON-related compounds, Electrochim. Acta, 2013,
vol. 101, pp. 59–65.
7. Naqash, S., Ma, Q., Tietz, F., and Guillon, O.,
Na3Zr2(SiO4)2(PO4) prepared by a solution-assisted
solid state reaction, Solid State Ionics, 2017, vol. 302,
pp. 83–91.
8. Safronov, D.V., Stenina, I.A., Maksimychev, A.V.,
Shestakov, S.L., and Yaroslavtsev, A.B., Phase transi-
tions and ion transport in NASICON materials of com-
position Li1 + xZr2 – xInx(PO4)3 (x = 0–1), Russ. J.
Inorg. Chem., 2009, vol. 54, no. 11, pp. 1697–1703.
23. Pylinina, A.I. and Mikhalenko, I.I., Influence of com-
pensator ions in the anionic part of Na3ZrM(PO4)3
phosphate with M = Zn, Co, Cu on the acidity and cat-
alytic activity in reactions of butanol-2, Russ. J. Phys.
Chem. A, 2013, vol. 87, no. 3, pp. 372–375.
9. Knauth, Ph., Inorganic solid Li ion conductors: an
overview, Solid State Ionics, 2009, vol. 180, pp. 911–
916.
10. Svitan’ko, A.I., Novikova, S.A., Safronov, D.V., and
Yaroslavtsev, A.B., Cation mobility in Li1 + xTi2 – x
-
Crx(PO4)3 NASICON-type phosphates, Inorg. Mater.,
24. Asabina, E.A., Pet’kov, V.I., Glukhova, I.O., Orek-
hova, N.V., Ermilova, M.M., Zhilyaeva, N.A., and
Yaroslavtsev, A.B., Synthesis and catalytic properties of
2011, vol. 47, no. 12, pp. 1391–1395.
11. Kotobuki, M. and Koishi, M., Sol–gel synthesis of
Li1.5Al0.5Ge1.5(PO4)3 solid electrolyte, Ceram. Int.,
2015, vol. 41, pp. 8562–8567.
M
0.5(1 + x)FexTi2 – x(PO4)3 (M = Co, Ni, Cu; 0 ≤ x ≤ 2)
for methanol conversion reactions, Inorg. Mater., 2015,
vol. 51, no. 8, pp. 793–793.
12. Moshareva, M.A. and Novikova, S.A., Synthesis and con-
ductivity study of solid electrolytes Li1 + xAlxGe2 – x(PO4)3 25. Danilova, M.N., Pylinina, A.I., Kasatkin, E.M., Brat-
(x = 0–0.65), Russ. J. Inorg. Chem., 2018, vol. 63, no. 3,
pp. 319–323.
chikova, I.G., Mikhalenko, I.I., and Yagodovskii, V.D.,
Reactions of isobutanol over a NASICON-type Ni-
INORGANIC MATERIALS Vol. 54 No. 7 2018

682
NOVIKOVA et al.
containing catalyst activated by plasma treatments,
Kinet. Catal., 2015, vol. 56, no. 4, pp. 476–479.
with the NASICON structure in ethanol conversion,
Nanotechnol. Russ., 2017, vol. 12, nos. 9–10, pp. 514–519.
26. Bondarenko, G.N., Ermilova, M.M., Efimov, M.N.,
Zemtsov, L.M., Karpacheva, G.P., Mironova, E.Yu.,
Orekhova, N.V., Rodionov, A.S., and Yaroslavtsev, A.B.,
In situ IR spectroscopy study of ethanol steam reforming
in the presence of Pt–Ru/DND nanocatalysts, Nanotech-
nol. Russ., 2016, vol. 11, nos. 11–12, pp. 727–737.
27. Il’in, A.B., Ermilova, M.M., Orekhova, N.V., and
Yaroslavtsev, A.B., Synthesis of framework lithium zir-
conium molybdate phosphates and their catalytic prop-
erties in ethanol conversion reactions, Inorg. Mater.,
2015, vol. 51, no. 7, pp. 711–717.
37. Zonetti, P.C., Celnik, J., Letichevsky, S., Gaspar, A.B.,
and Appel, L.G., Chemicals from ethanol—the dehy-
drogenative route of the ethyl acetate one-pot synthe-
sis, J. Mol. Catal. A: Chem., 2011, vol. 334, pp. 29–34.
38. Sun, J. and Wang, Y., Recent advances in catalytic con-
version of ethanol to chemicals, ACS Catal., 2014,
vol. 4, pp. 1078–1090.
39. Matsumura, Y., Hashimoto, K., and Yoshida, S.,
Selective dehydrogenation of ethanol to acetaldehyde
over silicalite-1, J. Catal., 1990, vol. 122, pp. 352–361.
40. Takei, T., Iguchi, N., and Haruta, M., Support effect in
the gas phase oxidation of ethanol over nanoparticulate
gold catalysts, New J. Chem., 2011, vol. 35, pp. 2227–
2233.
28. Lytkina, A.A., Ilin, A.B., and Yaroslavtsev, A.B., Study
of methanol steam reforming and ethanol conversion in
conventional and membrane reactors, Petrol. Chem.,
2016, vol. 56, no. 11, pp. 1048–1055.
41. Liu, P., Zhu, X., Yang, S., Li, T., and Hensen, E.J.M.,
On the metal–support synergy for selective gas-phase
ethanol oxidation over MgCuCr2O4 supported metal
nanoparticle catalysts, J. Catal., 2015, vol. 331,
pp. 138–146.
29. Ilin, A.B., Orekhova, N.V., Ermilova, M.M., and Yaro-
slavtsev, A.B., Catalytic activity of LiZr2(PO4)3 Nasi-
con-type phosphates in ethanol conversion process in
conventional and membrane reactors, Catal. Today,
2016, vol. 268, pp. 29–36.
30. Mitran, G., Mieritz, D.G., and Seo, D., Highly selec-
tive solid acid catalyst H1 – xTi2(PO4)3 – x(SO4)x for
non-oxidative dehydrogenation of methanol and etha-
nol, Catalysts, 2017, vol. 7, pp. 95–98.
42. Santacesaria, E., Carotenuto, G., Tesser, R., and Di
Serio, M., Ethanol dehydrogenation to ethyl acetate by
using copper and copper chromite catalysts, Eng. J.,
2012, vol. 179, pp. 209–220.
31. Serghini, A., Brochu, R., Ziyad, M., and Vedrine, J.C.,
Behaviour of copper–zirconium Nasicon-type phos-
phate, CuIZr2(PO4)3, in the decomposition of isopro-
pyl alcohol, J. Chem. Soc., Faraday Trans., 1991,
vol. 87, no. 15, pp. 2487–2493.
32. Serghini, A., Brochu, R., Ziyad, M., and Vedrine, J.C.,
Synthesis, characterization and catalytic behaviour of
Cu0.5M2(PO4)3 (M = Zr, Sn, Ti), J. Alloys Compd.,
1992, vol. 188, pp. 60–64.
33. Brik, Y., Kacimi, M., Bozon-Verduraz, F., and Ziyad, M.,
Characterization of active sites on AgHf2(PO4)3 in
butan-2-ol conversion, Microporous Mesoporous
Mater., 2001, vol. 43, pp. 103–112.
34. Sukhanov, M.V., Ermilova, M.M., Orekhova, N.V.,
Pet’kov, V.I., and Tereshchenko, G.F., Catalytic prop-
erties of zirconium phosphate and double phosphates
of zirconium and alkali metals with a NaZr2(PO4)3
structure, Russ. J. Appl. Chem., 2006, vol. 79, no. 4,
pp. 614–618.
43. Nikolaev, S.A., Chudakova, M.V., Chistyakov, A.V.,
Kriventsov, V.V., and Tsodikov, M.V., Reductive dehy-
dration of ethanol to hydrocarbons on Ni- and Au-con-
taining nanocomposites, Nanotechnol. Russ., 2012,
vol. 7, nos. 7–8, pp. 327–338.
44. Mironova, E.Yu., Ermilova, M.M., Orekhova, N.V.,
Muraviev, D.N., and Yaroslavtsev, A.B., Production of
high purity hydrogen by ethanol steam reforming in
membrane reactor, Catal. Today, 2014, vol. 236,
pp. 64–69.
45. Lytkina, A.A., Zhilyaeva, N.A., Ermilova, M.M., and
Yaroslavtsev, A.B., Influence of the support structure
and composition of Ni–Cu-based catalysts on hydro-
gen production by methanol steam reforming, Int. J.
Hydrogen Energy, 2015, vol. 40, no. 31, pp. 9677–9684.
46. Shannon, R.D., Revised effective ionic radii and sys-
tematic studies of interatomic distances in halides and
chalcogenides, Acta Crystallogr., Sect. A: Cryst. Phys.,
Diffr., Theor. Gen. Crystallogr., 1976, vol. 32, no. 5,
pp. 751–767.
35. Pet’kov, V.I., Sukhanov, M.V., Ermilova, M.M., Orek-
hova, N.V., and Tereshchenko, G.F., Development and
synthesis of bulk and membrane catalysts based on
framework phosphates and molybdates, Russ. J. Appl.
Chem., 2010, vol. 83, no. 10, pp. 1731–1741.
47. Boldyrev, V.V., Mechanochemistry and mechanical
activation of solids, Russ. Chem. Rev., 2006, vol. 75,
pp. 177–189.
36. Moshareva, M.A., Il’in, A.B., Zhilyaeva, N.A., 48. Maier, J., Defect chemistry and ion transport in nano-
Novikova, S.A., and Yaroslavtsev, A.B., Catalytic activ-
ity of materials based on complex hafnium phosphates
structured materials: Part II. Aspects of nanoionics,
Solid State Ionics, 2003, vol. 157, pp. 327–334.
INORGANIC MATERIALS
Vol. 54
No. 7
2018
