Reactions of Re2Cl4(µ-dppm)2
(µ-O2C-4-C5H4N)Cl4(µ-dppm)2,4 both of which are poten-
tially capable of participating in the formation of mixed-
metal assemblies, no other examples of pyridinecarboxylates
of dirhenium are known. Since such compounds might
exhibit interesting structural chemistry, and also be incor-
porated into homo- and heteronuclear assemblies in which
diamagnetic and paramagnetic dirhenium cores are present,
we have set out to examine the reactions of the triply bonded
mg (74%). Recrystallization from dichloromethane/hexane gave
single crystals of 1 without the presence of lattice solvent (as
established by X-ray crystallography).
(ii) trans-Re2[µ:η2(O,O)-O2C-3-C5H4N]2Cl2(µ-dppm)2 (2). The
reaction between Re2Cl4(µ-dppm)2 (100 mg, 0.078 mmol) and
[(Ph3P)2N](O2C-3-C5H4N) (155 mg, 0.235 mmol) in refluxing
ethanol (30 mL) for 3 h gave this orange product with a workup
procedure similar to that used in section B(i); yield 82 mg (72%).
Recrystallization was carried out from hexane/dichloromethane.
Anal. Calcd for C62H52Cl2N2O4P4Re2: C, 51.13; H, 3.60; N, 1.92.
Found: C, 50.73; H, 3.73; N, 1.90.
(iii) Re2[η2(N,O)-O2C-2-C5H3N(-3-COOEt)]Cl3(µ-dppm)2 (3).
A mixture of Re2Cl4(µ-dppm)2 (100 mg, 0.078 mmol) and pyridine-
2,3-dicarboxylic acid (196 mg, 1.17 mmol) was refluxed in ethanol
(30 mL) for 24 h and filtered, and the green solid was filtered off
and worked-up as in section B(i); yield 81 mg (72%). Single crystals
were obtained as for 1 and 2 by the slow diffusion of hexane into
a dichloromethane solution of the complex under N2(g). Anal. Calcd
for C60H54Cl5NO4P4Re2 (i.e., 3‚CH2Cl2): C, 47.20; H, 3.57; N, 0.92.
Found: C, 46.37; H, 3.37; N, 0.99.
5-7
dirhenium(II) synthon Re2Cl4(µ-dppm)2 with a selection
of pyridinemono- and dicarboxylate ligands. We have found
that the substitution of one or two chloride ligands occurs
and the pyridine carboxylate ligands are involved in a variety
of chelating and/or bridging coordination modes to the
dirhenium core. In addition, a pair of unusual structural
isomers that contain the pyridine-2,6-dicarboxylate ligand
have been isolated and characterized. The synthetic proce-
dures and structures of the resulting complexes are reported.
Experimental Section
(iv) Re2[η2(N,O)-O2C-2-C5H3N(-4-CO2H)]Cl3(µ-dppm)2 (4).
The title complex was obtained by the reaction of Re2Cl4(µ-dppm)2
(100 mg, 0.078 mmol) with pyridine-2,4-dicarboxylic acid (65 mg,
0.39 mmol) in ethanol (30 mL) for 24 h. Workup as in section
B(i) afforded 4 as a purple solid; yield 85 mg (77%). Recrystalli-
zation from benzene/dichloromethane gave single crystals. Anal.
Calcd for C64H56Cl5NO4P4Re2 (i.e.4‚CH2Cl2‚C6H6): C, 48.75; H,
3.58; N, 0.89. Found: C, 49.57; H, 3.67; N, 1.01.
(v) Re2[µ:η3(O,N,O)-(O2C)2-2,6-C5H3N]Cl2(µ-dppm)2 (5) and
Re2[η3(O,N,O)-(O2C)2-2,6-C5H3N]Cl2(µ-dppm)2 (6). A mixture of
Re2Cl4(µ-dppm)2 (100 mg, 0.078 mmol) and [(Ph3P)2N]2[(O2C)2-
2,6-C5H3N] (193 mg, 0.155 mmol) in ethanol (30 mL) was refluxed
for 24 h. Workup as in section B(i) gave 5 as a green solid; yield
67 mg (62%). This product was recrystallized from hexane/
dichloromethane to give X-ray-quality crystals. Anal. Calcd for
A. Starting Materials, General Procedures, and Physical
Measurements. The complexes Re2Cl4(µ-dppm)2 (dppm ) Ph2-
PCH2PPh2) and cis-Re2(µ-O2CCH3)2Cl2(µ-dppm)2 were prepared
by the usual methods.7 Samples of the pyridinecarboxylic acids
and bis(triphenylphosphine)iminium chloride ([PPN]Cl) were pur-
chased from Aldrich Chemical Co. The compound [PPN]Cl was
used to prepare the [PPN]+ salts of acetic acid, pyridine-2-carboxylic
acid, pyridine-3-carboxylic acid, and pyridine-2,6-dicarboxylic acid
by use of the procedure we have described previously.3 In the case
of [PPN]2dipic, X-ray crystallography was used to confirm the
identity of this compound (vide infra). All other reagents and
organic solvents were purchased from commercial sources and were
used without further purification. Solvents were deoxygenated by
purging with dinitrogen prior to use, and all reactions were carried
out under an atmosphere of dinitrogen.
C
57.50H48Cl3NO4P4Re2 (i.e. 5‚0.5CH2Cl2): C, 48.65; H, 3.41; N,
Infrared spectra, NMR spectra, and cyclic voltammetric measure-
ments were carried out as described previously.8 Elemental mi-
croanalyses were done by Dr. H. D. Lee of the Purdue University
Microanalytical Laboratory.
0.99. Found: C, 48.92; H, 3.58; N, 0.98.
This same product (5) was obtained, admixed with considerable
quantities of unreacted Re2Cl4(µ-dppm)2, when the dipicH2 was used
in place of [PPN]2dipic; the reaction was carried out in refluxing
ethanol for 3 days, but the conversion of Re2Cl4(µ-dppm)2 to 5 by
this method is quite low.
B. Synthesis of Pyridinecarboxylate Complexes of Dirhenium-

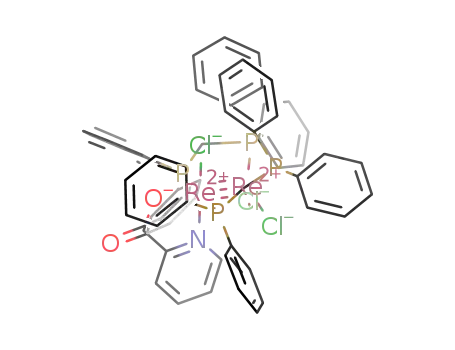

(II). (i) Re2[(η2(N,O)-O2C-2-C5H4N)]Cl3(µ-dppm)2 (1). A mixture
of Re2Cl4(µ-dppm)2 (100 mg, 0.078 mmol) and [(Ph3P)2N](O2C-
2-C5H4N) (103 mg, 0.156 mmol) in ethanol (30 mL) was refluxed
for 3 h. A green solid separated, and the mixture was then cooled
and filtered. The solid residue was washed with ethanol (3 × 5
mL) and diethyl ether (3 × 5 mL) and dried in vacuo; yield 65 mg
(61%). Recrystallization was carried out by the slow diffusion of
hexane into a dichloromethane solution of 1 under N2(g). Anal.
Calcd for C57H50Cl5NO2P4Re2 (i.e., 1‚CH2Cl2): C, 47.07; H, 3.46;
N, 0.96. Found: C, 47.17; H, 3.39; N, 0.97.
When dichloromethane (10 mL) was used as the solvent for the
reaction between Re2Cl4(µ-dppm)2 (100 mg, 0.078 mmol) and
[PPN]2dipicolinate (136 mg, 0.109 mmol), an orange colored
solution was formed when this mixture was stirred for 10 min at
room temperature. The mixture was filtered and evaporated to
dryness, and 31P{1H} NMR spectroscopy of the orange residue
showed the presence of a single dirhenium product (6) (AA′BB′
multiplets centered at δ ) -4.3 and δ ) -6.4 with the most intense
inner components at δ ) -4.70 and δ -5.9, respectively) in
addition to [PPN]+ salts (Cl- and dipic2-). We have not yet been
able to purify 6 from this particular reaction mixture. However,
we find that when Re2Cl4(µ-dppm)2 (100 mg, 0.078 mmol) is
reacted with [PPN]2dipic (387 mg, 0.312 mmol) in 25 mL of ethanol
at room temperature for a period of 6 h, then pure 6 is formed in
high yield; yield 80 mg (75%). Anal. Calcd for C57H47Cl2NO4P4-
Re2: C, 49.71; H, 3.44; N, 1.02; Cl, 5.15. Found: C, 49.07; H,
3.80; N, 0.96; Cl, 4.89.
This same compound can be obtained by refluxing a mixture of
Re2Cl4(µ-dppm)2 (100 mg, 0.078 mmol) and pyridine-2-carboxylic
acid (48 mg, 0.39 mmol) in ethanol (30 mL) for 1 day; yield 79
(4) Bera, J. K.; Cle´rac, R.; Fanwick, P. E.; Walton, R. A. J. Chem. Soc.,
Dalton Trans. 2002, 2168-2172.
(5) Ebner, J. R.; Tyler, D. R.; Walton, R. A. Inorg. Chem. 1976, 15, 833-
840.
(6) Barder, T. J.; Cotton, F. A.; Dunbar, K. R.; Powell, G. L.; Schwotzer,
W.; Walton, R. A. Inorg. Chem. 1985, 24, 2550-2554.
(7) Cutler, A. R.; Derringer, D. R.; Fanwick, P. E.; Walton, R. A. J. Am.
Chem. Soc. 1988, 110, 5024-5034.
(8) Ganesan, M.; Shih, K.-Y.; Fanwick, P. E.; Walton, R. A. Inorg. Chem.
2003, 42, 1241-1247.
When the insoluble red orange product 6 is suspended in fresh
ethanol and the mixture refluxed for 24 h, it is converted
quantitatively into green 5 (as shown by 31P NMR spectroscopy).
Inorganic Chemistry, Vol. 42, No. 19, 2003 5925
