A combined mechanochemical and calcination route to mixed cobalt oxides for the selective catalytic reduction of nitrophenols

Article abstract of DOI:10.3390/molecules25010089

Para-, or 4-nitrophenol, and related nitroaromatics are broadly used compounds in industrial processes and as a result are among the most common anthropogenic pollutants in aqueous industrial efiuent; this requires development of practical remediation str

Full text of DOI:10.3390/molecules25010089

molecules
Article
A Combined Mechanochemical and Calcination
Route to Mixed Cobalt Oxides for the Selective
Catalytic Reduction of Nitrophenols
Lorianne R. Shultz 1,2, Bryan McCullough 1,3, Wesley J. Newsome 1 , Haider Ali ,
4
Thomas E. Shaw 1 , Kristopher O. Davis , Fernando J. Uribe-Romo
,2
4,5
1,2,
*,
Matthieu Baudelet 1
,3,5,
* and Titel Jurca 1,2,6,*
1
Department of Chemistry, University of Central Florida, 4111 Libra Drive, Orlando, FL 32816, USA;
lorishultz@knights.ucf.edu (L.R.S.); mcculloughbp21@knights.ucf.edu (B.M.);
wesnewsome@knights.ucf.edu (W.J.N.); tshaw@knights.ucf.edu (T.E.S.)
2
3
4
5
Renewable Energy and Chemical Transformations Cluster, University of Central Florida,
4
353 Scorpius Street, Orlando, FL 32816, USA
National Center for Forensic Science, University of Central Florida, 12354 Research Parkway #225,
Orlando, FL 32826, USA
Department of Materials Science and Engineering, University of Central Florida, Orlando, FL 32816, USA;
alihaider@knights.ucf.edu (H.A.); Kristopher.Davis@ucf.edu (K.O.D.)
CREOL—The College of Optics & Photonics, Building 53, University of Central Florida, 4304 Scorpius Street,
Orlando, FL 32816, USA
NanoScience Technology Center, University of Central Florida, Orlando, FL 32826, USA
Correspondence: fernando@ucf.edu (F.J.U.-R.); baudelet@ucf.edu (M.B.); titel.jurca@ucf.edu (T.J.)
6
*
Academic Editor: Ali Nazemi
Received: 26 November 2019; Accepted: 15 December 2019; Published: 25 December 2019
ꢀ
ꢁꢂꢀꢃꢄꢅꢆꢇ
ꢀ
ꢁꢂꢃꢄꢅꢆ
Abstract: Para-, or 4-nitrophenol, and related nitroaromatics are broadly used compounds in
industrial processes and as a result are among the most common anthropogenic pollutants in aqueous
industrial effluent; this requires development of practical remediation strategies. Their catalytic
reduction to the less toxic and synthetically desirable aminophenols is one strategy. However, to date,
the majority of work focuses on catalysts based on precisely tailored, and often noble metal-based
nanoparticles. The cost of such systems hampers practical, larger scale application. We report a
facile route to bulk cobalt oxide-based materials, via a combined mechanochemical and calcination
approach. Vibratory ball milling of CoCl (H O) with KOH, and subsequent calcination afforded
2
2
6
three cobalt oxide-based materials with different combinations of CoO(OH), Co(OH) , and Co O
4
2
3
with different crystallite domains/sizes and surface areas; Co@100, Co@350 and Co@600 (Co@###; #
calcination temp). All three prove active for the catalytic reduction of 4-nitrophenol and related
=
aminonitrophenols. In the case of 4-nitrophenol, Co@350 proved to be the most active catalyst,
therein its retention of activity over prolonged exposure to air, moisture, and reducing environments,
and applicability in flow processes is demonstrated.
Keywords: nitroaromatics; catalytic reduction; metal oxide catalysis; waste valorization; water
chemistry; nanocatalysis
1
. Introduction
Para-, or 4-nitrophenol (4NP), and more broadly, compounds in the nitroaromatic family are widely
used in the industrial fabrication of pharmaceuticals, explosives, pesticides, pigments, and dyes [1–4].
As a result, nitroaromatics have become a very common anthropogenic pollutant arising from
aqueous industrial effluent. While many nitroaromatics have been shown to display acute toxicity,
Molecules 2020, 25, 89; doi:10.3390/molecules25010089
www.mdpi.com/journal/molecules

Molecules 2020, 25, 89
2 of 19
are mutagenic, and either potential or established carcinogens [
5
–7], their reduction products, aniline
derivatives, are typically less toxic, commercially important synthetic intermediates. For example,
the reduction product of 4NP is 4-aminophenol (4AP); a useful component for the synthesis of
dyes, agrochemicals, and pharmaceuticals [
NP has emerged as an important research area (Figure 1) [12]. Due to its concomitant use as a
probe reaction system for heterogeneous catalyst development, a majority of this work, to date,
has focused on noble metal nanoparticles (e.g., Au, Pt, Pd, etc.) [13 15]. However, although this
chemistry is effectively developed with noble metal nanoparticles [16 29], their cost precludes practical
scaled-up implementation. As a result, a number of methods utilizing materials that are either
based on Earth-abundant metals [30 38] or are metal free [39 46] have emerged. Therein, cobalt
oxide nanoparticles have drawn significant interest as active, low-cost alternatives to the noble metal
systems [47 52]. Such species are prepared by solution-based routes commensurate with conventional
8–11]. As a result, the aqueous catalytic reduction of
4
–
–
–
–
–
nanoparticle synthesis. Although promising, the effort required for precise nanoparticle preparation
can be inhibitory towards practical larger-scale applications.

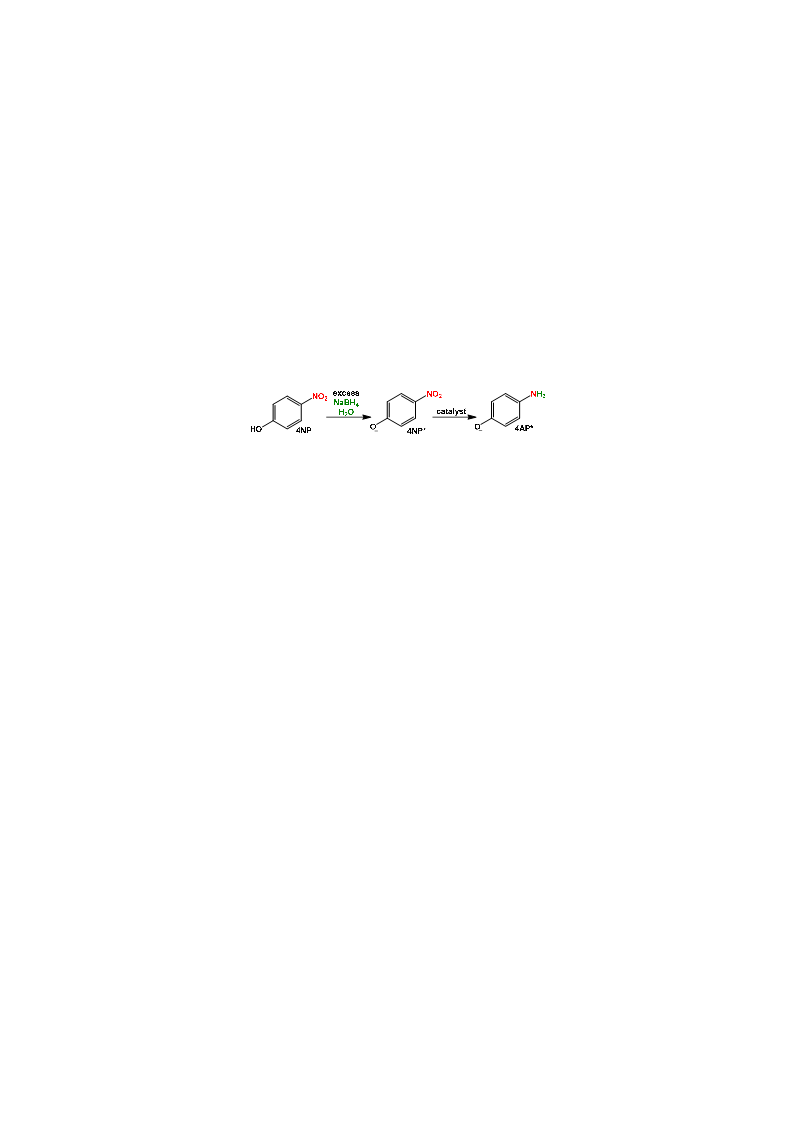

Figure 1. Catalytic reduction of 4-nitrophenol (4NP) to 4-aminophenolate (4AP*).
Herein, we report a facile route to bulk cobalt oxide-based materials, via vibratory ball milling [53
]
and subsequent calcination. Vibratory ball milling, utilizing the SPEX® 8000 model, as used for
herein, draws ca. 249 W, comparatively, a standard hot plate stirrer draws ca. 10 W for stirring
◦
alone, and peaks at 1.5 kW to maintain a modest temperature of 80 C, commensurate with milder
hydrothermal processes for nanoparticle synthesis. By taking into consideration that mechanochemical
processes are typically conducted over a shorter time span than conventional solution processes,
the energy savings become additive, thus, enhancing sustainability [54]. Furthermore, the process
utilizes inexpensive starting materials, no solvent during synthesis, and only deionized water (DIW) for
◦
workup. The bulk material, calcined at three different temperatures (100, 350, and 600 C) respectively
denoted as Co@100, Co@350 and Co@600, and composed of increasing amounts of Co O as a function
3
4
of temperature, displays different catalytic activity, and surprisingly different selectivity when utilized
for the reduction of 4NP, and several aminonitrophenols. All catalytic rates observed are competitive
with related literature process. The most active catalyst, Co@350 as deduced from 4NP reduction
trials (vide infra) is robust, air and moisture resistant, displaying longevity, excellent recyclability,
and applicability in flow processes. Paired with the ease of synthesis, and the inherent scalability of
mechanochemical processes [55–63], these results are promising for the development of inexpensive,
robust, and sustainable bulk catalysts capable of reducing nitrophenol pollutants in aqueous media.
2
. Results and Discussion
2
.1. Catalyst Synthesis
In a tungsten carbide (WC) vial, CoCl (H O) (4.2 mmol, 1.0 g) was mixed with excess KOH
2
2
6
®
(
89 mmol, 5 g) and (2
×
) 11.2 mm WC balls. The vessel was sealed, and placed on a SPEX 8000 mill
and allowed to react for 2 h after which point it was opened and the dark brown powder washed with
1
00 mL of DIW, passed through a medium glass filter frit to remove large particulates, and centrifuged
◦
at 3500 rpm for 3 min. to afford a dark bronze solid. The solid was dried in vacuo at 100 C for 4 h to
remove the remaining H O, yielding 387 mg of dark brown/black powder. The resulting powder was
2
split in three (129 mg each), one portion was kept “as synthesized” (Co@100) and the remaining two
◦
◦
−1
◦
◦
◦
−1
heated to 350 C (110 C h for 3 h, hold 2 h at 350 C) and 600 C (110 C h for 5 h, hold 2 h at
6
◦
00 C), respectively (Co@350 and Co@600, Figure 2). Unless otherwise noted, samples were stored in
sealed vials in a desiccator (10% RH).

Molecules 2020, 25, 89
3 of 19

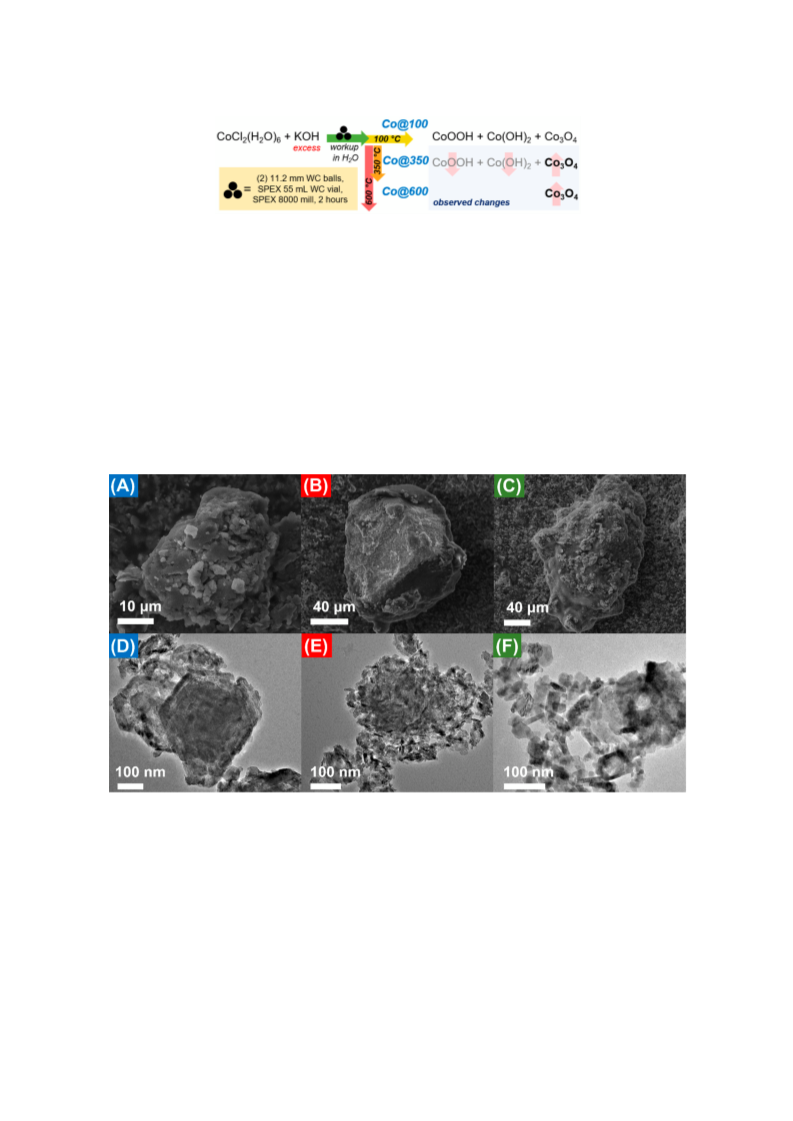

Figure 2. General protocol for the preparation of Co@100, Co@350, and Co@600.
2
.2. Catalyst Characterization
Scanning electron microscopy (SEM) of the powders in each instance revealed an amorphous
agglomeration of micron-sized particles of compacted material decorated in highly dispersed
nano-to-micron sized semi-spherical clusters (Figure 3A–C and Figure S1) [64 66]. The large
–
agglomerates are attributed to the impacts from the preparative method. Energy dispersive X-ray
spectroscopy (EDX) confirms the presence of Co as the predominant species, with residual K from
the milling process (Figure S1). Transmission electron microscopy (TEM) of all three samples after
◦
prolonged sonication in methanol at 40 C, to enable decomposition of the micron-sized agglomerates,
reveals agglomerated nanoplates ranging anywhere between <10 nm to >50 nm (Figure 3D–F and
Figure S2). Nanoplate definition is greatly enhanced for Co@600 (Figure 3F), commensurate with
higher crystallinity and formation of a predominantly single Co-oxide species (vide infra).
Figure 3. Representative SEM images of Co@100 (
A), Co@350 (B), and Co@600 (C), and representative
TEM images of Co@100 (D), Co@350 (E) and Co@600 (F) after sonication.
Raman spectroscopy of Co@100 (Figure 4A and Figure S3) was indicative of the presence of Co O
3
4
−
1
g
2g 2g
with characteristic peaks at 198, 491, 528, 624, and 694 cm corresponding to the F , E , F , F ,
2g
and A1g modes, respectively [67
and raised above the baseline. Broad peaks in this region are characteristic for CoO(OH) and Co(OH) ,
68]. However, the region of 450 to 650 cm 1 is sufficiently broadened
−
,
2
−1
both of which exhibit peaks at ca. 500 cm corresponding to E
g
and A2u modes. Additionally, they
both feature very broad peaks centered at ca. 600 cm corresponding to the A1g and E modes of
CoO(OH) and Co(OH) , respectively. The spectrum of Co@100 reveals multiple overlapping signals
at both 497 and 505 cm , as well as very broad signals over the entire area of interest; likely due to
the presence of both Co(OH) and CoO(OH) [67 70]. Going from Co@100 to Co@350 and Co@600,
the peaks assigned to Co(OH) and CoO(OH) gradually disappear giving way to sharper features at
−
1
g
2
−
1
–
2
2

Molecules 2020, 25, 89
4 of 19
−1
1
98, 482, 519, 621, and 693 cm (Co@600) corresponding to the F , E , F , F , and A of Co O ,
g
2g 2g 2g 1g 3 4
indicating near complete conversion to the mixed oxide [67
,
68
,71]. Additional broad features at ~130 to
−
1
3
00 cm are attributed to the presence of residual KOH (Figure S3).

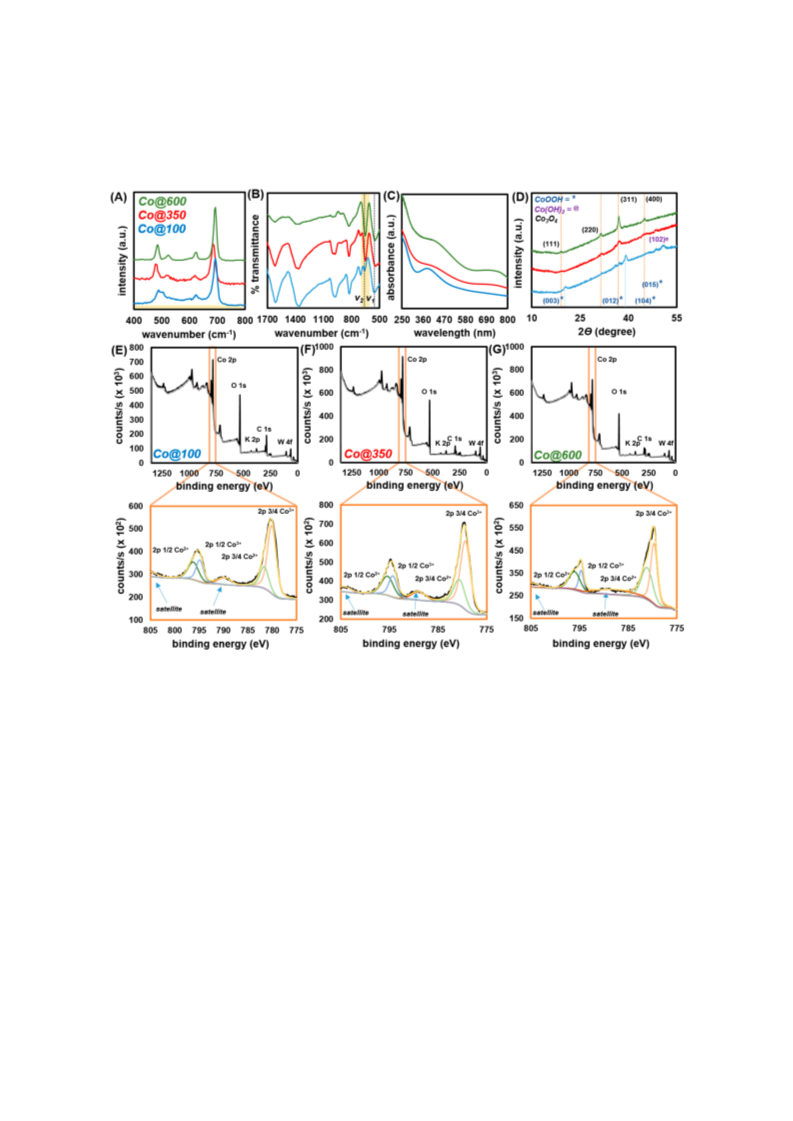

Figure 4. Raman (
a.u. = arbitrary units). XPS survey and close-up of Co 2p region for (
and (G) Co@600.
A
), FTIR (
B
), UV-Vis (
C
), and XRD (
D
) spectra of Co@100, Co@350 and Co@600.
(
E
) Co@100, ( ) Co@350,
F
−
1
FTIR of Co@100 reveals a very broad high intensity peak at (v ) 551 cm and a sharp lower
1
−1
intensity peak at (v ) 659 cm (Figure 4B and Figure S2). Notably, v is likely a combination of
2
1
3
+
vibration modes for Co-O in Co O spinel (Co ), in CoO(OH), and in Co(OH) [72
–
76]. The sharp
3
4
2
+
2
lower intensity v is attributed to the vibration of Co-O in Co O spinel (Co ), which increases
2
3
4
in intensity as calcination temperature increases (Co@350 and Co@600). Additional broad peaks
−
1
associated with respective surface hydroxides, H O (very broad at 1614 cm ) [77], and carboxylates
(
2
− −1 −1
COO , at 1614 cm and 1360 cm ) [78] adsorbed and formed during handling and storage in
ambient, and residual KOH from the milling process (vide supra) are also present. However, their
complexity makes a clear assignment difficult. The UV-Vis spectrum of Co@100 (Figure 4C) in DIW
features a broad peak at λmax = 390 nm, characteristic of CoO(OH); but may also be attributed to
the presence of
β-Co(OH)2 [73,79]. There is significant, however ill-defined absorbance up to the as
measured 800 nm region, which is attributed to the presence of Co O in accordance to observations
3
4
from both Raman and FTIR. Going from Co@100, to Co@350 and Co@600, the peak at λmax = 390 nm
disappears, giving way to the progressively better-defined broad bands at ca. λmax = 430 nm and
2
+
3+
λmax = 740 nm, attributed to the ligand-metal charge transfer events O
Co O , respectively [80].
→
Co and O
→
Co of
3
4

Molecules 2020, 25, 89
5 of 19
Powder X-ray diffraction (Figure 3D) of Co@100 reveals the presence of mainly CoO(OH), with
observable small amounts of Co(OH) ; confirmed by Raman (Figure 4D). The CoO(OH) phase
2
appears with broad peaks (FWHM = 0.74), characteristic of the small domain size of the crystallites.
Calcination to Co@350 results in phase transformation to nanocrystaline Co O (spinel) with trace
3
4
◦
amounts of CoO(OH) and Co(OH) . Calcination at 600 C resulted in Co@600 with a PXRD pattern
2
that displays sharp diffraction lines of Co O (spinel) and complete disappearance of the hydroxide
3
4
phases. These observations are commensurate with the spectroscopic observations. The porosity
of the particles was analyzed utilizing N gas adsorption at 77 K (Figure S3). All three compounds
2
exhibit an IUPAC type II isotherm, characteristic of microporous materials with multilayer adsorption.
The hysteresis observed at high pressure accentuates the difference in the adsorption/desorption
mechanism characteristic of porous oxide materials [81]. Application of the Brunauer-Emmet-Teller
(
2
o
BET) model over the low-pressure region (up to 0.1 p/p ) resulted in BET surface areas of SBET = 21.75,
8.48, 10.38 m g for Co@100, Co@350, and Co@600 (Figure S4).
2
−1
X-ray photoelectron spectroscopy (XPS) was carried out on all three samples. As expected,
measurements confirmed the majority constituents to be Co, O, and C, with a minor contaminant of K
and <2% W attributed to residue from the WC grinding implements (Figure 4E–G). The presence of C
is ascribed to the presence of hydrocarbon contaminants (Figure S5) [82,83]. Critical to the assessment
2
+
3+
of the material are the Co 2p peaks which reveal the ratio of Co to Co in the system. The observed
2
+/3+
peaks at respective binding energies (eV) and correlated % Co
compositions are as follows: Co@100
2
+
3+
2+
3+
2+
2
p1/2 (Co ) 796.6 eV, 2p (Co ) 795.4 eV, 2p (Co ) 781.6 eV, 2p (Co ) 780.1 eV, Co = 23.9%,
1/2 3/4 3/4
and Co = 76.1%; Co@350 2p (Co ) 795.5 eV, 2p1/2(Co ) 794.2 eV, 2p (Co ) 780.6 eV, 2p (Co
3+
2+
3+
2+
3+
)
1
/2
3/4
3/4
2
+
3+
2+
3+
7
79.4 eV, Co = 30.0%, and Co = 70.0%; Co@600 2p1/2 (Co ) 796.6 eV, 2p (Co ) 794.8 eV, 2p
1/2
3/4
3+
(
Co2+) 781.2 eV, 2p3/4 (Co3+) 779.7 eV, Co2+ = 47.7%, and Co = 52.3%. Thus, the compositions support
3
+
3+
2+
the transition from predominantly CoO(OH) (Co ) to predominantly Co O (2:1 Co :Co ) [64,84,85].
3
4
The “overshoot” in Co2 content for Co@600 is potentially due to a combination of surface –OH
sites or oxygen vacancies arising from the preparative process and handling under high humidity
ambient conditions.
+
Combining the spectroscopic, diffraction, and porosity measurements, thermal treatment of
cobalt-based nanoparticles first induces a structural rearrangement from mainly cobalt oxyhydroxide
to a mixed system featuring both oxyhydroxide and spinel with small crystallite size and increased
◦
accessible surface area. Annealing at 600 C results in increased particle size with a decrease in surface
area with formation of predominantly Co O spinel, with likely oxygen vacancies or amorphous
3
4
surface hydroxides. The change in chemical environment is echoed by the initial decreased (red) shift
Co@100 to Co@350) then increased (blue) shift (Co@350 to Co@600) observed by Raman (Figure 4A).
(
2
.3. Catalysis
2
.3.1. Catalytic Reduction of 4-Nitrophenol
To investigate the catalytic performance of Co@100, Co@350 and Co@600, 4-nitrophenol (4NP)
reduction reactions were conducted in a standard 1 cm path length quartz UV cell and monitored in
◦
the 225 to 475 nm region, under ambient (21 C). In a typical reaction, 0.39
µmol 4NP was diluted in
1
4
mL DIW mixed with a 2 mL solution of 0.2 mmol NaBH (pH 10.46); this initial reaction generates
-nitrophenolate (4NP*) marked by a color change from pale to bright yellow, and a red shift from
4
λmax = 317 nm to λmax = 400 nm (Figure 5, Figure 6 and Figure S6). After the t absorbance was
0
recorded, 1 mg of catalyst was added and stirred for ~2 s. The reaction was monitored at fixed intervals
by the decreasing absorbance at λmax = 400 nm. This was accompanied by the appearance of a lower
intensity peak at λmax = 310 nm, consistent with 4-aminophenolate (4AP*); 4-aminophenol (4AP)
appears at ca. λmax = 300 nm (Figure S6). Practically, this denotes a color change from bright yellow to
colorless. Notably, all three catalysts promote hydrolysis of NaBH resulting in a turbid solution and an
4
artificially increased baseline absorbance (~1 a.u.). The catalytic hydrolysis of NaBH by Co O -based
4
3
4

Molecules 2020, 25, 89
6 of 19
species has been previously reported, and therefore it is not surprising that a similar competing reaction
is operating herein [86 88]. To effectively extract data under these conditions, the resulting spectra
were normalized to an isosbestic point at 250 nm.
–
H
H
4-nitrophenol
H
4
-nitrophenolate
O
2
N
OH
H
Co-cat
H2
+
BO2
+
2
O N O
+
NaBH
2
H O
4
O
2
N
O
adsorb
H
2
N
O
O
4
-aminophenolate
H
H
via intermediates
O
H
H
-
2 H
2
O
N
O
O
N
HO
desorb
O
N
O
(i)
H
(ii)
Figure 5. Proposed general mechanism for the reduction of 4NP with catalysts Co@100, Co@350,
and Co@600 in H O with excess NaBH .
2
4
Figure 6.
then, NaBH addition; (
normalized at 250 nm; (
with the evolution of H in closed system (repeat trials shown).
(
A
) UV-Vis spectra for the reduction of 4NP by Co350; (
B
) Co@350 and 4NP, dwell 5 min,
) spectrum (
E) plot of ln(C/Co) as a function of time; and (F) change in pressure associated
C
) Co@350 and NaBH , dwell 5 min, then 4NP addition; (
D
C)
4
4
2
When conducted in the presence of excess NaBH , the reaction is commonly described in terms of
4
the Langmuir-Hinshelwood model [13,89–91]. According to the model, reactants 4NP* and NaBH4
derived surface hydrogen are first adsorbed onto the catalyst surface in a fast and reversible process.
Following an induction period (vide infra), the reaction proceeds according to pseudo-first order
kinetics, via intermediates 4-nitrosophenol and 4-hydroxylaminophenol (Figure 5i,ii) [92–94] ultimately
yielding the product 4AP*, which rapidly desorbs from the surface, thus bearing minimal impact
on the overall kinetics (Figure 5). As a result, the rate-limiting step can be described as the reaction
of adsorbed 4NP and hydrogen on the catalyst surface. Thus, the resulting catalyst performance is
quantified in terms of the apparent rate constant kapp (Equation), derived from the slope of ln(C/C ) as a
0

Molecules 2020, 25, 89
7 of 19
function of time; C/C is obtained from the absorbance for 4NP* at λmax = 400 nm (A/A ), collected
0
0
after an induction period (vide infra). The details governing this approximation have been discussed
in prior literature [5].
!
!
A
A0
C
C0
−
kappt = ln
= ln
Reactions promoted by all three catalysts, monitored at 2 min intervals, proceeded as expected
(
(
Figure 6A and Figure S5). Reactivity, as delineated by kapp was found to proceed in the order Co@350
0.189 min ) > Co@600 (0.057 min ) > Co@100 (0.033 min ) (Figure 6F, Table 1). By comparison,
−
1
−1
−1
repeating the reaction with commercial Co O led to no observed reaction over the 50 min period tested
3
4
(
Figure S8A). Because all three catalysts feature a different composition of materials, a comparative
analysis of structure-activity relationships is not possible. Within the context of Co@600, enhanced
activity over pristine commercially sourced Co O can be attributed to the presence of oxygen vacancies.
3
4
Chen and coworkers have previously reported oxygen vacancy enhanced activity of Co O towards 4NP
3
4
reduction, wherein pristine Co O exhibited long induction periods and low initial activity, whereas
3
4
2
+
reduced species, denoted by higher Co content by XPS, were more active [50]. Co@600 exhibits a Co
composition of Co2 :Co 47.7%:52.3% as compared with Co O (1:2 Co :Co ). The exact blend of
+
3+
2+
3+
3
4
CoO(OH), Co O , surface Co(OH) , and relative oxygen vacancies of Co@100 and Co@350 are difficult
3
4
2
to assign, thus their activity can more broadly be attributed to the process-specific mixture of the
aforementioned components. Therein, the processing parameters leading to Co@350 yield the most
active mixed cobalt oxide blend for 4NP reduction. However, Co@600 exhibits larger crystallite/domain
2
−1
2
−1
size and decreased BET surface area (Co@350 = 28.28 m g and Co@600 = 10.38 m g ), which may
account for the increased kapp of Co@350.
Table 1. Summary of catalytic trials.
kapp (min 1)
−
Cat.
Substrate.
Change
Induction (min)
–
4NP
4NP
4NP
4NP
4NP
4NP
4NP
4NP
4NP
4NP
4NP
4NP
4A3NP
4A3NP
4A3NP
2A5NP
2A5NP
2A5NP
–
–
–
–
no rxn
0.033
0.189
–
2
2
<2
–
–
–
1
30
<5
–
–
30
6
16
8
28
22
Co@100
Co@350
Co@600
Co@100
Co@350
Co@600
Co@350
Co@350
Co@350
KOH
0.057
no NaBH4
no NaBH4
no NaBH4
+1 mg KOH
+NaBH last
+4NP last
no rxn
no rxn
no rxn
0.132
0.035
0.032
no rxn
no rxn
0.004
0.114
0.003
4
–
–
–
–
–
–
–
–
Co3O4
Co@100
Co@350
Co@600
Co@100
Co@350
Co@600
0.047/0.175
0.143
0.264
A direct comparison to literature catalysts is complicated by the dependence of kapp on multiple
factors including NaBH concentration, mass transport, reaction volume, catalyst weight, temperature,
4
and the nature and density of active sites, which in most cases, ours included, remain enigmatic.
Nonetheless, it is accepted that kapp normalized to reaction volume and catalyst mass, dubbed
−
1
−1
L) can facilitate a useful comparison [95
“
activity parameter”
Co@350 exhibits a
reports for both metal oxides; CuO (6.2
κ
(s
g
,
96]. Using these parameters,
−1 −1
s g L. This is comparable to a number of recent literature
−3
κ
value of 9.5
×
10
−
3
−1 −1
−3 −1 −1
10 s g
×
10
s
g
L), [7c] Co O (4.2
×
L) [32],
−3 −1 −1
10 s g L) [97], Ni on
3
4
−
3
−1 −1
and meso-Co O (3.8
×
10
s
g
L) [48]; metal nanoparticles Ni (2.9
×
3
4

Molecules 2020, 25, 89
8 of 19
−
3
−1 −1
−3 −1 −1
s g L) [99]; and metal free
carbon (27.6
−
69.6
×
10
s
g
L) [98], and Au on Fe O (61.0
×
10
3
4
−
3
−1 −1
catalysts such as sulfurized graphene (6.2 × 10
s
g
L) [46].
To confirm adherence to the Langmuir-Hinshelwood model [13
,
89–91], two additional experiments
were conducted with Co@350 utilizing similar parameters as detailed prior, while altering the order of
reagent addition. First, Co@350 and 4NP in DIW were introduced to the quartz cell and absorbance was
recorded (Figure 6B). Notably some 4NP is immediately converted to 4NP* (normally a slower process);
this is observed for all three catalysts (Figure S7) and is attributed to the presence of residual KOH.
After the initial measurement, NaBH is added to the system and absorbance is subsequently measured
4
at 5 min intervals. With this sequence of addition, there is a considerable induction time (30 min)
during which negligible H evolution is observed; this is evident by the lack of turbidity of the solution
2
which reveals no increase in baseline absorbance in the recorded spectrum (Figure 6B). The process
was repeated with initial introduction of Co@350 and NaBH in DIW, measurement of absorbance
4
and subsequent addition of 4NP with monitoring at 5 min intervals. In this instance, H evolution
2
was immediately noticeable, and reflected in the recorded spectra which featured a dramatically
increased baseline absorbance (Figure 6C, normalized values see Figure 6D). Notably, there was no
−
1
observed induction time at 5 min. The reactions proceeded with a kapp of 0.035 min (Co@350 + 4NP
−1
then NaBH ) and 0.032 min (Co@350 + NaBH , then 4NP), indicating that the reduction process is
4
4
likely similar post induction period. Ultimately, it appears the optimal scenario is the introduction of
catalyst to a mixture of NaBH and preformed 4NP*, which in the case of Co@350 resulted in a kapp of
4
−
1
0
.189 min with minimal induction time (2 min).
NP has been shown to have a dramatically higher adsorption constant than BH for Co O
4
40 L mol and KBH4- = 22
induction period (30 min), where initial exposure to 4NP likely results in complete coverage of catalyst
−
4
4
3
−1
−1
(
K4NP = 922
±
±
4 L mol ) [48]. This is consistent with our observed
−
surface sites, thereby preventing co-adsorbance of BH4 necessary to generate the surface hydrogens
(
which readily evolve H ) required for catalytic turnover. Alternatively, initial formation of surface
2
hydrogen species does not fully out-compete 4NP adsorption even if addition is delayed, and the
reaction proceeds without significant induction time, and with similar rate. This is consistent with
the Langmuir-Hinshelwood model which necessitates adsorption of both species onto the catalyst
surface prior to reaction [13
,89–91]. These findings can also rule out the competing Eley-Rideal
mechanism [100 102], which is predicated on the collision of substrate with surface-bound hydrogens;
–
in such a case we would expect our second scenario (Co@350 + NaBH then 4NP), featuring a hydrogen
4
rich surface and all 4NP initially in the solution state to have exhibited an enhanced kapp.
In a separate experiment, the change in pressure associated with the hydrolysis of NaBH as
4
promoted by Co@350 both in the absence and in competition with 4NP was monitored in a closed system
(
Figure 6F and Figure S9). In the absence of catalyst, the pressure of the system changes by
∆9.27 kPa
over 90 min. due to slow hydrolysis of NaBH in H O. Introduction of Co@350 results in enhanced
4
2
H production, resulting in an additional pressure change of
∆
25.59 kPa. Overall this represents a
nearly four-fold increase in hydrolysis rate, as expected for Co-based catalysts [87 89]. Monitoring the
pressure change for the reduction of 4NP in the system reveals only slight deviation over the first
50 min (4NP reduction period). After this point, pressure begins to increase steadily with a similar
2
–
~
slope as observed for trials in the presence of Co@350, and the absence of 4NP. These observations are
−
consistent with the higher adsorption constant for 4NP vs. BH4 with Co O [48] and further validate
3
4
the mechanistic studies outlined in Figure 6B–D (vide supra) [13,89–91]. Moreover, commercial Co O
3 4
readily promotes NaBH hydrolysis [88], although it fails to promote 4NP reduction during the time
4
tested (Figure S8B), thus validating that (a) it is not fully passivated and capable of being catalytically
active, and (b) that the preparative routes undertaken for our materials yield cobalt oxides that are
comparatively highly active towards 4NP reduction.
The presence of induction periods, as observed herein, is common in heterogeneous catalysis,
and in the context of 4NP reduction, has been attributed to a number of factors. The prevailing theories
center around reconstruction of catalyst surface to yield active sites [103–106], and the time for depletion

Molecules 2020, 25, 89
9 of 19
−
of dissolved oxygen which competes with 4NP for BH4
[107
–
109], or as proposed more recently, could
promote a rapid reversal by reacting with 4AP to regenerate 4NP [110]. However, these theories arose
largely from studies of well-defined noble-metal nanoparticles, as such direct appropriation to the
highly amorphous metal oxide system presented herein is not straightforward, nor is a mechanistic
study of the exact surface chemistry governing the observed induction period. Nonetheless, it is
evident from the structural characterization that the catalyst surfaces are coated with a number of
adsorbed hydroxides and carboxyl groups (vide supra) which likely necessitates an induction period
to expose or form active sites. Monitoring the pH of the reduction process at 5 min intervals reveals
an initial dip upon catalyst addition (Figure S10), which could be due to the release of adsorbed
species and is commensurate with the induction period timescale. Overall, pH increases as the reaction
−
proceeds, likely due to the formation of BO2
.
To delineate the effects of trace KOH, a series of experiments were conducted under similar
conditions. Attempted reduction of 4NP with 1 mg of KOH in lieu of Co catalyst, and in the presence
of NaBH with monitoring at 2 min intervals for 28 min resulted in no observable decrease in
4
4NP* absorbance, and no formation of 4AP* (Figure S11A). Repeating the process in the absence of
NaBH resulted in 4NP* formation, and no further observable reaction over 28 min (Figure S11B).
4
These findings are consistent with a prior report on nitrobenzene reduction [111]. Repeating the
catalytic reduction of 4NP with Co@350 and the addition of 1 mg KOH facilitated reduction to 4AP*
−
1
with a kapp of 0.132 min in 22 min (Figure S11C). This is only a slightly reduced rate as compared
−
1
with the system without additional KOH (kapp = 0.189 min ). Yan, Xie, and coworkers have recently
proposed an alternative pathway for 4NP to 4AP reduction via direct hydrogenation of 4NP to yield
4
-nitrosophenol (protonated intermediate i, Figure 5), which ultimately yields 4AP/4AP*. The presence
of this species accounts for an initially enhanced absorbance at λmax = 310 nm [93]. We observe a
similar enhanced absorbance at 310 nm which decreases as 4NP is consumed (Figure 6B and Figure S7).
+
Thus, we postulate that increased concentration of K in the system, studied herein, could promote a
complementary reaction pathway via 4-nitrosophenol, thus, accounting for the increased absorbance,
−
1
and slight reduction in kapp
(
δ − 0.057 min ) [112
–115]. Overall, it is evident that trace KOH is not
the driving factor in the catalytic activity reported herein but could enhance a complementary or
concurrent reaction pathway, ultimately leading to the same product.
2
.3.2. Recyclability of Co@350
Under identical conditions to our prior in situ catalysis trials with 4NP (vide supra), we tested
the recyclability and long-term stability of Co@350; our most active catalyst. Prior to use, to ensure
consistency throughout the recyclability trials, Co@350 was initially exposed to ambient conditions
−
1
(
0
45% to 55% RH). An immediate impact on performance, lowering the kapp from 0.189 min to
−
.091 min (Table 1) was observed. This is likely due to a combination of adsorbed H O and CO ,
2 2
1
which has the dual effect of blocking sites, and lowering the catalyst weight % of the 1 mg added to
the reaction mixture. Nonetheless, Co@350 remained active under medium humidity, “real-world”
conditions. After every trial, the turbid solution was allowed to settle overnight, the liquid decanted,
the solid washed with DIW, again decanted, and the remaining catalyst placed under vacuum overnight.
The subsequent trials were conducted by the addition of 3 mL of DIW containing 4NP and NaBH4,
with monitoring at 5 min intervals. Over five trials, spanning nine days, there was an observed
decrease in kapp of 21% (Figure 7 and Figure S12). This may be due in part to degradation of catalyst;
however mechanical loss during workup is likely a significant contributor. The fluctuation in kapp from
trial to trial is attributed to agglomeration and dispersion of particulates incurred during the workup
process. Raman spectroscopy of the “spent” catalyst was indicative of predominantly Co O with
3
4
−1
g
2g 2g 1g
characteristic peaks at 184, 460, 500, 600, and 663 cm corresponding to the F , E , F , F , and A
2g
−1
modes, respectively (Figure S13) [67
region, and the enhanced intensity of the signal at 460 cm also points to the expected presence of
Co(OH) and CoO(OH) [67 70]. XRD studies of spent Co@350 as well as Co@100 and Co@600 (Figure
,68]. However, broadening of the peaks in the 450 to 500 cm
−1
–
2

Molecules 2020, 25, 89
10 of 19
S14) indicate the expected presence of CoO(OH) and Co O for Co@350 and Co@100, and Co O
4
3
4
3
for Co@600.
Figure 7. Recyclability of Co@350 for the reduction of 4NP* to 4AP.
2
.3.3. Testing Applicability of Co@350 in a Flow Process
To investigate applicability of our catalyst in a flow process [116
with a simple proof-of-concept model. Catalyst Co@350 was loaded onto two 0.22
–
120], we simulated a flow reactor
µm nylon syringe
filters; 8 mg in filter (i) and 4 mg in filter (ii), then stacked sequentially (Figure 8A). The filters were
then flushed with 10 mL of DIW to remove any loose particulates or readily dissolved species. A 60 mL
syringe was loaded with 6.21
µmol 4NP, and 3.2 mmol NaBH in 48 mL of DIW. The syringe and filters
4
were assembled and placed on a syringe pump, as illustrated in Figure 8A, where the solution was
−
1
displaced at a rate of 0.4 mL min and the product was collected in an open flask. The bright yellow
solution of 4NP* became completely clear after passage through the filter, as confirmed by UV-Vis
(Figure 8B).
Figure 8. (A) Schematic illustration of a model flow reactor for reduction of 4NP* to 4AP. (B) UV-Vis
spectrum of 4NP* and the resulting 4AP collected after passage through filters loaded with Co@350.
2
4
.3.4. Catalytic Reduction of Amino-Nitrophenols
Encouraged by the results from the reduction of 4NP, we expanded the substrate scope to
-amino,3-nitrophenol (4A3NP) and 2-amino,5-nitrophenol (2A5NP) (Figure 9). Therein, reactions
were conducted under a similar protocol as described for 4NP. In both instances, introduction of
amino-nitrophenols to a solution of NaBH in DIW led to a shift in absorbance commensurate
4
with the formation of respective amino-nitrophenolates: 4-amino,3-nitrophenolate (4A3NP*) and
2
-amino,5-nitrophenolate (2A5NP*) (Figure S4). Reactions were monitored by the disappearance of
peaks at λmax = 510 nm (4A3NP*) and λmax = 460 nm (2A5NP*) (Figure 10, Figures S15 and S16).
The recorded absorbance of the resulting diaminophenolates, 4,3-aminophenolate (4A3NP*) and
2
,5-aminophenolate (25AP*), were consistent with prior literature [121–124].

Molecules 2020, 25, 89
11 of 19
2
-amino,5-nitrophenol
2-amino,5-nitrophenolate
NH
2
,5-aminophenolate
NH
NH
2
2
2
OH
O
O
O
2
N
O
2
N
2
H N
Co-cat
+
NaBH
4
H
2
+
BO2
O
2
N
2
H O
O
2
N
2
H N
H
2
N
O
H
2
N
OH
H
2
N
O
4
-amino,3-nitrophenol
4-amino,3-nitrophenolate
4,3-aminophenolate
Figure 9. Reaction process of amino-nitrophenols with catalysts Co@100, Co@350 and Co@600 (“Co-cat”)
in H O with excess NaBH .
2
4

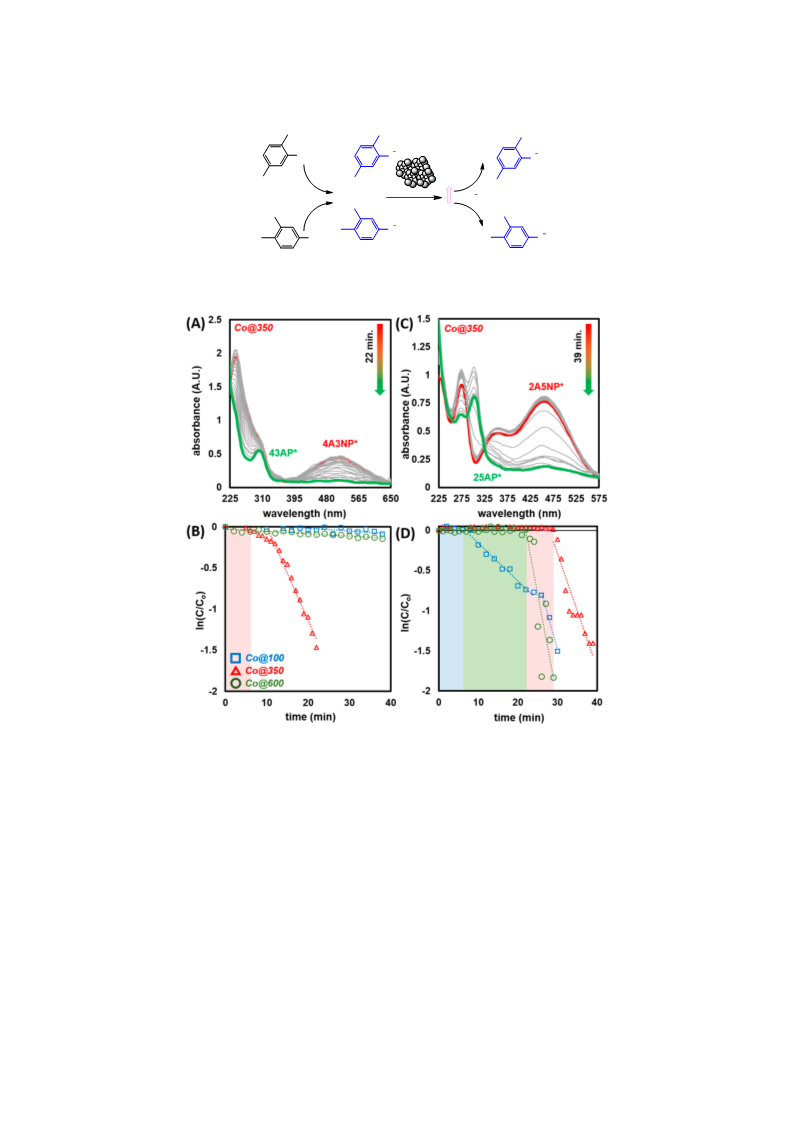

Figure 10.
(
A
) UV-Vis spectra of the reduction of 4A3NP by Co@350 (SI for Co@100 and Co@600) and
(
(
B
C
) plot of ln(C/Co) as a function of time for the reduction of 4A3NP by Co@100, Co@350, and Co@600.
) UV-Vis spectra of the reduction of 2A5NP by Co@350 (SI for Co@100 and Co@600) and ( ) plot of
D
ln(C/Co) as a function of time for the reduction of 2A5NP by Co@100, Co@350, and Co@600. Note, color
blocks represent induction times.
In the case of 4A3NP, the results from the initial 4NP trials were accurately predictive. Within the
−1
tested time of 40 min, Co@350 rapidly facilitated reduction (kapp = 0.114 min ), whereas both
−
1
Co@100 and Co@600 displayed only negligible activity (kapp = 0.004 and 0.003 min respectively).
By switching the position of the amine and nitro groups to 2A5NP, activity across all three catalysts
changed dramatically (Figure 10 and Table 1). Co@100 appeared to exhibit two distinctly different
−
1
rates; after an induction time of 8 min, reduction proceeded at a modest rate (kapp = 0.047 min ), this
−1
increased sharply at ca. 26 min to 0.175 min . We tentatively attribute this to the multi-component
nature of Co@100, wherein initial activity may be due to Co(OH) species, and the increased, latent
2
rate to CoO(OH) or Co O as available in the other catalysts. This is commensurate with both
3
4
the rates and induction times observed for Co@350 and Co@600 (vide supra). The highest rate
−1
observed was for Co@600 (kapp = 0.264 min ) with an induction time of 22 min. The slowest catalyst

Molecules 2020, 25, 89
12 of 19
−
1
was Co@350, exhibiting both the lowest rate (kapp = 0.143 min ) and longest induction (28 min).
In this case, the observed rates for Co@350 and Co@600 inversely correlate to BET surface area
2
−1
2
−1
(
Co@350 = 28.28 m g , Co@600 = 10.38 m g ). The difference in reactivity is, therefore, more likely
related to the nature of available surface sites as dictated by the particle size, degree of crystallinity
vide supra), and the combination of CoO(OH) and Co O available. These findings highlight the
(
3
4
potential of fine-tuning activity and selectivity for cobalt oxide- and hydroxide-based catalysts through
combined mechanochemical synthesis and thermal treatment. Furthermore, they call in to question
the common practice of comparing the activity of heterogeneous catalysts based on 4NP screening
alone. As noted herein, addition and respective position of functional groups to the 4NP scaffold can
easily reverse observed rates from the ubiquitous 4NP model reaction [125].
3
. Materials and Methods
All reactions were carried out under ambient (21 to 23 C, 45% to 55% relative humidity). Cobalt(II)
chloride hexahydrate, 4-nitrophenol (4NP), 4-amino,3-nitrophenol (4A3NP), 2-amino,5-nitrophenol
2A5NP), anilines, and NaBH were purchased from TCI America, KOH was purchased from Strem
◦
(
4
Chemicals, and used as received. Co O (99.7%) was purchased from Alfa Aesar and used as
3
4
received. FTIR Spectra were measured on a Bruker Vertex-70 with Helios ATR attachment. UV-Vis
Spectra were collected on an Agilent Cary 60 spectrophotometer utilizing 1 cm quartz cuvettes.
Optical microscope images were collected on a Leica DM2500m with an Accu-Scope Excelis-HD camera.
The pH measurements were conducted with an OHaus 2100 m with ST210 electrode. Pressure change
due to H evolution was measured in a closed system with a Vernier PS400-BTA sensor. The N
2
2
gas adsorption isotherm analysis was performed using a Micromeritics ASAP 2020 surface area and
porosity analyzer. Measurements were performed at 77 K (liquid N bath) on thermally activated
2
samples. The BET surface areas were obtained by performing a Rouquerol analysis over the linear
isotherm to determine the upper limits of the BET model. Least squares linear fitting over the BET plot
provided the parameter for the volume of the monolayer, surface area, and C-constant, following the
recommendation by Rouquerol [80]. The powder X-ray diffraction measurements were performed
using a Rigaku Miniflex 600 diffractometer, with 2θ Bragg-Brentano geometry, a 300 mm goniometer
diameter, and a 600 W (40 kV, 15 mA) X-ray tube source using Ni-filtered CuK
α
(
λ
= 1.5418 Å) radiation,
◦
◦
equipped with a high-resolution D/tex 250 detector, 5.0 incident and receiving Soller slits, a 0.625
◦
divergent slit, a 1.25 scattering slit, a 0.3 mm receiving slit, a Ni-CuK filter, and an anti-scattering
β
blade. Samples were measured from 10 to 55 2-theta degrees with a step size of 0.02 degrees and a scan
rate of 0.5 min per step. Powder samples were prepared by depositing the powder sample on a silicon
zero-background sample holder and gently pressing the powder with a glass slide. Raman data were
acquired using a Horiba XploRA-plus microscope with a 785 nm laser excitation source. The laser was
focused onto the samples using 100 objective producing a spot size of ~1 µm. Spectra were acquired
×
−1
from 20 to 2000 cm with 10 s acquisition time. The SEM images were acquired with a LEO 1450VP
and accompanied by an Oxford EDX for elemental analysis. All samples were mounted on metal
and silver-coated to provide enhanced contrast images. Bright field (BF) images were obtained with
the help FEI Tecnai F 30 TEM in conventional transmission electron microscopy (CTEM) mode at an
operating voltage of 300 kV. The X-ray photoelectron spectra (XPS) were obtained using a Thermo
Scientific ESCALAB XI+ X-ray Photoelectron Spectrometer with an Al K
α
X-ray source (1486.67 eV).
◦
The TEM samples were prepared by prolonged sonication of samples in methanol at 40 C followed by
TM
dispersion on CF-2/4-3Cu-25 C-flat holey carbon on copper grids from Electron Microscopy Sciences.
4
. Conclusions
Reduction of nitrophenols is typically carried out by either noble-metal nanoparticles,
or alternatives synthesized with precise control over size and shape. This requires a significant
expenditure of either material cost, experimental effort, or in many cases, both. These factors can
present an obstacle to any practical, large-scale application as would be necessitated for environmental

Molecules 2020, 25, 89
13 of 19
remediation. The process reported, herein, represents a facile route to bulk cobalt-oxide based materials,
via a combined mechanochemical (vibratory ball milling) and calcination approach. By utilizing
inexpensive starting materials such as CoCl (H O) and KOH, no solvent during synthesis, and only
2
2
6
◦
DIW for workup, it remains both economical and sustainable. Calcination at 100, 350, and 600 C
afforded three materials (Co@100, Co@350 and Co@600) composed of increasing amounts of Co O and
3
4
decreasing amounts of CoO(OH). All materials can generally be described as micron-sized compacted
agglomerates of nanoplates. All three were active for the reduction of 4NP, with activity varying based
on a combination of chemical composition, crystallinity, and surface area. Therein, Co@350 displayed
the best performance and was further studied for recyclability and applicability in a flow process,
where it was shown to remain active after prolonged exposure to air and moisture.
Expanding the substrate scope to amine-functionalized nitrophenols revealed unexpected results.
While 4A3NP reflected the trends observed with the 4NP model system, 2A5NP presented a complete
reversal, where Co@100 was overall the more active species. This brings to light several interesting
points. First, by combining the mechanochemical method and varying subsequent calcination
temperatures, different mixtures of cobalt oxides and hydroxides can be achieved, the consequence
of which dramatically alters both activity and selectivity. Second, it serves caution not to dismiss
potential catalysts which underperform with the now ubiquitous 4NP model, and therefore could
display enhanced reactivity with other functionalities. Our ongoing efforts focus on understanding the
influence of cobalt oxide and hydroxide mixtures which govern the observed reactivity and selectivity
with the aim of developing a precise mechanism for NP reduction by early transition-metal oxides.
Supplementary Materials: The supplementary materials are available online.
Author Contributions: Conceptualization, T.J. and L.R.S.; methodology, L.R.S., T.J., M.B., F.J.U.-R..; analysis,
L.R.S., B.M., M.B., K.O.D., H.A., W.J.N.; synthesis, T.E.S.; writing—original draft preparation and review and
editing, M.B., F.J.U.-R., T.J.; supervision, T.J., M.B., F.J.U.-R. All authors have read and agreed to the published
version of the manuscript.
Funding: This work was supported by start-up funding from the Department of Chemistry, College of Science,
the FCI at the University of Central Florida, and partially by NSF CHE-1665277.
Acknowledgments: We thank W.E.K., UCF Physics, for access to a SPEX 8000 mill, and T.C., UCF Chemistry for
calcination experiments, and P.B., UCF MSE for helpful discussion. Authors acknowledge the NSF MRI: XPS:
ECCS: 1726636, hosted in MCF-AMPAC facility, MSE, CECS. L.R.S. and B.M. contributed equally. L.R.S. thanks
the UCF Office of Undergraduate Research for a Student Research Grant Award.
Conflicts of Interest: The authors declare no conflicts of interest.
References
1.
2.
3.
4.
5.
6.
7.
Yi, S.; Zhuang, W.-Q.; Wu, B.; Tiong-Lee, S.; Tay, J.-H. Biodegradation of p-nitrophenol by aerobic granules in
a sequencing batch reactor. Environ. Sci. Technol. 2006, 40, 2396–2401. [CrossRef] [PubMed]
Podeh, M.R.H.; Bhattacharya, S.K.; Qu, M. Effects of nitrophenol on acetate utilizing methanogenic systems.
Wat. Res. 1995, 29, 391–399. [CrossRef]
Xia, J.; He, G.; Zhang, L.; Sun, X.; Wang, X. Hydrogenation of nitrophenols catalyzed by carbon
black-supported nickel nanoparticles under mild conditions. Appl. Catal. B 2016, 180, 408–415. [CrossRef]
Yu, S.; Hu, J.; Wang, J. Gamma radiation-induced degradation of p-nitrophenol (PNP) in the presence of
hydrogen peroxide (H O ) in aqueous solution. J. Hazard. Mater. 2010, 177, 1061–1067. [CrossRef] [PubMed]
2
2
Ju, K.-S.; Parales, R.E. Nitroaromatic compounds, from synthesis to biodegradation. Microbiol. Mol. Biol. Rev.
010, 74, 250–272. [CrossRef]
2
Zhao, H.; Kong, C.-H. Enhanced removal of p-nitrophenol in a microbial fuel cell after a long-term operation
and the catabolic versatility of its microbial community. Chem. Eng. J. 2018, 339, 424–431. [CrossRef]
Sun, M.; Reible, D.D.; Lowry, G.V.; Gregory, K.B. Effect of applied voltage, initial concentration, and natural
organic matter on sequential reduction/oxidation of nitrobenzene by graphite electrodes. Environ. Sci. Technol.
2
012, 46, 6174–6181. [CrossRef]
Downing, R.S.; Kunkeler, P.J.; van Bekkum, H. Catalytic synthesis of aromatic amines. Catal. Today 1997, 37,
21–136. [CrossRef]
8
.
1

Molecules 2020, 25, 89
14 of 19
9
.
Wegener, G.; Brandt, M.; Duda, L.; Hofmann, J.; Klesczewski, B.; Koch, D.; Kumpf, R.-J.; Orzesek, H.;
Pirkl, H.-G.; Six, C.; et al. Trends in industrial catalysis in the polyurethane industry. Appl. Catal. A 2001, 22,
3
03–335. [CrossRef]
0. Nomura, K. Transition metal catalyzed hydrogenation of reduction in water. J. Mol. Catal. A 1998, 130, 1–28.
CrossRef]
1. Espinosa Bosch, M.; Ruiz S
Historical evolution. J. Pharm. Biomed. Anal. 2006, 42, 291–321. [CrossRef] [PubMed]
2. Xiong, Z.; Zhang, H.; Zhang, W.; Lai, B.; Yao, G. Removal of nitrophenols and their derivatives by chemical
redox: A review. Chem. Eng. J. 2019, 359, 13–31. [CrossRef]
3. Aditya, T.; Pal, A.; Pal, T. Nitroarene reduction: A trusted model reaction to test nanoparticle catalysts.
Chem. Commun. 2015, 51, 9410–9431. [CrossRef] [PubMed]
4. Zhao, P.; Feng, X.; Huang, D.; Yang, G.; Astruc, D. Basic concepts and recent advances in nitrophenol
reduction by gold- and other transition metal nanoparticles. Coord. Chem. Rev. 2015, 287, 114–136. [CrossRef]
1
1
1
1
1
1
1
[
ánchez, A.J.; Sánchez Rojas, F.; Bosh Ojeda, C. Determination of paracetamol:
5. Hervés, P.; Pérez-Lorenzo, M.; Liz-Marzán, L.M.; Dzubiella, J.; Lu, Y.; Ballauff, M. Catalysis by metallic
nanoparticles in aqueous solution: Model reactions. Chem. Soc. Rev. 2012, 41, 5577–5587. [CrossRef]
6. Menumerov, E.; Hughes, R.A.; Golze, S.D.; Neal, R.D.; Demille, T.B.; Campanaro, J.C.; Kotesky, K.C.;
Rouvimov, S.; Neretiva, S. Identifying the true catalyst in the reduction of 4-nitrophenol: A case study
showing the effect of leaching and oxidative etching using Ag catalysts. ACS Catal. 2018, 8, 8879–8888.
[CrossRef]
1
1
1
2
7. Menumerov, E.; Hughes, R.A.; Neretina, S. One-step catalytic reduction of 4-nitrophenol through the direct
injection of metal salts into oxygen-depleted reactants. Catal. Sci. Technol. 2017, 7, 1460–1464. [CrossRef]
8. Dolatkhah, A.; Jani, P.; Wilson, L.D. Redox-responsive polymer template as an advanced multifunctional
catalyst support for silver nanoparticles. Langmuir 2018, 34, 10560–10568. [CrossRef]
9. Hsia, C.-F.; Madasu, M.; Huang, M. Aqueous phase synthesis of Au-Cu core-shell nanocubes and octahedra
with tunable sizes and noncentrally located cores. Chem. Mater. 2016, 28, 3073–3079. [CrossRef]
0. Bari, N.K.; Kumar, G.; Bhatt, A.; Hazra, J.P.; Garg, A.; Ali, M.E.; Sinha, S. Nanoparticle fabrication on bacterial
microcompartment surface for the development of hybrid enzyme-inorganic catalyst. ACS Catal. 2018, 8,
7
742–7748. [CrossRef]
2
2
1. Wang, F.; Li, W.; Feng, X.; Liu, D.; Zhang, Y. Decoration of Pt on Cu/Co double-doped CeO nanospheres and
2
their greatly enhanced catalytic activity. Chem. Sci. 2016, 7, 1867–1873. [CrossRef] [PubMed]
2. Johnson, J.A.; Makis, J.J.; Marvin, K.A.; Rodenbusch, S.E.; Stevenson, K.J. Size-dependant hydrogenation
of p-nitrophenol with Pd nanoparticles synthesized with poly(amido)amine dendrimer templates. J. Phys.
Chem. C. 2013, 117, 22644–22651. [CrossRef]
2
3. Jadbabaei, N.; Slobodjian, R.J.; Shuai, D.; Zhang, H. Catalytic reduction of 4-nitrophenol by palladium-resin
composites. Appl. Catal. 2017, 543, 209–217. [CrossRef]
2
4. Islam, M.T.; Saenz-Arana, R.; Wang, H.; Bernal, R.; Noveron, J.C. Green synthesis of gold, silver, platinum,
and palladium nanoparticles reduced and stabilized by sodium rhodizonate and their catalytic reduction of
4
-nitrophenol and methyl orange. New J. Chem. 2018, 42, 6472–6478. [CrossRef]
2
2
5. Liu, A.; Traulsen, C.H.-H.; Cornelissen, J.J.L.M. Immobilization of catalytic virus-like particles in a flow
reactor. Chem. Commun. 2017, 53, 7632–7634. [CrossRef]
6. Koklioti, M.A.; Skaltsas, T.; Sato, Y.; Suenaga, K.; Stergiou, A.; Tagmatarchis, N. Mechanistic insights into the
photocatalytic properties of metal nanocluster/graphene ensembles. Examining the role of visible light in the
reduction of 4-nitrophenol. Nanoscale 2017, 9, 9685–9692. [CrossRef]
2
7. Bingwa, N.; Meijboom, R. Kinetic evaluation of dendrimer-encapsulated palladium nanoparticles in the
4
-nitrophenol reduction reaction. J. Phys. Chem. C. 2014, 118, 19849–19858. [CrossRef]
2
8. Islam, M.T.; Jing, H.; Yang, T.; Zubia, E.; Goos, A.G.; Bernal, R.A.; Botez, C.E.; Narayan, M.; Chan, C.K.;
Noveron, J.C. Fullerene stabilized gold nanoparticles supported on titanium dioxide for enhanced
photocatalytic degradation of methyl orange and catalytic reduction of 4-nitrophenol. J. Environ. Chem. Eng.
2
018, 6, 3827–3836. [CrossRef]
2
9. Nguyen, T.B.; Huang, C.P.; Doong, R.-A. Enhanced catalytic reduction of nitrophenols by sodium borohydride
over highly recyclable Au@graphitic carbon nitride nanocomposites. Appl. Catal. B 2019, 240, 337–347.
[CrossRef]

Molecules 2020, 25, 89
15 of 19
3
0. Wu, Y.; Wen, M.; Wu, Q.-S.; Fang, H. Ni/graphene nanostructure and its electron-enhanced catalytic action
for hydrogenation reaction of nitrophenol. J. Phys. Chem. C 2014, 118, 6307–6313. [CrossRef]
1. Wang, X.; Lu, J.; Zhao, Y.; Wang, X.; Lin, Z.; Liu, X.; Wu, R.; Yang, C.; Su, X. Facile fabrication of
nickel/heazlewoodite@carbon nanosheets and their superior catalytic performance of 4-nitrophenol reduction.
ChemCatChem 2018, 10, 4143–4153. [CrossRef]
3
3
3
3
2. Mandlimath, T.R.; Gopal, B. Catalytic activity of first row transition metal oxides in the conversion of
p-nitrophenol to p-aminophenol. J. Mol. Catal. A 2011, 350, 9–15. [CrossRef]
3. Mohamed, M.J.S.; Denthaje, K.B. Novel RGO-ZnWO -Fe O nanocomposites as an efficient catalyst for
4
3
4
rapid reduction of 4-nitrophenol to 4-aminophenol. Ind. Eng. Chem. Res. 2016, 55, 7267–7272. [CrossRef]
4. Qiao, X.-Q.; Zhang, Z.-W.; Hou, D.-F.; Li, D.-S.; Liu, Y.; Lan, Y.-Q.; Zhang, J.; Feng, P.; Bu, X. Tunable MoS /SnO2
2
P-N heterojunctions for an efficient trimethylamine gas sensor and 4-nitrophenol reduction catalyst. ACS
Sustain. Chem. Eng. 2018, 6, 12375–12384. [CrossRef]
3
5. Ma, Y.; Ni, Y.; Guo, F.; Xiang, N. Flowerlike copper(II)-based coordination polymers particles: Rapid
room-temperature fabrication, influencing factors, and transformation toward CuO microstructures with
good catalytic activity for the reduction of 4-nitrophenol. Cryst. Growth Des. 2015, 15, 2243–2252. [CrossRef]
6. Shtansky, D.V.; Firestein, K.L.; Goldberg, D.V. Fabrication and application of BN nanoparticles, nanosheets
and their nanohybrids. Nanoscale 2018, 10, 17477–17493. [CrossRef]
3
3
3
7. Huang, C.; Ye, W.; Liu, Q.; Qiu, X. Dispersed Cu O octahedrons on h-BN nanosheets for p-nitrophenol
2
reduction. ACS Appl. Mater. Interfaces 2014, 6, 14469–14476. [CrossRef]
8. Zhang, K.; Liu, Y.; Deng, J.; Xie, S.; Lin, H.; Zhao, X.; Yang, J.; Han, Z.; Dai, H. Fe O /3DOM BiVO :
2
3
4
High-performance photocatalysts for the visible light-driven degradation of 4-nitrophenol. Appl. Catal. B
017, 202, 569–579. [CrossRef]
9. Kong, X.-K.; Sun, Z.-Y.; Chen, M.; Chen, C.; Chen, Q. Metal-free catalytic reduction of 4-nitrophenol to
-aminophenol by N-doped grapheme. Energy Environ. Sci. 2013, 6, 3260–3266. [CrossRef]
0. Gao, L.; Li, R.; Sui, X.; Li, R.; Chen, C.; Chen, Q. Conversion of chicken feather waste to N-doped carbon
nanotubes for the catalytic reduction of 4-nitrophenol. Environ. Sci. Technol. 2014, 48, 10191–10197. [CrossRef]
1. Wu, Q.; Liang, M.; Zhang, S.; Liu, X.; Wang, F. Development of function black phosphorus nanosheets with
remarkable catalytic and antibacterial performance. Nanoscale 2018, 10, 10428–10435. [CrossRef] [PubMed]
2. Raza, W.; Krupanidhi, S.B. Engineering defects in graphene oxide for selective ammonia and enzyme-free
glucose sensing and excellent catalytic performance for para-nitrophenol reduction. ACS Appl. Mater. Interfaces
2
3
4
4
4
4
2
018, 10, 25285–25294. [CrossRef] [PubMed]
4
4
4
4
3. Zhang, J.; Zhang, F.; Yang, Y.; Guo, S.; Zhang, J. Composites of graphene quantum dots and reduced graphene
oxide as catalysts for nitroarene reduction. ACS Omega 2017, 2, 7293–7298. [CrossRef] [PubMed]
4. Stergiou, A.; Tagmatarchis, N. Fluorene-perylene diimide arrays onto graphene sheets for photocatalysis.
ACS Appl. Mater. Interfaces 2016, 8, 21576–21584. [CrossRef] [PubMed]
5. Han, Q.; Chen, N.; Zhang, J.; Qu, L. Graphene/graphitic carbon nitride hybrids for catalysis. Mater. Horiz.
2
017, 4, 832–850. [CrossRef]
6. Wang, Z.; Su, R.; Wang, D.; Shi, J.; Wang, J.-X.; Pu, Y.; Chen, J.-F. Sulfurized graphene as efficient metal-free
catalysts for reduction of 4-nitrophenol to 4-aminophenol. Ind. Eng. Chem. Res. 2017, 56, 13610–13617.
[
CrossRef]
7. Pan, L.; Tang, J.; Wang, F. Synthesis and electrocatalytic performance for p-nitrophenol reduction of rod-like
Co O and Ag/Co O composites. Mater. Res. Bull. 2013, 48, 2648–2653. [CrossRef]
4
4
3
4
3
4
8. Mogudi, B.M.; Ncube, P.; Meijboom, R. Catalytic activity of mesoporous cobalt oxides with controlled
porosity and crystallite sizes: Evaluation using the reduction of 4-nitrophenol. Appl. Catal. B 2016, 74, 74–82.
[
CrossRef]
9. Mogudi, B.M.; Ncube, P.; Bingwa, N.; Mawila, N.; Mathebula, S.; Meijboom, R. Promotion effects of alkali- and
alkaline earth metals on catalytic activity of mesoporous Co O for 4-nitrophenol reduction. Appl. Catal. B
4
3
4
2
017, 218, 240–248. [CrossRef]
5
5
0. Chen, H.; Yang, M.; Tao, S.; Chen, G. Oxygen vacancy enhanced catalytic activity of reduced Co O towards
p-nitrophenol reduction. Appl. Catal. B 2017, 209, 648–656. [CrossRef]
1. Song, T.; Ren, P.; Duan, Y.; Wang, Z.; Chen, X.; Yang, Y. Cobalt nanocomposites on N-doped hierarchical
3
4
porous carbon for highly selective formation of anilines and imines from nitroarenes. Green Chem. 2018, 20,
4
629–4637. [CrossRef]

Molecules 2020, 25, 89
16 of 19
5
2. Chinnappan, A.; Eshkalak, S.K.; Baskar, C.; Khatibzadeh, M.; Kowsari, E.; Ramakrishna, S. Flower-like
3
-dimensional hierarchical Co O /NiO microspheres for 4-nitrophenol reduction reaction. Nanoscale Adv.
3 4
2
019, 1, 305–313. [CrossRef]
5
3. Park, J.-W.; Park, C.-M. Mechanochemically induced transformation of CoO(OH) into Co O nanoparticles
3 4
and their highly reversible Li storage characteristics. RSC Adv. 2017, 7, 10618–10623. [CrossRef]
4. Shaw, T.E.; Shultz, L.R.; Garayeva, L.R.; Blair, R.G.; Noll, B.C.; Jurca, T. Mechanochemical routes for the
synthesis of acetyl- and bis-(imino)pyridine ligands and organometallics. Dalton Trans. 2018, 47, 16876–16884.
5
[
CrossRef]
5. He, G.; Ding, J.; Zhang, J.; Hao, Q.; Chen, H. One-step ball-milling preparation of highly photocatalytic active
CoFe O -reduced graphene oxide heterojunctions for organic dye removal. Ind. Eng. Chem. Res. 2015, 54,
5
2
4
2
862–2867. [CrossRef]
5
5
5
5
6. Lyu, H.; Gao, B.; He, F.; Ding, C.; Tang, J.; Crittenden, J.C. Ball-milled carbon nanomaterials for energy and
environmental applications. ACS Sustain. Chem. Eng. 2017, 5, 9568–9585. [CrossRef]
7. Peters, D.W.; Blair, R.G. Mechanochemical synthesis of an organometallic compound: A high volume
manufacturing method. Faraday Discuss. 2014, 170, 83–91. [CrossRef]
8. Restrepo, D.; Hick, S.M.; Griebel, C.; Alarcón, J.; Giesler, K.; Chen, Y.; Orlovskaya, N.; Blair, R.G. Size controlled
mechanochemical synthesis of ZrSi . Chem. Commun. 2013, 49, 707–709. [CrossRef]
2
9. Zhao, B.; Zheng, Y.; Ye, F.; Deng, X.; Xu, X.; Liu, M.; Shao, Z. Multifunctional iron oxide nanoflake/graphene
composites derived from mechanochemical synthesis for enhanced lithium storage and electrocatalysis.
ACS Appl. Mater. Interfaces 2015, 7, 14446–14455. [CrossRef]
6
0. Muñoz-Batista, M.J.; Rodriquez-Padron, D.; Puente-Santiago, A.R.; Luque, R. Mechanochemistry: Toward
sustainable design of advanced nanomaterials for electrochemical energy storage and catalytic applications.
ACS Sustain. Chem. Eng. 2018, 6, 9530–9544. [CrossRef]
6
6
1. Saitow, K.; Wang, Y.; Takahashi, S. Mechano-synthesized orange TiO shows significant photocatalysis under
2
visible light. Sci. Rep. 2018, 8, 15549. [CrossRef] [PubMed]
2. Jeon, I.-Y.; Choi, H.-J.; Choi, M.; Seo, J.-M.; Jung, S.-M.; Kim, M.-J.; Zhang, S.; Zhang, L.; Xia, Z.; Dai, L.; et al.
Facile, scalable synthesis of edge-halogenated graphene nanoplatelets as efficient metal-free electrocatalysis
for oxygen reduction reaction. Sci. Rep. 2013, 3, 1810. [CrossRef] [PubMed]
6
6
6
6
6
3. Prochowicz, D.; Nawrocki, J.; Terlecki, M.; Marynowski, W.; Lewi n´ ski, J. Facile mechanosynthesis of the
archetypal Zn-based metal-organic frameworks. Inorg. Chem. 2018, 57, 13437–13442. [CrossRef] [PubMed]
4. Yang, J.; Liu, H.; Martens, W.N.; Frost, R.L. Synthesis and characterization of cobalt hydroxide, cobalt
oxyhydroxide, and cobalt oxide nanodiscs. J. Phys. Chem. C 2010, 114, 111–119. [CrossRef]
5. Solsona, B.; Davies, T.E.; Garcia, T.; Vásquez, I.; Dejoz, A.; Taylor, S.H. Total oxidation of propane using
nanocrystalline cobalt oxide and supported cobalt oxide catalysts. Appl. Catal. B 2008, 84, 176–184. [CrossRef]
6. Liu, F.; Su, H.; Jin, L.; Zhang, H.; Chu, X.; Yang, W. Facile synthesis of ultrafine cobalt oxide nanoparticles for
high-performance supercapacitors. J. Colloid Interface Sci. 2017, 505, 796–804. [CrossRef] [PubMed]
7. Nguyen, T.; Boudard, M.; Rapenne, L.; Chaix-Pluchery, O.; Carmezim, M.J.; Montemor, M.F.
Structural evolution, magnetic properties and electrochemical response of MnCo O nanosheet films.
2
4
RSC. Adv. 2015, 5, 27844–27852. [CrossRef]
8. Hadjiev, V.G.; Iliev, M.N.; Vergilov, I.V. The Raman spectra of Co O . J. Phys. C Solid State Phys 1988, 21,
6
6
3
4
L199–L201. [CrossRef]
9. Liu, Y.-C.; Koza, J.A.; Switzer, J.A. Conversion of electrodeposited Co(OH)2 to CoOOH and Co O ,
3
4
and comparison of their catalytic activity for the oxygen evolution reaction. Electrochim. Acta 2014, 140,
59–365. [CrossRef]
0. Alrehaily, L.M.; Joseph, J.M.; Wren, J.C. Radiation-induced formation of Co O nanoparticles from Co2+(aq):
3
7
7
7
7
3
4
Probing the kinetics using radical scavengers. Phys. Chem. Chem. Phys. 2015, 17, 24138–24150. [CrossRef]
1. Zhang, J.; Gao, W.; Dou, M.; Wang, F.; Liu, J.; Li, Z.; Li, J. Nanorod-constructed porous Co O nanowires:
3
4
Highly sensitive sensors for the detection of hydrazine. Analyst 2015, 140, 1686–1692. [CrossRef]
2. Pandey, B.K.; Shahi, A.K.; Gopal, R. Magnetic colloid by PLA: Optical, magnetic and thermal transport
properties. Appl. Surf. Sci. 2015, 347, 461–470. [CrossRef]
3. Li, N.; Zhu, Y.D.; Liu, T.; Liu, S.G.; Lin, S.M.; Shi, Y.; Luo, H.Q.; Li, N.B. Turn-on fluorescence detection
of pyrophosphate anion based on DNA-attached cobalt oxyhydroxide. New J. Chem. 2017, 41, 1993–1996.
[CrossRef]

Molecules 2020, 25, 89
17 of 19
7
7
7
7
7
4. Nie, Q.; Cai, Q.; Xu, H.; Qiao, Z.; Li, Z. A facile colorimetric method for hightly sensitive ascorbic acid
detection by using CoOOH nanosheets. Anal. Methods 2018, 10, 2623–2628. [CrossRef]
5. Mahmoud, W.E.; Al-Agel, F.A. A novel strategy to synthesize cobalt hydroxide and Co O nanowires. J. Phys.
Chem. Solids 2011, 72, 904–907. [CrossRef]
6. Alburquenque, D.; Vargas, E.; Denardin, J.C.; Escrig, J.; Marco, J.F.; Ortiz, J.; Gautier, J.L. Physical and
3
4
electrochemical study of cobalt oxide nano- and microparticles. Mater. Charact. 2014, 93, 191–197. [CrossRef]
7. He, T.; Chen, D.R.; Jiao, X.L.; Wang, Y.L. Co O nanoboxes: Surfactant-templated fabrication and
3
4
microstructure characterization. Adv. Mater. 2006, 18, 1078–1082. [CrossRef]
8. Taibi, M.; Ammar, S.; Jouini, N.; Fiévet, F.; Molinié, P.; Drillon, M. Layered nickel hydroxide salt: Synthesis,
characterization and magnetic behaviour in relation to the basal spacing. J. Mater. Chem. 2002, 12, 3238–3244.
[
CrossRef]
9. Wang, L.; Lin, C.; Zhang, F.; Jin, J. Phase transformation guided single-layer
pseudocapacitive electrodes. ACS Nano. 2014, 8, 3724–3734. [CrossRef] [PubMed]
0. George, G.; Anandhan, S. A comparative study on physico-chemical properties of sol-gel electrospun cobalt
oxide nanofibers from two difference polymeric binders. RSC Adv. 2015, 5, 81429–81437. [CrossRef]
1. Roquerol, F.; Roquerol, J.; Sing, K. Adsorption by Powders and Porous Solids: Principles, Methodology and
Applications; Academic Press: San Diego, CA, USA, 1999.
2. Moulder, J.F.; Stickle, W.F.; Sobol, P.E.; Bomben, K.D. Handbook of X-ray Photoelectron Spectroscopy; Physical
Electronics Press: Eden Prairie, MN, USA, 1995.
3. Rodella, C.B.; Barrett, D.H.; Moya, S.F.; Figueroa, S.J.A.; Pimenta, M.T.B.; Curvelo, A.A.S.; Silva, V.T.D.
Physical and Chemical Studies of Tungsten Carbide Catalysts: Effects of Ni Promotion and Sulphonated
Carbon. RSC Adv. 2015, 30, 23874–23885. [CrossRef]
7
8
8
8
8
β-Co(OH) nanosheets for
2
8
4. Nguyen-Huy, C.; Lee, J.; Seo, J.H.; Yang, E.; Lee, J.; Choi, K.; Lee, H.; Kim, J.H.; Lee, M.S.; Joo, S.H.; et al.
An Structure-Dependent Catalytic Properties of Mesoporous Cobalt Oxides in Furfural Hydrogenation.
Appl. Catal. A Gen. 2019, 583, 117125. [CrossRef]
8
8
8
5. Li, Y.; Tan, B.; Wu, Y. Mesoporous Co O Nanowire Arrays for Lithium Ion Batteries with High Capacity and
Rate Capability. Nano Lett. 2008, 8, 265–270. [CrossRef] [PubMed]
6. Damjanovi c´ , L.; Majchrzak, M.; Bennici, S.; Auroux, A. Determination of the heat evolved during sodium
3 4
borohydride hydrolysis catalyzed by Co O . Int. J. Hydrog. Energy 2011, 36, 1991–1997. [CrossRef]
3
4
7. Wei, L.; Dong, X.; Ma, M.; Lu, Y.; Wang, D.; Zhang, S.; Zhao, D.; Wang, Q. Co O hollow fiber: An efficient
3
4
catalyst precursor for hydrolysis of sodium borohydride to generate hydrogen. Int. J. Hydrog. Energy 2018
3, 1529–1533. [CrossRef]
8. Demirci, U.B.; Miele, P. Cobalt in NaBH4 hydrolysis, Phys. Chem. Chem. Phys. 2012, 12, 14651–14665.
CrossRef]
9. Antonels, N.C.; Meijboom, R. Preparation of well-defined dendrimer encapsulated ruthenium nanoparticles
and their evaluation in the reduction of 4-nitrophenol according to the Lanmuir-Hinshelwood approach.
Langmuir 2013, 29, 13433–13442. [CrossRef]
,
4
8
8
[
9
0. Wunder, S.; Lu, Y.; Albrecht, M.; Ballauf, M. Catalytic activity of faceted gold nanoparticles studied by a
model reaction: Evidence for substrate-induced surface restructuring. ACS Catal. 2011, 1, 908–916. [CrossRef]
1. Wunder, S.; Polzer, F.; Lu, Y.; Mei, Y.; Ballauf, M. Kinetic analysis of catalytic reduction of 4-nitrophenol
by metallic nanoparticles immobilized in spherical polyelectrolyte brushes. J. Phys. Chem. C 2010, 114,
9
8
814–8820. [CrossRef]
9
9
2. Gu, S.; Kaiser, J.; Marzun, G.; Ott, Lu, A.Y.; Ballauff, M.; Zaccone, A.; Barcikowski, S.; Wagener, P. Ligand-free
bold nanoparticles as a reference material for kinetics modelling of catalytic reduction of 4-nitrophenol.
Catal. Lett. 2015, 145, 1105–1112. [CrossRef]
3. Nasaruddin, R.R.; Chen, T.; Li, J.; Goswami, N.; Zhang, J.; Yan, N.; Xie, J. Ligands modulate reaction pathway
in the hydrogenation of 4-nitrophenol catalyzed by gold nanoclusters. ChemCatChem 2018, 10, 395–402.
[CrossRef]
9
4. Kong, X.; Zhu, H.; Chen, C.; Huang, G.; Chen, Q. Insights into the reduction of 4-nitrophenol to 4-aminophenol
on catalysts. Chem. Phys. Lett. 2017, 684, 148–152. [CrossRef]
9
5. Kästner, C.; Thünemann, A. Catalytic reduction of 4-nitrophenol using silver nanoparticles with adjustable
activity. Langmuir 2016, 32, 7383–7391. [CrossRef] [PubMed]

Molecules 2020, 25, 89
18 of 19
9
6. Lara, L.R.S.; Zottis, A.D.; Elias, W.C.; Faggion, D., Jr.; de Campos, C.E.M.; Acuña, J.J.S.; Domingos, J.B.
The catalytic evaluation of in situ grown Pd nanoparticles on the surface of Fe O @dextran particles in the
3
4
p-nitrophenol reduction reaction. RSC Adv. 2015, 5, 8289–8296. [CrossRef]
9
9
9
7. Jiang, Z.; Xie, J.; Jiang, D.; Wei, X.; Chen, M. Modifiers-assisted formation of nickel nanoparticles and their
catalytic application to p-nitrophenol reduction. Cryst. Eng. Comm. 2013, 15, 560–569. [CrossRef]
8. Jin, L.; Zhao, X.; Ye, J.; Qian, X.; Dong, M. MOF-derived magnetic Ni-carbon submicrorods for the catalytic
reduction of 4-nitrophenol. Catal. Commun. 2018, 107, 43–47. [CrossRef]
9. Lin, F.-H.; Doong, R.-A. Bifunctional Au-Fe O heterostructures for magnetically recyclable catalysis of
3
4
nitrophenol reduction. J. Phys. Chem. C 2011, 115, 6591–6598. [CrossRef]
1
1
00. Eley, D.; Rideal, E.K. Parahydrogen Conversion on Tungsten. Nature 1940, 146, 401–402. [CrossRef]
01. Khalavka, Y.; Becker, J.; Sönnichsen, C. Synthesis of rod-shaped gold nanorattles with improved plasmon
sensitivity and catalytic activity. J. Am. Chem. Soc. 2009, 131, 1871–1875. [CrossRef]
1
1
1
1
1
02. Panacek, A.; Prucek, R.; Hrbac, J.; Nevecna, T.; Steffkova, J.; Zboril, R.; Kvitek, L. Polyacrylate-assisted size
control of silver nanoparticles and their catalytic activity. Chem. Mater. 2014, 26, 1332–1339. [CrossRef]
03. Xu, W.; Kong, J.S.; Yeh, Y.-T.E.; Chen, P. Single-molecule nanocatalysis reveals heterogeneous reaction
pathways and catalytic dynamics. Nat. Mater. 2008, 7, 992–996. [CrossRef] [PubMed]
04. Zhou, X.; Xu, W.; Liu, G.; Panda, D.; Chen, P. Size-dependant catalytic activity and dynamics of gold
nanoparticles at the single-molecule level. J. Am. Chem. Soc. 2010, 132, 138–146. [CrossRef] [PubMed]
05. Ansar, S.M.; Kitchens, C.L. Impact of gold nanoparticle stabilizing ligands on the colloidal catalytic reduction
of 4-nitropenol. ACS Catal. 2016, 6, 5553–5560. [CrossRef]
06. Mei, Y.; Sharma, G.; Lu, Y.; Ballauff, M.; Drechsler, M.; Irrgang, T.; Kempe, R. High catalytic activity of
platinum nanoparticles immobilized on spherical polyelectrolyte brushes. Langmuir 2005, 21, 12229–12234.
[CrossRef] [PubMed]
1
1
1
07. Lu, Y.; Mei, Y.; Walker, R.; Ballauff, M.; Drechsler, M. ‘Nano-tree’-type spherical polymer brush particles as
templates for metallic nanoparticles. Polymer 2006, 47, 4985–4995. [CrossRef]
08. Mei, Y.; Lu, Y.; Polzer, F.; Ballauff, M. Catalytic activity of palladium nanoparticles encapsulated in spherical
polyelectrolyte brushes and core-shell microgels. Chem. Mater. 2007, 19, 1062–1069. [CrossRef]
09. Kalekar, A.M.; Sharma, K.K.K.; Lehoux, A.; Audonnnet, F.; Remita, H.; Saha, A.; Sharma, G.K.
Investigation into catalytic activity of porous platinum nanostructures. Langmuir 2013, 29, 11431–11439.
[CrossRef]
1
1
10. Menumerov, E.; Hughes, R.A.; Neretina, S. Catalytic reduction of 4-nitrophenol: A quantitative assessment
of the role of dissolved oxygen in determining the induction time. Nano Lett. 2016, 16, 7791–7797. [CrossRef]
11. Farhadi, S.; Kazem, M.; Siadatnasab, F. NiO nanoparticles prepared via thermal decomposition of the
bis(dimethylglyoximato)nickel(II) complex: A novel reusable heterogeneous catalyst for fast and efficient
microwave-assisted reduction of nitroarenes with ethanol. Polyhedron 2011, 30, 606–613. [CrossRef]
1
12. Li, M.; Chen, G. Revisiting catalytic model reaction p-nitrophenol/NaBH using metallic nanoparticles coated
4
on polymeric spheres. Nanoscale 2013, 5, 11919–11927. [CrossRef]
1
13. Cho, K.Y.; Seo, H.Y.; Yeom, Y.S.; Kumar, P.; Lee, A.S.; Baek, K.-Y.; Yoon, H.G. STable 2D-structured
supports incorporating ionic block copolymer-wrapped carbon nanotubes wit graphene oxide toward
compact decoration of metal nanoparticles and high-performance nano-catalysis. Carbon 2016, 105, 340–352.
[CrossRef]
1
1
1
1
14. Hwang, J.; Siddique, A.B.; Kim, Y.J.; Lee, H.; Maeng, J.H.; Ahn, Y.; Lee, J.S.; Kim, H.S.; Lee, H.
Ionic cellulose-stabilized gold nanoparticles and their application in the catalytic reduction of 4-nitrophenol.
RSC Adv. 2018, 8, 1758–1763. [CrossRef]
15. Ballarin, B.; Barreca, D.; Boanini, E.; Bonansegna, E.; Cassani, M.C.; Carraro, G.; Fazzini, S.; Mignani, A.;
Nanni, D.; Pinelli, D. Functionalization of silica through thiol-yne radical chemistry: A catalytic system based
on gold nanoparticles support on amino-sulfide-branched silica. RSC Adv. 2016, 6, 25780–25788. [CrossRef]
16. Wang, J.; Wu, Z.; Li, T.; Ye, J.; Shen, L.; She, Z.; Liu, F. Catalytic PVDF membrane for continuous reduction
and separation of p-nitrophenol and methylene blue in emulsified oil solution. Chem. Eng. J. 2018, 334,
5
79–586. [CrossRef]
17. Javaid, R.; Ksawasaki, S.-i.; Suzuki, A.; Suzuki, T.M. Simple and rapid hydrogenation of p-nitrophenol with
aqueous formic acid in catalytic flow reactors. Beilstein J. Org. Chem. 2013, 9, 1156–1163.

Molecules 2020, 25, 89
19 of 19
1
1
1
1
18. Huang, R.; Zhu, H.; Su, R.; Qi, W.; He, Z. Catalytic membrane reactor immobilized with alloy
nanoparticle-loaded protein fibrils for continuous reduction of 4-nitrophenol. Environ. Sci. Technol.
016, 50, 11263–11273. [CrossRef]
2
19. Srivastava, A.K.; Mondal, K.; Mukhopadhyay, K.; Prasad, N.E.; Sharma, A. Facile reduction of
para-nitrophenol: Catalytic efficiency of silver nanoferns in batch and continuous flow reactors. RSC Adv.
2
016, 6, 113981–113990. [CrossRef]
20. Xu, D.; Wang, F.; Yu, G.; Zhao, H.; Yang, J.; Yuan, M.; Zhang, X.; Dong, Z. Animal-based hypercrosslinked
polymer modified with small palladium nanoparticles for efficiently catalytic reduction of nitroarenes.
ChemCatChem 2018, 10, 4569–4577. [CrossRef]
21. Liu, Y.; Guerrouache, M.; Kebe, S.I.; Carbonnier, B.; Le Droumaguet, B. Gold nanoparticles-supported
histamine-grafted monolithic capillaries as efficient microreactors for flow-through reduction of
nitro-containing compounds. J. Mater. Chem. A 2017, 5, 11805–11814. [CrossRef]
1
1
1
22. Wu, X.-Q.; Wu, X.-W.; Shen, J.-S.; Zhang, H.-W. In situ formed metal nanoparticle systems for catalytic
reduction of nitroaromatic compounds. RSC Adv. 2014, 4, 49287–49294. [CrossRef]
23. Wu, X.-Q.; Wu, X.-W.; Huang, Q.; Shen, J.-S.; Zhang, H.-W. In situ synthesized gold nanoparticles in hydrogels
for catalytic reduction of nitroaromatic compounds. Appl. Surf. Sci. 2015, 331, 210–218. [CrossRef]
24. Tsao, Y.-C.; Rej, S.; Chiu, C.-Y.; Huang, M.H. Aqueous phase synthesis of Au-Ag core-shell nanocrystals with
tunable shapes and their optical and catalytic properties. J. Am. Chem. Soc. 2014, 136, 396–404. [CrossRef]
[PubMed]
1
25. Shultz, L.R.; Hu, L.; Preradovic, K.; Beazley, M.J.; Feng, X.; Jurca, T. A broader-scope analysis of the catalytic
reduction of nitrophenols and azo dyes with noble metal nanoparticles. ChemCatChem 2019, 11, 2590–2595.
[CrossRef]
Sample Availability: Not available.
©
2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
(CC BY) license (http://creativecommons.org/licenses/by/4.0/).
