Zeolitic imidazole framework-67 as an efficient heterogeneous catalyst for the synthesis of ethyl methyl carbonate

Article abstract of DOI:10.1016/j.catcom.2014.05.021

Zeolitic imidazole framework (ZIF)-67, a novel environmentally benign catalyst, was developed for the preparation of ethyl methyl carbonate (EMC) from dimethyl carbonate and diethyl carbonate. EMC was obtained in 83.39% yield using ZIF-67 as the catalyst when compared to that obtained using ZIF-8 catalyst. NH₃ and CO₂ temperature-programmed desorption methods were used to evaluate the presence of both acidic and basic sites in ZIF-67 catalyst. The lager surface area of ZIF-67 favors for the adsorption of reactants over the solid surface of the catalyst, facilitating the formation of EMC. Moreover, ZIF-67 catalyst exhibited excellent reusability without significant loss in its catalytic activity.

Full text of DOI:10.1016/j.catcom.2014.05.021

Zeolitic imidazole framework-67 as an efficient heterogeneous catalyst for the
synthesis of ethyl methyl carbonate
Lili Yang, Lin Yu, Ming Sun, Cheng Gao
PII:
DOI:
Reference:
S1566-7367(14)00202-7
doi: 10.1016/j.catcom.2014.05.021
CATCOM 3915
To appear in:
Catalysis Communications
Received date:
Revised date:
Accepted date:
11 March 2014
6 May 2014
23 May 2014
Please cite this article as: Lili Yang, Lin Yu, Ming Sun, Cheng Gao, Zeolitic imidazole
framework-67 as an efficient heterogeneous catalyst for the synthesis of ethyl methyl
carbonate, Catalysis Communications (2014), doi: 10.1016/j.catcom.2014.05.021
This is a PDF file of an unedited manuscript that has been accepted for publication.
As a service to our customers we are providing this early version of the manuscript.
The manuscript will undergo copyediting, typesetting, and review of the resulting proof
before it is published in its final form. Please note that during the production process
errors may be discovered which could affect the content, and all legal disclaimers that
apply to the journal pertain.

ACCEPTED MANUSCRIPT
Zeolitic imidazole framework-67 as an efficient heterogeneous catalyst for the synthesis of ethyl
methyl carbonate
Lili Yang, Lin Yu*, Ming Sun, Cheng Gao
School of Chemical Engineering and Light Industry, Guangdong University of Technology, Guangzhou
5
10006, PR China. Tel: +86 20 39322202; Fax: +86 20 39322231; E-mail: gych@gdut.edu.cn
Abstract
Zeolitic imidazole framework (ZIF)-67, a novel environmentally benign catalyst, was developed for
preparation of ethyl methyl carbonate (EMC) from dimethyl carbonate and diethyl carbonate. EMC
was obtained in 83.39 % yield using ZIF-67 as the catalyst when compared to that obtained using
ZIF-8 catalyst. NH and CO temperature-programmed desorption methods were used to evaluate the
3
2
presence of both acidic and basic sites in ZIF-67 catalyst. The lager surface area of ZIF-67 favors for
the adsorption of reactants over the solid surface of the catalyst, facilitating the formation of EMC.
Moreover, ZIF-67 catalyst exhibited excellent reusability without significant loss in its catalytic
activity.
Keywords: Zeolitic imidazole framework-67; Ethyl methyl carbonate; Heterogeneous catalyst.
1

ACCEPTED MANUSCRIPT
1
.
Introduction
In recent decades, the synthesis of ethyl methyl carbonate (EMC) has attracted much interest because
of its use as a co-solvent in the electrolyte of commercial lithium-ion batteries [1-3]. In general, EMC
is synthesized by the esterification of methyl chloroformate with alcohol [4] or by the
transesterification of dimethyl carbonate (DMC) with ethanol [5]. However, these synthetic routes are
not environmentally benign, and the separation of the three binary azeotropes is very difficult. EMC
also can be synthesized by the transesterification of DMC with diethyl carbonate (DEC) (Scheme 1)
using homogeneous catalysts such as Ti(OBu) , Bu SnO, and BuSnCl [6]. All the reaction mixtures
4
2
3
including DMC, DEC, and EMC, can be used directly as solvent in electrolyte. However, the
separation and recovery of homogeneous catalysts remain to be a problem, limiting their practical
application. Consequently, a number of heterogeneous catalysts have been investigated [7-9]. The
heterogeneous catalyst systems reported include the acids (Al-Zn-MCM-41 and Al-MCM-41 [9]), the
bases (MgO, ZnO, La O , and CeO [8]) and acid-based bifunctional materials (amorphous
2
3
2
mesoporous aluminophosphate [7]) for transesterification of DEC and DMC, however, the yield of
EMC was still relatively low. A higher EMC yield of 85 % was obtained over Al-Zn-MCM-41 catalyst
[
9], but the reaction temperature was up to 180 °C. Therefore, it remains a challenge to develop a novel
and environmentally benign heterogeneous catalyst which is highly effective for the EMC synthesis
under mild conditions.
<

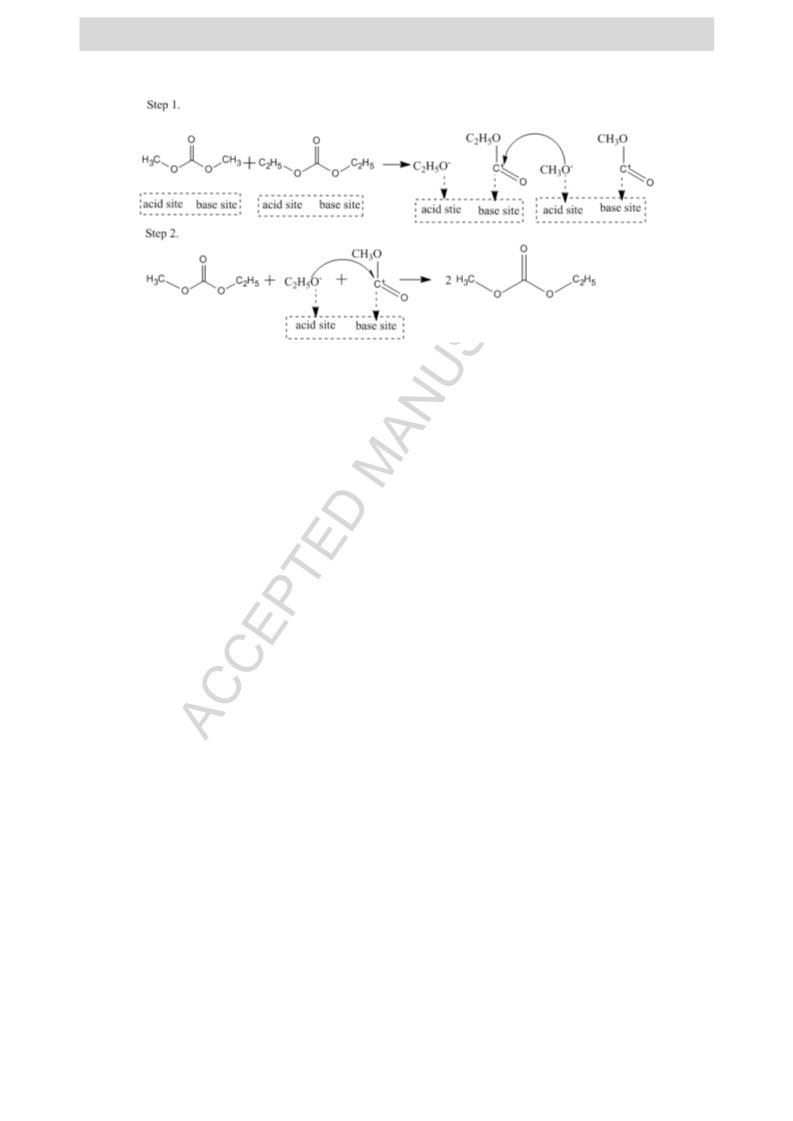

Scheme 1>
Metal organic frameworks (MOF)-5 has been studied as an active catalyst for the transesterification
of DMC and DEC, and a moderate yield of 50.1 % has been obtained [10]. However, MOF-5 is
sensitive to water and air. Zeolitic imidazole frameworks (ZIF), a subclass of MOF, has emerged as a
2

ACCEPTED MANUSCRIPT
new kind of porous crystalline materials with excellent properties such as uniform micro-pores,
accessible pore volumes, large surface areas as well as exceptional chemical and thermal stabilities [11],
making them potentially interesting candidates for gas storage [12], gas separation [13], magnetism
[
14], and especially catalysis [15-18]. ZIF-8 with sodalite (SOD) topology was reported by Chizallet et
al. [19] to have extraordinary activity for the transesterification of vegetable oil and alcohols, and they
demonstrated that the presence of both Lewis acid sites (unsaturated coordinative Zn) and Lewis base
sites (nitrogen atoms of ligand) located at the external surface played a critical role in the catalytic
reaction. Recently, Zhou and coworkers [20] explored the activity of ZIF-8 in the synthesis of EMC
from DMC and DEC, but a relatively lower EMC yield of 50.7 % was obtained. Herein, ZIF-67, which
was formed via the self-assembly of tetrahedral Co and 2-methylimidazolate linkers (Mim), was
developed as a heterogeneous catalyst for the synthesis of EMC from DMC and DEC. Interestingly, a
high EMC yield of 83.39 % was obtained over the ZIF-67 catalyst under mild conditions. Besides,
ZIF-67 catalyst could be easily recycled at least four times with slight decrease in its catalytic activity.
To the best of our knowledge, this is the first report to use ZIF-67 as catalyst for the transesterification
reaction of DMC and DEC.
2
.
Experimental Section
2
.1. Catalyst preparation
ZIF-67 was prepared according to a modified procedure described by Qian et al. [21]: a solution of
-
3
2
-methylimidazole (C H N , 6.4×10 mol) in methanol (1.4 mol) was added to a solution of cobalt
4 6 2
-
3
nitrate hexahydrate ([Co(NO ) ]·6H O, 8×10 mol) in methanol (1.4 mol), then vigorously stirred for
3
2
2
1
0 min. Purple polyhedral crystals appeared immediately. Finally, this solution was centrifuged at
3

ACCEPTED MANUSCRIPT
1
0000 rpm and washed 3 times with methanol, then dried overnight at 60 °C. ZIF-8 was prepared
according to the procedure described by Moises A. Carreon et al [22].
2
.2. Characterization methods
The products were characterized by XRD (Bruker, D8) using Cu Kα radiation source (λ=1.54056 Å)
at 40 kV and 45 Ma. A continuous mode was used for collecting data at a scanning speed of 5°/s. N2
adsorption-desorption isotherm and pore size distribution of materials were measured by ASAP 2020
sorptometer analyzer (Micrometitics Company) at 77 K using liquid nitrogen as coolant, and the
catalyst was degassed at 150 °C for 3 h before the measurement. The morphology of the samples was
characterized by scanning electron microscopy (SEM, Hitachi, S-3400N). Thermal analysis technology
(
TGA) was recorded on a Netzsch STA 409 thermoanalyzer. Approximately 5 mg catalyst was filled
into an alumina crucible and heated in a continuous-flow of nitrogen gas with a ramp rate of 10 °C/min
from 40 °C up to 800 °C. Acid-basic property of ZIF catalyst was measured by NH -TPD and
3
CO -TPD. The measurement was performed using AutoChem II 2920 instrument with helium as carrier
2
gas (20 mL/min). Approximately 0.1 g catalyst was filled and pretreated at 250 °C for 3 h, the samples
were cooled to room temperature and saturated with dried NH or CO . Then the sample was blown
3
2
with helium (20 mL/min) to move the physical-absorbed CO or NH . Finally, the desorption process
2
3
was started from 50 °C to 500 °C at a heating rate of 10 °C/min and monitored by a thermal
conductivity detector.
2
.3. Catalyst reactions
DMC and DEC were purchased from Aldrich Chemical Co., Ltd and dehydrated with molecular
4

ACCEPTED MANUSCRIPT
sieves 4A overnight. Typical procedure for the synthesis of EMC: a mixture of DMC (9.000 g, 0.1 mol),
DEC (11.800 g, 0.1 mol) and catalyst (0.200 g, 2 wt %), was charged into a 50 mL flask equipped with
a magnetic stirring and a reflux condenser. The reaction mixture was then heated to 100 °C with
continuous stirring. After 24 h, the mixture was cooled to room temperature. And the product was
filtered and analyzed by a gas chromatograph (GC, Agilent-7890A) equipped with a flame-ionized
detector. In the reusability experiment, catalysts were separated by filtration and washed using
methanol (10 mL × 3), then dried in air at 150 °C for the next reaction.
3
.
Results and discussion
3
.1 Catalyst characterization
<
Figure.1>
The textural properties of ZIF-67 catalyst were determined by the powder X-ray diffraction (XRD),
N adsorption-desorption, scanning electron microscope (SEM), and thermal analysis techniques
2
(
TGA). The XRD pattern of ZIF-67 catalyst (Figure.1a) is in good agreement with that reported
elsewhere [22-23]. As shown in Figure.1b, ZIF-67 catalyst exhibits an I-type N adsorption-desorption
2
isotherm without hysteresis loop, indicating the microporous nature (diameter<20 Å) of ZIF-67, which
2
is also confirmed by the pore size distribution. The measured BET surface area of ZIF-67 was 912 m
2
/
g, which was higher than that of ZIF-8 (735 m /g). It must be point out that the measured BET surface
area of ZIF-8 is smaller than the data reported, which maybe result from the different preparation
conditions including the speed of stirring. The pore size distribution curve was transformed using the
Horvath-Kawazoe (HK) method, which further supported the presence of two kinds of microspores.
And the result was similar with that of the previous studies [22-23]. Figure.1c exhibits the
5

ACCEPTED MANUSCRIPT
morphological feature of ZIF-67 catalyst obtained from SEM, displaying average crystal sizes in the
3
00-500 nm range. The TGA curves of ZIF-67 and ZIF-8 were shown in Fig.1d. As for ZIF-67, it
shows approximately 22 % weight loss at around 400 °C, which relates to the removal of H O and
2
CH OH molecules (1 H O: 8.05 wt%, 1 CH OH: 14.31 wt%). The source of water may be from the
3
2
3
crystal water of raw materials Co(NO ) ]·6H O. Thus, ZIF-67 is thermally stable up to 400 °C, which
3
2
2
corresponds with the result reported by Omar M. Yaghi [21]. It also can be seen that ZIF-8 is more
stable than ZIF-67, and there is only about 5% weight loss (the removal of guest molecules CH OH) at
3
around 250°C. ZIF-8 is thermally stable up to 450 °C, which corresponds with the result reported by
Lai et al [24].
3
.2 Effect of reaction conditions on the yield and selectivity of EMC
In order to evaluate the effect of different reaction parameters on the yield and selectivity of EMC,
the reaction conditions such as reaction temperature, catalyst amount, reaction time and ratios of
substrates were investigated in details.
<
<
Table 1>
Figure.2>
Table 1 shows the yield and selectivity of EMC in different ratios of substrates and the control test.
Obviously, no EMC is detected in the absence of any catalyst (Entry 1). Moreover, the activity of raw
materials of ZIF-67, [Zn(NO ) ]·6H O, and 2-methylimidazole, were also tested (Entry 2-Entry 3). The
3
2
2
result shows that both of them exhibit no catalytic activity for the reaction. In the presence of ZIF-67
catalyst, the yield of EMC can reach up to 83.39 % (Entry 4). Besides, the ratios of DMC and DEC
from 2:1 to 1:2 were also studied (Entry 4-Entry 6), indicating that the EMC yield is the largest with a
6

ACCEPTED MANUSCRIPT
ratio of 1:1. ZIF-8 was reported as a novel efficient heterogeneous catalyst for the synthesis of EMC
from DMC and DEC in the last year, however, the activity of ZIF-8 is much lower than that of ZIF-67
under the same reaction conditions (Entry 7). In order to study the reasons why the activity of ZIF-67 is
higher, we tested the acid-based property of ZIF-67 and ZIF-8 materials using CO -TPD and NH -TPD
2
3
technologies (Fig.2). According to the related literature [19], it is known that the acidity of ZIF-67
originates from Co (II) and Co (III) species, and the base sites resulted from nitrogen atoms of MIM
ligand. Compared with ZIF-8, it can be seen that ZIF-67 exhibits differing CO and NH desorption
2
3
behaviors. A desorption peak, accompanied by a shoulder peak, is observed at 330 °C for ZIF-67,
while a broad desorption peak is seen at 440 °C for ZIF-8 (Fig.2). In other words, the acid-based sites
strength of ZIF-67 is moderate, while ZIF-8 has relatively strong acid-based sites.
The effects of reaction temperature on the yield and selectivity of EMC were investigated in the
presence of ZIF-67 (2 wt%). The results (see Supplementary Information Fig.1) indicate that the yields
of EMC increased from 2.35 % to 83.39 % as the temperature raised from 70 °C to 100 °C. When the
temperature is further increased to 110 °C, the yields of EMC almost keep the same level. In addition,
although the selectivity of EMC is almost 100 % in the whole temperature range, trace of methanol and
ethanol are also detected. The alcohols were produced via the reaction of DMC or DEC with trace of
water, which was the impurity in the reagent used. The results reveal that ZIF-67 catalyst shows
excellent activity and selectivity at 100 °C.
Besides, we studied the effect of ZIF-67 amount (see Supplementary Information Fig.2) on the EMC
yield and selectivity. The EMC yields increase from 59.45 % to 83.39 % with the increasing of ZIF-67
catalyst amount from 0.5 % to 2 %. However, an excess amount of catalyst cannot further promote the
reaction but decrease the EMC yield, resulting from the agglomeration of catalysts probably.
7

ACCEPTED MANUSCRIPT
Considering that the addition of ZIF-67 catalyst lead to a high yield of EMC, the effect of reaction
time was further investigated (see Supplementary Information Fig.3). The yields of EMC steadily
increase from 0.28 % to 83.39 % as the reaction time elapse from 1 h to 24 h in the presence of ZIF-67
catalyst at 100 °C. Then the yields keep almost stable even though reaction time is prolonged to 30 h,
suggesting that the reaction has reached equilibrium after 24 h (see Supplementary Information Fig.3a).
In addition, to prove that ZIF-67 catalyst is stable and the reaction takes place heterogeneously, the
leaching test was carried out. In another test run (see Supplementary Information Fig.3b), we moved
the catalysts by filtration at 18 h, and found that the yields of EMC remained the same during the last
1
2 h. Therefore, ZIF-67 catalyst is stable under the reaction conditions and the transesterification
belongs to a heterogeneous reaction.
3
.3 Reusability test
<
<
Figure.3>
Figure.4>
Reusability is one of the most important parameters for catalysts, so the reusability of ZIF-67
catalyst was carried out. ZIF-67 catalyst was recovered by filtration, and washed three times with
methanol, then dried overnight for the next reaction. As exhibited in Figure.3, the yields of EMC only
dropt slightly after four successive runs, indicating that ZIF-67 catalyst shows excellent reusability for
the transesterification. Moreover, the XRD pattern of recycled ZIF-67 is almost identical to that of the
fresh one (Fig.4), meaning that ZIF-67 shows good stability in the transesterification reaction.
3
.4 The reaction mechanism
8

ACCEPTED MANUSCRIPT
<
Scheme 2>
The mechanism for the transesterification of DMC and DEC has been reported [7-8], in which DMC
and DEC were chemisorbed on the Lewis acid sites and base sites of the catalyst to form intermediate.
In our case, a possible mechanism concerning the transesterification reaction over ZIF-67 catalyst is
depicted in Scheme 2. First, after pretreating for 3 h at 150 °C, the removal of the terminal coordinated
CH OH and H O molecules from metal Co ions could yield more empty frameworks and leave Lewis
3
2
acid sites on the surface. And the basic site results from the nitrogen atoms of MIM ligand. Then the
reagents (DMC and DEC) were chemisorbed on the Lewis acid and Lewis basic sites of ZIF-67 to yield
the methoxide ion species and ethoxy group, which could attack the carbon atom of the carbonyl group
of DEC or DMC subsequently. Finally, EMC was formed and desorbed easily.
4
.
Conclusions
An efficient heterogeneous catalyst, ZIF-67, was developed for preparing EMC from DMC and DEC.
The textural properties of ZIF-67 were determined by the powder X-ray diffraction, N2
adsorption-desorption, scanning electron microscope and thermal analysis. The acid-based property of
ZIF-67 catalyst was investigated by NH and CO temperature-programmed desorption methods.
3
2
Several factors associated with the yield including reaction temperature, catalyst amount, reaction time
and the ratios of substrates were studied. The results indicated that ZIF-67 displayed excellent activity,
selectivity and reusability for the synthesis of ethyl methyl carbonate. Our finding not only proves great
potential application of ZIF-67 catalyst but also bring light to new opportunity in the development of
high performance catalysts for the synthesis of ethyl methyl carbonate.
9

ACCEPTED MANUSCRIPT
Acknowledgments
This work was financially supported by the Natural Science Foundation of Guangdong Province
(
10251009001000003), Scientific Program of Guangdong Province (2012A030600006), Fund of
Higher Education of Guangdong Province (cgzhzd1104), and Department of Education of Guangdong
Province(2013CXZDA016).
10

ACCEPTED MANUSCRIPT
References
[
[
1] L. Hu, Z. Zhang, K. Amine, Journal of Power Sources, 236 (2013) 175-180.
2] M. Dahbi, F. Ghamouss, F. Tran-Van, D. Lemordant, M. Anouti, Electrochimica Acta, 86 (2012)
2
87-293.
[
3] H.A. Hideyuki Morimoto, Junpei Terashima, Shinji Nakanishi, Yasunori Hirama,, S.-i.T. Kiyotaka
Ishikawa, Journal of Power Sources, 211 (2012) 66-70.
[
4] J.A.K. Malcolm J. D Souza , Gabriel A. Fernandez-Bueno and Dennis N. Kevill, International
Journal of Molecular Sciences, 13 (2012) 665-682.
[
[
[
5] T. Keller, J. Holtbruegge, A. Górak, Chemical Engineering Journal, 180 (2012) 309-322.
6] S.Z. ZHUO Guanglan, JIANGXuanzhen, Chinese Journal of Catalysis, 25 (2004) 171-172.
7] J. Shi, G. Liu, Z. Fan, L. Nie, Z. Zhang, W. Zhang, Q. Huo, W. Yan, M. Jia, Catalysis
Communications, 12 (2011) 721-725.
[
[
(
[
8] X.Z.J. Zhen Lu Shen, and Wei Juan Zhao, Catalysis Letters, 91 (2003) 63-67.
9] A. Palani, N. Gokulakrishnan, M. Palanichamy, A. Pandurangan, Applied Catalysis A: General, 304
2006) 152-158.
10] Y. Zhou, J. Song, S. Liang, S. Hu, H. Liu, T. Jiang, B. Han, Journal of Molecular Catalysis A:
Chemical, 308 (2009) 68-72.
[
11] K.S. Park, Z. Ni, A.P. Cote, J.Y. Choi, R. Huang, F.J. Uribe-Romo, H.K. Chae, M. O'Keeffe, O.M.
Yaghi, Proceedings of the National Academy of Sciences of the United States of America, 103 (2006)
1
0186-10191.
[
[
12] H.T. Kwon, H.K. Jeong, Journal of the American Chemical Society, 135 (2013) 10763-10768.
13] Y. Hu, Z. Liu, J. Xu, Y. Huang, Y. Song, Journal of the American Chemical Society, 135 (2013)
11

ACCEPTED MANUSCRIPT
9
287-9290.
[
14] M.X. Yangxue Li, Lijia Guo, Lin Huang, Siru Chen, Shilun Qiu, Inorganic Chemistry
Communications 28 (2013) 25-30.
[
[
[
15] M. Zahmakiran, Dalton transactions, 41 (2012) 12690-12696.
16] L.T.L. Nguyen, K.K.A. Le, N.T.S. Phan, Chinese Journal of Catalysis, 33 (2012) 688-696.
17] T.T. Dang, Y. Zhu, J.S.Y. Ngiam, S.C. Ghosh, A. Chen, A.M. Seayad, ACS Catalysis, 3 (2013)
1
406-1410.
[
18] O. Karagiaridi, M.B. Lalonde, W. Bury, A.A. Sarjeant, O.K. Farha, J.T. Hupp, Journal of the
American Chemical Society, 134 (2012) 18790-18796.
[
19] S.L. ´line Chizallet, Delphine Bazer-Bachi, Fabien Bonnier,, E.S. Vincent Lecocq, Anne-Agathe
Quoineaud, and Nicolas Bats, Journal of the American Chemical Society, 132 (2010) 12365-12377.
[
20] X. Zhou, H.P. Zhang, G.Y. Wang, Z.G. Yao, Y.R. Tang, S.S. Zheng, Journal of Molecular Catalysis
A: Chemical, 366 (2013) 43-47.
[
[
21] J. Qian, F. Sun, L. Qin, Materials Letters, 82 (2012) 220-223.
22] M. Zhu, D. Srinivas, S. Bhogeswararao, P. Ratnasamy, M.A. Carreon, Catalysis Communications,
3
2 (2013) 36-40.
[
(
[
23] R. Banerjee, A. Phan, B. Wang, C. Knobler, H. Furukawa, M. O'Keeffe, O.M. Yaghi, Science, 319
2008) 939-943.
24] Y. Pan, Y. Liu, Z. Lai, Chemical Communications, 47 (2011) 2071-2073.
12

ACCEPTED MANUSCRIPT
Captions for Schemes and Figures
Figure.1. (a) Powder X-ray diffraction pattern of ZIF-67 catalyst; (b) N adsorption- desorption
2
isotherm of ZIF-67 catalyst at 77K and Pore size distribution curve; (c) Scanning electron microscope
image of ZIF-67 catalyst; (d) Thermal gravimetric analysis (TGA) curve of ZIF-67 and ZIF-8 catalyst.
Figure.2. TPD curves of ZIF-67 and ZIF-8 catalyst: (a) CO -TPD analysis; (b) NH -TPD analysis.
2
3
Figure.3. Reusability of ZIF-67 catalyst for the synthesis of EMC from DMC and DEC. Reaction
conditions: ZIF-67 (2 wt%), 24 h, 100 °C, n (DMC)/n (DEC) = 1:1.
st
nd
Figure.4. Powder X-ray diffraction patterns of ZIF-67 catalyst: (a) fresh, (b) recycle 1 , (c) recycle 2 ,
rd
th
(
d) recycle 3 , (e) recycle 4 .
Table 1 The synthesis of EMC from DMC and DEC with different reaction conditions.
Scheme1. Transesterification of DMC with DEC to produce EMC.
Scheme 2. Possible mechanism of transesterification of DMC with DEC over ZIF-67 catalyst.
13

ACCEPTED MANUSCRIPT
500
400
300
200
100
0
adsorption
desorption
6
4
2
0
0
.6
0.8
1.0
1.2
1.4
Pore Width (nm)
5
10
15
20
25
30
35
40
2
Theta Degree
0.0
0.2
0.4
0.6
0.8
1.0
Relative Pressure (P/Po)
(
a)
(b)
1
00
ZIF-8
ZIF-67
2
2%
8
6
4
0
0
0
30%
0
200
400
Temperature /C
600
800
o
(
d)
Figure.1. (a) Powder X-ray diffraction pattern of ZIF-67 catalyst; (b) N adsorption-desorption
2
isotherm of ZIF-67 catalyst at 77K and Pore size distribution curve; (c) Scanning electron microscope
image of ZIF-67 catalyst; (d) Thermal gravimetric analysis (TGA) curve of ZIF-67 and ZIF-8 catalyst.
14

ACCEPTED MANUSCRIPT
ZIF-8
ZIF-8
ZIF-67
ZIF-67
100
200
300
Temperature /
400
500
100
200
300
400
500
o
C
o
Temperature / C
(a)
(b)
Figure.2. TPD curves of ZIF-67 and ZIF-8 catalyst: (a) CO -TPD analysis; (b) NH -TPD analysis.
2
3
15

ACCEPTED MANUSCRIPT
1
00
8
6
4
2
0
0
0
0
0
st
nd
rd
th
fresh
recycle-1
recycle-2 recycle-3
recycle-4
run
Figure.3. Reusability of ZIF-67 catalyst for the synthesis of EMC from DMC and DEC. Reaction
conditions: ZIF-67 (2 wt%), 24 h, 100 °C, n (DMC)/n (DEC) = 1:1.
16

ACCEPTED MANUSCRIPT
(e)
(d)
(c)
(b)
(a)
5
10
15
20
25
30
35
40
2
Theta Degree
st
nd
Figure.4. Powder X-ray diffraction patterns of ZIF-67 catalyst: (a) fresh, (b) recycle 1 , (c) recycle 2 ,
rd
th
(
d) recycle 3 , (e) recycle 4 .
17

ACCEPTED MANUSCRIPT
a
Table 1 The synthesis of EMC from DMC and DEC with different reaction conditions.
b
b
Entry
Catalyst catalyst amount (wt%) n (DMC)/n (DEC) Yield (%) Selectivity (%)
1
2
3
4
5
6
7
None
-
-
-
-
-
-
[Zn(NO ) ]·6H O
2 %
2 %
2 %
2 %
2 %
2 %
1:1
1:1
1:1
2:1
1:2
1:1
-
3
2
2
2-methylimidazole
ZIF-67
-
83.39
50.38
73.91
50.32
~100 %
~100 %
~100 %
~100 %
ZIF-67
ZIF-67
ZIF-8
a
b
Reaction conditions: DMC (0.1 mol), DEC (0.1 mol), 100 °C, 24 h, Determined by GC.
18

ACCEPTED MANUSCRIPT
Scheme1. The transesterification of DMC with DEC to produce EMC.
19

ACCEPTED MANUSCRIPT
Scheme 2. Possible mechanism of transesterification of DMC with DEC over ZIF-67 catalyst.
20

ACCEPTED MANUSCRIPT
Research Highlights
▶
▶
▶
ZIF-67 catalyst was first used for preparing ethyl methyl carbonate (EMC).
Excellent yield and selectivity of EMC were obtained over ZIF-67 under mild conditions.
ZIF-67 catalyst displayed excellent reusability for the synthesis of EMC.
21
