An efficient parts-per-million α-Fe2O3 nanocluster/graphene oxide catalyst for Suzuki-Miyaura coupling reactions and 4-nitrophenol reduction in aqueous solution

Article abstract of DOI:10.1039/c6cc08401j

A new α-Fe₂O₃ nanocluster/graphene oxide catalyst is found to be efficient in parts-per-million for Suzuki-Miyaura coupling and 4-nitrophenol reduction in aqueous solution, and this catalyst is recycled at least 4 times in good yields.

Full text of DOI:10.1039/c6cc08401j

View Article Online
View Journal
ChemComm
Accepted Manuscript
This article can be cited before page numbers have been issued, to do this please use: C. Wang, L.
Salmon, R. Ciganda, L. Yate, S. E. Moya, J. ruiz and D. Astruc, Chem. Commun., 2016, DOI:
10.1039/C6CC08401J.
This is an Accepted Manuscript, which has been through the
Royal Society of Chemistry peer review process and has been
accepted for publication.
Volume 52 Number
1 4 January 2016 Pages 1–216
ChemComm
Accepted Manuscripts are published online shortly after
Chemical Communications
www.rsc.org/chemcomm
acceptance, before technical editing, formatting and proof reading.
Using this free service, authors can make their results available
to the community, in citable form, before we publish the edited
article. We will replace this Accepted Manuscript with the edited
and formatted Advance Article as soon as it is available.
You can find more information about Accepted Manuscripts in the
author guidelines.
Please note that technical editing may introduce minor changes
to the text and/or graphics, which may alter content. The journal’s
standard Terms & Conditions and the ethical guidelines, outlined
in our author and reviewer resource centre, still apply. In no
event shall the Royal Society of Chemistry be held responsible
for any errors or omissions in this Accepted Manuscript or any
consequences arising from the use of any information it contains.
ISSN 1359-7345
COMMUNICATION
Marilyn M. Olmstead, Alan L. Balch, Josep M. Poblet, Luis Echegoyenet al.
Reactivity differences of Sc3N@C2n (2n 68 and 80). Synthesis of the
first methanofullerene derivatives of Sc N@D5h-C80
=
3
rsc.li/chemcomm

Page 1 of 5
ChemComm
View Article Online
DOI: 10.1039/C6CC08401J

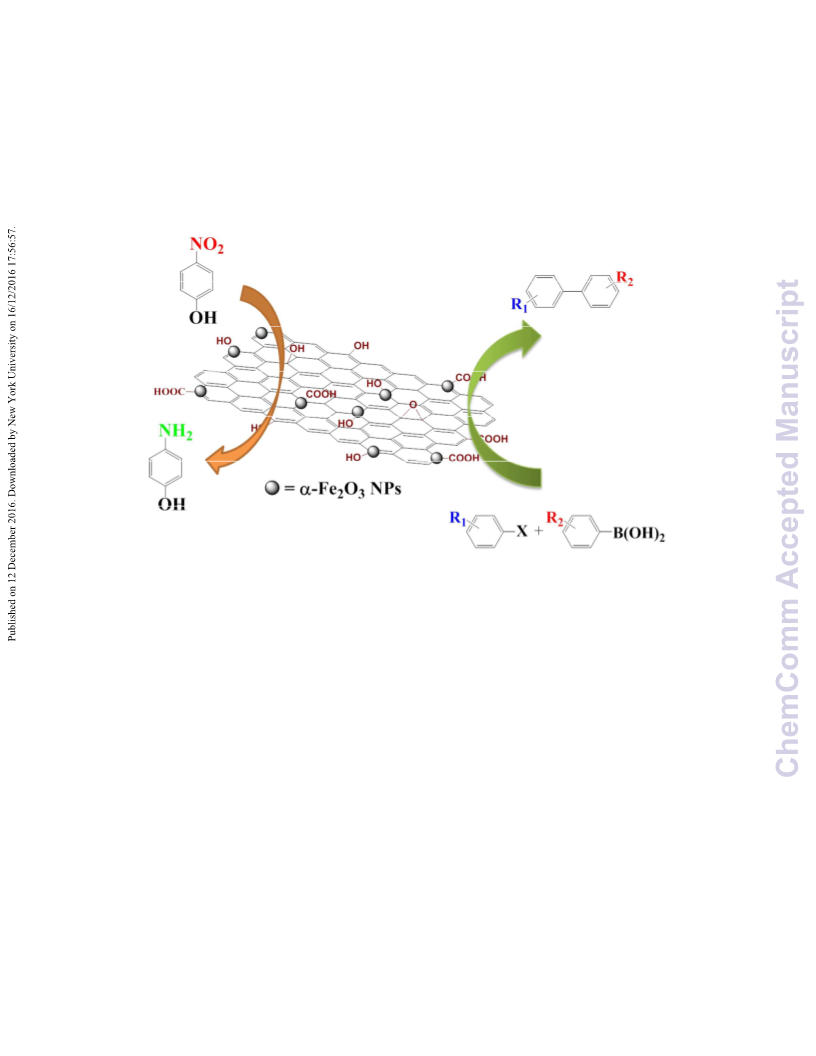

TOC
αꢀFe2O3 nanocluster supported onto graphene oxide catalyst is shown for the first time to catalyze
Suzuki–Miyaura coupling and 4ꢀnitrophenol reduction in aqueous solution with only
partsꢀperꢀmillion loading.

Please do not adjust margins
ChemComm
Page 2 of 5
View Article Online
DOI: 10.1039/C6CC08401J
Journal Name
COMMUNICATION
Efficient partsꢀperꢀmillion αꢀFe2O3 nanocluster/graphene oxide
catalyst for Suzuki–Miyaura coupling reactions and
4ꢀnitrophenol reduction in aqueous solution
Received 00th January 20xx,
Accepted 00th January 20xx
Changlong Wang,a,b Lionel Salmon,b Roberto Ciganda,a,c Luis Yates,d Sergio Moya,d Jaime Ruiz,a
DOI: 10.1039/x0xx00000x
and Didier Astruca*
www.rsc.org/
A new αꢀFe2O3 nanocluster/graphene oxide catalyst is found to through supramolecular Hꢀbonding interactions
be efficient in partsꢀperꢀmillion for Suzuki–Miyaura coupling between the PEG termini of the tristrzꢀPEG ligand and
and 4ꢀnitrophenol reduction in aqueous solution, and this the functional groups of the GO support, followed by
catalyst is recycled at least 4 times in good yields.
filtration and drying (Scheme S1, and SI). The Fe
content was checked by inductively coupled plasma
atomic emission spectroscopy (ICPꢀAES) analysis
indicating that > 99% of the αꢀFe2O3 nanocluster was
deposited onto GO.
Metalꢀcatalyzed crossꢀcoupling carbon–carbon (CꢀC)
bond formation has significantly advanced organic
synthesis.1 In particular, Pdꢀcatalyzed Suzuki–Miyaura
(SM) coupling has been efficiently used in numerous
procedures for the constructions of CꢀC bonds.2
Although chemists have successfully decreased the
amounts of precious Pd catalyst in such reactions,3
alternative methodologies to accomplish a similar
catalytic SM coupling using “Green Chemistry”, and
especially cheap biometal catalysts (for instance Fe,4
Ni,5 or Cu,6) are highly encouraged. Nevertheless
wellꢀdefined alternative approaches most often result
in the requirements of specific ligands, high catalyst
loading, or hash reaction conditions and sometimes
suffer from poor catalytic efficiency. Herein, we
report a new heterogeneous catalytic system, αꢀFe2O3
nanocluster/graphene oxide (αꢀFe2O3/GO),
1, for
efficient SM coupling reactions in aqueous solution
and reduction of 4ꢀnitrophenol (4ꢀNP) in water
employing only ppm amounts of catalyst.
Figure 1. (a) and (b) TEM images of the αꢀFe2O3 nanoꢀ
cluster/GO catalyst; (c) Corresponding EXD analysis of the
The synthesis of the novel heterogeneous catalyst
1 is
area in (b). (d) HRTEM of αꢀFe2O3 nanocluster/GO catalyst 1.
carried out in water. It first involves addition of an
aqueous solution of FeCl3 to the preꢀsolubilized
amphiphilic tris(triazolyl)ꢀpolyethylene glycol (trisꢀ
trzꢀPEG)7 ligand in water followed by reduction using
NaOH. This preꢀcatalyst is then deposited on GO
The TEM images showed that αꢀFe2O3 nanoclusters of
only 1.8 nm size were homogeneously deposited on
the edge of the GO sheets (Figure 1a, b). EDX
analysis then showed the Fe, C, N, and O signals
provided by the αꢀFe2O3 nanocluster/GO sample
(Figure 1c). The phase structure of this catalyst
1 was
further characterized by HRTEM analysis showing the
wellꢀdefined hexagonal shape and the lattice fringe
pacing of 0.25 nm corresponding to the (110)
crystallographic plane of the αꢀFe2O3 crystal (Figure
1d). The oxidation state of the Fe constituent in
1 was
checked by Xꢀray photoelectron spectroscopy (XPS).
This journal is © The Royal Society of Chemistry 20xx
J. Name., 2013, 00, 1-3 | 1
Please do not adjust margins

Please do not adjust margins
ChemComm
Page 3 of 5
View Article Online
DOI: 10.1039/C6CC08401J
COMMUNICATION
Journal Name
The XPS survey spectrum (Fig. S2) indicates that the
sample contains C, O and Fe. In the C 1s spectrum, the
peaks at 284.4, 286.4, 288.3 and 290.8 eV are
attributed to CꢀC, CꢀO, C=O, and OꢀC=O
configurations, respectively.8 The core level binding
energies located at 726.4 and 712.3 eV are shown in
Encouraged by the remarkable efficiency of 1 obtained in
the 4ꢀNP reaction, the catalytic performances have been
further investigated in the Suzuki–Miyaura coupling
reaction between bromobenzene and phenylboronic acid.
This reaction was conducted at 80℃ under a nitrogen
the Fe 2p spectrum, which correspond to Fe 2p1/2 and atmosphere for 24 h in the presence of 150 ppm mol%
Fe 2p3/2 core level of the αꢀFe2O3, respectively.9 catalyst and K2CO3 as the base. Optimizations of the SM
Moreover, the shakeup satellite peak at about 719.0
eV,10 a characteristic for the Fe3+ species, is also
clearly seen.
coupling reaction were first conducted by leaving the
solvent as the only parameter. Solvent mixtures containing
water and, as coꢀsolvent, DMF, ethylene glycol or EtOH
were tested for this model reaction. The results showed
that the presence of the H2O/EtOH solution led to the best
catalytic performance with a quantitative conversion and a
87% isolated yield. The amount of solvent is crucial in this
SM reaction, as a larger amount of the H2O/EtOH solvent
leads to lack of conversion, while low amounts of solvent
allow the reaction to proceed well (SI). These results
indicate that the concentration of the substrates is crucial
for this reaction.1d
Catalytic applications of the new catalyst 1 were first
probed for the 4ꢀNP reduction by NaBH4 in water,11
a
trusted test reaction pioneered by Pal’s group11a to explore
the catalytic efficiency of nanoparticles surfaces. Indeed
this reaction hardly proceeds in the absence of metal
catalyst.11 In the presence of the catalyst 1 in an aqueous
solution containing 4ꢀNP (1 equiv.) and NaBH4 (81
equiv.), reduction proceeds with an induction time (t0) of
1160 s (Figure 2). This feature suggests required activation
and dynamic restructuring of the αꢀFe2O3 nanocluster
surface, as shown by Ballauff’s group with AuNP and
PdNP catalysts.11d,g,h Following the induction time, 4ꢀNP
reduction proceeds very well, with an apparent kinetic rate
constant (kapp) of 4.17×10ꢀ4 s-1 (Figures S3 up). Given the
addition of such a low amount of the catalyst 1 (150 ppm
per 4ꢀNP), its catalytic efficiency is remarkable and even
superior to the best nobel metal nanoparticles catalysts.
Control experiment conducted in the presence of GO alone
indicated that the reaction did not proceed at all.
XPS was used to characterize the Fe oxidation state after
the SM reaction, but no Fe (0) was found, indicating that
EtOH does not reduce αꢀFe2O3 under the present
conditions (Figure 12).
In order to identify the actual active phase, ICPꢀAES
analysis was conducted to exclude the possibility of traces
Pd residues in 1, because ppm levels of Pd are known to be
sufficient for the catalysis of SM reactions. ICPꢀAES
analysis showed that there was no residual Pd (or below
the detection limit of 0.5 ppm) in 1. Control experiments
have also been conducted using either GO or αꢀFe2O3 as
the tentative catalyst for this model SM reaction, and no
reaction occurred under these conditions. To investigate
the homoꢀ or heterogeneity of the αꢀFe2O3 nanocluster/GO
system, a hot filtration test was conducted. The standard
SM reaction between bromobenzene and phenylboronic
acid proceeds well in the presence of the catalyst, whereas
removal of the catalyst at half way inhibited continuation
of the reaction (Figure 13). Thus the SM reaction by αꢀ
Fe2O3/GO occurs heterogeneously. It was also conducted
in the presence of αꢀFe2O3/active carbon for comparison,
and this reaction occurred with poor yield (23%). Thus it is
concluded that 1 catalyzes the SM reaction, and the
presence of the GO enhances the catalyst efficiency. The
high surface area of the GO support increases the
concentration of substrates near the αꢀFe2O3 catalyst and
its efficiency.13
Highꢀresolution UVꢀvis. was used to monitor the
reaction process by mixing αꢀFe2O3/GO and NaBH4
(
Figures S3 bottom). The spectra did not change during
the reaction, and no peaks at 352ꢁnm and at 262ꢁnm
that corresponded to Fe(0) were observed, suggesting
that the Fe(0) is not involved in the reaction. To
address the ironꢀleaching problem, we have conducted
4ꢀNP reduction after the removal of αꢀFe2O3/GO
catalyst by simple filtration. The yellow color of the
reaction mixture did not change during 2 days, and the
hotꢀfiltration test was negative (vide infra), suggesting
that leaching of soluble Fe(0) species does not account
for the reaction mechanism. It cannot be excluded that
tiny amounts of Fe(0) be formed, however, and serve
as catalyst.12
Given the optimized reaction conditions and high
efficiency of the catalyst 1, the scope of the SM coupling
reaction was examined with 1 (150 ppm) in the mixture of
EtOH and H2O under nitrogen atmosphere at 80℃ within
24 h (Table 1). A series of bromobenzene derivatives
bearing various substituents were tested for the SM
coupling reactions with phenylboronic acid under the
optimized condition.
Figure 2. (a) UVꢀvis. spectra for the 4ꢀNP reduction by NaBH4
catalyzed by 1; (b) consumption rate of 4ꢀNP: ꢀln(Ct/C0) vs. time.
2 | J. Name., 2012, 00, 1-3
This journal is © The Royal Society of Chemistry 20xx
Please do not adjust margins

Please do not adjust margins
ChemComm
Page 4 of 5
View Article Online
DOI: 10.1039/C6CC08401J
Journal Name
COMMUNICATION
Moreover, recycling of the catalyst was also shown to be
Table 1. Investigation of the substrate scope in the Suzukiꢀ excellent. The mechanism of catalytic activation by αꢀ
Miyaura reaction catalyzed by αꢀFe2O3 nanocluster/GO.a
Fe2O3/GO remains unclear in these two reactions,
especially since no Fe(0) was detected. Also note that the
lack of extension of the SuzukiꢀMiyaura reaction to alkyl
bromides and alkylboronic acids is a limitation that will
need be taken into account in mechanistic investigation of
such catalytic systems.
Overall, the principles and results presented herein should
significantly contribute developing the ‘‘Green Chemistry”
applications involving earthꢀabundant metal heterogeneous
catalysts.
Entry
R1
H
R2
H
H
H
H
H
H
H
Conversionb
100%
100%
100%
100%
95%
98%
90%
75%
98%
Yieldc
87%
83.3%
83%
84.5%
80%
78%
75%
51%
82%
1
2
3
4
5
6
7
8
9
4ꢀNO2
4ꢀCHO
4ꢀCH3CO
4ꢀNH2
4ꢀCH3O
4ꢀCH3
H
Financial support from the China Scholarship Council
(CSC) of the People’s Republic of China (grant to C.W.),
the Universities of Bordeaux, Toulouse 3, the LCC
(Toulouse), and the Centre National de la Recherche
Scientifique (CNRS) is gratefully acknowledged.
2ꢀCH3
4ꢀCH3
H
a Reaction condition: bromobenzene (0.2 mmol), phenylboronic acid
(0.3 mmol), catalyst (150 ppm αꢀFe2O3), K2CO3 (0.4 mmol),
EtOH/H2O (1 mL/1 mL), 80℃, N2, 24 h; 1H NMR conversion;
b
c
Notes and references
yields of isolated product.
1 (a) J. Hassan, M. Sévignon, C. Gozzi, E. Schulz and M.
Lemaire, Chem. Rev. 2002, 102, 1359; (b) C. S. Yeung and Vy
M. Dong, Chem. Rev. 2011, 111 1215; (c) New Trends in
Cross-Coupling: Theory and Applications; T. Edicot ed., 2014,
RSC Catalysis Series, London; (d) C. Deraedt and D. Astruc,
Acc. Chem. Res. 2014, 47, 494.
Bromobenzene
derivatives
containing
electronꢀ
withdrawing (NO2, CHO, CH3CO) and electronꢀdonating
(NH2, CHO, CH3) groups in para position were suitable
coupling partners, and the corresponding coupling
products were all efficiently isolated with good yields
(Table 1). No direct relationship between the yields and the
electronic nature of the bromobenzene substituents was
found, however. Substituted arylboronic acids were also
investigated, and they reacted smoothly with
bromobenzene to provide the desired products in good
yields (entries 8 and 9). Comparison of the present study
with various available Pd catalysts of the SM reaction in
aqueous solution from the literature (Table S1) shows the
advantages of utilization of catalyst 1. No coupling was
obtained between bromobenzene and nꢀbutylboronic acid,
1ꢀbromopentane and phenylboronic acid, or 1ꢀ
bromopentane and nꢀbutylboronic acid, however.
The recyclability, a key issue in heterogeneous catalysis
from both practical and environmental points of view, was
also examined herein using a biphasic method. After the
first reaction, diethyl ether was added to extract the
product while keeping the catalyst in the aqueous phase,
followed by the charge of another run of substrates. In this
way the ppm amount of catalyst 1 of the SM coupling
reaction was successfully recycled four times (SI), and
2 (a) M. Lamblin, L. NassarꢀHardy, J. C. Hierso, E. Fouquet and
F.ꢀX. Felpin, Adv. Synth. Catal., 2010, 352, 33; (g) I. Favier, D.
Madec, E. Teuma and M. Gomez, Curr. Org. Chem., 2011, 15
,
3127; (c) A. J. J. Lennox and G. C. LloydꢀJones, Chem. Soc.
Rev. 2014, 43, 412. (d) Y. Wan, H. Wang, Q. Zhao, M.
Klingstedt, O. Terasaki and D. Zhao, J. Am. Chem.
Soc. 2009, 131, 4541; (e) S. Tanaka, T. Kaneko, N. Asao, Y.
Yamamoto, M. Chen, W. Zhang and A. Inoue, Chem. Commun.
2011,47, 5985; (f) Z. Li, S. Lin, L. Ji, Z. Zhang, X. Zhang and
Y. Ding, Catal. Sci. Technol. 2014,
Parlett, P. Keshwalla, S. G. Wainwright, D. W. Bruce, N. S.
Hondow, K. Wilson and A. F. Lee, ACS Catal. 2013, , 2122.
4, 1734; (g) C. M. A.
3
3 (a) I. P. Beletskaya and A. V. Cheprakov, Chem. Rev. 2000,
100, 3009; (b) J. G. de Vries, Dalton Trans. 2006, 421; (c) K.
Okumara, T. Tomiyama, S. Okuda, H. Yoshida and M. Niwa, J.
Catal. 2010, 273, 156; (d) C. Zhou, J. Wang, L. Li, R. Wang
and M. A. Hong, Green Chem. 2011, 13, 2100; (e) Y. M. A.
Yamada, S. M. Sarkar and Y. Uozumi, J. Am. Chem. Soc. 2012,
134, 3190.
4 (a) H. Firouzabadi, N. Iranpoor, M. Gholinejad and J. Hoseini,
Adv. Syn. Catal. 2011, 353, 125. (b) L. Dong, J. Wen, S. Qin,
N. Yang, H. Yang, Z. Su, X. Yu and C Hu, ACS Catal. 2012, 2,
1829; (c) T. Hatakeyama, T. Hashimoto, K. K. A. D. S.
Kathriarachchi, T. Zenmyo, H. Seike and M. Nakamura,
Angew. Chem., Int. Ed. 2012, 51, 8834; (d) T. Hashimoto, T.
Hatakeyama and M. Nakamura, J. Org. Chem. 2012, 77, 1168;
(e) M. B. Gawande, Y. Monga, R. Zboril and R. K. Sharma,
Coord. Chem. Rev. 2015, 288, 118; (f) P. Dohlert, M. Weidauer
and S. Enthaler, Chimia 2015, 69, 327; (g) S. L. Daifuku, J. L.
Kneebone, B. E. R. Snyder and M. L. Neidig, J. Am. Chem.
Soc. 2015, 137, 11432; (h) M. Kataria, S. Pramanik, N. Kaur, M.
Kumar and V. Bhalla, Green Chem., 2016, 18, 1495.
therefore it is concluded that
1 is an excellent
heterogeneous catalyst for the SM coupling reactions.
In conclusion, the heterogeneous system 1 is shown here to
behave as a remarkable catalyst for both 4ꢀNP reduction
and SuzukiꢀMiyaura coupling reactions in aqueous
solvents with only partsꢀperꢀmillion catalyst loading. The
presence of the tristrzꢀPEG ligand not only insured
formation of αꢀFe2O3 but also quantitative deposition of αꢀ
Fe2O3 onto GO induced by supramolecular interactions.
5 (a) S. Ge, and J. F Hartwig, Angew. Chem. Int. Ed. 2012, 51
,
12837; (b) F. S. Han, Chem. Soc. Rev. 2013, 42, 5270; (c) L. M.
Guard, G. W. Brudvig, N. Hazari and D. J. Vinyard, Angew.
Chem., Int. Ed. 2015, 54, 13352; (d) S. Handa, E. D. Slack and
B. H. Lipshutz, Angew. Chem., Int. Ed. 2015, 54, 11994; (e) N.
A. Weires, E. L. Baker and N. K. Garg, Nat. Chem. 2016, 8, 75;
This journal is © The Royal Society of Chemistry 20xx
J. Name., 2013, 00, 1-3 | 3
Please do not adjust margins

Please do not adjust margins
ChemComm
Page 5 of 5
View Article Online
DOI: 10.1039/C6CC08401J
COMMUNICATION
Journal Name
(j) A. Ohtsuki, K. Yanagisawa, T. Furukawa, M. Tobisu and N.
Chatani, J. Org. Chem. 2016, 81, 9409.
6 (a) M. B. Thathagar, J. Beckers and G. Rothenberg, J. Am.
Chem. Soc. 2002, 124, 11858; (b) S. K. Gurung, S. Thapa, A.
Kafle, D. A. Dickie and R. Giri, Org. Lett. 2014, 16, 1264; (e)
Y. Sun, J. Yi, X. Lu, Z. Zhang, B. Xiao and Y. Fu, Chem.
Commun., 2014, 50, 11060.
7 (a) S. Ozcubukcu, E. Ozkal, C. Jimeno, M. A. Pericas, Org.
Lett. 2009, 11, 4680; (b) C. Wang, R. Ciganda, L. Salmon, D.
Gregurec, J. Irigoyen, S. Moya, J. Ruiz and D. Astruc, Angew.
Chem. Int. Ed., 2016, 55, 3091; (c) C. Wang, D. Wang, S. Yu,
T. Cornilleau, J. Ruiz, L. Salmon and D. Astruc, ACS Catal.,
2016, 6, 5424; (d) P. Etayo, C. Ayats and M. A. Pericàs, Chem.
Commun. 2016, 52, 1997.
8 (a) S. C. Han, L. F. Hu, Z. Q. Liang, S. Wageh, A. A. Alꢀ
Ghamdi, Y. S. Chen and X. S. Fang, Adv. Funct. Mater. 2014,
24, 5719; (b) S. Liu, L. Zheng, P. Yu, S. Han and X. Fang, Adv.
Funct. Mater. 2016, 26, 3331.
9 L. Q. Jing, Y. Cao, H. Q. Cui, J. R. Durrant, J. W. Tang, D. N.
Liu and H. G. Fu, Chem. Commun. 2012, 48, 10775.
10 (a) Y. Yang, H. X. Ma, J. Zhuang and X. Wang, Inorg. Chem.
2011, 50, 10143; (b) S. Guo, G. Zhang, Y. Guo and J. C. Yu,
Carbon, 2013, 60, 437.
11 (a) T. K. Sau, A. Pal and T. Pal, J. Phys. Chem. B, 2001, 105,
9266; (b) K. Esumi, R. Isono and T. Yoshimura, Langmuir,
2004, 20, 237; (c) K. Kuroda, T. Ishida and M. Haruta, J. Mol.
Catal. A: Chem., 2009, 298, 7; (d) S. Wunder, F. Polzer, Y. Lu
and M. Ballauff, J. Phys. Chem. C, 2010, 114, 8814; (e) S.
Saha, A. Pal, S. Kundu, S. Basu and T. Pal, Langmuir, 2010,
26, 2885; (f) S.ꢀN. Wang, M. ꢀC. Zhang and W. Q. Zhang, ACS
Catal., 2011, 1, 207; (g) S. Wunder, Y. Lu, M. Albrecht and M.
Ballauff, ACS Catal., 2011, 1, 908; (h) P. Herves, M. Perezꢀ
Lorenzo, L. M. LizꢀMarzàn, J. Dzubiella, Y. Lu and M.
Ballauff, Chem. Soc. Rev., 2012, 41, 5577; (i) J. Li, C.ꢀY. Liu
and Y. Liu, J. Mater. Chem., 2012, 22, 8426; (j) J. Zhang, D.
Han, H. Zhang, M. Chaker, Y. Zhao and D. Ma, Chem.
Commun., 2012, 48, 11510; (k) A. Shivhare, S. J. Ambrose, H.
Zhang, R. W. Purves and R. W. J. Scott, Chem. Commun.,
2013, 49, 276; (l) P. Pachfule, S. Kandambeth, D. Diaz and R.
Banerjee, Chem. Commun. 2014, 50, 3169; (m) T. Aditya, A.
Pal and T. Pal, Chem. Commun. 2015, 51, 9410; (n) P. Zhao, X.
Feng, D. Huang, G. Yang and D. Astruc, Coord. Chem. Rev
2015, 287, 114.
.
12 S. Baea, S. Gimb, H. Kimb and K. Hanna, Appl. Catal. B:
Environ. 2016, 182, 541ꢀ549. In this article, it was reported that
Fe(0) surface covered by magnetite (FeII III2O4) layer underwent
1
reduction by NaBH4, producing small nanosized Fe(0) that
catalysed 4ꢀNP reduction to 4ꢀAP.
13 (a) T. Wu, L. Zhang, J. Gao, Y. Liu, C. Gao and J. Yan, J.
Mater. Chem. A, 2013, 1, 7384; (b) J. ꢀJ. Lv, A. ꢀJ. Wang, X.
Ma, R. ꢀY. Xiang, J. ꢀR. Chen and J. ꢀJ. Feng, J. Mater. Chem.
A, 2015, 3, 290; (c) P. Song, L. ꢀL. He, A. ꢀJ. Wang, L. ꢀP. Mei,
S. ꢀX. Zhong, J. ꢀR. Chen and J. ꢀJ. Feng, J. Mater. Chem. A
2015, 3, 5321.
,
4 | J. Name., 2012, 00, 1-3
This journal is © The Royal Society of Chemistry 20xx
Please do not adjust margins
