Controlled Release of Salicylic Acid from Biodegradable Cross-Linked Polyesters

Article abstract of DOI:10.1021/acs.molpharmaceut.5b00515

The purpose of this work was to develop a family of cross-linked poly(xylitol adipate salicylate)s with a wide range of tunable release properties for delivering pharmacologically active salicylic acid. The synthesis parameters and release conditions were

Full text of DOI:10.1021/acs.molpharmaceut.5b00515

Subscriber access provided by UTSA Libraries
Article
Controlled Release of Salicylic Acid from
Biodegradable Crosslinked Polyesters
Queeny Dasgupta, Kaushik Chatterjee, and Giridhar Madras
Mol. Pharmaceutics, Just Accepted Manuscript • DOI: 10.1021/acs.molpharmaceut.5b00515 • Publication Date (Web): 18 Aug 2015
Downloaded from http://pubs.acs.org on August 24, 2015
Just Accepted
“Just Accepted” manuscripts have been peer-reviewed and accepted for publication. They are posted
online prior to technical editing, formatting for publication and author proofing. The American Chemical
Society provides “Just Accepted” as a free service to the research community to expedite the
dissemination of scientific material as soon as possible after acceptance. “Just Accepted” manuscripts
appear in full in PDF format accompanied by an HTML abstract. “Just Accepted” manuscripts have been
fully peer reviewed, but should not be considered the official version of record. They are accessible to all
readers and citable by the Digital Object Identifier (DOI®). “Just Accepted” is an optional service offered
to authors. Therefore, the “Just Accepted” Web site may not include all articles that will be published
in the journal. After a manuscript is technically edited and formatted, it will be removed from the “Just
Accepted” Web site and published as an ASAP article. Note that technical editing may introduce minor
changes to the manuscript text and/or graphics which could affect content, and all legal disclaimers
and ethical guidelines that apply to the journal pertain. ACS cannot be held responsible for errors
or consequences arising from the use of information contained in these “Just Accepted” manuscripts.
Molecular Pharmaceutics is published by the American Chemical Society. 1155
Sixteenth Street N.W., Washington, DC 20036
Published by American Chemical Society. Copyright © American Chemical Society.
However, no copyright claim is made to original U.S. Government works, or works
produced by employees of any Commonwealth realm Crown government in the course
of their duties.

Page 1 of 45
Molecular Pharmaceutics
1
2
3
4
5
6
Controlled Release of Salicylic Acid from Biodegradable Crosslinked Polyesters
Queeny Dasgupta1, Kaushik Chatterjee1,2, Giridhar Madras3*
7
8
9
1Bioengineering Program, 2Department of Materials Engineering and 3Department of Chemical
Engineering, Indian Institute of Science, Bangalore-560012, India
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
* Corresponding author +91-80-2293 2321; giridhar@chemeng.iisc.ernet.in
ACS Paragon Plus Environment

Molecular Pharmaceutics
Page 2 of 45
1
2
3
4
ABSTRACT
5
6
7
8
9
The purpose of this work was to develop a family of crosslinked poly(xylitol adipate
salicylate)s with a wide range of tunable release properties for delivering pharmacologically
active salicylic acid. The synthesis parameters and release conditions were varied to modulate
polyester properties and to understand the mechanism of release. Varying release rates were
obtained upon longer curing (35 % in the non-cured polymer to 10 % in the cured polymer in
seven days). Differential salicylic acid loading led to the synthesis of polymers with variable
crosslinking and the release could be tuned (100 % release for the lowest loading to 30 % in the
highest loading). Controlled release was monitored by changing various factors and the release
profiles were dependent on the stoichiometric composition, pH, curing time and presence of
enzyme. The polymer released a combination of salicylic acid and disalicylic acid and the
released products were found to be non-toxic. Minimal hemolysis and platelet activation
indicated good blood compatibility. These polymers qualify as “bioactive” and “resorbable” and
can, therefore, find applications as immunomodulatory resorbable biomaterials with tunable
release properties.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Keywords: Polyester; Salicylic acid; Controlled release; Biodegradable polymers
2
ACS Paragon Plus Environment

Page 3 of 45
Molecular Pharmaceutics
1
2
3
4
5
6
1.
INTRODUCTION
Biodegradable polymers constitute a popular class of biomaterials that are widely studied
7
8
9
for use in a variety of resorbable implants and medical products such as sutures, fracture fixation
devices, tissue scaffolds and drug/gene delivery vehicles,1 etc. These polymers are typically
prepared from biochemicals endogenous to the human body such that the degradation products
can be rapidly metabolized and eliminated with minimal cytotoxicity. Yet these biodegradable
polymers are observed to elicit inflammatory and foreign body responses in vivo.2, 3 Other
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
common causes of failures of such implants include bacterial infections,4 poor blood
7
compatibility,5 and insufficient vascular growth. The controlled release of drugs6,
and
biomolecules such as growth factors8 loaded in the biomaterial are used to overcome such
potential complications and to enhance the performance of the implant. An increasingly popular
strategy is the direct incorporation of the drug into the polymer backbone containing
hydrolysable bonds to aid in controlled drug release complemented with gradual degradation of
the polymer.9 A recent review discusses this important aspect of release accompanied with
polymer degradation.10
Non-steroidal anti-inflammatory drugs or NSAIDS are a class of Cox-1 and/or Cox-2
inhibitors11 that suppress inflammation. Aspirin, a salicylic acid derivative, is one of the most
popular NSAIDs that acts as an analgesic, anti-pyretic, anti-thrombotic, and anti-inflammatory
agent.12 Salicylic acid (SA) has received significant attention because of its anti-bacterial, anti-
fungal, and anti-inflammatory activities. It has also been shown to be a promising drug for
preventing cardiovascular diseases and cancer.13, 14 Thus, a rapid release of SA may be desired
for anti-microbial and anti-inflammatory applications such as treatment of infections and as
coating on biomedical devices. A more sustained release may be appropriate for reducing the
3
ACS Paragon Plus Environment

Molecular Pharmaceutics
Page 4 of 45
1
2
risk of cancer and cardiovascular diseases. However, its low half- life (2-30 h)15 and stability are
major concerns that need to be addressed in order to use this as a potent drug.
3
4
5
6
7
8
9
A number of studies have been conducted on controlled release of SA. SA has been
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
17
incorporated into poly(anhydride-esters),16,
dendrimers,18 biopolymers,19 micelles,20
polyurethanes21 etc. for use as an anti-inflammatory, anti-oxidative, antibacterial and/or anti-
biofilm formation agent.21 SA is mostly encapsulated or entrapped in these polymers and its
release is directed by the nature and degradation of the polymer.6 It is desirable that SA is
released in a controlled fashion at a rate commensurate with its functional/biological activity
from the polymeric matrix and the polymer simultaneously degrades inside the body. There is a
need to tailor the release of SA over a wide range depending on the intended application. The
incorporation of SA in the polymer backbone is a particularly promising approach because the
release of SA occurs only by cleavage of the bonds. This release is, therefore, accompanied by a
simultaneous erosion and mass loss of the polymer, leading to its resorption. However, to
achieve this objective, the synthetic chemistry should be suitably modified to preserve the
chemical nature of the drug and to ensure that the functional role is retained after release.
Although studies have been reported on the successful incorporation of SA, the nature of the
released product has often not been fully characterized.
Motivated by prior studies9, 22 that have investigated release of SA, we have synthesized a
group of SA releasing polymers based on adipic acid and xylitol that can release SA over a
period ranging from a few hours to days. These polymers are crosslinked polyesters that are
capable of releasing SA in the body by hydrolysis of their ester bonds. We have recently reported
a group of crosslinked polyesters including crosslinked poly(xylitol adipate).23 Poly(xylitol
adipate) is a fast degrading polymer (58 % in 7 days) and was, hence, chosen as a suitable
4
ACS Paragon Plus Environment

Page 5 of 45
Molecular Pharmaceutics
1
2
3
4
5
6
7
8
9
candidate for delivery of an anti-inflammatory agent like SA. The objectives of the work are
three-fold and (i) involve the synthesis of the polymer wherein SA is incorporated into the
polymer backbone to make it an immunomodulatory biomaterial; (ii) develop and tailor the
controlled release of SA over a broad range by hydrolysis of its polymeric chains by varying the
synthesis parameters, namely the SA loading, and the post–polymerization time during synthesis,
and (iii) examine the release as a function of curing time, SA loading, varying pH environments
and by the action of lipase.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
2. EXPERIMENTAL SECTION
2.1 Materials. Adipic acid (SRL Laboratories), xylitol (Sigma Aldrich), SA (Merck) and
pyridine (Merck) were used in the synthesis of the crosslinked polyesters. Solvents such as
tetrahydrofuran (THF, Merck), N,N-Dimethylformamide (DMF, Merck), ethanol (Emsure) and
acetone (Merck) were used during various stages of the synthesis. Lipase from Candida
Antarctica immobilized on acrylic resin, Novozym 435 (Sigma Aldrich) (with enzyme activity of
5000 U/g) was used.
2.2 Synthesis. The synthesis of the polyesters reported herein is a two-step process (Scheme I)

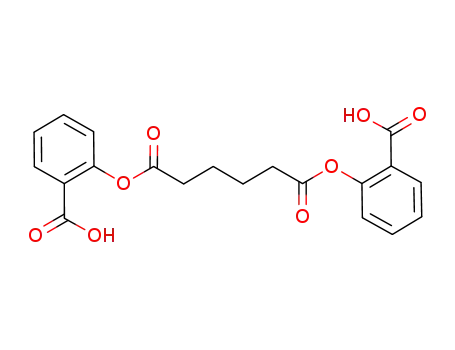

where the first step involves the synthesis of a diacid of SA and adipoyl chloride. The second
step is a melt condensation polymerization involving the diacid and xylitol to form the
crosslinked polyesters.
Step I: 1 molar equivalent of SA (7 g, 50.7 mmol) was dissolved in THF (10 mL). To
this solution, 2 molar equivalents of pyridine (8.3 mL, 101.4 mmol) were added and allowed to
stir for 10 min at 37 ˚C. 0.5 molar equivalent of adipoyl chloride (3.7 mL, 25.35 mmol) was
added dropwise to the stirred solution and the reaction was conducted for 16 h. Hydrochloric
5
ACS Paragon Plus Environment

Molecular Pharmaceutics
Page 6 of 45
1
2
3
4
5
6
7
8
9
acid was then added to the reaction mixture at 0 ˚C (ice bath) to precipitate the diacid until a pH
of 2 was achieved. The precipitate was washed with water, vacuum filtered and dried before
proceeding to the next step. The presence of the diacid was confirmed by mass spectrometry.
This step was based on a previously reported work.24
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Step II: The dried diacid and xylitol were taken in specific stoichiometric ratios.
Polymerization was achieved by a melt condensation process where the diacid (5 g, 12.9 mmol)
and appropriate amounts of xylitol were melted at 150 ˚C under nitrogen environment and
connected to a -700 mm Hg vacuum line to remove the byproduct (water). This reaction reached
completion between 12-16 h depending on the stoichiometry. The lower stoichiometric ratio of
diacid to xylitol required higher reaction time of 16 h. The product obtained was a sticky, highly
viscous, semi-solid prepolymer (uncured). These prepolymers were subsequently post-
polymerized at 130 ˚C and -700 mm Hg vacuum for 6 days to yield completely cured
(crosslinked) polymers. The nomenclature used for the different polymers are PXASA11,
PXASA21, PXASA12 and PXASA14, wherein the numbers at the end indicate the ratio of
xylitol to diacid (for example, xylitol: diacid at ratio of 2:1 is represented as PXASA21). Note
that PXA refers to poly(xylitol adipate). Unless mentioned otherwise, the characterization was
performed only for cured polymers.
An alternative technique was attempted initially which involved the simultaneous melt
condensation polymerization (at 150 ˚C) of SA, xylitol and adipic acid (Scheme II) in a single
step similar to the synthesis of PXA. Scheme II was not found suitable for this synthesis due to
the degradation of SA in the released product, as further discussed below.
6
ACS Paragon Plus Environment

Page 7 of 45
Molecular Pharmaceutics
1
2
3
4
5
6
2.3 Material Characterization
2.3.1 FTIR spectroscopy
7
8
9
Fourier transform infrared (FTIR) spectroscopy was used for chemical characterization.
FTIR spectra of the polymers were acquired on a Perkin-Elmer Frontier FT-NIR/MIR
spectrometer in the Universal attenuated total reflectance (uATR-FTIR) mode. Each spectrum
obtained was an average of 32 scans taken with a resolution of 4 cm−1 over the range 4000-650
cm−1.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
2.3.2 Dynamic mechanical Analysis (DMA)
Mechanical properties of all the 6 day cured samples of PXA, PXASA11, PXASA12 and
PXASA14 were characterized by dynamic mechanical analysis (DMA, TA Instruments Q800).
An isothermal frequency sweep at 37 ˚C was used to analyze the samples (30 mm × 5 mm × 2
mm) using a tension clamp. A frequency sweep from 0.1-1 Hz, amplitude of 15 μm and a
preload of 0.01 N was applied.
PXASA21 could not be characterized by DMA because of its sticky, viscous nature.
Therefore, the viscoelastic properties of PXASA21 were analyzed using a stress-controlled
Discovery Hybrid Rheometer (TA Instruments, DHR-3) with Peltier cone and plate geometry
(40 mm diameter plate, cone angle 1 degree and gap distance 50 μm). A fixed strain (0.1 %), was
applied to it (this is within the linear viscoelastic region). Oscillation frequency measurements
were performed at 37 ˚C from 0.1-1 Hz.
7
ACS Paragon Plus Environment

Molecular Pharmaceutics
Page 8 of 45
1
2
3
4
2.3.3 Differential scanning calorimetry
5
6
7
8
9
Thermal characterization of the polyesters was obtained by a differential scanning
calorimeter (DSC, TA Instruments Q 2000). Samples (3-5 mg) were subjected to a temperature
range of 50 ˚C to 150 ˚C in nitrogen environment (flow rate of 50 mL/min). A temperature
ramp of 10 ˚C/ min during the heating cycle and 5 ˚C/ min during the cooling cycle was used.
The first heating cycle of the heat-cool-heat temperature program removed the thermal history
due to prior processing of the samples. The thermal properties of the polyesters were obtained
from the second heating curve.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
2.3.4 Surface water wettability
Water contact angle was measured to characterize the surface water wettability of the
samples using a contact angle goniometer (Dataphysics). Static contact angle measurements were
made by placing a 1 μL droplet of ultrapure water (Sartorius) on polyester discs (4.5 mm in
diameter). Measurements were taken after equilibrium was attained. The data is depicted as
mean ± standard deviation (S.D) based on three independent samples.
2.3.5 Measurement of swelling ratio and gel content
Swelling ratio and gel content of the polymers was obtained by measuring the swelling-
deswelling behavior of these polyesters. For determination of swelling ratio, small polymer discs
(diameter 4.5 mm and thickness 1 mm) were immersed in non-solvent (ethanol) at 37 ˚C and
allowed to swell until a constant weight was achieved. The samples were then dried at 37 ˚C
until constant weight was achieved again. The swelling ratio (S in %) is given by:
8
ACS Paragon Plus Environment

Page 9 of 45
Molecular Pharmaceutics
1
2
3
4
5
푾 −푾
풔
% 푺 =
풅 × ퟏퟎퟎ
(1)
푾
풅
6
7
8
9
In equation (1), Ws is the sample weight after swelling in ethanol and Wd is the dried
polymer weight.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
The % gel content was calculated according to ASTM standard D-2765. The initial dry
weight of the polymer discs were measured (Wd1). These polymers were allowed to swell in
N,N-DMF for 24 h. After the polymers attained constant weight and no further increase in
weight was observed, the polymers were removed from DMF and dried under vacuum. After the
polymer discs re-attained a constant weight and no mass loss occurred due to drying, the samples
were weighed again (Wd2). The gel content was obtained by the following equation:
−푾
% 품풆풍 풄풐풏풕풆풏풕 = ퟏퟎퟎ − (푾
풅ퟐ × ퟏퟎퟎ)
(2)
풅ퟏ
푾
풅ퟏ
2.3.6 Hydrolytic degradation studies
Polymer films (thickness 1 mm) were formed by drop casting the molten prepolymer on a
petridish. These films were then cured at 130 ˚C for six days. Circular discs (4.5 mm diameter)
were punched out from these films. These discs were placed inside nylon mesh bags, which were
then immersed in tubes containing 20 mL phosphate buffered saline (PBS) at pH 7.4 and 37 ˚C.
These tubes were kept in an incubator shaker at 100 rpm. The bags were dried and weighed
every 24 h. The percentage weight loss of the samples was calculated as follows:
푴 −푴
풐
% 풘풆풊품풉풕 풍풐풔풔 =
풕 × ퟏퟎퟎ
(3)
푴
풐
In equation (3), Mo is initial weight of the sample and Mt is the weight of the degraded
sample after hydrolysis in PBS for a specific time period t.
9
ACS Paragon Plus Environment

Molecular Pharmaceutics
Page 10 of 45
1
2
3
4
2.3.7 Salicylic acid release studies
5
6
7
8
9
Circular discs (4.5 mm diameter, 1 mm thickness) were prepared as above. These discs
were placed in nylon mesh bags and immersed in 20 mL PBS (pH 7.4) at 37 ˚C. These tubes
were placed in an incubator shaker maintained at a shaking speed of 100 rpm. The release
profiles of all polyesters were recorded by measuring the sample absorbance at 297 nm
(characteristic absorption peak for SA) in a Shimadzu 1700 PharmaSpec UV-visible
spectrophotometer. The completely cured (6 day cured) samples of PXASA11, PXASA21,
PXASA12, and PXASA14 were characterized. In addition to the 6 day cured PXASA11 sample,
the PXASA11 prepolymer and 2 day cured PXASA11 polymers were also characterized. A
similar SA release study was performed by varying the pH of the buffer. SA release was
recorded at pH 3.2 (acidic, ionic strength 1 mM), 7.4 (physiological, ionic strength 1.5 mM), and
9.0 (basic, ionic strength 3 mM) to understand the role of varying pH on the release profiles. The
release of SA from PXASA11 and PXASA14 by enzymatic degradation was observed in the
presence of lipase. Lipase (Novozym 435) at a concentration of 1 mg/mL was used. The use of
immobilized enzyme allowed separation of the enzyme by centrifugation so as to measure SA
release spectrophotometrically without interference from the soluble protein spectra. Free
porcine lipase interfered with the 297 nm absorption maxima of SA and was, hence, not used.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
The total loading concentration of SA was calculated by dissolving the polymer discs in
PBS (pH 9.0). The absorbance at 297 nm gave an indication of the concentration of SA in the
polymer. This concentration is taken as the total loading concentration and all % release values
are calculated based on this.
10
ACS Paragon Plus Environment

Page 11 of 45
Molecular Pharmaceutics
1
2
3
4
2.3.8 Mass spectrometry
5
6
7
8
9
Mass spectrometry was performed on Micromass ESI-TOF Mass Spectrometer (Waters)
to analyze the mass spectra of the release product. The release product was injected by direct
injection with an autosampler, using water as the mobile phase. The run time was 0.5 min and
the cone voltage was 130-140 V. The molecular weights obtained were matched with that of the
expected compounds, using a standard database.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
2.3.9 Cytocompatibility studies
NIH3T3 cells (ATCC, USA), a well established line of mouse embryonic fibroblasts,
were used to assess cytocompatibility. Cells were cultured in Dulbecco’s modified Eagle’s
medium (DMEM, Gibco, Life Technologies) supplemented with 10 % (v/v) fetal bovine serum
(FBS, Gibco, Life Technologies) and 1 % (v/v) penicillin-streptomycin at 37 ˚C and 5% CO2.
Cells were passaged with Trypsin-EDTA (Gibco, Life Technologies). All studies were
performed on cells of Passage 12. Prior to cell seeding, polymer discs of PXA and PXASA11
(4.5 mm diameter, thickness of 1 mm) were ethanol and UV sterilized for 30 min. Discs were
immersed in 5 mL media for 24 h such that the conditioned medium contained all the degraded
products of the polymer and the released drug (including adipic acid, xylitol, several oligomers
along with SA and di-SA). NIH3T3 cells were treated with this conditioned media for 1 day and
3 days to assess cytocompatibility. 104 cells were initially seeded per well in a 48-well plate in
fresh medium for 24 h. The medium was replaced with 500 μL of conditioned media. Fresh
medium was used as the control. The media (both fresh and conditioned) was replenished after
every 24 h.
11
ACS Paragon Plus Environment

Molecular Pharmaceutics
Page 12 of 45
1
2
3
4
5
6
7
8
9
Cell viability was assessed 1 day and 3 days post treating with conditioned media using
WST-1 (water soluble tetrazolium salts, Roche). The oxidoreducates present only in viable cells
can react with the WST reagent to produce a water soluble formazan (colored product). 20 μL of
WST-1 was dissolved in 200 μL of complete culture medium. This solution was added to each
well and incubated at 37 ˚C in 5% CO2 for 4 h. The formation of formazan crystals was
monitored by measuring the absorbance at 440 nm in a well plate reader (Synergy HT, Biotek).
The absorbance value provides a direct correlation to the number of cells in the well. The
measurements were obtained by averaging the data from four independent wells and the data is
presented as mean ± S.D. for n= 4. Analysis of variance (ANOVA) with Tukey’s test for p<0.05
was used to evaluate statistically significant differences.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
2.3.10 Hemolysis assay
Blood compatibility tests were performed through a commercial contract (TheraIndx
Lifesciences, India) with approval from the Animal Ethics Committee. Whole blood from New
Zealand white rabbits was collected in tubes containing sodium citrate (anticoagulant). Polymer
discs of PXA and PXASA11 (4.5 mm diameter, 1 mm thick) were equilibrated and leached in
saline water (0.9 % NaCl in water) for 6 h. Anticoagulated whole blood (0.2 mL) was added to
each of the samples and kept at 37 ˚C for 30 min. 4 mL of saline was added to each of the
samples to stop hemolysis, and incubated for 60 min at 37 ˚C. Each tube was then inverted to
mix the contents homogenously, and then centrifuged to collect the supernatant. Negative and
positive controls were prepared by adding 0.2 mL of whole blood to 4 mL of saline and distilled
water, respectively. The optical densities (OD) of the supernatant were measured at 541 nm and
percentage hemolysis was calculated as
12
ACS Paragon Plus Environment

Page 13 of 45
Molecular Pharmaceutics
1
2
3
4
5
(푶푫
−푶푫
) × ퟏퟎퟎ
(4)
풕풆풔풕
풏풆품
% 푯풆풎풐풍풚풔풊풔 =
(푶푫 −푶푫
)
풑풐풔
풏풆품
6
7
8
9
In equation (4), ODneg and ODpos denote OD of supernatant of negative and positive
control, respectively. ODtest is the absorbance value of the test sample.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
2.3.11 Platelet adherence assay
Blood was collected from rabbits as above. Platelet rich plasma (PRP) was collected by
centrifuging this blood at 2500 rpm for 10 min. Platelet count obtained was nearly 5×105/ μL.
PXA and PXASA11 discs (4.5 mm diameter, 1 mm thick) were sterilized in absolute
ethanol and dried for 5 min. The discs were placed in 12 well TCPS plates. All samples were
assayed in quadruplicates. The samples were equilibrated in 3 mL phosphate buffered solution
for 6 h at room temperature. After 6 h, PBS was removed and 3 mL of freshly prepared PRP was
added to each disc for 90 min at 37 ˚C. The PRP was removed with an aspirator, and each disc
was rinsed three times with 3 mL of PBS. After washing, the cells were fixed in 2.5%
glutaraldehyde for 30 min. The films were washed with PBS and subsequently dehydrated by
gradient washing in a series of ethanol water solutions (50, 60, 70, 80, 90, 95, and 100 % (v/v)).
The samples were then imaged using scanning electron microscopy.
3. RESULTS AND DISCUSSION
3.1 FTIR spectroscopy
FTIR spectroscopy was performed at all steps of synthesis. It is observed that the
precursors SA and adipic acid both show –C=O stretching (corresponding to –COOH) near 1690
cm-1. From the FTIR spectra (Figure 1a), it is evident that after the completion of Step I of
synthesis of PXASA, FTIR spectra displays the appearance of an additional –C=O stretching
13
ACS Paragon Plus Environment

Molecular Pharmaceutics
Page 14 of 45
1
2
(aliphatic ester formation) peak at 1740 cm-1. A very prominent 1690 cm-1 peak is also present in
the diacid due to the presence of free –COOH groups of SA. This is in agreement with
previously reported literature.25 The formation of the diacid was further confirmed by ESI-MS.
The mass spectrum reports a peak at 386 Dalton, confirming the synthesis of the diacid.
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Consequently, after Step II of the reaction, the 1690 cm-1 peak gradually decreases with
a corresponding increase in the phenyl ester peak. An ester bond is also formed between SA and
xylitol. The peak due to the –C=O stretching of a carboxylic acid25 observed at ~1680 cm-1 in the
prepolymer, shifts slightly to 1706 cm-1 (indicating phenyl ester)25, 26 and becomes less prominent
in the cured polyester. This shift is observed as curing progresses. The aliphatic ester peak is
observed at 1740 cm-1 for both the prepolymer and cured polyester. Asymmetric and symmetric –
CH stretching vibrations are observed at 2926 cm-1 and 2853 cm-1, respectively, for both
prepolymer and cured polymer. Peaks corresponding to –CH2 bending vibrations are observed at
1465 cm-1.
FTIR spectra were also recorded for the varying stoichiometric ratios of xylitol: diacid
(Figure 1b). PXASA21 shows a very prominent –OH stretching peak near 3300 cm-1 indicating
the excess of hydroxyl groups owing to the excess of the polyol (xylitol). PXASA21 also shows
a very small phenyl ester peak at 1680 cm-1 due to very less esterification. All other cured
polyesters (PXASA12 and PXASA14) show sharp peaks at 1740 cm-1 indicating the formation
of the aliphatic ester. The PXA polyester shows a peak only at 1740 cm-1 and no phenyl ester
peak at 1706 cm-1 because of the absence of SA.
14
ACS Paragon Plus Environment

Page 15 of 45
Molecular Pharmaceutics
1
2
3
4
3.2 Differential scanning calorimetry
5
6
7
8
9
Thermal characterization of the samples shows that all the crosslinked polyesters are
amorphous. No melting or crystallization peaks are observed. The glass transition temperatures
(Tg) are obtained (Figure 2). It is observed that all the polymers have a Tg below physiological
temperature and hence, may be suited as elastomeric biomaterials in vivo. Tg values followed the
order of PXASA21< PXASA14< PXASA11< PXASA12. The recorded Tg values for PXA,
PXASA11, PXASA12, PXASA14 and PXASA21 are 17 ˚C, 22 ˚C, 30 ˚C, 18 ˚C, and 13 ˚C,
respectively. The increase in Tg value from PXASA11 to PXASA12 may be attributed to the
increased crosslinking (discussed below) in PXASA12 as compared to PXASA11. Increased
crosslinking leads to the formation of more rigid networks, thereby restricting motion of the
polymeric chains.27, 28 Moreover, the inclusion of cyclic structures within the polymer has also
been reported to increase Tg as it reduces flexibility of the polymer backbone, thereby, hindering
bond rotation and raising the Tg.29 This is observed in all the cases where inclusion of SA into
the polymer has a higher Tg than PXA, except for PXASA21, which has a very low degree of
esterification. Tg was also recorded for PXASA11 as a function of curing time. Tg increases from
17 ˚C in the prepolymer to 22 ˚C in the 6 day cured PXA. This increase in Tg is accompanied by
a broadening of the transition. This broadening is due to enhanced crosslinking and heterogeneity
in the length of crosslinks.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
3.3 Dynamic Mechanical Analysis
The values of storage and loss moduli are tabulated in Table 1. Mechanical
characterization of the polyesters shows that the storage modulus follows the trend: PXASA14 <
PXASA11 < PXASA12. The storage modulus increases from PXASA11 to PXASA12 because
15
ACS Paragon Plus Environment

Molecular Pharmaceutics
Page 16 of 45
1
2
of increasing crosslinking (as evidenced by swelling data discussed below).30 However, the
storage modulus of PXASA14 decreases as compared to PXASA11 or PXASA12. This may be
attributed to the excess of SA diacid as compared to the alcohol. This results in many unreacted
groups and, therefore, a more loosely crosslinked network. Lower degree of crosslinking yields
less stiff polymer networks, thereby decreasing the storage modulus.31 The rheological analysis
of PXASA21 shows that it has a storage modulus of 7 kPa. The increase in the crosslinking in
PXASA11 and PXASA12 led to the enhancement of mechanical properties of the material.
Increased crosslinking makes the polymer network stiffer and, therefore, raises the moduli of the
samples.30, 32 Lower esterification and consequently lower crosslinking (increased swelling ratio)
result in lower mechanical properties of PXASA21. This is also corroborated by the increase in
the Tg values, as discussed earlier. Polyesters PXA, PXASA11, PXASA12 and PXASA14 have
Tg lower than the physiological temperature and, therefore, are elastomeric in nature at 37 ˚C.
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
3.4 Surface water wettability
Water contact angles are indicative of the hydrophobicity of the material. Surface water
wettability studies show that all the synthesized polyesters are hydrophobic (except for
PXASA21) in nature and have comparable water contact angles (Table 1). However, contact
angle of PXASA21< PXASA14< PXA< PXASA11= PXASA12. The excess –OH groups
present in PXASA12 are responsible for the higher hydrophilicity of this polymer. However, as
crosslinking increases (discussed below), the number of unreacted groups in the polymer
backbone decreases and lesser –OH groups are available to interact with water. This results in an
increase of hydrophobicity in PXASA11 and PXASA12. However, lower polymerization due to
excess acid23 in PXASA14 leads to a slight decrease in the hydrophobicity. The lesser
16
ACS Paragon Plus Environment

Page 17 of 45
Molecular Pharmaceutics
1
2
3
4
5
6
crosslinking (increased swelling) could also be attributed to the decreased water contact angle in
PXASA14.
7
8
9
The hydrophobicity is dependent on the crosslinking of the polymers. However, the
hydrophobicity cannot increase beyond a certain contact angle due to thermal curing. Since the
polymers have variable stoichiometric composition, the extent of reaction changes and this
consequently alters its interaction with water.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
3.5 Measurement of swelling ratio and gel content
The swelling ratios obtained from the polymers can be directly correlated to the extent of
crosslinking in the polymers. The swelling ratio increases in the following order where
PXASA14< PXASA11< PXASA12. The results obtained (Table 1) show that swelling ratio
decreases in PXASA11 as compared to PXA, indicating higher crosslinking. Further increase in
crosslinking was observed in PXASA12. The increased crosslinking in the SA loaded polyesters
as compared to PXA is most likely due to the availability of more functional groups in the
former. In the SA loaded polyesters, two kinds of ester bonds may form: an aliphatic ester and a
phenyl ester. This increased probability of ester linkage formation may be responsible for the
enhanced crosslinking. Moreover, in PXASA12 the functionality ratio of the free –COOH to the
free –OH groups is closer to 1 than in PXA or PXASA11. The extent of conversion is, therefore,
high in PXASA12. PXASA14 shows a much higher swelling and is less crosslinked compared to
the other polyesters. The presence of excess –COOH groups in PXASA14 leads to a lower
polymerization and consequently increases the swelling ratio indicative of lower crosslinking.
Consequently, the gel content measurement data shows that the % gel content follows an
order of PXASA12> PXASA11>PXASA14>PXASA21. The sol content in the polymer is the
17
ACS Paragon Plus Environment

Molecular Pharmaceutics
Page 18 of 45
1
2
3
4
5
6
7
8
9
fraction of the polymer that can be extracted from the polymer network by a solvent. Since the
degree of esterification is less in PXASA21, 84 % of the polymer mass is lost by extraction in
DMF. Subsequently, the esterification and crosslinking being higher in the other polyesters, the
gel content was higher in these polyesters. Both the swelling ratio and gel content follow the
same trend as shown in Table 1.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
3.6 Hydrolytic degradation studies
Hydrolytic degradation studies (Table 1) show that the rate of degradation decreases as
the crosslinking increases. The degradation rate exhibits the following trend: PXASA21>
PXASA14> PXASA11> PXASA12. The degradation slows down from PXASA21 (which
degrades ~ 100 % in six days) to PXASA14 (~ 65 % in seven days) to PXASA11 (~ 30 % in
seven days) to PXASA12 (4% in 7 days), underscoring the broad range of release obtained
through the control of stoichiometry. The trend is the same as that of contact angle, swelling ratio
and % gel content. These results indicate that hydrophobicity and crosslinking of the polymers
play an important role in the degradation of polyesters. The crosslinking governs the rate of
water permeation into the polymer. As is evident from the SEM micrographs, the mass loss due
to degradation is not due to predominant surface erosion (Figure 3). No surface cracks are
observed on the polymer discs. The erosion, therefore, is primarily controlled by the water
diffusing into the bulk of the polymer. Compared to 30 % mass loss in the completely cured
polymer in 7 days, the uncured prepolymer of PXASA11 degrades 80 % (Figure 4a).
Hydrophobicity increases as the crosslinking increases.33 This is because higher crosslinking
leads to lesser free –OH groups in the polymer. Therefore, lesser unreacted –OH groups are
available to interact with water and makes the surface substantially more hydrophobic.
18
ACS Paragon Plus Environment

Page 19 of 45
Molecular Pharmaceutics
1
2
3
4
5
6
Hydrophobicity directs the amount of water that is present and/or retained in the vicinity of the
hydrolysable ester bonds.
7
8
9
In all cases, it is observed that the rate of degradation follows a first order process which
is fast at the beginning and gradually slows down as the availability of hydrolysable ester bonds
decreases (Figure 4b). The hydrolytic degradation data show that ~26 % of the mass loss occurs
in the first 96 h, after which the weight loss becomes almost constant at ~30 % for the
degradation of PXASA11. This can be modeled by first order degradation kinetics with a
limiting mass, as observed for the degradation of PXA.23
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
The effect of lipase on polymer degradation was evaluated. The completely cured
PXASA11 undergoes 30 % and 45 % mass loss in the absence or presence of lipase,
respectively. A wound is generated at the implant site and the biological milieu can be
significantly altered from normal physiological conditions. The pH at a wound site can be
significantly altered.34 A number of enzymes are present in the human body. Lipases, a subset of
esterases, are present throughout the body and particularly abundant at the sites of
inflammation.35 FTIR spectroscopy (Figure S1 in supplementary information) of samples
degraded for seven days shows that degradation is governed by external pH conditions and the
presence of enzyme. The graph clearly shows that the acid to ester peak ratio increases with an
increase in the rate of degradation. The data were normalized and the acid to ester peak ratio was
calculated by taking the ratio of the peak intensities at 1690 cm-1 and 1740 cm-1. Under
physiological pH conditions, the acid to ester peak ratio is 1.04, compared to 0.90 and 1.40 under
acidic and basic conditions, respectively. This is because the rate of ester hydrolysis is markedly
higher as compared to neutral or acidic pH under alkaline conditions. This may also be due to the
19
ACS Paragon Plus Environment

Molecular Pharmaceutics
Page 20 of 45
1
2
3
4
5
6
accumulation of adipic acid, SA and xylitol on the surface of the polymer. All of these
components are more soluble in alkaline pH.36
7
8
9
The FTIR spectra of PXASA11, after seven days of degradation in the presence of lipase,
shows an appreciable decrease in the –C=O stretching peak for ester at 1740 cm-1, where almost
all the ester bonds have hydrolyzed. The acid to ester peak ratio increases to 2.76. This indicates
that the presence of lipase quickens the degradation process as compared to when the polyesters
are subjected to hydrolytic degradation, as is reported for other polymers.37, 38
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Kinetics of degradation
The degradation kinetics may be governed by equations as reported earlier23 and may be
fitted to the following equation:
푴 −푴
풕
ln( 푴 −푴풍풊풎) = −풌풕
(5)
ퟎ
풍풊풎
푴 −푴
풕
The semi-log plot of (
풍풊풎) with time is linear (Figure 4b). The rate constants of
푴 −푴
ퟎ
풍풊풎
degradation, k, are obtained from the slope of the plot. The k values (× 10−3 ℎ−1) are 13.7, 13.3,
17.9, and 20.1 for PXASA11, PXASA12, PXASA14, and PXASA21, respectively. The
prepolymer of PXASA11 (designated as PXASA11_prepol) has a rate constant of 19.1 ×
10−3 ℎ−1, which is higher than that of PXASA11. Under the influence of lipase, the rate of
degradation is further enhanced and the k value (× 10−3 ℎ−1) obtained for PXASA11 (under
lipase) is 27.6.
20
ACS Paragon Plus Environment

Page 21 of 45
Molecular Pharmaceutics
1
2
3
4
3.7 Salicylic acid release studies
5
6
7
8
9
The major focus of the present work is to develop a SA releasing polymer matrix that
may be used in vivo. A number of factors have, therefore, been varied to observe the influence of
these factors on the release mechanism of the polymer. The extent of crosslinking directly
controls drug release from a crosslinked polymer. The SA release from the matrix is slower if the
network is stiffer. A number of other factors that also influence the degradation and simultaneous
SA release include the nature of the drug and the matrix, hydrophobicity, geometry, surface
area,39 polymer degradation and the interaction between the drug and the matrix.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
We confirmed that the polymer release product contains SA and not a degraded
derivative by analyzing its entire UV-visible spectrum. When the release from the polymer
synthesized by Scheme II was studied, the UV-visible spectrum of the released product showed
an additional peak at 280 nm along with the reported SA peak at 297 nm (Figure 5). This product
is either a phenyl salicylate or phenol formed due to the high temperature of the reaction (150
˚C) as reported earlier.40 As phenol is cytotoxic,41, 42 no further studies were conducted on these
polymers. The UV-visible spectrum from the released products of all PXASA polymers
(synthesized by Scheme I) confirm the presence of SA in the release medium and display its
characteristic peak at 297 nm. However, when further analyzed by MS (Figure S2 in
supplementary information), the mass spectra reveal that SA is indeed released from the polymer
along with another compound whose molar mass is 258 Dalton, which is most likely di-salicylic
acid. The release products also included adipic acid and xylitol, along with other oligomers that
were released due to chain scission in the polymer. This is not revealed by the UV-visible spectra
since di-salicylic acid has a similar absorption maximum at 300 nm. As both SA and di-salicylic
21
ACS Paragon Plus Environment

Molecular Pharmaceutics
Page 22 of 45
1
2
acid are known to exhibit anti-inflammatory properties,43 this system was considered a potential
candidate as an immunomodulatory polymer and is characterized further.
3
4
5
6
7
8
9
3.7.1 Curing time dependent SA release
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
SA release was studied as a function of curing time for PXASA11. It is observed that
with an increase in the curing time, the crosslinking (swelling ratio) increases and there is a
subsequent slowing down in the release of the drug (Figure 6a). It is observed that, as the curing
time increases, the number of free –OH groups decreases in the polymer. The hydrophobicity of
the polymer increases and therefore, the water penetration into the polymer decreases. This
leads to reduced hydrolysis of the ester bonds resulting in a consequent slow drug release.
Hydrolysis of the ester bonds would typically cause the release of SA from the polymer
releasing SA and other associated oligomers of the polymer chain. The release of SA would
involve the hydrolysis of both the phenyl and the aliphatic ester linkages. The rates of
hydrolysis of these two bonds differ and combine to give the actual release rate of SA. The non-
cured prepolymer releases approximately 35 % of the SA loaded onto the polymer after 7 days,
whereas the 2 day cured samples release nearly 27% SA in 7 days. The completely cured
PXASA11 (6 day cured) releases at a much slower rate and only <10 % of the loaded SA is
released from the polymer. This curing dependent release has been shown for other crosslinked
polymer systems like polyesters44 and hydrogels.45 Increased crosslinking (evident from
swelling studies) results in slower release rates in all cases.
3.7.2 pH dependent SA release
SA release was also studied as a function of the pH of the surrounding environment
(Figure 6b). This is of particular interest since the hydrolysis of ester bonds is accelerated under
basic conditions. It is observed that hydrolysis occurs slightly faster under basic conditions,
22
ACS Paragon Plus Environment

Page 23 of 45
Molecular Pharmaceutics
1
2
3
4
5
6
7
8
9
where 13 % SA is released in 7 days whereas, acidic and neutral pH result in comparable SA
releases of ~ 10 %. We have previously reported that alkaline pH accelerates ester hydrolysis in
PXA substantially with an increase in the pH.23 However, in this case, two types of ester bonds
are present and the breakage/ hydrolysis of the phenyl ester may be hindered due to steric
hindrance. Although the aliphatic ester hydrolyzes under basic conditions, the phenyl ester may
not hydrolyze to release the SA from the polymer backbone. This is most likely the reason why
pH does not appreciably change the rate of SA release and the release is almost pH independent.
3.7.3 SA loading dependent SA release
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
It is important to study the dosage dependence of SA release from the polymer. It is
observed that PXASA21 releases 100 % of the loaded drug in 6 days (Figure 6c). This is
primarily because PXASA21 is a loosely crosslinked network. Since SA is a hydrophilic
molecule, a major driving force of SA release is its solubility in PBS. The lower esterification
and resultant low crosslinking makes it easier for water to penetrate into the network and
hydrolyze the ester bonds. Another reason why it releases faster is because this is more
hydrophilic than the other polyesters discussed herein owing to the free –OH groups as is
supported by their FTIR spectra. PXASA11 and PXASA12 show comparable rates of SA
release. Even though the loading of SA is higher in PXASA12 than PXASA11, their releases are
comparable (10 % in 7 days) owing to the higher crosslinking and lower gel content in
PXASA12. PXASA14 releases nearly 30 % SA in 7 days. This is due to lower crosslinking in
PXASA14 due to an excess of acidic groups. Higher gel content in this polymer allows greater
water permeation and is, therefore, causes SA release from the polymer. This study shows that
the loading concentration of the SA affects the release profile of the polymer. The drug loading
in PXASA11 and PXASA12 were 11 % and 18 %, respectively. The drug loading does not
23
ACS Paragon Plus Environment

Molecular Pharmaceutics
Page 24 of 45
1
2
3
4
5
6
significantly affect the release profile of these two polymers at later time points (discussed below
in section 3.7.5).
7
8
9
3.7.4 Lipase mediated release
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
The primary motivation for incorporating SA into the polymer backbone is to prepare an
anti-inflammatory polymeric biomaterial that can reduce inflammation at the implant site
without the aid of external immunosuppressors. These inflammation sites are particularly rich in
enzymes such as lipases or esterases. It is also pertinent for cancer treatment, another potential
target application of sustained release of SA, as cancer is associated with increased expression of
different degradative enzymes including lipases.46 It is, therefore, important to study the effect of
these enzymes on the degradation and consequent SA release from the polymers. It is observed
that the presence of lipase accelerates the breakage of the ester bonds and causes a much faster
release from the polymer. PXASA11 and PXASA14 release 30 % and 75 %, respectively, in 7
days in the presence of lipase. This is higher than 10 % and 30 % release observed in the absence
of lipase (Figure 6d).
As indicated by the above studies, it is evident that the crosslinking plays a pivotal role in
controlling the drug release from the polymer. As gel content decreases, the release becomes
faster as the sol fraction allows easier water permeation into the polymer. As supported by SEM
analysis (Figure 3), the initial degradation takes place from the bulk of the polymer and is,
therefore, dependent on the water permeation into the bulk of the sample. If the degradation of
the polymer had been a surface erosion dependent process, it would not directly depend on the
swelling ratio or crosslinking. The polymer, however, begins to develop surface cracks after 5
24
ACS Paragon Plus Environment

Page 25 of 45
Molecular Pharmaceutics
1
2
3
4
5
6
days of being immersed in PBS. The release profile of the six day cured PXASA11 shows that
the release becomes slow and has a sustained release after 96 h.
7
8
9
3.8 Cell cytocompatibility studies
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
The effect of the presence of polymers loaded with SA was characterized (Figure 7).
WST-1 readings after 1 and 3 days show that there is no statistically significant difference
between the control (fresh medium) and the conditioned medium from the different samples
PXA, PXASA11. PXA was tested for cytocompatibility in order to eliminate any cytotoxic effect
of the polymer degradation products. Both monomers xylitol and adipic acid can be metabolized
by the body47, 48 and are utilized by the fatty acid oxidation and carbohydrate metabolism,
respectively. Both PXA and PXASA11 display comparable increase in the cell population at the
end of 1 and 3 days. Microscopic investigation revealed that all cells appeared healthy and
reached confluency by day 2. The pH of the medium is not significantly affected by the release
of SA into the medium. As obtained from the release studies of the polymer, the concentration of
SA is ~40 μg/mL. SA is known to be non-toxic at this concentration. However, all release studies
are done in PBS whereas this release is done in growth medium and thus the actual concentration
released may differ. Importantly, this data proves that the polymers are all cytocompatible and
may, hence, find applications in biomedical applications. No statistical significant differences are
observed in the cell proliferation assays of control TCPS, PXA, and PXASA11 polymers.
3.9 Hemolysis assay
Hemolysis is a quantitative measure of blood compatibility of biomaterials. Hemolysis
occurs when excessive fluid diffusion into the cells causes it to swell and eventually rupture. The
consequent release of adenosine diphosphate enables it to recruit increased number of platelets to
25
ACS Paragon Plus Environment

Molecular Pharmaceutics
Page 26 of 45
1
2
3
4
5
6
7
8
9
form a thrombus or clot. It is, therefore, essential to test the response of biomedical materials to
blood. The assay shows that PXA and PXASA11 result in low hemolysis of 0.58± 0.07 % and
0.69 ± 0.09 %. This is similar to other commercially available polymers used in biomedical
applications like polycaprolactone (PCL) (1.40 % hemolysis).49 In general, hemolysis of up to 5
% is permissible for biomaterials. These polymers may, therefore, find applications in
biomedical applications as blood contacting devices in vivo.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
3.10 Platelet adherence assay
Blood coagulation occurs on biomaterial surfaces with the onset of platelet aggregation
due to exposure to tissue factor upon injury. A fibrin network is formed as a response to the
exposure to blood. Platelet activation induces their fusion. A clot/ thrombus forms by the
agglomeration of these fused platelets with the fibrin network in the presence of thrombin.
Figure S3 (in supplementary information) shows the adhered platelets on PXA and PXASA11
and the platelets show no increased activation, spreading or thrombus formation. Similar
observations have been reported for other polymers used clinically.49, 50 These polymers are,
therefore, hemocompatible and may be used as potential materials for biomedical applications.
4. CONCLUSIONS
We have successfully synthesized a family of crosslinked polyesters based on xylitol and
adipic acid for controlled release of SA. These biodegradable polymers are shown to be
cytocompatible in vitro and thus could potentially find use as biomaterials that elicit minimal
inflammation. The SA released is pharmacologically active making these polymers functionally
bioactive, resorbable polymers. The wide range of tailored SA release is demonstrated through
control of stoichiometry and post-polymerization time. The rate of SA release has been tuned
26
ACS Paragon Plus Environment

Page 27 of 45
Molecular Pharmaceutics
1
2
3
4
5
6
7
8
9
from 10 % to 35 % of the initial loading for cured and non-cured polymers. Simultaneously
PXASA11 and PXASA12 have significantly different degradation rates (30 % and 4 % in seven
days, respectively) but have very similar release profiles where 9 to 10 % of the loaded SA is
released in seven days. These two polymers may, therefore, be used for different tissue
applications where similar dosage of SA is required. Variable mechanical properties ranging
from 0.5 MPa to 15.3 MPa are displayed by these polyesters. The tunability of SA release has
been reported herein under varying release conditions and synthesis parameters. The functionally
active SA release slows down as curing and swelling ratio increases.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Acknowledgements
The authors would like to thank Kapil Dev Sayala for technical assistance. The authors
would like to thank Department of Biotechnology (DBT), India (BT/PR5977/MED/32/242/2012)
for funding this work. G.M. acknowledges Department of Science and Technology (DST), India
for J. C. Bose fellowship. K.C. thanks Ramanujan fellowship from the Department of Science
and Technology (DST), India.
27
ACS Paragon Plus Environment

Molecular Pharmaceutics
Page 28 of 45
1
2
3
4
REFERENCES
5
6
7
1.
Katti, D. S.; Robinson, K. W.; Ko, F. K.; Laurencin, C. T., Bioresorbable nanofiber‐based
8
9
systems for wound healing and drug delivery: Optimization of fabrication parameters. J. Biomed.
Mater. Res. A 2004, 70, 286-296.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
2.
Reconstruction Caused by a Broken PLLA Screw. Orthopedics 2014, 37, e1129-e1132.
3. Jiang, W. W.; Su, S. H.; Eberhart, R. C.; Tang, L., Phagocyte responses to degradable
polymers. J. Biomed. Mater. Res. A 2007, 82, 492-497.
4. Campoccia, D.; Montanaro, L.; Arciola, C. R., A review of the clinical implications of
anti-infective biomaterials and infection-resistant surfaces. Biomaterials 2013, 34, 8018-8029.
5. Yu, K.; Mei, Y.; Hadjesfandiari, N.; Kizhakkedathu, J. N., Engineering biomaterials
surfaces to modulate the host response. Colloid Surface B 2014, 124, 69-79.
6. Mundargi, R. C.; Babu, V. R.; Rangaswamy, V.; Patel, P.; Aminabhavi, T. M.,
Tae-Kwon, K.; Tae-Wan, J.; Dae-Hee, L., Foreign Body Reaction After PLC
Nano/micro technologies for delivering macromolecular therapeutics using poly (D, L-lactide-
co-glycolide) and its derivatives. J.Control. Release 2008, 125, 193-209.
7.
Soppirnath, K. S.; Aminabhavi, T. M., Water transport and drug release study from cross-
linked polyacrylamide grafted guar gum hydrogel microspheres for the controlled release
application. Eur. J. Pharm. Biopharm. 2002, 53, 87-98.
8.
perspective. Expert Review of Medical Devices 2006, 3, 29-47.
9. Rogers, M. A.; Yan, Y.-F.; Ben-Elazar, K.; Lan, Y.; Faig, J.; Smith, K.; Uhrich, K. E.,
Vasita, R.; Katti, D. S., Growth factor-delivery systems for tissue engineering: a materials
Salicylic acid (SA) Bioaccessibility from SA-based Poly (anhydride-ester). Biomacromolecules
2014, 15, 3406-3411.
28
ACS Paragon Plus Environment

Page 29 of 45
Molecular Pharmaceutics
1
2
3
4
10.
Stebbins, N.; Faig, J.; Yu, W.; Guliyev, R.; Uhrich, K., Polyactives: controlled and
5
6
7
8
sustained bioactive release via hydrolytic degradation. Biomater. Sci. 2015.
11. Vane, J. R.; Botting, R. M., Mechanism of action of nonsteroidal anti-inflammatory
drugs. Am. J. Med. 1998, 104, 2S-8S.
12. Vane, J. R., Inhibition of prostaglandin synthesis as a mechanism of action for aspirin-
like drugs. Nat. New Biol. 1971, 232-5.
13. Gupta, R. A.; DuBois, R. N., Colorectal cancer prevention and treatment by inhibition of
cyclooxygenase-2. Nat.Rev. Cancer 2001, 1, 11-21.
14. Paterson, J.; Lawrence, J., Salicylic acid: a link between aspirin, diet and the prevention
of colorectal cancer. Qjm-Int. J. Med. 2001, 94, 445-448.
15. Amann, R.; Peskar, B. A., Anti-inflammatory effects of aspirin and sodium salicylate.
Eur. J. Pharm. 2002, 447, 1-9.
16. Erdmann, L.; Macedo, B.; Uhrich, K. E., Degradable poly(anhydride ester) implants:
effects of localized salicylic acid release on bone. Biomaterials 2000, 21, 2507-2512.
17. Whitaker‐Brothers, K.; Uhrich, K., Investigation into the erosion mechanism of
salicylate‐based poly (anhydride‐esters). J. Biomed. Mater. Res. A 2006, 76, 470-479.
18. Tang, S.; June, S. M.; Howell, B. A.; Chai, M., Synthesis of salicylate dendritic prodrugs.
Tetrahedron Lett. 2006, 47, 7671-7675.
19. Ji, J.; Hao, S.; Wu, D.; Huang, R.; Xu, Y., Preparation, characterization and in vitro
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
release of chitosan nanoparticles loaded with gentamicin and salicylic acid. Carbohydr. Polym.
2011, 85, 803-808.
29
ACS Paragon Plus Environment
