Mechanism of Triazolinedione Ene Reactions
J. Am. Chem. Soc., Vol. 121, No. 50, 1999 11893
isotope effects observed with 1 is in the former category: the
direct formation and reaction of aziridinium imides would
provide a simpler explanation for the Stephenson isotope effect
results, but the predicted difficulty of rotation of the open
biradicals allows this mechanism to account for the intra-
molecular isotope effects. The biradical mechanism is favored
by observations of solvent effects, regioselectivity, the formation
of the cis aziridinium imide 47 from trans-cycloheptene, and
tunneling in the intramolecular isotope effects for 1c. Finally,
the curved Arrhenius plot in the trapping of intermediates by
methanol appears inconsistent with the simple two-step mech-
anism through an aziridinium imide, and provides the strongest
classical experimental support for the biradical mechanism.
Overall, the new mechanism is both supported by theory and
provides the most consistent explanation for the diverse
observations associated with these reactions.
Trapping of Intermediates. The logarithmic plot of a ratio
of products versus temperature should be linear or nearly linear
whenever the product ratio is determined by a simple competi-
39
tion between two transition states. Thus the partitioning of an
aziridinium imide intermediate between forming the methanol
adduct 32 and the ene products 3 and 4 would be expected to
lead to a linear plot in Figure 5 if the aziridinium imide is formed
directly. A linear plot would also be expected if formation of
the aziridinium imide from an open biradical intermediate is
much faster than formation of the ene product. However, when
aziridinium imide and ene product formation are competitive
the curvature of Figure 5 is the expected result. The excellent
match-up of the experimentally observed product ratios with
the theoretically modeled curve shows that the mechanism in
Scheme 2 is consistent with these observations. It should be
noted that other complex mechanisms might also explain the
curvature in this Arrhenius-type plot: the basic requirements
being that there be an intermediate that is not trapped by
methanol (this weighs against a zwitterionic species) and that
at least three transition states are important in determining the
product ratio. However, it is striking that this curvature may be
Experimental Section

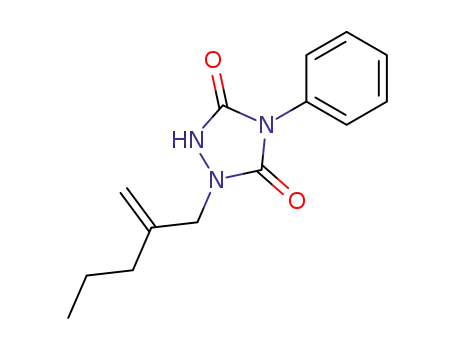

Ene Reactions of PTAD. As an example procedure, 72 g (0.41 mol)
of freshly prepared40 PTAD in 450 mL of 1,4-dioxane was added slowly
to a mixture of 36.94 g (0.528 mol) of 2-methyl-2-butene, 15.92 g
(0.161 mol) of 1,2-dichloroethane (used as GC internal standard), 5.035
g (36.5 mmol) of 1,4-dimethoxybenzene (used as NMR internal
standard), and 385 mL of 1,4-dioxane in a water bath at 25 °C. After
2
h the reaction was found to be 75 ( 3% complete by NMR. (The
percent conversion determined by GC agreed with this result within
the standard error.) Vacuum transfer of the volatiles from the reaction
mixture using a water aspirator followed by fractional distillation using
a 10-cm Vigreux column afforded 4.8 g of 2-methyl-2-butene (bp 38-
4
0 °C, >98% pure by GC).
q
q
An analogous reaction of 2-methyl-2-butene taken to 67 ( 3%
reproduced with ∆∆H and ∆∆S values for the partitioning of
conversion afforded 6.5 g of the starting alkene. Analogous reactions
of 2-methyl-1-pentene were taken to 70 ( 3% and 66 ( 3% completion,
and afforded 8.1 and 11.9 g, respectively, of recovered 2-methyl-1-
pentene (>98% purity by GC in each case).
3
1
0 that are close to those theoretically predicted in the model
0.
Conclusions
NMR Measurements. NMR measurements were taken on neat
samples of 2-methyl-2-butene or 2-methyl-1-pentene in 10-mm NMR
tubes filled to a constant height of 5 cm. A T1 determination by the
inversion-recovery method was carried out for each NMR sample,
and the T1 for each NMR signal remained constant within experimental
error from sample to sample.
The theoretical results here predict a new mechanism for ene
reactions of triazolinediones involving an open biradical as the
key intermediate. This biradical may either form the ene product
or reversibly form an intermediate aziridinium imide. The
formation of the aziridinium imide would thus be a shunt off
the main ene mechanistic pathway.
The isotope effects here support the basic features of
Becke3LYP-predicted transition structures for these reactions.
If the predicted structures err, the isotope effects suggest they
err toward underpredicting the asymmetry of the attack of PTAD
on alkenes. It should be recognized that these intermolecular
isotope effects pertain only to the transition state for the first
step in the reaction pathway and provide no direct information
about the rest of the mechanism. However, the comparison of
experimental and predicted isotope effects suggests that RHF
calculations which predict the direct formation of aziridinium
imides are inadequate for the these reactions, while supporting
the greater accuracy of the Becke3LYP structures.
The 13C spectra were recorded at 100.58 MHz with inverse gated
decoupling, using 175 s delays between calibrated 45° pulses for
2
-methyl-2-butene and 120 s delays between calibrated 45° pulses for
2-methyl-1-pentene. For 2-methyl-2-butene an acquisition time of 5.499
s was used and 197440 points were collected, and for 2-methyl-1-
pentene an acquisition time of 6.278 s was used and 262144 points
2
were collected. The H spectra were recorded at 61.395 MHz with
calibrated 45° pulse widths, using an acquisition time of 7.951 s and a
1
0.0-s delay between pulses for 2-methyl-2-butene, and using an
acquisition time of 4.983 s and a 9.0-s delay between pulses for
2-methyl-1-pentene. Integrations were determined numerically using
a constant region for each peak that was ≈5 times the peak width at
half-height on either side of the peak. A zeroth-order baseline correction
was generally applied, but in no case was a first-order (tilt) correction
applied. The results for all reactions are summarized in the Supporting
Information.
The other experimental observations with triazolinedione ene
reactions may be divided into categories depending on whether
they are merely consistent with the intermediacy of a biradical
or else favor the biradical mechanism over the direct involve-
ment of aziridinium imides. The pattern of intramolecular
Acknowledgment. We thank NIH grant No. GM-45617 and
The Robert A. Welch Foundation for support and NSF grant
No. CHE-9528196 and the Texas A&M University Supercom-
puting Facility for computational resources.
(
39) When one of the products is formed by a process that involves
substantial tunneling, as possible here (see ref 33), the tunneling could lead
to curvature in such an Arrhenius plot over a very wide temperature range
Supporting Information Available: Energies and full
geometries of all calculated structures and NMR integration
results for all reactions (PDF). This material is available free
of charge via the Internet at http://pubs.acs.org.
JA9933339
(see: Jonsson, T.; Glickman, M. H.; Sun, S.; Klinman, J. P. J. Am. Chem.
Soc. 1996, 118, 10319). However, Arrhenius plots for hydrogen-transfer
reactions are usually linear over a normal temperature range, and a plot of
ln kH/kD versus 1/T from 25 to -60 °C for reactions of 1c in CH2Cl2 (using
data from ref 33) shows no significant curvature. Therefore tunneling in
the formation of the ene product is unlikely to account for the large curvature
seen in Figure 5.
(40) Adams, C. E.; Aguilar, D.; Hertel, S.; Knight, W. H.; Paterson, J.
Synth. Comm. 1988, 18, 2225.
