in the Degussa process). The evidence from our work which
supports the presence of surface restructuring and its role in
generating atomic sites with low coordination during HCN
synthesis is presented below, in the discussion of the separate
sets of experiments, but we would note that the role of surface
defects and coordinatively highly unsaturated metal atoms in
the activation of alkanes on precious metal catalysts has also
been emphasized by several other workers.21,22
In our standard runs, the catalyst surface just prior to initi-
ation of reaction is either that produced by the standard
cleaning procedure (of which an anneal in oxygen is an inte-
gral part) or that produced in a prior reaction run. The struc-
ture of both these surfaces is compatible with efficient
methane activation or, at the very least, rapidly becomes so.
As seen in Fig. 1 there is, therefore, a very brief period in
with which the catalyst regains most of its activity suggests
that the carbon can be quickly (reactively) removed from par-
ticular sites to generate the necessary reactive surface centres.
The remaining more stable carbon deposits have less e†ect on
the catalytic reaction and their slow removal generates little in
the way of further active surface.
The observed lag in the initiation of HCN synthesis after
NH pretreatment is, at Ðrst sight, inconsistent with the
3
absence of any signiÐcant change in the surface composition.
The e†ect is not, however, directly associated with the
ammonia but with the e†ect on the surface structure of the
extended annealing in a non-oxidising environment (since
similar characteristics have since been seen after heating in an
inert environment). We believe that this extended annealing
destroys the nucleation sites at which CH activation is initi-
4
which oxidation chemistry (especially NH oxidation) pre-
ated; i.e. the treatment has an opposite e†ect to that of ion
3
dominates before the surface concentration of C fragments
bombardment, and a signiÐcant period of reaction involving
builds up to the level at which HCN synthesis occurs with
concurrent generation of mainly the ammonia decomposition
products (H , N ) and water. At termination, there is again a
brief period in which oxidation chemistry predominates as the
sample rapidly cools. The CO generated in this process stabil-
ises the “dispersedÏ Pt which characterises the active surface;
removal of this CO by heating in vacuum causes a collapse of
this active surface structure such that the desorption process is
essentially irreversible, as previously noted.
In the absence of oxygen, the initial HCN activity is quite
high (since there are no competing oxidation reactions) but
cannot be maintained at these temperatures (see, e.g. Fig. 4).
The active surface sites are then either e†ectively removed by
annealing or become decorated with inactive carbon deposits
which are stable at these temperatures in the absence of
oxygen. The remaining Pt terraces are essentially inactive for
HCN synthesis or susceptible to deactivation by growth of
unreactive (graphitic?) carbon overlayers. At the temperatures
exothermic oxidation processes (in which CO and, especially,
NO is produced) is required before the surface can re-
structure sufficiently to cause signiÐcant methane activation
2
2
2
and thus build up the requisite concentration of surface CH
species for signiÐcant HCN synthesis to occur.
x

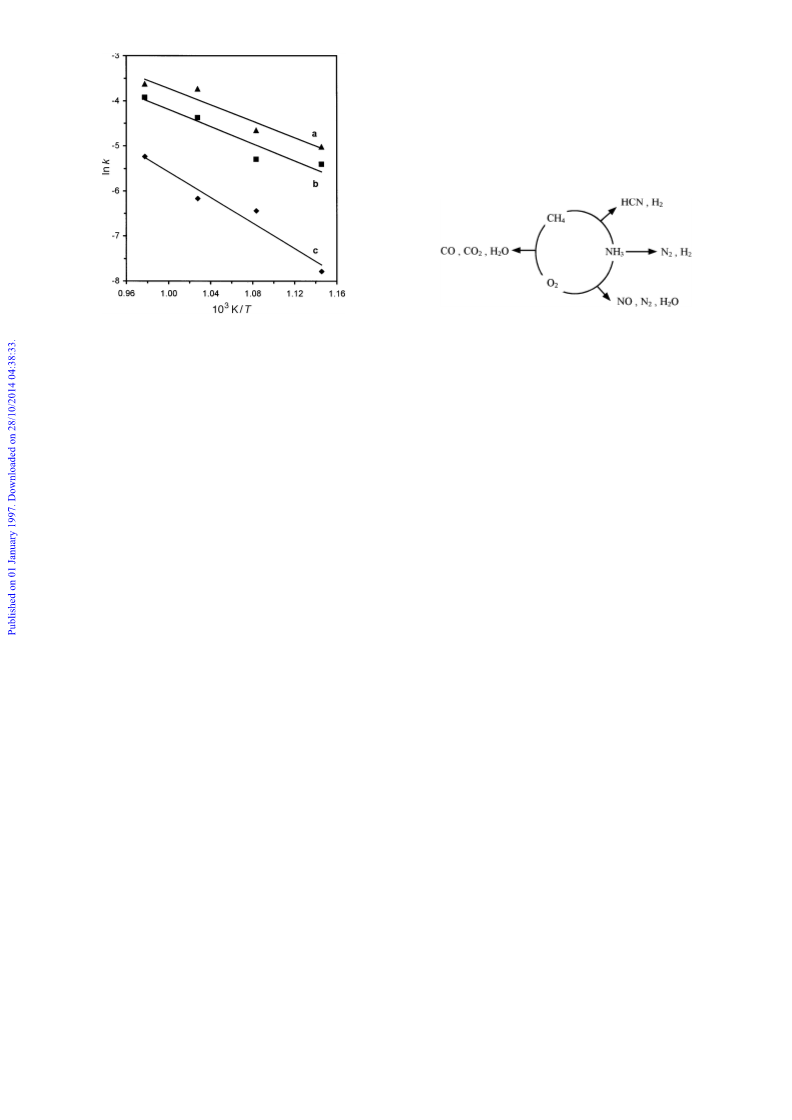

It is clear from the data presented in Fig. 3 and a compari-
son of the data of Tables 4È6 with those of Tables 1È3 that
the addition of rhodium to the platinum is detrimental to
HCN synthesis under our reaction conditions. More speciÐ-
cally, at a rhodium content of 10%, the HCN yield is substan-
tially reduced, and the alloy surface is less than a third as
active as platinum at an equivalent temperature. Owing to the
limits of the apparatus, we were unable to test whether this
reduction persists at temperatures higher than those investi-
gated here; we note, however, that previous work on PtÈRh
alloys indicates that there is a signiÐcant increase in Pt surface
segregation when such alloys are annealed in vacuum at tem-
peratures above 1000 K24 and, if the same segregation were to
be observed under HCN synthesis conditions, then the di†er-
ence in activity between pure Pt and the PtÈ10%Rh alloy
under commercial synthesis conditions might be less marked
than we observe.
employed, the addition of CO to the feed and the consequent
2
CO decomposition does not yield a sufficiently high surface
2
oxygen activity to prevent this deactivation occurring (Fig. 5).
The fact that a reasonable HCN activity is transiently
observed in the complete absence of oxygen also indicates that
The further reduction in HCN activity seen after enrich-
whilst surface oxygen species (O, OH) may facilitate CH (and
ment of the surface with Rh (by pretreatment in pure NH or
reaction under anoxic conditions) indicates that the inhibiting
4
indeed NH ) activation by assisting the dissociative adsorp-
3
3
tion, the presence of such species is certainly not essential for
methane conversion at these temperatures.
e†ect of Rh is more pronounced still at higher surface concen-
trations. The driving force for this rhodium segregation on the
alloy surface is thought to be the stabilisation of surface
rhodium atoms by adsorbed hydrogen.25 In this work, such a
condition will clearly exist during both the anoxic runs and
the catalytic decomposition of pure ammonia since ammonia
readily decomposes to generate hydrogen which is less readily
removed when oxygen is absent.
The rapid regeneration of HCN activity on PtÈ10%Rh after
pretreatment in ethylene suggests that the blocked sites on the
alloy catalyst are more easily cleaned with oxygen than they
are in pure platinum, which may have relevance to the
resilience of such catalysts to the presence of higher hydrocar-
bons in the feedstock, but this needs much more investigation.
The key question which remains to be addressed is the
cause of the reduced HCN activity in the presence of Rh. This
could be attributed to the greater resistance of the alloy to the
surface restructuring which we have proposed produces the
The results obtained following pretreatments of the Pt
sample (Fig. 6) provide clear support for the proposed model
of low coordination Pt atoms being most active in HCN syn-
thesis. Ion bombardment leads to an enhanced initial HCN
yield. Such an increase in yield might be attributable to a
simple increase in the geometric area of platinum surface, but
this is not consistent with the observation that the increase in
yield is principally associated with an increase in selectivity to
HCN. Instead, we attribute these e†ects to the artiÐcal rough-
ening of the surface induced by the high energy ion bombard-
ment, i.e. to an increase in the concentration of low
coordination sites which we have previously commented as
being important to CH activation. The subsequent gradual
4
decline in yield (and selectivity) is then attributable to a
gradual re-equilibration of the surface structure to that which
is more stable under dynamic synthesis conditions, whilst the
di†erence between the top two data curves in Fig. 6 illustrates
once again how efficient vacuum annealing is in removing the
surface roughening which leads to high HCN yields. It is also
worth noting that the e†ects that we see with ion bombard-
ment are very similar in many respects to those reported when
Pt-monolith catalysts (and PtÈRh gauzes) are transiently
heated to higher temperatures in an oxygen rich mixture.23
Carbon deposition by pretreatment in pure ethylene is only
partially e†ective in poisoning HCN synthesis. There is a very
slight delay in the initiation of the reaction but the efficiency
high HCN yields on the pure Pt surface. In NH oxidation,
3
the greater resistance of the alloy to surface reconstruction has
been demonstrated in a direct comparison of the rate of
etching of Pt and PtÈ10%Rh crystals placed in a high pressure
reactor;26 however, this does relate to conditions which are
far more oxidising than those pertaining to HCN synthesis
and could be associated with the volatility of higher oxidation
state Pt compounds. At lower temperatures and in a less oxi-
dising environment, a greater resistance to reconstruction
might be related to the lower surface (and bulk) atom mobility
J. Chem. Soc., Faraday T rans., 1997, V ol. 93
3877
