Development of a hydrothermal method to synthesize spherical znse nanoparticles: Appropriate templates for hollow nanostructures

Article abstract of DOI:10.4314/bcse.v28i1.5

Hydrothermal method was used to synthesize pure ZnSe nanosphere materials. The effects of the reducing agent amount, the reaction time and temperature were investigated on the purity of ZnSe. Also, the effects of surfactants such as sodium dodecyl sulfate (SDS) (anionic) and cetyl trimethylammonium bromide (CTAB) (cationic) were studied on the morphology of ZnSe. The prepared nanospheres were characterized using XRD, SEM, TEM and UV-Vis spectroscopy. Through these techniques, it was found that the pure ZnSe nanoparticles have a zinc blend structure and in a spherical form with average diameter of 30 nm.

Full text of DOI:10.4314/bcse.v28i1.5

Bull. Chem. Soc. Ethiop. 2014, 28(1), 37-44.
Printed in Ethiopia
ISSN 1011-3924
 2014 Chemical Society of Ethiopia
DOI: http://dx.doi.org/10.4314/bcse.v28i1.5
DEVELOPMENT OF A HYDROTHERMAL METHOD TO SYNTHESIZE
SPHERICAL ZNSE NANOPARTICLES: APPROPRIATE TEMPLATES FOR
HOLLOW NANOSTRUCTURES
1*
2
1
Soodabe Gharibe , Shahrara Afshar and Leila Vafayi
1
Firoozkooh Branch, Islamic Azad University, Firoozkooh, Iran
Department of Chemistry, Iran University of Science and Technology,
6846-13114 Tehran, Iran
2
1
(Received November 23, 2012; revised November 20, 2013)
ABSTRACT. Hydrothermal method was used to synthesize pure ZnSe nanosphere materials. The effects of the
reducing agent amount, the reaction time and temperature were investigated on the purity of ZnSe. Also, the
effects of surfactants such as sodium dodecyl sulfate (SDS) (anionic) and cetyl trimethylammonium bromide
(
CTAB) (cationic) were studied on the morphology of ZnSe. The prepared nanospheres were characterized using
XRD, SEM, TEM and UV-Vis spectroscopy. Through these techniques, it was found that the pure ZnSe
nanoparticles have a zinc blend structure and in a spherical form with average diameter of 30 nm.
KEY WORDS: ZnSe, Nanosphere, Hydrothermal, Surfactant
INTRODUCTION
In recent years, synthesis of nanostructured materials has attracted the attention of a large
number of research groups. Also, these materials have been widely studied for their unique
physical and chemical properties. The preparation of nanomaterials with controlled size,
morphologies and size distribution is always potentially important in the synthesis of materials
suitable for optoelectronic and luminescent applications [1-3].
As one of the most important II-VI group semiconductors, ZnSe with a room temperature
bulk band gap of 2.7 eV, is a good candidate for short wavelength lasers and other
optoelectronic devices such as blue-green laser diodes and turnable mid-IR laser sources [4-8].
Size, dimensionality and size distribution are known to play important roles in determining
the physical and chemical properties of nanostructured materials [9, 10]. It is difficult to control
the size distribution and these results in a broad and profoundly red shifted photoluminescence
emission. Hence, there is a need for developing a new approach to obtain monodispersed ZnSe
nanoparticles [11].
Various methods such as molecular beam epitaxy, metalorganic chemical vapor deposition
and organometallic vapor phase epitaxy have been used to synthesize ZnSe nanoparticles [2, 6,
1
2]. Solvothermal methods have also been developed for the synthesis of ZnSe and CdSe. The
advantage of the solvothermal processes is that they required relatively low temperatures and
pressures. However, organic solvents are usually harmful to the environment; therefore the non-
toxic solvents would be used for achieve the products in a large scale. Recently, ZnSe
nanostructure has been synthesized by using different hydrothermal methods [12].
This work aimed to synthesize ZnSe nanoparticles suitable as templates for fabricating
hollow nanostructures. These materials can have a wonderful application in drug delivery and
catalysis. In this work, we have reported the effects of the amount of reducing agent, the
reaction time and temperature and the type of the surfactant for the preparation of pure ZnSe
nanospheres by hydrothermal method.
_
*
_________
Corresponding author. E-mail: gharibeh@iaufb.ac.ir

38
Soodabe Gharibe et al.
EXPERIMENTAL
All the reagents were analytical grade and purchased from Merck Company. Reagents were used
without any further purification. In order to obtain a pure phase of monodispersed ZnSe
nanospherical particles the synthesis conditions such as: the reducing agent amount, type of the
surfactant, the reaction temperature and time have been optimized. The optimization conditions
are reported in the following sections. It is noteworthy the Zn to Se molar ratio has been set to
be 1 in all experiments.
Synthesis of ZnSe nanosphere particles
Optimization of the reaction temperature. 5 mmol ZnCl (98%), 5 mmol Na
2
2 3 2
SeO .5H O (97%)
and 10 mL N .H O (80%) (Na SeO .5H O to N .H O molar ratio was equal to 0.025) were
2
H
4
2
2
3
2
2
H
4
2
sequentially added to 40 mL deionized water under sonication for 3 h using an ultrasound
cleaner (VGT-1860QTD, 42 kHz, 150 W). The mixture was transferred into an autoclave,
sealed and in different experiments was kept at 80, 100, 130, 150 and 160 °C, respectively, for 8
h. After cooling the system to room temperature, the product was separated by centrifugation,
washed with absolute ethanol and deionized water several times, and then dried under vacuum
at 60 °C for 10 h.
Optimization of the amount of hydrazine hydrate. The process was the same as in the previous
section, using 5 mmol ZnCl
experiments Na SeO .5H O to hydrazine hydrate molar ratio was chosen to be equal to 0.025
10 mL), 0.05 (5 mL) and 0.0625 (4 mL), respectively. The reaction temperature and reaction
2 2 3 2 2 4 2
, 5 mmol Na SeO .5H O and N H .H O, which in different
2
3
2
(
time in the autoclave were 160 °C and 8 h, respectively.
Optimization of the reaction time. In order to find the optimum time, the reaction in previous
section was carried on at 160 °C for 2, 4, 6, 7 and 8 h. Since the time required for the reaction
was found to be 8 h, to prevent repeating, we have reported only the reaction times of 7 and 8 h
durations in the following sections.
Synthesis of ZnSe nanospheres with SDS and CTAB surfactants
In a typical synthesis, 5 mmol ZnCl was added to 20 mL of deionized water and sonicated for
2
1
2
5 min. Then solution of surfactants with ZnCl to SDS or CTAB ratio equal to 1 prepared in 20
mL of deionized water and was added slowly to ZnCl solution under sonication. Then, 5 mmol
2
2 3 2 2 4 2
Na SeO .5H O and 5 mL N H .H O (80%) were added and sonicated for 3 h. The mixture was
transferred into an autoclave, sealed and kept at 160 °C for 8 h. After cooling the system to
room temperature, the product was separated by centrifugation, washed with absolute ethanol
and deionized water for several times, and then dried under vacuum at 60 °C for 10 h.
Characterization
Having been purified, the crystal phase and particle size of the synthesized products were
characterized by X-ray diffraction (XRD) using FK60-04 with Cu Kα radiation (λ = 1.54 Å),
and with instrumental setting of 35 kV and 20 mA. The morphology of the nanostructures was
observed by emission scanning electron microscopy (SEM, Philips-XLφ30) and transmission
electron microscopy (TEM, Philips-CM120). UV-Vis spectra of the ZnSe nanosphere were
recorded by MPC-2200, UV2550 UV-Vis spectrophotometer in the wavelength range of 300 to
6
00 nm. Accessories used in this type of UV-Vis analysis are opal glass and an integrating
sphere. The opal glass method involves the placement of a scattering board behind the sample,
Bull. Chem. Soc. Ethiop. 2014, 28(1)

A hydrothermal method to synthesize spherical ZnSe nanoparticles
39
resulting in the equalization of scattering coefficients of the reference side and sample side. The
integrating sphere method involves a barium sulfate-coated sphere that draws the scattered light,
allowing all the light to reach the detector. Since light cannot penetrate opaque samples, it is
reflected on the surface of the samples.
RESULTS AND DISCUSSION
In this work, hydrazine hydrate was used as reducing agent. The XRD patterns of ZnSe
nanoparticles prepared at various temperatures are shown in Figure 1. During the experiments it
was found that when the reaction is running for 8 h at less than 100 ºC the ZnSe is not produced
and the products are ZnO and black powder of Se. Figure 1a shows the XRD patterns of the
obtained products at 80 ºC. In these patterns all the diffraction peaks can be well indexed to Se
and ZnO phases (JCPDS, No. 38-0768 and 36-1451, respectively). This means that hydrazine
2
-
2-
hydrate is not acting as a reductant for reducing the SeO to Se at 80 ºC and in this condition
3
2
-
the hydrazine hydrate has reduced SeO
3
to Se according to the reaction 1.
2
3
-
+
5
-
SeO
+ N
2
H
→ Se + N
2
+ OH + 2H
2
O
(1)
A weak new peak is appeared at diffraction degree about 27.28º when the temperature
increased to 100 ºC (Figure 1b). It may be due to the presence of ZnSe phase in the product.
2-
2-
This means that the reduction of SeO3 to Se ions by the hydrazine hydrate has been started at
00 ºC. When the temperature increased to 110-150 ºC, Se, ZnO and ZnSe were obtained as
1
reaction products (Figures 1c and 1d). In these conditions three clear peaks are appeared at
diffraction degrees 27.28º, 45.23º and 53.58º, which can be well indexed to cubic zinc blend
ZnSe (JCPDS, No. 37-1463).
The pure ZnSe nanoparticles can be obtained only when the temperature is above 150 ºC.
Figure 1e shows the XRD pattern of the pure ZnSe nanoparticles at 160 ºC. No other crystalline
phase was found in the XRD pattern. Therefore it can be concluded that the pure ZnSe
nanoparticles can be synthesized only when the temperature is over 150 ºC.

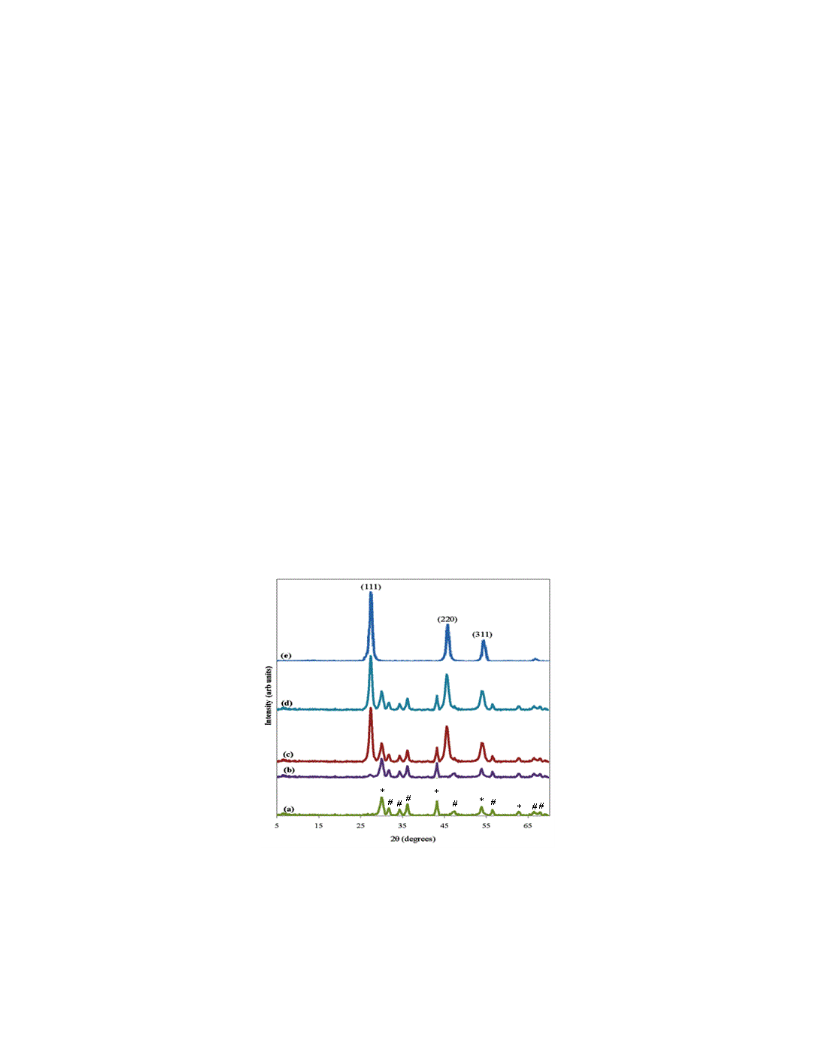

Figure 1. XRD patterns of the prepared samples at the temperatures of: (a) 80 (ZnO = #, Se = *),
(
b) 100, (c) 130, (d) 150 and (e) 160 ºC.
Bull. Chem. Soc. Ethiop. 2014, 28(1)

40
Soodabe Gharibe et al.
Decreasing of hydrazine hydrate (80%) from 10 to 5 mL had no effects on the purity of the
ZnSe phase (Figure 2a). Whereas, when using less than 5 mL of hydrazine hydrate, at 160 ºC
for 8 h, Se and ZnO phases were reappeared (Figure 2). The results showed that it is required to
use 5 mmol of Na
2 3 2
SeO .5H O (97%) as starting material at least 5 mL of hydrazine hydrate
(
80%) in order to prepare pure ZnSe at 160 ºC for 8 h.
Figure 2. XRD patterns of the prepared ZnSe with: (a) 5 mL and (b) 4 mL hydrazine hydrate.
o
In order to find the optimum time, the reaction was carried on at 160 C for 2, 4, 6, 7 and 8
h. Since the time required for the reaction was found to be 8 h, to prevent repeating, here we are
reporting only the reaction time of 7 and 8 h durations. Figure 3 shows the XRD pattern of the
prepared ZnSe with 5 mL hydrazine hydrates at 160 ºC for 7 h. It can be seen that ZnO and Se
particles have been appeared again after decreasing the reaction time from 8 to 7 h. Therefore,
the pure ZnSe nanoparticles can be obtained only when the temperature is above 150 ºC and the
reaction duration is 8 h, while the hydrazine hydrate to Na
.05.
2 3 2
SeO .5H O molar ratio is equal to
0
Figure 3. XRD pattern of the prepared ZnSe for 7 h.
The XRD patterns of pure ZnSe nanoparticles prepared with and without surfactant in
optimum conditions are shown in Figure 4. All peaks can be well indexed to cubic zinc blend.
No other crystalline phase was found in the XRD pattern. Figure 4a shows the XRD pattern of
the ZnSe nanospheres prepared without the surfactant. The lattice constant obtained from XRD
data was a = 5.669 Å, which is consistent with that of the bulk cubic ZnSe (JCPDS, No. 37-
1
463 Card, a = 5.66882(8) Å). Figures 4b and 4c show the XRD patterns of the ZnSe
nanospheres prepared with SDS and CTAB surfactants, respectively. In these patterns all
diffraction peaks can be indexed to cubic zinc blend (JCPDS, No. 05-0522, a = 5.667 Å). The
lattice constant of the ZnSe nanospheres prepared with SDS and CTAB surfactants was
calculated using XRD data and were 5.663 and 5.649 Å, respectively (standard deviation =
Bull. Chem. Soc. Ethiop. 2014, 28(1)

A hydrothermal method to synthesize spherical ZnSe nanoparticles
41
0
.01). These results indicate that the lattice parameter of the nanoparticles are smaller than those
of the bulk crystalline ZnSe (a = 5.667 Å). It is shown that in most reported nanoparticles, the
lattice constants often decrease with decreasing the particle size [12-14]. The different synthesis
conditions with products are listed in Table 1.

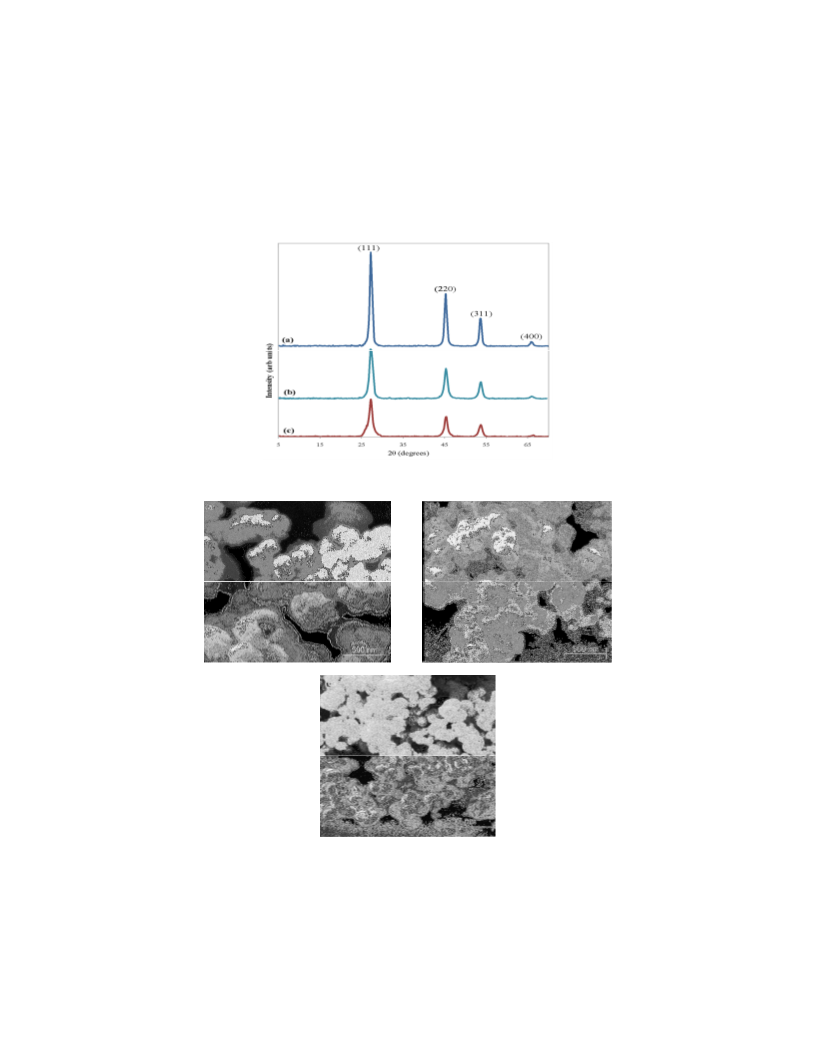

Figure 4. XRD patterns of pure ZnSe prepared: (a) without surfactant, (b) with SDS surfactant
and (c) with CTAB surfactant.
Figure 5. SEM images of ZnSe nanospheres prepared: (a) without surfactant, (b) with SDS
surfactant and (c) with CTAB surfactant.
Bull. Chem. Soc. Ethiop. 2014, 28(1)

42
Soodabe Gharibe et al.
The morphology of the products was observed by SEM and TEM images. The SEM images
of the synthesized products are shown in Figures 5(a-c). These images clearly demonstrate that
the products are spherical. It can also be seen that there is a well size distribution in all products.
The grain size distribution of ZnSe prepared with Zn/Se = 1 is narrow and is consistent with the
unimodal normal distribution [15]. This narrowness may also be due to the effect of sonication
before transferring into autoclave. The SEM observations show that the samples prepared with
surfactants are less aggregated. This can be due to coating of inorganic core by the surfactant,
which prevents the nanoparticles to aggregate. It is proved that the prevention of aggregation of
nanoparticles in the presence of the surfactant is more effective when the surfactant has a long
and branched chain structure [9, 16]. The SEM images show that the ZnSe prepared with CTAB
surfactant is less aggregated because of its longer and branched chain structure. The energy
dispersive X-ray (EDAX) analyses of prepared samples confirm that the Zn and Se elemental
ratio is 1:1 for all ZnSe samples (Figure 6).

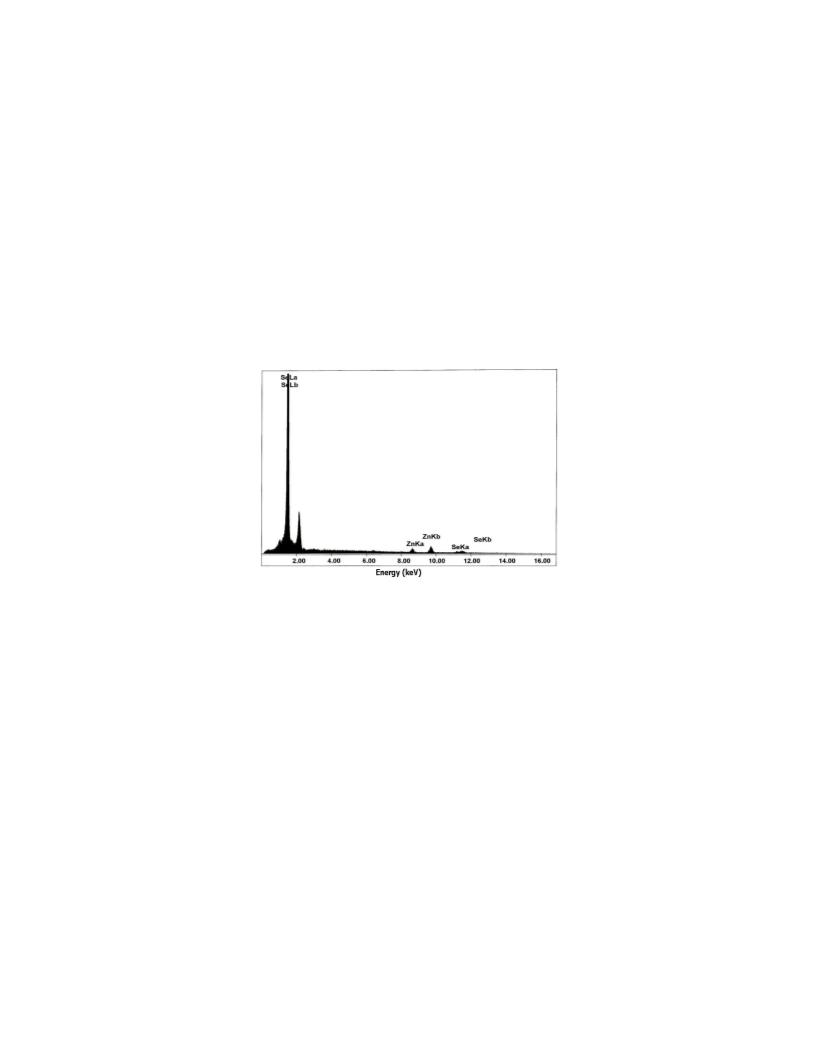

Figure 6. EDX spectrum of ZnSe nanospheres.

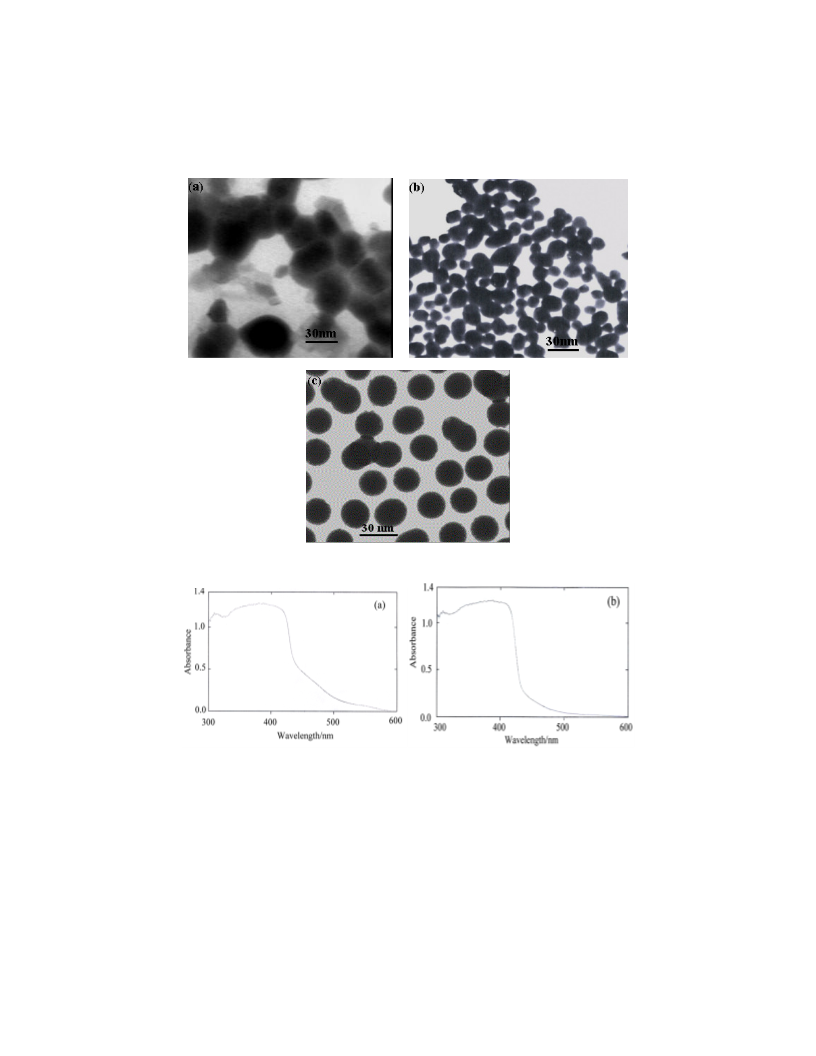

The TEM images of the synthesized products are shown in Figures 7(a-c). It is clear that the
prepared ZnSe nanoparticles using CTAB surfactant are spherical with average diameter of 30
nm. So far, ZnSe nanostructures with different morphologies have been synthesized. In 2008,
Yang et al. [18] prepared flower-like ZnSe microstructure and Shi et al. [9] synthesized ZnSe
nanodonuts by hydrothermal method. ZnSe guantum dots were synthesized by Jiao et al. [7] and
Jana et al. [3] using hydrothermal and solvothermal methods, respectively. These samples are
not appropriate templates for hollow nanostructures used in drug delivery. Quantum dots have
smaller size than those of most drugs. The other morphologies cannot create uniform spherical
hollow structures. In this work, we have prepared a pure sample of nanosphere ZnSe. The
nanoparticles with these characteristics are appropriate templates for hollow nanostructures and
these hollow nanostructures will show a wonderful application in drug delivery and catalysis.
The optical properties of the semiconductor nanomaterials depend on the size and the shape of
the particles. UV-Vis spectra of ZnSe samples are shown in Figure 8. The optical absorption
spectrum can be used to estimate the bandgap of the semiconductors. The band gap for the
prepared ZnSe samples was calculated to be 2.95 and 2.75 eV, with and without surfactant,
respectively. The band gap values are obtained by following equation: E = hc/ λ, where λ is
estimated from shoulder or peak of the spectra correspond to the fundamental absorption edges
-
19
in the samples, h is Planck constant, c is the speed of light and E is energy (1 eV = 1.602×10
J).
Bull. Chem. Soc. Ethiop. 2014, 28(1)

A hydrothermal method to synthesize spherical ZnSe nanoparticles
43
Figure 7. TEM image of prepared ZnSe nanospheres using CTAB surfactant.
Figure 8. The UV-Vis spectra of ZnSe prepared: (a) without and (b) with CTAB surfactant.
The absorption edge shows a blue shift to higher energies as compared with the bulk ZnSe
2.7 eV). This is due to the fact that smaller particles have larger band gaps and absorb at shorter
(
wavelengths [10, 17, 18]. Investigation of the spectra reveals that the synthesized ZnSe using
CTAB surfactant (Figure 8b) has a sharper absorption edge. This is consistent with the SEM
images and indicates that the synthesized particles can be considered to be monodispersed.
Bull. Chem. Soc. Ethiop. 2014, 28(1)

44
Soodabe Gharibe et al.
CONCLUSIONS
ZnSe spherical nanoparticles have been synthesized using hydrothermal method. The results
exhibited that the ZnSe nanospheres prepared using CTAB surfactant are spherical and can be
considered as monodispersed particles. The nanoparticles with monodispersed nanosphere
characteristics are appropriate templates for hollow nanostructures. Therefore, these hollow
nanostructures via removal of ZnSe attract the attention of many researchers in applying them in
drug delivery and catalysis.
Table 1. Different synthesis conditions with products.
Samples Sources of Zn
and Se
Type of
Amount of
Reaction
Reaction
products
surfactant reducing agent temperature time (h)
1
2
3
4
5
6
7
8
9
ZnCl
ZnCl
ZnCl
ZnCl
ZnCl
ZnCl
ZnCl
ZnCl
ZnCl
ZnCl
2
2
2
2
2
2
2
2
2
2
, Na
, Na
, Na
, Na
, Na
, Na
, Na
, Na
, Na
, Na
2
2
2
2
2
2
2
2
2
2
SeO
SeO
SeO
SeO
SeO
SeO
SeO
SeO
SeO
SeO
3
3
3
3
3
3
3
3
3
3
-
-
-
-
-
-
-
-
10 mL
10 mL
10 mL
10 mL
10 mL
5 mL
4 mL
5 mL
5 mL
5 mL
80 ºC
100 ºC
130 ºC
150 ºC
160 ºC
160 ºC
160 ºC
160 ºC
160 ºC
160 ºC
8
8
8
8
8
8
8
7
8
8
Se, ZnO
Se, ZnO,ZnSe
ZnSe, Se, ZnO
ZnSe, Se, ZnO
Pure ZnSe
Pure ZnSe
ZnSe, Se, ZnO
ZnSe, Se, ZnO
Pure ZnSe
SDS
CTAB
1
0
Pure ZnSe
REFERENCES
1
. Pradeep, V.; Kirtiva, V.A.; Vishwakarma, O.P.; Singh, A.K.; Meera, R.A. J. Pure Appl. &
Ind. Phys. 2011, 1, 212.
2
3
4
. Yang, J.; Wang, G.; Liu, H.; Park, J.; Chen, X. Mater. Chem. Phys. 2009, 115, 204.
. Jana, S.; Baek, I.C.; Lim, M.A.; Seok, S.I. J. Colloid Interface Sci. 2008, 322, 437.
. Jose´, M.V.; Amber, A.M.; John, B.P.; Yann, F.; Tosifa, A.M.; Vichiksha, S.; Nathaniel,
C.C.; Brian, A.A.; Antonio, C.R.; Gennady, A.S.; James, R.O.; Natalie, L.A.; Hugh, D.C.S.;
Marek, O. J. Appl. Phys. 2011, 109, 07B536.
5
6
7
8
9
1
1
. Lee, S.Y.; Sabar, D.H. Sol. Sci. Technol. 2010, 18, 171.
. Cheng, C.L.; Chen, Y.F. Chem. Phys. 2009, 115, 158.
. Jiao, Y.; Yu, D.; Wang, Z.; Tang, K.; Sun, X. Mate. Lett. 2007, 61, 1541.
. Jiang, C.; Zhang, W.; Zou, G.; Yu, W.; Qian, Y. Nanotechnol. 2005, 16, 551.
. Shi, L.; Xu, Y.; Li, Q. Solid State Commun. 2008, 146, 384.
0. Lei, Z.; Wei, X.; Bi, S.; He, R. Mater. Lett. 2008, 62, 3694.
1. Deshpande, A.C.; Singh, S.B.; Abyaneh, M.K.; Pasricha, R.; Kulkarin, S.K. Mater. Lett.
2
008, 62, 3803.
1
1
1
2. Jorgensen, J.E.; Jensen,T.R.; Hanson, J.C. J. Solid State. Chem. 2008, 181, 1925.
3. Qi, W.H.; Wang, M.P.; Su, Y.C. J. Mater. Sci. Lett. 2002, 21, 877.
4. Zhang, F.S.; Chan, W.; Spanier, H.E.; Apak, E.; Jin, Q.; Robinson, R.D.; Herman, I.P. Appl.
Phys. Lett. 2002, 80, 127.
1
1
1
1
5. Gon, H.; Huang, H.; Wang, M.; Liu, K. Ceram. Int. 2007, 33, 1381.
6. Choy, W.C.H.; Xiong, S.; Sun, Y. J. Phys. D: Appl. Phys. 2009, 42, 125410.
7. Badr, Y.; Mahmoud, M.A. Spectrochim. Acta, Part A 2006, 65, 584.
8. Yang, Y.; Du, F.; Miao, C. Mater. Lett. 2008, 62, 1333.
Bull. Chem. Soc. Ethiop. 2014, 28(1)

Copyright of Bulletin of the Chemical Society of Ethiopia is the property of Chemical Society
of Ethiopia and its content may not be copied or emailed to multiple sites or posted to a
listserv without the copyright holder's express written permission. However, users may print,
download, or email articles for individual use.
