Temperature- and solvent-induced solid-state emission changes and AIEE property of a pyrene-based sulfide compound

Article abstract of DOI:10.1016/j.dyepig.2020.108299

A new organic compound PyStBu was designed and synthesized, which exhibits successive solid-state emission changes induced by heating and DCM vapours fuming. Intermolecular interaction changes or heat-induced crystal surface layer changes may be reasonabl

Full text of DOI:10.1016/j.dyepig.2020.108299

Journal Pre-proof
Temperature- and solvent-induced solid-state emission and AIEE property of a
pyrene-based sulfide compound
Hao Sun, Jian-Hua Wei, Li-Hua Xu, Yan Jiang, Bao-Xi Miao, Zhong-Hai Ni
PII:
S0143-7208(19)32912-2
DOI:
https://doi.org/10.1016/j.dyepig.2020.108299
DYPI 108299
Reference:
To appear in: Dyes and Pigments
Received Date: 12 December 2019
Revised Date: 19 February 2020
Accepted Date: 19 February 2020
Please cite this article as: Sun H, Wei J-H, Xu L-H, Jiang Y, Miao B-X, Ni Z-H, Temperature- and
solvent-induced solid-state emission and AIEE property of a pyrene-based sulfide compound, Dyes and
Pigments (2020), doi: https://doi.org/10.1016/j.dyepig.2020.108299.
This is a PDF file of an article that has undergone enhancements after acceptance, such as the addition
of a cover page and metadata, and formatting for readability, but it is not yet the definitive version of
record. This version will undergo additional copyediting, typesetting and review before it is published
in its final form, but we are providing this version to give early visibility of the article. Please note that,
during the production process, errors may be discovered which could affect the content, and all legal
disclaimers that apply to the journal pertain.
©
2020 Published by Elsevier Ltd.

Hao Sun: Investigation, Writing - original draft.
Jian-Hua Wei: Investigation, Validation, Visualization, Software.
Li-Hua Xu: Investigation, Validation, Visualization.
Yan Jiang: Investigation, Validation, Visualization.
Bao-Xi Miao: Investigation, Validation, Visualization.
Zhong-Hai Ni: Writing - review & editing, Supervision, Project administration.

Graphic Abstract

1
2
Temperature- and solvent-induced solid-state emission and AIEE property
of a pyrene-based sulfide compound
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
Hao Sun, Jian-Hua Wei, Li-Hua Xu, Yan Jiang, Bao-Xi Miao, Zhong-Hai Ni*
School of Chemical Engineering and Technology, China University of Mining and Technology,
Xuzhou, 221116, People’s Republic of China;
Corresponding author E-mail: nizhonghai@cumt.edu.cn (Z. H. Ni)
Abstract
A new organic compound PyStBu was designed and synthesized, which exhibits successive
solid-state emission changes induced by heating and DCM vapors fuming. Intermolecular interaction
changes or heat-induced crystal surface layer changes may be reasonable for the emission change of
Cc-form after heating. In addition, crystal packing changes may be the dominant reason for different
photophysical properties of Cc-H-form and P-1-form after DCM fuming. These observations provide
reference for tuning property of organic solid-state luminescence materials and designing smart
crystal luminescent materials. In addition, PyStBu exhibits aggregation-induced emission
enhancement (AIEE) property with interesting “on–off–on” optical switching behavior.
Keywords: single crystal-to-single crystal (SCSC) structural transformation, aggregation-induced
emission enhancement (AIEE), pyrene, sulfide, crystal packing
1
1
1
1
1
1
1
1
18
1 Introduction
19
20
21
Organic solid-state luminescence materials especially those with tunable luminescence
1-6
properties have attracted extensive attention due to their wide application in various fields.
Generally, alteration of the style of solid-state molecular packing is considered as a promising

22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
method for turning luminescence properties of organic solid molecules because of the strong
dependence of their solid-state fluorescence on molecular structure and intermolecular
7-11
interactions.
Considering the difficulty and time-consuming synthesis of materials, an
approach based on application of physical stimuli (such as, light, temperature, and pressure)
to tune emission properties of organic solids exhibits many advantages such as easier
12,13
operation,
simple
equipment,
efficient
conversion
and
so
on.
Single-crystal-to-single-crystal (SCSC) phase transition provides a good chance to investigate
structure-property relationships of functional materials because the original crystals will
maintain their single crystallinity after the SCSC transformation and the changed structures
14,15
can be accurately characterized using single-crystal X-ray diffraction.
Up to date, the
reports on SCSC transformation are mainly focused on metal complexes and metal–organic
14-16
frameworks (MOFs) and the relevant studies are very fruitful.
However, although many
studies on the modulation of organic solid-state optical properties have been reported,
molecular-level understanding of the relationship between structure and resulting
luminescence property is deficient owing to the difficulty of obtaining accurate structural
17-23
information accounting for the transition of luminescence properties.
Therefore,
investigation on organic SCSC is a meaningful work and will be helpful for understanding
the structure-property relationships of organic solid-state luminescence materials and
developing organic crystal materials.
Herein, we report the design and synthesis of a new organic pyrene-based sulphide
compound ((4-(tert-butyl)phenyl)(7-(tert-butyl)pyren-1-yl)sulfane (PyStBu) (Scheme 1)
which exhibits successive solid-state emission changes induced by heating and organic

44
45
46
47
48
solvents vapours fuming. Significant changes of emission wavelength and crystal colours are
observed. These observations provide a chance to deeply understand the relationship between
optical properties and structure on molecular level. In addition, PyStBu exhibits
aggregation-induced emission enhancement property with interesting “on–off–on” optical
switching behaviour.
49
2 Experimental section
5
0
1
2.1 Synthesis
5
2.2.1 Synthesis of 2-(tert-butyl)pyrene (1)
52
53
54
55
56
57
58
59
60
61
62
Firstly, 20 g (100 mmol) pyrene was dissolved in 200 mL CS . The above solution was heated to
2
40 °C under the protection of nitrogen. 22 g (161 mmol) AlCl was quickly added into the above
3
solution that was stirred for 10 min. Secondly, 15 g (161 mmol) t-butyl chloride was dissolved in 100
mL CS , and the solution was added into the above mixture. The mixture was refluxed for 5 h. The
2
reaction mixture was cooled down to room temperature and poured into ice water after the reaction
was completed. The mixture was diluted with hydrochloric acid to adjust the pH to 4. Then, the
above mixture was extracted with DCM, washed with water, dried over MgSO , filtered and
4
concentrated. The concentrated product was purified by silica gel flash column chromatography
1
using hexane as the eluent. Yield: 24 g, 92%. H NMR (300 MHz, CDCl ): δ = 1.59 (s, 9H), 8.18 (d,
3
1
J = 9.2 Hz, 2H), 8.30 (s, 2H), 8.37 (d, J = 9.2 Hz, 2H), 8.47 (s, 1H). H NMR spectrum of 1
2
4
completely agreed with reported values.
63
2.2.2 Synthesis of 1-bromo-7-(tert-butyl)pyrene (2)

64
65
66
67
68
69
70
71
1 g (4 mmol) 1 was dissolved in 20 mL DCM, the above solution was stirred at -78 °C for 10
min. Then 0.64 g Br was dissolved in 10 mL DCM, which was slowly added into the above solution.
2
Then the above mixture was stirred for 10h at room temperature. The reaction mixture was poured
into NaHSO solution after the reaction is completed. The under organic phase was dried over
3
MgSO , filtered, and concentrated. The concentrated product was purified by silica gel flash column
4
1
chromatography using hexane as the eluent. Yield: 0.97 g, 72%. H NMR (300 MHz,
CDCl ): δ = 8.41 (d, J = 9 Hz, 1H), 8.27 (d, J = 3 Hz, 2H), 8.14–8.20 (m, 2H), 8.08 (d, J = 9 Hz, 1H),
3
1
24
7.96–8.01 (m, 2H), 1.60 (s, 9H). H NMR spectrum of 2 completely agreed with reported values.
72
73
74
75
76
77
78
79
80
81
82
83
84
85
2.2.3 Synthesis of (4-(tert-butyl)phenyl)(7-(tert-butyl)pyren-1-yl)sulfane (PyStBu)
0.58 g (3.5 mmol) 4-tert-Butylthiophenol, 1 g (3 mmol) 2 and 20 mL DMF was added to a 100
ml round bottom flask. The above mixture was stirred for 10 min in an ice bath under the protection
of N . Then, 0.134 g (3.5 mmol) NaH (60%) was slowly added to the above flask in batches and the
2
mixture was stirred for another 10 min. After all the generated hydrogen by the reaction was
discharged, the mixture was refluxed for 10 h, poured into water, extracted with DCM and washed
with water for three times. The organic phase was dried over MgSO , filtered, and concentrated. The
4
concentrated product was purified by silica gel flash column chromatography using hexane as the
1
eluent. Yield: 1.1 g, 84%. H NMR (600 MHz, CDCl ) δ 8.67 (d, J = 9.2 Hz, 1H), 8.28 (s, 2H), 8.18 –
3
8.08 (m, 4H), 8.05 (d, J = 8.9 Hz, 1H), 7.29 – 7.27 (m, 2H), 7.19 – 7.14 (m, 2H), 1.62 (s, 9H), 1.29 (s,
1
3
9H). C NMR (150 MHz, CDCl ), δ (TMS, ppm): 149.48, 149.29, 133.96, 131.95, 131.61, 131.23,
3
131.11, 130.85, 128.78, 128.60, 128.50, 128.19, 127.11, 126.17, 125.27, 124.99, 124.79, 122.82,
122.81, 122.69, 35.27, 34.45, 31.92, 31.27. MALDI-TOF MS (m/z): calcd for C H S 422.2068,
3
0
30
found 422.2073.

8
6
7
8

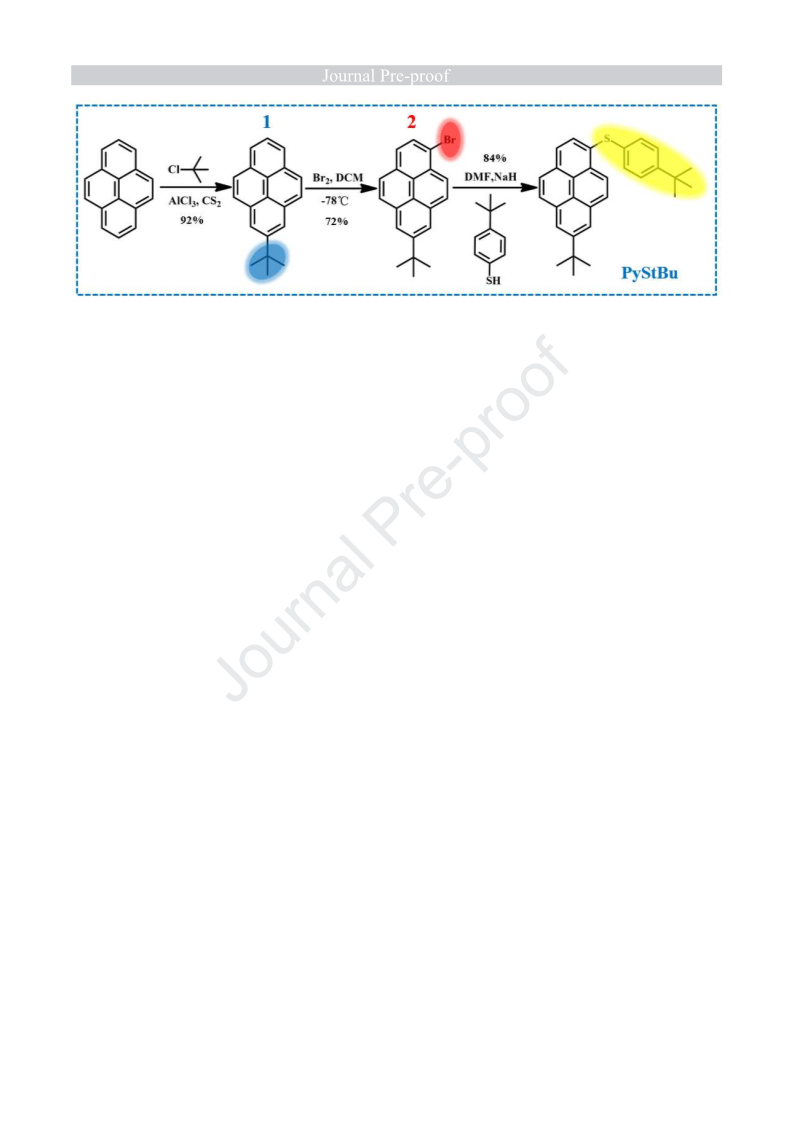

Scheme 1 Synthetic routes of compound PyStBu.
8
8
9
3 Results and discussions
8
3.1 Temperature-induced emission change
9
9
9
9
9
9
9
9
9
9
0
1
2
3
4
5
6
7
8
9
By slow evaporating of mixture solution of dichloromethane (DCM) and hexane (Hex),
needle-like crystal of PyStBu with Ccc2 space group (named as Cc-form, CCDC 1964639)
was obtained. The crystal structure of Cc-form is shown in Figure 1A and the crystal data is
illustrated in Table S1. Cc-form crystal exhibits intense deep-blue emission with a maximum
emission peak at about 420 nm (ФF=0.1132) (Figure 2B). Interestingly, the initial blue
emission of Cc- form gradually turns into blue-green emission when it is heated from 25 °C
to 137 °C (Figure 2D). The initial emission peak at about 420 nm red-shifts to 460 nm. The
crystal will melt into liquid when the heated temperature reaches to its melting point at about
141 ℃ . In order get insight into the solid-state fluorescence change properties of Cc-form, the
powder XRD and differential scanning calorimetry (DSC) analysis were performed to study
the phase characteristics of Cc-form. DSC analysis of Cc-form reveals that it exhibits an
exothermic peak at approximately 137 °C indicating that Cc-form crystal could undergo a
1
00
01
1

102
103
104
105
106
107
108
109
110
phase transformation (Figure S1). Fortunately, the crystal structure of Cc-H-form (Heating
Cc-form at 137 °C for 5 minutes and then colling down to room temperature to produce
Cc-H- form (ФF=0.5968), Cc-H form is in fact an annealed Cc form. CCDC 1964640) can be
characterized by single-crystal X-ray diffraction. The results of XRD analysis of Cc-form and
Cc-H-form consistent with the simulated pattern generated by the single crystal structure
(Figure 2C). The different peak patterns of Cc-form and Cc-H-form indicate that the
structural transformation from Cc-form to Cc-H-form occurred. Moreover, the difference in
fluorescence lifetime of Cc-form and Cc-H-form indicates changes of crystal
25
microenvironment (Figure S2).
1
1
11
12
Figure 1 The crystal structure of Cc-form (A), Cc-H-form (B) and P-1-form (C).
113

1
14
15
1

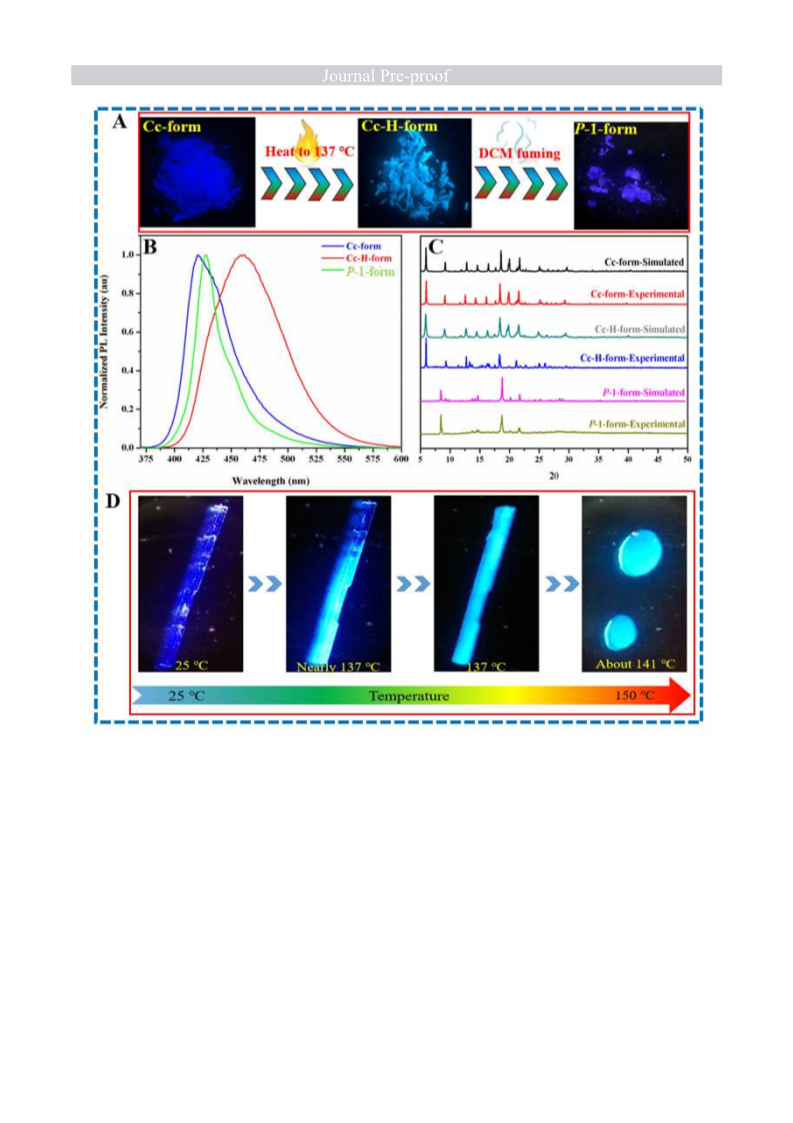

Figure 2 (A) Images of Cc-form, Cc-H-form and P-1-form under 365 UV in the process of SCSC
structural transformation. (B) Normalized PL spectra of Cc-form, Cc-H-form and P-1-form. (C) The
simulated and experimental XRD data of Cc-form, Cc-H-form and P-1-form. (D) The images of
Cc-form in the heating process. For PL measurement, excitation wavelength: 365 nm. Images are
taken under 365 nm UV light.
116
117
118
119

120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
In order to understand the SCSC phase transformation and luminescence change in

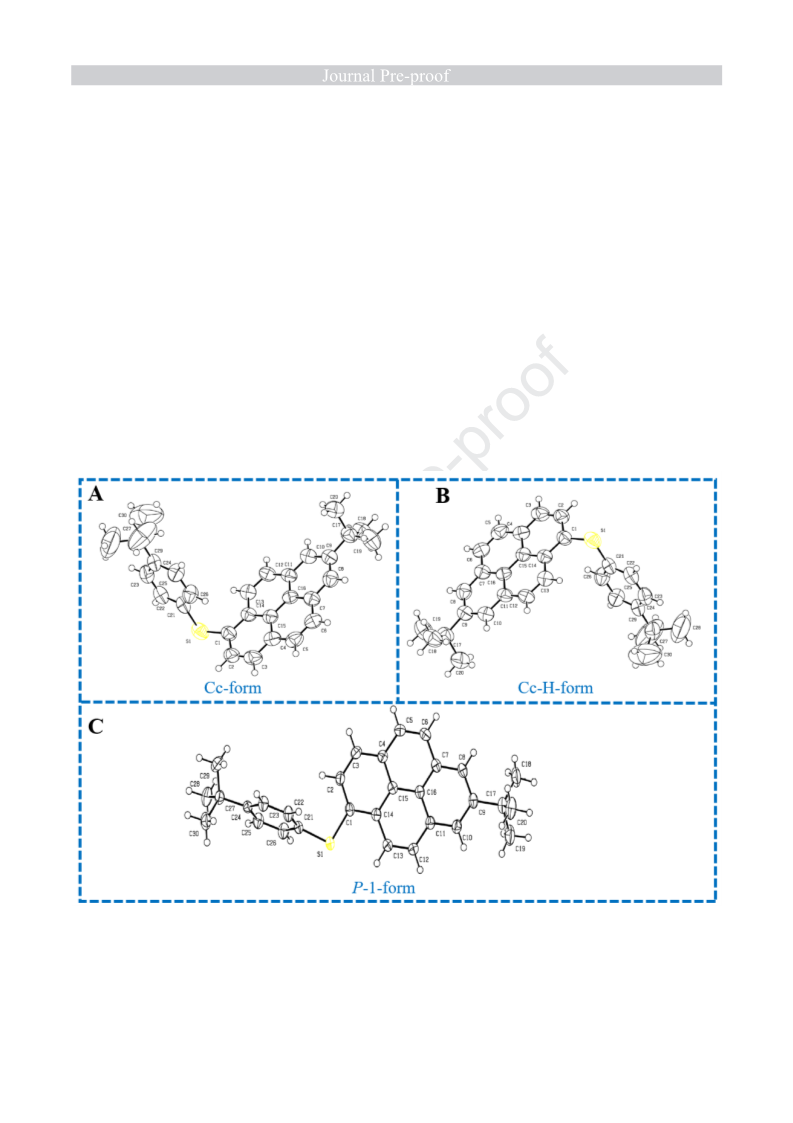

depth, the crystal structure analysis was performed. The crystal data of Cc-H-form is given in
Table S1 and its crystal structure are shown in Figure 1B. The packing arrangement of

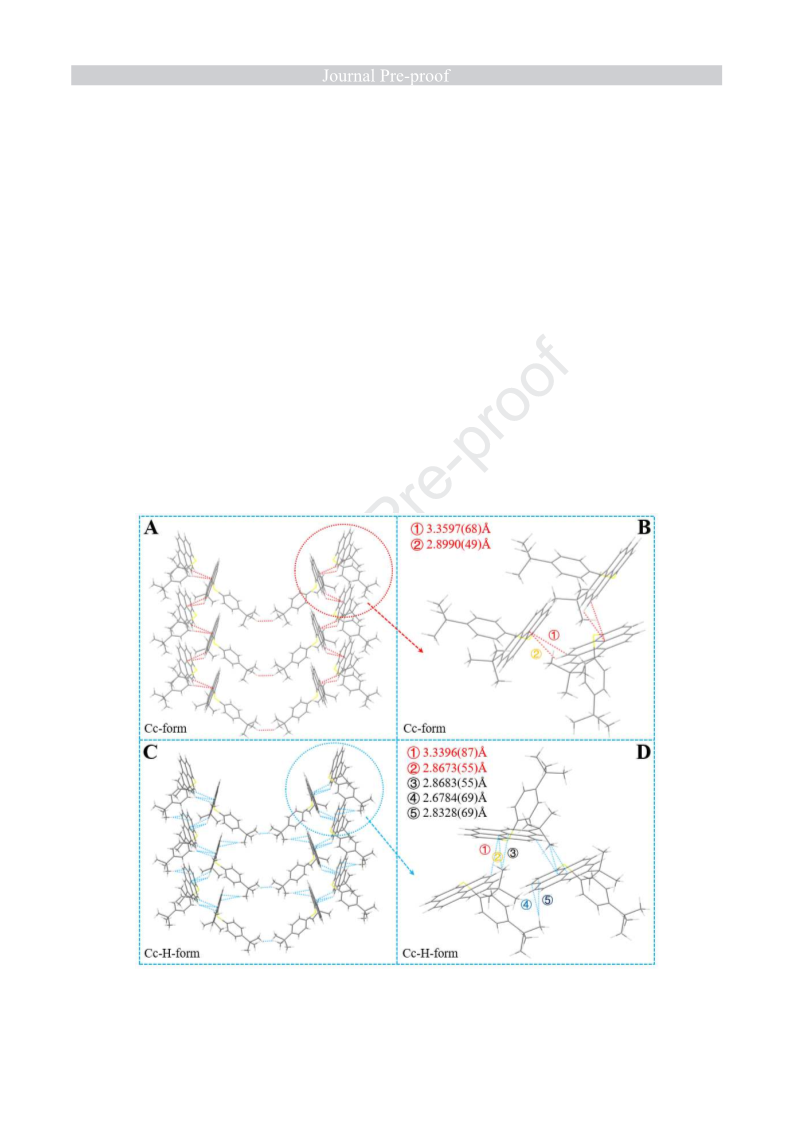

Cc-form and Cc-H-form are shown in Figure 3. As is shown, Cc-form crystalizes in the
orthorhombic system with Ccc2 space group. One Cc-form molecule and adjacent molecule
are held together by weak C–H···π and weak π···π interactions to form 1D chains and then
further connected by hydrogen bond interaction to form 3D supramolecular network.
Structure determination indicates that Cc-H-form has the same Ccc2 space group with
3
Cc-form. However, the cell volume decreases from 4702.1 (5) to 4567 (6) Å , indicating a
26
contraction of crystal Cc-H-form. Such changes may lead to crack of crystal. As can be seen

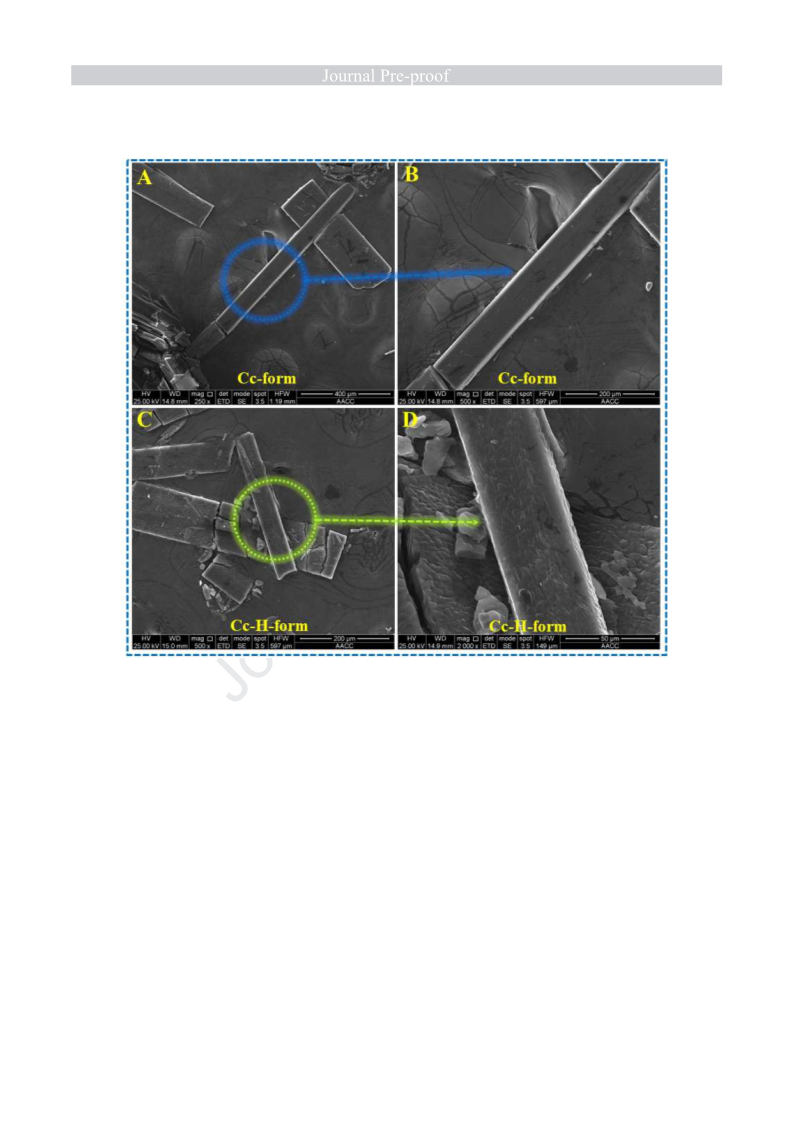

from the SEM images of Cc-form and Cc-H-form, the surface of Cc-form is smooth without
cracks (Figure 4A and Figure 4B), however, obvious cracks can be seen on the rough surface
of Cc-H-form (Figure 4C and Figure 4D). Notably, the distances of the same kinds of C–
H···π and π···π interaction in Cc-H-form become shorter than that in Cc-form (
① and ②
marked in Figure 3B and Figure 3D). The shorter interaction distance indicates stronger π···π
interaction that may be reasonable for the red shift of emission of Cc-H-form. However, the
π···π interaction in Cc-H-form is still weak due to relative large dihedral angle between the
interactional molecules. Moreover, there is only three kinds of weak interactions (one kind of
H…H contact, one kind of C–H···π interaction and one π···π interaction) in Cc-form. On the
contrary, six kinds of weak interactions (one H…H contact, four kinds of C–H···π interaction
and one π···π interaction) are observed in the Cc-H-form crystal (The detailed data of the
interactions is shown in Table S2). The distance of these C–H···π interactions in Cc-H-form

142
143
144
145
146
147
148
149
150
151
are also shorter than that of Cc-form, which indicates stronger intermolecular interaction
between adjacent molecule in Cc-H-form. Such more multiple and stronger interactions in
Cc-H-form will inhibit internal rotations and vibration, which may be reasonable for the
13,25,27-29
stronger emission intensity and longer lifetime of Cc-H-form than Cc-form.
The
excitation spectrum of Cc-form, Cc-H-form and P-1-form were measured and shown in
Figure S3. As illustrated, the excitation spectrum of Cc-H-form exhibits broader and
red-shifted features without fine vibrational structures compared to that of Cc-form and
P-1-form, indicating the possible formation of ground state dimer. The broader emission
spectra profile, red-shifted emission wavelength and longer fluorescence lifetime can also
provide some information for the formation of dimer.
1
52
53
1
Figure 3 The crystal packing and intermolecular interaction of Cc-form ((A) and (B)) and

154
Cc-H-form ((C) and (D)).
1
55
56
1
Figure 4 The SEM of Cc-form and Cc-H-form at different magnification times (A) Scale bar = 400
µm, (B) Scale bar = 200 µm, (C) Scale bar = 200 µm and (D) Scale bar = 50 µm.
157
158
159
160
161
162
163
Considering the phase transition peak of Cc-form is close to its melting point, another
possible reason (changes of the crystal surface layer) for the emission change should be
verified. The PL spectra of melted Cc-form (heated to the melted state and cooled down to
room temperature) were shown in Figure S4. As illustrated, the emission peak of melted
Cc-form is located at about 474 nm, which red shifts 14 nm compared with that of
Cc-H-form. Moreover, the emission intensity also decreased obviously. The difference both

164
165
166
167
168
169
170
in emission wavelength and emission intensity indicates the different states of Cc-H-form and
melted Cc-form. In addition, the diffraction images of Cc-form and Cc-H-form were provided
in Figure S5. As illustrated, the bright and clear diffraction spots indicate that Cc-H-form
keeps a good crystal state. The different emission properties of Cc-H-form and melted
Cc-form also indicate that Cc-H-form is not in an obvious melted state. However, it would
not be ruled out the possibility that the fluorescence behaviour of Cc-H-form is caused by the
heat-induced crystal surface layer changes such as partial rupture and slight melt.
171
3.2 DCM vapors-induced emission change
172
173
174
175
176
177
178
179
180
181
182
183
184
185
Interestingly, Cc-H-form crystal also exhibits SCSC phase transition property. When
Cc-H-form is exposed to DCM vapours for about 6 hours, Cc-H-form changes into flakes
accompanied by emission colour change from blue-green emission to blue emission (named
as
locates at about 430 nm which is blue-shifted 30 nm compare with that of Cc-H-form. The
different XRD results of Cc-H-form and -1-form indicates the structural transformation
(Figure 2C). Crystal structure analysis indicates that -1-form crystalizes in the triclinic
system with -1 space group that is very different from Cc-form and Cc-H-form. In addition,
the crystal packing model and weak interactions are different from that of Cc-form and
Cc-H-form. The packing arrangement of -1-form is shown in Figure 5. As is shown, along
both the vertical and lateral directions, one -1-form molecule interacts with six adjacent
P-1-form (ФF=0.1636), CCDC 1964641). The maximum emission wavelength of P-1-form
P
P
P
P
P
molecules through multiple weak interactions. Five kinds of weak interactions (one kind of
C-H···S interaction, three kinds of C-H···π interaction and one π···π interaction) are observed
in P-1-form, which holds the molecule pairs together to form a 3D structure. The detailed

186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
distance of them is shown in Table S2. The more intermolecular interaction especially
C-H···π interaction than that of Cc-form indicating a more rigid framework of -1-form.
Different from the herringbone packing of Cc-form and Cc-H-form, -1-form adopts a
staggered parallel stacking In crystal structure of -1-form, two pyrene planes are parallel to
P
P
.
P
each other with large slip (almost no overlap) and 3.245 Å interplanar distances forming
staggered parallel stacking, which indicates a very weak π···π interactions between adjacent
molecules. This may account for the blue-shifted emission of
Cc-H-form. Besides, considering the different molecular conformation of Cc-form,
Cc-H-form and -1-form may influence their emission properties, we calculated the frontier
P-1-form compared with
P
molecular orbital of the three crystals with different conformations using density functional
theory (DFT) based on the Gaussian 09 package. The highest occupied molecular orbitals
(HOMOs) and the lowest unoccupied molecular orbitals (LUMOs) of Cc-form, Cc-H-form
and
P-1-form are very similar (Figure 6). The energy band gap variations and the energy
changes induced by the different conformation are about 0.0003-0.0449 eV and
-8
2×10 -0.0002 eV (Table 1). These results indicate that the influence of molecular
conformational alteration on their emission properties is negligible and the crystal packing
13,25,30
dominates the photo-physical properties of the crystals.
203

204
Figure 5 The crystal packing and intermolecular interactions of P-1-form.
205
2
06
07
Figure 6 Calculated spatial distributions of HOMO and LUMO levels of crystal Cc-form,
*
2
Cc-H-form and P-1-form based on B3LYP/6-31G basis set.
208
209
210
.
Table 1 Calculated energy level of crystal Cc-form, Cc-H-form and P-1-form based on
B3LYP/6-31G basis set.
*
Energy/a. u.
-1559.22059564
-1559.22059566
-1559.22084437
HOMO/eV
-0.19731
-0.19731
-0.18888
LUMO/eV
-0.06105
-0.06104
-0.05426
E/eV
Cc-form
Cc-H-form
P-1-form
-3.70818
-3.70791
-3.66328
211
3.3 Aggregation-induced emission enhancement property (AIEE)
212
213
214
215
PyStBu is likely to exhibit AIEE property due to the introduction tert-butyl and rotable benzene
ring around the pyrene core. The large steric hindrance of rotational benzene ring and tert-butyl can
suppress the aggregation-caused quenching effect of PyStBu in aggregation state of solid state.
PyStBu exhibits a good solubility in THF, however, it is almost insoluble in water. As illustrated in

216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
Figure 7, PyStBu emits blue fluorescence in pure THF solution with an emission peak located at 399
nm is observed. Overall, with increase of water content in THF, the emission intensity gradually
declines (water content from 0% to 70%). The fluorescence emission of PyStBu is almost quenched
when the water content reached 70%. With further adding water into THF solution of PyStBu, the
fluorescence intensity of the solution is starting to increase (water fraction, 80%) and a new emission
peak at 480 nm is observed. As the moisture content increased further, the emission of PyStBu
increased dramatically until the measured 95% water content. Throughout the entire process, an
interesting “on–off–on” optical switching property is observed, the emission changes from deep-blue
to light-blue to blue-green with the increase of water content (Figure 7B). The above changes of
emission tendency indicate that PyStBu maintains original efficient emission in dilute solution just
like features of traditional dyes and exhibits typical AIEE property in aggregated state at the same
time. In order to understand the nature of different light-emitting species, time-correlated
single-photon counting (TCSPC) measurements were performed (Figure 8). As illustrated, the decay
curve of PyStBu in pure THF solution is in good agreement with the two-order exponential decay
curves (Figure 8A). In pure THF solution, a long-lived component with a lifetime (τ) of 3.24 ns
(4.4%) and a short-lived species with lifetime of 0.59 ns (95.6%) for emission monitored at 400 nm
were observed. According to previous reports, the above shorter and longer decay values can be
3
1,32
attributed to monomeric pyrene and excimer emission, respectively.
When water content is up to
95%, the emission lifetime of PyStBu increased to 24.16 ns (73.81%) that is much longer than that
in THF. In addition, the UV–vis absorption spectra of PyStBu in THF/water mixtures with 90%
water content was investigated. As shown in Figure S6, the end of the absorption curve leaves off the
baseline, such curve tailing phenomenon resulted in Mie scattering confirms the existence of

3
3,34
2
38
39
aggregates in the solution.
aggregates.
Therefore, the longer lifetime (24.16 ns) should be attributed to the
2
2
40
41
2
Figure 7 (A) PL spectra of PyStBu in THF/water mixtures with different water content. (B) Changes
of PL peak intensity (399 nm and 480 nm) with water content, the data are extracted from (A). Insets
of (B): Emission images of PyStBu in THF/water mixtures with 0, 70 and 95% water fractions. For
PL measurement, concentration: the concentration of PyStBu in all samples used in the process of
242
243
244
245
246
-5
AIEE measurement are 10 M, excitation wavelength: 365 nm. Images are taken under 365 nm UV
light.
2
47
48
2
Figure 8 Time resolved fluorescence spectra of compound PyStBu in THF (A) and THF/H O (v/v =
2

-5
249
5:95), respectively. PyStBu concentration: 10 M.
2
50
51
4 Conclusions
2
In conclusion, a new pyrene-based sulphide (PyStBu) was designed and synthesized
252
253
254
255
256
257
258
with high yields, which exhibited successive solid-state emission changes and AIEE property.
XRD, DSC and single-crystal X-ray diffraction analysis revealed that these emission changes
were dominated by changes of crystal packing, intermolecular interactions or heat-induced
crystal surface layer. The structure-property relationships before and after SCSC
transformation were successfully illuminated in this work, which will provide reference for
design and better understanding the structure-property relationships of organic solid-state
luminescence materials.
2
59
60
Conflicts of interest
2
There are no conflicts to declare.
261
Acknowledgements
262
263
264
265
This work was supported by the Future Scientists Program of “Double First Class” of China
University of Mining and Technology (2019WLKXJ013). Our deepest gratitude goes to the
anonymous reviewers for their careful work and thoughtful suggestions that have helped
improve this paper substantially
266
Notes and references
2
67
68
1 Takahashi S.; Miura H.; Kasai H.; Okada S.; Oikawa H.; Nakanishi H. J. Am. Chem. Soc.
2002, 124, 10944-10945.
2

269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
2 Chi, Z.; Zhang, X.; Xu, B.; Zhou, X.; Ma, C.; Zhang, Y.; Liu, S.; Xu, J. Chem. Soc. Rev.
2012, 41, 3878−3896.
3 Yoon S. J.; Park S. Y. J. Mater. Chem. 2011, 21, 8338-8346.
4 Zhao Y. F.; Gao H. Z.; Fan Y.; Zhou T. L.; Su Z. M.; Liu Y.; Wang Y. Adv. Mater. 2009, 21
,
3165-3169.
5 Zhang P.; Dou W.; Ju Z. H.; Tang X. L.; Liu Wei.; Chen C. Y.; Wang B.; Liu W. S. Adv.
Mater. 2013, 25, 6112-6116.
6 Yuan M. S.; Wang D. E.; Xue P. C.; Wang W. J.; Wang J. C.; Qin T.; Liu Z. Q.; Liu Y.;
Zhang Y. R.; Wang J. Y. Chem. Mater. 2014, 26, 2467-2477.
7 Mutai T.; Satou H.; Araki K. Nat. Mater. 2005, 4, 658-687.
8 Abe Y.; Savikhin V.; Yin J.; Grimsdale A. C.; Soci C.; Toney M. F.; Lam Y. M. Chem.
Mater. 2017, 29, 7686-7696.
9 Zhang G. Q.; Lu J. W.; Sabat M.; Fraser C. L. J. Am. Chem. Soc. 2010, 132, 2160-2162.
10Choudhury A. R.; Islam K.; Kirchner M. T.; Mehta G. Row T. N. G. J. Am. Chem. Soc. 2004,
126, 12274-12275.
11Chung, H.; Diao Y. J. Mater. Chem. C. 2016,
12Zhang Z.; Zhang Y.; Yao D.; Bi H.; Javed I.; Fan Y.; Zhang H.; Wang Y. Cryst. Growth Des.
2009, , 5069-5076.
4, 3915-3933.
9
13Wang K.; Zhang H. Y.; Chen S. Y.; Yang G. H.; Zhang J. B.; Tian W. J.; Su Z. M.; Wang Y.
Adv. Mater. 2014, 26, 6168-6173.
14Sun J.; Dai F. N.; Yuan W. B.; Bi W. H.; Zhao X. L.; Sun W. M.; Sun D. F. Angew. Chem.
Int. Ed. 2011, 50, 7061-7064.

291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
15Liu D. H.; Liu T. F.; Chen Y. P.; Zou L. F.; Feng D. W.; Wang K. C.; Zhang Q.; Yuan S.;
Zhong C. L.; Zhou H. C. J. Am. Chem. Soc. 2005, 137, 7740-7746.
16Kole G. K.; Vittal J. J. Chem. Soc. Rev. 2013, 42, 1755-1775.
17Sun H.; Sun W. H.; Jiang Y.; Wei J. H.; Zhao Y.; Zhang R.; Ni Z. H. Dyes Pigment. 2020,
173, 107938.
18Dou C. D.; Chen D.; Iqbal J.; Yuan Y.; Zhang H. Y.; Wang Y. Langmuir 2011, 27
,
6323-6329
19Xu B.; Chi Z.; Zhang X.; Li H.; Chen C.; Liu S.; Zhang Y.; Xu J. Chem. Commun. 2011, 47
11080-11082.
,
20Zhang Z.; Yao D.; Zhou T.; Zhang H.; Wang Y. Chem. Commun. 2011, 47, 7782-7784.
21Xu B.; Chi Z.; Zhang J.; Zhang X.; Li H.; Li X.; Liu S.; Zhang Y.; Xu J. Chem.–Asian J.
,
2011, 6, 1470-1478.
22Zhang X.; Chi Z.; Zhang J.; Li H.; Xu B.; Li X.; Liu S.; Zhang Y.; Xu J. J. Phys. Chem. B
2011, 115, 7606-7611.
23Zhou X.; Li H.; Chi Z.; Zhang X.; Zhang J.; Xu B.; Zhang Y.; Liu S.; Xu J. New J. Chem.
2012, 36, 685-693.
24Li Y. F.; Xie X.; Gong X. J.; Liu M. L.; Chen R. F.; Gao D. Q. Dyes Pigment., 2017, 145:
43-53.
25 Wu H. W.; Chi W. J.; Baryshnikov G.; Wu B.; Gong Y. F.; Zheng D. X.; Xin Li, Zhao Y. L.;
Liu X. G.; Åcgren H.; Zhu L. L. Angew. Chem. Int. Ed. 2019, 58, 4328-4333.
26Maji T. K.; Mostafa G.; Matsuda R.; Kitagawa S. J. Am. Chem. Soc. 2005, 127
,
17152-17153.

313
314
315
316
317
318
319
320
321
322
323
324
325
27Zhao C. P.; Wang Z. L.; Yang Y. L.; Feng C.; Li W.; Li Y. A.; Zhang Y. P.; Bao F.; Xing Y.
L.; Zhang X. J.; Zhang X. H. Cryst. Growth Des. 2012, 12, 1227-1231.
28Yoon S. J.; Varghese S.; Park S. K.; Wannemacher R.; Gierschner J.; Park S. Y. Adv. Optical
Mater. 2013,
29Xie Z. L.; Yu T.; Chen J. R.; Ubba E.; Wang L.; Mao Z.; Su T. T.; Zhang Y.; Aldred M. P.;
Chi Z. G. Chem. Sci. 2018, , 5787-5794.
1, 232-237.
9
30 Xu Z. Z.; Zhang Z. W.; Jin X.; Liao Q.; Fu H. B. Chem.–Asian J. 2017, 12, 2985-2990.
31 Shyamal M.; Maity S.; Mazumdar P.; Sahoo G. P.; Maity R.; Misra A. J. Photochem.
Photobiol. A: Chemistry 2017, 342, 1-14.
32 Li J.; Yang C.; Huang C.; Wan Y.; Lai W. Y. Tetrahedron Lett. 2016, 57, 1256-1260.
33 Rakesh C.; Paramjit K.; Kamaljit S. Anal. Chim. ACTA. 2015, 864, 55-63.
34 Cao Y.; Yang M.; Wang Y.; Zhou H.; Zheng J.; Zhang X.; Wu J.; Tian Y.; Wu Z. J. Mater.
Chem. C. 2014, 2, 3686–94.

Highlights
1
.
A new organic compound PyStBu was synthesized in high yields.
2
. PyStBu exhibits successional solid-state emission changes induced by heating and
DCM vapours fuming.
3
.
PyStBu exhibits aggregation-induced emission enhancement (AIEE) property
with interesting “on–off–on” optical switching behaviour.

Conflict of Interest
The authors declared that they have no conflicts of interest to this work.
