Effects of substitution position of carbazole-dibenzofuran based high triplet energy hosts to device stability of blue phosphorescent organic light-emitting diodes

Article abstract of DOI:10.3390/molecules26092804

High triplet energy hosts were developed through the modification of the substitution position of carbazole units. Two carbazole-dibenzofuran-derived compounds, 9,9^′-(dibenzo[b,d]furan-2,6-diyl)bis(9H-carbazole) (26CzDBF) and 4,6-di(9H-carbazol-9-yl)dibenzo[b,d]furan (46CzDBF), were synthesized for achieving high triplet energy hosts. In comparison with the reported hole transport type host, 2,8-di(9H-carbazol-9-yl)dibenzo[b,d]furan (28CzDBF), 26CzDBF and 46CzDBF maintained high triplet energy over 2.95 eV. The device performances of the hosts were evaluated with electron transport type host, 2-phenyl-4, 6-bis(3-(triphenylsilyl)phenyl)-1,3,5-triazine (mSiTrz), to comprise a mixed host system. The deep blue phosphorescent device of 26CzDBF:mSiTrz with [[5-(1,1-dimethylethyl)-3-phenyl-1H-imidazo[4,5-b]pyrazin-1-yl-2(3H)-ylidene]-1,2-phenylene]bis[[6-(1,1-dimethylethyl)-3-phenyl-1H-imidazo[4,5-b]pyrazin-1-yl-2(3H)-ylidene]-1,2-phenylene]iridium (Ir(cb)₃) dopant exhibited high external quantum efficiency of 22.9% with a color coordinate of (0.14, 0.16) and device lifetime of 1400 h at 100 cd m^?2. The device lifetime was extended by 75% compared to the device lifetime of 28CzDBF:mSiTrz (800 h). These results demonstrated that the asymmetric and symmetric substitution of carbazole can make differences in the device performance of the carbazole-and dibenzofuran-derived hosts.

Full text of DOI:10.3390/molecules26092804

molecules
Article
Effects of Substitution Position of Carbazole-Dibenzofuran
Based High Triplet Energy Hosts to Device Stability of Blue
Phosphorescent Organic Light-Emitting Diodes
Kyung Hyun Choi, Jae Min Kim , Won Jae Chung and Jun Yeob Lee *
School of Chemical Engineering, Sungkyunkwan University, 2066, Seobu-ro, Jangan-gu, Suwon 16419, Korea;
drchor@naver.com (K.H.C.); jmkim52@skku.edu (J.M.K.); wderwder@naver.com (W.J.C.)
* Correspondence: leej17@skku.edu
Abstract: High triplet energy hosts were developed through the modification of the substitution po-
0
sition of carbazole units. Two carbazole-dibenzofuran-derived compounds, 9,9 -(dibenzo[b,d]furan-
2,6-diyl)bis(9H-carbazole) (26CzDBF) and 4,6-di(9H-carbazol-9-yl)dibenzo[b,d]furan (46CzDBF),
were synthesized for achieving high triplet energy hosts. In comparison with the reported hole
transport type host, 2,8-di(9H-carbazol-9-yl)dibenzo[b,d]furan (28CzDBF), 26CzDBF and 46CzDBF
maintained high triplet energy over 2.95 eV. The device performances of the hosts were evaluated
with electron transport type host, 2-phenyl-4, 6-bis(3-(triphenylsilyl)phenyl)-1,3,5-triazine (mSiTrz), to
comprise a mixed host system. The deep blue phosphorescent device of 26CzDBF:mSiTrz with [[5-(1,1-
ꢀꢁꢂꢀꢃꢄꢅꢆꢇ
ꢀꢁꢂꢃꢄꢅꢆ
dimethylethyl)-3-phenyl-1H-imidazo[4,5-b]pyrazin-1-yl-2(3H)-ylidene]-1,2-phenylene]bis[[6-(1,1-
dimethylethyl)-3-phenyl-1H-imidazo[4,5-b]pyrazin-1-yl-2(3H)-ylidene]-1,2-phenylene]iridium (Ir(cb)3)
dopant exhibited high external quantum efficiency of 22.9% with a color coordinate of (0.14, 0.16)
and device lifetime of 1400 h at 100 cd m−2. The device lifetime was extended by 75% compared to
Citation: Choi, K.H.; Kim, J.M.;
Chung, W.J.; Lee, J.Y. Effects of
Substitution Position of
Carbazole-Dibenzofuran Based High
the device lifetime of 28CzDBF:mSiTrz (800 h). These results demonstrated that the asymmetric and
Triplet Energy Hosts to Device
symmetric substitution of carbazole can make differences in the device performance of the carbazole-
and dibenzofuran- derived hosts.
Stability of Blue Phosphorescent
Organic Light-Emitting Diodes.
Molecules 2021, 26, 2804.
https://doi.org/10.3390/
molecules26092804
Keywords: p-type host; blue device; phosphorescent device; lifetime; efficiency
Academic Editors: Zaizhu Lou,
Wenzhe Li and Long Wen
1. Introduction
The device performances of blue phosphorescent organic light-emitting diodes
(PhOLEDs) are behind the red and green PhOLEDs [1–6]. As a result, the red and green
Received: 9 April 2021
Accepted: 8 May 2021
Published: 10 May 2021
PhOLEDs are already commercialized, blue is still a fluorescent emitter. The device perfor-
mances of blue PhOLEDs are far behind that of the red and green PhOLEDs with respect to
device operational time, especially. To replace a blue fluorescent emitter with a phosphorescent
emitter, the development of a high triplet energy host should also be carried out.
Since progress in the device performance of blue PhOLEDs is the most effective way to
improve the performance of full-color OLED panels, a lot of studies have been conducted
to enhance the device performance of blue PhOLEDs. For device operational time, the
reported studies offer a restricted number of device lifetime studies in the deep blue region.
Due to a lack of stable deep blue phosphorescent emitter and stable high triplet energy hosts,
Publisher’s Note: MDPI stays neutral
with regard to jurisdictional claims in
published maps and institutional affil-
iations.
most of the device lifetime studies for blue PhOLEDs were in the sky blue region [7–11]
.
Copyright:
© 2021 by the authors.
As we have known, there are only three works of literature presenting device lifetime in
the deep blue region with a y coordinate of below 0.2. The study using the Pt emitter from
Licensee MDPI, Basel, Switzerland.
This article is an open access article
distributed under the terms and
conditions of the Creative Commons
Attribution (CC BY) license (https://
creativecommons.org/licenses/by/
4.0/).
Li et al. showed a y coordinate of 0.18 and device lifetime of 800 h at 100 cd m−2
, and a
low external quantum efficiency (EQE) of 3.2% [12]. The other studies using an Ir emitter
were conducted from our works. Exciplex device, oCBP:mSiTrz, exhibited y coordinate
of 0.16 and device lifetime of 1900 h at 100 cd m−2, and a high EQE of 21.6% [13]. The
electroplex device, Device II, achieved a y coordinate of 0.19 and device lifetime of 8500 h
Molecules 2021, 26, 2804. https://doi.org/10.3390/molecules26092804
https://www.mdpi.com/journal/molecules

Molecules 2021, 26, 2804
2 of 10
at 100 cd m−2, and a high EQE of 20.3%. The top-emitting electroplex device, Device III,
accomplished y coordinate of 0.13 and device lifetime of over 10,000 h at 100 cd m−2, and
high EQE of 27.6% [14].
In general, high triplet energy host materials are crucial to improve the device per-
formances of highly efficient deep blue phosphorescence organic light-emitting diodes
(PhOLEDs). The high triplet energy is essential when designing the host materials for blue
PhOLEDs because the triplet excitons of the phosphors can be transferred to hosts if the
hosts do not have higher triplet energy than the emitter [15]. Based on this principle, a lot of
host materials have been synthesized using the high triplet energy building blocks [16–28].
Among the many building blocks, carbazole has high triplet energy and electron-rich
characteristics leading to good hole transporting ability. Therefore, carbazole is one of
the most common hole transport moieties in the design of the host materials [16,17,21–27].
Other than carbazole, dibenzofuran also has high triplet energy and bipolar carrier trans-
port properties. However, the carrier transport property itself is not good enough, which
forced the dibenzofuran to be modified with other functional moieties for improved charge
transport property [18
and the effect of substitution positions has been studied in several papers by modifying it
with either hole transport or electron transport moieties [19 20]. However, the studies for
–20,28]. The dibenzofuran moiety has four substitution positions
,
the symmetrically or asymmetrically substituted dibenzofuran compounds with two func-
tional moieties have been scarce. Therefore, we decided to study the effect of symmetric
and asymmetric substitution of two carbazoles in the carbazole-dibenzofuran compounds
on the photophysics and device characteristics of the blue PhOLEDs.
In this study, two p-type hosts, 9,90-(dibenzo[b,d]furan-2,6-diyl)bis(9H-carbazole)
(26CzDBF) and 4,6-di(9H-carbazol-9-yl)dibenzo[b,d]furan (46CzDBF), were derived from
our previous work by changing the substitution position of carbazole [25]. As a reference
host, 3,6-Bis(carbazole-9-yl)dibenzo[b,d]furan (28CzDBF), which was reported to be a high
triplet energy host, was used since 28CzDBF has the same moieties but designed with differ-
ent position of the carbazoles [29]. The two p-type hosts were mixed with 2-phenyl-4,6-bis(3-
(triphenylsilyl)phenyl)-1,3,5-triazine (mSiTrz) to develop a P-N mixed host. The mixed
hosts were evaluated as the hosts of deep blue-emitting [[5-(1,1-dimethylethyl)-3-phenyl-
1Himidazo[4,5-b]pyrazin-1-yl-2(3H)-ylidene]-1,2-phenylene]bis[[6-(1,1-dimethylethyl)-3-
phenyl-1H-imidazo[4,5-b]pyrazin-1-yl-2(3H)-ylidene]-1,2-phenylene]iridium (Ir(cb)3) phos-
phorescent emitter which was reported as a high efficiency deep-blue emitter in our pre-
vious work [30]. Among the mixed hosts, the mixed host of 26CzDBF:mSiTrz exhibited a
high EQE of 21.3% with a color coordinate of (0.14, 0.16) and half luminance lifetime (LT50)
over 1000 h at an initial luminance of 100 cd m−2. The LT50 of the 26CzDBF:mSiTrz device
was extended by about twice that of 28CzDBF:mSiTrz device. This work demonstrated
that the control of the substitution position can be an effective method for improving the
operational time without sacrificing the advantages of the pristine compounds.
2. Results and Discussion
The three p-type hosts have a common structure with dibenzofuran core moiety substi-
tuted by two carbazoles. Two carbazoles were introduced at 2 and 6 positions in 26CzDBF,
4 and 6 positions in 46CzDBF, and 2 and 8 positions in 28CzDBF. The 28CzDBF host has
high triplet energy over 2.90 eV as reported in the literature [25,29] and it was proven as the
host for deep-blue PhOLEDs. The two hosts have differences in the substitution positions
with 28CzDBF, which may make differences in photophysical characteristics and device
performances. All three hosts have carbazoles having good hole-transport ability and work
as the hole transport type (p-type) host. To satisfy the carrier balance, high efficiency, and
small EQE roll-off in the blue PhOLEDs, the three hosts were mixed with an n-type host to
compose a P-N mixed host system.
The 26CzDBF, 46CzDBF, and 28CzDBF were synthesized by following the procedures
shown in Scheme 1. An iodinated dibenzofuran intermediate (1) was prepared from
4-bromodibenzo[b,d]furan and then it went through Buchwald-Hartwig cross-coupling

Molecules 2021, 26, 2804
3 of 10
reaction with 9H-carbazole to produce 9,90-(dibenzo[b,d]furan-2,6-diyl)bis(9H-carbazole)
(26CzDBF). 4,6-dibromodibenzo[b,d]furan and 2,8-dibromodibenzo[b,d]furan went through
Buchwald-Hartwig cross-coupling reaction with 9H-carbazole to produce 4,6-di(9H-carbazol-
9-yl)dibenzo[b,d]furan (46CzDBF) and 2,8-di(9H-carbazol-9-yl)dibenzo[b,d]furan (28CzDBF),
respectively. The final products were thoroughly purified by the purification processes
of column chromatography and vacuum sublimation to remove residual solvents and
impurities harmful to the device’s operational time. The purities of the final products were
over 99.3% from high-performance liquid chromatography analysis. The final structures
were confirmed by using chemical analytical methods such as 1H and 13C nuclear magnetic
resonance spectrometer and mass spectrometer.

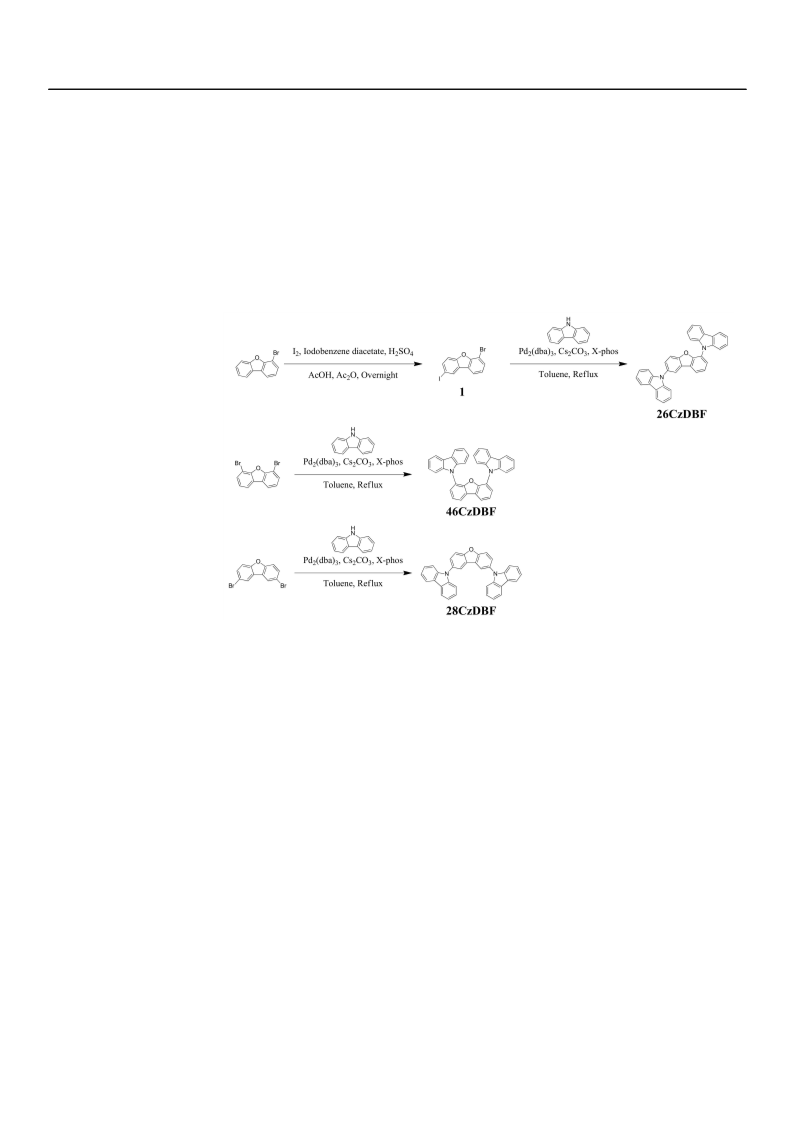

Scheme 1. Brief synthetic scheme of 26CzDBF, 46CzDBF, and 28CzDBF.
Comprehensive electronic properties of the hosts were estimated by using the Gaus-
sian 16 program based on the B3LYP 6-31G basis set. Highest occupied molecular orbital
(HOMO), lowest unoccupied molecular orbital (LUMO), and the dihedral angles between
the carbazoles and the dibenzofuran were calculated. In Figure 1, the HOMO and LUMO
dispersions of 26CzDBF, 46CzDBF, and 28CzDBF are presented. All three compounds
showed similar results in the HOMO and LUMO distributions. The HOMO was mostly
dispersed on the carbazole and partially extended to the dibenzofuran. The LUMO was
dispersed on the dibenzofuran dominantly. The dihedral angles between the carbazoles at
4-position and the dibenzofurans were 61.0◦ and 60.9◦ in 26CzDBF and 46CzDBF, respec-
tively. The dihedral angles between the carbazole at 2-position and the dibenzofuran were
59.1◦ both in 26CzDBF and 28CzDBF. In consequence, the different substitution positions
on dibenzofuran had little effect on the HOMO and LUMO dispersions and the dihedral
angles between the carbazoles and the dibenzofuran.
The calculated HOMO and LUMO values were experimentally investigated by cyclic
voltammetry (CV). Electrochemical oxidation and reduction processes were conducted
and the data from the hosts are presented in Figure S1 in Supplementary Materials. The
HOMO/LUMO energy levels of 26CzDBF, 46CzDBF, and 28CzDBF were
6.09/ 2.66, and 6.09/ 2.55 eV, respectively. The HOMOs were similar to each other
because they are depended on electron-rich carbazoles.
−
6.05/ 2.66,
−
−
−
−
−

Molecules 2021, 26, 2804
4 of 10

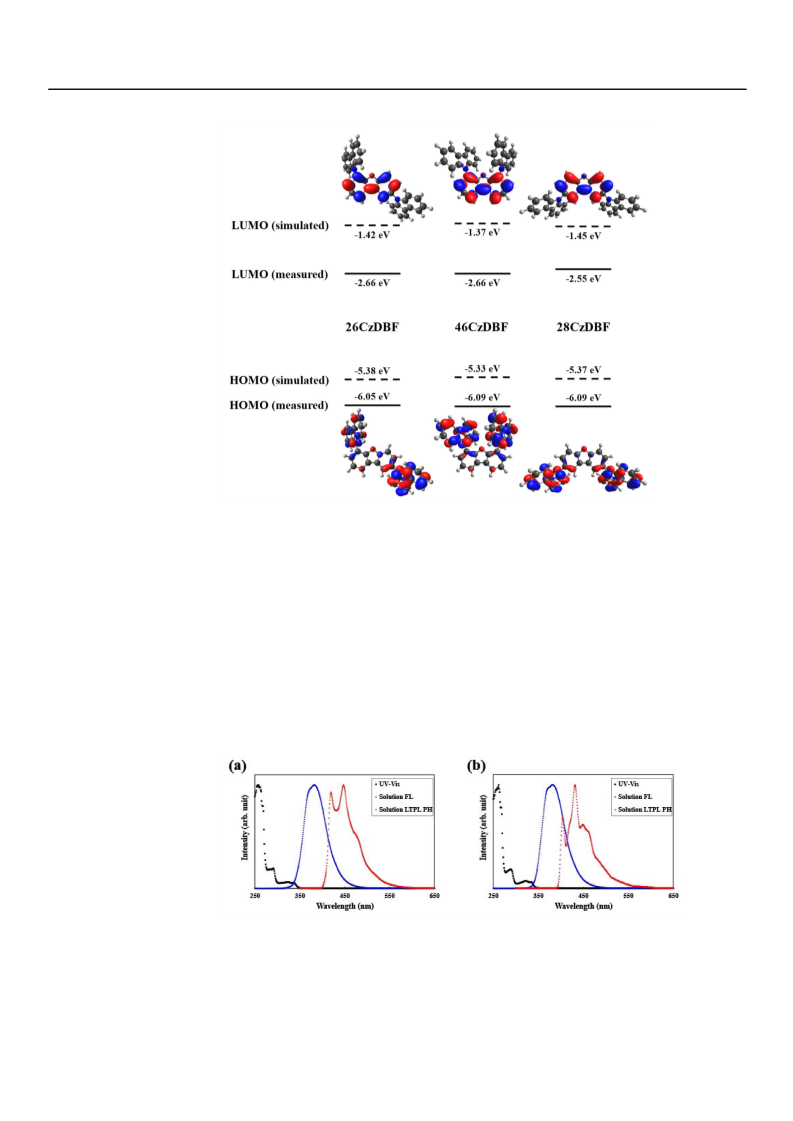

Figure 1. The HOMO and LUMO calculated and experimental results of 26CzDBF, 46CzDBF, and
28CzDBF.
Basic photophysical properties of 26CzDBF and 46CzDBF were analyzed to show their
potential as the high triplet energy hosts for deep-blue phosphors. The ultraviolet-visible
(UV-Vis), room temperature fluorescence, and low temperature (77 K) phosphorescence
spectra were measured in dilute THF solution (1.0
absorption spectra of the 26CzDBF and 46CzDBF exhibited little discrepancy as a result
of the different substitution positions. Strong UV-Vis absorption peaks below 300 nm
×
10−5 M) (Figure 2). The UV-Vis
corresponded to
the peaks between 300 nm and 350 nm were assigned to n-
π
-
π
* transitions of the carbazole units and the dibenzofuran unit, while
* transitions of carbazole units.
π
The optical energy band gaps of the hosts were calculated from the onset of the absorption
edge. The optical band gaps were 3.56 eV (348 nm) for 26CzDBF and 3.60 eV (344 nm)
for 46CzDBF.
Figure 2. UV-Vis absorption spectra, fluorescent spectra (FL) and phosphorescent spectra (PH) of (
a)
26CzDBF in solution and (b) 46CzDBF in solution.
Fluorescent emission peak wavelengths of 26CzDBF and 46CzDBF were 383 nm and
382 nm, and phosphorescent emission peaks were 419 nm and 420 nm, respectively. The
singlet and triplet energies converted from the fluorescence and phosphorescence spectra
were 3.24 eV and 2.96 eV for 26CzDBF, and 3.25 eV and 2.95 eV for 46CzDBF, respectively.

Molecules 2021, 26, 2804
5 of 10
The triplet energies were quite similar to that of 28CzDBF (2.98 eV). The results indicated
that the two hosts would harvest the triplet excitons as the 28CzDBF host did previously.
Thermal stabilities of the three hosts were analyzed by differential scanning calorimetry
(DSC) for glass transition temperature (Tg) and thermogravimetric ana◦lyzer (TGA) for
◦
◦
decomposition temperature (Td). The Tgs of the hosts were 133.2 C, 113.6 C, and 126.2 C
for 26CzDBF, 46CzDBF, and 28CzDBF, respectively. These high Tg values would prevent
the emitting layer from local molecular motion. The decomposition temperatures (Td)
were 456.7 ◦C, 412.4 ◦C, and 467.4 ◦C for 26CzDBF, 46CzDBF, and 28CzDBF, respectively.
These high Td values indicated that the hosts would endure the harsh condition of vacuum
thermal evaporation without decomposition. The data from DSC and TGA are in Figure S2
.
All the material parameters of 26CzDBF, 46CzDBF, and 28CzDBF are summarized in
Table 1.
Table 1. Summarized material parameters of 26CzDBF, 46CzDBF, and 28CzDBF.
UV Edge
[nm]
HOMO
[eV]
LUMO
[eV]
(a)
(b)
(c)
(d)
S1 [eV]
T1
[eV]
Tg [◦C]
Td
[◦C]
26CzDBF
46CzDBF
348
344
353
3.24
3.25
3.28
2.96
2.95
2.98
−6.05
−6.09
−6.09
−2.66
−2.66
−2.55
133.2
113.6
126.2
456.7
412.4
467.4
28CzDBF (e)
(a) Singlet energy was calculated from the peak wavelength of fluorescent emission. (b) Triplet energy was calculated
from the peak wavelength of phosphorescent emission. (c) Glass transition temperature. (d) Decomposition temperature.
(e) The photophysical and cyclic voltammetry data of 28CzDBF are referred to from previous works [25,29].
As the triplet energies of the three hosts were over 2.95 eV, the hosts were evaluated
with deep blue-emitting Ir(cb)3 emitter for high efficiency and long lifetime PhOLEDs. The
device structure, current density-voltage, luminance-voltage, EQE-luminance, EL spectra,
and color coordinate are presented in Figure 3. The chemical structures comprising the
devices are in Figure S3. The current density and the luminance of the 26CzDBF and
28CzDBF devices exhibited much higher values than that of the 46CzDBF device at the
same voltages. Driving voltages at 100/1000/10,000 cd m−2 of the devices were 3.9, 4.9,
and 7.3 V in 26CzDBF and 28CzDBF, and 4.3, 5.4, and 8.1 V in 46CzDBF, respectively.
The EQE values of the devices were excellent for the EQE of the deep-blue PhOLED.
The maximum EQE of the 26CzDBF device was 23.0% and the EQEs at 100 and 1000 cd m−2
were 22.9% and 21.3%, respectively. For the 46CzDBF device, the maximum EQE and
the EQEs at 100 and 1000 cd m−2 were 20.3, 19.7, and 16.9%. For the 28CzDBF device,
the maximum EQE and the EQEs at 100 and 1000 cd m−2 were 22.4, 22.4, and 19.5%,
respectively. As the hole transporting ability of the 46CzDBF host was worse than that
of the other hosts, the EQE of the 46CzDBF device was lower than those of the 26CzDBF
and 28CzDBF devices. The red-shift of the EL spectrum might be related to the optical
effect through the recombination zone. Considering the frontier orbital levels of the dopant
and hosts, Ir(cb)3 acted as both electron trap and hole trap. For holes, the trap depth was
0.15–0.19 eV for a three p-type host. Since the trap depth was similar for all devices, the
low current density of the 46CzDBF device could originate from the electrical properties
of the host. The recombination zone of the devices might be mostly dependent on the
carrier transport properties of the hosts. The relatively poor hole-transport property of the
46CzDBF host may shift the recombination zone to the hole transport layer side, which
red-shifted the EL spectrum. The color coordinates were shifted from (0.14, 0.16) of the
26CzDBF and 28CzDBF devices to (0.14, 0.18) of the 46CzDBF device at 1000 cd m−2
.

Molecules 2021, 26, 2804
6 of 10
Figure 3.
spectra (inset: enlarged spectra), and (
and 28CzDBF:mSiTrz deep blue PhOLEDs.
(
a
) Device structure, (
b
) Current density-voltage-luminance, (
c) EQE-luminance, (d) EL
e) color coordinate of the 26CzDBF:mSiTrz, 46CzDBF:mSiTrz,
The driving voltages of 46CzDBF were higher than those of the other devices even
though the HOMO level of 46CzDBF and 28CzDBF was identical ( 6.09 eV). The results
−
could not be attributed to the difference in the HOMO levels of the hosts because the
difference is only 0.04 eV. In this case, the main factor affecting the driving voltages
may be the hole transporting ability of the hosts due to the difference in the molecular
structure. The distance between two carbazole units is much closer in 46CzDBF than in
28CzDBF and 26CzDBF. The distance from one nitrogen atom to the other nitrogen atom
is 5.560 Å in 46CzDBF and 8.184 Å in 28CzDBF as depicted in Figure 4. Since the host
molecules transport carriers through the overlapped p-orbitals between host molecules, the
sphere type molecular geometry of 46CzDBF hinders the hole transport [31]. Whereas, the
extended molecular shape of the 28CzDBF and 26CzDBF is advantageous for extensive p-
orbital overlap, facilitating the hole transport. The molecular shape with the short distance

Molecules 2021, 26, 2804
7 of 10
between the two carbazole units caused the high driving voltage of the 46CzDBF devices.
This can be confirmed by the hole-only device (HOD) device data in Figure 5. The device
structure of the HOD was ITO (50 nm)/PEDOT:PSS (60 nm)/hosts (50 nm)/Al (200 nm).
The hole mobilities analyzed from the fitting of the space-charge-limited current of the
HOD is depicted in Figure 5b. The hole mobilities at the root electric field of 1241 V0.5
cm−0.5 were 4.8
×
10−5 cm2 V−1s−1 for 26CzDBF, 2.5
×
10−7 cm2 V−1s−1 for 46CzDBF,
and 2.4
×
10−5 cm2 V−1s−1 for 28CzDBF. The hole mobility of 46CzDBF was 192 times
lower than that of 26CzDBF. From the current density-voltage and the hole mobility, the
ability of the hosts to transport hole carriers can be evaluated, which confirmed that the
26CzDBF and 28CzDBF show much better hole-transport properties than 46CzDBF.

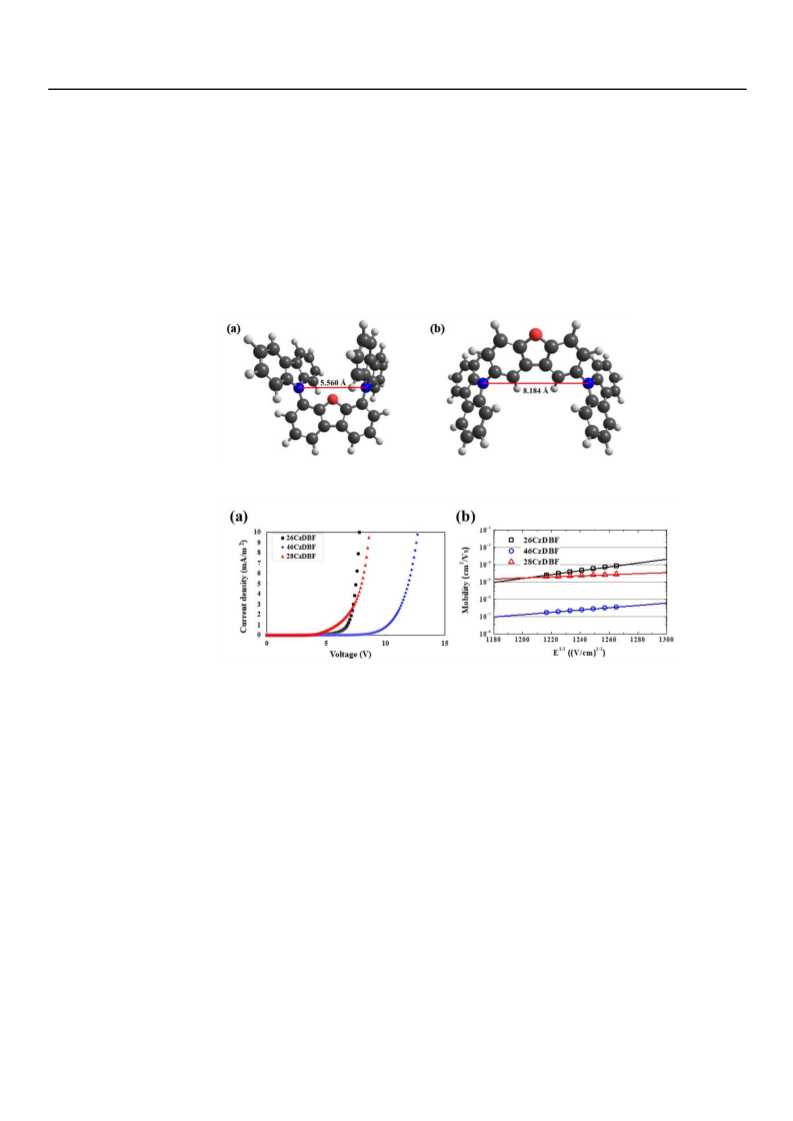

Figure 4. The calculated distance between the nitrogen atoms of the (a) 46CzDBF and (b) 28CzDBF.
Figure 5.
(a) Hole-only current density data and (b) hole mobility of 26CzDBF, 46CzDBF, and
28CzDBF hole-only devices.
Since device lifetime is the most challenging issue for deep blue PhOLEDs, the lifetime
measurement of the deep-blue PhOLEDs was also carried out. In Figure 6, the device
operational lifetime of the deep-blue PhOLEDs at an initial luminance of 100 cd m−2 is
presented. The operational lifetime of the 26CzDBF and 46CzDBF devices up to 50% of
initial luminance was over 1000 h. However, the lifetime of the 28CzDBF device was about
800 h. To examine the difference, the stability test of the HOD was carried out by stressing
the HOD at a current density of 2.5 mA cm−2 because the p-type hosts mostly carry holes
during the light emission process. The voltage rise during the hole stress test was traced
because it reflects the resistance change of the device by the p-type host. Large voltage
rise implies a degradation of the p-type host under positive polarons. In the hole stability
test, the 26CzDBF and 46CzDBF hosts exhibited smaller voltage rises than the 28CzDBF
host, indicating the good hole stability of the 26CzDBF and 46CzDBF hosts. This was well
correlated with the device lifetime of the blue PhOLEDs, suggesting that the 2-/6- position
or 4-/6- position substitution of dibenzofuran can stabilize the p-type host under positive
polarons. Device performances including device lifetime are summarized in Table 2.

Molecules 2021, 26, 2804
8 of 10
Figure 6.
(
a
) Device lifetime data of the 26CzDBF:mSiTrz, 46CzDBF:mSiTrz, and 28CzDBF:mSiTrz
deep blue PhOLEDs at an initial luminance of 100 cd m−2. (
b) Voltage rise of HODs in the stability
−2
test at a current density of 2.5 mA cm
.
Table 2. Summarized device performances of deep blue PhOLEDs developed in this work compared with those of other
devices in the literature.
100 cd m−2
1000 cd m−2
MAX
Dopant
Host
(a)
P.E
LT50
P.E (b)
CIE (x, y)
EQE
EQE
P.E
EQE
26CzDBF:mSiTrz
46CzDBF:mSiTrz
28CzDBF:mSiTrz
Ir(cb)3
Ir(cb)3
Ir(cb)3
0.14, 0.16
0.14, 0.18
0.14, 0.16
1400
1300
800
22.9
19.7
22.4
23.5
20.0
22.6
21.3
16.9
19.5
17.3
13.2
15.7
23.0
20.3
22.4
27.9
28.3
26.3
mCBP [12]
mCBP [12]
oCBP:pSiTrz [13]
oCBP:mSiTrz [13]
oCBP:DBFTrz [13]
PtON1
PtNON
Ir(cb)3
Ir(cb)3
Ir(cb)3
Ir(cb)3
Ir(cb)3
Ir(cb)3
0.14, 0.18
0.15, 0.21
0.14, 0.16
0.14, 0.16
0.14, 0.18
0.14, 0.19
0.14, 0.19
0.12, 0.13
0.15, 0.25
0.15, 0.24 (e)
0.15, 0.21 (g)
0.15, 0.26
800
17,000
1900
1900
500
3.2
9.7
18.9
21.4
15.4
N/A
8.2
18.6
21.1
14.4
3.2
9.8
25.5
28.6
22.5
20.2
21.9
17.0
19.1
21.6
15.5
15.6
20.3
27.6
18.8
12.8
24
26.1
29.3
22.8
mCBP:SiCzTrz (Device I) [14]
mCBP:SiCzTrz (Device II) [14]
mCBP:SiCzTrz (Device III) (c) [14]
oCBP:CNmCBPCN [32]
mCBP [33]
5900
8460
10,700
366 (d)
9.7 (f)
1 (h)
20.2
27.6
18.6
25.6
17.9
10.1 (e)
21
Ir(CNpi)3
Ir(CNpi)3
FCNIr
22.6
9.0 (e)
26
30.3
14.5
41
mCBP:BM-A10 [34]
CNIm/CNCzCN1 [35]
23
37
130 (i)
CNIm
13.7
16.2
17.7
33.1
(a)
Device lifetime at an initial luminance of 100 cd m−2 up to 50% of initial luminance; (b) Power efficiency (lm W−1); (c) Top-emitting
device; (d) Device lifetime at an initial luminance of 100 cd m−2 up to 70% of initial luminance; (e) Device data at a luminance of 500 cd m−2
;
(f)
Device lifetime at an initial luminance of 500 cd m−2 up to 50% of initial luminance; (g) Color coordinate at a current density of 10 mA
cm−2
;
Device lifetime at an initial luminance of 400 cd m−2
;
Device lifetime at an initial luminance of 200 cd m−2
.
(h)
(i)
3. Conclusions
In conclusion, two hole-transport type hosts derived from carbazole and dibenzofuran
were synthesized to study the effect of substitution position on the photophysical and elec-
trical properties. Depending on the substitution position of the carbazoles on dibenzofuran,
the hole transport properties were largely changed. The 4 and 6 position substitution of
carbazole retarded the hole transport, but it stabilized the host under positive polarons. As
a result, the blue PhOLEDs with the 26CzDBF host exhibited a high EQE of 22.9%, the deep-
blue color coordinate of (0.14, 0.16), and the device lifetime of 1400 h at 100 cd m−2. This
work unveiled that change in the substitution position of carbazole can make differences in
the device performances of the carbazole- and dibenzofuran-derived hosts.
Supplementary Materials: The following are available online, details of experiments and materials
synthesis, Figure S1: Oxidative and reductive cyclic voltammetry voltage scan of 26CzDBF and
46CzDBF, Figure S2: Differential scanning calorimeter heating scan (a) and thermogravimetric
◦
heating scan (b) data of 26CzDBF, 46CzDBF, and 28CzDBF at a heating rate of 10 C/min under
nitrogen, Figure S3: The device structures of the deep blue PhOLEDs and chemical structures of the
used materials.

Molecules 2021, 26, 2804
9 of 10
Author Contributions: K.H.C. and J.M.K. equally contributed to this work. Synthesis, K.H.C.;
analysis, J.M.K.; device fabrication, W.J.C.; supervision and review, J.Y.L. All authors have read and
agreed to the published version of the manuscript.
Funding: This research was supported by National Research Foundation of Korea (2016M3A7B4909243).
Institutional Review Board Statement: Not applicable.
Informed Consent Statement: Not applicable.
Data Availability Statement: Not applicable.
Conflicts of Interest: The authors declare no conflict of interest.
Sample Availability: Samples of the compounds are not available from the authors.
References
1.
2.
3.
Baldo, M.A.; O’brien, D.F.; You, Y.; Shoustikov, A.; Sibley, S.; Thompson, M.E.; Forrest, S.R. Highly efficient phosphorescent
emission from organic electroluminescent devices. Nature 1998, 395, 151–154. [CrossRef]
Baldo, M.A.; Lamansky, S.; Burrows, P.E.; Thompson, M.E.; Forrest, S.R. Very high-efficiency green organic light-emitting devices
based on electrophosphorescence. Appl. Phys. Lett. 1999, 75, 4–6. [CrossRef]
Lee, S.; Kim, K.H.; Limbach, D.; Park, Y.S.; Kim, J.J. Low roll-off and high efficiency orange organic light emitting diodes with
controlled co-doping of green and red phosphorescent dopants in an exciplex forming co-host. Adv. Funct. Mater. 2013, 23,
4105–4110. [CrossRef]
4.
5.
6.
7.
8.
9.
Lee, J.H.; Shin, H.; Kim, J.M.; Kim, K.H.; Kim, J.J. Exciplex-forming co-host-based red phosphorescent organic light-emitting
diodes with long operational stability and high efficiency. ACS Appl. Mater. Interfaces 2017, 9, 3277–3281. [CrossRef]
Adachi, C.; Baldo, M.A.; Thompson, M.E.; Forrest, S.R. Nearly 100% internal phosphorescence efficiency in an organic light
emitting device. J. Appl. Phys. 2001, 90, 5048–5051. [CrossRef]
Adachi, C.; Baldo, M.A.; Forrest, S.R.; Lamansky, S.; Thompson, M.E.; Kwong, R.C. High-efficiency red electrophosphorescence
devices. Appl. Phys. Lett. 2001, 78, 1622–1624. [CrossRef]
Zhuang, J.; Li, W.; Su, W.; Liu, Y.; Shen, Q.; Liao, L.; Zhou, M. Highly efficient phosphorescent organic light-emitting diodes using
a homoleptic iridium(III) complex as a sky-blue dopant. Org. Electron. Phys. Mater. Appl. 2013, 14, 2596–2601. [CrossRef]
Wang, Y.; Yun, J.H.; Wang, L.; Lee, J.Y. High triplet energy hosts for blue organic light-emitting diodes. Adv. Funct. Mater.
2021, 31, 2008332. [CrossRef]
Lee, J.; Jeong, C.; Batagoda, T.; Coburn, C.; Thompson, M.E.; Forrest, S.R. Hot excited state management for long-lived blue
phosphorescent organic light-emitting diodes. Nat. Commun. 2017, 8, 15566. [CrossRef]
10. Kim, S.M.; Kim, J.H.; Jeon, S.K.; Lee, J.Y. Molecular design of host materials for stable blue phosphorescent organic light-emitting
diodes. Dye. Pigment. 2016, 125, 274–281. [CrossRef]
11. Seo, J.A.; Jeon, S.K.; Lee, J.Y. Acridine derived stable host material for long lifetime blue phosphorescent organic light-emitting
diodes. Org. Electron. 2016, 34, 33–37. [CrossRef]
12. Fleetham, T.B.; Huang, L.; Klimes, K.; Brooks, J.; Li, J. Tetradentate Pt(II) Complexes with 6-Membered Chelate Rings: A New
Route for Stable and Efficient Blue Organic Light Emitting Diodes. Chem. Mater. 2016, 28, 3276–3282. [CrossRef]
13. Choi, K.H.; Lee, K.H.; Lee, J.Y.; Kim, T. Simultaneous Achievement of High Efficiency and Long Lifetime in Deep Blue
Phosphorescent Organic Light-Emitting Diodes. Adv. Opt. Mater. 2019, 7, 1901374. [CrossRef]
14. Jung, M.; Lee, K.H.; Lee, J.Y.; Kim, T. A bipolar host based high triplet energy electroplex for an over 10000 h lifetime in pure blue
phosphorescent organic light-emitting diodes. Mater. Horiz. 2020, 7, 559–565. [CrossRef]
15. Holmes, R.J.; Forrest, S.R.; Tung, Y.J.; Kwong, R.C.; Brown, J.J.; Garon, S.; Thompson, M.E. Blue organic electrophosphorescence
using exothermic host-guest energy transfer. Appl. Phys. Lett. 2003, 82, 2422–2424. [CrossRef]
16. Gong, S.; He, X.; Chen, Y.; Jiang, Z.; Zhong, C.; Ma, D.; Qin, J.; Yang, C. Simple CBP isomers with high triplet energies for highly
efficient blue electrophosphorescence. J. Mater. Chem. 2012, 22, 2894–2899. [CrossRef]
17. Yeh, S.J.; Wu, M.F.; Chen, C.T.; Song, Y.H.; Chi, Y.; Ho, M.H.; Hsu, S.F.; Chen, C.H. New dopant and host materials for
blue-light-emitting phosphorescent organic electroluminescent devices. Adv. Mater. 2005, 17, 285–289. [CrossRef]
18. Hong, S.; Chung, W.J.; Jang, S.; Yu, G.; Lee, J.Y.; Lee, Y. Asymmetrically difunctionalized dibenzo[b,d]furan-based hole blocking
materials for high-performance blue phosphorescent organic light-emitting diodes. Dye. Pigment. 2020, 181, 108534. [CrossRef]
19. Yu, J.G.; Byeon, S.Y.; Han, S.H.; Lee, J.Y. Selective F or Br Functionalization of Dibenzofuran for Application as Host Materials of
Phosphorescent Organic Light-Emitting Diodes. Chem. Eur. J. 2017, 23, 16044–16050. [CrossRef]
20. Cho, N.H.; Lee, J.Y.; Kim, O.Y.; Hwang, S.H. Regioisomer effects of dibenzofuran-based bipolar host materials on yellow
phosphorescent OLED device performance. New J. Chem. 2020, 44, 3868–3873. [CrossRef]
21. Jeon, S.O.; Lee, K.H.; Kim, J.S.; Ihn, S.-G.; Chung, Y.S.; Kim, J.W.; Lee, H.; Kim, S.H.; Choi, H.; Lee, J.Y. High-efficiency, long-lifetime
deep-blue organic light-emitting diodes. Nat. Photon. 2021, 15, 208–216. [CrossRef]

Molecules 2021, 26, 2804
10 of 10
22. Tsai, M.H.; Lin, H.W.; Su, H.C.; Ke, T.H.; Wu, C.C.; Fang, F.C.; Liao, Y.L.; Wong, K.T.; Wu, C.I. Highly efficient organic blue
electrophosphorescent devices based on 3,6-Bis(triphenylsilyl)carbazole as the host material. Adv. Mater. 2006, 18, 1216–1220.
[CrossRef]
23. Kim, Y.; Kwon, Y.; Lee, K.; Park, J.; Seo, H.; Kim, T. Synthesis and Electrochemical Properties of N-Substituted Bicarbazyl
Derivatives. Mol. Cryst. Liq. Cryst. 2004, 424, 153–158. [CrossRef]
0
24. Sasabe, H.; Toyota, N.; Nakanishi, H.; Ishizaka, T.; Pu, Y.J.; Kido, J. 3,3 -Bicarbazole-based host materials for high-efficiency blue
phosphorescent OLEDs with extremely low driving voltage. Adv. Mater. 2012, 24, 3212–3217. [CrossRef] [PubMed]
25. Jeong, S.H.; Seo, C.W.; Lee, J.Y.; Cho, N.S.; Kim, J.K.; Yang, J.H. Comparison of bipolar hosts and mixed-hosts as host structures
for deep-blue phosphorescent organic light emitting diodes. Chem. Asian J. 2011, 6, 2895–2898. [CrossRef]
26. Im, Y.; Lee, J.Y. Molecular design of modifying 4-position of dibenzofuran for high temperature stability and high efficiency. Dye.
Pigment. 2016, 128, 84–88. [CrossRef]
27. Tsai, M.H.; Hong, Y.H.; Chang, C.H.; Su, H.C.; Wu, C.C.; Matoliukstyte, A.; Simokaitiene, J.; Grigalevicius, S.; Grazulevicius,
J.V.; Hsu, C.P. 3-(9-carbazolyI)carbazoles and 3,6-Di(9-carbazolyl)carbazoles as effective host materials for efficient blue organic
electrophosphorescence. Adv. Mater. 2007, 19, 862–866. [CrossRef]
28. Han, C.; Xie, G.; Xu, H.; Zhang, Z.; Xie, L.; Zhao, Y.; Liu, S.; Huang, W. A single phosphine oxide host for high-efficiency
white organic light-emitting diodes with extremely low operating voltages and reduced efficiency roll-off. Adv. Mater. 2011, 23,
2491–2496. [CrossRef]
29. Zhang, S.; Chen, R.; Yin, J.; Liu, F.; Jiang, H.; Shi, N.; An, Z.; Ma, C.; Liu, B.; Huang, W. Tuning the optoelectronic properties of
4,40-N, N0-dicarbazole- biphenyl through heteroatom linkage: New host materials for phosphorescent organic light-emitting
diodes. Org. Lett. 2010, 12, 3438–3441. [CrossRef]
30. Maheshwaran, A.; Sree, V.G.; Park, H.Y.; Kim, H.; Han, S.H.; Lee, J.Y.; Jin, S.H. High Efficiency Deep-Blue Phosphorescent Organic
Light-Emitting Diodes with CIE x, y ( 0.15) and Low Efficiency Roll-Off by Employing a High Triplet Energy Bipolar Host
≤
Material. Adv. Funct. Mater. 2018, 28, 1–7. [CrossRef]
31. Tang, X.D.; Liao, Y.; Gao, H.Z.; Geng, Y.; Su, Z.M. Theoretical study of the bridging effect on the charge carrier transport properties
of cyclooctatetrathiophene and its derivatives. J. Mater. Chem. 2012, 22, 6907–6918. [CrossRef]
32. Shin, S.K.; Han, S.H.; Lee, J.Y. High triplet energy exciplex host derived from a CN modified carbazole based n-type host for
improved efficiency and lifetime in blue phosphorescent organic light-emitting diodes. J. Mater. Chem. C 2018, 6, 10308–10314.
[CrossRef]
33. Song, W.; Lee, J.Y.; Cho, Y.J.; Yu, H.; Aziz, H.; Lee, K.M. Electroplex as a New Concept of Universal Host for Improved Efficiency
and Lifetime in Red, Yellow, Green, and Blue Phosphorescent Organic Light-Emitting Diodes. Adv. Sci. 2018, 5, 1700608.
[CrossRef] [PubMed]
34. Lim, H.; Shin, H.; Kim, K.H.; Yoo, S.J.; Huh, J.S.; Kim, J.J. An Exciplex Host for Deep-Blue Phosphorescent Organic Light-Emitting
Diodes. ACS Appl. Mater. Interfaces 2017, 9, 37883–37887. [CrossRef] [PubMed]
35. Shin, S.K.; Lee, K.H.; Lee, H.L.; Lee, J.Y. Management of Triplet Energy and Charge-Transport Properties of Hosts by CN Position
Engineering. J. Phys. Chem. C 2019, 123, 8531–8540. [CrossRef]
