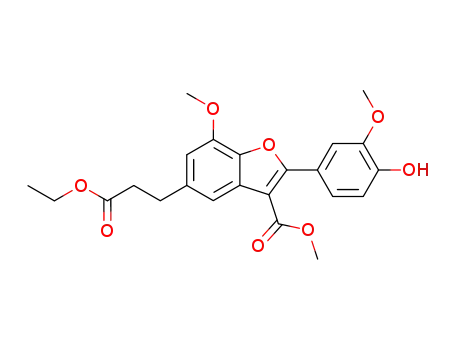

5-(2-Ethoxycarbonyl-ethyl)-2-(4-hydroxy-3-methoxy-phenyl)-7-methoxy-benzofuran-3-carboxylic acid methyl ester

Base Information

• Chemical Name: 5-(2-Ethoxycarbonyl-ethyl)-2-(4-hydroxy-3-methoxy-phenyl)-7-methoxy-benzofuran-3-carboxylic acid methyl ester
• CAS No.: 242474-37-9
• Molecular Formula: C₂₃H₂₄O₈
• Molecular Weight: 428.439
• Mol file: 242474-37-9.mol

Synonyms:5-(2-Ethoxycarbonyl-ethyl)-2-(4-hydroxy-3-methoxy-phenyl)-7-methoxy-benzofuran-3-carboxylic acid methyl ester

Chemical Property of 5-(2-Ethoxycarbonyl-ethyl)-2-(4-hydroxy-3-methoxy-phenyl)-7-methoxy-benzofuran-3-carboxylic acid methyl ester

Chemical Property:

Purity/Quality:

Safty Information:

• Pictogram(s):
• Hazard Codes:

MSDS Files:

Useful:

Technology Process of 5-(2-Ethoxycarbonyl-ethyl)-2-(4-hydroxy-3-methoxy-phenyl)-7-methoxy-benzofuran-3-carboxylic acid methyl ester

There total 5 articles about 5-(2-Ethoxycarbonyl-ethyl)-2-(4-hydroxy-3-methoxy-phenyl)-7-methoxy-benzofuran-3-carboxylic acid methyl ester which guide to synthetic route it. The literature collected by LookChem mainly comes from the sharing of users and the free literature resources found by Internet computing technology. We keep the original model of the professional version of literature to make it easier and faster for users to retrieve and use. At the same time, we analyze and calculate the most feasible synthesis route with the highest yield for your reference as below:

synthetic route:

Reference yield: 88.0%

2-(4-Benzyloxy-3-methoxy-phenyl)-5-((E)-2-ethoxycarbonyl-vinyl)-7-methoxy-benzofuran-3-carboxylic acid methyl ester (213970-74-2) → 5-(2-Ethoxycarbonyl-ethyl)-2-(4-hydroxy-3-methoxy-phenyl)-7-methoxy-benzofuran-3-carboxylic acid methyl ester (242474-37-9)

Guidance literature:

With hydrogen; palladium on activated charcoal; In ethyl acetate;

DOI:10.1055/s-1999-2764

Reference yield:

1-ethynyl-4-(benzyloxy)-3-methoxybenzene (144735-54-6) → 5-(2-Ethoxycarbonyl-ethyl)-2-(4-hydroxy-3-methoxy-phenyl)-7-methoxy-benzofuran-3-carboxylic acid methyl ester (242474-37-9)

Guidance literature:

Multi-step reaction with 4 steps

1: 92 percent / CuI; PdCl₂(PPh₃)2; NEt₃ / acetonitrile

2: 99 percent / (CO₂H)2 / methanol

3: 68 percent / PdCl₂; CuCl₂; NaOAc

4: 88 percent / H₂ / Pd/C / ethyl acetate

With bis-triphenylphosphine-palladium(II) chloride; copper(l) iodide; hydrogen; sodium acetate; oxalic acid; triethylamine; copper dichloride; palladium dichloride; palladium on activated charcoal; In methanol; ethyl acetate; acetonitrile; 1: Substitution / 2: Hydrogenolysis / 3: Cycloaddition / 4: Hydrogenation;

DOI:10.1055/s-1999-2764

Reference yield:

(E)-3-[3-(4-Benzyloxy-3-methoxy-phenylethynyl)-4-hydroxy-5-methoxy-phenyl]-acrylic acid ethyl ester (213970-73-1) → 5-(2-Ethoxycarbonyl-ethyl)-2-(4-hydroxy-3-methoxy-phenyl)-7-methoxy-benzofuran-3-carboxylic acid methyl ester (242474-37-9)

Guidance literature:

Multi-step reaction with 2 steps

1: 68 percent / PdCl₂; CuCl₂; NaOAc

2: 88 percent / H₂ / Pd/C / ethyl acetate

With hydrogen; sodium acetate; copper dichloride; palladium dichloride; palladium on activated charcoal; In ethyl acetate; 1: Cycloaddition / 2: Hydrogenation;

DOI:10.1055/s-1999-2764

upstream raw materials:

2-(4-Benzyloxy-3-methoxy-phenyl)-5-((E)-2-ethoxycarbonyl-vinyl)-7-methoxy-benzofuran-3-carboxylic acid methyl ester

1-ethynyl-4-(benzyloxy)-3-methoxybenzene

(E)-3-[3-(4-Benzyloxy-3-methoxy-phenylethynyl)-4-hydroxy-5-methoxy-phenyl]-acrylic acid ethyl ester

Downstream raw materials:

5-(3-hydroxypropyl)-7-methoxy-2-(3'-methoxy-4'-hydroxyphenyl)-3-benzo[b]furan-carbaldehyde

2-(3-methoxy-4-hydroxyphenyl)-3-methoxycarbonyl-5-(3-hydroxypropyl)-7-methoxybenzo[b]furan
