Ruthenium Complexes with Tetraphenylimidodiphosphinate: Syntheses,
Structures, and Applications to Catalytic Organic Oxidation
Wai-Man Cheung, Ho-Yuen Ng, Ian D. Williams, and Wa-Hung Leung*
Department of Chemistry, The Hong Kong UniVersity of Science and Technology, Clear Water
Bay, Kowloon, Hong Kong, People’s Republic of China
Received January 4, 2008
Treatment of Ru(PPh3)3Cl2 with K(tpip) (tpip- ) [N(Ph2PO)2]-) afforded Ru(tpip)(PPh3)2Cl (1), which reacted with
4-t-Bu-C6H4CN, SO2(g), and NH3(g) to give Ru(tpip)(PPh3)2Cl(4-t-BuC6H4CN) (2), Ru(tpip)(PPh3)2Cl(SO2) (3), and
fac-[Ru(NH3)3(PPh3)2Cl][tpip] (4), respectively. Reaction of [Ru(CO)2Cl2]x with K(tpip) in refluxing tetrahydrofuran
(THF) led to isolation of the K/Ru bimetallic compound K2Ru2(tpip)4(CO)4Cl2 (5). Photolysis of cis-Ru(tpip)2(NO)Cl
in MeCN and wet CH2Cl2 afforded cis-Ru(tpip)2(MeCN)Cl (6) and cis-Ru(tpip)2(H2O)Cl (7), respectively. Refluxing
6 in neat THF yielded Ru(tpip)2(THF)Cl (8). Treatment of Ru(CHR)Cl2(PCy3)2 (Cy ) cyclohexyl) with [Ag(tpip)]4
afforded cis-Ru(tpip)2(CHR)(PCy3) [R ) Ph (9), OEt (10)]. Complex 9 is capable of catalyzing oxidation of alcohols
and olefins with N-methylmorpholine N-oxide and iodosylbenzene, respectively. The crystal structures of 2-7 and
9 were determined.
Chart 1
Introduction
Ru complexes in oxygen-rich ligand environments are of
interest because they are relevant to the active sites of oxide-
based heterogeneous Ru catalysts, which have found ap-
plications in organic oxidations.1 In order to gain insight into
the molecular mechanisms of oxide-supported Ru catalysts,
we sought to investigate the organometallic chemistry of Ru
compounds containing oxygen donor ligands. We were
particularly interested in π-donating phosphinate ligands that
are compatible with both hard and soft metal centers.
Previous studies demonstrated that the facially coordinated
tris(phosphinate) ligands [(η5-C5H5)Co{P(O)(OR)2}3]- can
stabilize low-valence organoruthenium2,3 as well as high-
valence Ru oxo4 and nitrido5 complexes. To further explore
the organometallic chemistry of chelating phosphinate ligands,
we set out to synthesize Ru complexes with bidentate
imidodiphosphinate ligands.
Imidodiphosphinates[N(R2PO)2]- (Chart1), suchastetraph-
enylimidodiphosphinate (R ) Ph) or tpip-, which are
considered to be inorganic analogues of acetylacetonates
(acac-), can form stable complexes with a variety of metals.6
Metal-tpip complexes have received much attention recently
because of their applications as NMR shift agents,7 lumi-
(3) (a) Leung, W.-H.; Chan, E. Y. Y.; Williams, I. D.; Wong, W.-T.
Organometallics 1997, 16, 3234. (b) Leung, W.-H.; Chan, E. Y. Y.;
Wong, W.-T. Organometallics 1998, 17, 1245.
* To whom correspondence should be addressed. E-mail: chleung@
ust.hk.
(4) (a) Power, J. M.; Evertz, K.; Henling, L.; Marsh, R.; Schaefer, W. P.;
Labinger, J. A.; Bercaw, J. E. Inorg. Chem. 1990, 29, 5058. (b) Kelson,
E. P.; Henling, L. M.; Schaefer, W. P.; Labinger, J. A.; Bercaw, J. E.
Inorg. Chem. 1993, 32, 2863.
(1) See for example: (a) Yamaguchi, K.; Mori, K.; Mizugaki, T.; Ebitani,
K.; Kaneda, K. J. Am. Chem. Soc. 2000, 122, 7144. (b) Matsushita,
T.; Ebitani, K.; Kaneda, K. Chem. Commun. 1999, 265. (c) Yamaguchi,
K.; Mizuno, N. Chem.sEur. J. 2003, 9, 4353. (d) Wu, D. L.; Wight,
A. P.; Davis, M. E. Chem. Commun. 2003, 758. (e) Tada, M.; Coquet,
R.; Yoshida, J.; Kinoshita, M.; Iwasawa, Y. Angew. Chem., Int. Ed.
2007, 46, 7220. (f) Cheung, W.-H.; Yu, W.-Y.; Yip, W.-P.; Zhu, N.-
Y.; Che, C.-M. J. Org. Chem. 2002, 67, 7716.
(5) Yi, X.-Y.; Lam, T. C. H.; Sau, Y.-K.; Zhang, Q.-F.; Williams, I. D.;
Leung, W.-H. Inorg. Chem. 2007, 46, 7193.
(6) (a) Haiduc, I. In ComprehensiVe Coordination Chemistry II; McClev-
erty, J. A., Meyer, T. J., Eds.; Elsevier Pergamon: Amsterdam, 2003;
Vol. 1, p 323. (b) Ly, T. Q.; Woollins, J. D. Coord. Chem. ReV. 1998,
176, 451.
(2) Kläui, W. Angew. Chem., Int. Ed. Engl. 1990, 29, 627.
10.1021/ic800018d CCC: $40.75  2008 American Chemical Society
Inorganic Chemistry, Vol. 47, No. 10, 2008 4383
Published on Web 04/09/2008

Cheung et al.
nescent materials,8 and catalysts for organic oxidations.9
While main-group, lanthanide, and early transition-metal
complexes with tpip- have been well documented, relatively
few late transition-metal-tpip complexes have been isolated.6
To our knowledge, organoruthenium compounds containing
tpip- are unknown to date. This is in sharp contrast to the
well-explored Ru(acac)2 system, whose members exhibit
interesting redox10 and organometallic chemistry11 and can
serve as building blocks for coordination polymers.10a,12
Vaissermann and co-workers9a,b reported that Ag(I)- and
Cu(II)-tpip complexes can catalyze aerobic co-oxidation of
hydrocarbons and aldehydes, demonstrating that tpip- is
stable toward oxidants and thus may find applications in
organic oxidations. This prompted us to investigate the
catalytic activity of Ru(tpip) complexes in organic oxidations.
Herein we describe the synthesis, crystal structures, and
electrochemistry of mono- and bis(tpip) complexes of Ru
and their applications in catalytic oxidation of alcohols and
olefins.
AgNO3 (0.1 M in MeCN), respectively. Potentials were reported
with reference to the ferrocenium/ferrocene (Cp2Fe+/0) couple.
Elemental analyses were performed by Medac Ltd. (Surrey, U.K.).
K(tpip),13 [Ag(tpip)]4,9a Ru(PPh3)3Cl2,14 [Ru(CO)2Cl2]x,15 cis-
Ru(tpip)2(NO)Cl,16 and Ru(CHR)(PCy3)2Cl2 (Cy ) cyclohexyl, R
) Ph, OEt)17 were prepared according to literature methods. Other
reagents were purchased from commercial sources and used as
received.
Preparation of Ru(tpip)(PPh3)2Cl (1). A suspension of
Ru(PPh3)3Cl2 (96 mg, 0.10 mmol) and 1 equiv of K(tpip) (46 mg,
0.10 mmol) in THF (10 mL) was heated at reflux for 3 h. The
solvent was pumped off, and the residue was washed with Et2O.
Recrystallization from CH2Cl2/hexane afforded dark-brown crystals.
1
Yield: 91 mg, 85%. H NMR (CDCl3): δ 6.82–7.48 (m, 40H).
31P{1H} NMR (CDCl3): δ 28.35 (s, tpip), 64.73 (s, PPh3). Anal.
Calcd for C60H50ClNO2P4Ru·H2O: C, 65.8; H, 4.8; N, 1.3. Found:
C, 65.9; H, 4.6; N, 1.2.
Preparation of Ru(tpip)(PPh3)2(4-t-Bu-C6H4CN)Cl (2). To a
solution of 1 (40 mg, 0.037 mmol) in CH2Cl2 was added 1 drop of
4-tert-butylbenzonitrile. The pale-brown solution turned yellow
immediately. The solvent was pumped off, and the residue was
washed with hexane. Recrystallization from CH2Cl2/hexane afforded
yellowish-orange crystals. Yield: 30 mg, 65%. 1H NMR (CDCl3):
δ 1.28 (s, 9H, t-Bu), 6.37 (d, J ) 8.4 Hz, Hm of 4-t-Bu-C6H4CN),
7.08–8.23 (m, 52H). 31P{1H} NMR (CDCl3): δ 23.97 (d, J ) 3.3
Hz, tpip-), 51.18 (d, J ) 3.3 Hz, PPh3). IR (KBr) νCN (cm-1): 2227.
Anal. Calcd for C71H63ClN2O2P4Ru: C, 69.0; H, 5.1; N, 2.3. Found:
C, 69.0; H, 5.3; N, 2.1.
Experimental Section
General Considerations. All manipulations were carried out
under nitrogen by standard Schlenk techniques. Solvents were
purified, distilled, and degassed prior to use. NMR spectra were
recorded using a Bruker ARX 300 or Varian Mercury 300
spectrometer operating at 300, 75.5, 121.5, and 282.5 MHz for 1H,
13C, 31P, and 19F, respectively. Chemical shifts (δ, ppm) were
reported with reference to SiMe4 (1H and 13C), H3PO4 (31P), and
CF3C6H5 (19F). Infrared spectra were recorded using a PerkinElmer
16 PC FT-IR spectrophotometer and mass spectra using a Finnigan
TSQ 7000 spectrometer. Cyclic voltammetry was performed using
a Princeton Applied Research (PAR) model 273A potentiostat. The
working and reference electrodes were glassy carbon and Ag/

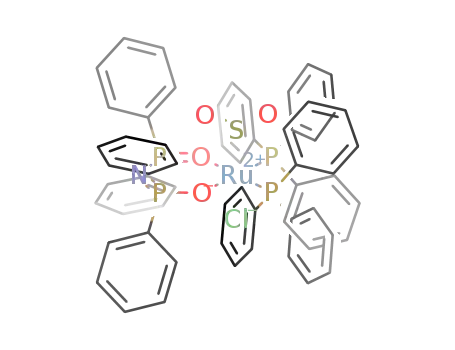

Preparation of Ru(tpip)(PPh3)2(SO2)Cl (3). SO2(g) was bubbled
through a solution of 1 (40 mg, 0.037 mmol) in CH2Cl2 (20 mL)
for 15 s, during which the solution color changed from pale-brown
to orange. The solvent was pumped off, and the residue was washed
with hexane. Recrystallization from CH2Cl2/hexane afforded orange
1
crystals. Yield: 36 mg, 85%. H NMR (CDCl3): δ 6.80–7.85 (m,
50H). 31P{1H} NMR (CDCl3): δ 27.46 (s, tpip), 32.36 (s, PPh3).
IR (KBr) VSO (cm-1): 1247. Anal. Calcd for C60H50ClNO4P4RuS:
C, 63.1; H, 4.4; N, 1.2. Found: C, 63.0; H, 4.4; N, 1.2.
