A R T I C L E S
Artman et al.
Scheme 2. Gram-Scale Synthesis of (R)-Allyl Proline Methyl Ester (11)
pivaldehyde (8) in the presence of TFA under azeotropic
conditions for ∼7-10 days to afford 9 (Scheme 2).17b Following
isolation of 9, allylation can be achieved in a diastereoselective
manner to afford 10 and subsequently the methyl ester 11
following removal of the auxiliary. However, the sensitive nature
of 9 coupled with the cost of pivaldehyde (∼$400/100 mL),
which is required in 7-fold molar excess, has made the synthesis
of 11 using the Seebach protocol less than desirable. Interest-
ingly, Wang and Germanas have reported an alternative to 11
that can be prepared from the inexpensive starting materials of
trichloroacetaldehyde and (S)-proline.18 The trichloro oxazoli-
none 12 is an air- and moisture-stable, commercially available
crystalline solid that can be stored at room temperature with
no decomposition observed after several weeks. In a similar
manner to the Seebach compound 9, alkylation of the oxazoli-
none 12 with allyl bromide using LDA readily affords the allyl
lactone 13 in high yield and as a single diastereoisomer.
Cleavage of the chloral auxiliary from 13 to the amino ester
salt 11 under the reported conditions of refluxing HCl/MeOH
for 1 h only provided <10% of the desired product.18 A search
of the literature revealed that other groups that have employed
this oxazolinone required greater than 24 h of reflux in HCl/
MeOH to obtain modest yields of the desired product.19
Interestingly, cleavage of the auxiliary to the N-formyl methyl
ester using NaOMe is achieved in less than 30 min.18 Recogniz-
ing that the slow step for the cleavage of the oxazolinone 13
under acidic conditions must be the formation of the methyl
ester, we developed a one-pot process to rapidly cleave the
auxiliary and in high yield. Exposure of the allyl lactone 13 to
sodium in methanol followed by the addition of AcCl to the
solution and heating to reflux readily removes the trichloroac-
etaldehyde auxiliary to produce the desired methyl ester
hydrochloride salt 11 in 85% on a 20 g scale.20
the benzyl ether removed by hydrogenation to afford the
intermediate phenol 15 (Scheme 3). Without isolation, alkylation
of the phenol 15 using commercially available 3-chloro-3-
methylbut-1-yne 16 (X ) Cl) in the presence of CuCl2 and DBU
afforded the propargyl ether 17 in 58% yield over the three steps.
Since our original communication, we have found that the yield
of this alkylation can be improved using the methyl carbonate
derivative22 of 16 (X ) OCO2Me) to 92% yield over the three
steps. Aromatic Claisen cyclization of 17 to introduce the pyran
ring can be achieved via two sets of conditions. Under thermal
heating of 17 in o-dichlorobenzene at 180 °C, the pyranoindole
18 can be prepared in 82% yield after ∼2 h. Due to the difficulty
of removing the solvent for the thermal conditions from the
desired product, we have explored alternative conditions to
synthesize 18. To this end, we have taken advantage of
microwave heating in order to facilitate the desired aromatic
Claisen and N-Boc deprotection.23 With the use of a microwave
reactor, the propargyl ether 17 in MeCN was heated at 180 °C
for 20 min to afford the desired product 18 in 95% yield. Use
of microwave heating for this reaction not only greatly reduced
the reaction time but also increased the yield. Furthermore,
removal of the reaction solvent (MeCN) can easily be achieved
at moderate reduced pressure and temperature.
With multiple grams of the pyranoindole 18 rapidly acces-
sible, formation of the tryptophan derivative was explored.
Conversion of 18 to the gramine 19 was conducted under
standard conditions and in high yield. Coupling of the gramine
19 to the commercially available benzophenone imine of glycine
20 under standard Somei-Kametani conditions24 of catalytic
n-Bu3P only afforded 65% yield of the desired protected

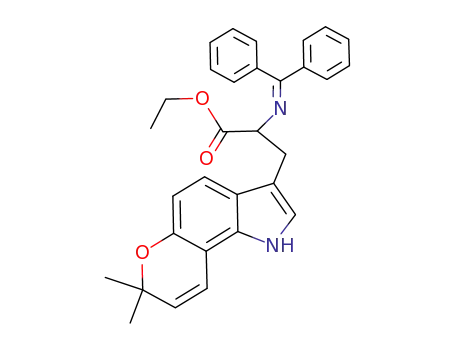

tryptophan derivative 21 after 24 h of reflux. Once again, we
found microwave technology to be superior to standard reflux
conditions in that heating of the gramine 19 and 20 with n-Bu3P
in MeCN at 140 °C for 20 min cleanly afforded the coupled
product 21, which after removal of the benzophenone protecting
group with 1 N HCl in THF afforded the amino ester 22 in
90% over the two steps. Chemoselective introduction of the Boc
protecting group onto the primary amine of 22 followed by
The synthesis of the tryptophan derivative was achieved from
the gramine derivative 19, which we previously reported by an
efficient six-step protocol.21 Since our initial communication,
we have been able to improve upon the overall yield of this
key piece through several subtle modifications of the route.
Commencing with commercially available 6-benzyloxyindole
(14), the indole nitrogen was protected with a t-Boc group and
(22) Tisdale, E. J.; Vong, B. G.; Li, H.; Kim, S. H.; Chowdhury, C.; Theodorakis,
E. A. Tetrahedron 2003, 59, 6873-6887.
(23) For reviews concerning microwave-assisted organic synthesis, see: (a)
Lidstrom, P.; Tierney, J.; Wathey, B.; Westman, J. Tetrahedron 2001, 57,
9225-9283. (b) Bose, A. K.; Manhas, M. S.; Ganguly, S. N.; Sharma, A.
H.; Banik, B. K. Synthesis 2002, 1578-1591. (c) Kuhnert, N. Angew.
Chem., Int. Ed. 2002, 41, 1863-1866. (d) The thermal lability of the N-t-
Boc protecting group has documented, see: Krakowiak, K. E.; Bradshaw,
J. S. Synth. Commun. 1996, 26, 3999-4004.
(24) (a) Somei, M.; Karasawa, Y.; Kaneko, C. Heterocycles 1981, 16, 941-
949. (b) Kametani, T.; Kanaya, N.; Ihara, M. J. Chem. Soc., Perkin Trans.
1 1981, 959-963.
(18) Wang, H.; Germanas, J. P. Synlett 1999, 33-36.
(19) (a) Hoffman, T.; Lanig, H.; Waibel, R.; Gmeiner, P. Agnew Chem., Int.
Ed. 2001, 40, 3361-3365. (b) Bittermann, H.; Einsiedel, J.; Hu¨bner, H.;
Gmeiner, P. J. Med. Chem. 2004, 47, 5587-5590. (c) Bittermann, H.;
Gmeiner, P. J. Org. Chem. 2006, 71, 97-102.
(20) Artman, G. D.; Williams, R. M. Org. Synth., submitted for publication
2007.
(21) Grubbs, A. W.; Artman, G. D.; Williams, R. M. Tetrahedron Lett. 2005,
46, 9013-9016.
9
6338 J. AM. CHEM. SOC. VOL. 129, NO. 19, 2007
