1210
C. Fonseca-Berzal et al. / Bioorg. Med. Chem. Lett. 24 (2014) 1209–1213
NH2(CH2)nCH2NH2 (n = 1–3) and the one-pot three component
reaction of these diamines, diverse (hetero)aromatic aldehydes
Regarding the trypanocidal activity of the 7-chloroquinoline
derivatives, quinolines 3, 7 and 12 proved to be the most active
compounds over T. cruzi epimastigotes (Table 1). These results, to-
gether with the LogP values predicted, confirm the importance of
an appropriate lipophilicity that allows these derivatives to access
into the parasitic cell19,22 and consequently, interact with the
hydrophobic binding site of an enzyme or receptor.23 Conversely,
the presence of 4-hydroxy-3-methoxyphenyl (compounds 13–15)
or 3-hydroxy-4-methoxyphenyl radicals (compound 16) on the
thiazolidinone-based hybrids, seems to decrease these LogP values
below the estimated average (4.095) and to significantly modify
the activity of these derivatives on the extracellular parasite when
compared with the unsubstituted phenyl ones (compounds 11 and
12). However, the para introduction of hydroxyl groups on the phe-
nyl ring (compounds 13–15) not only turns this series into the less
active compounds from the first group,24 but also into the less
harmful for fibroblasts. Otherwise, such an effect was not observed
when the phenolic hydroxyl group is introduced in meta position
(compound 16) (Table 1). Details of the growth inhibition assay
on T. cruzi epimastigotes are described in the Supplementary
material.
Since the severe side effects frequently suffered by treated Cha-
gas patients25,26 often lead to a lack of treatment adherence, indi-
rectly encouraging the development of T. cruzi resistance towards
nifurtimox and benznidazole,27 other molecular descriptors point-
ing to the presence of structural fragments generally responsible
for mutagenic, tumorigenic, irritant or reproductive effects28 were
also evaluated. The toxicity risk profile assessment was performed
coded, showing those properties with high risks of undesired
effects in red (e.g., mutagenicity or poor intestinal absorption),
whereas a green color indicates drug-conform behavior. Virtually
exploring the potential toxicity associated, all the synthesized 7-
chloroquinoline derivatives represent low risks, with the exception
of compounds 17–20, in which the introduction of the formyl
group as fragment in the structure induces a negative effect over
the safety of these molecules. Even though, the fragments and
topology of both reference compounds present potential risk as
well (Table S2, Supplementary material).
Besides, the in vitro unspecific cytotoxicity of all these quino-
line derivatives was simultaneously evaluated on NCTC-929 fibro-
blasts (Experimental procedures are detailed in the Supplementary
material). It was specially noticed that compounds previously de-
fined as cytotoxic on J774 murine macrophages (3, 7 and 8), did
not show such an obvious effect on NCTC-929 fibroblasts and
HepG2.8 Moreover, these compounds also achieved remarkable
selectivity indexes on epimastigotes (SI >5) (Table 1). This different
cytotoxicity could occur as a result of a higher drug intake by mac-
rophages (phagocytic cell line) compared with that of fibroblasts
and hepatocytes (both non-phagocytic cell lines).30 Moreover, sev-
eral studies reviewed in31 lead to the idea that the process of
autophagy observed in mammalian cells, and usually involved in
survival pathways, can also act as a non-apoptotic mechanism of
cell death. In fact, the toxicity of chloroquine on both mouse mac-
rophages and L-strain fibroblasts by inducing autophagy has been
studied in detail, being the toxic effect of the antimalarial drug
more uniform for the first mammalian cell line,32,33 what also ex-
plains the differences registered in the toxicity caused by our chlo-
roquine derivatives on NCTC-929 fibroblasts (clone of strain L).
likeness parameters. According to this analysis, compounds 1–16
revealed promising values when compared with both reference
drugs. Nevertheless, compounds 17–22 proved to be the less
drug-like structures among the quinoline derivatives synthesized,
and
a-mercaptoacetic acid with ratios 1:2.5:2.5 respectively, in
dry acetonitrile (reflux, 12 h) to get solid products, which can be
filtered and recrystallized in ethanol from the reaction mixture
(Scheme 1).
All 7-chloro-4-amino(oxy)quinoline derivatives 1–22 were
purified by column chromatography and obtained as stable pow-
dered substances, which were fully characterized and their chem-
ical purity corroborated by the analysis of spectroscopic methods
(i.e., IR, 1H NMR, 13C NMR and GC–MS), and agree with previous
published data.8,16
The 22 synthesized quinolines have been distributed in two
groups according to their chemical structure, mainly based on
the chemical nature of the C-4 substituent attached to the

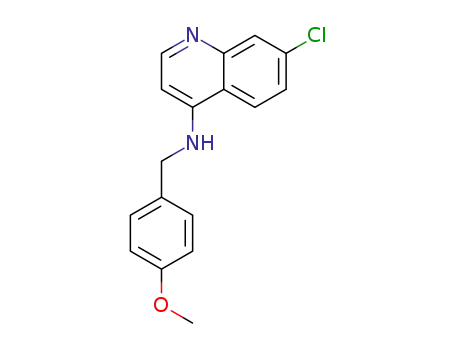

quinoline nucleus. Group 1 includes the simple 4-N-benzyl-
amino-7-chloroquinolines 1–4 and the 7-chloroquinoline-1,
3-thiazolidin-4-one conjugates 5–16 (Fig. 1). Group 2 includes 4-
aryloxyquinoline derivatives (compounds 17–22) (Fig. 2).
Molecular design was achieved based on structure–activity
relationships (SAR) studies and virtual screening analysis reported
in literature. The pre-screening for hit identification from libraries
of synthetic compounds was based on the oral bioavailability esti-
mated using the Lipinski’s rules concepts,17 through the analysis of
the rule of five by employing the free online software Molinspira-
molecular properties, including the number of hydrogen donors
(nNHOH), number of hydrogen acceptors (nNO), number of rotable
bonds (nRB), molecular weight (MW) and lipophilicity (LogP) were
calculated. The topological surface area (TPSA),18 another recog-
nized parameter for the membrane permeation and prerequisite
for the bioavailability, was also considered (Table S1, Supplemen-
tary material).
According to this analysis, the vast majority of the quinoline
derivatives did not present any violation for the oral activity
and therefore, are expected to display high bioavailability. Only
two 4-aryloxyquinolines (compounds 21 and 22) violated Lipin-
ski’s rule exhibiting LogP values higher than 5.0. In fact, the LogP
values estimated for compounds 1–20 (LogP 3.3–4.6) predict an
auspicious entry into the parasitic cell by penetrating across bio-
logical membranes.19,20 However, the antichagasic reference
drugs (nifurtimox and benznidazole) are considerably more
hydrophilic molecules exhibiting LogP below 1.0 value. Likewise,
the TPSA parameters obtained show acceptable values (24.919–
74.960 Å2) (Table S1, Supplementary material), signifying TPSA
values lower than 142 Å2 a good membrane permeability and
lower than 60 Å2 a good penetration through the blood–brain
barrier.21
Scheme 1. Reagents and conditions: (a) DCQ (4,7-dichloroquinoline) (2.5 mmol),
N-benzylamine or phenols (5.10 mmol), and K2CO3 (5.01 mmol), DMF, 140 °C, 10 h;
(b) DCQ (20.2 mmol), NH2(CH2)nCH2NH2 (101 mmol), 80 °C for 1 h, 140–150 °C for
6–7 h; (c) diamines based on DCQ, ArCHO, HSCH2COOH, PhMe, reflux for 1 h.
