Entropy- and Hydrolytic-Driven Positional Switching of
Macrocycle between Imine- and Hydrogen-Bonding Stations
in Rotaxane-Based Molecular Shuttles
Takeshi Umehara,† Hidetoshi Kawai,*,†,‡ Kenshu Fujiwara,† and Takanori Suzuki†
Department of Chemistry, Faculty of Science, Hokkaido UniVersity, Sapporo 060-0810, Japan,
and PRESTO, Japan Science and Technology Agency (JST), 4-1-8 Honcho, Kawaguchi,
Saitama 332-0012, Japan
Received June 26, 2008; E-mail: kawai@sci.hokudai.ac.jp
Abstract: The construction and switching properties of a novel class of molecular shuttles 1 with imine-
bonding stations for macrocyclic diamine parts are reported. Studies on dithioacetalized [2]rotaxane 4 with
two hydrogen-bonding stations and a masked imine-bonding station showed that protonation of a macrocycle

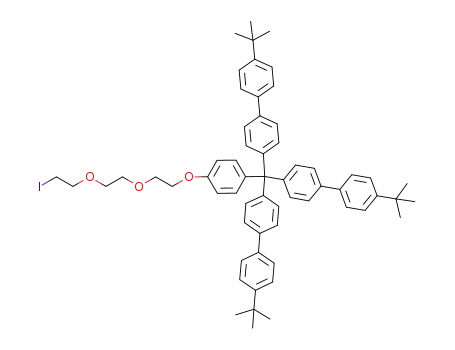

increases the shuttling barrier due to hydrogen-bond formation between NH3+ groups and the TEG-stations.
Hydrolysis of the imine-bonds of the imine-bridged molecular shuttles 1b,c with TEG-stations could
exclusively give the [2]rotaxane 2b,c·2H2+, with the macrocycle hydrogen-bonded with the TEG-station.
In contrast, 1a without TEG-stations gave an equilibrated mixture of 1a, monoimine 3a·H+, and 2a·2H2+
under similar acidic hydrolytic conditions. The equilibrium between 1b,c and 2b,c·2H2+ to control the position
of the macrocycle could be successfully switched to either side by applying acidic hydrolytic or dehydrating
conditions. Furthermore, the equilibrium was largely biased to [2]rotaxane 2b,c·2H2+ under acidic hydrolytic
conditions and could be reversed in favor of bis-imine 1b,c just by heating. This is a successful example
of a molecular shuttle exhibiting entropy-driven translational isomerism with remarkable positional
discrimination. An examination of thermodynamic parameters showed that imine-bond hydrolyses and the
formation of hydrogen bonds between the macrocycle and the station are thermodynamically matched
processes, because both processes are enthalpically favored and accompanied by a loss of entropy. The
combination of imine-bonding and hydrogen-bonding station in a rotaxane system is the key to realizing
the clear entropy-driven positional switching of the macrocycle observed.
bond-formation,9,10 as well as the kind of macrocycle motion
that is regulated.11
Introduction
Imine bonds12 can be equilibrated with an amine-aldehyde
pair under hydrolytic conditions. The use of this dynamic
covalent bond13 to link components seems to be promising as
a mean to control the on/off switching of subunit mobility or
to change the position of the macrocycle on the axle in
rotaxanes. We recently reported in a preliminary communication
the successful preparation of a novel type of rotaxane 1a by
threading an axle molecule bearing two formyl groups into a
macrocyclic diamine, cross-linking to form imine bonds,14 and
attaching bulky end-groups.10 In that report, [2]rotaxane 2a was
successfully generated in equilibrium with 1a in an acidic
medium (Scheme 1), from which 1a could be completely
regenerated under dehydrating conditions. Thus, we demon-
strated the translocation of a macrocycle by the application of
H2O/H+. In addition, the independent mobility of the axle and
macrocycle components in the rotaxane can be regulated on
the basis of the controllable reversibility of the dynamic covalent
bond.
The incorporation of multiple recognition motifs into mo-
lecular structures is a prerequisite for controlling component
and substrate motion in future generations of molecular-level
machines.1 Stimuli-responsive molecular shuttles2-11 are prom-
ising candidates, where translocation of the macrocycle between
different sites (“stations”) on an axle of rotaxanes is controlled
by an external trigger, such as a redox process,3 pH change,4
ion exchange,5 polarity,6 light,7 temperature,8 or covalent
