Rearrangement of 2-(2-aryl-2-oxoethyl)-1,2-dihydropyrido-[2,3-b]pyrazin- 3(4H)-ones [5]

Full text of DOI:10.1007/s10593-007-0208-5

Chemistry of Heterocyclic Compounds, Vol. 43, No. 10, 2007
REARRANGEMENT OF 2-(2-ARYL-
2-OXOETHYL)-1,2-DIHYDROPYRIDO-
[2,3-b]PYRAZIN-3(4H)-ONES
N. N. Kolos and L. Yu. Kovalenko
Keywords: 2-(2-aryl-2-oxoethyl)-1,2-dihydropyrido[2,3-b]pyrazin-3(4H)-one, (2Z)-2-(3-arylpyrido-
[2,3-b]pyrazin-2-ylidene]acetic acids, rearrangement.
In previous work [1], we established that 3-(n-R-phenacyl)quinoxalin-2-ones undergo thermal
rearrangement to give 3-aryl-2-methylidenecarboxyquinoxalines upon heating in acetic acid. However, the
yields of the acids were low and 2-(2-aryl-2-oxoethyl)-1,2-dihydropyrido[2,3-b]pyrazin-3(4H)-ones (1) remain
unchanged under these conditions [2].
In the present work, we have shown that heating pyrido[2,3-b]pyrazin-3-ones 1a-c in DMF (or in
1-butanol) in the presence of molecular sulfur leads to acids 2a-c, which were isolated in satisfactory and high
yields. The rearrangement could not be carried out in the absence of sulfur. Our experimental data showed that
the yield of pyridopyrazines 2 is greater when the phenacyl fragment has an electron-withdrawing substituent.
Only pyrazine 1c undergoes rearrangement upon heating above the melting point though the yield of product 2c
does not exceed 20% under these conditions.
O
Ar
O
Ar
H
N
H
N
H
N
COOH
S
HOH
SH
SH
Ar
DMF
BuOH
N
N
H
O
N
N
H
O
N
NH2
or
O
A
1a-c
O
OH
H
N
COOH
SH
COOH
SH
H
NH2
N
–H2S
–
HOH
N
N
N
N
Ar
N
N
Ar
Ar
2a-c
B
1, 2 a Ar = Ph, b Ar = C6H4OMe-4, c Ar = C6H4Cl-4
__________________________________________________________________________________________
V. N. Karazin Kharkiv National University, Kharkiv 61077, Ukraine; e-mail: kolos@univer.kharkov.ua.
Translated from Khimiya Geterotsiklicheskikh Soedinenii, No. 10, pp. 1588-1590, October, 2007. Original
article submitted June 6, 2007.
0009-3122/07/4310-1351©2007 Springer Science+Business Media, Inc.
1351

The first reaction step is presumably thiolation of the methylene group of the phenacyl moiety, which
occurs through an enolic form [3, 4]. Opening of the amide bond by the action of traces of moisture leads to
intermediate A, which undergoes cyclization to give a 1,5-benzodiazepine derivative. A subsequent
transformation of the seven-membered ring involves formation of intermediate B, which cyclizes to give
2-(3-arylpyrido[2,3-b]pyrazin-2-ylidene)acetic acids 2.
The configuration of 2a-c was established by 1H NMR spectroscopy using NOE. Saturation of the signal
of the vinylidene proton at 6.80 ppm in 2b leads to a response on the ortho protons of the aryl group, indicating
Z-configuration of the rearrangement product.
1
The H NMR spectra were taken on a Varian Mercury VX-200 spectrometer at 200 MHz in DMSO-d6
using TMS as the internal standard.
Pyrazinones 1b,c were obtained by the reaction of the corresponding β-aroylacrylic acids with
2,3-diaminopyridine by a procedure described in our previous work [2].
2-[2-(p-Methoxyphenyl)-2-oxoethyl]-1,2-dihydropyrido[2,3-b]pyrazin-3(4H)-one (1b). Yield 55%;
1
mp 210-211°C (ethanol). H NMR spectrum, δ, ppm (J, Hz): 3.48 (1H, d, J = 6.8, HA(CH2)); 3.75 (1H, dd,
J = 17.8, HB(CH2)); 3.83 (3H, s, OCH3); 4.39 (1H, t, J = 4.7, CH); 6.17 (1H, s, NH); 6.78 (1H, m, H-7); 6.97
(2H, d, J = 8.5, m-Ar); 7.03 (1H, d, J = 7.5, H-8); 7.54 (1H, d, J = 7.5, H-6); 7.96 (2H, d, J = 8.5, o-Ar); 10.75
(1H, s, NH). Found, %: N 14.43. C16H15N3O2. Calculated, %: N, 14.13.
2-[2-(p-Chlorophenyl)-2-oxoethyl]-1,2-dihydropyrido[2,3-b]pyrazin-3(4H)-one (1c). Yield 62%;
1
mp 239-240°C (ethanol). H NMR spectrum, δ, ppm (J, Hz): 3.39 (1H, d, J = 6.6, HA(CH2)); 3.55 (1H, dd,
J = 17.8, HB(CH2)); 4.42 (1H, t, J = 4.8, CH); 6.17 (1H, s, NH); 6.76 (1H, m, H-7); 6.96 (1H, d, J = 7.6, H-8);
7.54 (1H, d, J = 7.6, H-6); 7.58 (2H, d, J = 8.5, m-Ar); 7.99 (2H, d, J = 8.5, o-Ar); 10.74 (1H, s, NH). Found, %:
N 14.00. C15H12ClN3O2. Calculated, %: N 13.93.
Synthesis of Pyrido[2,3-b]pyrazines 2a,c (General Method). A solution of pyrido-2-pyrazinone 1
(1 mmol) and sulfur (0.064 g, 2 mmol) in DMF (10 ml) was heated at reflux for 6 h and cooled. The precipitate
formed was filtered off, washed with hot ethanol, and dried in the air.
(2Z)-2-(3-Phenylpyrido[2,3-b]pyrazin-2(1H)-ylidene)acetic Acid (2a). Yield 72%; mp 257-258°C
1
(ethanol). H NMR spectrum, δ, ppm (J, Hz): 6.85 (1H, s, =CH); 7.15 (1H, m, H-7); 7.56 (2H, m, m-C6H5,
p-C6H5); 7.99 (3H, d, J = 7.6, o-C6H5 + H-8); 8.08 (1H, d, J = 6.4, H-6); 12.45 (2H, s, NH, OH). Found, %:
N 15.48. C15H11N3O2. Calculated, %: N 15.84.
(2Z)-2-(3-p-Methoxyphenylpyrido[2,3-b]pyrazin-2(1H)-ylidene)acetic Acid (2b). Yield 45%;
1
mp 269-270°C (ethanol). H NMR spectrum, δ, ppm (J, Hz): 3.82 (3H, s, OCH3); 6.80 (1H, s, =CH); 7.05 (2H,
d, J = 8.6, m-Ar); 7.13 (1H, m, H-7); 7.91 (1H, d, J = 7.2, H-8); 7.97 (2H, d, J = 8.4, o-Ar); 8.04 (1H, d, J = 5.9,
H-6); 11.87 (1H, s, NH); 13.30 (1H, s, OH). Found, %: N 14.00. C16H13N3O2. Calculated, %: N 14.23.

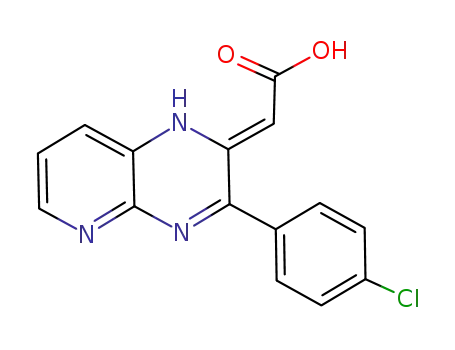

(2Z)-2-(3-p-Chlorophenylpyrido[2,3-b]pyrazin-2(1H)-ylidene)acetic
Acid
(2c). Yield
89%;
1
mp 307-308°C (ethanol). H NMR spectrum, δ, ppm (J, Hz): 6.83 (1H, s, =CH); 7.58 (2H, d, J = 8.9, m-Ar);
7.16 (1H, m, H-7); 8.01 (3H, d, J = 8.9, H-8+o-Ar); 8.09 (1H, d, J = 5.8, H-6); 12.44 (1H, s, NH); 13.37 (1H, s,
OH). Found, %: N 13.85. C15H10ClN3O2. Calculated, %: N 14.02.
REFERENCES
1.
2.
3.
4.
N. N. Kolos, T. V. Beryozkina, and V. D. Orlov, Zh. Org. Farm. Khim., 1, Nos. 1-2, 31 (2003).
N. Kolos, T. Beryozkina, and V. Orlov, Heterocycles, 60, 2115 (2003).
R. Tang, P. Zhong, and Q. Lin, Synthesis, 85 (2007).
N. P. Peet, R. J. Sander, R. J. Barbeech, and A. P. Vinogradoff, J. Heterocycl. Chem., 23, 129 (1986).
