Synthesis and Characterization of Iron(II) Complexes with Tetradentate
Diiminodiphosphine or Diaminodiphosphine Ligands as Precatalysts for
the Hydrogenation of Acetophenone
Christine Sui-Seng, F. Nipa Haque, Alen Hadzovic, Anna-Maria Pu¨tz, Valerie Reuss, Nils Meyer,
Alan J. Lough, Marco Zimmer-De Iuliis, and Robert H. Morris*
Department of Chemistry, UniVersity of Toronto, 80 St. George St., Toronto,
Ontario M5S 3H6, Canada
Received August 9, 2008
Six complexes of the type trans-[Fe(NCMe)2(P-N-N-P)]X2 (X ) BF4-, B{Arf}4-) (Arf ) 3,5-(CF3)2C6H3) containing
diiminodiphosphine ligands and the complexes trans-[Fe(NCMe)2(P-NH-NH-P)][BF4]2 with a diaminodiphosphine
ligand were obtained by the reaction of Fe(II) salts with achiral and chiral P-N-N-P or P-NH-NH-P ligands,
respectively, in acetonitrile at ambient temperature. The P-N-N-P ligands are derived from reaction of ortho-
diphenylphosphinobenzaldehyde with the diamines 1,2-ethylenediamine, 1,3-propylenediamine, (S,S)-1,2-disopropyl-
1,2-diaminoethane, and (R,R)-1,2-diphenyl-1,2-diaminoethane. Some complexes could also be obtained for the
first time in a one-pot template synthesis under mild reaction conditions. Single crystal X-ray diffraction studies of
the complexes revealed a trans distorted octahedral structure around the iron. The iPr or Ph substituents on the
diamine were found to be axial in the five-membered Fe-N-CHR-CHR-N- ring of the chiral P-N-N-P
ligands. A steric clash between the imine hydrogen and the substituent probably determines this stereochemistry.
The diaminodiphosphine complex has longer Fe-N and Fe-P bonds than the analogous diiminodiphosphine
complex. The new iron compounds were used as precatalysts for the hydrogenation of acetophenone. The complexes
without axial substituents on the diamine had moderate catalytic activity while that with axial Ph substituents had
low activity but fair (61%) enantioselectivity for the asymmetric hydrogenation of acetophenone. The fact that the
diaminodiphosphine complex has a slightly higher activity than the corresponding diiminodiphosphine complex suggests
that hydrogenation of the imine groups in the P-N-N-P ligand may be important for catalyst activation. Evidence
is provided, including the first density-functional theory calculations on iron-catalyzed outer-sphere ketone
hydrogenation, that the mechanism is similar to that of ruthenium analogues.
Introduction
for olefin and aryl azide hydrogenation4-6 and the achiral
iron catalyst recently reported by Casey et al. for ketone and
imine hydrogenation.7 There are also reports of iron-
catalyzed hydrogenation of alkynes8 and transfer hydrogena-
tion of ketones and olefins7-11 and enantioselective hydros-
Replacing homogeneous catalysts based on platinum group
metals with those based on first row transition metals is an
attractive challenge. Iron-based catalysts would be desirable
owing to their potentially lower cost, toxicity, and environ-
mental impact.1 Until recently the known homogeneous
hydrogenation catalysts of iron had low activity relative to
platinum metal catalysts,2,3 apart from Chirik’s iron catalysts
(4) Bart, S. C.; Lobkovsky, E.; Chirik, P. J. J. Am. Chem. Soc. 2004,
126, 13794–13807.
(5) Bart, S. C.; Hawrelak, E. J.; Lobkovsky, E.; Chirik, P. J. Organome-
tallics 2005, 24, 5518–5527.
* To whom correspondence should be addressed. E-mail: rmorris@
chem.utoronto.ca. Phone: 1-416-978-6962. Fax: 1-416-978-6962.
(1) Enthaler, S.; Junge, K.; Beller, M. Angew. Chem., Int. Ed. 2008, 47,
3317–3321.
(6) Bart, S. C.; Lobkovsky, E.; Bill, E.; Chirik, P. J. J. Am. Chem. Soc.
2006, 128, 5302–5303.
(7) Casey, C. P.; Guan, H. J. Am. Chem. Soc. 2007, 129, 5816–5817.
(8) Bianchini, C.; Meli, A.; Peruzzini, M.; Frediani, P.; Bohanna, C.;
Esteruelas, M. A.; Oro, L. A. Organometallics 1992, 11, 138–145.
(9) Bianchini, C.; Farnetti, E.; Graziani, M.; Peruzzini, M.; Polo, A.
Organometallics 1993, 12, 3753–3761.
(2) Bolm, C.; Legros, J.; Le Paih, J.; Zani, L. Chem. ReV. 2004, 104,
6217–6254.
(3) Marko, L.; Palagyi, J. Trans. Met. Chem. 1983, 8, 207–209.
10.1021/ic801518h CCC: $40.75  2009 American Chemical Society
Inorganic Chemistry, Vol. 48, No. 2, 2009 735
Published on Web 11/26/2008

Sui-Seng et al.
Chart 1
to study the effect of the ligand structure on the activity and
selectivity of iron-based asymmetric hydrogenation catalysts.
Thus, the achiral tetradentate diiminodiphosphine ligands
ethP2N2 ({PPh2(2-C6H4)CH)N(CH2)2N)CH(2-C6H4)PPh2})
and prP2N2 ({PPh2(2-C6H4)CH)N(CH2)3N)CH(2-C6H4)-
PPh2}) are employed, as well as the diaminodiphosphine
ligand ethP2(NH)2 ({PPh2(2-C6H4)CH2NHCH2-}2), to probe
the need for the NH groups in ketone hydrogenation. Gao
et al. reported the synthesis of the dicationic complexes
[Fe(NCMe)2(ethP2N2)][ClO4]2 and [Fe(NCMe)2(ethP2(NH)2)]-
[ClO4]2 but did not report the crystal structures or catalytic
activity of these.19 We also use for the first time the chiral
tetradentate diiminodiphosphine ligands {(S,S)-(iPr-ethP2N2)}
((S,S)-{PPh2(2-C6H4)CH)NCH(iPr)-}2) and {(R,R)-(ph-
ilylation of ketones12 under relatively mild conditions. Gao
and co-workers reported that mixing [Et3NH][Fe3H(CO)11]
with chiral diaminodiphosphine P-NH-NH-P ligands
produced moderately active and selective catalysts for the
asymmetric transfer hydrogenation of ketones.13
Gao et al. showed previously that the ruthenium complex
trans-RuCl2{(R,R)-cyP2(NH)2)} with the diaminodiphosphine
ligand ((R,R)-{PPh2(2-C6H4)CH2NHC6H10NHCH2(2-C6-
H4)PPh2} (Chart 1) was a precatalyst for the active and
selective asymmetric transfer hydrogenation of ketones using
basic isopropanol as the source of the hydrogen.14 The
presence of the NH is important since the analogous complex
trans-RuCl2{(R,R)-cyP2N2} containing the diiminodiphos-
phine ligand was found to be much less active. Rauten-
strauch’s group and our group reported that related ruthenium
complexes with the tetradentate P-NH-NH-P ligands
20
ethP2N2)} ((R,R)-{PPh2(2-C6H4)CH)NCH(Ph)-}2 in the
synthesis of iron complexes to probe the effect of substitu-
tions at the diamine on the catalyst activity and enantiose-
lectivity.
Results and Discussion
Synthesis and Characterization. The reaction of FeCl2
or [Fe(H2O)6][BF4]2 with the neutral ligands ethP2N2, prP2N2,
(S,S)-iPr-ethP2N2, and (R,R)-Ph-ethP2N2 in acetonitrile gave

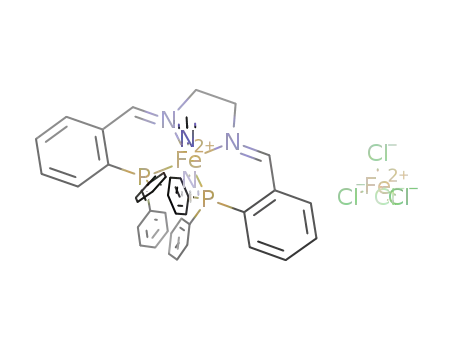

the corresponding iron complexes [Fe(NCMe)2(ethP2N2)]-
[FeCl4] (1), [Fe(NCMe)2(ethP2N2)][BF4]2 (2), [Fe(NC-
Me)2(prP2N2)][BF4]2 (4), [Fe(NCMe)2{(S,S)-(iPr-ethP2-
N2)}][BF4]2 (5), and [Fe(NCMe)2{(R,R)-(ph-ethP2N2)}][BF4]2
(6) in good yields (Scheme 1, Method A and B). We also
found that a new, in situ one-pot template synthesis of
2-(diphenylphosphino)benzaldehyde and ethylenediamine or
1,3-diaminopropane with [Fe(H2O)6][BF4]2 in the presence
of Na2SO4 produces compounds 2 and 4 in 68% and 84%
yield, respectively (Scheme 1, Method C). A different
template synthesis of related iron complexes was reported
recently.21 Further reaction of 2 with the sodium salt
NaB{Arf}4 (Arf ) 3,5-(CF3)2C6H3) produces the complex
[Fe(ethP2N2)(NCMe)2][B{Arf}4]2 (3).
ethP2(NH)2
({PPh2(2-C6H4)CH2NH(CH2)2NHCH2(2-
C6H4)PPh2}) and (R,R)-cyP2(NH)2 (Chart 1) are very active
precatalysts for the H2-hydrogenation of ketones.15-17
Motivated by these results, we were wondering whether
similar well-defined iron complexes could be used as
precatalysts for the hydrogenation of ketones. We recently
reported that the complex trans-[Fe(NCMe)2{(R,R)-cyP2N2}]-
[BF4]2 (Chart 1) containing a diiminodiphosphine ligand
((R,R)-{PPh2(2-C6H4)CH)NC6H10N)CH(2-C6H4)PPh2} was
active and somewhat enantioselective for H2 hydrogenation
of acetophenone to 1-phenylethanol with 27% e.e. while
related complexes with carbonyl or isonitrile ligands (Chart
1) were very active and moderately selective for the
asymmetric transfer hydrogenation of ketones.18
Complexes 1-6 were isolated in 64-93% yields as red-
orange solids that are air stable for a few hours (both in the
solid-state and in solution). They dissolve in CH2Cl2, MeCN,
and DMSO to give a red-orange solution, but they are poorly
soluble in CHCl3, 2-propanol and insoluble in diethyl ether,
THF, and hydrocarbons. Their spectroscopic properties are
similar to those of the perchlorate salts reported by Gao et
al.,19 displaying the characteristic singlet in the 31P{1H} NMR
spectrum at about 51-54 ppm and a singlet for the imine
The present contribution reports the syntheses and char-
acterization of related well-defined Fe complexes where the
diamine precursor to the diiminodiphosphine ligand is varied
(10) Enthaler, S.; Erre, G.; Tse, M. K.; Junge, K.; Beller, M. Tetrahedron
Lett. 2006, 47, 8095–8099.
(11) Enthaler, S.; Hagemann, B.; Erre, G.; Junge, K.; Beller, M. Chem.
Asian J. 2006, 1, 598–604.
(12) Shaikh, N. S.; Enthaler, S.; Junge, K.; Beller, M. Angew. Chem., Int.
Ed. 2008, 47, 2497–2501.
1
resonance at about 8.9-9.4 ppm in the H NMR spectrum.
The structures of compounds 1, 2, 4, 5, and 6 in the solid
state were also established by X-ray crystallography (Figure
1). Bond distances and angles are shown in Table 1.
Compound 2 crystallizes with three independent molecules
(13) Chen, J. S.; Chen, L. L.; Xing, Y.; Chen, G.; Shen, W. Y.; Dong,
Z. R.; Li, Y. Y.; Gao, J. X. Acta Chim. Sin. (Huaxue Xuebao) 2004,
62, 1745.
(14) Gao, J. X.; Ikariya, T.; Noyori, R. Organometallics 1996, 15, 1087–
1089.
(15) Rautenstrauch, V.; Hoang-Cong, X.; Churlaud, R.; Abdur-Rashid, K.;
Morris, R. H. Chem.sEur. J. 2003, 9, 4954–4967.
(16) Li, T.; Churlaud, R.; Lough, A. J.; Abdur-Rashid, K.; Morris, R. H.
Organometallics 2004, 23, 6239–6247.
(19) Gao, J. X.; Wan, H. L.; Wong, W. K.; Tse, M. C.; Wong, W. T.
Polyhedron 1996, 15, 1241–1251.
(20) Gao, J.-X.; Zhang, H.; Yi, X.-D.; Xu, P.-P.; Tang, C.-L.; Wan, H.-L.;
Tsai, K.-R.; Ikariya, T. Chirality 2000, 12, 383–388.
(21) Mikhailine, A. A.; Kim, E.; Dingels, C.; Lough, A. J.; Morris, R. H.
Inorg. Chem. 2008, 47, 6587–6589.
(17) Clapham, S. E.; Hadzovic, A.; Morris, R. H. Coord. Chem. ReV. 2004,
248, 2201–2237.
(18) Sui-Seng, C.; Freutel, F.; Lough, A. J.; Morris, R. H. Angew. Chem.,
Int. Ed. Engl. 2008, 47, 940–943.
736 Inorganic Chemistry, Vol. 48, No. 2, 2009

Achiral and Chiral Iron Complexes Containing P-N-N-P Ligands
Figure 1. Structures of complexes 2, 4, 5, and 6. Thermal ellipsoids are shown at 30% probability. The counter-ions, hydrogen atoms and solvent molecules
are omitted for clarity. Only one of the three independent molecules of compound 2 is shown.
Scheme 1. Preparation of the Fe(II) Complexes 1-6
in the asymmetric unit, but all bond distances and angles
are in a similar range, so only one molecule is discussed.
The complexes are distorted trans octahedral. The Fe-P
distances are between those observed for the low-spin iron(II)
complex cis-[Fe(CO)(NCMe)(PEt2CH2NMeCH2PEt2)(PMe2-
CH2PMe2)][BF4]2 (Fe-P 2.30-2.38 Å)22 and those observed
in the complexes trans-[FeH(NCMe)(PEt2CH2NMeCH2-
PEt2)(PMe2CH2PMe2)][BF4] (Fe-P 2.20-2.22 Å)22 and
trans-[Fe(H2)H(dppe)2][BPh4] (Fe-P 2.23-2.25 Å)23 while
the Fe-N(3) and Fe-N(4) distances to the MeCN ligands
Inorganic Chemistry, Vol. 48, No. 2, 2009 737

Sui-Seng et al.
Table 1. Selected Bond Distances (Å) and Angles (deg) for Complexes 1, 2, 4, 5, 6, and 7a
