Exemplifying Prediction of Preferred Coupling Partners in Developing
a Buchwald-Hartwig Coupling for the Synthesis of a c-Kit Inhibitor
Quanbing Wu, Xin Xiong, Yudong Cao, Lijuan He, and ZhongBo Fei
Org. Process Res. Dev., Just Accepted Manuscript • DOI: 10.1021/acs.oprd.8b00043 • Publication Date (Web): 28 Mar 2018
Downloaded from http://pubs.acs.org on March 28, 2018
Just Accepted
“Just Accepted” manuscripts have been peer-reviewed and accepted for publication. They are posted
online prior to technical editing, formatting for publication and author proofing. The American Chemical
Society provides “Just Accepted” as a service to the research community to expedite the dissemination
of scientific material as soon as possible after acceptance. “Just Accepted” manuscripts appear in
full in PDF format accompanied by an HTML abstract. “Just Accepted” manuscripts have been fully
peer reviewed, but should not be considered the official version of record. They are citable by the
Digital Object Identifier (DOI®). “Just Accepted” is an optional service offered to authors. Therefore,
the “Just Accepted” Web site may not include all articles that will be published in the journal. After
a manuscript is technically edited and formatted, it will be removed from the “Just Accepted” Web
site and published as an ASAP article. Note that technical editing may introduce minor changes
to the manuscript text and/or graphics which could affect content, and all legal disclaimers and
ethical guidelines that apply to the journal pertain. ACS cannot be held responsible for errors or
consequences arising from the use of information contained in these “Just Accepted” manuscripts.
is published by the American Chemical Society. 1155 Sixteenth Street N.W.,
Washington, DC 20036
Published by American Chemical Society. Copyright © American Chemical Society.
However, no copyright claim is made to original U.S. Government works, or works
produced by employees of any Commonwealth realm Crown government in the course
of their duties.

Page 1 of 16
Organic Process Research & Development
1
2
3
4
5
6
7
8
9
Exemplifying Prediction of Preferred Coupling
Partners in Developing a Buchwald-Hartwig
Coupling for the Synthesis of a c-Kit Inhibitor
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Quanbing Wu, Xin Xiong, Yudong Cao, Lijuan He, Zhongbo Fei*
†Chemical and Analytical Development, Suzhou Novartis Pharma Technology Co. Ltd,
Changshu, Jiangsu, China 215537
ABSTRACT
Two convergent syntheses for compound 1 are described applying the Buchwald-Hartwig
coupling as the key steps. This development work provides a direct comparison of the coupling
results from different coupling partners and illustrates that more efficiency can be achieved by
selecting the right coupling partners.
INTRODUCTION
Encoded from the KIT gene, tyrosine kinase protein (c-Kit) functions as the receptor for stem
cell factor.1 Binding of SCT to c-Kit leads to the release of histamine that triggers the
inflammatory response.2 Blocking c-Kit signaling pathway may be an effective therapeutic
method in treating the inflammatory disease.3 Compound 1 is identified as a c-Kit inhibitor.4
Novartis was interested in developing compound 1 for treating respiratory diseases, in particular,
ACS Paragon Plus Environment
1

Organic Process Research & Development
Page 2 of 16
1
2
3
4
5
6
asthma. Developing an efficient synthesis for compound 1 was needed to supply drug substance
for preclinical and clinical studies.
7
8
9
The medicinal synthesis of compound 1 is shown in Scheme 1. The linear synthesis
sequentially incorporating aryl moieties and the piperidine ring prioritizes the chance for
accessing analogues in the course of drug discovery, but is not efficient for producing the finally
selected compound. We were keen on developing a convergent synthesis by employing the
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
5
Buchwald-Hartwig coupling to assemble two components of equal size6 as the key step, and
developing the synthesis into a scalable process. Here we report our results in achieving this
objective.
Scheme 1. The medicinal synthesis of 1
RESULTS AND DISCUSSION
Our first plan was to use pyrimidine 5 and arylbromide 9 for the coupling as shown in Scheme
2. The synthesis of pyrimidine 5 started with the Miyaura borylation7 of 2 to afford boronate
ester 3 in a 90% yield. The oily product was purified by high vacuum distillation to greater than
97% purity by HPLC area. The Suzuki-Miyaura coupling of 3 and 4-bromopyrimidine 4 using
Pd(PPh3)4 as catalyst produced the desired pyrimidine 5 but also yielded ca 8% of impurity 6.
The impurity was likely formed from a side pathway in the catalytic cycle, involving an aryl-aryl
ACS Paragon Plus Environment
2

Page 3 of 16
Organic Process Research & Development
1
2
3
4
5
6
7
8
9
exchange between the aryl group (from 3) bound to the palladium center and the phenyl group of
the phosphine ligand in the palladium (II) complex8, 9 followed by reductive elimination. We
found that the impurity could be removed upon precipitation of 5 as a hydrochloride salt by
adding aqueous hydrochloric acid to the reaction solution, and hence pursued no further efforts
to change the catalyst for avoiding the impurity formation in view of tight project timeline.
Scheme 2. The first generation synthesis
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
The arylbromide component 9 was synthesized via alkylation of piperidine derivative 8, thus
setting us the stage for the key Buchwald-Hartwig coupling. We screened different bases,
catalysts, ligands and solvents for obtaining a clean reaction profile, and the results are
summarized in Table 1. Using potassium tertꢀbutoxide as base complicated the reaction due to
transesterification, and only afforded a trace amount of the coupled product (entry 1). Under
conditions without such complication, the reaction generally suffered from low conversions. The
ligand selection was found crucial; Xantphos was identified as the best ligand for the conversion
and selected for further optimization (entry 2).
ACS Paragon Plus Environment
3

Organic Process Research & Development
Page 4 of 16
1
2
3
4
Table 1. Conditions and conversion for C-N coupling of 5 and 9 a
5
6
7
8
9
Entry
solvent
toluene
toluene
dioxane
toluene
toluene
toluene
toluene
toluene
toluene
base
ligand
catalyst
conversion
messy
33%
1
2
3
4
5
6
7
8
9
KOtBu
Cs2CO3
Cs2CO3
K3PO4
Cs2CO3
Cs2CO3
Cs2CO3
Cs2CO3
Cs2CO3
Xantphos
Xantphos
Xantphos
Xantphos
BINAP
Pd(OAc)2
Pd(OAc)2
Pd(OAc)2
Pd(OAc)2
Pd(OAc)2
Pd(OAc)2
Pd2(dba)3
Pd(OAc)2
Pd(OAc)2
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
24%
14%
0%
DPPE
0%
Xantphos
Xantphos
Xantphos c
33%
b
33%
100%
a. Reaction conditions in general: 1 equiv of 5, 2 equiv of 9, 3 mol % of catalyst, 3 mol % of
ligand, 0.42 M substrate 5 in solvent at 85 °C for 12 h
b. Additional 3 mol % Pd(OAc)2 was loaded when the reaction did not proceed
c. Additional 3 mol % Xantphos was added at two-hour intervals, and total 27 mol % Xantphos
was added
The reaction under selected conditions always stopped at around 33% conversion. To improve
the conversion, we charged additional 3 mol % catalyst when the reaction stopped, but it did not
give any higher conversion (entry 8). Intriguingly, when charging additional 3 mol % ligand
instead, we obtained some new but partial conversions. The complete conversion was eventually
achieved by charging 3 mol % Xantphos every two hours and up to eight times in total (entry 9).
This ligand effect was also observed with conditions of entry 3. But charging all 27 mol %
Xantphos upfront did not give complete conversion either. One observation was the conversion
of Xantphos to its mono phosphine oxide under reaction conditions based on LC-MS analysis,
which might be the reason for the beneficial effect of charging additional Xantphos in the course
ACS Paragon Plus Environment
4

Page 5 of 16
Organic Process Research & Development
1
2
3
4
5
6
7
8
of the reaction. Hydrolysis of 10 with aqueous LiOH solution provided target 1. By applying
this synthesis, we successfully produced over one hundred grams of drug substance for
preclinical studies.
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
This synthesis is convergent but suffers from a sluggish Buchwald-Hartwig coupling that was
only driven to completion by repeatedly charging expensive Xantphos. It is feasible for
supplying a few hundred grams of drug substance but not practical for kilogram scales. A more
efficient and scalable synthesis was needed to supply multi-kilogram drug substance for clinical
studies. The sluggish coupling reaction was presumably due to unfavorable C–N-bond forming
reductive elimination of complex I in the catalytic cycle (Figure 1); ligand oxidation thus
prevailed. Mechanistic studies by Hartwig et al 11, 12 suggested that the key reductive elimination
step is generally favored by increasing nucleophilicity of the amido and increasing
electrophilicity of the aryl group in the formed palladium-amido aryl complex. In comparison,
the coupling partners with switched polarity (Arylchloride 12 and aniline 15 in Scheme 3) would
form a palladium-amido aryl complex II with higher nucleophilicity of the amido group and
higher electrophilicity of the aryl group therefore favor the reductive elimination to produce the
same product. With this hypothesis we developed the second generation synthesis.
Figure 1. Two types of complex for C–N-bond forming reductive elimination
ACS Paragon Plus Environment
5

Organic Process Research & Development
Page 6 of 16
1
2
3
4
5
6
7
8
9

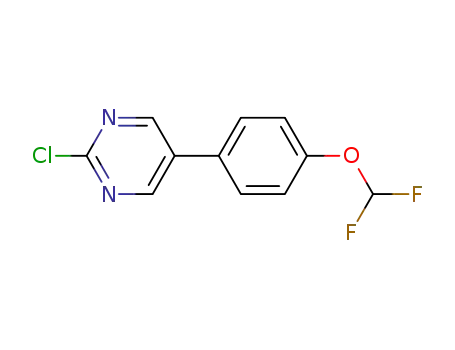

Aryl chloride 12 was prepared via Suzuki-Miyaura coupling of bromopyrimidine 11 with the
boronate ester 30 following the same conditions as for preparing 5 (Scheme 3). Comparably this
reaction was more rapid and did not give the phosphine aryl exchange impurity analogous to 6.
To simplify operational steps for scaling up, the two coupling steps were telescoped from 2; thus
boronate ester 3 in DME solution was filtered to remove inorganic salts after the borylation
reaction, and was used for the second coupling step by adding the catalyst and aqueous sodium
carbonate solution. The streamlined process was scaled up to produce 9 kg of 12. Aniline 15 was
synthesized by a two-step process starting with alkylation of 8 with para-nitrobenzyl bromide 13,
followed by reduction of the nitro group. To avoid the potential reduction at the benzylic position
of 14 under hydrogenation conditions, iron powder was selected for reduction of the nitro group,
which gave a very clean reaction, even though portion-wise charging of iron powder was needed
to avoid heat accumulation in the reaction.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Scheme 3. The second generation synthesis
Consistent with the prediction, the new partners 12 and 15 underwent smooth coupling with
complete conversion within two hours under catalysis of Pd(OAc)2/BINAP. DMF was selected
as the reaction solvent because it allowed direct product precipitation upon addition of aqueous
ammonium chloride solution. About 6% of by-product 16 was formed based on LC-MS analysis
ACS Paragon Plus Environment
6

Page 7 of 16
Organic Process Research & Development
1
2
3
4
5
6
7
8
9
from the coupling of 12 with the desired product 10, and was removed in the workup process to
give 10 in 69% isolated yield. The process requires neither expensive Xantphos nor repetitive
addition of the ligand as required for using partners 5 and 9, and was demonstrated on a 100-
gram scale for the reproducibility.14 Without catalyst, the reaction did not proceed under
otherwise identical conditions, ruling out the possibility of a direct SNAr pathway.15 Palladium
residue was controlled at this point of synthesis. Treatment of product 10 from the coupling with
10 wt % of Smopex® 234 in hot toluene followed by crystallization in the same solvent reduced
the palladium level to 25 ppm, which was sufficient to control the palladium level below 10 ppm
in the drug substance after subject to the final hydrolysis process. Hydrolysis of 10 following the
same conditions in the first generation synthesis afforded target 1.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
CONCLUSION
In summary, we have developed two convergent syntheses for c-kit inhibitor 1 to deliver the
required amounts supporting the drug development. The first generation synthesis was scaled up
to over one hundred grams, but suffered from a sluggish Buchwald-Hartwig reaction between 5
and 9, and was not suitable for multi-kilogram scale. This led us to explore the second generation
synthesis by employing 12 and 15 as the coupling partners. Consistent with the general principle
described by Hartwig,13 partners 12 and 15 form a palladium-amido aryl complex with a higher
nucleophilicity of amido and higher electrophilicity of the aryl group comparing to that with 5
and 9, hence favor an efficient coupling reaction. To the best of our knowledge, this is the first
report of applying the principle for solving C–N-bond forming problem in target-oriented
synthesis. The study exemplifies a direction for retrosynthetic selection of coupling partners for
the Buchwald-Hartwig reaction in synthesis design.
ACS Paragon Plus Environment
7

Organic Process Research & Development
Page 8 of 16
1
2
3
4
EXPERIMENTAL SECTION
5
6
7
8
NMR spectra were recorded on a Bruker 400 MHz spectrometer. HPLC analysis was
performed using Agilent 1200, and the results were described as area %. LC-MS analysis was
performed using Agilent 1200 and 6130 Quadrupole system.
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
2-(4-(difluoromethoxy)phenyl)-4,4,5,5-tetramethyl-1,3,2-dioxaborolane (3).
To a 2-L three-necked round-bottom flask was charged with bis(pinacolato)diborane (112.0 g,
0.44 mol, 1.1 eq), KOAc (83 g, 0.85 mol, 2.1 eq), 2 (90.0 g, 0.40 mol, 1.0 eq), Pd(PPh3)4 (13.9 g,
12.0 mmol, 0.03 eq), and 1,2-dimethoxyethane (400 mL) under nitrogen atmosphere. The hazy
solution was heated to internal temperature at 88±3 °C and stirred at this temperature. The
reaction was monitored by HPLC until completion (~ 6 h). Then the reaction suspension was
cooled to 10±3 °C and filtered. The filter cake was washed with 1, 2-dimethoxyethane (280 mL).
The combined filtrate was concentrated. The concentrated material was subject to high vacuum
1
distillation to give the product as oil (98.0 g, 0.36 mol, 90% yield). H NMR (400 MHz, DMSO-
d6): δ 1.28 (s, 12 H), 7.17 (d, J = 8.53 Hz, 2 H), 7.72(d, J = 8.53 Hz, 2 H), 7.30 (t, J = 72 Hz, 1
H); 13C NMR (100 MHz, DMSO-d6): δ 1`53.6, 136.5, 117.7, 116.1 (t, J = 256 Hz), 83.8, 24.6.
5-(4-(difluoromethoxy)phenyl)pyrimidin-2-amine (5).
To a 1-L three-necked round bottom flask was charged 3 (51.7 g, 0.19 mol, 1.0 eq), 4 (43.8 g,
0.25 mol, 1.3 eq), sodium carbonate in H2O (1 M, 230 mL, 1.2 eq), Pd(PPh3)4 (8.6 g, 7.4 mmol,
0.039 eq) and THF (400 mL). The resulting yellow hazy solution was bubbled with nitrogen for
30 min, then heated to 83±3 °C and stirred for 16 h. After cooling to RT, to the solution was very
slowly added aqueous HCl (3M, 300 mL) and stirred for 1 h. The precipitants were filtered. The
filter cake was suspended in water ( 400 mL) followed by slow addition of aqueous NaOH until
pH reached 7~8. The suspension was filtered. The filter cake was dried to give 5 (31.1 g, 0.13
ACS Paragon Plus Environment
8

Page 9 of 16
Organic Process Research & Development
1
2
3
4
1
mol, 68.4% yield) as an off-white solid: mp 151.5~153.1 °C; H NMR (400 MHz, DMSO-d6): δ
5
6
13
6.87 (br s, 2 H), 7.00 - 7.45 (m, 3 H), 7.65 (br d, J = 8.56 Hz, 2 H), 8.32 - 9.03 (m, 2 H); C
7
8
9
NMR (100 MHz, DMSO-d6): δ 162.8, 155.8, 150.0, 132.2, 126.6, 121.1, 119.3, 118.7, 116.1,
113.6; MS m/z = 238.0721 (M + H+).
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Methyl 1-(4-bromobenzyl)piperidine-4-carboxylate (9).
To a suspension of 7 (25.0 g, 0.100 mol, 1.0 eq), K2CO3 (27.7 g, 0.20 mol, 2.0 eq) in acetone
(310 mL) was added 8 (14.3 g, 0.10 mol, 1.0 eq) dropwise with stirring, and the internal
temperature was kept below 20 °C. After addition, the suspension was warmed to 25 °C and
stirred for 2 hr. The suspension was filtered and the filter cake was washed with acetone (10 mL
x 2). The filtrate was concentrated under vacuum at 40 °C to give a crude product as light yellow
oil. Heptane (110 mL) was added to the crude product and heated to 45 °C and stirred for 15
min. The resulting solution was cooled to -20 °C. The precipitates were filtered and dried to give
1
the product (23.1 g, 0.074 mmol, 74.0% yield) as a white solid: mp 40.0~40.7 °C; H NMR (400
MHz, CDCl3): δ 1.64 - 1.80 (m, 2 H), 1.82 - 1.92 (m, 2 H), 2.00 (td, J = 11.37, 2.08 Hz, 2 H),
2.28 (tt, J = 11.13, 4.10 Hz, 1 H), 2.80 (br. d., J = 11.62 Hz, 2 H), 3.37 - 3.49 (m, 2 H), 3.58 -
13
3.75 (m, 3 H), 7.18 (d, J = 8.31 Hz, 2 H), 7.41 (d, J = 8.31 Hz, 2 H); C NMR (100 MHz,
CDCl3): δ 175.5, 137.1, 131.1, 130.5, 120.5, 62.3, 52.6, 51.4, 40.9, 28.1; MS m/z = 312.0576 (M
+ H+) .
Methyl 1-(4-((5-(4-(difluoromethoxy)phenyl)pyrimidin-2-yl)amino)benzyl)piperidine-4-
carboxylate (10).
To a 250-mL flask was added 9 (39.5 g, 126.5 mmol, 1.99 eq), Pd(OAc)2 (425.9 mg, 1.90
mmol, 0.03 eq), Xantphos (1.1 g, 1.90 mmol, 0.03 eq), Cs2CO3 (41.2 g, 126.5 mmol, 1.99 eq)
and toluene (150 mL). The hazy solution was bubbled with nitrogen gas while stirring for 10 min
ACS Paragon Plus Environment
9

Organic Process Research & Development
Page 10 of 16
1
2
3
4
5
6
7
8
9
and then heated to 85 °C. The color of the reaction solution turned from yellow to dark brown.
Substrate 5 (15.1 g, 63.7 mmol, 1.0 eq) was added to the hazy solution and stirred at 85±3 °C.
Two hours later, additional Xantphos (1.1 g, 1.9 mmol, 0.03 eq) was added at every two-hour
interval under nitrogen protection for 8 times in total until completion of the conversion. The
reaction was cooled and filtered. The filtrate was concentrated and dissolved in THF (300 mL).
The THF solution was washed with saturated NH4Cl (200 mL). The organic phase was
concentrated until a 20 mL volume, to which was slowly added ethyl acetate (200 mL). The
precipitants were filtered and dried to give the product (13.5 g, 28.8 mmol, 45.2% yield) as a
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
1
white solid: mp 166.3~166.4 °C; H NMR (400 MHz, DMSO-d6): δ 1.55 (m, 2 H), 1.78 (d, J =
12 Hz, 2 H), 1.95 (t, J = 12 Hz, 2 H ), 2.29 (m, 1 H), 2.74 (br. s., 2 H), 3.37 (br. s., 2 H), 3.58 (s,
3 H), 7.19 (d, J = 8.53 Hz, 2 H), 7.27 (d, J = 12 Hz, 2 H), 7.29 (t, J = 148 Hz, 1 H), 7.77 (d, J =
13
8.78 Hz, 2 H), 7.72 (d, J = 8.53 Hz, 2 H), 8.81(s, 2 H), 9.77 (s, 1 H); C NMR (100 MHz,
DMSO-d6): δ 174.9, 159.3, 155.7, 150.4, 139.1, 131.9, 131.4, 129.1, 127.3, 123.1, 119.4, 118.8,
116.3 (t, J = 256 Hz), 62.0, 52.2, 51.4, 40.3, 28.0; MS m/z = 469.2044 (M + H+).
1-(4-((5-(4-(difluoromethoxy)phenyl)pyrimidin-2-yl)amino)benzyl)piperidine-4-
carboxylic acid (1).
A 2000-mL round-bottom flask was charged with 10 (213.0 g, 455 mmol, 1.0 eq), LiOH·
H2O (76.4 g, 1.82 mol, 4.0 eq), THF (760 mL), methanol (500 mL) and water (254 mL) at room
temperature. The reaction suspension was stirred at room temperature and monitored by HPLC
until completion (~6 h). The reaction solution was concentrated and diluted with water (800 mL).
The suspension was neutralized with 2 M HCl at 20 °C until pH = 6.3, stirred for 2 h and filtered.
The filter cake was dried under vacuum at 80 °C overnight to give 1 (186 g, 0.41 mol, 90.0 %
yield) as a white solid: mp 254.1–257.1°C; 1H NMR (400 MHz, DMSO-d6): δ 1.54 (m, 2H), 1.78
ACS Paragon Plus Environment
10

Page 11 of 16
Organic Process Research & Development
1
2
3
4
5
6
(d, J = 12 Hz, 2 H), 1.95 (t, J = 12 Hz, 2 H), 2.18 (m, 1 H), 2.75 (br. s., 2 H), 3.37 (br. s., 2 H),
7.20 (d, J = 8.53 Hz, 2 H), 7.28 (d, J = 12 Hz 2 H), 7.30 (t, J = 148 Hz 1 H), 7.77 (d, J = 8.78 Hz,
7
8
13
2 H), 7.72 (d, J = 8.53 Hz, 2 H), 8.81(s, 2 H), 9.77 (s, 1 H); C NMR (100 MHz, DMSO-d6): δ
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
176.2, 159.3, 155.7, 150.4, 139.1, 131.9, 131.4, 129.1, 127.3, 123.1, 119.4, 118.8, 116.4 (t, J =
257 Hz), 62.0, 52.3, 40.2, 28.1; MS m/z=455.1866 (M + H+).
2-chloro-5-(4-(difluoromethoxy)phenyl)pyrimidine (12).
To a reactor was charged with bis(pinacolato)diborane (10.52 kg, 41.43 mol, 1.1 eq), KOAc
(7.76 kg, 79.07 mol, 2.1 eq), 2 (8.40 kg, 37.66 mol, 1.0 eq), Pd(PPh3)4 (1.3 kg, 1.13 mol, 0.03
eq), and 1, 2-dimethoxyethane (30.0 kg) under nitrogen atmosphere. The hazy solution was
heated to the internal temperature at 88±3 °C and stirred at this temperature. The reaction was
monitored by HPLC until completion (~ 6 h). Then the reaction suspension was cooled to 10±3
°C and filtered. The filter cake was washed with 1, 2-dimethoxyethane (10.0 kg). The combined
organic layer containing 3 was carried to the next step without further purification.
To a reactor was charged crude 3 solution from the previous step, 11 (8.74 kg, 45.18 mol, 1.2
eq), H2O (41.4 kg), Na2CO3(4.39 kg, 41.40 mol, 1.1 eq) and Pd(PPh3)4 (1.30 kg, 1.13 mol, 0.03
eq) under nitrogen atmosphere. The resulting solution was heated to the internal temperature at
88±3°C and stirred at this temperature. The reaction was monitored by HPLC until completion
(~7 h). The reaction solution was concentrated under vacuum to afford a yellow suspension. The
suspension was filtered and washed with water (30 kg) to afford a crude product. The crude
product was then recrystallized in methanol (60 kg) to afford 12 (9.00 kg, 35.07 mol, 93.0%
yield for two steps) as a white solid: mp 172.3–175.6 °C; 1H NMR (400 MHz, CDCl3): δ 6.59 (t,
13
1 H), 7.29 (d, J = 8.53 Hz, 2 H), 7.57 (d, J = 8.53 Hz, 2 H), 8.81 (t, J = 72 Hz, 2 H); C NMR
ACS Paragon Plus Environment
11

Organic Process Research & Development
Page 12 of 16
1
2
3
4
5
6
(100 MHz, CDCl3): δ 160.5, 157.4, 132.2, 130.2, 128.6, 120.8, 115.6 (t, J = 259 Hz); MS m/z =
257.0271 (M + H+).
7
8
9
Methyl 1-(4-nitrobenzyl)piperidine-4-carboxylate (14).
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
A 1-L three-necked round-bottom flask was charged with 8 (31 g, 0.22 mol, 1.1 eq), acetone
(400 mL), K2CO3 (55 g, 0.40 mol, 2.0 eq), and 13 (43 g, 0.20 mol, 1.0 eq). The reaction solution
was stirred at room temperature and monitored by HPLC. After completion (~ 2 h), the reaction
was filtered and washed with acetone (100 mL). The filtrate was concentrated under vacuum to
1
give 14 as an oil (55 g, 0.20 mol, 99% yield). H NMR (400 MHz, CDCl3): δ 1.75 (t, J =10.42
Hz, 2 H), 1.84 (d, J = 3.51 Hz, 1 H), 1.88 (d, J = 3.51Hz, 1 H), 2.05 (td, J = 11.29, 2.51 Hz, 2 H),
2.29 (m, 1 H), 2.78 (d, J = 11.54 Hz, 2 H), 3.54 (s, 2 H), 3.65 (s, 3 H), 7.47 (d, J = 8.78 Hz, 2
H), 8.12 (d, J = 8.78 Hz, 2 H); 13C NMR (100 MHz, CDCl3): δ 175.5, 146.8, 129.3, 123.5, 62.3,
53.0, 51.7, 40.8, 28.3; MS m/z = 279.1327 (M + H+).
Methyl 1-(4-aminobenzyl)piperidine-4-carboxylate (15).
To a 1-L three-necked round-bottom flask was charged a solution of 14 (55 g, 0.20 mol, 1.0 eq)
in methanol (500 mL) and aqueous HCl (5 M, 48 mL). The solution was heated to 60 °C, to
which was added iron powder (100 µm) (39 g, 0.70 mol, 3.5 eq) in 4 equal portions at 5 minute
intervals. The reaction was monitored by HPLC until completion (~3 h). The reaction was cooled
to room temperature, filtered, and washed with methanol (200 mL). The filtrate was concentrated
to a residue, which was partitioned between aqueous Na2CO3 solution (1 M, 300 mL) and IPAc
(600 mL). The organic layer was washed with water (300 mL X 3) and concentrated to give 15
1
(42 g, 0.17 mol, 85% yield) as a waxy solid: mp 40.5–44.6°C; H NMR (400 MHz, DMSO-d6):
δ 1.51 (dd, J = 12.30, 2.76 Hz, 2 H), 1.78 (br. s., 1 H), 1.76 (d, J = 10.54 Hz, 1 H), 1.90 (d, J =
1.76 Hz, 2 H), 2.26 (m, 1 H), 2.71 (d, J = 11.80 Hz, 2 H), 3.24 (s, 2 H), 3.58 (s, 3H), 6.48 (d, J =
ACS Paragon Plus Environment
12

Page 13 of 16
Organic Process Research & Development
1
2
3
4
13
8.28 Hz, 2 H), 6.89 (d, J = 8.53 Hz, 2 H); C NMR (100 MHz, CDCl3): δ 175.8, 145.5, 130.4,
5
6
128.1, 115.0, 62.9, 52.8, 51.7, 41.3, 28.4; MS m/z = 249.1577 (M + H+).
7
8
9
Methyl 1-(4-((5-(4-(difluoromethoxy)phenyl)pyrimidin-2-yl)amino)benzyl)piperidine-4-
carboxylate (10).
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
A 2-L three-necked round-bottom flask was charged with 15 (183 g, 0.74 mol, 2.0 eq),
Pd(OAc)2 (2.48 g, 11.1 mmol, 0.03 eq), Cs2CO3 ( 240 g, 0.74 mol, 2.0 eq), and DMF (1000 mL).
The reaction hazy solution was heated to the internal temperature at 70±3 °C in a 10 min period
and then BINAP (11.3 g, 18.2 mmol, 0.049 eq) was added. After 20 min, to the reaction hazy
solution was added 12 (95.0 g, 0.37 mol, 1.0 eq). The reaction was stirred at 70±3 °C and
monitored until completion (~1.5 h). The reaction hazy solution was cooled to RT, filtered and
washed with DMF (100 mL). The filtrate was cooled to 10±3°C. To the solution was slowly
added a half-saturated NH4Cl solution (1.1 L) while the internal temperature was kept below 30
°C. The obtained suspension was agitated for 30 min. The suspension was filtered, washed with
water (100 mL) and toluene (600 mL), and dried under vacuum at 60 °C to afford 10 (120 g,
0.256 mol, 69.2 % yield).
Removal of palladium residue in 10.
To a 5-L three-necked round-bottom flask was added 10 (120 g, 800 ppm Pd level), Smopex®
234 (12 g) and toluene (2.4 L). The suspension was heated to reflux for 2 h and slowly cooled to
60±3°C, followed by hot filtration. The filtrate was distilled under vacuum until recovery of
1200 mL toluene. The concentrated solution was stirred at 10±3 °C for 2 h, followed by
filtration. The filter cake was washed with toluene (100 mL) and dried under vacuum at 60 °C
overnight to afford 10 (91 g, 21 ppm Pd level, 76 % yield).
ACS Paragon Plus Environment
13

Organic Process Research & Development
Page 14 of 16
1
2
3
4
AUTHOR INFORMATION
5
6
Corresponding Author
7
8
9
*zhongbo.fei@novartis.com
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
ABBREVIATIONS
DME, dimethoxyethane; RT, room temperature; IPAc, iso-propyl acetate; THF,
tetrahydrofuran; DMF, dimethylformamide.
REFERENCES
(1) Zsebo, K. M.; Williams, D. A.; Geissler, E. N.; Broudy, V. C.; Martin, F. H.; Atkins, H. L.;
Hsu, R. Y.; Birkett, N. C.; Okino, K. H.; Murdock, D. C.; Jacobsen, F. W.; Langley, K. E.; Smith,
K. A.; Takeishi, T.; Cattanach, B. M.; Galli, S. J.; Suggs, S.V. Cell 1990, 63, 213.
(2) Reber, L.; Silva, C. A.; Frossard, N. Eur. J. Pharmacol. 2006, 533, 327.
(3) Jensen, B. M.; Metcalfe, D. D.; Gilfillan, A. M. Inflammation Allergy: Drug Targets 2007,
6, 57.
(4) Molteni, V.; Li, X.; Liu, X.; Chianelli, D.; Nabakka, J., Loren, J.; You, S. WO
2009/026276.
(5) Louie, J.; Hartwig, J. F. Tetrahedron Lett. 1995, 36, 3609.
(6) Guram, A. S.; Rennels, R. A.; Buchwald, S. L. Angew. Chem. 1995, 107, 1456; Angew.
Chem. Int. Ed. 1995, 34, 1348.
(7) Ishiyama, T.; Murata, M.; Miyaura, N. J. Org. Chem. 1995, 60, 7508.
(8) Kong, K. C.; Cheng, C. H. J. Am. Chem. Soc. 1991, 113, 6313.
(9) O’Keefe, D. F.; Dannock, M. C.; Marcuccio S. M. Tetrahedron Lett. 1992, 33, 6679.
(10) Yin, J.; Zhao, M. M.; Huffman, M. A.; McNamara, J. M. Org. Lett. 2002, 4, 3481.
(11) Drive, M. S.; Hartwig, J. F. J. Am. Chem. Soc. 1997, 119, 8232.
ACS Paragon Plus Environment
14

Page 15 of 16
Organic Process Research & Development
1
2
3
4
5
6
(12) Hartwig, J. F. Angew. Chem. Int. Ed. 1998, 37, 2046.
(13) Hartwig, J. F. Nature 2008, 455, 314.
7
8
9
(14) Due to project status change, the production of this step was not executed.
(15) No other SNAr conditions were investigated.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
ACS Paragon Plus Environment
15

Organic Process Research & Development
Page 16 of 16
1
2
3
4
Table of Contents graphic
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
ACS Paragon Plus Environment
