Malaria-Infected Mice Cured by Dimeric Trioxane Sulfones
Journal of Medicinal Chemistry, 2009, Vol. 52, No. 4 1201
(m, 8H), 0.83-0.80 (m, 7H). 13C NMR (100 MHz, CDCl3) δ 146.8,
139.2, 128.3, 127.0, 103.4, 102.9, 89.5, 88.8, 81.3, 81.2, 73.9, 71.0,
62.2, 60.4, 58.9, 52.5, 52.1, 44.6, 44.1, 37.4, 36.6, 36.6, 34.5, 34.4,
31.2, 31.1, 30.7, 30.4, 26.2, 26.1, 24.8, 24.8, 21.1, 20.3, 20.1, 14.2,
13.3, 12.7. HRMS (FAB) m/z calcd for C41H60O11SNa (M + Na)+
783.3749, found 783.3707.
layer was dried with MgSO4, filtered, and concentrated in vacuo.
The crude product was purified by flash silica gel column
chromatography (50% EtOAc/hexanes) to yield dimeric sulfone
benzylic diethyl phosphate 4e (8.2 mg, 0.009 mmol, 37%) as an
amorphous white solid. [R]D24.1 +27.1° (c ) 0.06, CHCl3). IR (thin
film) 2925, 2854, 1699, 1653, 1558, 1541, 1521, 1507, 1457, 1375,
1270, 1036 cm-1. 1H NMR (400 MHz, CDCl3) δ 8.06-8.03 (d, J
) 8.0 Hz, 2H), 7.54-7.52 (d, J ) 8.0 Hz, 2H), 5.49 (s, 1H), 5.35
(s, 1H), 5.14-5.12 (d, J ) 8.0 Hz, 2H), 4.48-4.43 (m, 1H),
4.16-4.08 (m, 5H), 3.66-3.61 (dd, J1 ) 14 Hz, J2 ) 6.8 Hz,
1H), 3.39-3.34 (dd, J1 ) 14 Hz, J2 ) 6.8 Hz, 1H), 2.70-2.66 (m,
1H), 2,58-2.53 (m, 2H), 2.38-2.28 (m, 2H), 2.23-2.16 (m, 1H),
2.06-2.00 (m, 2H), 1.93-1.90 (m, 2H), 1.79-1.21 (m, 29H
including singlets for 3H each at 1.44 and 1.35), 0.96-0.95 (m,
8H), 0.85-0.82 (m, 6H). 13C NMR (100 MHz, CDCl3) δ 140.5,
138.0, 128.6, 127.7, 103.3, 102.9, 89.6, 88.9, 81.3, 81.2, 74.0, 70.9,
67.8, 67.7, 64.1, 64.1, 58.8, 57.2, 57.1, 52.6, 52.2, 44.6, 44.1, 37.5,
37.4, 36.7, 36.7, 34.4, 31.3, 30.7, 30.4, 29.7, 26.2, 26.1, 24.8, 24.8,
20.2, 20.1, 16.2, 16.1, 14.2, 13.2, 12.6. HRMS (ESI) m/z calcd for
C45H69O14PSNa (M + Na)+ 919.4038, found 919.3999.

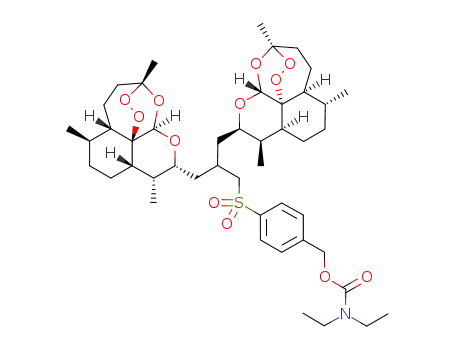

Synthesis of Dimeric Sulfone Benzylic Dimethyl Carbamate
4c. Dimeric sulfone benzylic alcohol 4b (20 mg, 0.026 mmol) was
dissolved in DMF (1 mL) under argon at room temperature. To
the solution was added dimethylcarbamyl chloride (5 µL, 0.052
mmol) and NaH (1.2 mg, 0.052 mmol) consecutively, and the
reaction was stirred at room temperature for 2 h. The reaction was
quenched with sat. aq sodium bicarbonate (1 mL) and extracted
with dichloromethane (2 × 2 mL). The organic layer was dried
with MgSO4, filtered, and concentrated in vacuo. The crude product
was purified by flash silica gel column chromatography (40%
EtOAc/hexanes) to yield dimeric sulfone benzylic dimethyl car-
bamate 4c (16 mg, 0.019 mmol, 73%) as an amorphous white solid.
[R]D23.4 +73.7° (c ) 0.12, CHCl3). IR (thin film) 2939, 2876, 1711,
1495, 1454, 1394, 1377, 1306, 1181, 1145, 1089, 1054, 1007, 878,
830, 767, 669 cm-1. 1H NMR (400 MHz, CDCl3) δ 8.02-8.00 (d,
J ) 8.0 Hz, 2H), 7.50-7.48 (d, J ) 8.0 Hz, 2H), 5.48 (s, 1H),
5.34 (s, 1H), 5.18 (s, 2H), 4.45-4.43 (m, 1H), 4.14-4.10 (m, 1H),
3.63-3.58 (dd, J1 ) 14.4 Hz, J2 ) 7.2 Hz, 1H), 3.38-3.32 (dd, J1
) 14.4 Hz, J2 ) 7.2 Hz, 1H), 2.95 (s, 6H), 2.71-2.65 (m, 1H),
2.58-2.50 (m, 2H), 2.39-2.26 (m, 2H), 2.24-2.15 (m, 1H),
2.09-1.97 (m, 2H), 1.95-1.84 (m, 3H), 1.82-1.16 (m, 22H
including singlets for 3H each at 1.43 and 1.35), 0.95-0.03 (m,
8H), 0.84-0.82 (m, 6H). 13C NMR (100 MHz, CDCl3) δ 174.7,
142.7, 139.9, 128.4, 127.9, 103.3, 102.9, 89.5, 88.8, 81.3, 81.2,
77.2, 74.0, 71.0, 66.0, 58.9, 56.6, 52.5, 52.1, 44.6, 44.1, 37.4, 37.3,
36.7, 36.6, 34.6, 34.4, 31.2, 31.1, 30.7, 30.4, 26.2, 26.1, 24.8, 24.8,
24.7, 24.7, 20.3, 20.1, 13.3, 12.7. HRMS (ESI) m/z calcd for
C44H65NO12SNa (M + Na)+ 854.4120, found 854.4100.
Synthesis of Dimeric Sulfone Hexanol 4f. Dimeric trioxane
bromide 3 (20 mg, 0.030 mmol) was dissolved in anhydrous
acetonitrile (2 mL) under argon at room temperature. To the solution
was added 6-mercapto-1-hexanol (9 µL, 0.066 mmol) and sodium
hydride (NaH, 2.0 mg, 0.066 mmol) consecutively, and the reaction
was stirred at room temperature for 2 h. The reaction was quenched
with sat. aq sodium bicarbonate (2 mL) and extracted with
dichloromethane (2 × 2 mL). The organic layer was dried with
MgSO4, filtered, and concentrated in vacuo. The crude product was
dissolved in freshly made dimethyldioxirane solution in acetone
(DMDO, 2 mL) at 0 °C and stirred for 1 h. The reaction was
concentrated the crude product was purified by flash silica gel
column chromatography (50% EtOAc/hexanes) to yield dimeric
sulfone hexanol 4f (12 mg, 0.015 mmol, 51%) as an amorphous
white solid. [R]D22.5 +58.1° (c ) 0.15, CHCl3). IR (thin film) 3520
(br), 2925, 2854, 1456, 1377, 1296, 1121, 1055, 1007, 878, 845
Synthesis of Dimeric Sulfone Benzylic Diethyl Carbamate
4d. Dimeric sulfone benzylic alcohol 4b (18 mg, 0.024 mmol) was
dissolved in DMF (1 mL) under argon at room temperature. To
the solution was added diethylcarbamyl chloride (4 µL, 0.026 mmol)
and NaH (0.62 mg, 0.026 mmol) consecutively, and the reaction
was stirred at room temperature for 2 h. The reaction was quenched
with sat. aq sodium bicarbonate (2 mL) and extracted with
dichloromethane (2 × 2 mL). The organic layer was dried with
MgSO4, filtered, and concentrated in vacuo. The crude product was
purified by flash silica gel column chromatography (30% EtOAc/
hexanes) to yield dimeric sulfone benzylic diethyl carbamate 4d
1
cm-1. H NMR (400 MHz, CDCl3) δ 5.41 (s, 1H), 5.34 (s, 1H),
4.46-4.42 (m, 1H), 4.20-4.16 (m, 1H), 3.65-3.62 (t, J ) 6.4 Hz,
2H), 3.49-3.42 (dd, J1 ) 14.2 Hz, J2 ) 7.2 Hz, 1H), 3.10-3.05
(m, 3H), 2.74-2.69 (m, 1H), 2.60-2.54 (m, 2H), 2.35-2.27 (m,
3H), 2.03-1.21 (m, 34H including singlets for 3H each at 1.40
and 1.25), 0.96-0.94 (m, 8H), 0.87-0.85 (m, 8H)). 13C NMR (100
MHz, CDCl3) δ 103.3, 102.9, 89.7, 88.8, 81.3, 81.2, 73.7, 70.3,
62.7, 55.7, 53.0, 52.6, 52.1, 44.5, 44.1, 37.5, 37.3, 36.7, 36.6, 34.6,
34.4, 32.3, 31.9, 31.6, 30.6, 30.3, 29.8, 29.7, 28.2, 26.2, 26.1, 25.1,
24.8, 24.8, 24.7, 24.7, 21.6, 20.3, 20.1, 13.2, 12.7. HRMS (ESI)
m/z calcd for C40H66O11SNa (M + Na)+ 777.4218, found 777.4211.
23.6
(15.5 mg, 0.018 mmol, 76%) as an amorphous white solid. [R]D
+41.6° (c ) 0.12, CHCl3). IR (thin film) 2924, 2853, 1703, 1457,
1377, 1313, 1274, 1168, 1146, 1089, 1053, 1007, 878, 825, 766
Cell Culture Conditions and Determination of IC50 Values.
HL-60, U-937, SK-MEL-5, UACC-62, and HeLa cell lines were
cultured in RPMI 1640 media supplemented with 10% fetal bovine
serum (FBS) and 1% penicillin/streptomycin. WT-MEF and
Hs888Lu cell lines were cultured in DMEM media supplemented
with 10% fetal bovine serum and 1% penicillin/streptomycin. All
cell lines were obtained from the American Type Culture Collection
(Manassas, VA), with the exception of the HL-60 line, which was
a generous gift from Professor Huimin Zhao (University of Illinois),
and were grown at 37 °C with CO2/air (5:95). 99 µL of cells in
media were plated in a 96-well plate. Adherent cell lines were
incubated at least 5 h to allow cells to attach to the plate. A volume
of 1 µL of a range of compound concentrations was added in to
the cells, and the plates were incubated for 72 h. Cell viability in
HL-60 and U-937 suspension cell lines were evaluated using the
CellTiter 96 AQueous nonradioactive cell proliferation assay (Prome-
ga, Inc.). The 3-(4,5-dimethylthiazol-2-yl)-5-(3-carboxymethox-
yphenyl)-2-(4-sulfophenyl)-2H-tetrazolium (MTS)/ phenazine meth-
osulfate (PMS) solution was added to the cells, and absorbance at
490 nm was measured in a Spectra Max Plus 384 plate reader
(Molecular Devices, Sunnyvale, CA) following dye development.
Biomass was quantitated in SK-MEL-5, UACC-62, HeLa, WT-
MEF, and Hs888Lu cells using the sulforhodamine B assay
(SRB).43 Briefly, the cells were fixed with 10% trichloroacetic acid
cm-1. H NMR (400 MHz, CDCl3) δ 8.03-8.01 (d, J ) 8 Hz,
1
2H), 7.49-7.47 (d, J ) 8 Hz, 2H), 5.48 (s, 1H), 5.34 (s, 1H), 5.19
(s, 2H), 4.47-4.44 (m, 1H), 4.16-4.12 (dd, J ) 4.4 Hz, 1H),
3.65-3.60 (dd, J1 ) 9.6 Hz, J2 ) 7.4 Hz, 1H), 3.38-3.33 (dd, J1
) 9.6 Hz, J2 ) 7.4 Hz, 1H), 3.35-3.31 (m, 4H), 2.71-2.67 (m,
1H), 2.58-2.53 (m, 2H), 2.37-2.27 (m, 2H), 2.22-2.17 (m, 1H),
2.05-1.99 (m, 2H), 1.92-1.82 (m, 2H), 1.79-1.73 (m, 4H),
1.65-1.18 (m, 19H including singlets for 3H each at 1.43 and 1.34),
1.15-1.12 (t, J ) 6.8 Hz, 6H), 0.96-0.94 (d, J ) 6.4 Hz, 8H),
0.84-0.82 (d, J ) 7.2 Hz, 6H). 13C NMR (100 MHz, CDCl3) δ
156.9, 142.9, 140.0, 128.4, 127.8, 103.3, 102.9, 89.5, 88.8, 81.3,
81.2, 73.9, 71.0, 65.7, 58.8, 52.6, 52.2, 44.6, 44.1, 37.4, 37.3, 36.7,
36.6, 34.6, 34.4, 31.3, 31.2, 31.2, 30.7, 30.4, 29.7, 26.2, 26.1, 24.8,
24.8, 24.7, 24.7, 20.2, 20.1, 13.2, 12.7. HRMS (ESI) m/z calcd for
C46H69NO12SNa (M + Na)+ 882.4433, found 882.4419.
Synthesis of Dimeric Sulfone Benzylic Diethyl Phosphate
4e. Dimeric sulfone benzylic alcohol 4b (20 mg, 0.026 mmol) was
dissolved in anhydrous dichloromethane (2 mL) under argon at
room temperature. To the solution was added diethyl chlorophos-
phate (19 µL, 0.13 mmol) and pyridine (11 µL, 0.13 mmol)
consecutively, and the reaction was stirred at room temperature
for 18 h. The reaction was quenched with sat. aq sodium bicarbonate
(2 mL) and extracted with dichloromethane (2 × 2 mL). The organic
